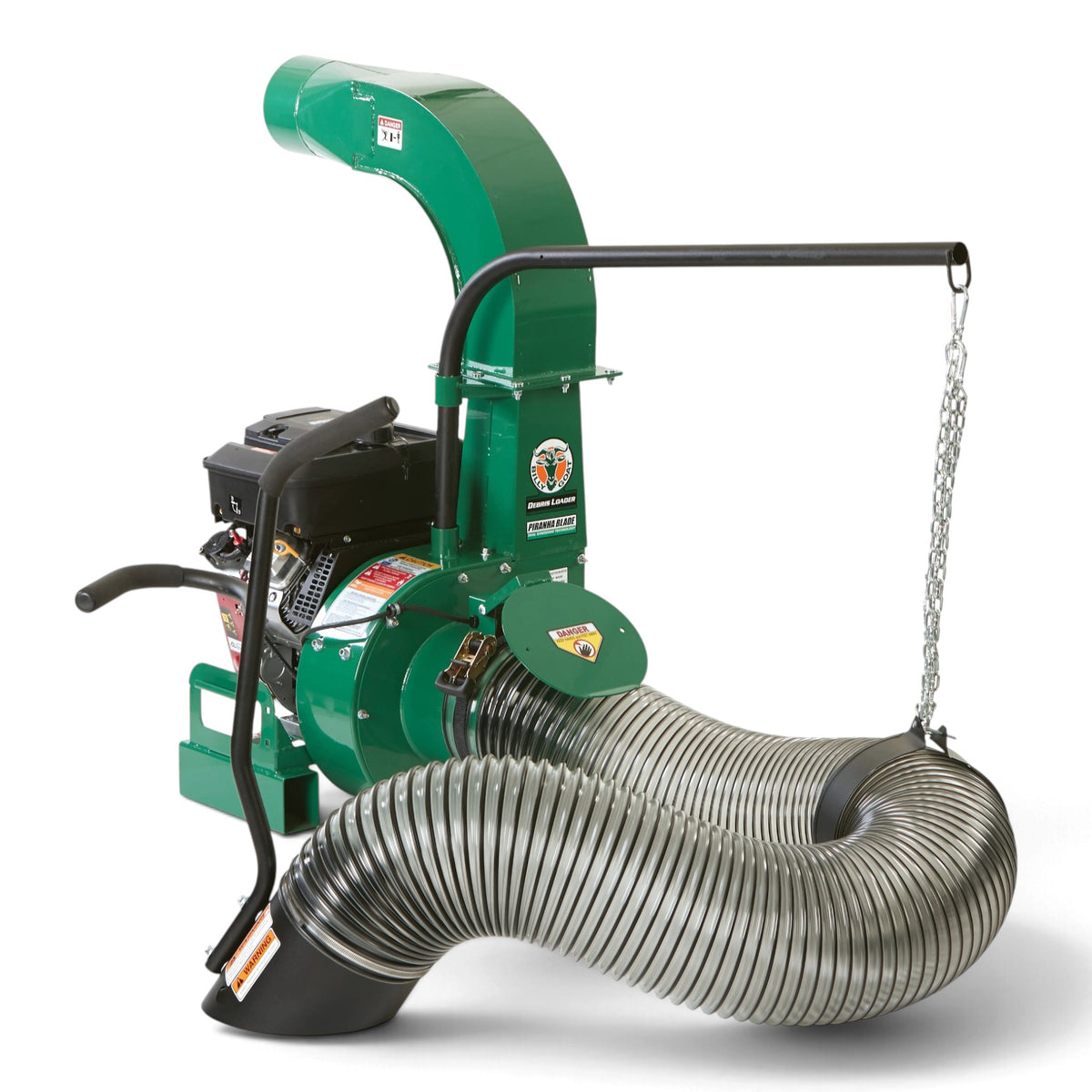

Billy Goat DL18 Debris Loader, Vanguard Engine, Pull and Electric Start, Dual Shredding System

The Billy Goat DL18 Debris Loader is a heavy-duty commercial truck loader designed for mid to large property managers, contractors, and mid-sized municipal cleanup operations. Available with pull-start or electric-start Vanguard engine configurations, the DL18 delivers 3,700 CFM (104.8 m³/min) of airflow and uses a dual shredding system with a 16 in (40.6 cm) diameter armor plate impeller and Piranha™ blade to reduce debris by up to 12:1. Its rugged discharge system and CustomFit™ features help operators configure the loader to their truck while maximizing trailer capacity across multi-property cleanup routes.

KEY FEATURES

• 3,700 CFM (104.8 M³/MIN) COMMERCIAL SUCTION: Both DL18 configurations deliver 3,700 CFM (104.8 m³/min) of airflow for high-volume leaf and debris collection. This commercial capacity makes the loader suitable for property managers, contractors, and municipal crews handling mid to large cleanup operations.

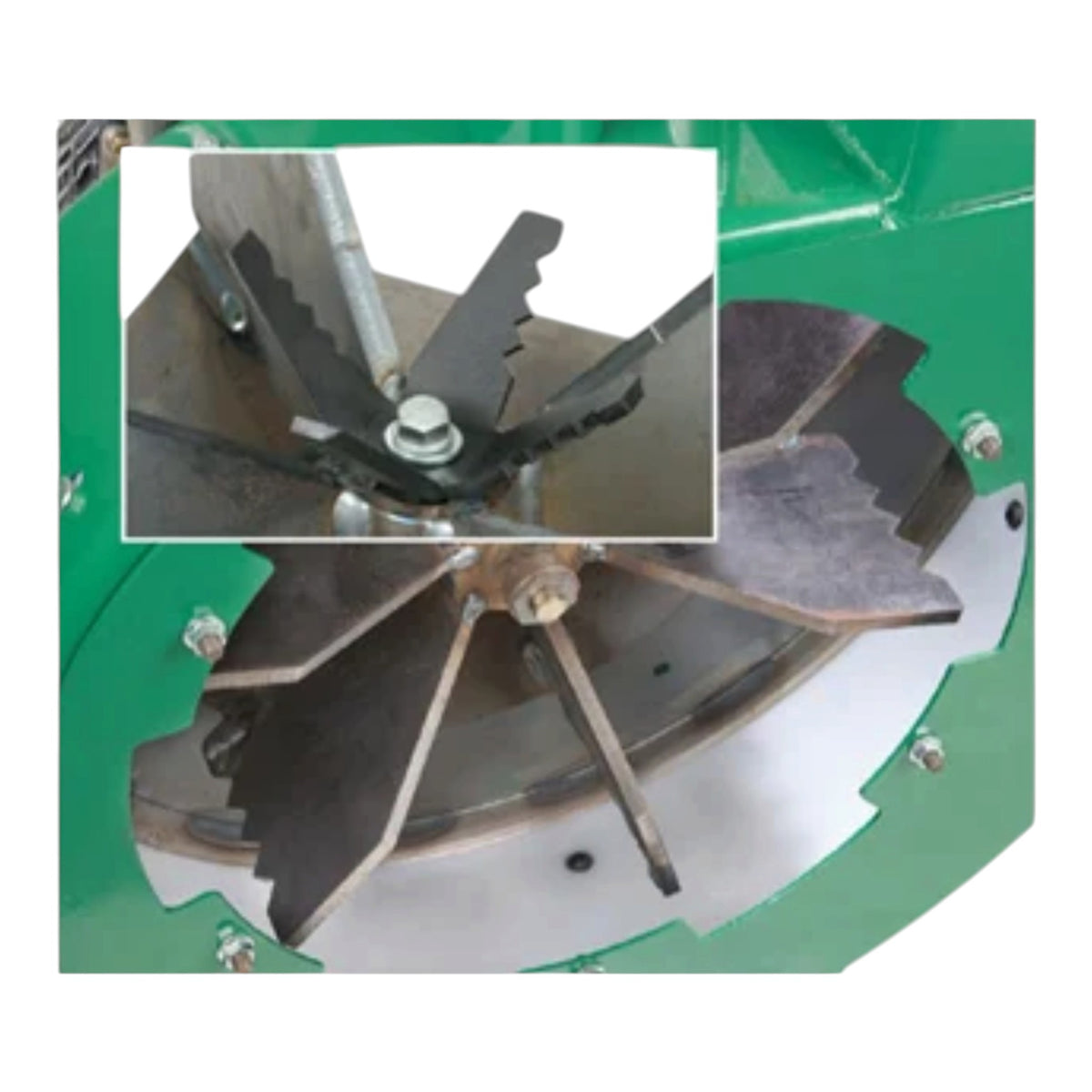

• DUAL SHREDDING SYSTEM WITH PIRANHA™ BLADE: The dual shredding system uses a Piranha™ blade with serrated cutting points for additional debris processing. Material can be reduced by up to 12:1, helping maximize truck or trailer capacity across multiple properties before unloading.
• 16 IN (40.6 CM) ARMOR PLATE IMPELLER: The heavy-duty 16 in (40.6 cm) diameter armor plate impeller is designed for demanding commercial debris loading. The impeller uses four blades and eight cutting points to process collected material before it is discharged into the truck or trailer.

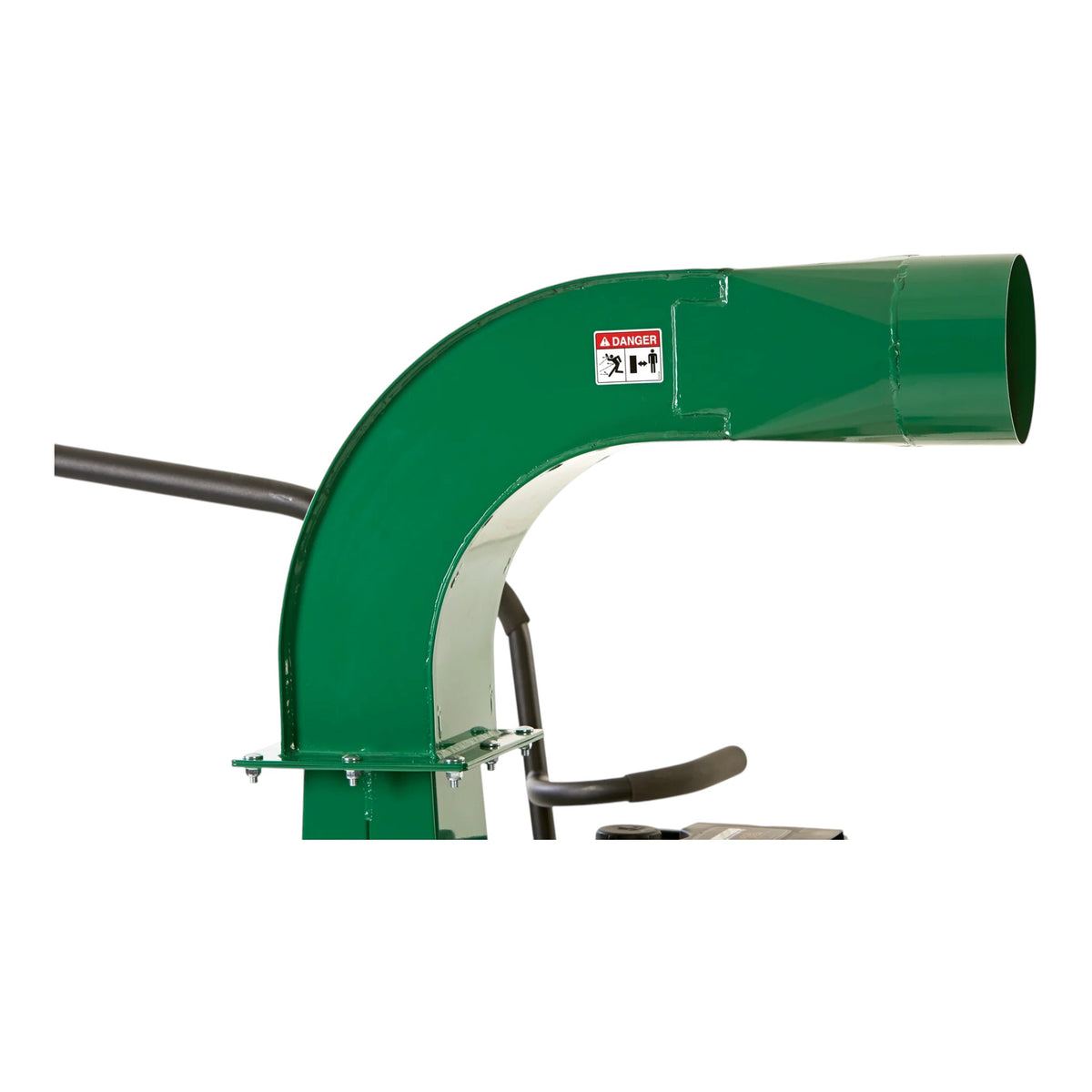

• SQUARE DISCHARGE ELBOW: The square discharge elbow is designed to provide increased durability, longer service life, and easier servicing. Its rugged construction supports the demanding operating conditions encountered during commercial and municipal leaf collection.
• UP TO 12:1 DEBRIS REDUCTION: Leaves and debris can be reduced by as much as 12:1 before entering the collection vehicle. Greater material reduction helps maximize available trailer capacity, allowing crews to service multiple properties before dumping while saving time and potentially reducing dump fees.
• PULL OR ELECTRIC START OPTIONS: The DL18 is available as the DL1802V with pull start or the DL1802VE with electric start. This gives operators the ability to select a starting configuration that best matches their equipment preferences and operating requirements.
• CUSTOMFIT™ CONFIGURATION: CustomFit™ features allow operators to customize the loader installation to their truck. Available mounting, vertical extension, discharge, and hitch accessories provide additional flexibility for different commercial vehicle and trailer arrangements.
• 10 IN × 10 FT (25 CM × 3 M) INTAKE HOSE: Both DL18 models use a 10 in (25 cm) diameter and 10 ft (3 m) long intake hose. The large-diameter hose provides practical reach and capacity for moving substantial piles of leaves and loose debris into the loader.
• HEAVY-DUTY COMMERCIAL DESIGN: The DL18 is designed for recurring commercial and municipal debris collection where rugged equipment and high productivity are required. Both configurations weigh 293 lb (133 kg) and share the same compact 31 in × 27 in × 48 in (79 cm × 69 cm × 122 cm) overall dimensions.

APPLICATIONS / USE CASES

• MID TO LARGE PROPERTY MANAGEMENT: The DL18 provides the airflow and debris reduction required for recurring cleanup across larger commercial, residential, and institutional properties. Its truck-loader configuration helps grounds crews move collected leaves directly into a compatible transport vehicle.
• COMMERCIAL LANDSCAPING CONTRACTORS: Professional contractors can use the DL18 for high-volume seasonal cleanup across multiple customer properties. Debris reduction of up to 12:1 helps maximize trailer capacity and reduce the frequency of disposal trips.
• MID-SIZED MUNICIPAL OPERATIONS: The DL18 is suited to municipal crews handling seasonal leaves and loose debris across streets, parks, public properties, and other maintained areas. Its 3,700 CFM (104.8 m³/min) airflow supports efficient collection during demanding cleanup periods.
• MULTI-PROPERTY CLEANUP ROUTES: The dual shredding system allows more processed debris to fit into the truck or trailer before unloading. This makes the DL18 particularly useful for contractors and property managers servicing several locations during the same route.
• HIGH-VOLUME LEAF COLLECTION: A 10 in (25 cm) diameter intake hose and 3,700 CFM (104.8 m³/min) airflow provide the capacity needed to move substantial quantities of leaves and loose landscape debris. This helps crews process large collection piles efficiently.
• TRUCK AND TRAILER LOADING: The DL18 is designed to process and transfer collected material directly into a compatible truck or trailer. CustomFit™ features and optional mounting accessories allow the installation to be adapted to different vehicle configurations.
• SEASONAL DEBRIS REMOVAL: The heavy-duty impeller, Piranha™ blade, and rugged discharge system make the DL18 suitable for intensive seasonal cleanup. Crews can use the loader for fall leaf removal and other applications involving large volumes of loose landscape debris.
• CUSTOM WORK VEHICLE INSTALLATIONS: Optional hanger, receiver hitch, swing-away hitch, vertical extension, and discharge accessories provide flexibility when integrating the DL18 with different work vehicles. This allows operators to configure the loader around their preferred collection setup.

WHAT'S INCLUDED

• One Billy Goat DL18 Debris Loader in the selected model configuration
• Vanguard gasoline engine
• Pull start on DL1802V or electric start on DL1802VE
• Dual shredding system with Piranha™ blade
• 16 in (40.6 cm) diameter armor plate impeller
• Four-blade impeller with eight cutting points
• 10 in × 10 ft (25 cm × 3 m) intake hose
• 6 in (15 cm) square discharge
• Square discharge elbow

Optional mounting kits, carriers, hoses, exhaust components, discharge extensions, liners, and other listed accessories are sold separately unless otherwise specified.

MACHINE OPTIONS

• DL1802V – PULL START: The DL1802V uses a Vanguard engine with 34.8 cu in (570 cc) displacement and a pull-start system. It delivers 3,700 CFM (104.8 m³/min) of airflow with direct drive, a four-blade impeller with eight cutting points, and the DL18 dual shredding system.
• DL1802VE – ELECTRIC START: The DL1802VE uses the same Vanguard 34.8 cu in (570 cc) engine displacement and 3,700 CFM (104.8 m³/min) airflow while adding electric starting. It provides an alternative for commercial and municipal operators who prefer the convenience of an electric-start configuration.

OPTIONAL ACCESSORIES

• EXHAUST DEFLECTOR KIT: The Exhaust Deflector Kit provides an additional exhaust-management option for compatible DL18 installations. It can help operators configure exhaust direction according to the loader's mounting position and work vehicle setup.
• WHIPTRAILER DL: The Whiptrailer DL provides an accessory option for compatible debris-loader applications. Mounting requirements, included components, and compatibility with the intended DL18 configuration should be confirmed before ordering.
• OIL DRAIN HOSE KIT: The Oil Drain Hose Kit is designed to simplify routine engine oil service on compatible equipment. Easier oil drainage can make scheduled maintenance more convenient for contractors, municipal crews, and fleet maintenance personnel.
• EXHAUST HOSE KIT 7 IN × 5 FT (17.8 CM × 1.52 M): This exhaust hose kit provides a 7 in (17.8 cm) diameter and 5 ft (1.52 m) length for compatible installations. It provides an additional option when configuring the loader around specific vehicle and installation requirements.
• CUSTOMFIT™ VERTICAL EXTENSION KIT – 15 5/8 IN (39.7 CM): The CustomFit™ Vertical Extension Kit provides a 15 5/8 in (39.7 cm) extension for compatible loader configurations. This provides additional flexibility when adapting the loader to different truck or trailer body heights.
• STEEL LINER KIT: The Steel Liner Kit provides additional protection for compatible areas exposed to repeated debris contact. This can be useful for commercial loaders processing abrasive leaves, sticks, and other landscape debris throughout demanding cleanup seasons.
• 5 FT (1.52 M) URETHANE DISCHARGE EXTENSION: The urethane discharge extension provides an additional 5 ft (1.52 m) of flexible discharge reach. This can help operators route processed material into a compatible truck or trailer according to the loader's mounting position.
• HANGER KIT – TAILGATE STYLE: The tailgate-style Hanger Kit provides a mounting option for compatible vehicle configurations. It allows operators to configure the debris loader around a tailgate-style installation when appropriate for the work vehicle.
• HOSE 10 IN × 10 FT (25 CM × 3 M), CLEAR URETHANE: This clear urethane hose provides a 10 in (25 cm) diameter and 10 ft (3 m) length for compatible debris-loading applications. Its large diameter provides the pickup capacity needed for high-volume leaf and debris collection.
• ROTATIONAL KIT FOR SQUARE ELBOW: The Rotational Kit provides additional positioning capability for the compatible square discharge elbow. This can make it easier to configure discharge direction according to the truck, trailer, collection body, or mounting arrangement.
• HOSE 8 IN × 16.5 FT (20 CM × 5.03 M): This hose provides an 8 in (20 cm) diameter and 16.5 ft (5.03 m) length for applications requiring additional pickup reach. The extended length can help crews collect debris across a larger working area without repositioning the loader or vehicle as frequently.
• HOSE 12 IN × 10 FT (30.5 CM × 3.05 M), CLEAR URETHANE: This clear urethane hose provides a 12 in (30.5 cm) diameter and 10 ft (3.05 m) length for compatible applications. Compatibility with the specific DL18 configuration should be confirmed before ordering or installation.
• RECEIVER HITCH CARRIER: The Receiver Hitch Carrier provides a mounting and transport option for compatible work vehicles equipped with an appropriate receiver hitch. It provides an alternative configuration for crews that do not want to use a tailgate-style installation.
• SWING AWAY HITCH: The Swing Away Hitch provides a mounting solution that allows compatible debris-loader installations to move away from the vehicle access area when required. This can improve access to the truck or trailer while retaining a hitch-mounted loader configuration.

TECHNICAL SPECIFICATIONS – DL1802V (PULL START)

• MANUFACTURER: Billy Goat
• MODEL: DL1802V
• PRODUCT TYPE: Commercial debris loader / truck loader
• ENGINE BRAND: Vanguard
• ENGINE DISPLACEMENT: 34.8 cu in (570 cc)
• STARTER TYPE: Pull
• DRIVE: Direct
• AIRFLOW: 3,700 CFM (104.8 m³/min)
• SHREDDING SYSTEM: Dual shredding system with Piranha™ blade
• MAXIMUM DEBRIS REDUCTION: Up to 12:1
• IMPELLER DIAMETER: 16 in (40.6 cm)
• IMPELLER: 4 blades with 8 cutting points
• HOSE DIMENSIONS: 10 in × 10 ft (25 cm × 3 m)
• DISCHARGE SIZE: 6 in (15 cm) square
• WEIGHT: 293 lb (133 kg)
• LENGTH: 31 in (79 cm)
• WIDTH: 27 in (69 cm)
• HEIGHT: 48 in (122 cm)

TECHNICAL SPECIFICATIONS – DL1802VE (ELECTRIC START)

• MANUFACTURER: Billy Goat
• MODEL: DL1802VE
• PRODUCT TYPE: Commercial debris loader / truck loader
• ENGINE BRAND: Vanguard
• ENGINE DISPLACEMENT: 34.8 cu in (570 cc)
• STARTER TYPE: Electric
• DRIVE: Direct
• AIRFLOW: 3,700 CFM (104.8 m³/min)
• SHREDDING SYSTEM: Dual shredding system with Piranha™ blade
• MAXIMUM DEBRIS REDUCTION: Up to 12:1
• IMPELLER DIAMETER: 16 in (40.6 cm)
• IMPELLER: 4 blades with 8 cutting points
• HOSE DIMENSIONS: 10 in × 10 ft (25 cm × 3 m)
• DISCHARGE SIZE: 6 in (15 cm) square
• WEIGHT: 293 lb (133 kg)
• LENGTH: 31 in (79 cm)
• WIDTH: 27 in (69 cm)
• HEIGHT: 48 in (122 cm)

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What is the difference between the DL1802V and DL1802VE?

The primary listed difference is the starting system. The DL1802V uses a pull starter, while the DL1802VE uses an electric starter. Both models have a 570 cc Vanguard engine, direct drive, 3,700 CFM (104.8 m³/min) airflow, and the same listed dimensions and weight.

2. How much can the DL18 reduce leaf and debris volume?

The dual shredding system can reduce collected debris by up to 12:1. This helps maximize truck or trailer capacity so crews can service multiple properties before unloading.

3. Who is the Billy Goat DL18 designed for?

The DL18 is designed for mid to large property managers, contractors, and mid-sized municipal applications. Its high airflow and heavy-duty shredding system make it suitable for recurring commercial and seasonal leaf and debris collection.

4. What size intake hose does the DL18 use?

Both listed DL18 models use a 10 in × 10 ft (25 cm × 3 m) intake hose. Additional hose configurations are available as optional accessories for compatible applications.

5. What is the benefit of the Piranha™ blade and dual shredding system?

The Piranha™ blade uses serrated cutting points to provide additional shredding as collected material moves through the loader. Combined with the 16 in (40.6 cm) armor plate impeller, the system reduces debris by up to 12:1 to help maximize available truck or trailer capacity.
