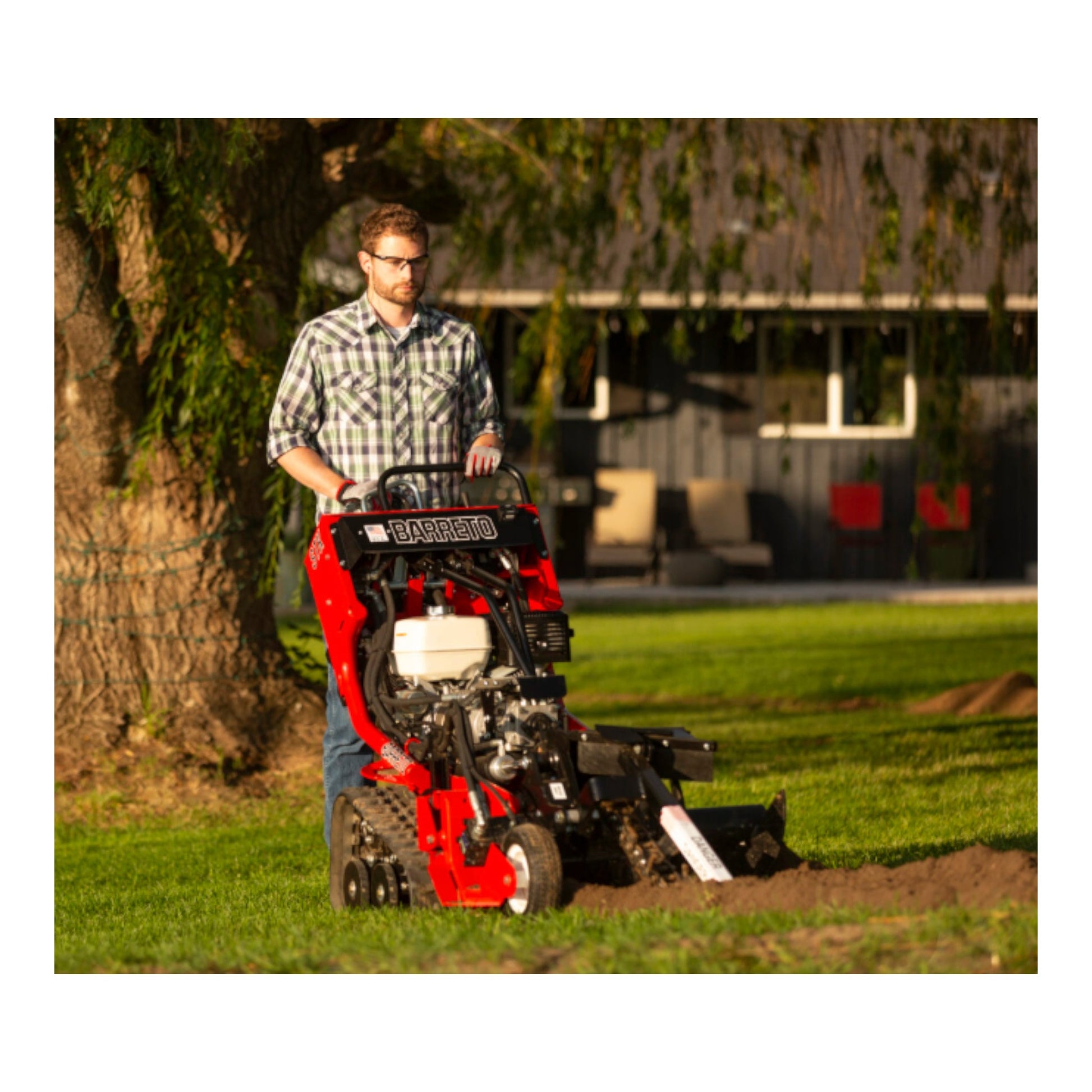

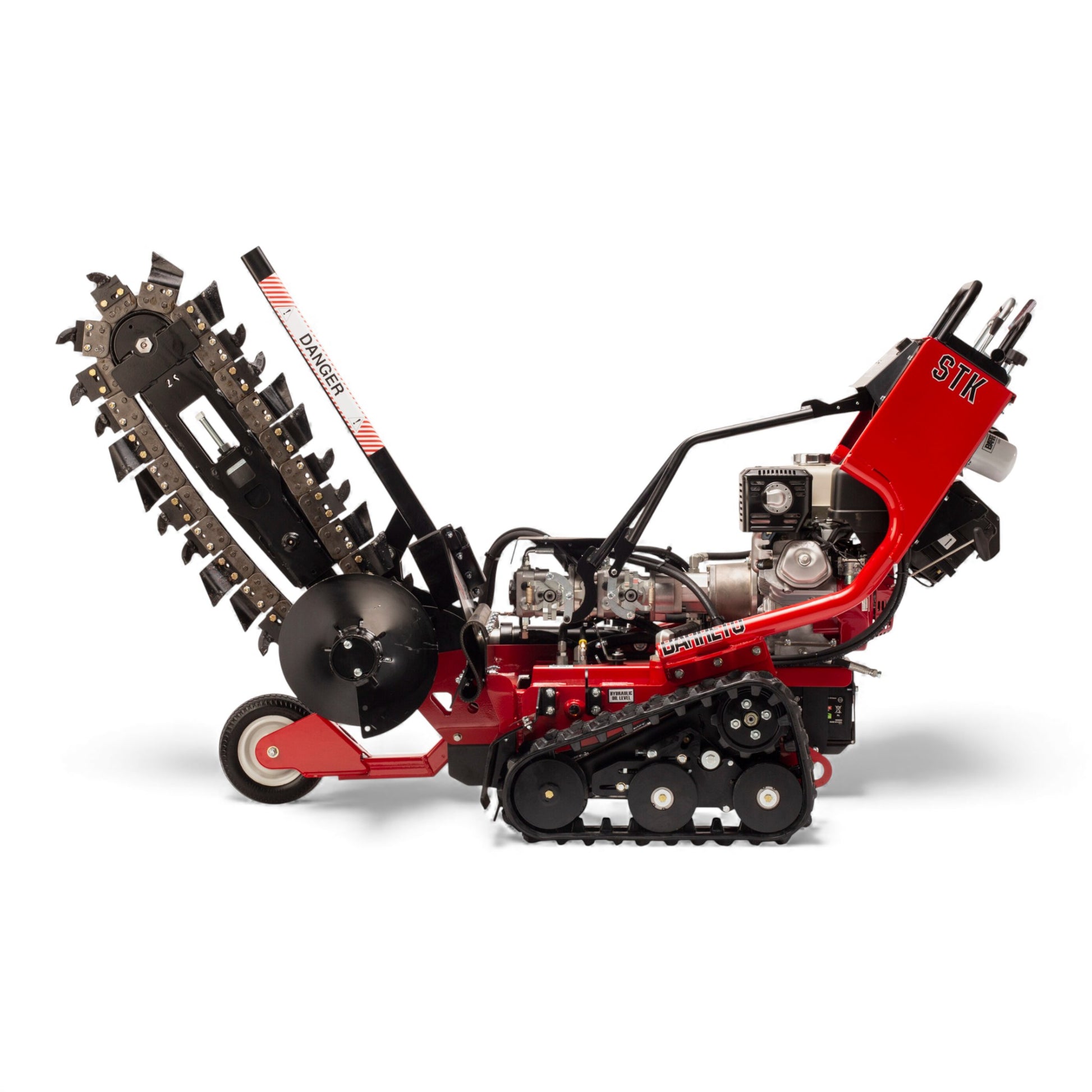

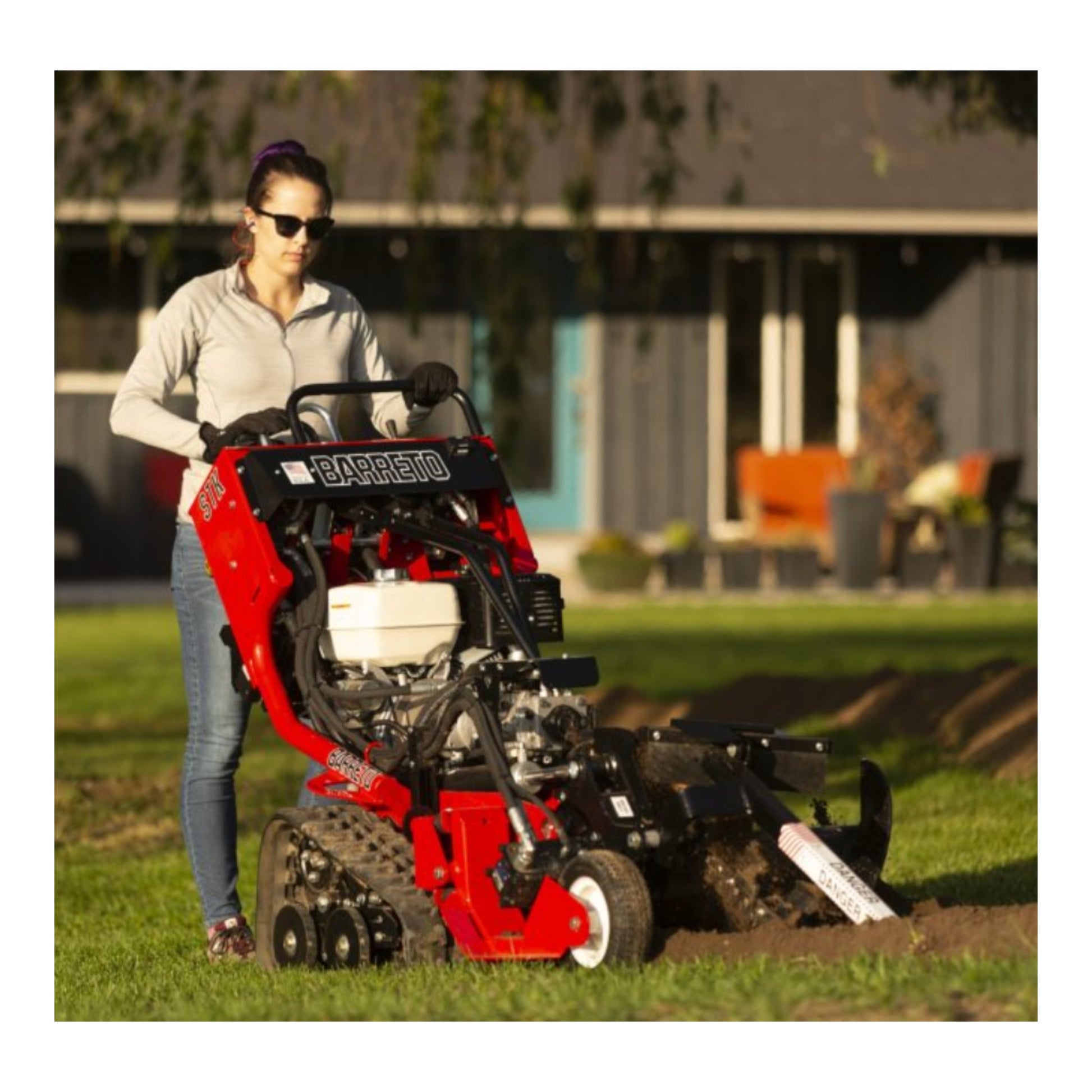

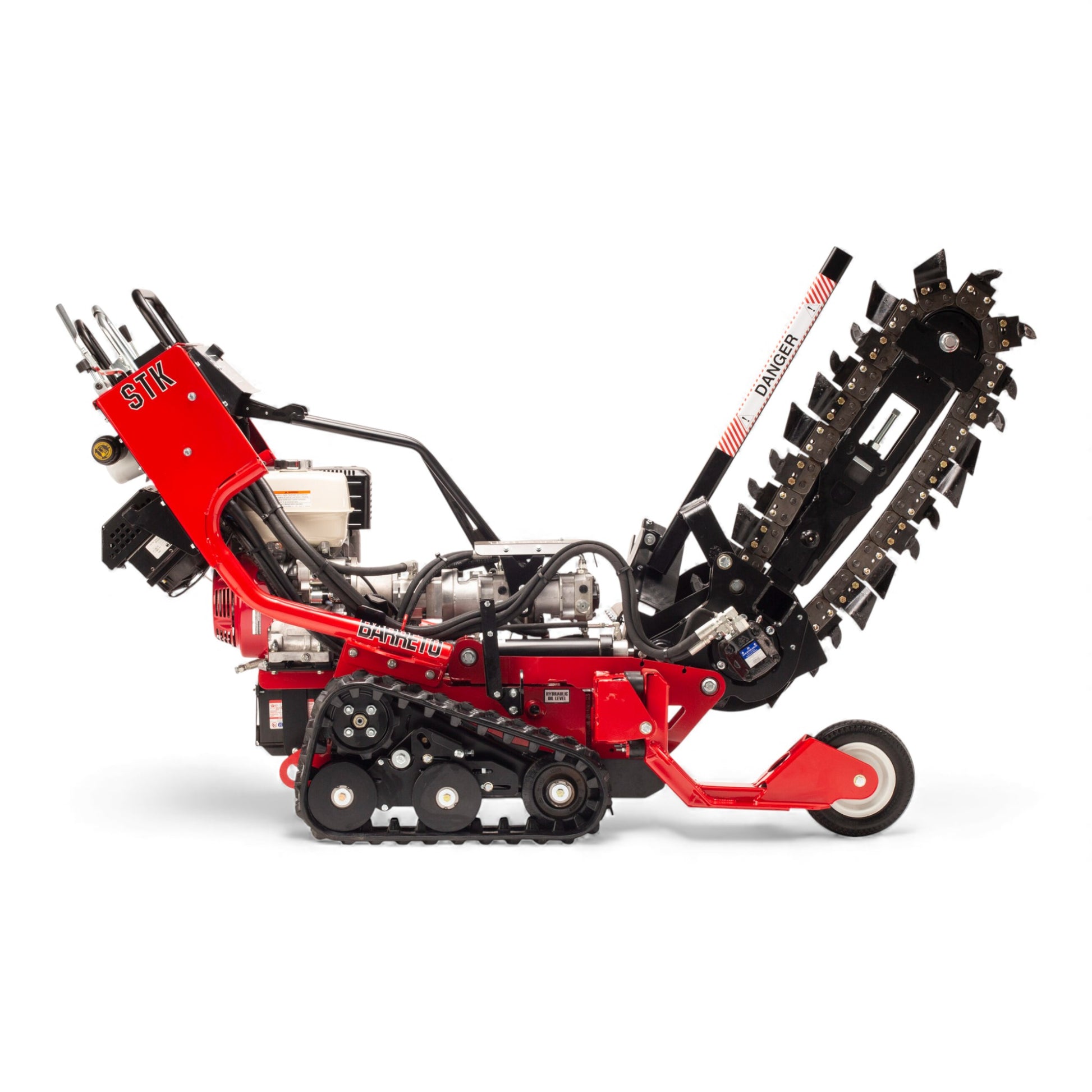

Barreto 1624STK Briggs & Stratton Vanguard V-Twin 16 HP Track Trencher

The Barreto 1624STK Track Trencher delivers powerful trenching performance in a compact, highly maneuverable design. Weighing only 1,085 lbs, this machine incorporates the same engineering excellence found in Barreto’s full-size trenchers, making it ideal for contractors who need maximum productivity in tight or uneven terrain. Powered by a 16 HP Briggs & Stratton Vanguard V-Twin engine and built on an innovative floating-track platform, the 1624STK offers superior stability, impact absorption, and traction on any surface. A hydraulic cooler with an integrated fan keeps oil temperatures regulated for long, demanding jobs, while the compact open-frame design provides excellent access to components for fast maintenance. Electric start is standard across all models, making the 1624STK a reliable, efficient, and essential piece of equipment for professional trenching applications.

FEATURES

• Engine: Briggs & Stratton Vanguard V-Twin 16 HP, reliable, fuel-efficient, and built for heavy trenching workloads.
• Digging Depth Options: Available in 24" or 30" boom configurations for a wide range of applications.

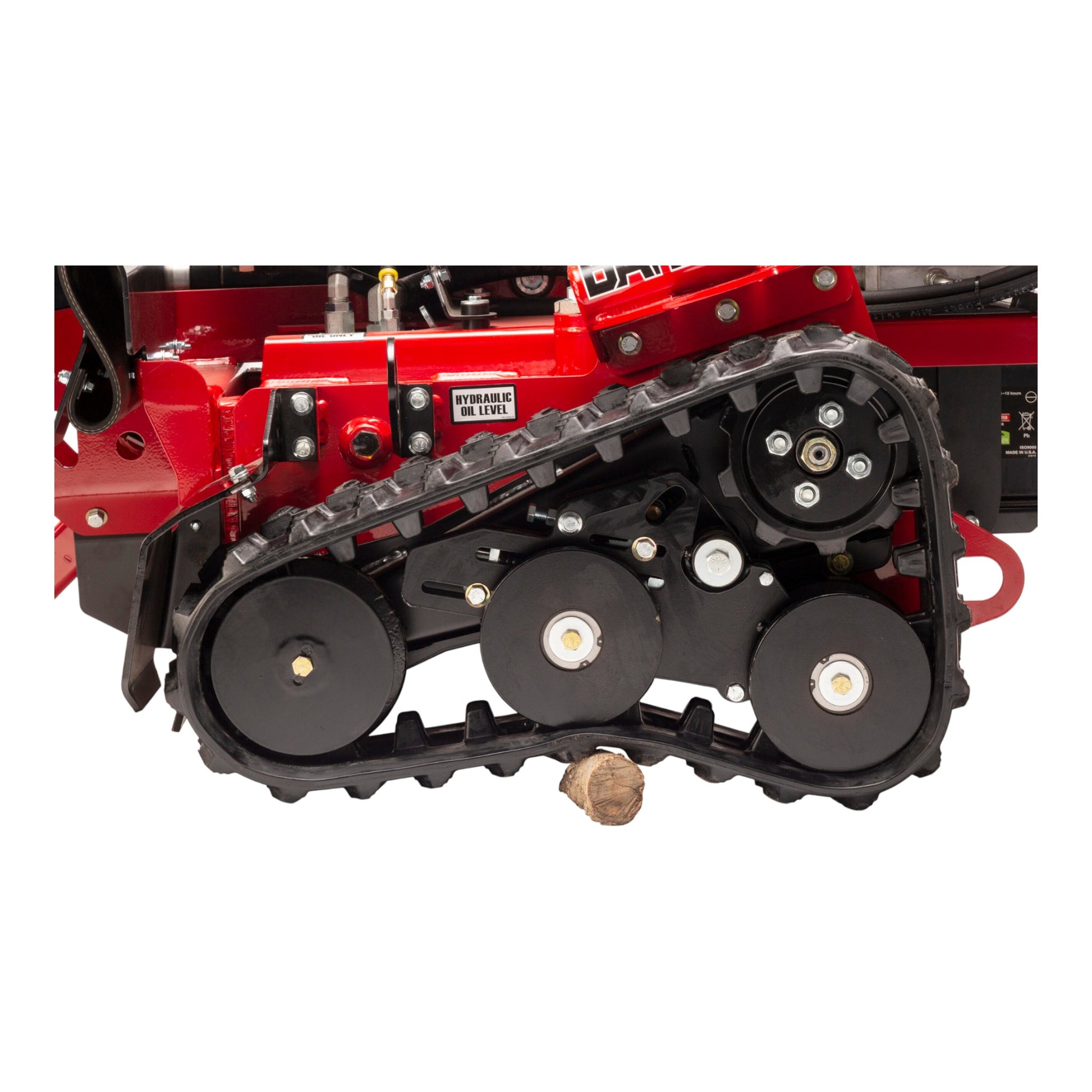

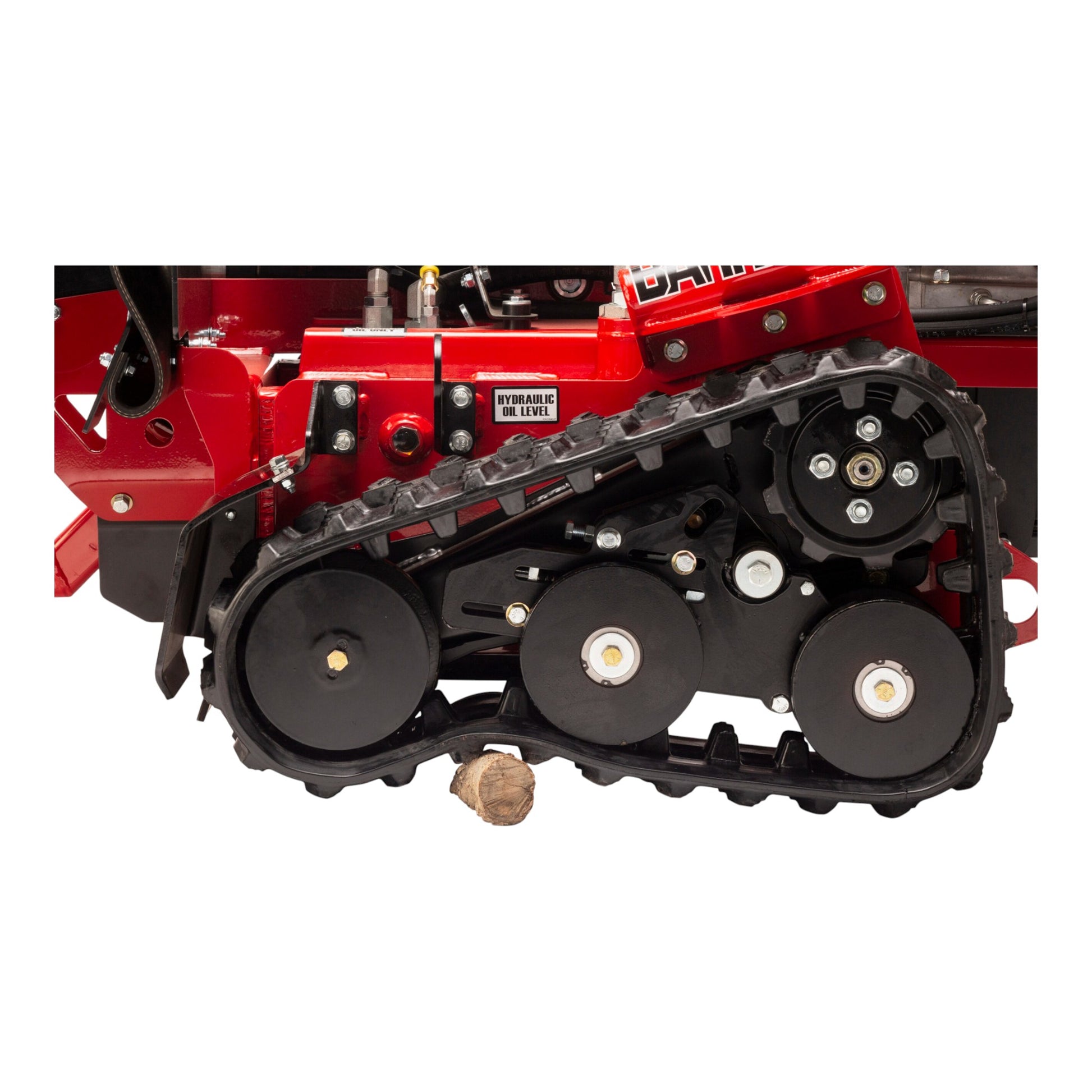

• Independent Floating Track System: Automatically adapts to uneven terrain for exceptional stability and traction.

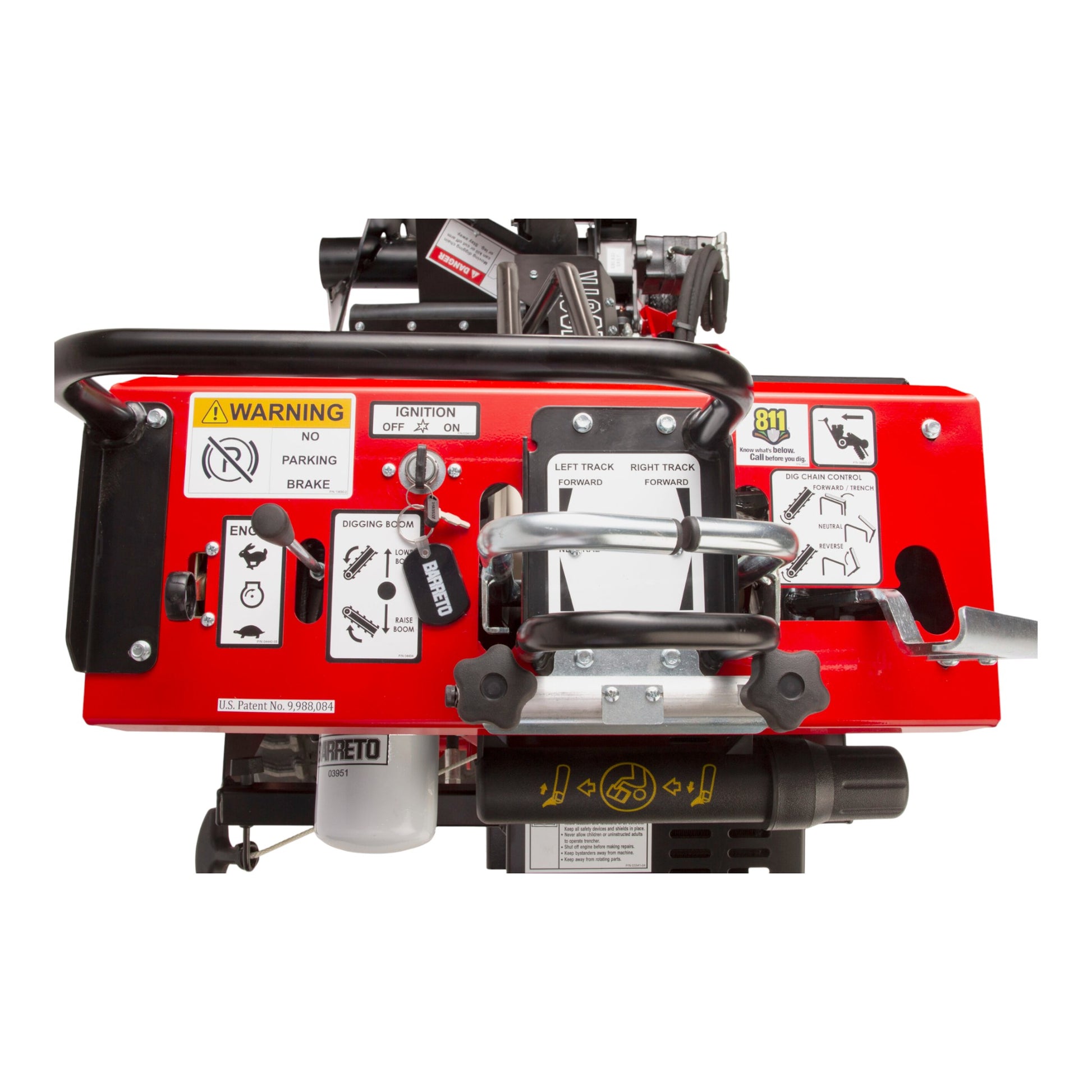

• Adjustable Trenching Controls (ATC): Rod-linkage control system enables precise individual track adjustment for straighter trenches on slopes or uneven ground.
• Hydraulic Cooling System: Integrated oil cooler with fan maintains proper hydraulic temperature for continuous operation.
• Standard Electric Start: Ensures reliable, effortless starting on all models.
• Boom Tension Adjustment: Allows quick and easy adjustment to maintain optimal trenching performance.

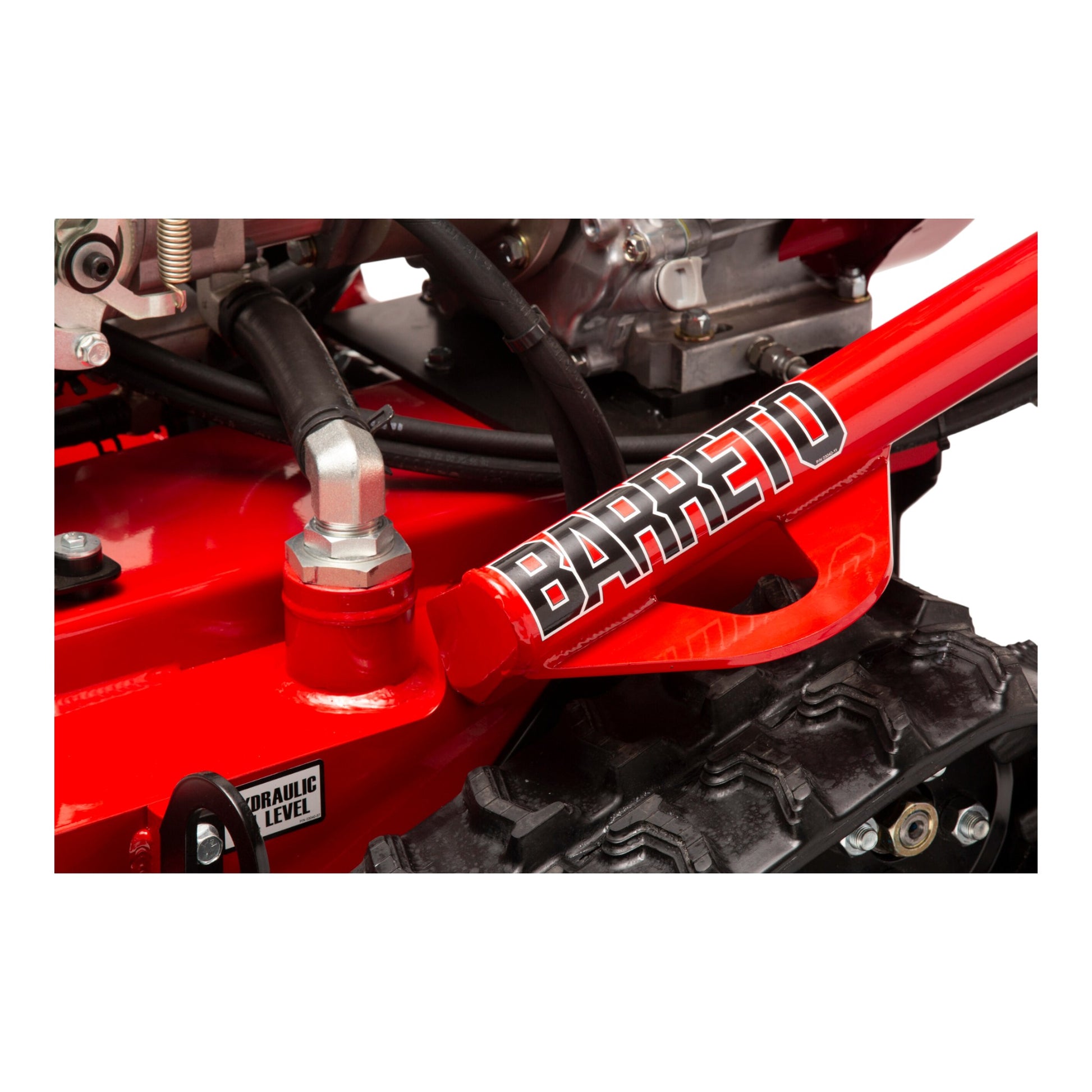

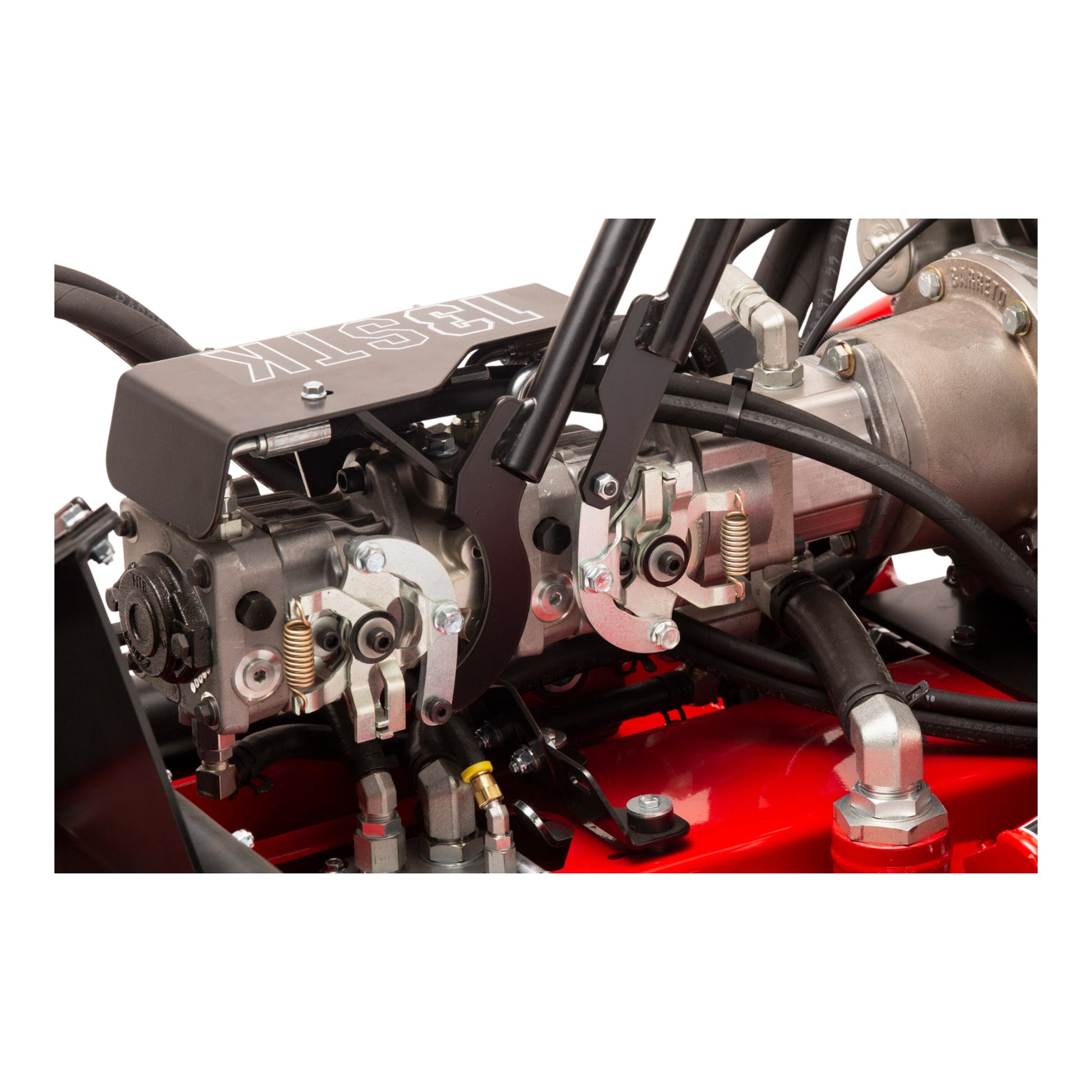

• Easy Hydraulic Access: Open-frame design allows fast maintenance and reduced downtime.
• Compact & Maneuverable: Ideal for tight jobsite spaces without sacrificing power or performance.

DIGGING DEPTH OPTIONS

• 24 Inch
• 30 Inch

CHAIN OPTIONS

• 4" Single Cup Chain
• 4" Double Cup Chain
• 4" Combo Shark Chain
• 4" Welded Shark Chain

OPTIONAL TRAILER

• 4x6 Tilt Bed Trailer

OPTIONAL CHAIN UPGRADE

• 6 Inch Chain

Specifications

• Engine: Briggs & Stratton Vanguard V-Twin 16hp
• Hydraulic Reservoir: 8.13 gallons
• Ground Drive Forward: 210 ft/min
• Ground Drive Reverse: 100 ft/min
• Digging Chain Speed: 260 ft/min
• Boom Depth Options: 24 or 30"
• Length: 84"
• Width: 33.25"
• Track Width: 7.12"
• Height: 52.5"
• Total Ground Contact: 262 sq. in.
• Weight: 1,085 lbs
