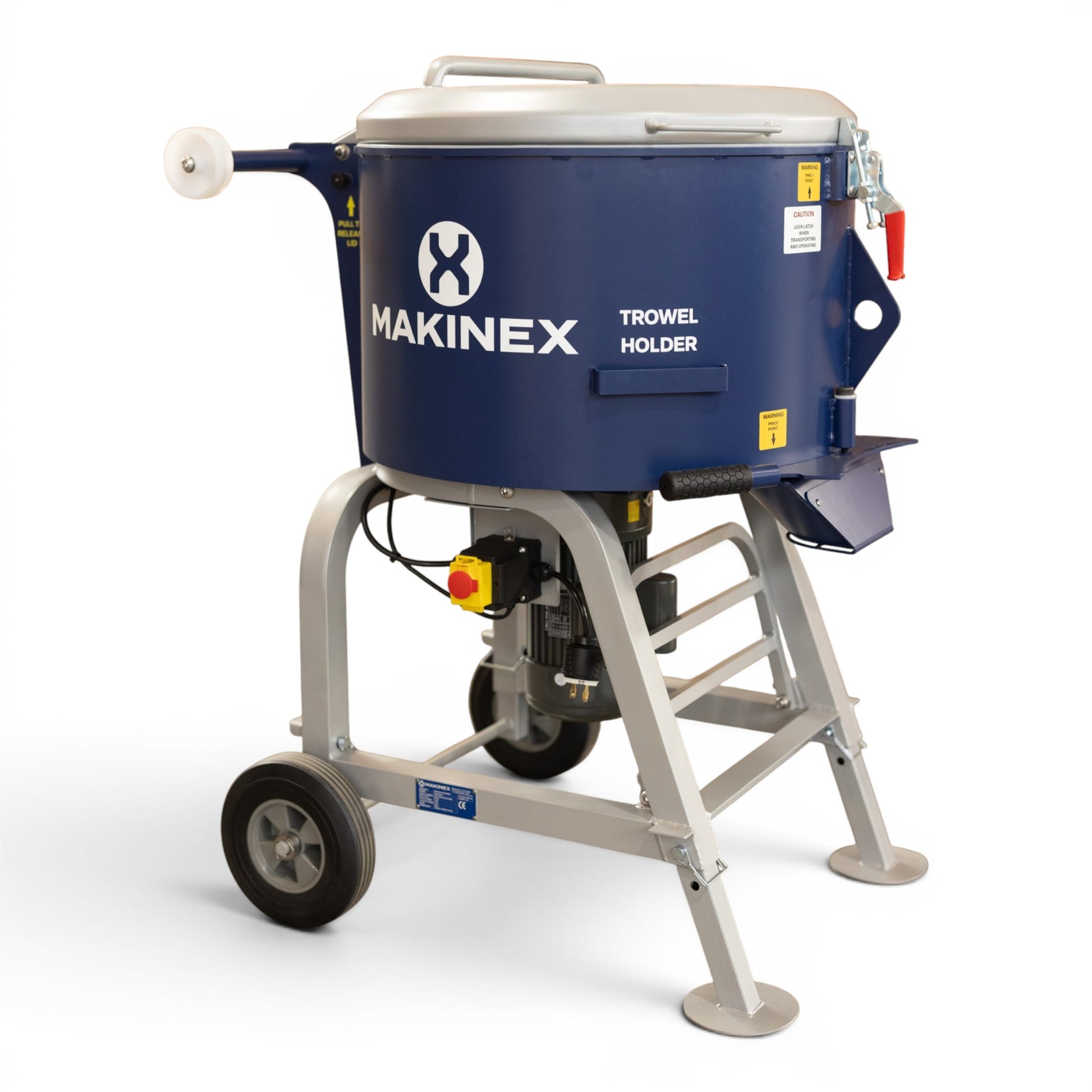

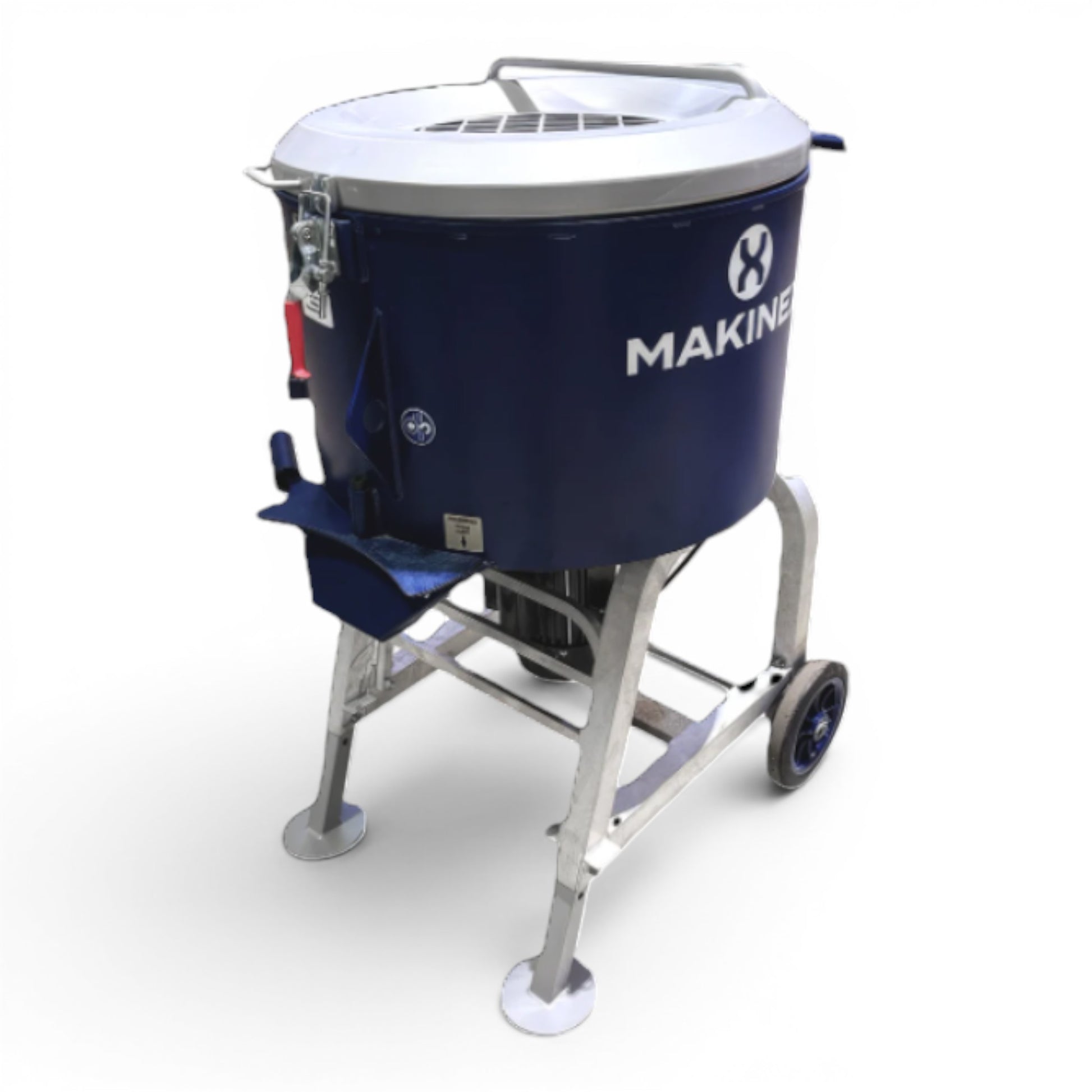

Makinex FAM-120-US Forced Action Mixer

The Makinex FAM-120-US Forced Action Mixer is a heavy-duty mixing solution engineered specifically for high-viscosity construction materials requiring consistent and uniform mixing performance. Designed for demanding commercial, industrial, and rental environments, this powerful forced action mixer delivers repeatable batch quality while minimizing airborne dust and material waste. Featuring a sealed AC geared motor, reinforced frame, anti-spill lid design, and rapid-cleaning components, the FAM-120-US is built to maximize reliability, efficiency, and productivity on tough jobsites.

Ideal for mixing compounds such as mortar, grout, leveling compounds, resin-based products, screeds, adhesives, and specialty materials, the Makinex FAM-120-US combines durability with operator convenience. Its integrated vacuum port and anti-spill system help maintain a cleaner and safer work environment while reducing cleanup time between batches.

KEY FEATURES

• FORCED ACTION MIXING PERFORMANCE: Engineered specifically for high-viscosity materials, the forced action mixing system delivers highly consistent and uniform batch quality. This ensures repeatable mixing results for demanding construction and industrial applications.

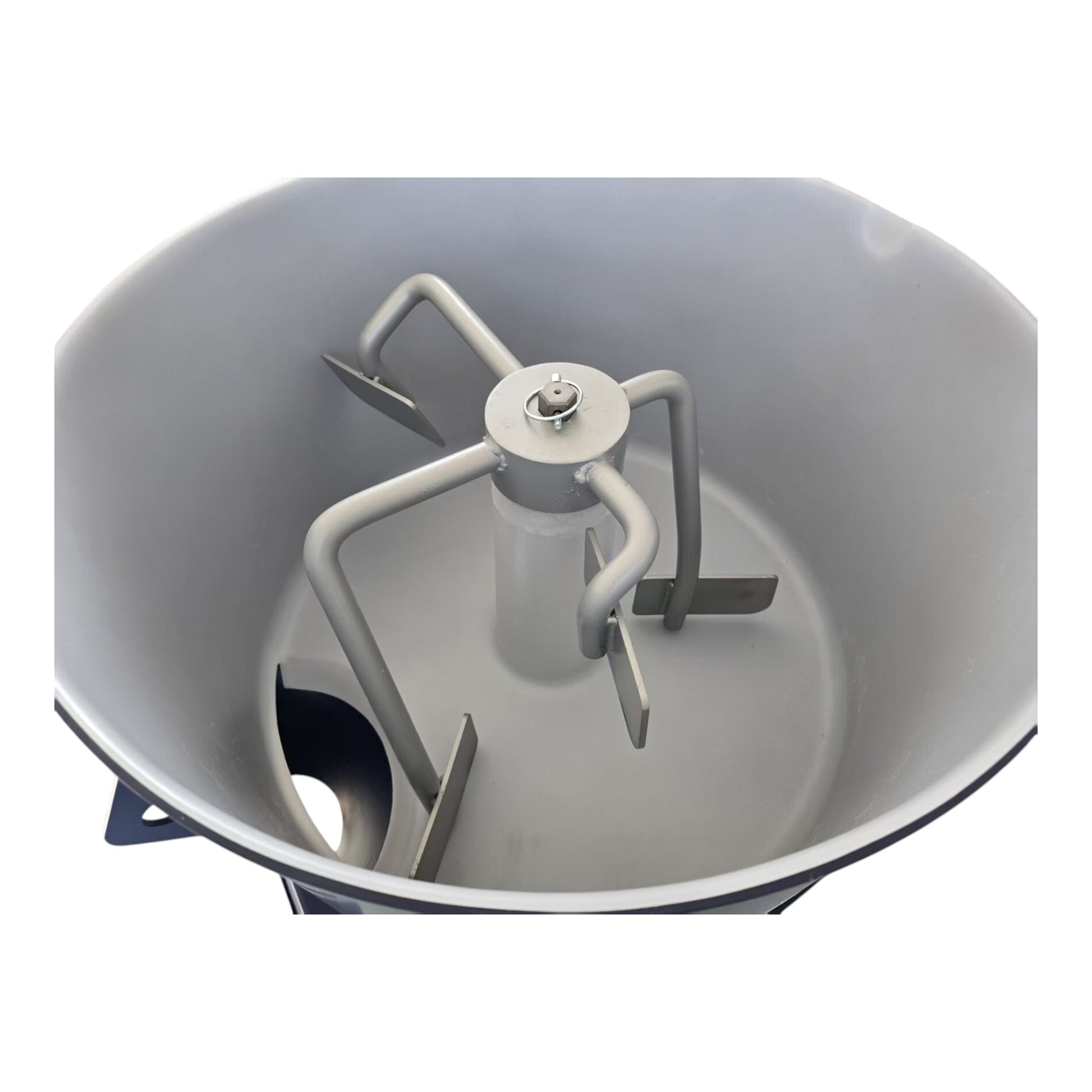

• REPLACEABLE DRUM LINER: The replaceable drum liner helps reduce wear inside the mixing chamber while simplifying maintenance and extending equipment lifespan. This feature also speeds up cleaning and reduces downtime between mixing jobs.

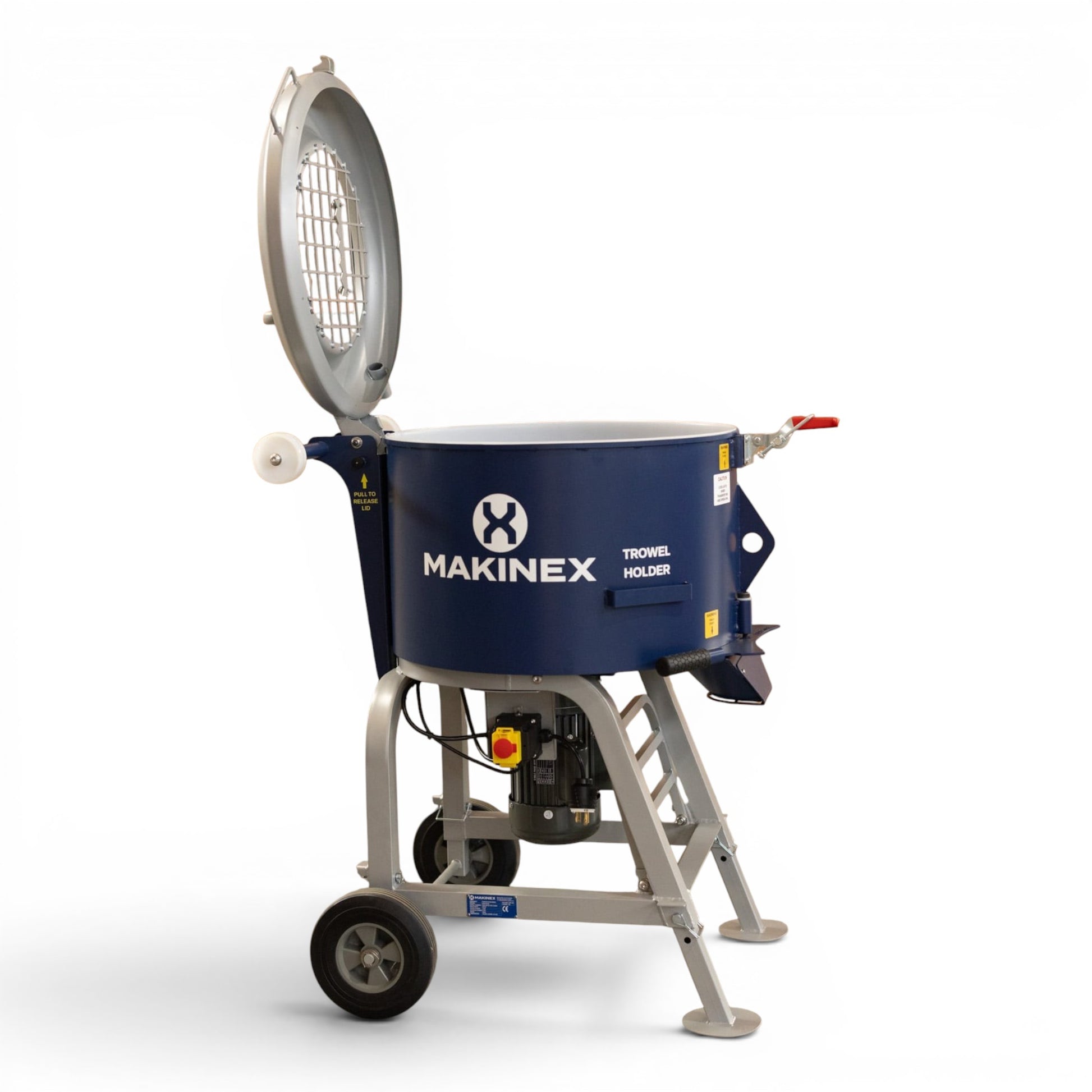

• CONCAVE INVERTED ANTI-SPILL LID: The specially designed anti-spill lid geometry helps minimize material loss and reduce airborne dust during operation. This improves jobsite cleanliness and helps operators maintain safer working conditions.
• INTEGRATED VACUUM PORT: The integrated vacuum port allows for dust extraction during mixing operations, helping reduce airborne particles and improve air quality on the jobsite.
• ADJUSTABLE STABILIZING LEGS: Adjustable stabilizing legs provide improved machine balance and support during operation, ensuring stable and controlled mixing performance on uneven surfaces.
• SEALED AC GEARED MOTOR: The durable sealed motor system is designed for reliable operation in harsh jobsite and rental environments. Its heavy-duty construction helps protect internal components from dust and debris intrusion.
• DESIGNED FOR HARSH JOBSITE CONDITIONS: Built with a reinforced frame and durable industrial-grade components, the FAM-120-US is engineered to withstand demanding commercial and rental fleet applications.
• FAST CLEANING & REDUCED DOWNTIME: The mixer’s practical design allows for rapid cleaning and maintenance, helping operators maximize productivity between mixing cycles.
• LARGE 120 L (31.7 GAL) MIXING CAPACITY: The high-capacity drum allows operators to mix substantial quantities of material per batch, improving efficiency on large-scale construction projects.

APPLICATIONS / USE CASES

• MORTAR & GROUT MIXING: Ideal for consistently mixing mortar, grout, and cement-based materials for commercial and industrial construction applications.
• SELF-LEVELING COMPOUNDS: Perfect for mixing high-viscosity self-leveling compounds requiring smooth and uniform consistency.
• RESIN & SPECIALTY MATERIALS: Suitable for mixing resin products, adhesives, epoxies, and specialty construction compounds.
• RENTAL FLEET APPLICATIONS: Built for durability and reliability in demanding rental environments with repeated daily use.
• COMMERCIAL CONSTRUCTION PROJECTS: Excellent for contractors requiring reliable high-capacity material mixing on busy jobsites.

WHAT’S INCLUDED

• Makinex FAM-120-US Forced Action Mixer
• Replaceable Drum Liner
• Concave Anti-Spill Lid
• Integrated Vacuum Port Assembly
• Adjustable Stabilizing Legs
• User Documentation

TECHNICAL SPECIFICATIONS

• MODEL: Makinex FAM-120-US
• RATED CONTINUOUS OUTPUT: 1500W
• MAX OUTPUT: 2273W
• INPUT VOLTAGE: 230V
• INPUT CURRENT: 10A
• FREQUENCY: 50Hz
• OUTPUT RPM: 33 RPM
• MIXING CAPACITY: 120 L (31.7 gal)
• WEIGHT: 264.6 lb (120 kg)
• DIMENSIONS (MIN): 29.8 × 38.6 × 47.6 in (758 × 980 × 1209 mm)
• DIMENSIONS (MAX): 29.8 × 38.6 × 54.1 in (758 × 980 × 1374 mm)
• MOTOR INGRESS PROTECTION: IP44
• TERMINAL BOX INGRESS PROTECTION: IP54

FREQUENTLY ASKED QUESTIONS

• What materials can the FAM-120-US mix?
  The mixer is designed for high-viscosity materials including mortar, grout, self-leveling compounds, resin products, adhesives, screeds, and specialty construction materials.
• What is the mixing capacity of this machine?
  The Makinex FAM-120-US has a mixing capacity of 120 L (31.7 gal), making it suitable for large-scale commercial mixing applications.
• How does the anti-spill lid improve operation?
  The concave inverted anti-spill lid helps reduce airborne dust and material loss during mixing, creating a cleaner and safer work environment.
• Is the mixer suitable for rental environments?
  Yes, the reinforced frame, sealed motor system, and durable construction are specifically designed for harsh rental and commercial jobsite conditions.
• What is the purpose of the integrated vacuum port?
  The integrated vacuum port allows operators to connect dust extraction systems to help reduce airborne particles during mixing operations.
