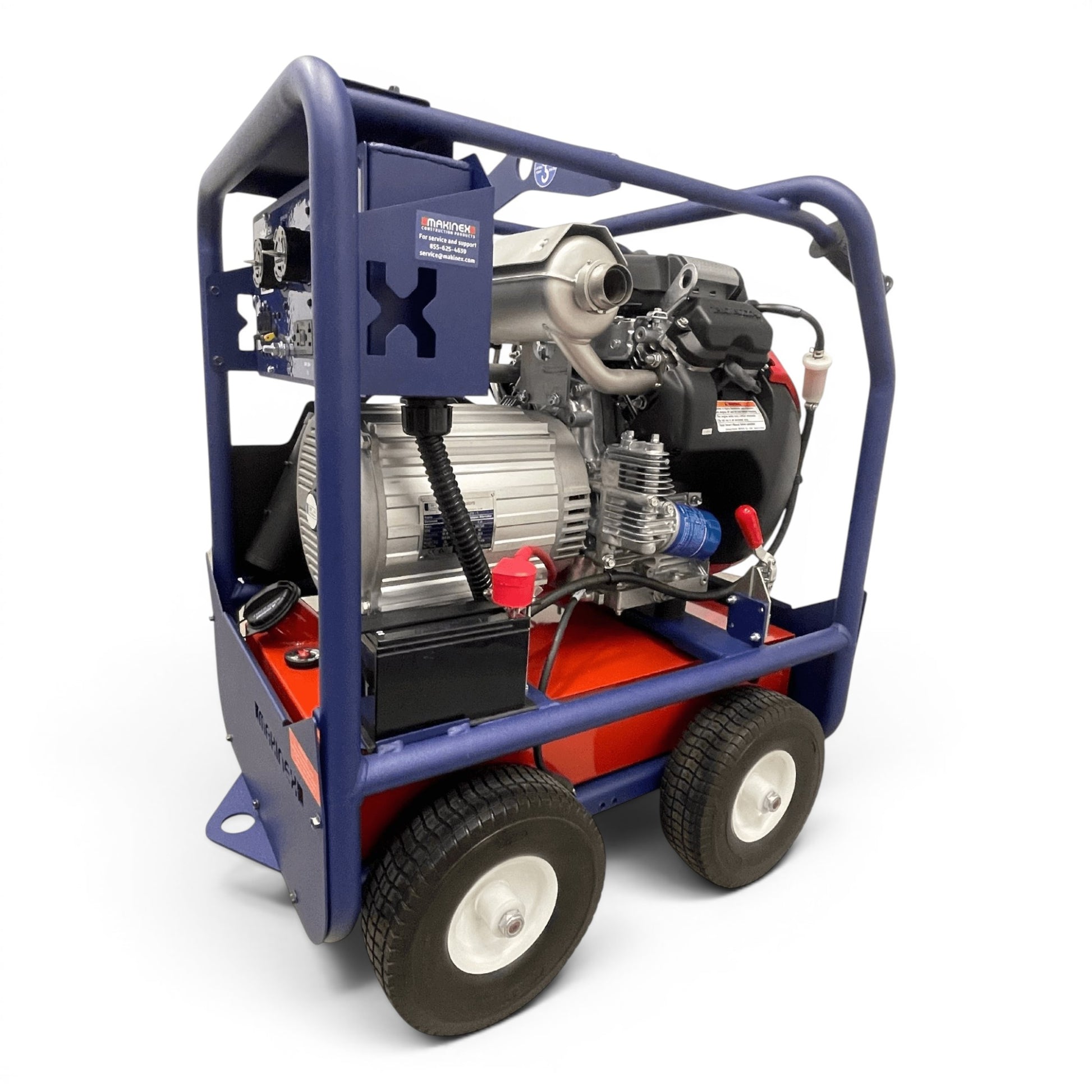

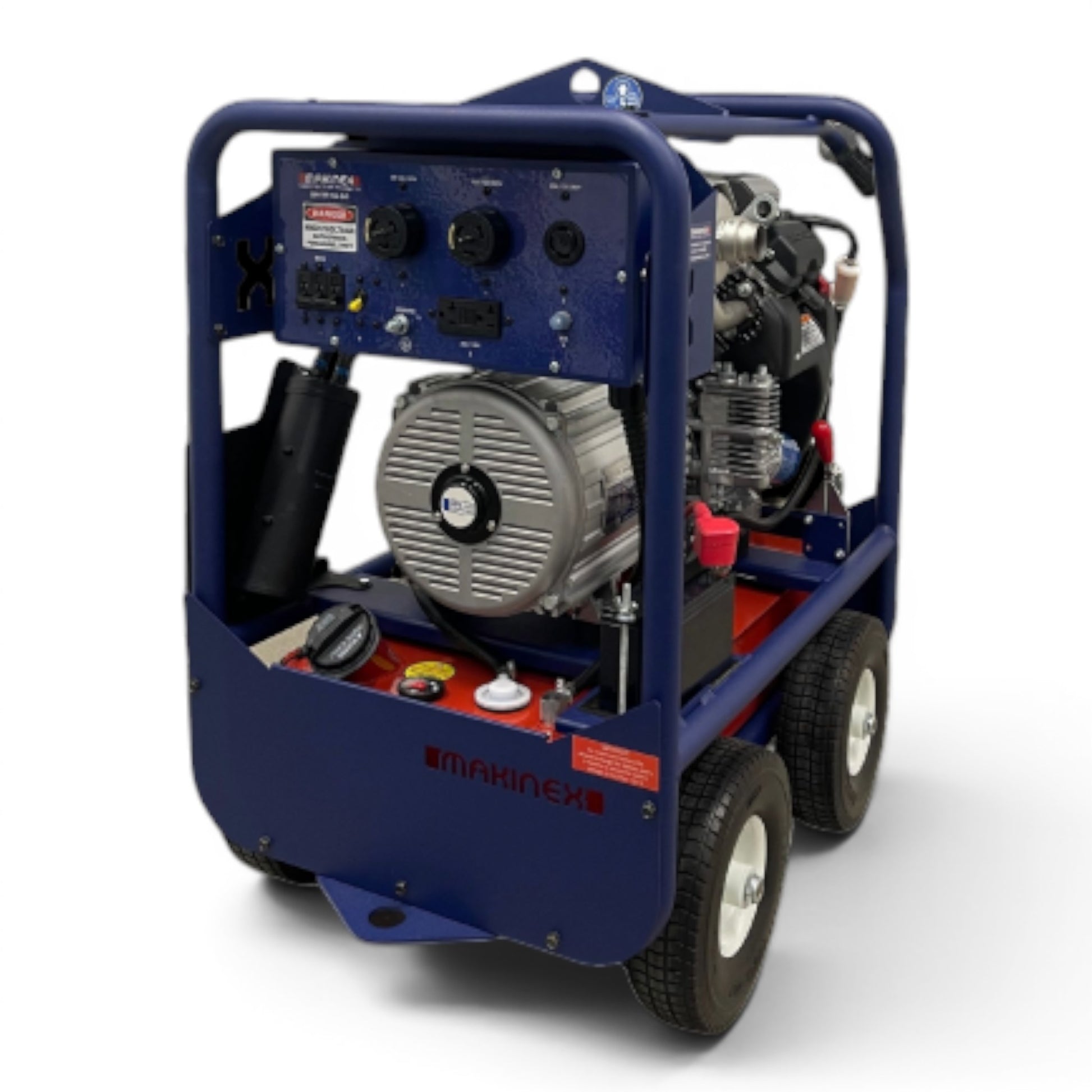

Makinex GEN-16P-MS-240 16kW 240V Gasoline Generator

The Makinex GEN-16P-MS-240 16kW Gasoline Generator is a compact, high-performance portable power solution engineered for demanding commercial, industrial, and construction applications. Powered by a reliable Honda GX690 twin-cylinder engine and advanced radial flux alternator technology, this generator delivers exceptional three-phase and single-phase power output while maintaining a lightweight and highly portable design. Producing up to 16.8 kW of maximum three-phase power, the GEN-16P-MS provides outstanding performance for powering tools, equipment, jobsite infrastructure, and high-frequency or inductive load applications.

Designed as a compact alternative to large tow-behind generators, the Makinex GEN-16P-MS combines portability, fuel efficiency, and robust durability into one versatile power unit. Featuring electric key start operation, multiple power outlets, parallel capability, and a galvanized heavy-duty frame, this generator is ideal for contractors, events, emergency backup power, and industrial worksites requiring dependable portable electricity.

KEY FEATURES

• POWERFUL 16 KW OUTPUT: Delivers up to 16.8 kW maximum and 15 kW continuous three-phase power output, making it suitable for demanding commercial and industrial applications.
• ADVANCED RADIAL FLUX ALTERNATOR: Engineered to handle high-frequency and inductive load applications efficiently while improving overall power performance and reliability.
• HONDA GX690 ENGINE: Powered by a durable Honda GX690 twin-cylinder air-cooled gasoline engine designed for reliable long-term operation and excellent fuel efficiency.
• COMPACT & PORTABLE DESIGN: One of the most compact generators in its class, eliminating the need for larger tow-behind generators while maintaining high-output capability.
• LIGHTWEIGHT CONSTRUCTION: Weighing only 342 lb, the generator is easier to transport and position on jobsites compared to traditional large-output generators.
• ELECTRIC KEY START: Convenient electric key start system allows for quick and reliable generator startup with minimal operator effort.
• SINGLE & THREE-PHASE POWER: Supports both 120V single-phase and 240V three-phase power output for maximum application versatility.
• MULTIPLE POWER OUTLETS: Equipped with multiple outlet configurations including GFCI, L14-30R, CS6389, and CS8369 outlets for powering a wide range of tools and equipment.
• 15% MORE POWER EFFICIENCY: Advanced generator technology delivers up to 15% more power from the same engine platform for improved productivity and efficiency.
• PARALLELING CAPABILITY: Allows multiple compatible generators to be connected together for increased power output when required.
• DURABLE GALVANIZED FRAME: The rugged galvanized frame provides long-lasting protection and durability for demanding construction and industrial environments.
• LOW NOISE OPERATION: Operates at a relatively low 72 dB at 7 m during no-load operation for improved jobsite comfort.
• FUEL EFFICIENT PERFORMANCE: Optimized fuel consumption helps reduce operating costs during extended generator use.

APPLICATIONS / USE CASES

• CONSTRUCTION SITES: Ideal for powering tools, equipment, lighting, and temporary jobsite infrastructure.
• INDUSTRIAL POWER SUPPLY: Suitable for industrial operations requiring reliable portable three-phase and single-phase electricity.
• EVENT POWER: Excellent for outdoor events, festivals, entertainment applications, and temporary power distribution.
• EMERGENCY BACKUP POWER: Provides dependable backup electricity during outages and emergency situations.
• HIGH-FREQUENCY & INDUCTIVE LOAD APPLICATIONS: Designed to support demanding equipment with inductive startup loads and high-frequency requirements.

WHAT’S INCLUDED

• Makinex GEN-16P-MS Generator
• Integrated Electric Key Start System
• Multiple Power Outlet Configurations
• Heavy-Duty Galvanized Frame
• User Documentation

TECHNICAL SPECIFICATIONS

• MODEL: GEN-16P-MS
• VOLTAGE: 120V Single Phase, 240V Three Phase
• FREQUENCY: 60 Hz
• MAX THREE-PHASE POWER: 16.8 kW
• CONTINUOUS THREE-PHASE POWER: 15 kW
• MAX THREE-PHASE AMPS: 40 A
• CONTINUOUS THREE-PHASE AMPS: 36 A
• MAX SINGLE-PHASE AMPS: 23 A
• CONTINUOUS SINGLE-PHASE AMPS: 20 A
• ENGINE TYPE: Twin Cylinder Air-Cooled Gasoline Engine
• ENGINE MODEL: Honda GX690
• STARTING SYSTEM: Electric Key Start
• ENGINE DISPLACEMENT: 688 cc
• FUEL ECONOMY: 0.92 gal/hr @ 50% Load
• FUEL TANK CAPACITY: 9.0 gal
• NOISE LEVEL (7 m): 72 dB (No Load)
• WEIGHT: 342 lb
• DIMENSIONS: 30.4 × 20.8 × 35.5 in
• OUTLETS: 1 × 20A GFCI Single Phase, 1 × 50A L14-30R Three/Single Phase, 1 × 50A CS6389 Three/Single Phase, 1 × 50A CS8369 Three Phase

FREQUENTLY ASKED QUESTIONS

• What type of power output does the GEN-16P-MS provide?
  The generator provides both 120V single-phase and 240V three-phase power output for versatile commercial and industrial applications.
• What engine powers this generator?
  The unit is powered by a Honda GX690 twin-cylinder air-cooled gasoline engine.
• Is the generator portable?
  Yes, despite its high power output, the GEN-16P-MS features a compact lightweight design weighing only 342 lb.
• Can this generator handle inductive loads?
  Yes, the advanced radial flux alternator is specifically designed to handle high-frequency and inductive load applications efficiently.
• Does the generator support parallel operation?
  Yes, the GEN-16P-MS includes paralleling capability for increased power output when connecting compatible generators.
