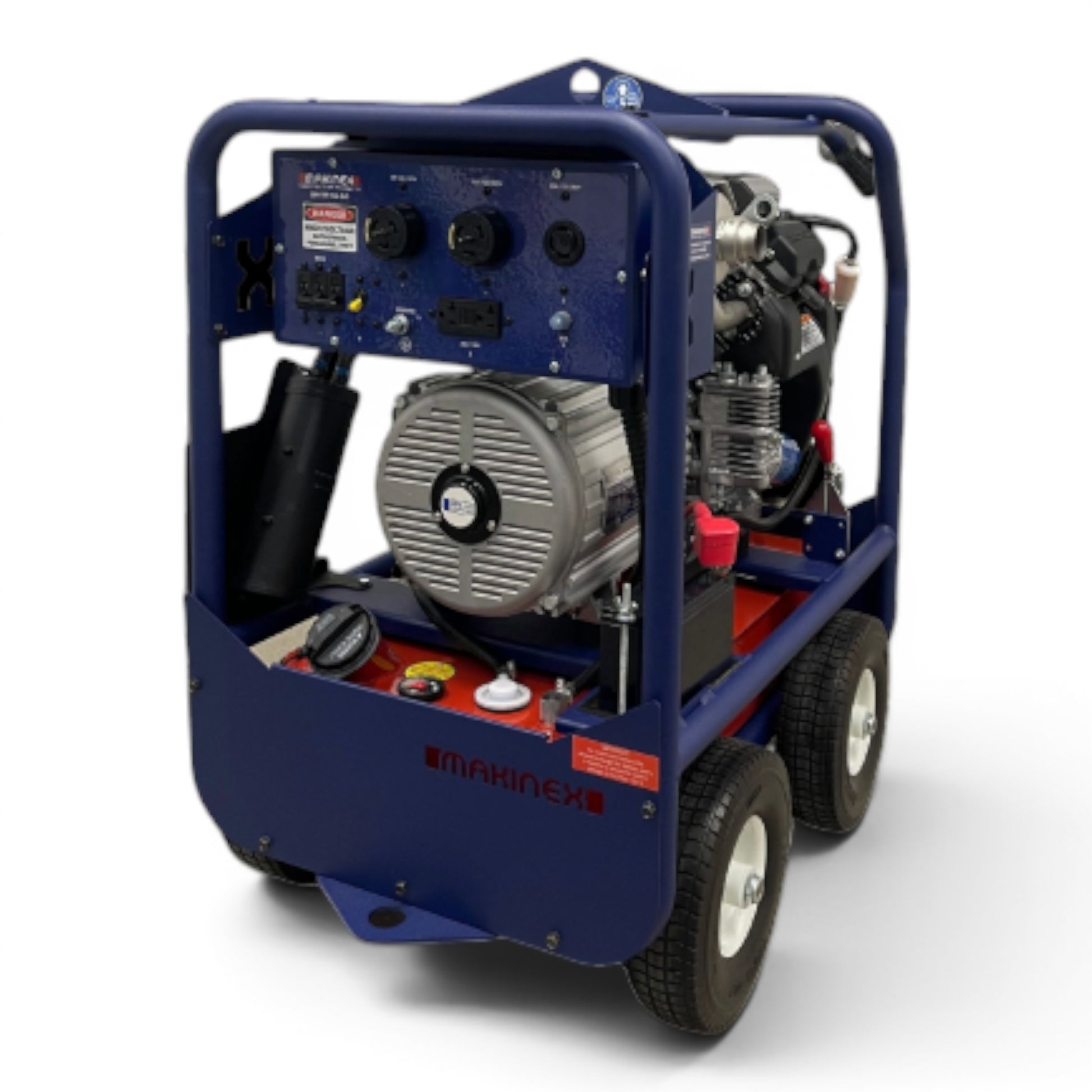

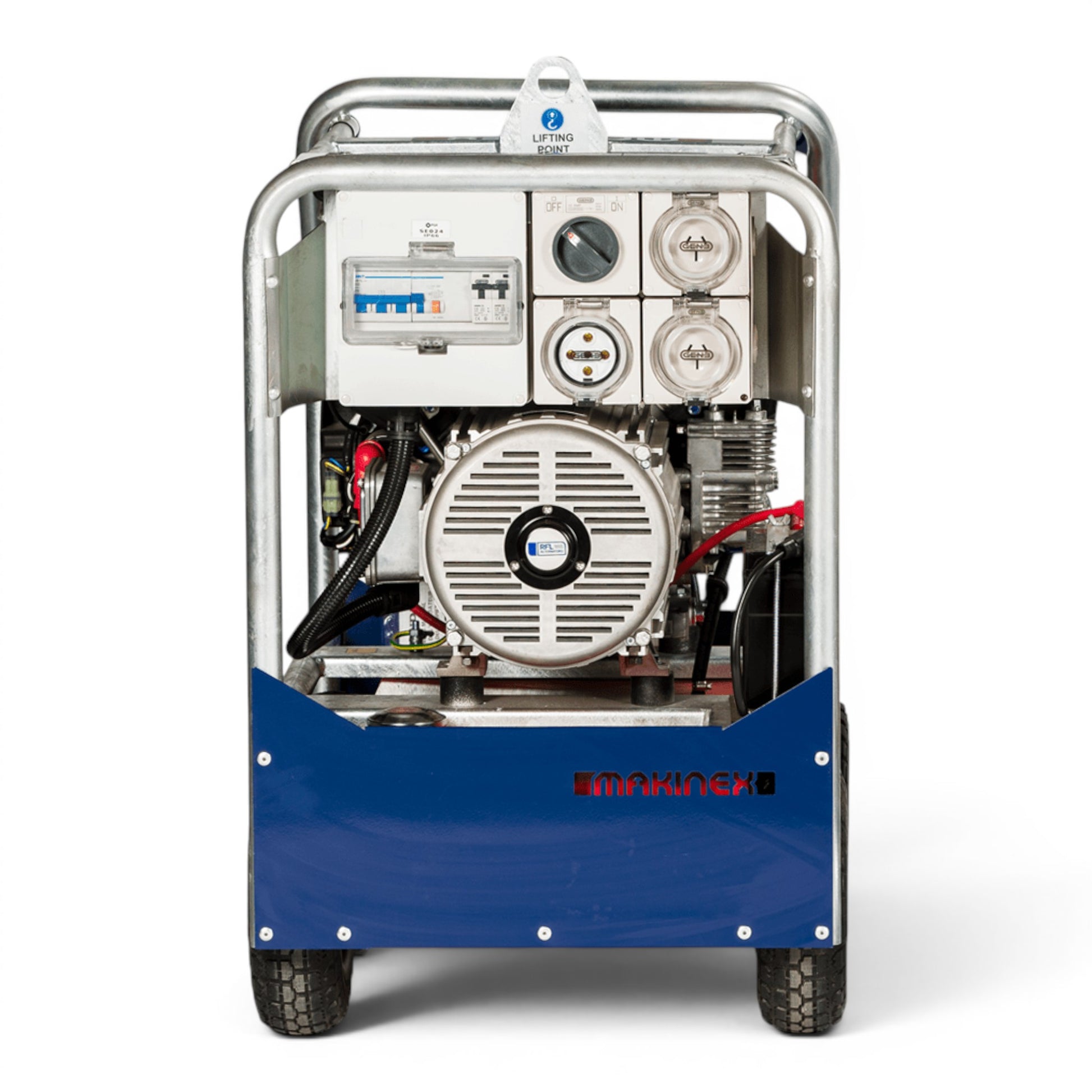

Makinex GEN-16P-MS-480 16kW 480V Gasoline Generator

The Makinex GEN-16P-MS-480 16kW Gasoline Generator is a compact, highly portable power solution engineered for demanding commercial, industrial, and construction applications requiring reliable 480V three-phase power. Powered by a dependable Honda GX690 twin-cylinder engine and advanced radial flux alternator technology, this generator delivers exceptional performance for both high-frequency and inductive load applications. Designed as a practical alternative to bulky tow-behind generators, the GEN-16P-MS-480 combines portability, durability, and versatile power output in a compact package.

Featuring both 480V three-phase and 110V single-phase outlets, this generator allows operators to run heavy-duty equipment and auxiliary tools simultaneously. Enhanced with RCD and RCBO protection, a galvanized steel frame, and electric key start operation, the GEN-16P-MS-480 provides dependable power while improving safety and minimizing downtime on the jobsite.

KEY FEATURES

• 16 KW PORTABLE POWER SOLUTION: Delivers reliable three-phase power in a highly portable package, eliminating the need for larger tow-behind generators in many applications.
• 480V THREE-PHASE OUTPUT: Provides dependable 480V three-phase power for industrial equipment, construction tools, and specialized applications requiring higher voltage operation.
• DUAL-PHASE OUTLET CONFIGURATION: Equipped with both three-phase and single-phase outlets, allowing operators to power multiple types of equipment from a single generator.
• ADVANCED RADIAL FLUX ALTERNATOR: Engineered for superior performance when powering high-frequency and inductive load equipment while maximizing generator efficiency.
• HONDA GX690 ENGINE: Powered by a reliable Honda GX690 twin-cylinder air-cooled 4-stroke gasoline engine known for durability, fuel efficiency, and dependable operation.
• ELECTRIC KEY START: Convenient electric start system allows fast and effortless generator startup, reducing downtime and improving jobsite productivity.
• HIGHLY PORTABLE DESIGN: Weighing only 342 lb (155 kg), this generator offers excellent mobility for contractors and industrial operators requiring portable three-phase power.
• RUNS LIGHT & HEAVY-DUTY EQUIPMENT SIMULTANEOUSLY: Supports both high-demand three-phase equipment and auxiliary single-phase tools from one compact machine.
• RCD & RCBO PROTECTION: Advanced safety systems provide enhanced protection for both operators and connected equipment while reducing the risk of electrical faults.
• GALVANIZED HEAVY-DUTY FRAME: Durable galvanized frame construction provides long-term protection against corrosion and harsh jobsite environments.
• LOW NOISE OPERATION: Produces approximately 72 dB at 7 m during no-load operation, helping improve worksite comfort compared to larger generators.
• FUEL-EFFICIENT PERFORMANCE: Optimized engine and alternator design deliver excellent fuel economy while maintaining consistent power output.

APPLICATIONS / USE CASES

• INDUSTRIAL EQUIPMENT POWER: Ideal for operating 480V three-phase machinery and industrial equipment on temporary or remote worksites.
• CONSTRUCTION SITES: Provides reliable power for construction tools, equipment, lighting systems, and temporary infrastructure.
• COMMERCIAL PROJECTS: Suitable for contractors requiring portable three-phase and single-phase power from one machine.
• REMOTE POWER SUPPLY: Excellent for locations where utility power is unavailable or temporary power solutions are required.
• HIGH-FREQUENCY & INDUCTIVE LOAD APPLICATIONS: Designed to efficiently power equipment with demanding startup and operating requirements.

WHAT’S INCLUDED

• Makinex GEN-16P-MS-480 Generator
• Integrated Electric Key Start System
• Galvanized Protective Frame
• RCD & RCBO Protection System
• User Documentation

TECHNICAL SPECIFICATIONS

• MODEL: GEN-16P-MS-480
• VOLTAGE: 110V Single Phase, 480V Three Phase
• FREQUENCY: 60 Hz
• MAX THREE-PHASE POWER: 13 kW
• CONTINUOUS THREE-PHASE POWER: 11.5 kW
• MAX SINGLE-PHASE POWER: 2.2 kW
• CONTINUOUS SINGLE-PHASE POWER: 2.0 kW
• MAX THREE-PHASE CURRENT: 16.9 A
• CONTINUOUS THREE-PHASE CURRENT: 15 A
• MAX SINGLE-PHASE CURRENT: 30 A
• CONTINUOUS SINGLE-PHASE CURRENT: 30 A
• ENGINE TYPE: Twin Cylinder Air-Cooled 4-Stroke Gasoline Engine
• ENGINE MODEL: Honda GX690
• STARTING SYSTEM: Electric Key Start
• ENGINE DISPLACEMENT: 688 cc
• FUEL ECONOMY: 0.92 gal/hr @ 50% Load
• FUEL TANK CAPACITY: 9.0 gal
• NOISE LEVEL (7 m): 72 dB (No Load)
• WEIGHT: 342 lb (155 kg)
• DIMENSIONS: 30.4 × 20.8 × 35.5 in
• OUTLETS: 2 × 30A Single Phase Sockets, 1 × 50A Three-Phase Socket

FREQUENTLY ASKED QUESTIONS

• What voltage outputs does the GEN-16P-MS-480 provide?
  The generator provides both 110V single-phase and 480V three-phase power outputs for maximum versatility.
• What engine powers this generator?
  The unit is powered by a Honda GX690 twin-cylinder air-cooled 4-stroke gasoline engine.
• Can it run both three-phase and single-phase equipment at the same time?
  Yes, the generator is designed to power both three-phase and single-phase equipment simultaneously.
• What safety features are included?
  The generator includes RCD and RCBO protection systems to enhance operator safety and protect connected equipment.
• Is the generator portable?
  Yes, despite its high-output capability, the compact design and 342 lb (155 kg) weight make it highly portable for commercial and industrial applications.
