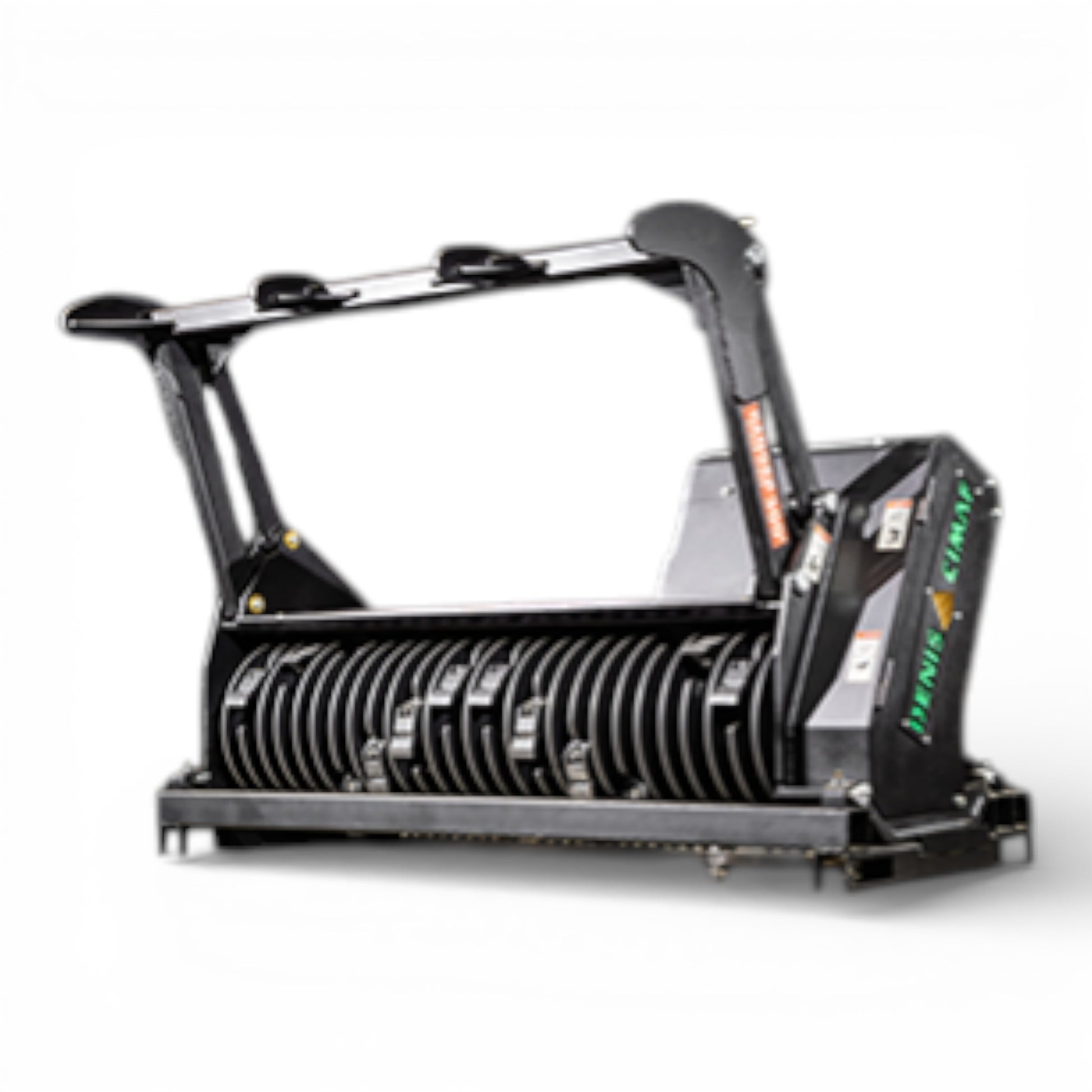

Denis Cimaf DAF-180D Skid Steer Mounted Mulching Attachment - for 85 HP Forestry Carriers

The Denis Cimaf DAF-180D Skid Steer Mounted Mulching Attachment is a powerful forestry brushcutting and mulching system designed for carriers with approximately 85 hp. Built for vegetation control, land clearing, and forestry management, this mulcher uses Denis Cimaf’s patented high-speed rotor technology to deliver efficient cutting performance and reliable durability in demanding environments.

Two models are available: the DAF-180D and the DAF-180DI, which features an inverted or special configuration for specific operational requirements. Both models provide the same powerful mulching capabilities with strong construction and efficient rotor performance.

FEATURES

• DESIGNED FOR 85 HP FORESTRY CARRIERS: Optimized for compact forestry carriers and skid steer loaders with approximately 85 hp (65 kW), providing strong mulching performance in medium-duty vegetation management tasks.
• PATENTED HIGH-SPEED ROTOR TECHNOLOGY: Advanced rotor system increases cutting efficiency and productivity while maintaining smooth, stable operation.
• 74 IN (188 CM) CUTTING WIDTH: Wide cutting path allows operators to efficiently clear vegetation while maintaining maneuverability in forestry environments.
• 27 FIXED KNIVES: Durable knife configuration delivers aggressive cutting power for brush, shrubs, and smaller trees.
• 115CC VARIABLE DISPLACEMENT HYDRAULIC MOTOR: Provides strong torque and consistent power for reliable mulching performance.
• BOLT-ON REPLACEABLE WEAR LINER: Protects internal housing from excessive wear and allows easy replacement to extend equipment life.
• NO-SLIP TIMING BELT: Ensures dependable power transfer and rotor synchronization for efficient cutting.
• SPARE SET OF KNIVES INCLUDED: Allows operators to quickly replace worn blades and minimize downtime.
• BRUSHCUTTER MAINTENANCE KIT: Includes essential tools for maintaining optimal cutting performance.
• GAS-POWERED FILING TOOL: Enables on-site sharpening of knives to maintain cutting efficiency without returning to the shop.
• STANDARD SKID STEER MOUNTING BRACKETS: Allows quick attachment to compatible skid steer loaders.
• HEAVY DUTY STATIONARY PUSH BAR: Improves vegetation handling and helps guide material into the rotor for efficient mulching.

APPLICATIONS / USE CASES

• FORESTRY MULCHING: Clears brush, shrubs, and smaller trees for forestry maintenance and land management.
• LAND CLEARING: Efficiently prepares land for construction, agriculture, and development.
• RIGHT-OF-WAY MAINTENANCE: Maintains vegetation along powerlines, roadsides, and pipeline corridors.
• VEGETATION CONTROL: Ideal for managing overgrown land and controlling invasive vegetation.

WHAT’S INCLUDED

• Denis Cimaf DAF-180D Mulching Attachment
• One Spare Set of Knives
• Brushcutter Maintenance Kit
• Gas-Powered Filing Tool
• User Manual

OPTIONAL ACCESSORIES

• Hydraulic Pushbar (40591FORY) - Hydraulic Hoses Not Included

TECHNICAL SPECIFICATIONS

• Approx. Minimum Carrier Power: 85 HP (65 kW)
• Cutting Width: 74" (188 cm)
• Cutting Distance from Ground Level: .8" (2 cm)
• Number of Blades on Rotor: 27
• Optimal Target Material Diameter: 8" (20 cm)
• Exterior Width: 87" (221 cm)
• Exterior Height (with Pushbar): 58" (147 cm)
• Exterior Height (without Pushbar): 44" (112 cm)
• Exterior Depth (with Pushbar): 51" (130 cm)
• Exterior Depth (without Pushbar): 31" (79 cm)
• Rotor Diameter: 18" (46 cm)
• Weight (typical, estimated): 3200 lb (1452 kg)

HYDRAULIC SYSTEM SPECIFICATIONS

• Variable Displacement Axial Piston Motor: 1
• Max. Cylinder: 115
• Max. Motor Torque (T max at Vg max): 502 lbs-ft
• NM: 681
• Required Continuous Flow*: 35 gal/min (132 L/min)
• Operating Pressure*: 5000 psi (345bar)
• Rotating Speed: 2550 r/min
• Pressure Line I.D.: 1" (#16)
• Return Line I.D.: 1" (#16)
• Drain Line I.D.: .675" (#10)

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What carrier power is required for the DAF-180D?
It is designed for forestry carriers with approximately 85 hp (65 kW).

2. What is the cutting width?
The mulcher provides a 74 in (188 cm) cutting width for efficient vegetation clearing.

3. What size material can it handle?
The optimal target material diameter is approximately 8 in (20 cm).

4. What is the difference between DAF-180D and DAF-180DI?
The DAF-180DI is an inverted or special configuration version designed for specific forestry carrier setups.

5. What hydraulic flow is required?
The attachment requires approximately 35 gal/min (132 L/min) of continuous hydraulic flow.
