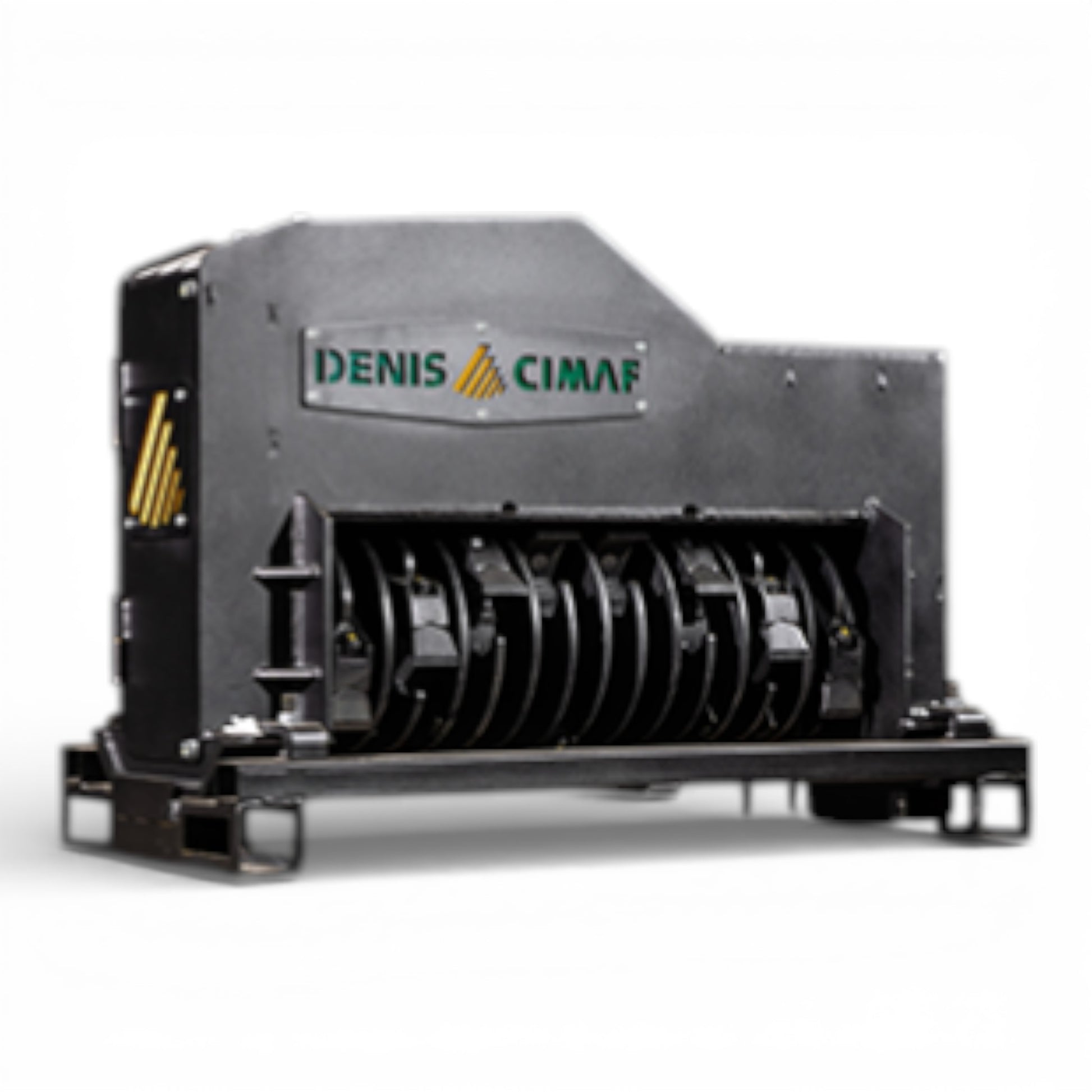

Denis Cimaf DAH-080C Excavator Mounted Mulching Attachment - for 7 to 10 Ton Excavators

The Denis Cimaf DAH-080C Excavator Mounted Mulching Attachment is a compact yet powerful forestry brushcutting and mulching system designed for excavators ranging from 7 to 10 tons. Built for efficient vegetation control, this mulcher integrates Denis Cimaf’s patented high-speed rotor technology to deliver reliable cutting performance while maintaining smooth operation. Ideal for land clearing, right-of-way maintenance, and forestry applications, the DAH-080C provides excellent maneuverability and durability for smaller excavator carriers working in tight or challenging environments.

KEY FEATURES

• DESIGNED FOR 7 TO 10 TON EXCAVATORS: Optimized for excavators between 15,000–22,000 lb (7–10 t), providing efficient mulching capability for compact forestry equipment.
• PATENTED HIGH-SPEED ROTOR TECHNOLOGY: Advanced rotor system ensures efficient cutting performance and consistent mulching results in dense vegetation.
• 32 IN (81 CM) CUTTING WIDTH: Compact cutting width allows the attachment to operate effectively in confined areas and around obstacles.
• 11 FIXED KNIVES: Durable knife configuration designed to efficiently process brush, shrubs, and smaller trees.
• 55CC VARIABLE DISPLACEMENT HYDRAULIC MOTOR: Provides dependable hydraulic power for consistent rotor performance and efficient mulching operations.
• NO-SLIP TIMING BELT: Ensures reliable power transmission between the hydraulic motor and rotor assembly.
• BRUSHCUTTER MAINTENANCE KIT INCLUDED: Includes essential tools to maintain blade sharpness and machine performance.

APPLICATIONS / USE CASES

• FORESTRY MULCHING: Efficiently clears brush and small trees in wooded areas.
• RIGHT-OF-WAY MAINTENANCE: Maintains vegetation along roads, utility lines, and pipelines.
• LAND CLEARING: Ideal for preparing land for development, agriculture, or landscaping.
• VEGETATION MANAGEMENT: Controls overgrowth and invasive plant species in outdoor environments.

WHAT’S INCLUDED

• Denis Cimaf DAH-080C Excavator Mounted Mulching Attachment
• Brushcutter Maintenance Kit
• User Manual

OPTIONAL ACCESSORIES

• Blank Top Plate (D111 313RY)
• Tilt System (D106 514ARY)
• Standard pin-on mounting bracket/Pin Grabber (includes pins)

TECHNICAL SPECIFICATIONS

• EXCAVATOR SIZE: 15,000–22,000 lb (7–10 t)
• APPROX. CARRIER POWER: 54 HP (40 kW) and up
• CUTTING WIDTH: 32" (81 cm)
• CUTTING DISTANCE FROM GROUND LEVEL: .75" (2 cm)
• NUMBER OF BLADES ON ROTOR: 11
• TARGET MATERIAL DIAMETER: 4" (10 cm)
• EXTERIOR LENGTH: 47" (119 cm)
• HEIGHT: 38" (97 cm)
• WIDTH: 30" (76 cm)
• ROTOR DIAMETER: 17" (43 cm)
• WEIGHT, TYPICAL (ESTIMATED): 1420 lb (644 kg)
• WEIGHT, WITH ALL OPTIONS: 1830 lb (830 kg)

HYDRAULIC SPECIFICATIONS

• MOTOR MX CYL. (CC): 60
• REQUIRED CONTINUOUS FLOW*: 20 gal/min (76 L/min)
• OPERATING PRESSURE (PSI) - UP TO*: 4000
• OPTIMAL ROTATING SPEED (RPM): 3000
• PRESSURE LINE I.D.: .625" (#10)
• RETURN LINE I.D.: .625" (#10)
• DRAIN LINE: .50" (#8)

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What excavator size is required for the DAH-080C?
The mulcher is designed for excavators between 7 and 10 tons (15,000–22,000 lb).

2. What is the cutting width?
The mulcher provides a 32 in (81 cm) cutting width, making it ideal for tight workspaces.

3. What size material can it handle?
The optimal target material diameter is approximately 4 in (10 cm).

4. What hydraulic flow is required?
The attachment requires approximately 20 gal/min (76 L/min) of continuous hydraulic flow.

5. What type of work is this mulcher best suited for?
It is ideal for light forestry work, brush clearing, vegetation control, and land maintenance projects using compact excavators.
