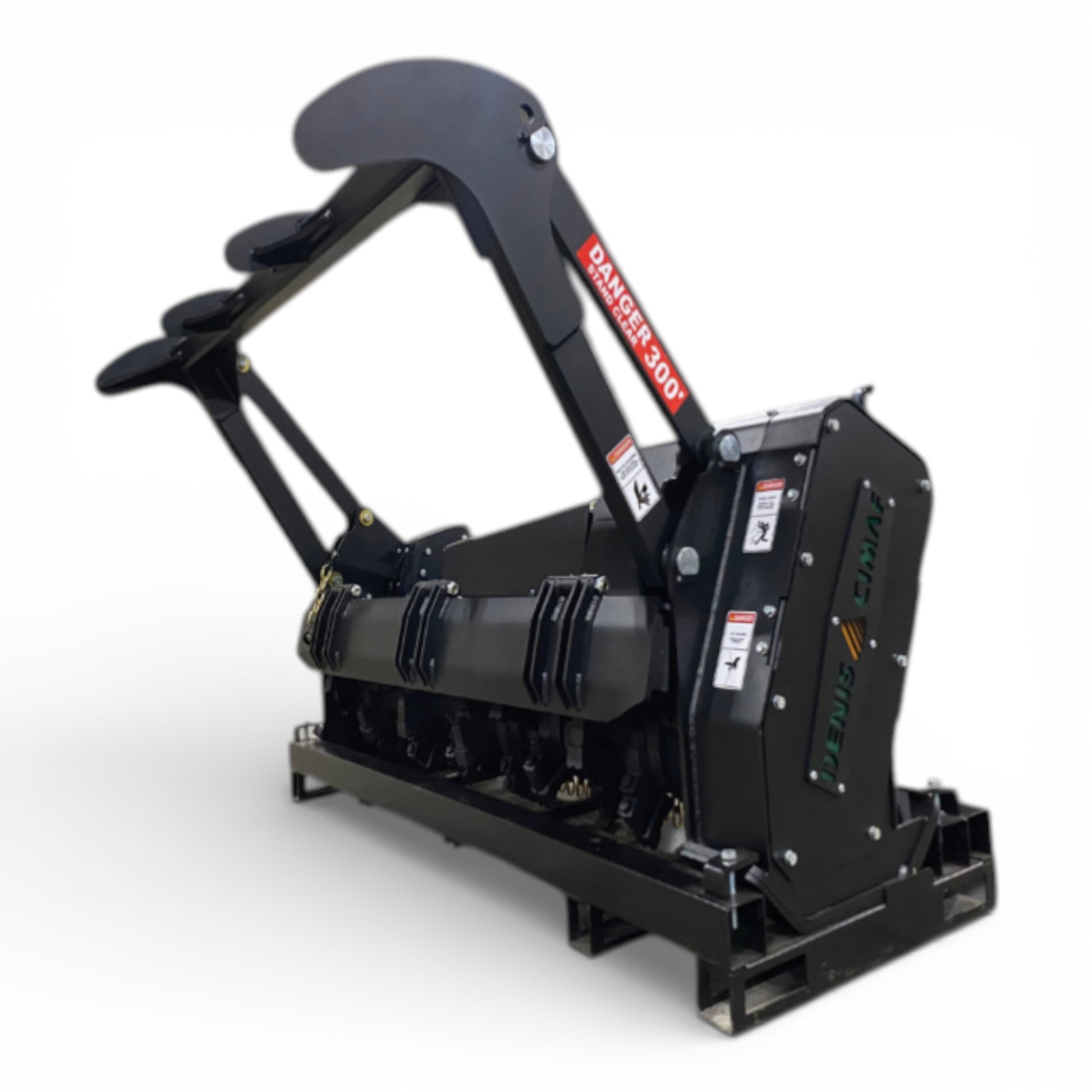

Denis Cimaf DXF-180D Front Mounted Mulching Attachment - for 85 HP Forestry Carriers

The Denis Cimaf DXF-180D Front Mounted Mulching Attachment is a high-power forestry brushcutting and mulching system designed for professional vegetation control and land reclamation. Built specifically to mulch wood and vegetation residue on typical forest terrain, the DXF mulching head is ideal for clearing undergrowth, reclaiming untilled land, and maintaining forestry environments. Its durable construction and efficient mulching capability make it a reliable solution for forestry carriers with approximately 85 HP.

KEY FEATURES

• DESIGNED FOR 85 HP FORESTRY CARRIERS: Optimized for forestry carriers with approximately 85 HP (65 kW), delivering dependable mulching performance for vegetation management and land clearing.
• FORESTRY-GRADE MULCHING SYSTEM: Engineered exclusively to mulch wood and vegetation residue on typical forest terrain and assist in reclaiming uncultivated land.
• 38 DUAL-SIDED CARBIDE TEETH: Heavy-duty carbide cutting teeth provide aggressive mulching performance and long service life in demanding forestry conditions.
• BOLT-IN WEAR LINER: Protects the mulching head housing from abrasion while allowing easy replacement to extend equipment life.
• REPLACEABLE SKID SHOES: Help maintain proper cutting height while protecting the unit when operating on rough terrain.
• STANDARD SAE ATTACHMENT PLATE: Ensures compatibility with many forestry carriers and mounting systems for quick installation.
• START-UP KIT INCLUDED: Provides essential components required for installation and operation.

APPLICATIONS / USE CASES

• UNDERGROWTH CLEARING: Efficiently shreds plants and branches in forests within the diameter limits specified in the technical specifications.
• UTILITY LINE MAINTENANCE: Helps maintain vegetation around electric lines and funicular systems.
• FOREST CLEANUP: Mulches dead branches following forest clearance operations.
• FIRE LANE CREATION: Helps establish firebreaks and safety lanes in forest environments.
• PRUNING RESIDUE PROCESSING: Efficiently shreds pruning waste and forestry debris.
• LAND DEVELOPMENT: Assists in cultivating new agricultural areas or grazing pastures by clearing dense vegetation.
• BIOMASS PRODUCTION: Processes organic vegetation for biomass use.

WHAT’S INCLUDED

• Denis Cimaf DXF-180D Mulching Attachment
• Start-up Kit
• User Manual

TECHNICAL SPECIFICATIONS

• Min Approx. Carrier Power: 85 HP (65 kW)
• Cutting Width: 74" (189 cm)
• Number of Teeth on Rotor: 38 Dual-sided Carbide Teeth
• Target Material Diameter: 8" (20 cm)
• Exterior Width: 87" (221 cm)
• Height w/ Pushbar: 56" (142 cm)
• Depth w/ Pushbar: 53" (135 cm)
• Rotor Diameter: 17" (43 cm)
• Optimal Rotor Speed: 2,200 RPM
• Weight, with all options: 2,950 lbs (1,339 kg)
• Hydraulic Motor Displacement: 115 cc
• Max. Operating Pressure: 5,000 psi
• Min Required Continuous Flow: 35 gal/min (133 L)

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What carrier power is required for the DXF-180D?
It is designed for forestry carriers with approximately 85 HP (65 kW).

2. What is the cutting width?
The mulching head provides a 74 in (189 cm) cutting width for efficient vegetation clearing.

3. What size material can it handle?
The optimal target material diameter is approximately 8 in (20 cm).

4. What type of cutting teeth does it use?
The DXF-180D uses 38 dual-sided carbide teeth designed for aggressive mulching and long wear life.

5. What hydraulic flow is required?
The attachment requires approximately 35 gal/min (133 L/min) of continuous hydraulic flow.
