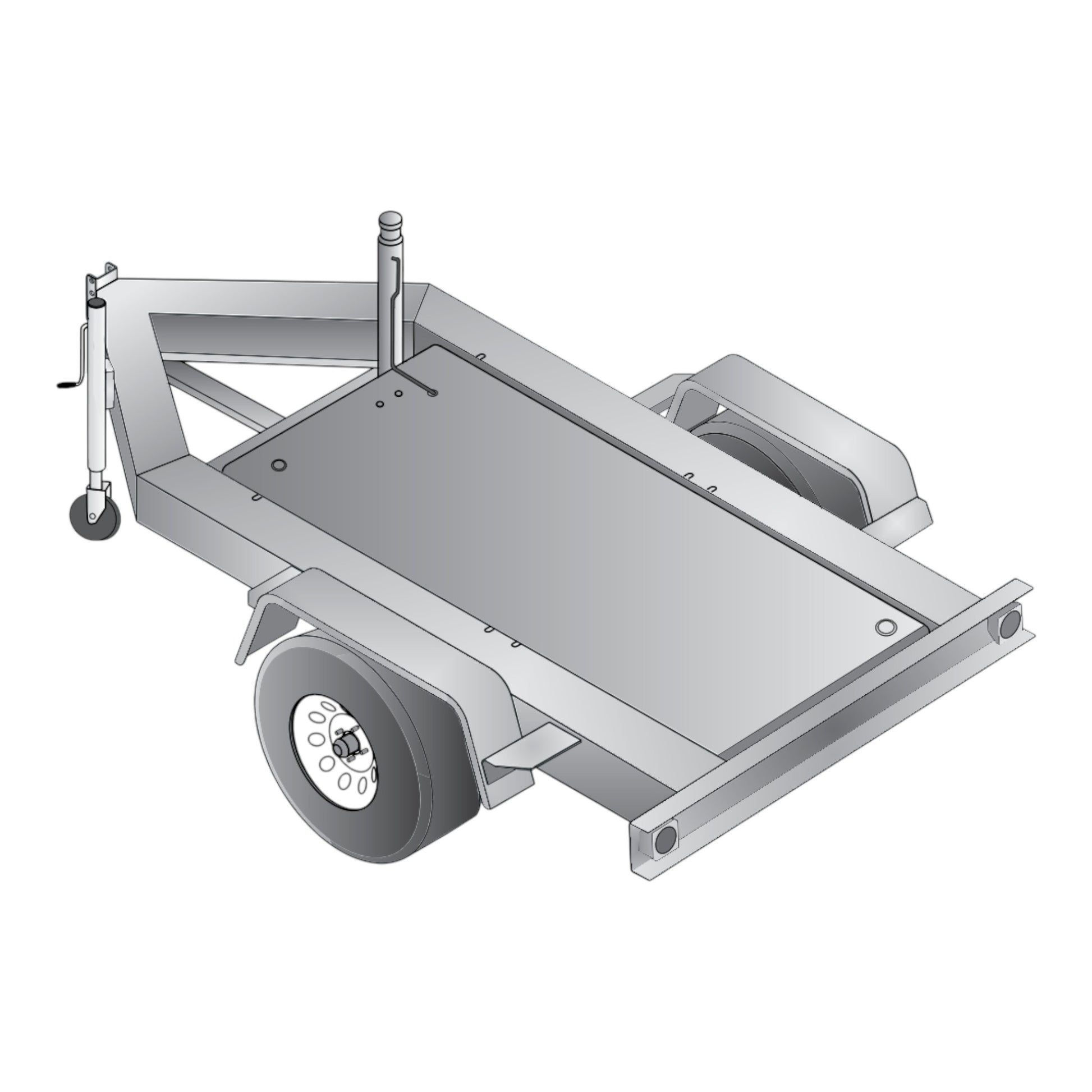

MQ Power TRLRMPXF Single Axle Trailer

The MQ Power TRLRMPXF Single Axle Trailer delivers a rugged and reliable transport solution designed specifically for MQ Power portable generator models. Built with precision engineering and heavy-duty components, the TRLRMPXF ensures safe and stable transportation, whether on the jobsite or on the road. With its integrated 28-gallon steel fuel cell and D.O.T.-approved features, this trailer is purpose-built for contractors and professionals who demand convenience, durability, and performance.

FEATURES

• Model Options: Choose between the TRLRMPXF standard configuration or the TRLRMPXFE model, which includes electric brakes for enhanced safety and braking performance during transport.
• Generator Compatibility: Designed to securely fit MQ Power generator models DA7000, DCA10SPX, DCA15SPX, and TLG8SSK4F, ensuring a precise and stable mounting configuration during transport.
• Single-Axle Design with Leaf Spring Suspension: The heavy-duty single-axle system with leaf spring suspension provides a smooth, stable ride and absorbs road vibrations for superior towing performance.
• Heavy-Duty Welded Steel Frame: Industrial-grade fully welded steel construction provides exceptional strength and long-term durability in demanding field and construction conditions.
• Integrated Fuel Cell: Equipped with a single-wall steel fuel tank offering a 28-gallon (106 L) capacity, this trailer supports extended generator run times and reduces the need for frequent refueling.
• Formed Channel Generator Mounting: Precision-formed steel channel ensures the generator is properly supported and evenly balanced, reducing vibration and enhancing transport stability.
• Adjustable Coupler Height: The 4-hole adjustable channel allows for three height positions (4 inches overall adjustment), making it compatible with various towing vehicle hitch configurations.
• Swivel Jack with Caster Wheel: The tongue-mounted swivel jack rated for 1,000 lb. lift capacity allows for easy positioning, hitching, and unhitching, ensuring operator convenience and safety.
• Replaceable Bolt-On Steel Fenders: Heavy-duty steel fenders protect against road debris and can be easily replaced when needed, minimizing downtime and maintenance costs.
• Durable Powder-Coated Finish: The powder coat paint process protects the frame, channel, and fenders from corrosion, abrasions, and harsh weather exposure for long-lasting protection and a clean, professional look.
• D.O.T. Approved Lighting System: Complete lighting package includes tail lamps, stop lamps, turn signal lamps, and side marker lights, all D.O.T. compliant for safe and legal highway operation.

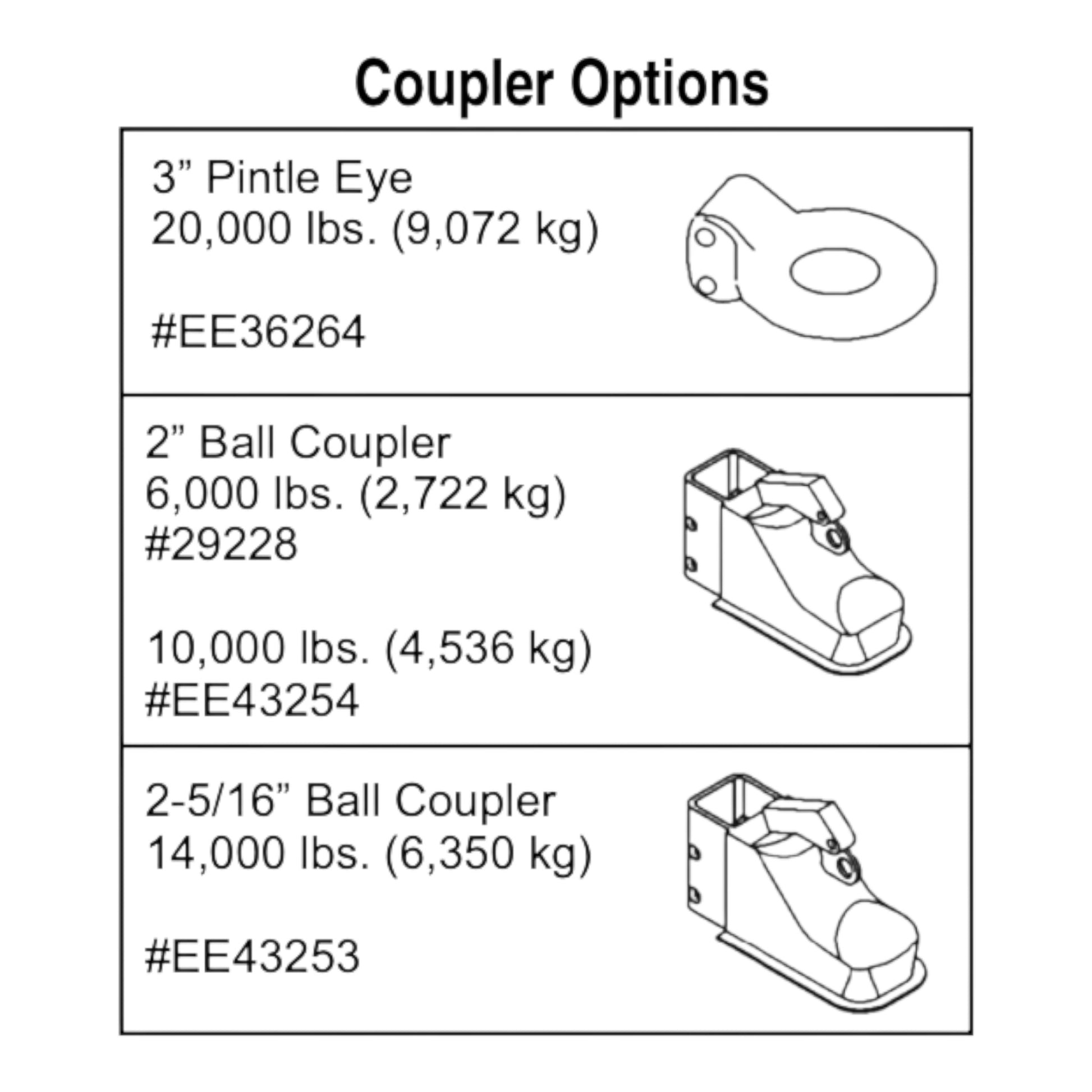

Coupler Options

• 3" Pintle Eye - 20,000 lbs. (9072 kg)
• 2" Ball Coupler - 6,000 lbs. (2722 kg)
• 2" Ball Coupler - 10,000 lbs. (4536 kg)
• 2-5/16" Ball Coupler - 14,000 lbs. (6350 kg)

Optional Accessories

• Storage Box 16 Inch High

Specifications

• Gross Vehicle Weight Rating (GVWR): 2,760 lbs (1,252 kg)
• Gross Axle Weight Rating (GAWR): 3,500 lbs (1,587 kg) (ea.)
• Tire Size: ST175/80D13 LR-C
• Wheel Bolt Pattern: 5 Lug on 4.5 in
• Tire Load Rating: 1,380 lbs/626 kg (ea.)
• Trailer Weight (without Fuel): 513 lbs. (233 kg)
• Trailer Weight (with Fuel): 713 lbs. (323 kg)
