553 DIG-R-TACH 4750 Series Earth Augers

The 4750 Series Earth Augers are built for those who appreciate the power of a round connection and demand uncompromising performance. Featuring the same rugged design as the 4710 Series, these augers are equipped with a 2.562-inch round auger drive connection and are ready to take on the toughest soil conditions without flinching. From the hardened flighting to the heavy-walled axles and precision-formed boring heads, every component is built to handle serious torque and keep you digging hole after hole with speed, strength, and style.

FEATURES

• 2.562 INCH ROUND AUGER DRIVE CONNECTION: Designed specifically for round hub auger systems. Provides a secure, high-strength connection ideal for heavy-duty use and repeat performance across multiple machines.
• FLIGHTING PITCH MINIMIZES POWER REQUIRED, MAXIMIZES LOOSE SOIL REMOVED: Engineered for efficient digging by reducing resistance and improving soil lift. Keeps holes cleaner with less dirt fallback and helps you get more done in less time.
• HEAVY-GAUGED, STEEL, HELICOID OR SECTIONAL FLIGHTING: Built for strength and resilience in rocky, clay, or compacted soils. Resists wear and bending while delivering consistent performance over years of tough work.
• HEAVY-WALLED, STEEL, AXLE: Reinforced to endure high torque and digging forces without failure. Keeps your auger centered and stable for straighter holes and less wear on your equipment.
• FORMED, STEEL PLATE BORING HEAD: Designed to position teeth precisely for optimal soil breakup and cutting efficiency. Enhances performance and wear life in all soil types, from loose loam to hard-packed dirt.
• WIDE SELECTION OF INTERCHANGEABLE CUTTING TEETH: Allows you to match the auger teeth to the soil for superior cutting and penetration. Improves productivity and ensures cleaner holes with every dig.
• OUTSIDE CUTTING TEETH EXTEND PAST FLIGHTING EDGE: Minimizes direct wear on the flighting and helps extend the life of the auger. Produces smoother holes and increases overall durability.

FOR SIZES AND SPECIFICATIONS PLEASE SEE IMAGE 2

• Please Note: Augers can be used with popular competitive hydraulically powered earth drilling attachments utilizing 2 inch hexagon auger drive connection

SPECIFICATIONS

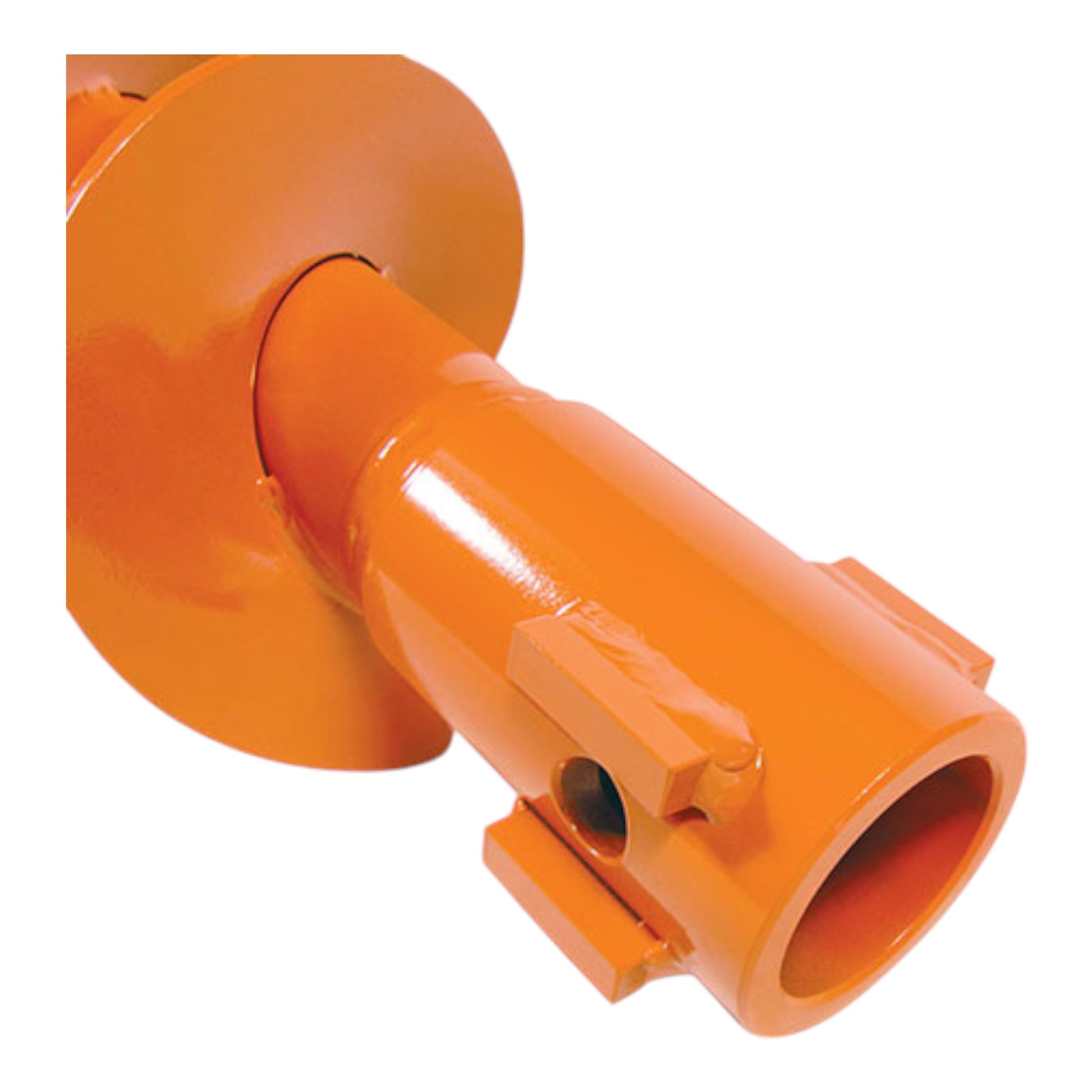

• Auger Drive Connection: 2.562 inch (65.1 mm) round
• Auger Pin Connection: .875 inch (22.2 mm) diameter auger pin
• Available Auger Diameter Range: 6.0 to 36.0 inches (22.2 to 914.4 mm)
• Effective Auger Digging Depth: 36.0 inches (762.0 mm)
• Available Auger Extension: 15.0 inches (381.0 mm), plain tube-type, 36.0 inches (914.4 mm), plain tube-type
• Flighting Thickness: .250 inch (6.4 mm)
• Flighting Construction: 6.0 & 8.0 inch (152.4 & 203.2 mm) diameter augers: single pitch helicoid, full axle length, 10.0 to 36.0 inch (254.0 to 914.4 mm) diameter augers: single pitch sectional, full axle length
• Axle Diameter: 3.0 inch (76.2 mm)
• Boring Head: Formed, steel plate with Pengo type teeth & screw bit
• Screw Bit: Field replaceable, alloy steel centering screw bit, heat treated to extend service life. SB35 standard. SB35C is optional
• Cutting Teeth: Field replaceable, bolt retention, standard alloy steel cutting teeth, hot forged, hardfaced to extend service life. 35HFCPAK7 standard. 35PAK7, 5T30PAK3, 5T30CPAK3 & 1336PAK2 tooth options available for specialized applications
• Compatible Product: 553-12 & 553-20 DIG-R-TACH Series hole diggers, 6700-4CLR coupler plus, 6780-15X & 6780-36X auger extensions and similar competitive model hole diggers with a 2.562 inch (65.1 mm) round auger drive connection
