660H DIG-R-MOBILE Towable Hole Digger

The 660H DIG-R-MOBILE is your all-in-one towable digging solution, built for mobility, power, and convenience. No trailers needed—this rugged machine tows easily at highway speeds and tackles tough terrain and soil with confidence. With intuitive handling, powerful torque, and advanced hydraulic features, it’s designed to reduce fatigue, speed up job completion, and adapt to the most demanding jobsite conditions.

FEATURES

• HONDA GXV390 13 HP 4-STROKE ENGINE: Delivers dependable, commercial-grade power for high-performance hole digging. Its efficient fuel use and consistent output mean fewer interruptions and smoother operation on every job.
• EXCLUSIVE SNAP-LOK AUGER STORAGE SYSTEM: Tilt the auger out of the way with a single motion, making transitions between holes faster and easier. This saves time and effort while keeping your workflow moving.
• LARGE TIRES FOR ON-SITE MANEUVERABILITY: Navigate rough or uneven ground with ease. These tires provide stability and smooth handling, so you can push or pull the machine by hand without strain.
• MULTI-PURPOSE POW-R-PORT: Powers additional hydraulic tools directly from the machine, giving you maximum jobsite versatility without bringing extra equipment.
• AUGER SIDE TILT FOR SLOPED TERRAIN: Adjusts up to 20 degrees for vertical digging on uneven surfaces. Eliminate the need to reposition the entire unit, saving time and improving accuracy on hillsides or angled ground.
• LARGE HYDRAULIC FLUID RESERVOIR: Maintains cool fluid temperatures during extended operation without the need for an auxiliary cooler. Keeps the machine running longer and reduces downtime.

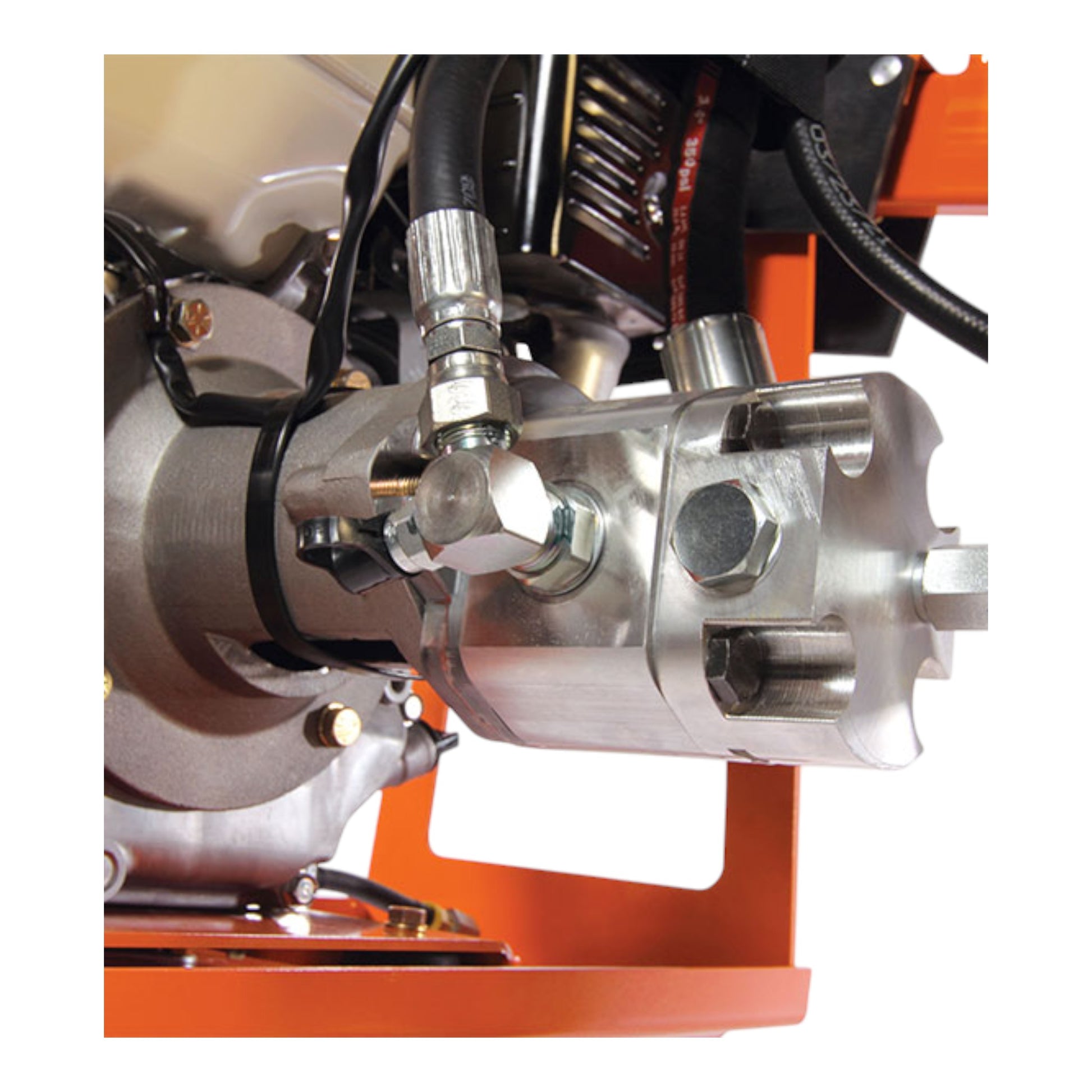

• INTEGRAL HYDRAULIC PUMP PRESSURE RELIEF VALVE: Automatically detects hydraulic overloads to prevent damage and extend equipment life. Protects your investment while reducing repair and maintenance costs.
• 276 FT LBS OF DIGGING TORQUE: Provides outstanding torque to break through compacted, rocky, or clay-heavy soils. Ensures faster digging with less wear on the auger and engine.
• CENTER-BALANCED DESIGN: Keeps the auger in a neutral, stable position to minimize physical effort. Easier handling and less operator fatigue throughout long workdays.
• WIDE STANCE FOR STABLE TOWING: Tows safely at highway speeds—even on curves or sudden stops. No need for a trailer, saving transport time and costs.
• INCLUDES AUGER PIN AND COUPLER: Comes ready to work out of the box with all necessary connections for fast setup and operation.
• AUGER BITS NOT INCLUDED - SOLD SEPARATELY: Customize your digging setup by selecting the right auger bits for your job. Purchase only what you need for added flexibility and cost-efficiency.
• WEIGHT: 560 lbs (254.01 kg) Heavy-duty weight delivers stability while digging and helps reduce bouncing or shifting while towing. Balanced design also ensures ease of movement by hand without tipping or strain.

INCLUDED COUPLER OF YOUR CHOICE (CHOOSE ONLY 1)

• 660-5CLR: Coupler, 1 inch female round to 1.375 inch male hexagon pin
• 660-6CLR: Coupler, 1 inch female round to .875 inch male square (Ground Hog type) pin

AVAILABLE AUGER BITS (SOLD SEPARATELY)

• 660H - 4400 SERIES EARTH AUGERS: (Please see image for sizes and specifications)
• 660H - 5500 SERIES FLIGHTED EARTH AUGER EXTENSIONS: (Please see image for sizes and specifications)
• 660H - PLDBH/PSD GROUND HOG TYPE EARTH AUGERS: (Please see image for sizes and specifications)

SPECIFICATIONS

• Power Source: 13.0 HP (9.7 Kw) Honda GX390, 4 Stroke, gas engine
• Starter: Hand rewind
• Fuel: Gasoline, unleaded, automotive grade
• Hydraulic System: Open center, 8.0 GPM (30.3 lit/min), 2000.0 PSI (140.6 kg/cm2)
• Reservoir Capacity: 5.0 US gallons (18.9 L)
• Reservoir Cap: Includes fluid level indicator & filtration screen for removal of debris
• Maximum Drilling Torque: 276.0 ft lbs (374.2 N.m)
• Frame: Unitized, welded-steel plate and tube
• Nominal Auger Rotation Speed: 144.0 RPM, no load
• Auger Drive Connection Options: 1.375 inch (34.9 mm) hexagon (General), specify 660-5CLR auger coupler / .875 inch (22.2 mm) square (Ground Hog), specify 660-6CLR auger coupler
• Available Auger Diameter Range: Optional 4.0 to 18.0 inches (101.6 to 457.2 mm) (Ground Hog)
• Standard Auger Digging Length: 36.0 inches (914.4 mm)
• Available Auger Extensions: Optional 15.0 inch (381.0 mm) plain, tube-type, Optional 36.0 inch (914.4 mm) continuous flighted. (General)
• Tires: 4.80-12 highway use rated
• Product Dimensions (L x W x H): 119.0 x 41.0 x 54.0 inches (3022.6 x 1041.4 x 1371.6 mm)
• Product Weight: 560.0 lbs (254.0 kg), less towbar & auger
