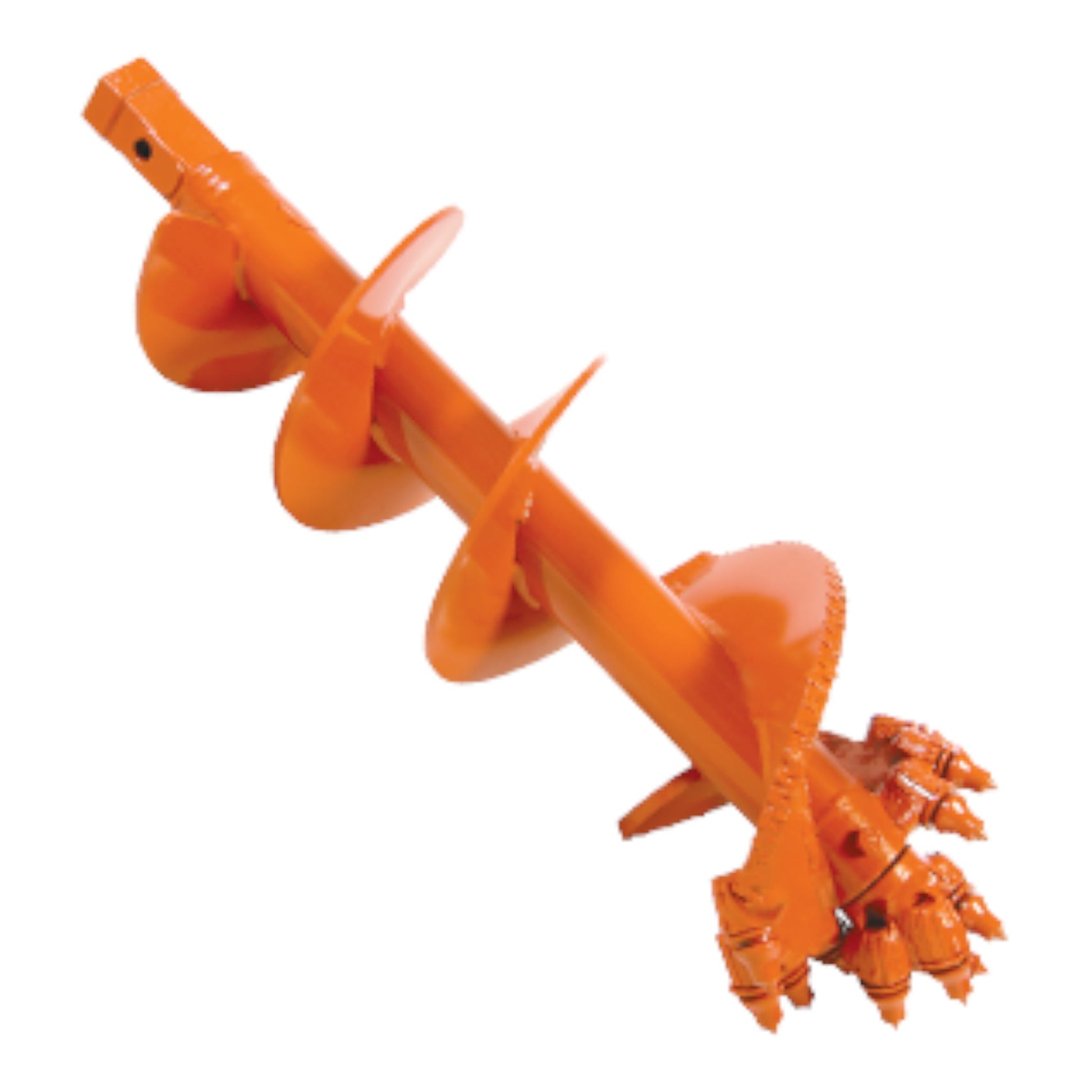

671 General DIG-R-TACH TCT Series Earth Augers

The TCT Series Earth Augers from the 671 General DIG-R-TACH lineup are the extreme-duty champions of the auger world, purpose-built for when standard tools just can’t cut it. Designed to rip into highly compacted soils and fracturable rock, these augers turn difficult ground into manageable material when paired with high-torque drive units and heavy equipment. Whether mounted to skid loaders, tractor-loader backhoes, excavators, or track-type carriers, the TCT Series unleashes brute force that keeps productivity moving when conditions try to bring you to a halt. Rugged, aggressive, and engineered for battle, this is serious hole-digging power you can depend on.

FEATURES

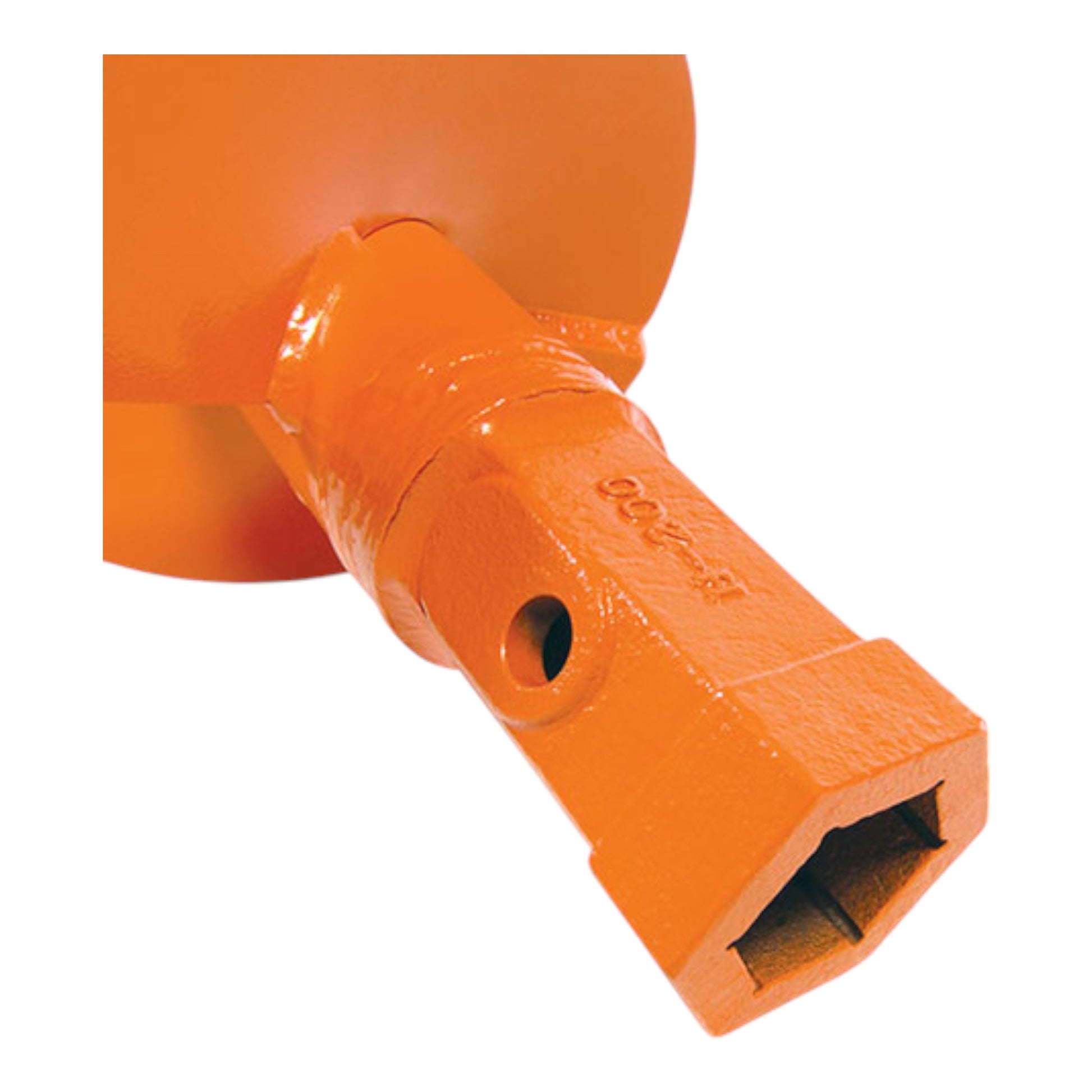

• 2.0 INCH HEXAGON AUGER DRIVE CONNECTION: Provides a secure, high-strength interface for maximum torque transfer. Designed for heavy-duty powerheads delivering the force needed in extreme digging conditions.

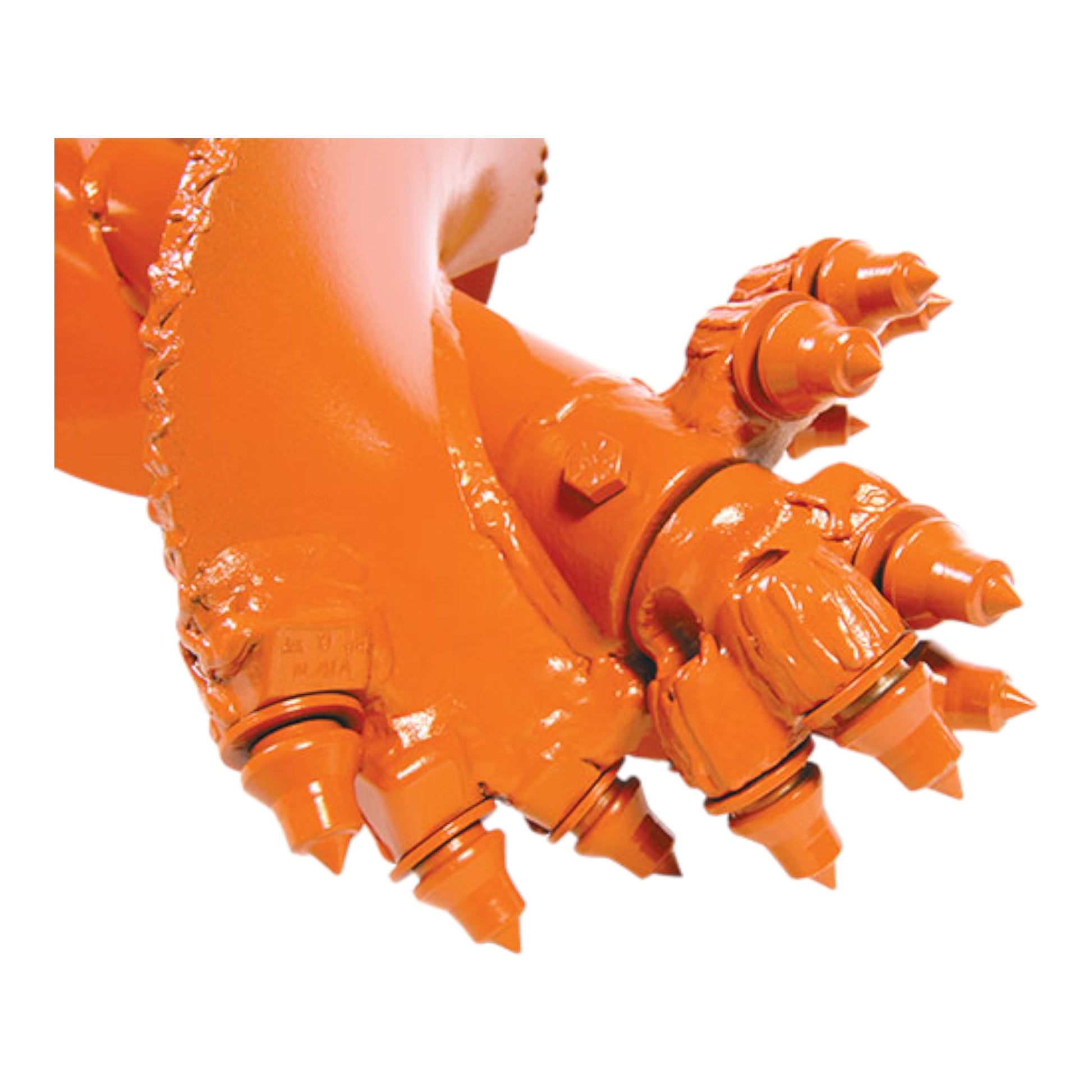

• ONE PIECE, CAST STEEL BORING HEAD: Positions the teeth for maximum ground engagement and long-lasting wear performance. Delivers precise cutting in the most punishing environments.
• FIELD REPLACEABLE CAST STEEL PILOT HEAD: Reduces downtime and maintenance costs with simple on-site replacement. Keeps your operation moving without needing full auger rebuilds.
• FIELD REPLACEABLE TUNGSTEN CARBIDE CONICAL (BULLET)-TYPE TEETH: Built for maximum wear resistance and convenience. Quickly swap out teeth in the field to match soil and rock conditions, or to refresh performance without delay.
• HEAVY-WALLED AXLE: Designed to handle extreme torque and bending forces. Keeps the auger steady and aligned through dense, rocky, or compacted terrain.
• HEAVY-GAUGED, STEEL, HELICOID SECTIONAL FLIGHTING: Reinforced flighting provides maximum structural integrity under repeated impact. Moves material efficiently and resists wear in harsh jobsite conditions.

FOR SIZES AND SPECIFICATIONS PLEASE SEE IMAGE 2

SPECIFICATIONS

• Auger Drive Connection: 2.0 inch (50.8 mm) hexagon
• Auger Pin Connection: .750-10UNC x 4.0 inch (101.6 mm) L, hex head bolt
• Available Auger Diameter Range: 6.0 to 24.0 inch (152.4 to 609.6 mm)
• Effective Auger Digging Depth: 36.0, 48.0 & 60.0 inch (914.4, 1219.2 & 1524.0 mm)
• Available Auger Extension: 15.0 inches (381.0 mm), plain tube-type, 36.0 inches (914.4 mm), plain tube-type
• Flighting Thickness: .375 inch (9.5 mm) standard, .500 inch (12.7 mm) optional, for extreme operating conditions
• Flighting Construction: 6.0 & 8.0 inch (152.4 & 203.2 mm) diameter augers: single pitch helicoid, full axle length, 12.0 to 36.0 inch (304.8 to 914.4 mm) diameter augers: single pitch sectional, full axle
• Axle Diameter: 3.5 inch (88.9 mm)
• Boring Head: Pengo type, LDOBH, one piece, cast steel boring head
• Pilot Head: Field replaceable, cast steel
• Cutting Teeth: Tungsten carbide conical (bullet)-type
• Compatible Product: 671-16 DIG-R-TACH Series hole digger and similar competitive model hole diggers with 2.0 inch hexagon auger drive connection, DIG-R-TACH 6700 Series Auger Couplers, DIG-R-TACH 6700 Series Non-Flighted Auger Extensions
