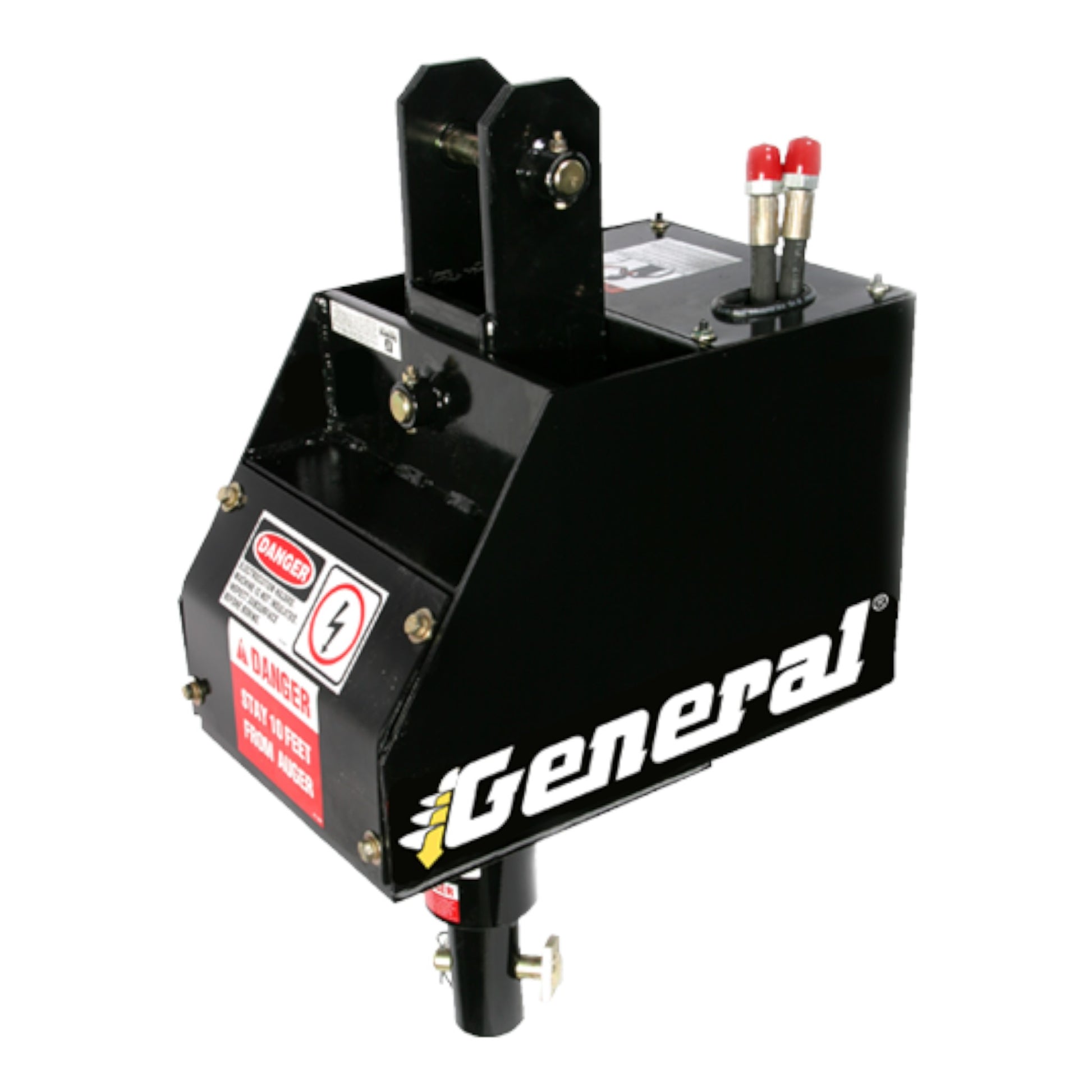

753-16 General DIG-R-TACH Series Hydraulic Attachment Hole Digger

The 753-16 DIG-R-TACH is the torque-loving cousin of the DIG-R-TACH lineup, bringing the same raw 1330 ft. lbs. of drilling power as the 671-16, but with a round twist. Designed with a 2.562-inch round drive shaft, this beast is made for operators running round hub augers up to 36 inches in diameter. Built for heavy-duty performance on skid steer loaders, it thrives in punishing soil conditions with an ultra-reliable powertrain that features alloy drive shafts, oversized bearings, and steel armor tough enough to take on anything, even a surprise visit from a T-Rex. If you like to dig with style and power, this is your machine.

FEATURES

• LOW-SPEED, HIGH-TORQUE, GEROLER-TYPE MOTOR: Designed for maximum power output in dense, compact, and rocky soil. Delivers slow, steady muscle that powers through the ground without bogging down.
• ROLLER CHAIN REDUCTION SYSTEM: Provides high-efficiency torque transfer with minimal friction and wear. Low-maintenance design ensures long service intervals and dependable power on every dig.
• TIMKEN-TYPE BEARINGS: Heavy-duty, sealed bearings reduce maintenance needs while delivering smooth, long-lasting performance—even in harsh, debris-filled environments.
• UNIVERSAL JOINT SWIVEL: Maintains perfect auger alignment by allowing flexible movement during operation. Prevents side loading and uneven hole digging, keeping your equipment protected and your results accurate.

SPECIFICATIONS

• Hydraulic System: Use with auxiliary hydraulic system of carrier vehicle
• System Requirements: Flow range: Up to 25.0 GPM (94.6 lit/min), Pressure range: 1500.0-3000.0 PSI (105.4-210.9 kg/cm2)
• Frame: Welded-steel plate
• Bearings: High-capacity, sealed, ball-type
• Plumb Line Mechanism: Double-jointed, universal-joint swivel with full-length sleeved pins
• Mounting Pin: 1.0 inch (25.4 mm) diameter, zinc plated, steel alloy
• Auger Drive Connection: 2.562 inch (65.1 mm) round
• Max Drilling Torque: 1330.0 ft lbs (1803.2 N.m.) @ 3000.0 (210.9/kg/cm2)
• Available Auger Diameter Range: Optional 6.0 to 36.0 inches (152.4 to 914.4 mm)
• Standard Auger Digging Length: 48.0 & 60.0 inches (1219.2 & 1524.0 mm)
• Available Auger Extensions: Optional 15.0 & 36.0 inch (381.0 & 914.4 mm), non-flighted plain tube
• Product Dimensions (L x W x H): 21.0 x 13.5 x 33.5 inches (533.4 x 342.9 x 850.9 mm)
• Product Weight: 250.0 lbs (113.4 kg), less auger
