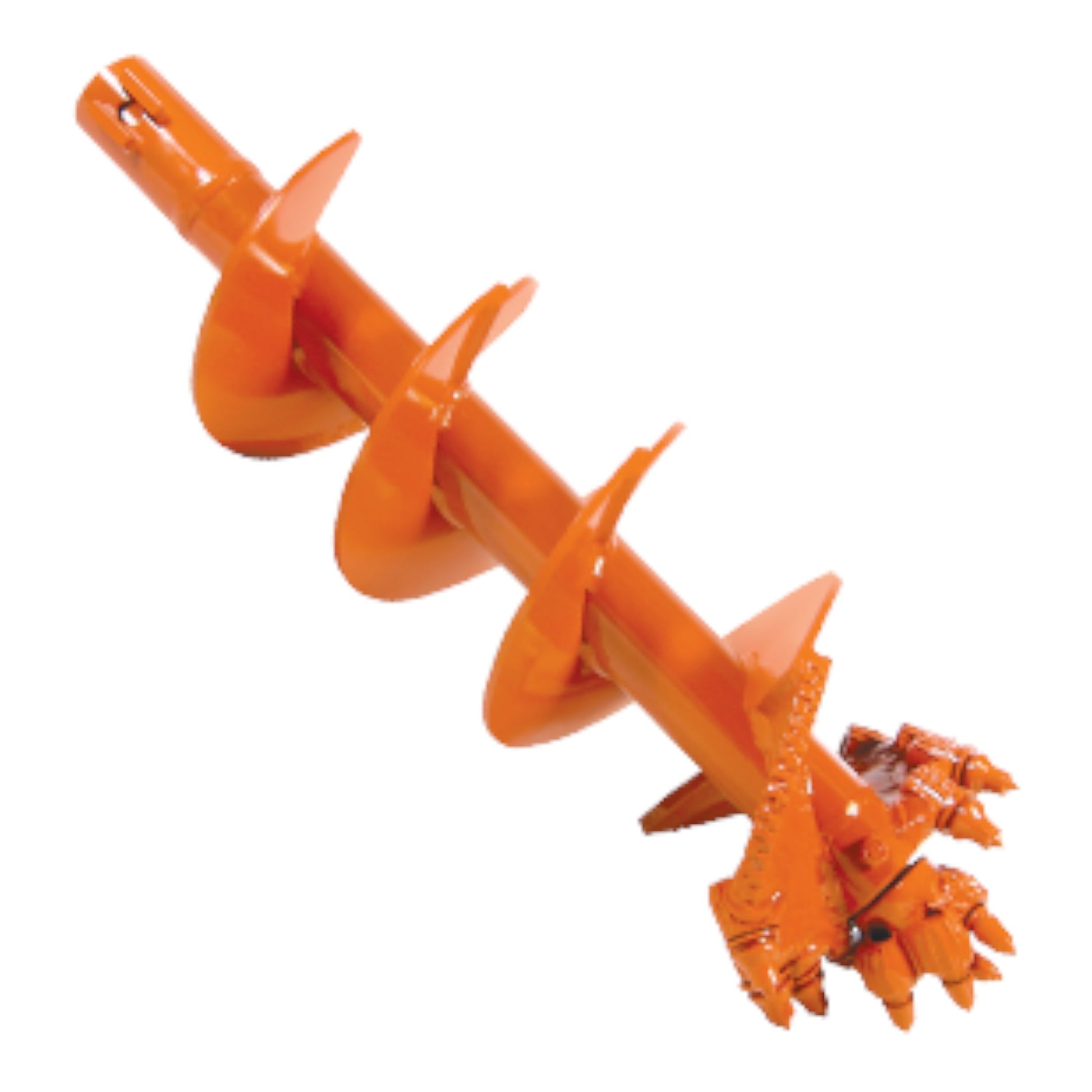

753 General DIG-R-TACH TCT Series Earth Augers

The 753 TCT Series Earth Augers are engineered to dig where others can't, built for operators who face down the worst ground conditions and still expect results. With a 2.562-inch round drive connection and serious structural muscle, this auger is made for use with high-powered skid loaders, backhoes, excavators, and track-type carriers. Whether you're dealing with compacted soils, fractured rock, or a jobsite that chews up lesser tools, the TCT auger brings guts, glory, and performance in one tough package. Add in the right downforce and torque, and you’ll be making progress where others are throwing in the towel.

FEATURES

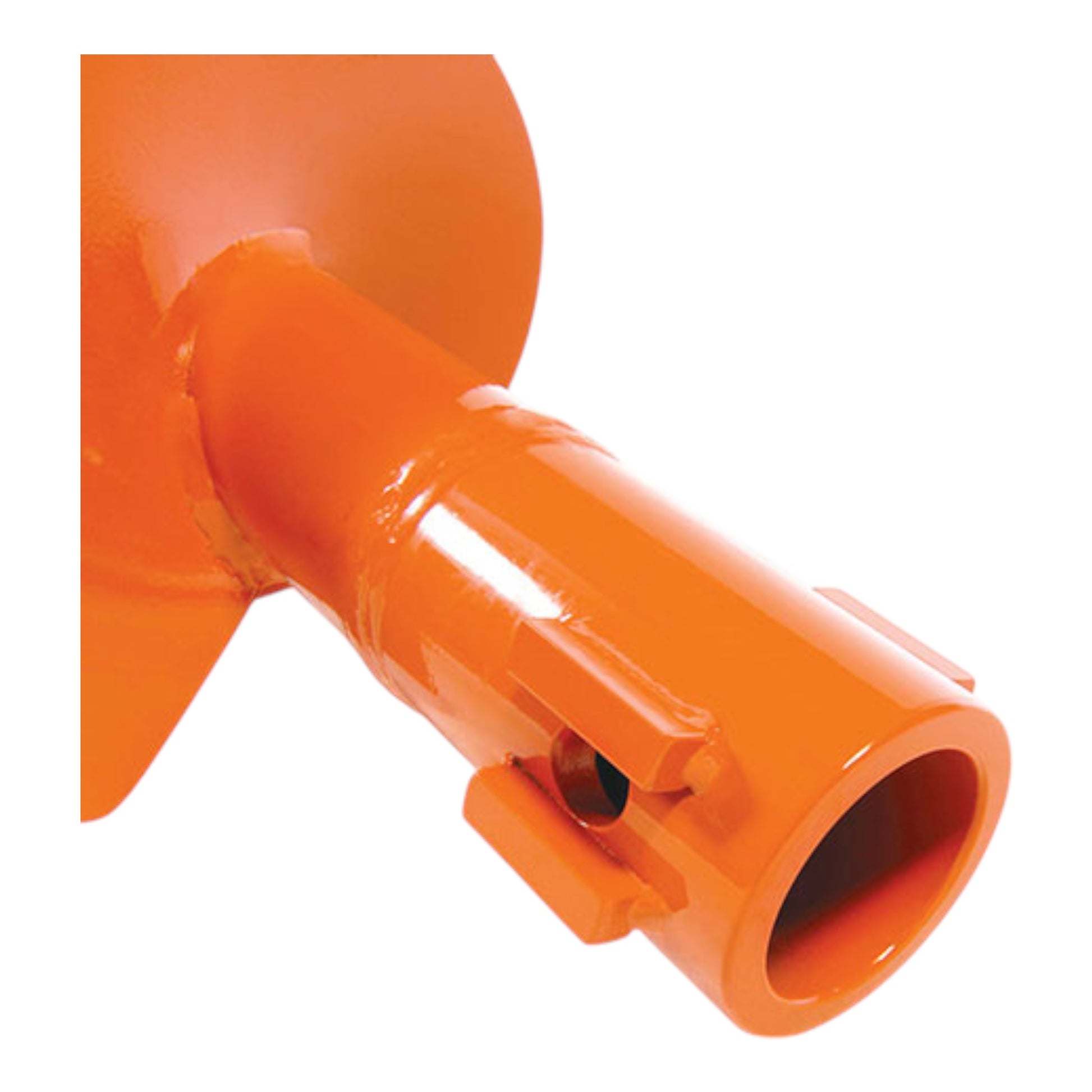

• 2.562 INCH ROUND AUGER DRIVE CONNECTION: Designed for round hub systems, offering a secure, high-strength interface that efficiently transfers torque in extreme digging environments. Ideal for operators using round-drive auger heads.
• HEAVY-GAUGED, STEEL, HELICOID SECTIONAL FLIGHTING: Reinforced to stand up to intense impact and abrasion. Provides superior structural strength and soil displacement while resisting deformation under stress.
• FIELD REPLACEABLE TUNGSTEN CARBIDE CONICAL (BULLET)-TYPE TEETH: Built for cutting through compacted soil and fractured rock with minimal wear. Easily replaceable in the field to minimize downtime and adapt to changing soil conditions.
• HEAVY-WALLED AXLE: Withstands intense torque and bending loads, keeping the auger stable and aligned. Made for aggressive digging without compromise.

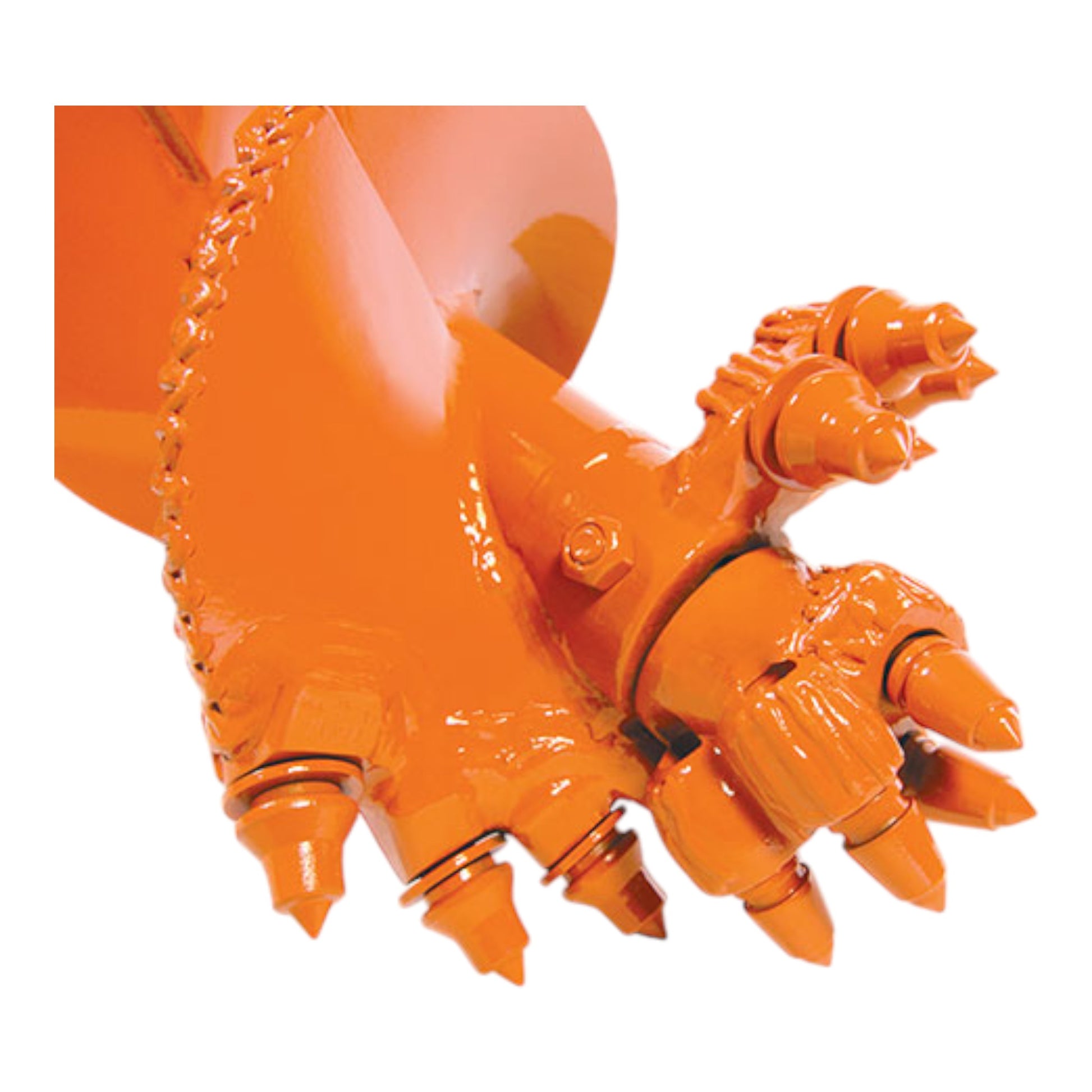

• ONE PIECE, CAST STEEL BORING HEAD: Optimally positions cutting teeth for efficient soil penetration and long service life. Provides rock-solid durability and performance in extreme drilling conditions.
• FIELD REPLACEABLE CAST STEEL PILOT HEAD: Makes maintenance fast and easy while extending the life of your auger. Reduces repair costs and downtime on the job.

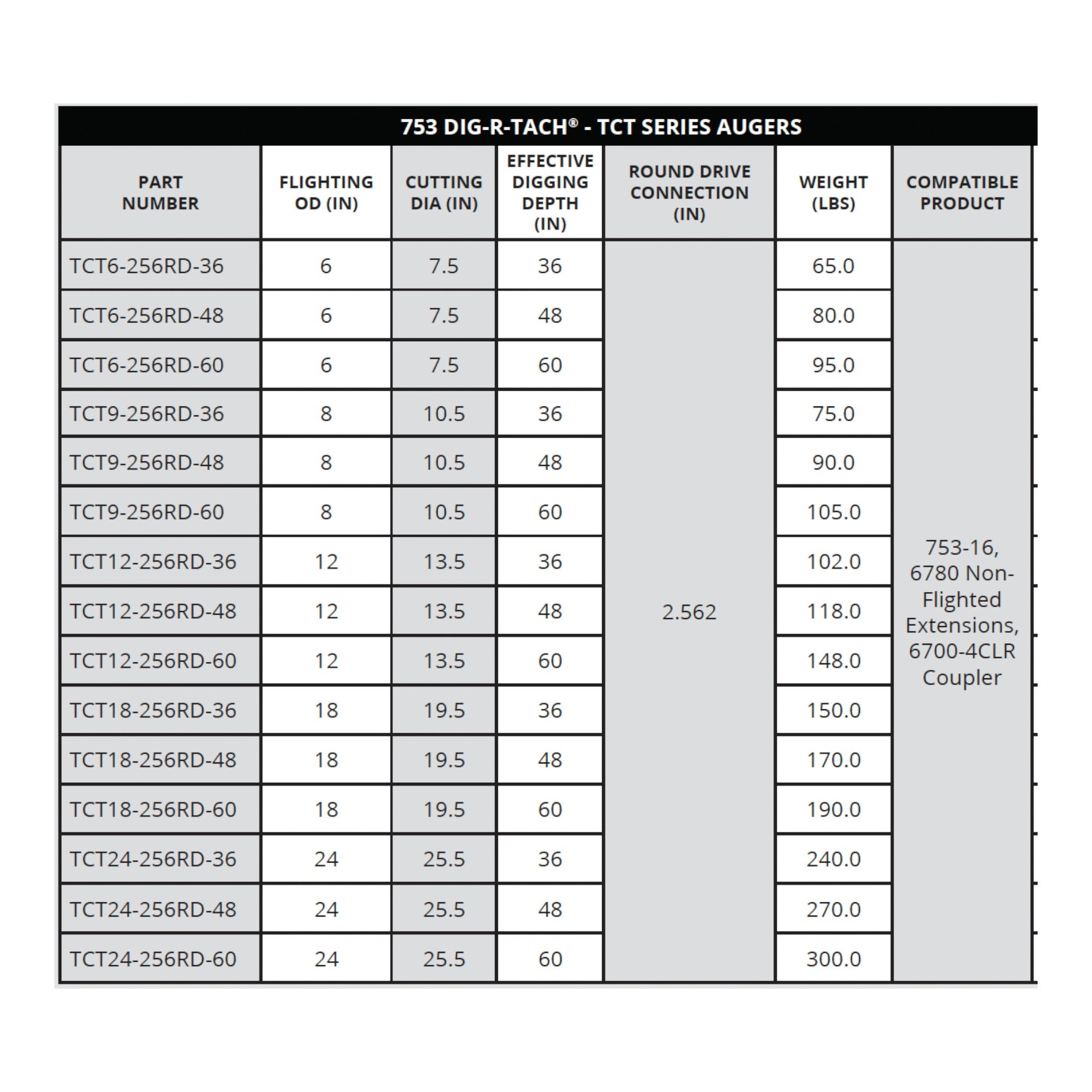

FOR SIZES AND SPECIFICATIONS PLEASE SEE IMAGE 2

SPECIFICATIONS

• Auger Drive Connection: 2.562 inch (65.1 mm) round
• Auger Pin Connection: .875 inch (22.2 mm) auger pin
• Available Auger Diameter Range: 6.0 to 24.0 inch (152.4 to 609.6 mm)
• Effective Auger Digging Depth: 36.0, 48.0 & 60.0 inch (914.4, 1219.2 & 1524.0 mm)
• Available Auger Extension: 15.0 inches (381.0 mm), plain tube-type, 36.0 inches (914.4 mm), plain tube-type
• Flighting Thickness: .375 inch (9.5 mm) standard, .500 inch (12.7 mm) optional, for extreme operating conditions
• Flighting Construction: 6.0 & 8.0 inch (152.4 & 203.2 mm) diameter augers: single pitch helicoid, full axle length, 12.0 to 36.0 inch (304.8 to 914.4 mm) diameter augers: single pitch sectional, full axle
• Axle Diameter: 3.5 inch (88.9 mm)
• Boring Head: Pengo type, LDOBH, one piece, cast steel boring head
• Pilot Head: Field replaceable, cast steel
• Cutting Teeth: Tungsten carbide conical (bullet)-type
• Compatible Product: 753-16 DIG-R-TACH Series hole digger and similar competitive model hole diggers with 2.562 inch round auger drive connection, DIG-R-TACH 6700 Series Auger Couplers, DIG-R-TACH 6780 Series Non-Flighted Auger Extensions
