Barreto 2324RTKH Honda GX690 Track Trencher

The Barreto 2324RTKH Stand-On Track Trencher is a powerful, contractor-grade machine designed for deep trenching applications up to 48 inches. Equipped with the robust Honda GX690 engine, this model delivers exceptional power, smooth operation, and reliable performance in demanding soil conditions. A 7.1-inch wide track provides 241 square inches of ground contact on each side, giving the trencher superior traction on wet ground, slopes, clay, sand, and uneven terrain. With its balanced weight distribution and track design, the 2324RTKH minimizes operator fatigue while maximizing trenching efficiency. Built for productivity, durability, and ease of maintenance, it is an ideal choice for professional contractors working on utilities, irrigation, electrical, and landscaping applications.

FEATURES

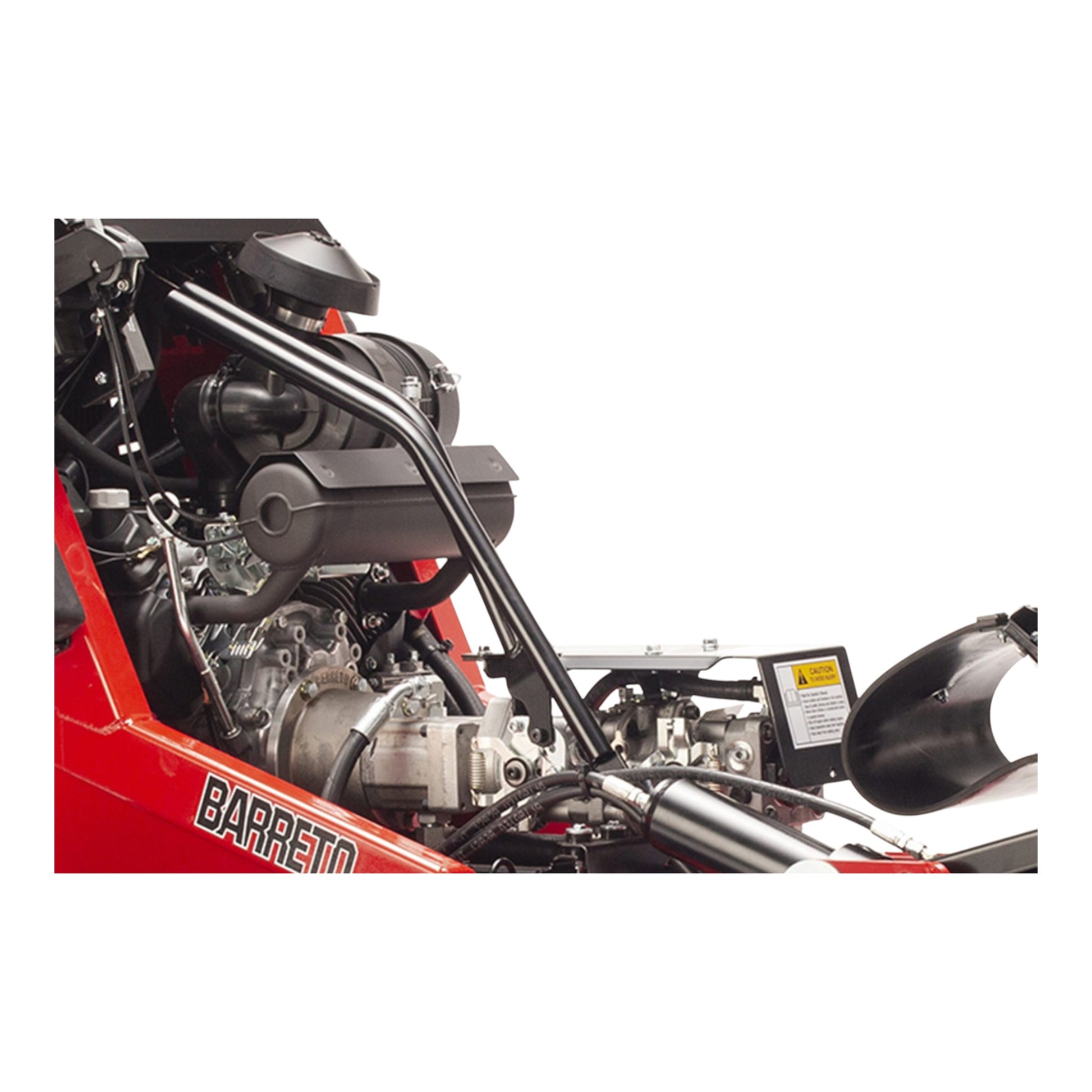

Engine: Honda GX690, powerful, smooth, and fuel-efficient for heavy-duty trenching performance.
Digging Depth Options: 24", 30", 36", 42", or 48" depending on boom configuration.

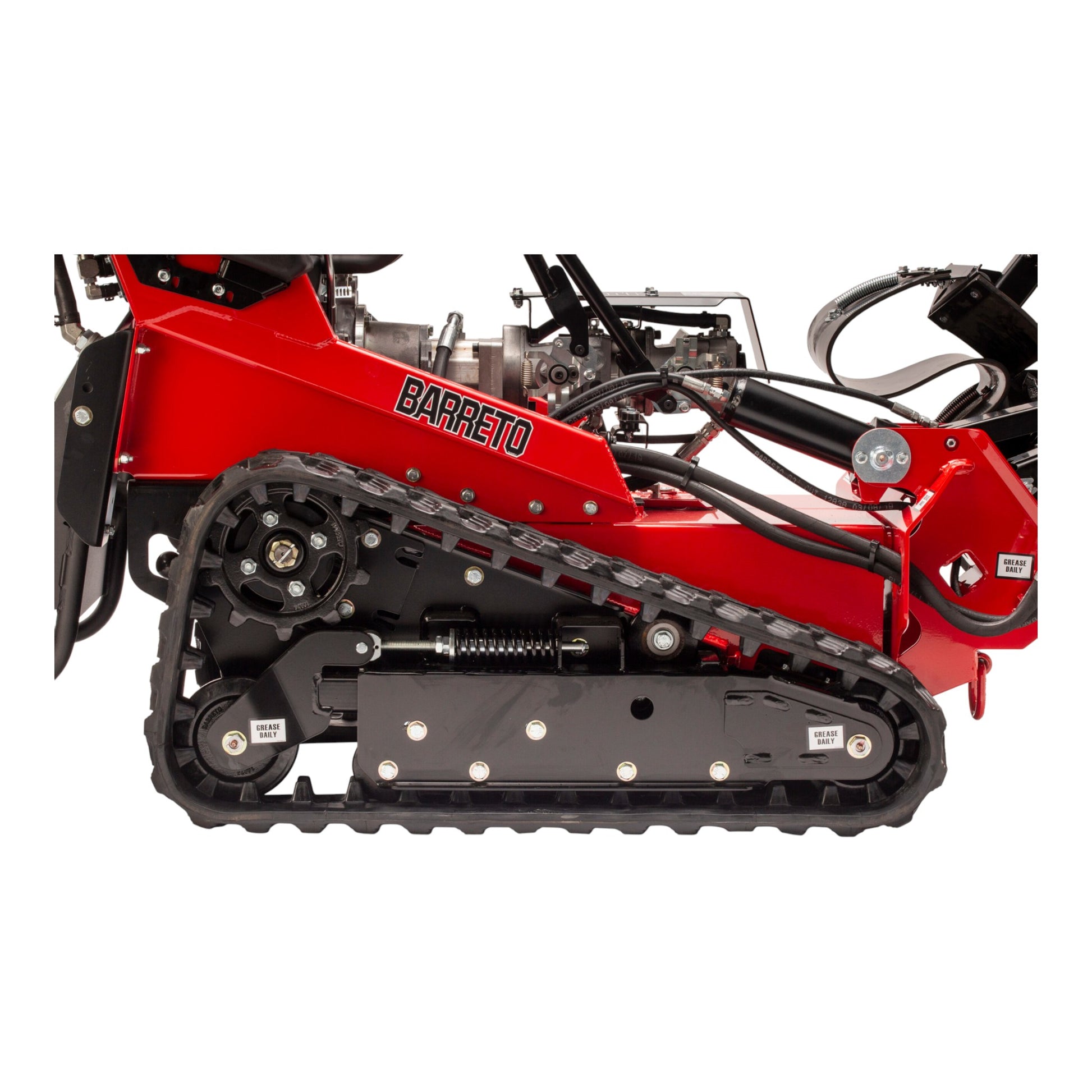

7.1" Wide Tracks: Provide 241 sq. in. of ground contact per side for excellent traction on steep, wet, or loose terrain.
Deep Trenching Capability: Can trench up to 48" deep and 6" wide for larger utility applications.
Stability & Operator Comfort: Weight-optimized design improves traction and reduces vibration and impact from rocks, roots, and tough soil.
Adjustable Trenching Controls (ATC): Rod-linkage control system allows individual track speed adjustment to keep trenches straight on uneven ground.
Independent Track Speed Fine-Tuning: Operator can make real-time adjustments to correct drift and maintain trench accuracy.
Standard Electric Start: Reliable and easy starting across all operating conditions.
Easy Boom Tension Adjustment: Allows quick recalibration to maintain optimal chain performance.

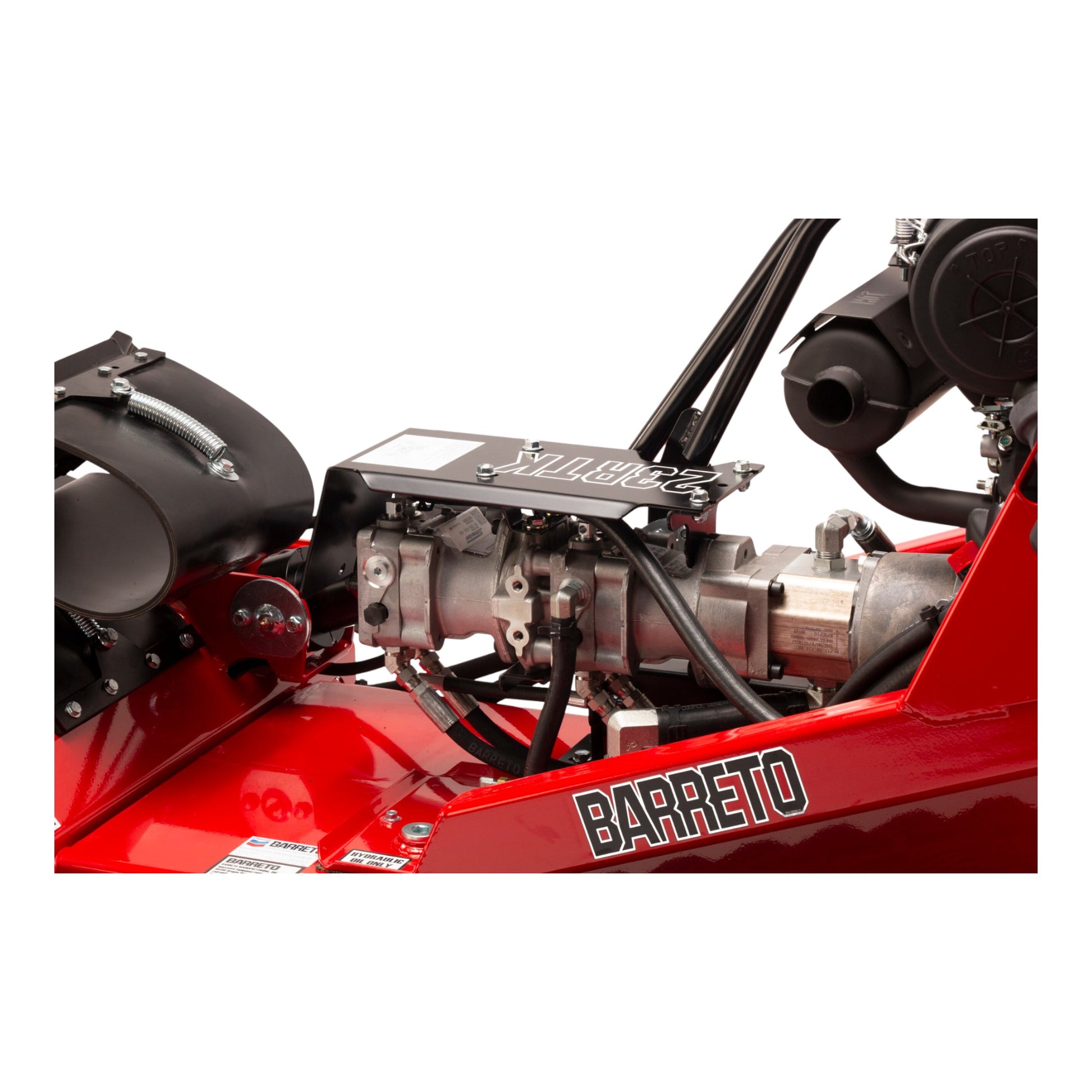

Quick-Access Hydraulics: Open-frame design ensures fast servicing and minimizes downtime.

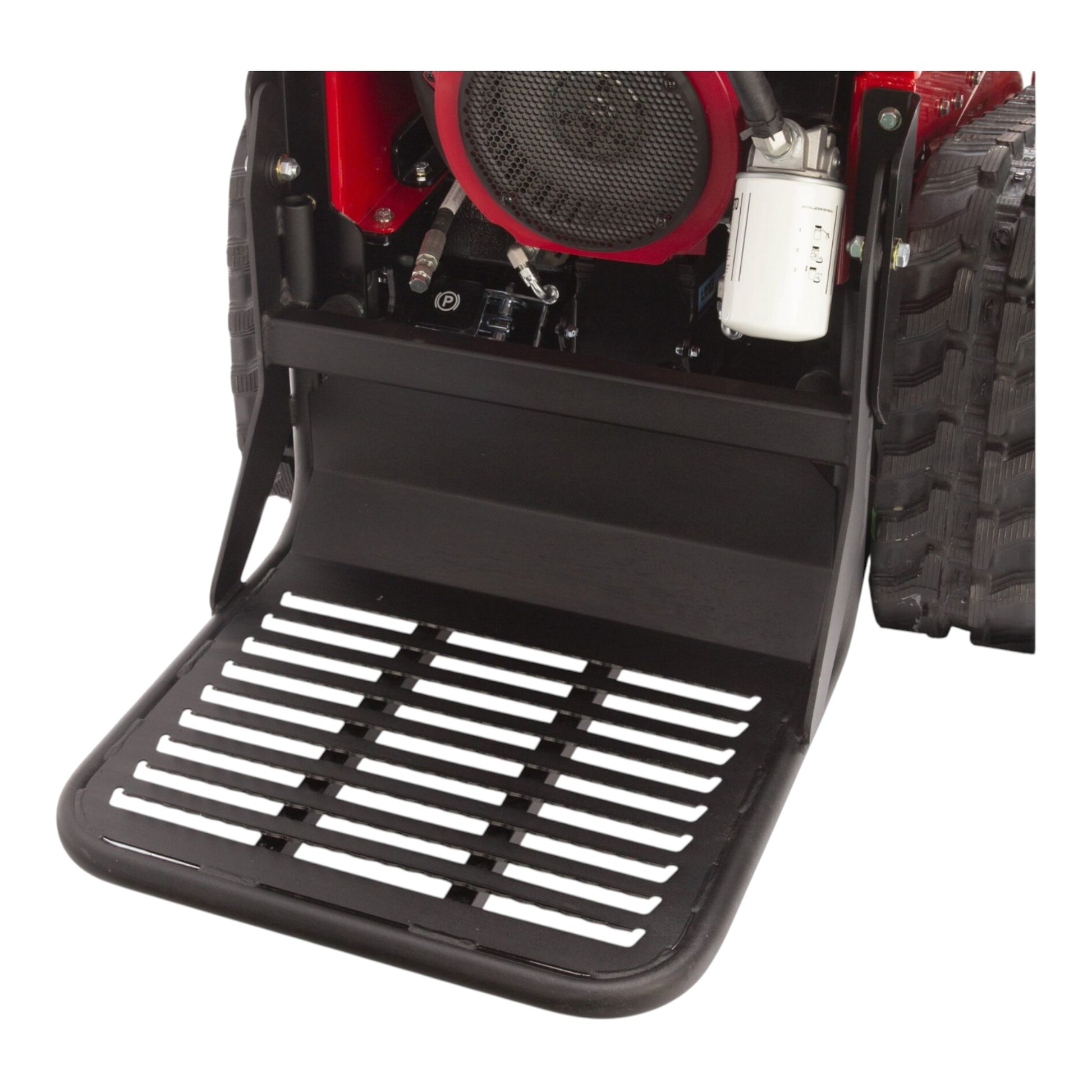

Fixed Operator Platform: Provides a stable, elevated position with excellent visibility for precise trenching control.

DIGGING DEPTH OPTIONS

24 Inch
30 Inch
36 Inch
42 Inch
48 Inch

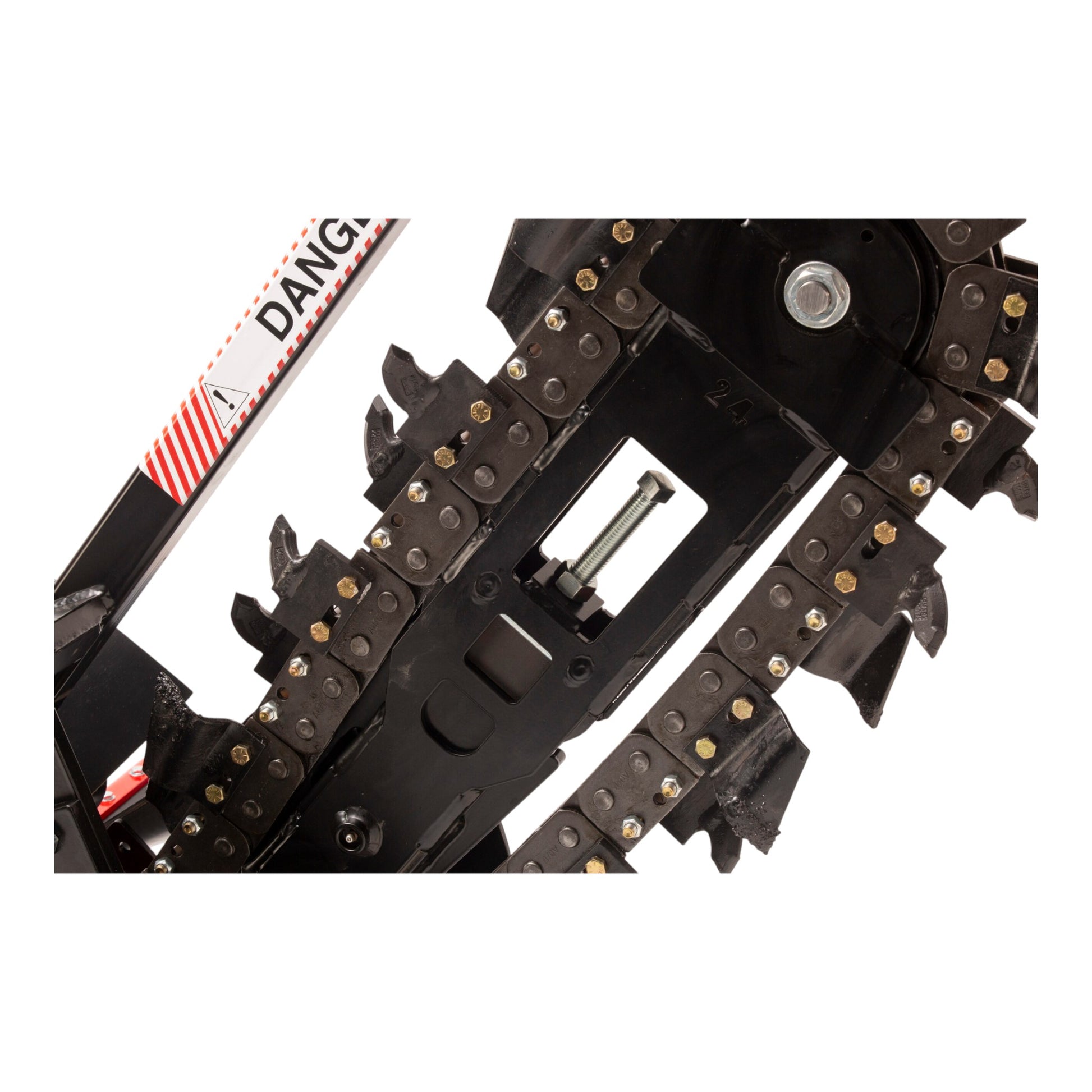

CHAIN OPTIONS

4" Single Cup Chain
4" Double Cup Chain
4" Combo Shark Chain
4" Welded Shark Chain

OPTIONAL TRAILER

4x6 Tilt Bed Trailer

OPTIONAL CHAIN UPGRADE

6 Inch Chain

Specifications

Engine: Honda GX690
Hydraulic Reservoir: 14 gallons
Ground Drive Forward: 210 ft/min
Ground Drive Reverse: 90 ft/min
Digging Chain Speed: 270 ft/min
Boom Depth Options: 24, 30, 36 or 42"
Length: 108"
Width: 35.5"
Track Width: 7.1"
Total Ground Contact: 470 sq. in.
Weight: 1,690 lbs
