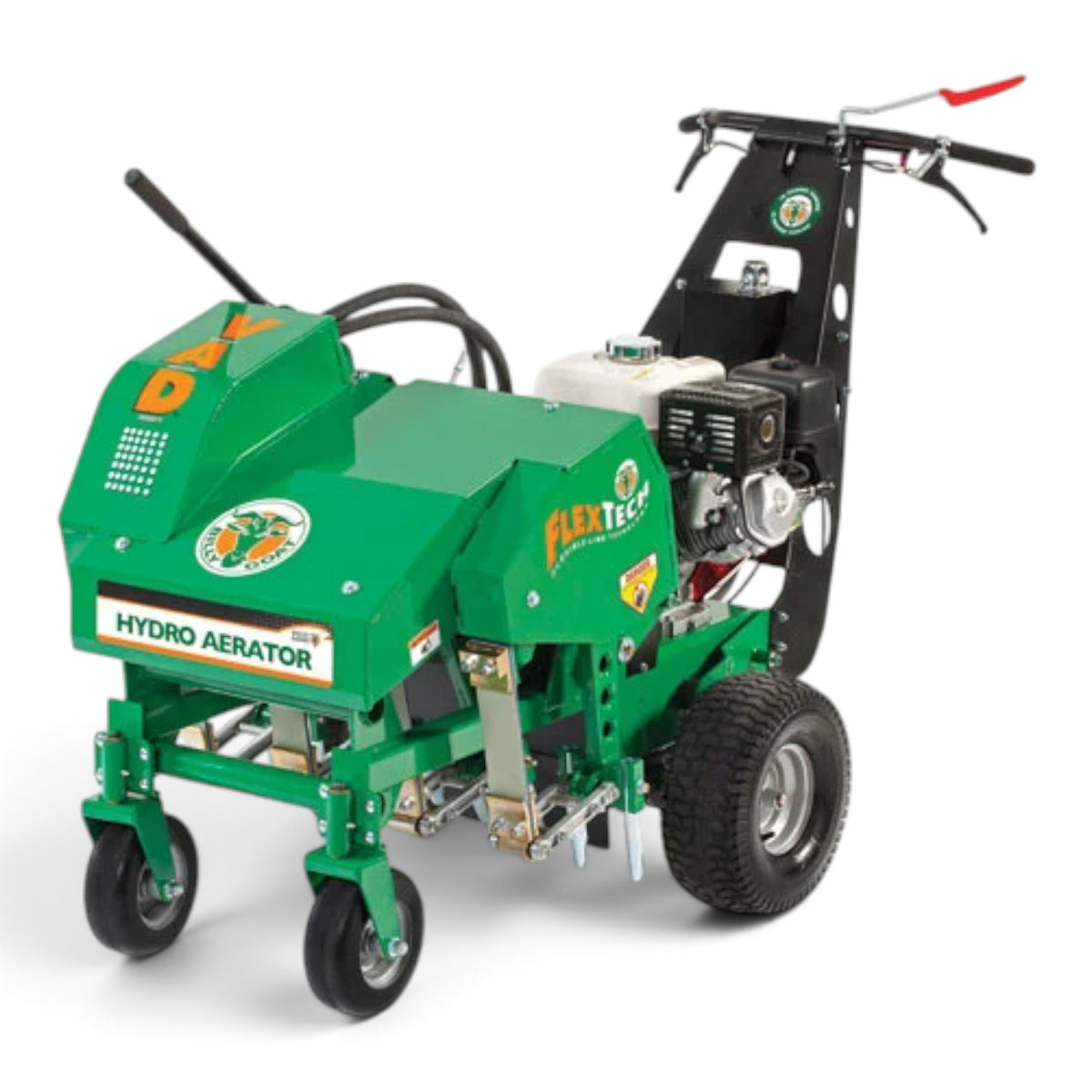

Billy Goat AE1300H 30" Reciprocating Hydro Aerator, Honda Engine, In-Ground Turning

The Billy Goat AE1300H 30-inch Reciprocating Hydro Aerator is a commercial lawn aerator designed for professional landscapers, lawn-care contractors, groundskeepers, and property maintenance crews. Powered by a 390 cc Honda engine with hydrostatic drive, it combines a 30 in (76.2 cm) aeration width, speeds up to 4.3 mph (6.9 km/h), and in-ground turning to deliver fast, efficient lawn aeration without lifting the machine at every turn. Its patent-pending variable aeration density technology allows operators to create 8–48 holes per sq ft (86–517 holes per m²) in a single pass, making it ideal for routine aeration, heavily compacted turf, patch repair, and seedbed preparation.

KEY FEATURES

• 30 IN (76.2 CM) AERATION WIDTH: The wide reciprocating tine system covers more ground with every pass, helping crews complete large aeration jobs efficiently. Combined with travel speeds up to 4.3 mph (6.9 km/h), the machine can aerate a quarter acre (0.10 ha) in as little as 15 minutes under suitable conditions.

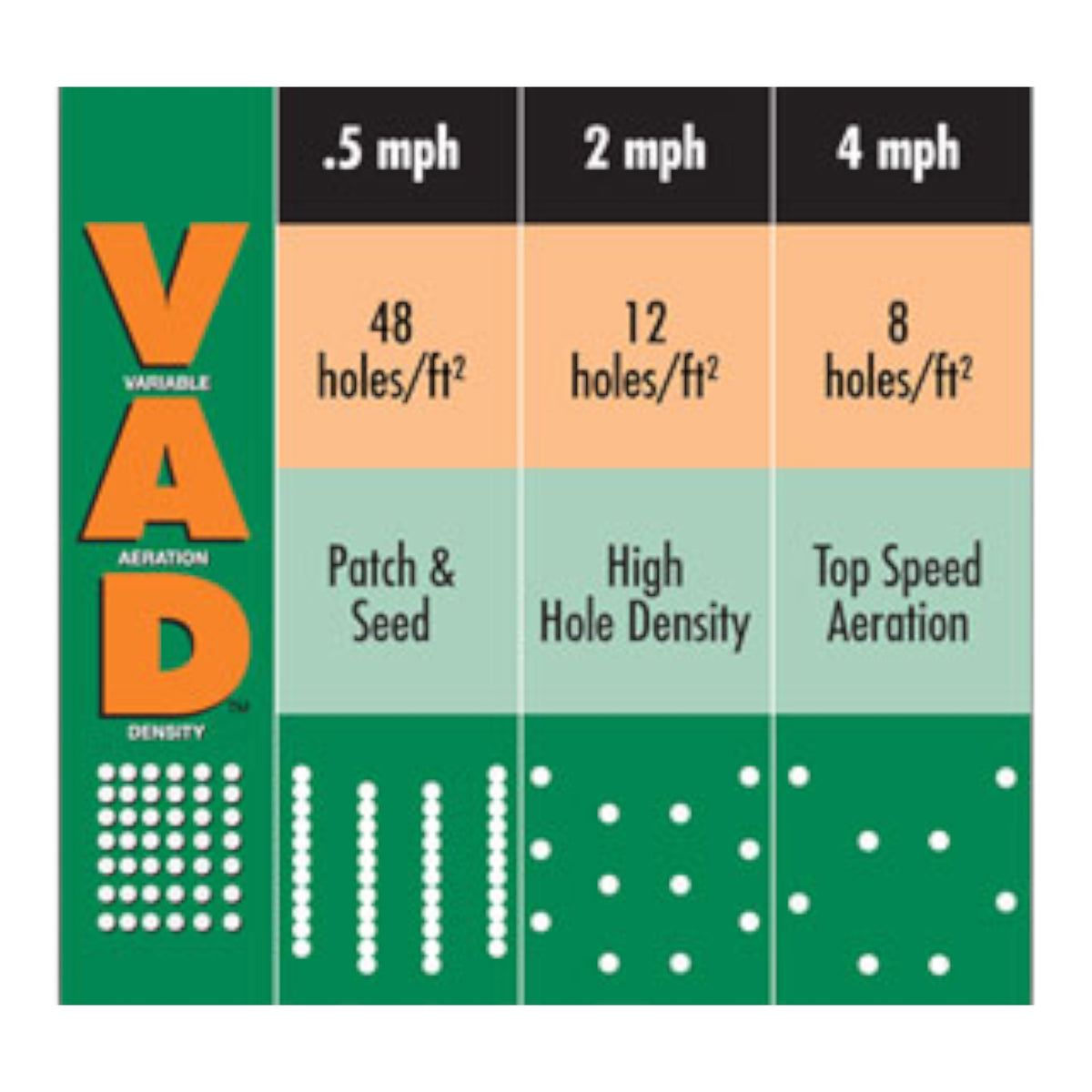

• VARIABLE AERATION DENSITY (VAD): Patent-pending VAD technology allows operators to adjust aeration density by changing travel speed, producing approximately 8–48 holes per sq ft (86–517 holes per m²). This provides two to ten times the hole density of certain conventional drum aerators in a single pass, reducing the need for repeated coverage.
• IN-GROUND TURNING: The AE1300H can turn while its tines remain engaged in the ground, eliminating the need to lift the machine at every turn. This makes it easier to aerate around landscaping features, follow curved lawn edges, and work efficiently in confined spaces.
• REVERSE AERATION: The hydro-drive system allows operators to aerate while moving in reverse, increasing maneuverability in challenging areas. This capability makes it easier to work near fences, landscaping, buildings, and other obstacles without repeatedly repositioning the machine.
• 390 CC (23.8 CU IN) HONDA ENGINE: The commercial Honda engine provides dependable power for demanding lawn-aeration applications. Its recoil starting system and established engine platform make it suitable for professional crews operating throughout the aeration season.
• HYDROSTATIC DRIVE: The hydro-drive system provides controlled forward and reverse travel, allowing operators to adjust machine speed to suit turf conditions and desired aeration density. Variable travel speed also makes it easier to increase hole concentration in compacted areas or locations requiring seedbed preparation.

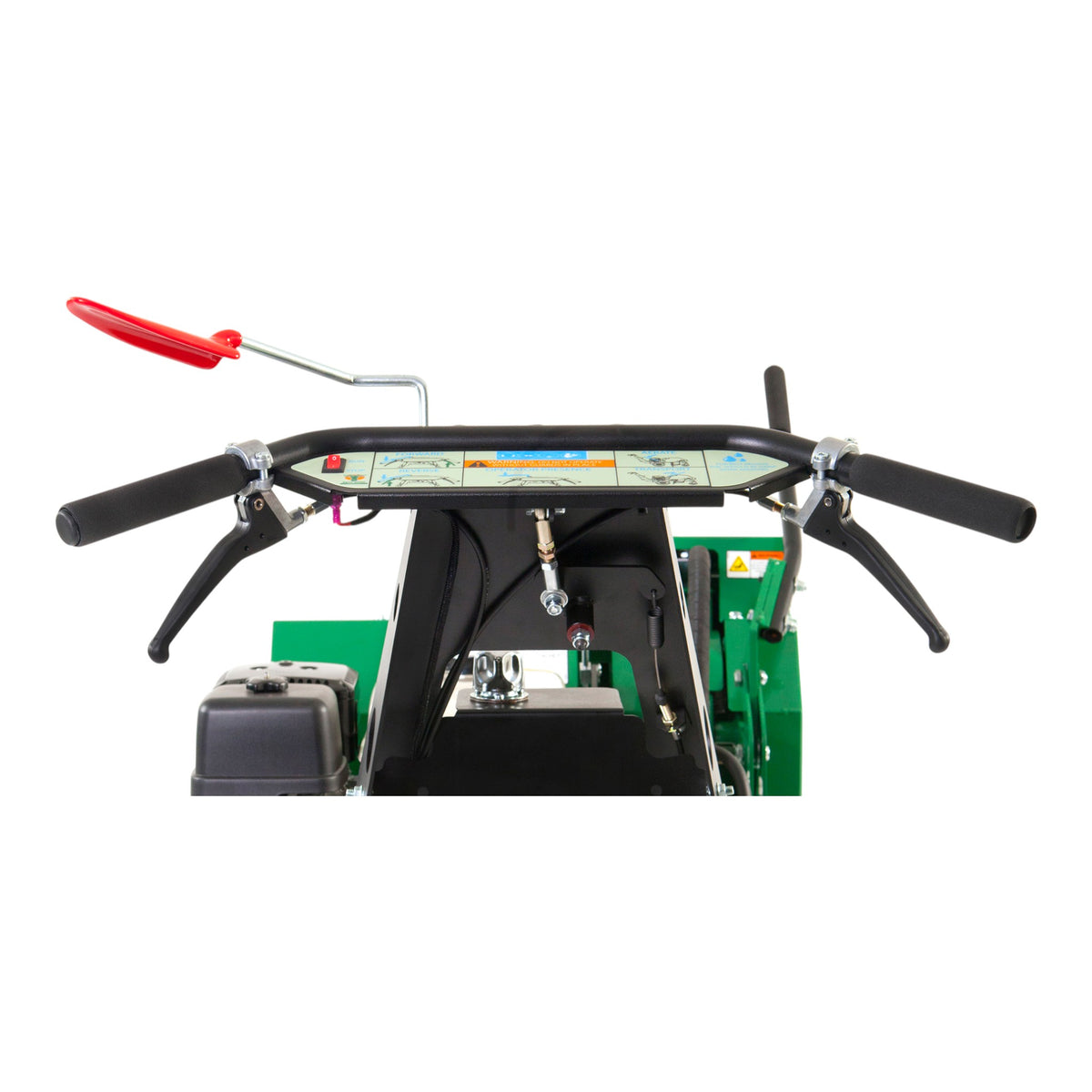

• BILLY GOAT CONTROLS: Familiar Billy Goat operator controls provide a consistent operating experience for crews using other equipment from the brand. Their straightforward layout helps reduce operator training time and simplifies daily operation.
• 15 IN (38.1 CM) TIRES AND 35 IN (88.9 CM) WHEELBASE: Large pneumatic tires and a stable wheelbase help the machine travel smoothly across lawn surfaces. Front semi-pneumatic casters support maneuverability during turns and detailed aeration work.

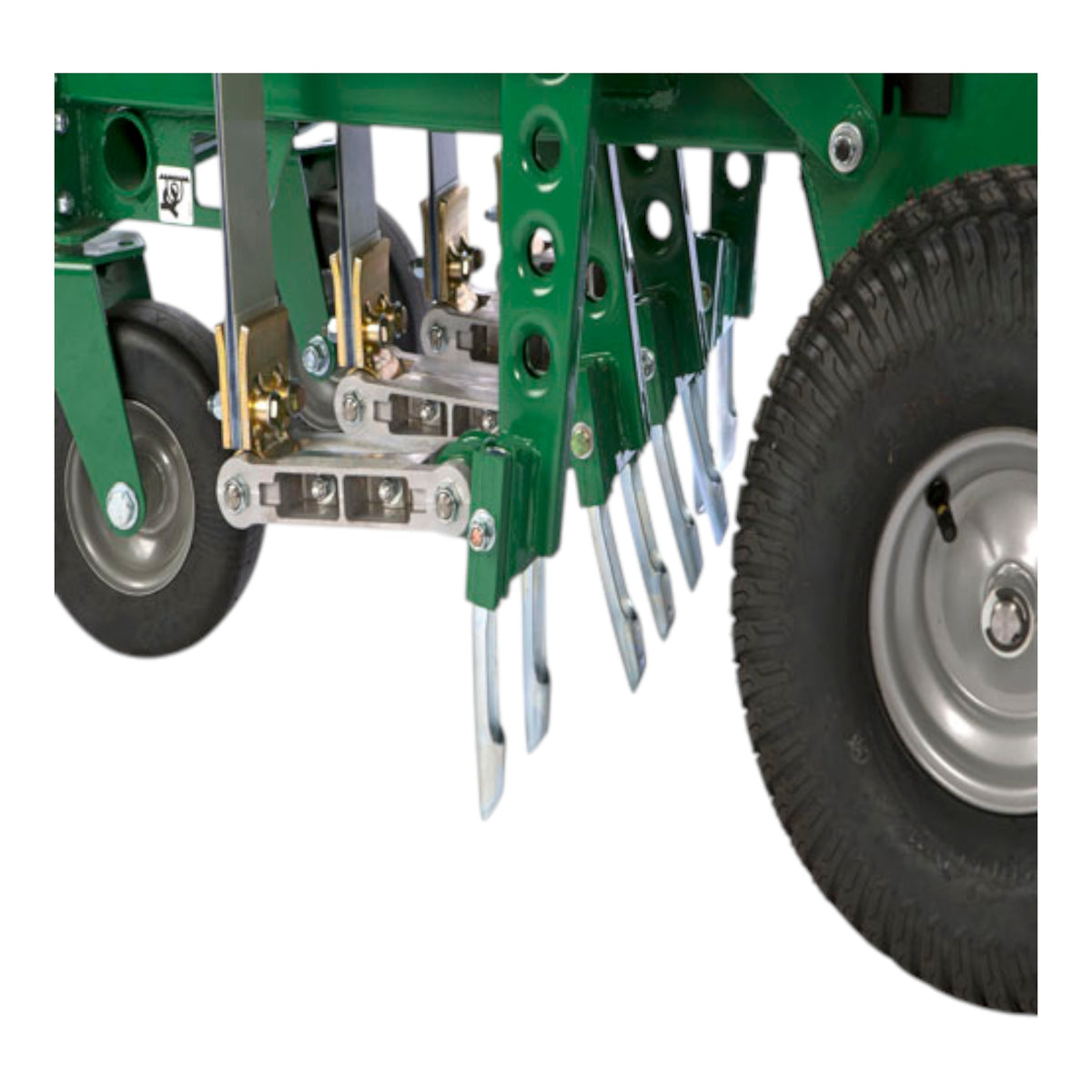

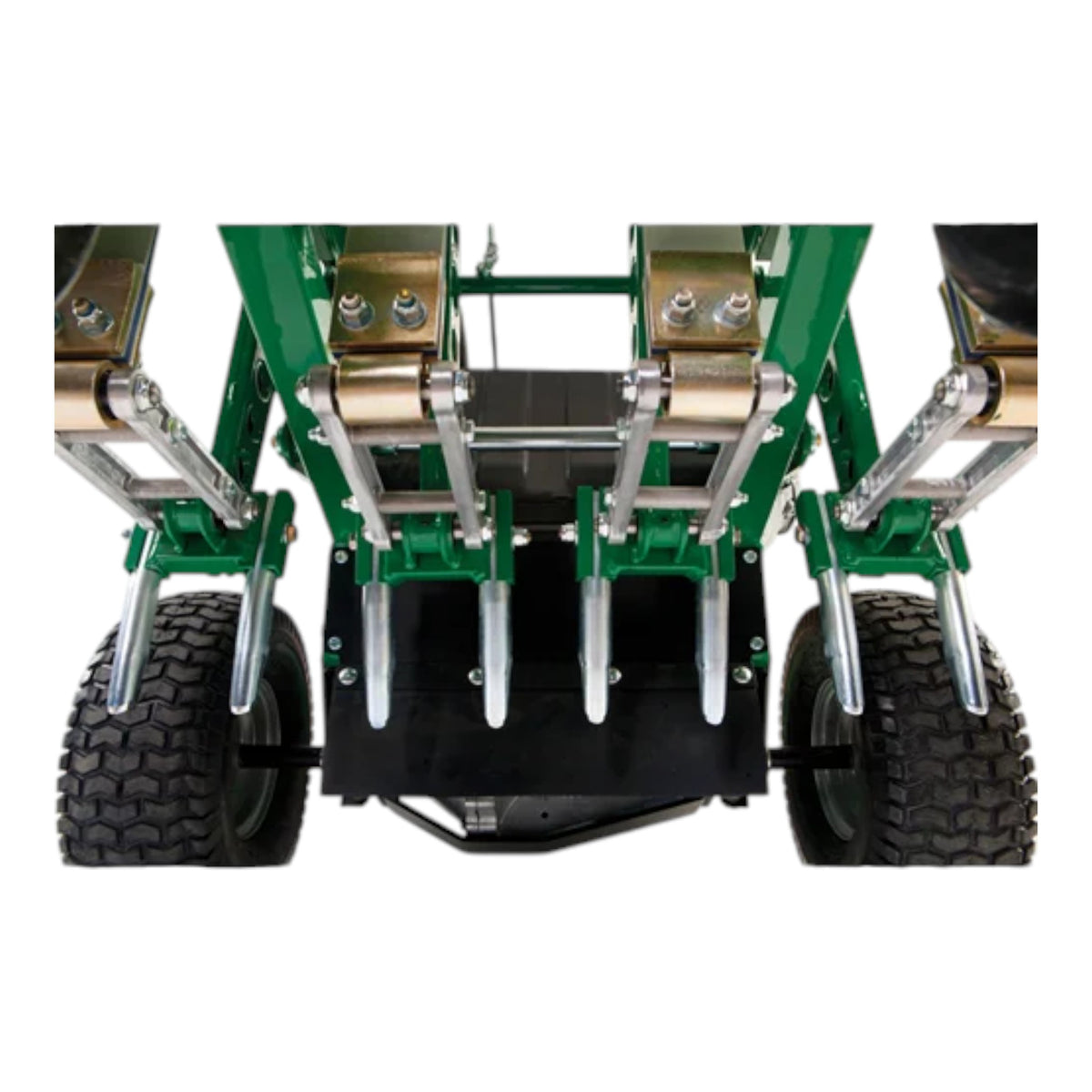

• FLEXTECH ARMS: The FlexTech reciprocating arm system supports consistent tine engagement and effective core extraction across varying lawn conditions. This design helps produce uniform aeration results while supporting the machine's high-density aeration capability.
• FAST TINE SERVICE: The tine system is designed for convenient maintenance and replacement, helping reduce downtime during busy aeration schedules. Multiple optional hollow and solid tine configurations allow operators to adapt the machine to different turf-care requirements.
• UP TO 3 IN (7.6 CM) CORE DEPTH: The reciprocating tine system can extract soil cores up to 3 in (7.6 cm) deep under suitable ground conditions. Deeper aeration helps relieve soil compaction and creates channels that support the movement of water, air, and nutrients into the root zone.
• HIGH PRODUCTIVITY: The AE1300H offers rated productivity of up to 43,560 sq ft/hr (4,047 m²/hr), allowing contractors to complete demanding aeration schedules efficiently. Its combination of speed, wide coverage, and adjustable hole density can reduce the need for additional passes.

APPLICATIONS / USE CASES

• PROFESSIONAL LAWN AERATION: The 30 in (76.2 cm) working width and hydro-drive system make the AE1300H suitable for contractors servicing residential and commercial lawns. High productivity helps crews complete more properties during peak aeration seasons.
• SOIL COMPACTION RELIEF: Hollow tine aeration removes soil cores to help relieve compaction and improve access to air, water, and nutrients. Adjustable aeration density allows operators to concentrate additional holes in heavily trafficked or compacted areas.
• OVERSEEDING AND SEEDBED PREPARATION: Variable aeration density allows operators to increase hole concentration simply by reducing travel speed. This makes the machine useful for preparing bare patches and creating additional seed-to-soil contact before overseeding.
• PATCH REPAIR: Operators can slow the machine over thin or damaged lawn areas to create additional aeration holes without making multiple passes. This helps streamline turf renovation and localized lawn repair.
• EDGES AND OBSTACLES: In-ground turning and reverse aeration make it easier to work around trees, garden beds, fences, and other landscape features. The machine can maintain aeration coverage in areas that are more difficult to reach with conventional drum aerators.
• LARGE PROPERTY MAINTENANCE: Groundskeepers can use the machine to maintain commercial lawns, institutional properties, estates, and other extensive turf areas. Its high travel speed and wide aeration path help reduce the time required for large maintenance projects.

WHAT’S INCLUDED

• Billy Goat AE1300H 30 in (76.2 cm) Reciprocating Hydro Aerator
• 390 cc (23.8 cu in) Honda engine
• Hydro-drive transmission
• Eight-tine reciprocating aeration system
• Standard hollow coring tines
• Variable aeration density system
• FlexTech reciprocating arms
• 15 in (38.1 cm) pneumatic tires and front semi-pneumatic casters

NOTE: The standard AE1300H configuration does not include a sulky. The AE1300HS is available as a separate machine option with a sulky.

MACHINE OPTIONS

• AE1300H – WITHOUT SULKY: The standard 30 in (76.2 cm) reciprocating hydro aerator features a Honda engine, hydro-drive system, variable aeration density, and in-ground turning. This walk-behind configuration is ideal for contractors who prefer direct operator control while aerating.
• AE1300HS – WITH SULKY: This configuration includes a sulky for ride-on operation, allowing the operator to travel with the machine rather than walking behind it. It provides additional convenience for professional crews handling extensive aeration jobs.

OPTIONAL ACCESSORIES

• SPECIAL 3/8 IN (9.5 MM) HOLLOW TINE: A specialized hollow tine designed to remove smaller soil cores during aeration. This option is useful when a narrower core opening is preferred for turf-maintenance applications.
• SPECIAL 3/8 IN (9.5 MM) SOLID TINE: A narrow solid tine designed to penetrate the soil without extracting a core. It provides an alternative aeration method for applications where soil removal is not desired.
• SPECIAL 7/8 IN (22.2 MM) SOLID TINE: A larger-diameter solid tine for applications requiring wider soil penetration. This option allows operators to configure the aerator for specific turf renovation and soil-treatment requirements.
• SPECIAL 1-1/2 IN (38.1 MM) HOLLOW TINE: An oversized hollow tine designed to extract larger soil cores for specialized aeration applications. It provides an alternative configuration for turf renovation projects requiring larger openings.
• SOLID SPIKE TINE KIT: Allows the aerator to be configured for solid-spike aeration instead of conventional hollow-core extraction. This option is useful for applications where soil penetration is desired without removing cores.
• CHARIOT KIT: Provides an optional operator-riding configuration for compatible equipment. This accessory can reduce walking requirements during extended aeration work and improve convenience for crews maintaining large properties.

TECHNICAL SPECIFICATIONS

• MANUFACTURER: Billy Goat
• MODEL: AE1300H
• PRODUCT TYPE: Commercial reciprocating hydro aerator
• ENGINE BRAND: Honda
• ENGINE DISPLACEMENT: 23.8 cu in (390 cc)
• STARTER TYPE: Recoil / pull start
• DRIVE SYSTEM: Hydro-drive
• MAXIMUM FORWARD SPEED: 4.3 mph (6.9 km/h)
• AERATION WIDTH: 30 in (76.2 cm)
• NUMBER OF TINES: 8
• TINE PATTERN: 3.75 in (9.5 cm) transverse spacing; longitudinal spacing varies with travel speed
• STANDARD CORING TINE SIZE: 0.625 in × 3.5 in (1.6 × 8.9 cm)
• MAXIMUM CORE DEPTH: Up to 3 in (7.6 cm)
• AERATION DENSITY: 8–48 holes per sq ft (86–517 holes per m²)
• MAXIMUM PRODUCTIVITY: 43,560 sq ft/hr (4,047 m²/hr)
• WEIGHT: 516 lb (234 kg)
• LENGTH: 67 in (170.2 cm)
• WIDTH: 34.5 in (87.6 cm)
• HEIGHT: 46 in (116.8 cm)
• WHEEL DIAMETER: 15 in (38.1 cm)
• WHEEL CONFIGURATION: Pneumatic tires with front semi-pneumatic casters
• WHEELBASE: 35 in (88.9 cm)
• TURNING CAPABILITY: In-ground turning
• REVERSE AERATION: Yes
• VARIABLE AERATION DENSITY: Yes
• WARRANTY – MACHINE: 1 year
• WARRANTY – ENGINE: 3-year limited manufacturer's warranty

FREQUENTLY ASKED QUESTIONS (FAQ)

1. How quickly can the Billy Goat AE1300H aerate a lawn?

The AE1300H can travel at speeds up to 4.3 mph (6.9 km/h) and is capable of aerating a quarter acre (0.10 ha) in as little as 15 minutes under suitable conditions. Its rated maximum productivity is 43,560 sq ft/hr (4,047 m²/hr).

2. What is variable aeration density?

Variable aeration density allows operators to control the number of aeration holes by adjusting the machine's travel speed. The AE1300H can create approximately 8–48 holes per sq ft (86–517 holes per m²), allowing greater hole concentration in compacted or damaged lawn areas without repeated passes.

3. Can the AE1300H turn while the tines are in the ground?

Yes. The machine is designed for in-ground turning, allowing operators to maneuver without lifting the tines out of the soil at every turn. It can also aerate in reverse, making it easier to work around obstacles and along lawn edges.

4. What is the difference between the AE1300H and AE1300HS?

The AE1300H is the standard walk-behind configuration without a sulky. The AE1300HS includes a sulky, allowing the operator to ride with the machine during aeration.

5. What warranty comes with the Billy Goat AE1300H?

The machine includes a 1-year warranty on the balance of the equipment and a 3-year limited manufacturer's warranty on the Honda engine. Warranty coverage is subject to the applicable manufacturer's terms and conditions.
