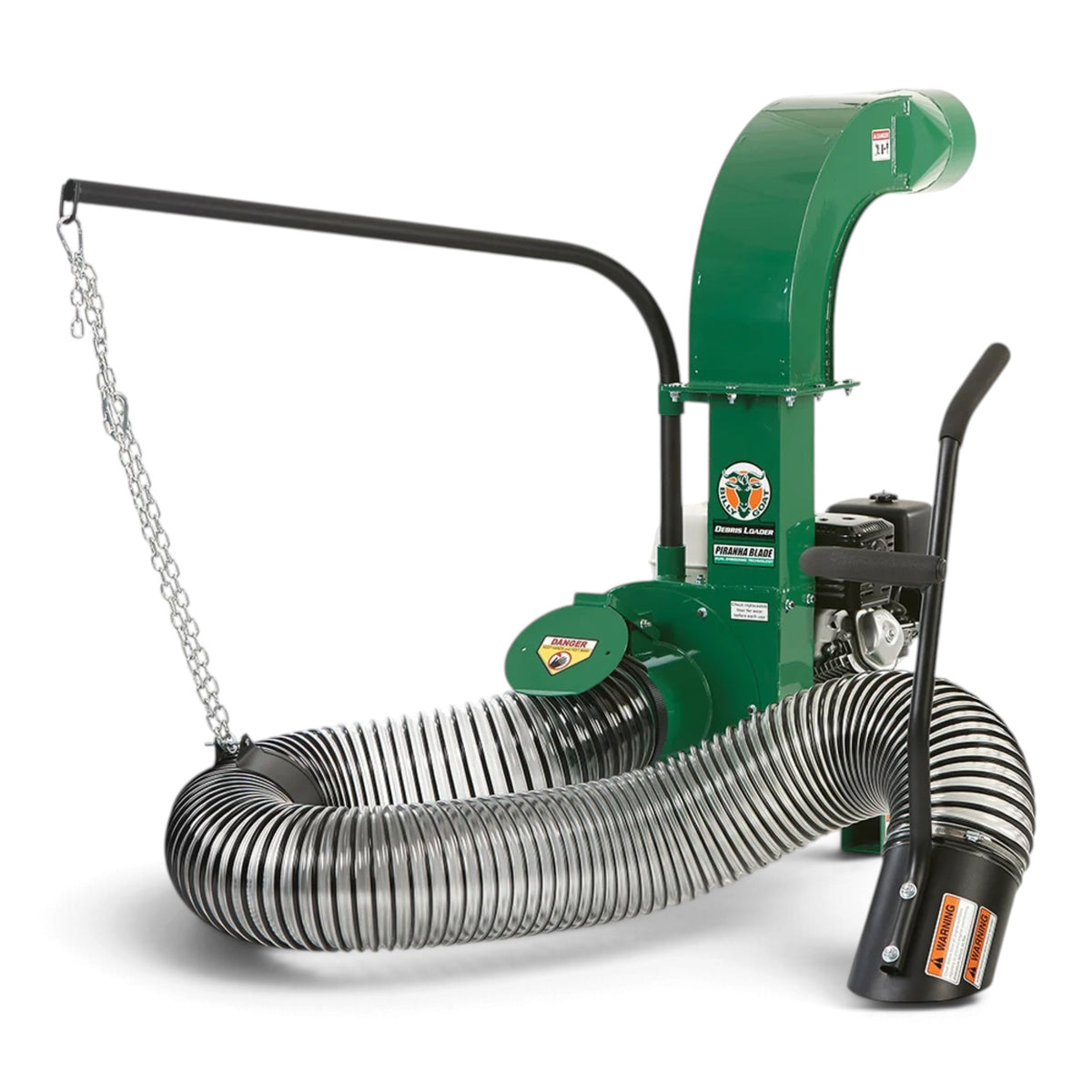

Billy Goat DL1302H Debris Loader, Honda GX390 11 Hp, Dual Shredding System

The Billy Goat DL1302H Debris Loader is a commercial-duty truck loader designed for landscaping crews, property maintenance contractors, municipalities, and operators handling small to midsize leaf and debris removal jobs. Powered by a Honda GX390 engine and delivering 2,100 CFM (59.5 m³/min) of commercial suction, the DL1302H combines strong debris pickup with a dual shredding system capable of reducing material by up to 12:1. Its compact 230 lb (104 kg) design, CustomFit™ mounting features, and heavy-duty discharge system make it a practical solution for increasing trailer capacity and reducing trips to the dump.

KEY FEATURES

• 2,100 CFM (59.5 M³/MIN) COMMERCIAL SUCTION: The DL1302H produces 2,100 CFM (59.5 m³/min) of airflow for efficient collection of leaves and loose landscape debris. Its combination of commercial suction and compact size makes it particularly suitable for small to midsize jobs and crews.

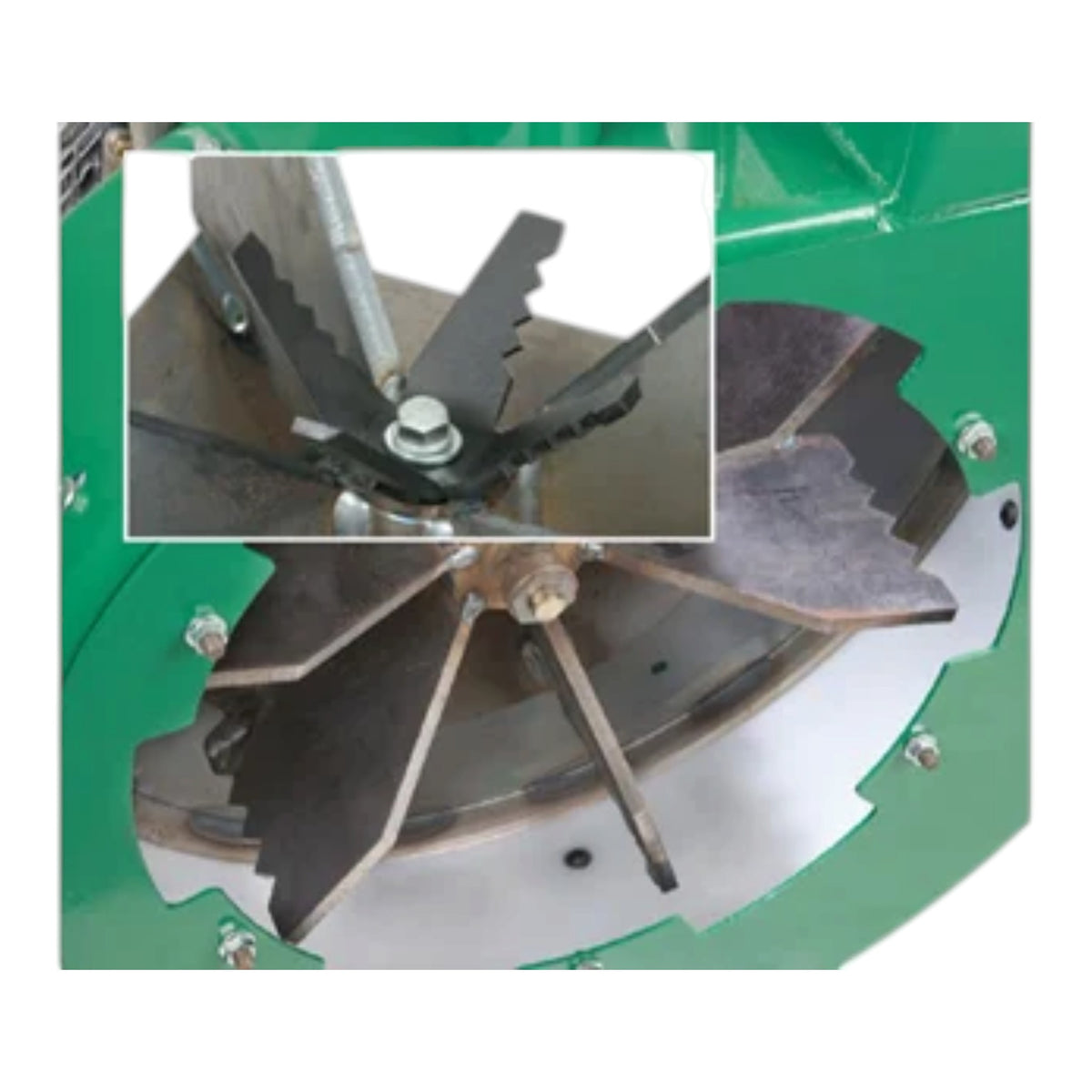

• DUAL SHREDDING SYSTEM WITH PIRANHA™ BLADE: The dual shredding system combines a heavy-duty impeller with a Piranha™ blade featuring serrated cutting points for additional debris reduction. Material can be reduced by up to 12:1, allowing crews to maximize truck or trailer capacity and service multiple properties before unloading.
• 14.25 IN (36.2 CM) ARMOR PLATE IMPELLER: A 14.25 in (36.2 cm) diameter armor plate impeller provides heavy-duty shredding performance for demanding commercial cleanup. The four-blade impeller incorporates eight cutting points to process collected material before it enters the truck or trailer.

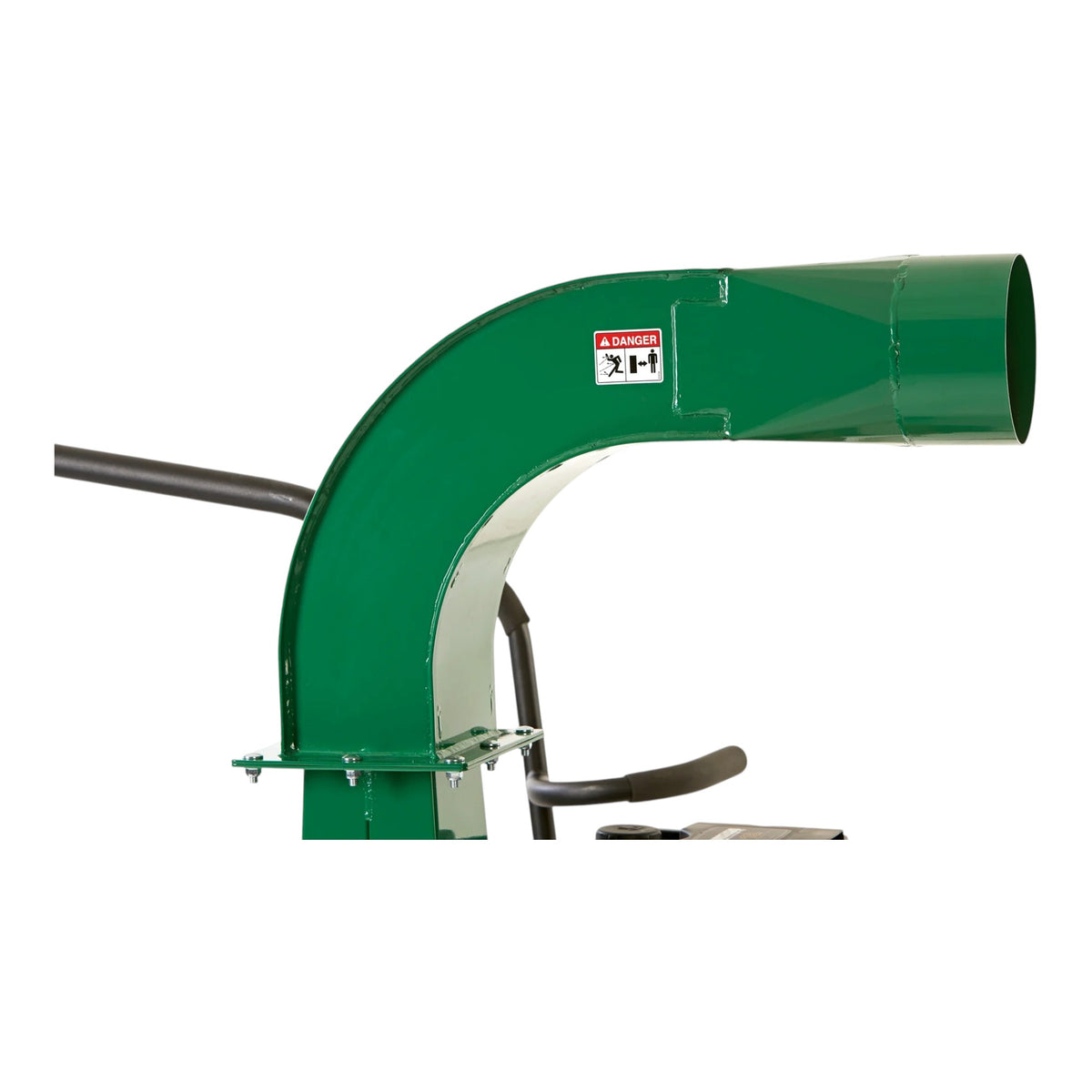

• SQUARE DISCHARGE ELBOW: The square discharge elbow is designed to provide increased durability, longer service life, and easier servicing. This heavy-duty discharge configuration supports recurring commercial use where productivity and equipment durability are important.
• UP TO 12:1 DEBRIS REDUCTION: The shredding system reduces collected leaves and debris by as much as 12:1. Greater material reduction allows more debris to fit into the truck or trailer, helping crews reduce unloading frequency, save time, and potentially reduce dump fees.
• CUSTOMFIT™ CONFIGURATION: CustomFit™ features allow operators to configure the debris loader for their truck and mounting requirements. Available mounting and extension accessories provide additional flexibility when setting up the DL1302H for different commercial vehicles and trailer configurations.
• COMPACT COMMERCIAL DESIGN: At 230 lb (104 kg), the DL1302H combines commercial debris-loading capability with a relatively compact footprint. Its 31 in (79 cm) length, 27 in (69 cm) width, and 48 in (122 cm) height make it a practical choice for crews that need productive equipment without moving to a larger loader.
• HONDA GX390 ENGINE: The DL1302H is powered by a Honda GX390 engine with 23.7 cu in (388 cc) displacement and pull starting. The direct-drive configuration transfers engine power to the debris-loading system for straightforward commercial operation.
• 8 IN × 10 FT (20 CM × 3 M) INTAKE HOSE: The standard hose measures 8 in (20 cm) in diameter and 10 ft (3 m) in length, providing operators with practical reach for collecting leaf piles and loose debris. Additional hose sizes and lengths are available for applications requiring a different pickup configuration.

APPLICATIONS / USE CASES

• COMMERCIAL LEAF REMOVAL: The DL1302H is designed for landscaping and property maintenance crews performing recurring leaf removal. Its 2,100 CFM (59.5 m³/min) airflow and dual shredding system help crews collect and process large volumes of leaves efficiently.
• SMALL TO MIDSIZE CREWS: The combination of commercial suction, compact dimensions, and a 230 lb (104 kg) operating weight makes the DL1302H particularly suitable for small and midsize crews. It provides productive debris loading without requiring the size of a higher-capacity loader.
• MULTI-PROPERTY CLEANUP: Debris reduction of up to 12:1 allows crews to load more material into a truck or trailer before unloading. This can help landscaping contractors service multiple properties before making a trip to the disposal site.
• MUNICIPAL LEAF COLLECTION: Municipal and public works crews can use the DL1302H for seasonal leaf and loose debris collection. Its truck-loader configuration allows collected material to be transferred directly into a compatible truck or trailer body.
• LANDSCAPING CONTRACTORS: Professional landscaping crews can use the DL1302H for residential, commercial, institutional, and multi-property cleanup routes. Its compact size and available mounting accessories provide flexibility for different work vehicles and trailer configurations.
• PROPERTY AND FACILITY MAINTENANCE: Grounds crews can use the debris loader to manage seasonal leaves and loose landscape material across campuses, commercial properties, parks, and other maintained grounds. High-volume suction helps move debris efficiently from collection piles into the transport vehicle.
• TRUCK AND TRAILER LOADING: The DL1302H is designed to transfer collected material directly into compatible trucks or trailers. Its shredding system reduces debris volume before discharge, helping maximize available cargo space.
• SEASONAL CLEANUP: The loader is well suited to fall leaf removal and other high-volume seasonal cleanup operations. Available hose, mounting, discharge, and liner accessories allow operators to adapt the machine to different commercial setups.

WHAT'S INCLUDED

• One Billy Goat DL1302H Debris Loader
• Honda GX390 gasoline engine
• Pull / recoil starting system
• Dual shredding system with Piranha™ blade
• 14.25 in (36.2 cm) diameter armor plate impeller
• Four-blade impeller with eight cutting points
• 8 in × 10 ft (20 cm × 3 m) intake hose
• 6 in (15 cm) square discharge
• Square discharge elbow

Optional mounting, hose, exhaust, discharge extension, liner, and carrier accessories are sold separately unless otherwise specified.

OPTIONAL ACCESSORIES

• EXHAUST DEFLECTOR KIT: The Exhaust Deflector Kit provides an additional exhaust-management option for compatible DL1302H installations. It can help operators configure exhaust direction according to the loader's mounting position and work vehicle setup.
• WHIPTRAILER DL: The Whiptrailer DL provides an accessory option for compatible debris-loader applications. Confirm mounting requirements, included components, and compatibility with the intended DL1302H installation before ordering.
• OIL DRAIN HOSE KIT: The Oil Drain Hose Kit is designed to simplify routine engine oil service on compatible equipment. Easier access to engine oil drainage can help make scheduled maintenance more convenient for commercial operators.
• EXHAUST HOSE KIT 7 IN × 5 FT (17.8 CM × 1.52 M): This exhaust hose kit provides a 7 in (17.8 cm) diameter and 5 ft (1.52 m) length for compatible debris-loader configurations. It provides additional flexibility when routing discharged air or exhaust according to the installation requirements.
• 15 5/8 IN (39.7 CM) VERTICAL EXHAUST EXTENSION: The vertical exhaust extension adds 15 5/8 in (39.7 cm) of height to compatible configurations. This allows operators to adapt the discharge arrangement to different truck or trailer body heights.
• CUSTOMFIT™ VERTICAL EXTENSION KIT – 15 5/8 IN (39.7 CM): The CustomFit™ Vertical Extension Kit provides a 15 5/8 in (39.7 cm) extension for configuring the loader to compatible work vehicles. It supports the DL1302H's customizable installation system for different truck and trailer arrangements.
• 5 FT (1.52 M) URETHANE DISCHARGE EXTENSION: The urethane discharge extension adds 5 ft (1.52 m) of flexible discharge reach. This can help operators route shredded material into a compatible truck or trailer based on the loader's mounting location.
• STEEL LINER KIT: The Steel Liner Kit provides additional protection for compatible areas exposed to repeated debris contact. This can be useful for commercial machines processing abrasive leaves, sticks, and other landscape debris throughout the cleanup season.
• HOSE 8 IN × 10 FT (20 CM × 3 M), CLEAR URETHANE: This clear urethane hose provides an 8 in (20 cm) diameter and 10 ft (3 m) length for compatible debris-loading applications. Its flexible construction provides practical reach for collecting leaves and debris from piles around the work area.
• HANGER KIT – TAILGATE STYLE: The tailgate-style Hanger Kit provides a mounting solution for compatible vehicle configurations. It allows operators to configure the debris loader around a tailgate-style installation when appropriate for the work vehicle.
• HOSE 8 IN × 16.5 FT (20 CM × 5.03 M): This longer intake hose provides an 8 in (20 cm) diameter and 16.5 ft (5.03 m) length for applications requiring additional pickup reach. The extra hose length can reduce the need to reposition the vehicle or loader when collecting debris over a larger work area.
• HOSE 12 IN × 10 FT (30.5 CM × 3.05 M), CLEAR URETHANE: This clear urethane hose provides a larger 12 in (30.5 cm) diameter and 10 ft (3.05 m) length for compatible applications. Compatibility with the specific loader configuration should be confirmed before ordering or installation.
• RECEIVER HITCH CARRIER: The Receiver Hitch Carrier provides an additional mounting and transport option for compatible debris-loader installations. It can help integrate the loader with vehicles equipped with an appropriate receiver hitch configuration.
• SWING AWAY HITCH: The Swing Away Hitch provides a mounting solution that allows compatible debris-loader installations to move away from the vehicle access area when required. This can improve convenience when crews need access to the truck or trailer during cleanup operations.

TECHNICAL SPECIFICATIONS – DL1302H

• MANUFACTURER: Billy Goat
• MODEL: DL1302H
• PRODUCT TYPE: Commercial debris loader / truck loader
• ENGINE BRAND: Honda
• ENGINE MODEL: GX390
• ENGINE DISPLACEMENT: 23.7 cu in (388 cc)
• ENGINE POWER: 11 HP
• STARTER TYPE: Pull / recoil
• DRIVE: Direct
• AIRFLOW: 2,100 CFM (59.5 m³/min)
• SHREDDING SYSTEM: Dual shredding system with Piranha™ blade
• MAXIMUM DEBRIS REDUCTION: Up to 12:1
• IMPELLER DIAMETER: 14.25 in (36.2 cm)
• IMPELLER: 4 blades with 8 cutting points
• HOSE DIMENSIONS: 8 in × 10 ft (20 cm × 3 m)
• DISCHARGE SIZE: 6 in (15 cm) square
• WEIGHT: 230 lb (104 kg)
• LENGTH: 31 in (79 cm)
• WIDTH: 27 in (69 cm)
• HEIGHT: 48 in (122 cm)

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What size jobs is the Billy Goat DL1302H designed for?

The DL1302H is designed primarily for small to midsize commercial leaf and debris removal jobs and crews. Its combination of 2,100 CFM (59.5 m³/min) airflow, compact dimensions, and 230 lb (104 kg) weight provides commercial loading capability without requiring a larger debris loader.

2. How much can the DL1302H reduce leaf and debris volume?

The dual shredding system can reduce collected material by up to 12:1. This allows more processed debris to fit into the truck or trailer, helping crews service additional properties before unloading.

3. How does the Piranha™ blade system work?

The Piranha™ blade uses serrated cutting points as part of the loader's dual shredding system to provide additional material reduction. It works with the armor plate impeller to shred incoming leaves and debris before the material is discharged into the truck or trailer.

4. What size intake hose comes with the DL1302H?

The listed hose dimensions are 8 in × 10 ft (20 cm × 3 m). Additional hose options are available separately, including an 8 in × 16.5 ft (20 cm × 5.03 m) hose for applications requiring greater pickup reach.

5. Can the DL1302H be customized for different trucks or trailers?

Yes. The DL1302H incorporates CustomFit™ features and has several optional mounting, extension, carrier, and hitch accessories. The appropriate components depend on the truck, trailer, mounting location, and desired discharge configuration.
