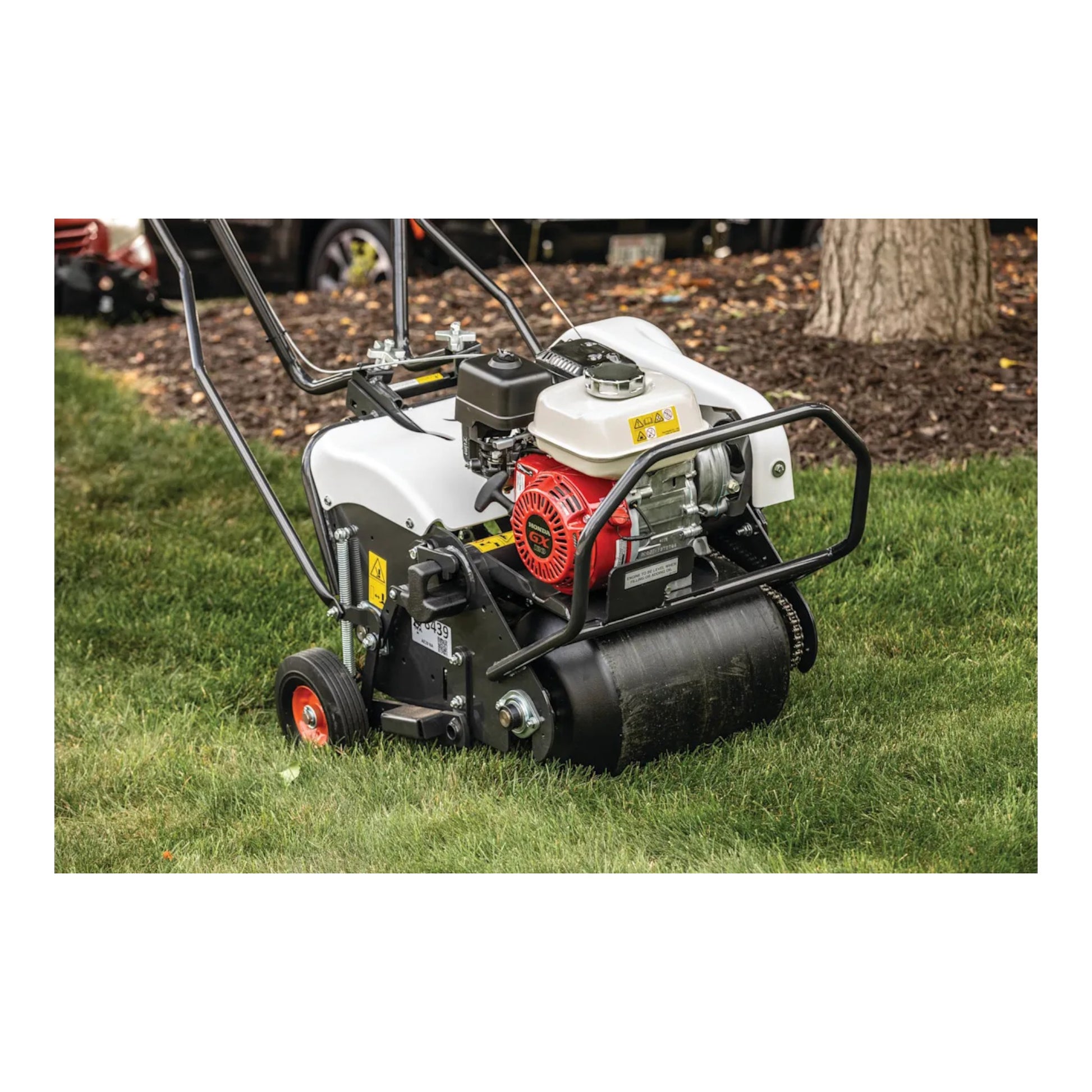

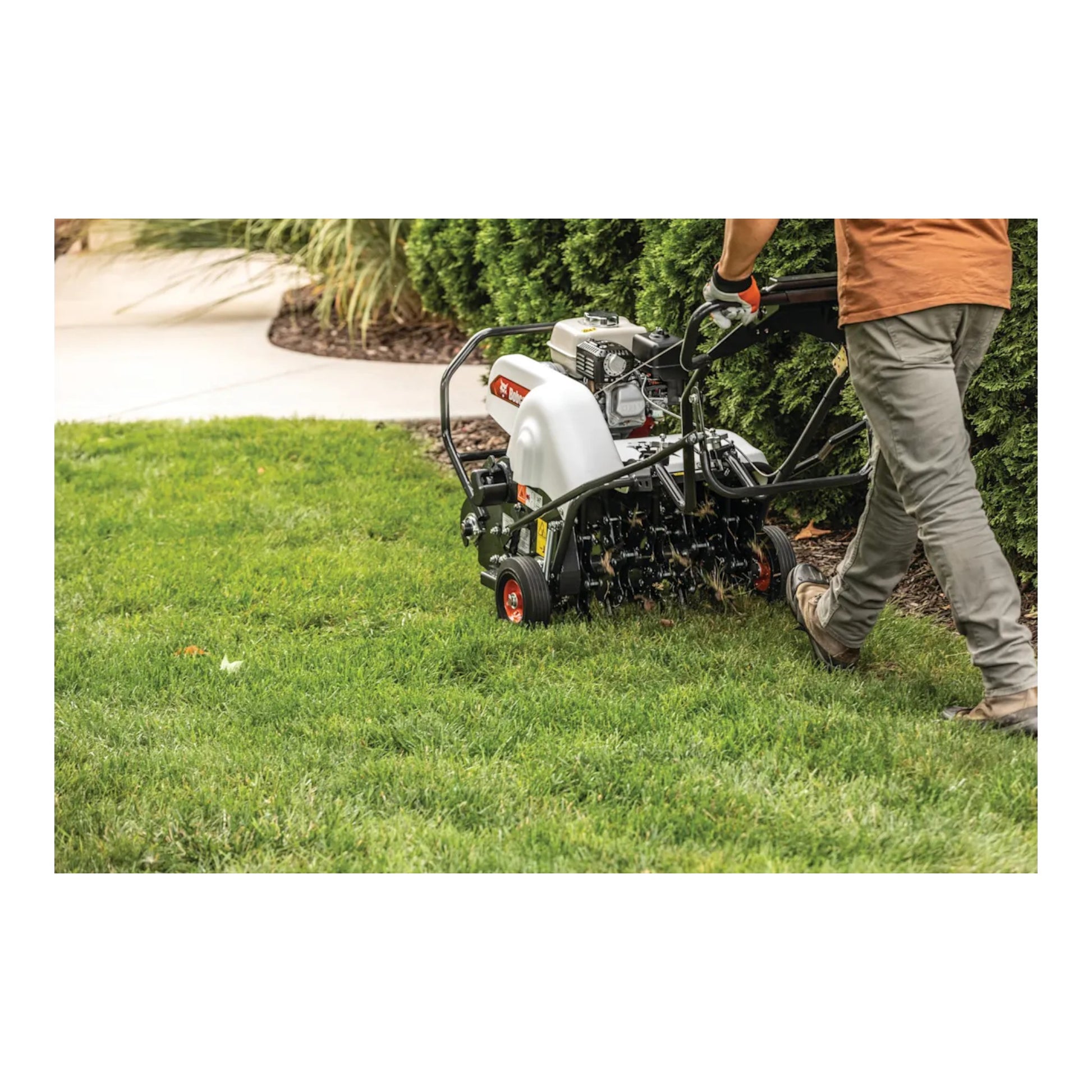

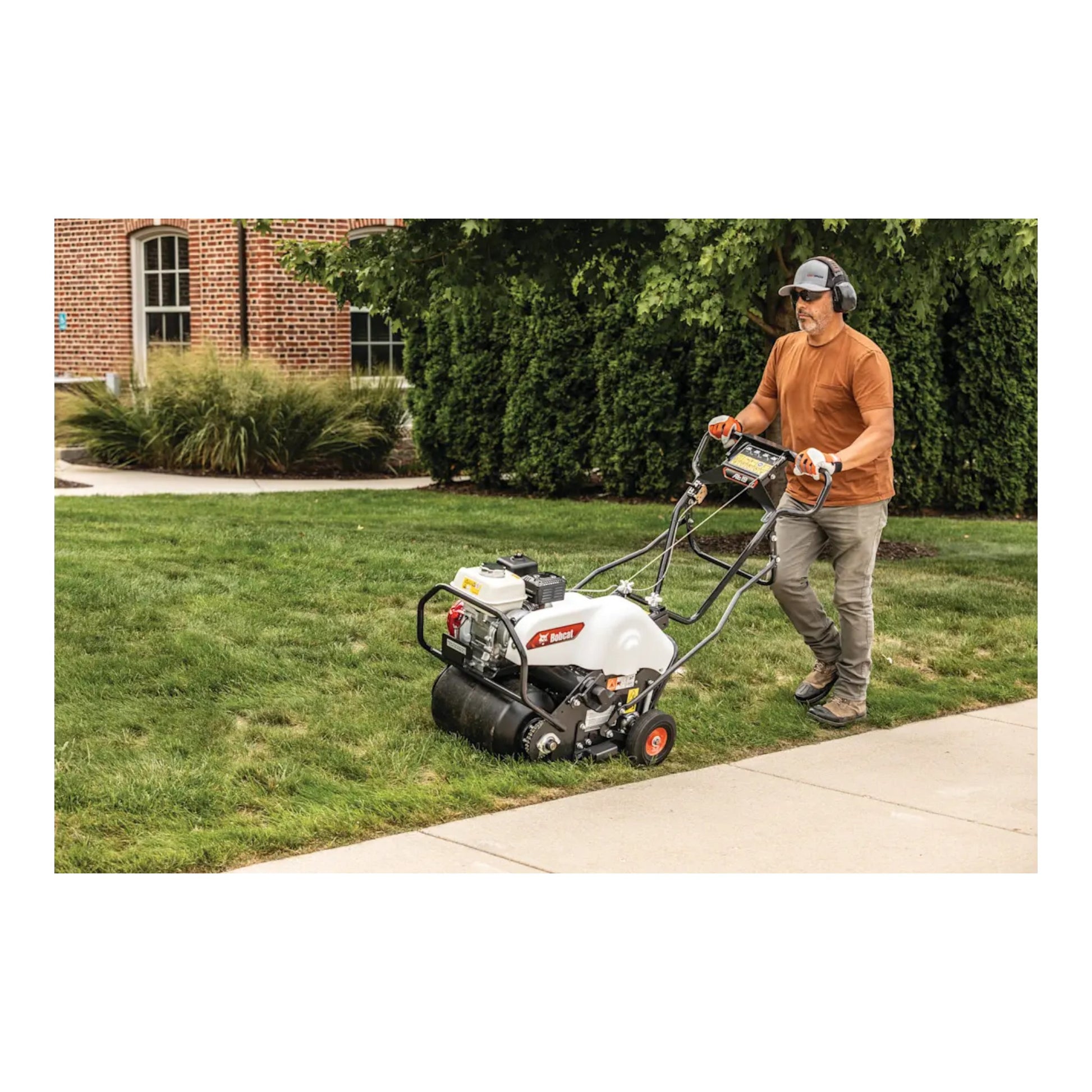

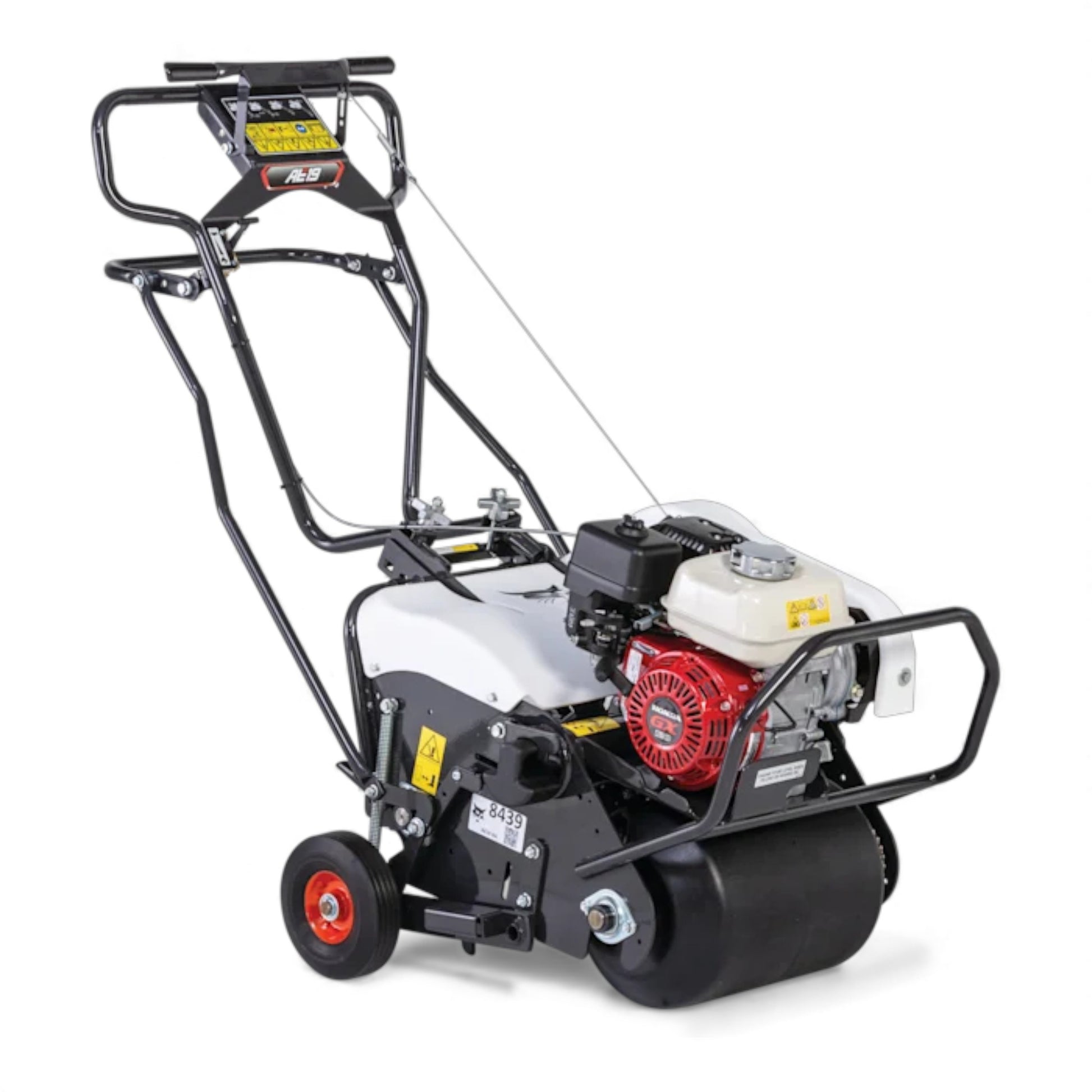

Bobcat 19 Inch Walk-Behind Aerator

The Bobcat AE19 Walk-Behind Aerator delivers exceptional maneuverability, efficiency, and professional-grade aeration performance. Featuring Easy-Steer Technology, the AE19 allows operators to turn and navigate landscaped areas without lifting the tines from the ground, dramatically boosting productivity. Built with rugged Bobcat durability, intuitive controls, and customizable weight options, this aerator is engineered for landscapers who demand reliability, precision, and long-term performance.

FEATURES

• Engine Options: Choice of a 3.2 hp Honda engine or a powerful 6.5 hp Vanguard engine for reliable performance.
• Easy-Steer Technology: Independent tine hubs allow smooth, in-ground turning without lifting the aerator, greatly improving maneuverability and productivity.
• 19-Inch Working Width: Aerates 19 inches per pass at speeds up to 3.5 mph for high-efficiency performance.

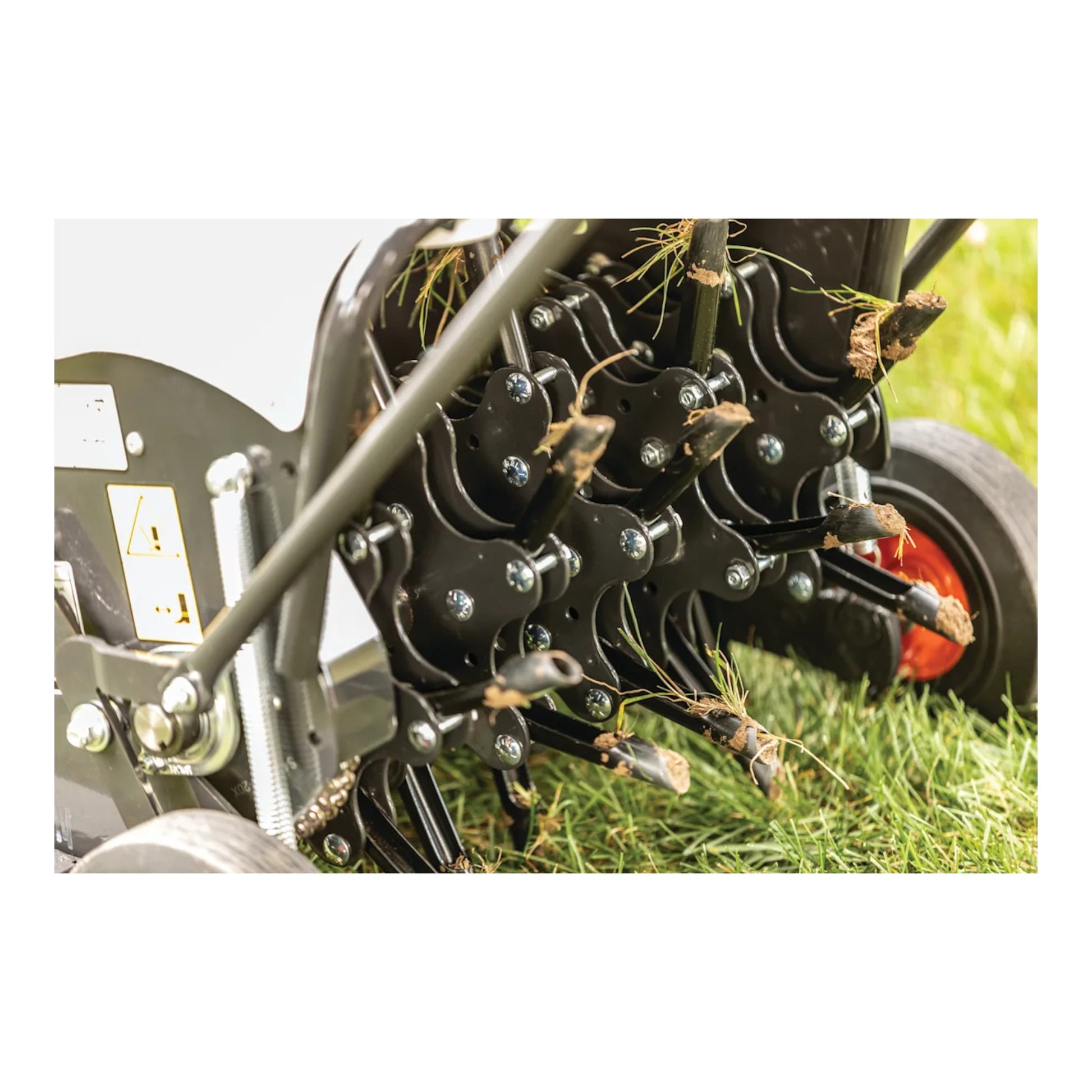

• 30 Hardened Alloy Steel Coring Tines: Penetrate up to 2.75 inches, enhancing soil health and promoting deeper nutrient and water absorption.
• 80 Pounds of Weight Control: Includes two removable weights and a water-fillable drum for customizable ground penetration.
• Rugged Bobcat Construction: Built to withstand tough jobsite conditions and deliver years of reliable operation.
• Sturdy Front Bumper: Protects the unit against impact with landscaping obstacles.
• All Operating Controls at Handlebar: Provides convenient access to all machine controls for simple, comfortable operation.
• Simple Drive Engagement: Belt-tightener clutch ensures smooth, intuitive, and reliable drive operation.
• Easy Lift & Lower Transport Lever: Quickly transitions between work mode and transport mode.
• Removable Weights: Allows operators to reduce machine weight for easier loading, unloading, and maneuvering.
• Toolless Folding Handle: Handle folds down for compact, hassle-free transport and storage.

Honda Engine Specifications

• Engine: Honda GX120
• Power: 3.2 HP (2.4 kW)
• Displacement: 7.2 cu in. (118 cc)
• Fuel Capacity: 0.53 gal (2 L)
• Oil Capacity: 0.59 qt (0.56 L)

Briggs and Stratton Engine Specifications

• Engine: Briggs and Stratton Vanguard 200
• Power: 6.5 HP (4.8 kW)
• Displacement: 12.4 cu in. (203 cc)
• Fuel Capacity: 0.84 gal (3.3 L)
• Oil Capacity: 0.63 qt (0.6 L)

Specifications

• Drive: 4L Section V-Belt to jackshaft, #40 Nickel-Plated chain to tines & drum
• Clutch: Belt Tightener
• Gearbox: 6:1 Reduction
• Travel Speed: Up to 3.6 mph (5.8 kph)
• Aeration Speed: Up to 3.5 mph (5.6 kph)
• Tines: 0.75 in (19 mm) diameter coring tines formed from 0.08 in (2 mm) hollow hardened alloy steel
• Aeration Width: 19 in (483 mm)
• Aeration Depth: Up to 2.75 in (70mm)
• Number of Tines: 30
• Aeration Pattern: 3.75 in x 7 in (95 mm x 178 mm)
• Tine Engagement: Transport lift lever
• Productivity: Up to 29,000 sq ft/hr (2,694 m2/hr)
• Weight Configuration: (2) 18 lbs (8 kg) removable weights, 4.5 gal ( 17.0 L) capacity water drum weighing an additional 36 lbs (16.3 kg) at capacity
• Frame: Welded 7-gauge steel, 11-gauge steel tubing
• Drum: 11 in (279 mm) diameter water-fillable drum
• Wheels: (2) 8 in x 2.25 in semi-pneumatic transport wheels)
• Length: 53.5 in (1,359 mm)
• Width: 28 in (711 mm)
• Height: 48.8 in (1,240 mm)
• Weight: 260 lbs (118 kg)
• Weight: Water in Drum: 295 lbs (134 kg)
