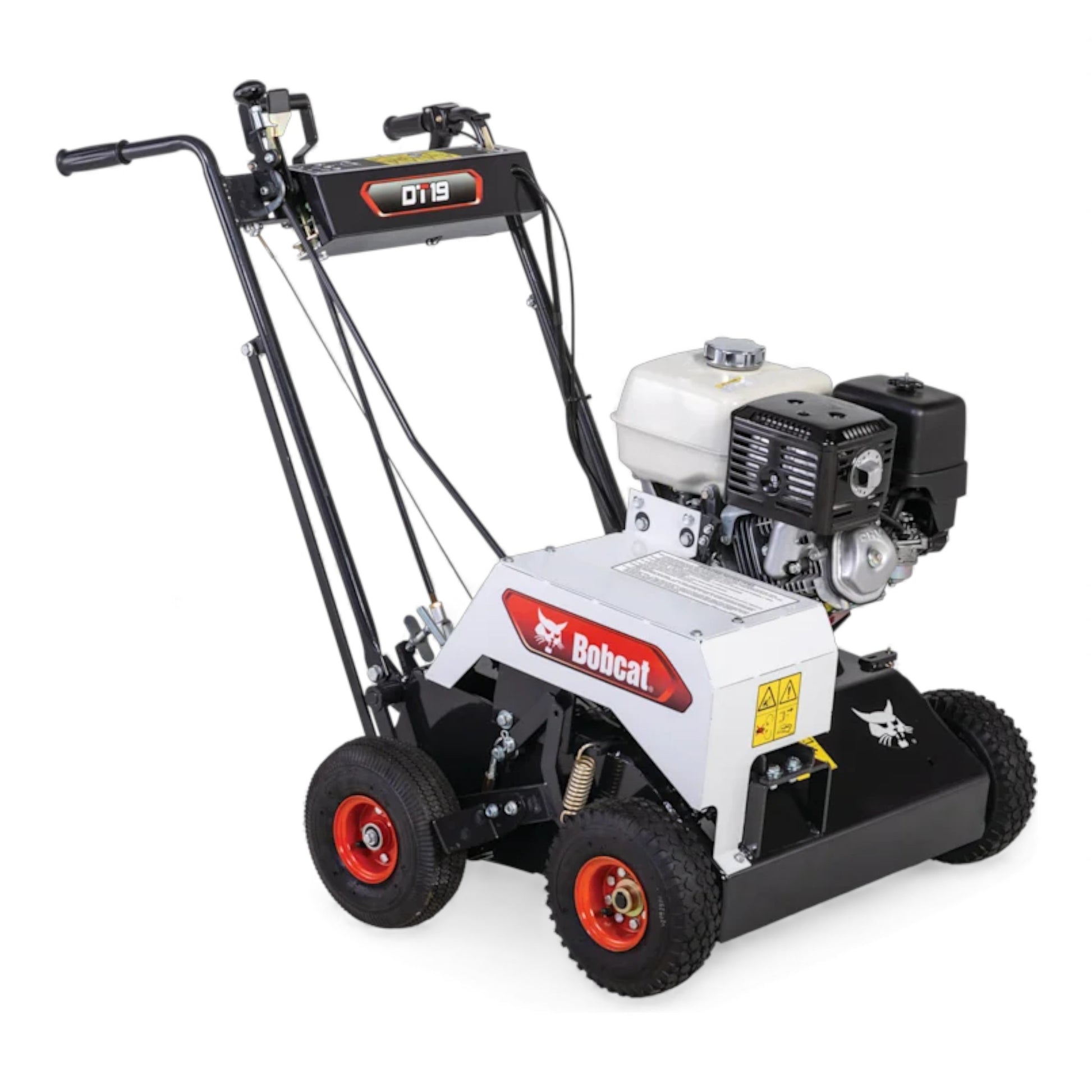

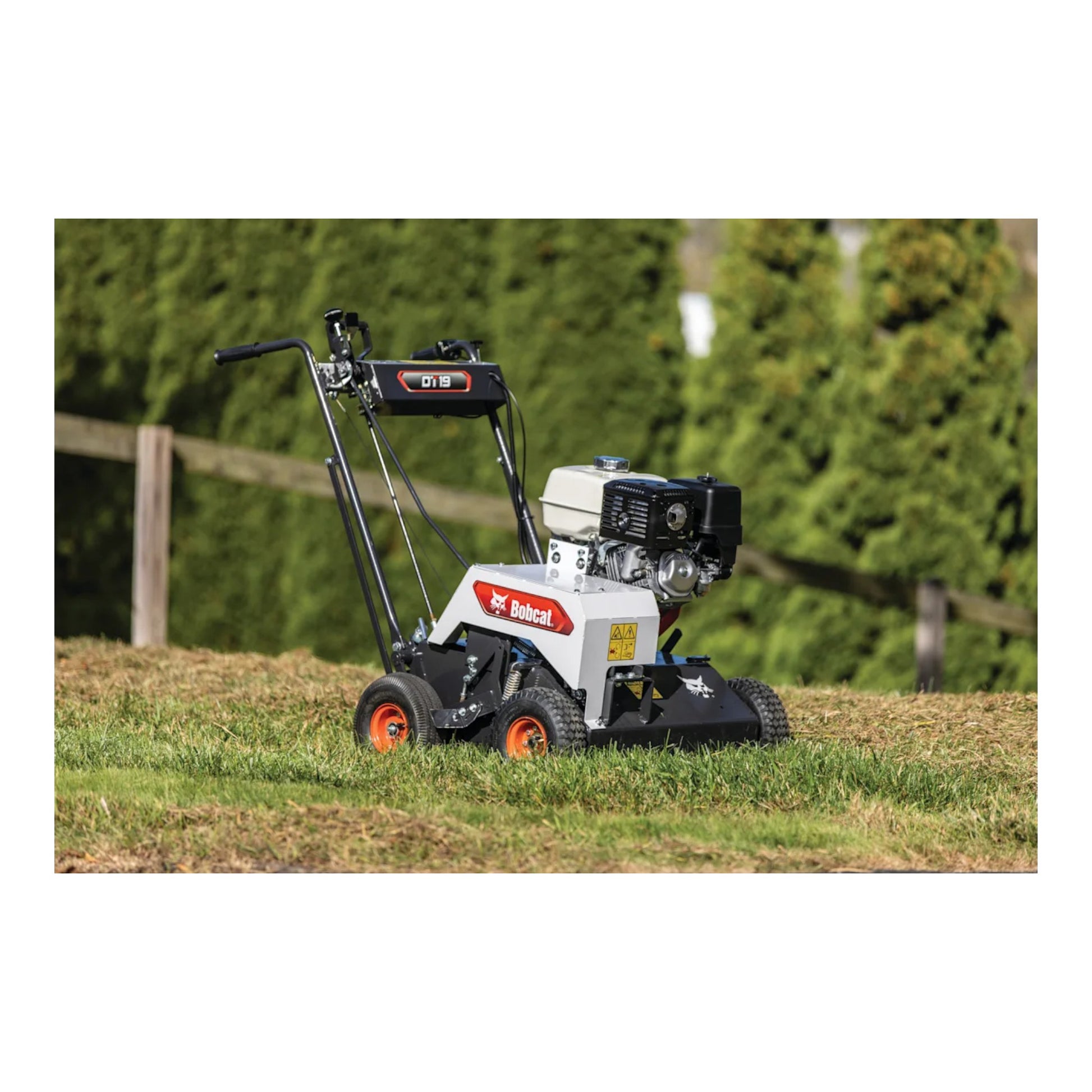

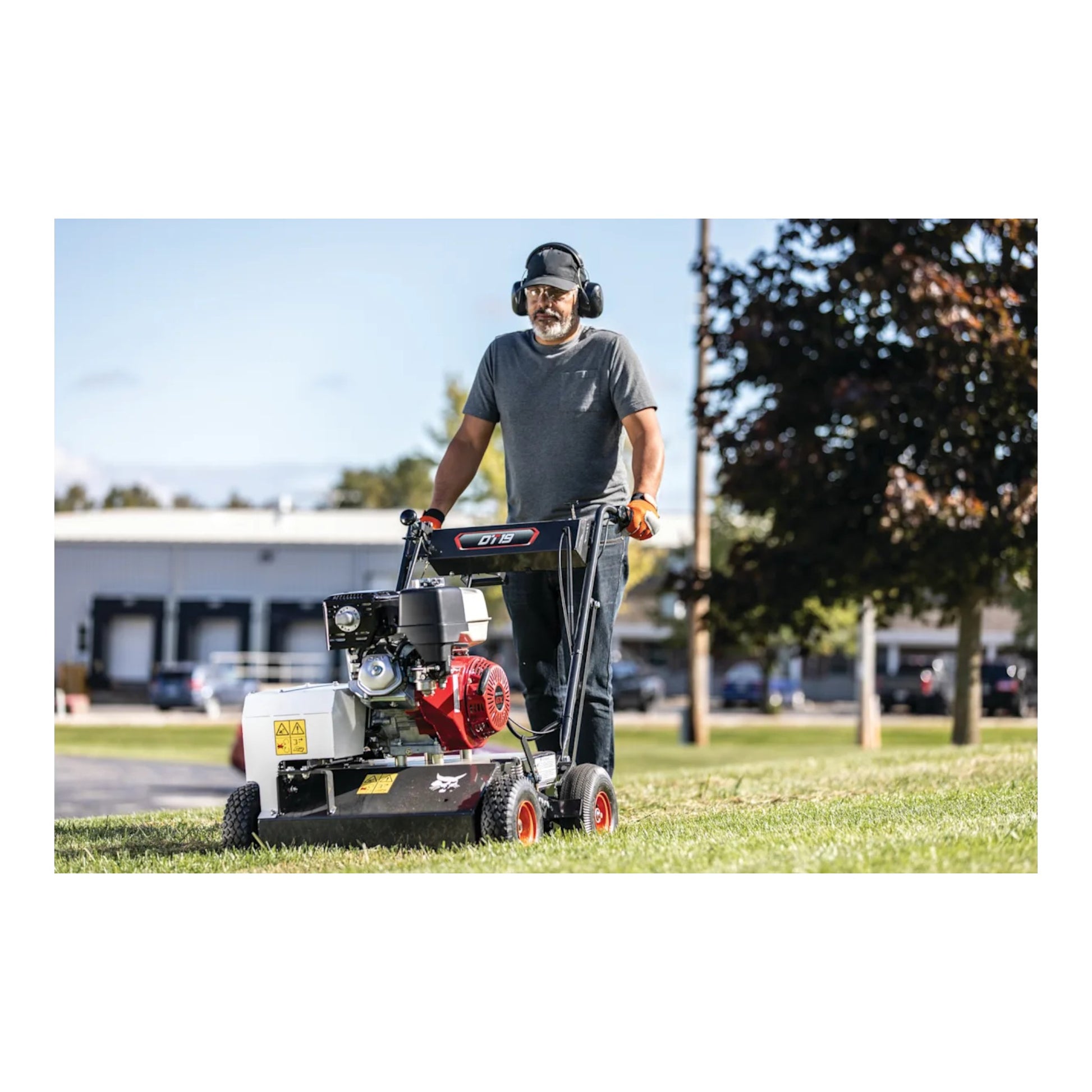

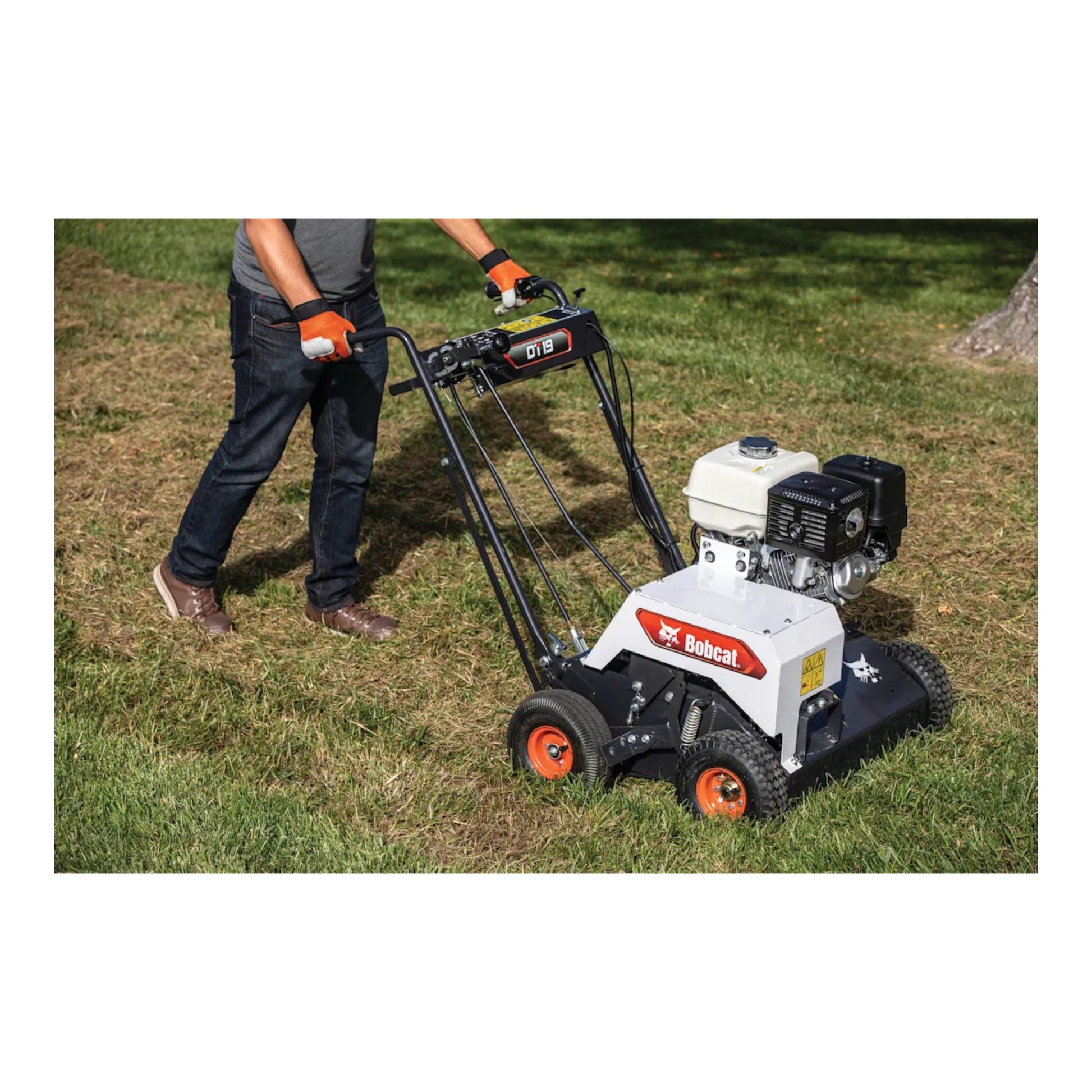

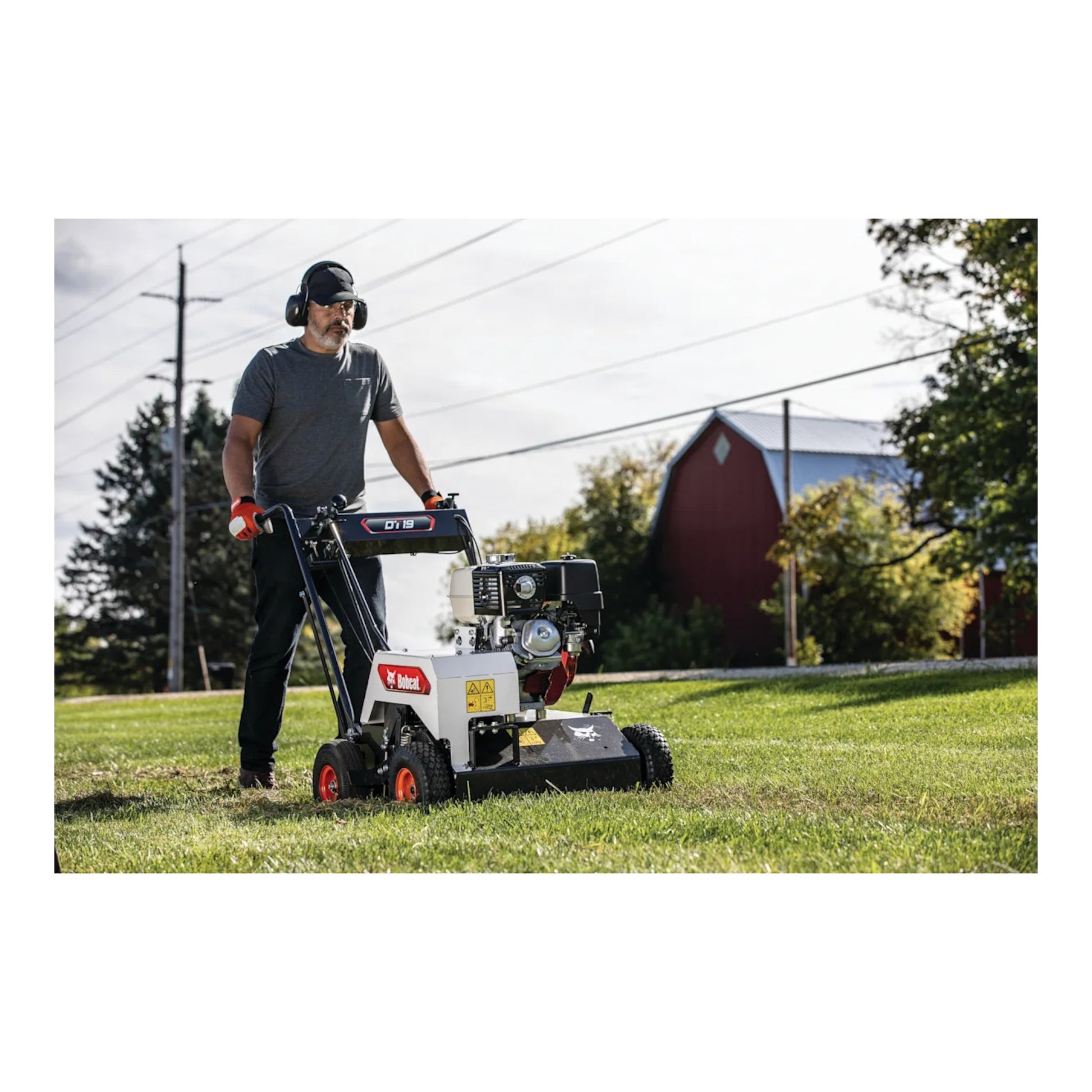

Bobcat DT19 19 Inch Self-Propelled Dethatcher & Verticutter

The Bobcat DT19 is a heavy-duty, self-propelled dethatcher and verticutter built for high-productivity turf renovation. Designed for demanding commercial applications, the DT19 features a powerful Honda engine, tool-free reel changes, and precise depth control for optimal turf restoration. Its self-propelled drive delivers consistent ground speed, reduced operator fatigue, and improved overall performance, allowing you to cover up to 18,700 sq. ft. per hour with professional-grade results.

FEATURES

• Engine: Honda GX390 provides exceptional power and reliability for heavy-duty dethatching and verticutting.
• High Productivity: Cover up to 18,700 sq. ft. per hour with a 19-inch working width, maximizing efficiency on large turf areas.
• Tool-Free Reel Changes: Easily switch between five different reel types, no tools required, offering unmatched versatility for various turf conditions.
• Self-Propelled Operation: Provides smooth, consistent ground speed, reducing operator fatigue and ensuring high-quality, uniform results.
• Precision Depth Adjustment: Simple height adjustment allows fine-tuning of slicing depth (exact depth varies depending on the installed blade type).
• Operator-Friendly Control Station: Adjust throttle and cutting depth directly from the ergonomic operator’s station for quick, intuitive operation.
• Simultaneous Cutting & Seeding Capability: Designed to perform verticutting and seeding tasks at the same time for enhanced productivity.

Required Reel Options

• 1/16" Blades 1 1/2" Spacing Kit: 1/16-inch thick blades with 1/2-inch spacing covering a 19-inch wide slicing area.
• 1/16" Blades 1" Spacing Kit: 1/16-inch thick blades with 1-inch spacing covering a 19-inch wide slicing area.
• 1/32" Blades 1" Spacing Kit: 1/32-inch thick blades with 1-inch spacing covering a 19-inch wide slicing area.
• 1/32" Blades 1/2" Spacing Kit: 1/32-inch thick blades with 1/2-inch spacing covering a 19-inch wide slicing area.
• 1/8" Flail Blades 1" Spacing Kit: 1/8-inch thick flail blades with 1-inch spacing covering a 19-inch wide operating area.

Specifications

• Engine: Honda GX390
• Power: 11.7 HP (8.6 kW)
• Displacement: 23.7 cu in. (389 cc)
• Fuel Capacity: 1.6 gal (6.1 L)
• Oil Capacity: 1.16 qt (1.1 L)
• Drive: 4L-section V-belt to front wheels by gear box and sealed roller chain, Triple 3V-section V-belts engine to reel
• Clutch: Spring-loaded belt tightener
• Gearbox: 22:1 reduction
• Flail Blade Reel: Hardened high-carbon steel blades: 1/8 in (3 mm) at I in (25 mm) spacing
• Fixed Blade Reel: Hardened high-carbon steel blades: 1/32 in (1 mm) at 1/2 in (13 mm) spacing, 1/32 in (1 mm) at 1 in (25 mm) spacing, 1/16 in (2 mm) at 1 in (25 mm) spacing, 1/16 in (2 mm) at 1-1/2 in (38 mm) spacing
• Operating Width: 19 in (483 mm)
• Slicing Depth: Fixed Blade: Up to 0.25 in (6 mm) below ground
• Reel Speed: 3200RPM
• Reel Height Adjustment: Micrometer screw; adjustable up to 1.25 in (32 mm) for blade wear
• Frame: Welded 7-gauge steel
• Front Wheel(s): (2) 4.10/3.50 - 4 turf-tread pneumatic drive wheels
• Rear Wheel(s): (2) 4.10/3.50 - 4 sawtooth-tread pneumatic
• Length: 50 in (1270 mm)
• Width: 35.5 in (902 mm)
• Height: 44 in (1118 mm)
• Weight: 376 lb (171 kg) (without reel)
