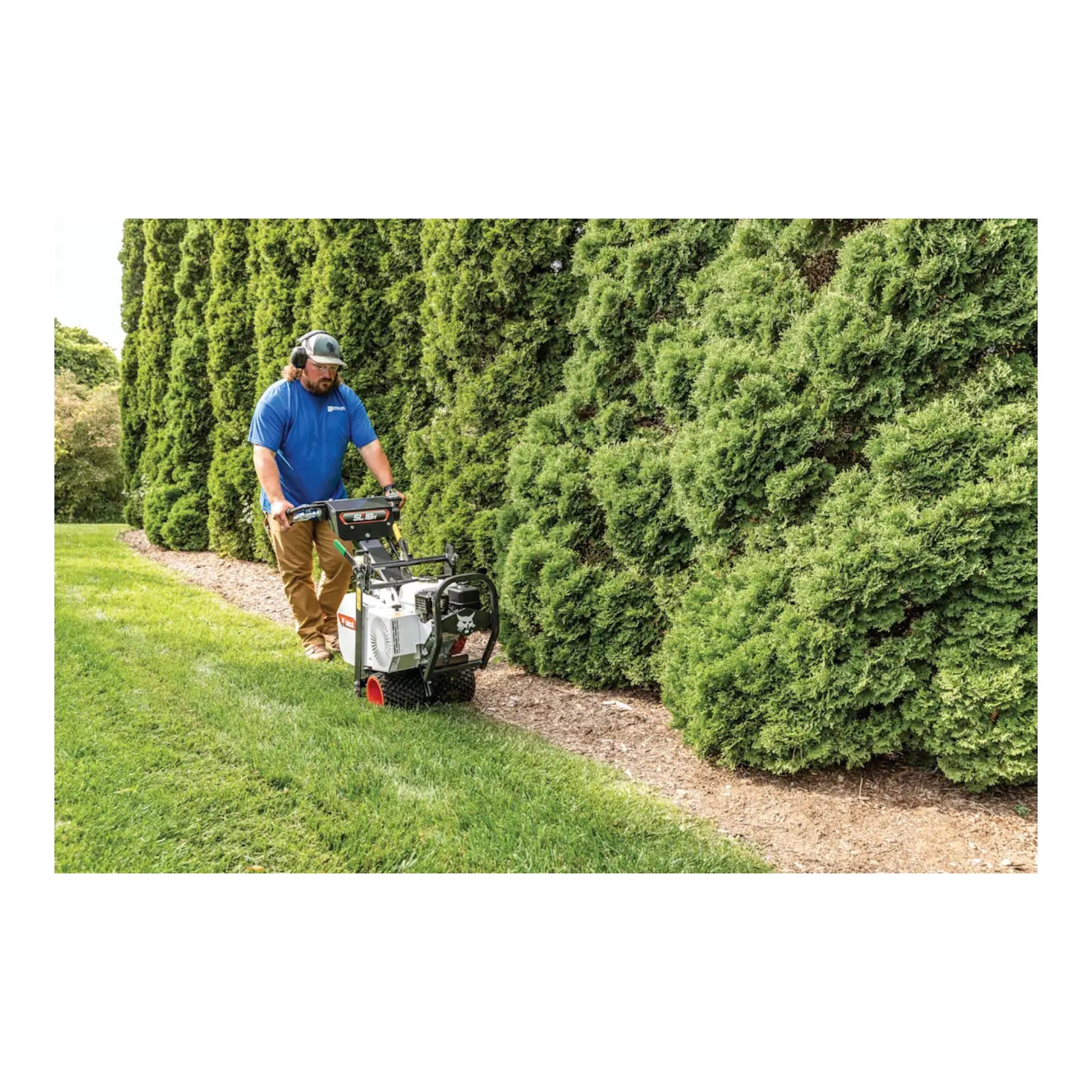

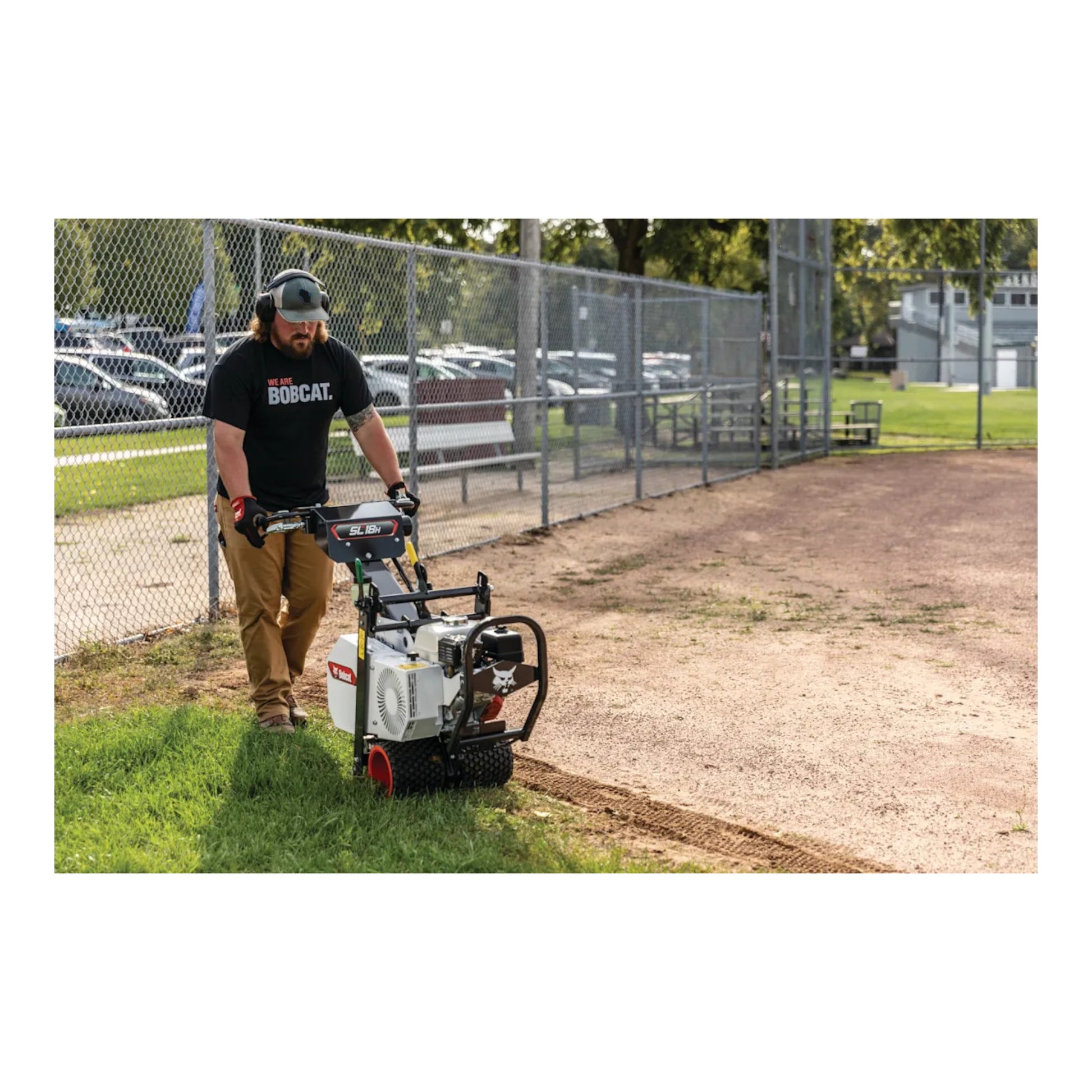

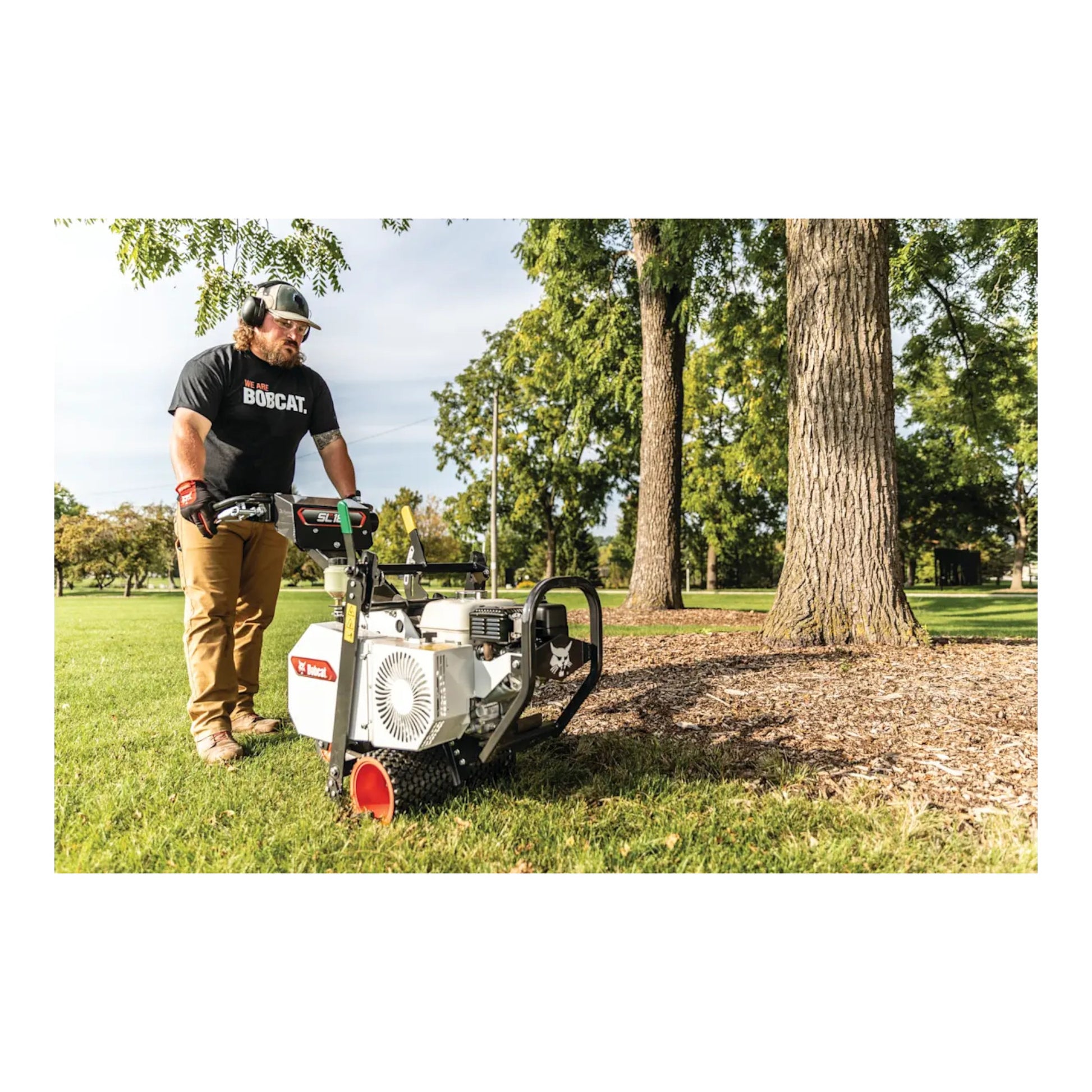

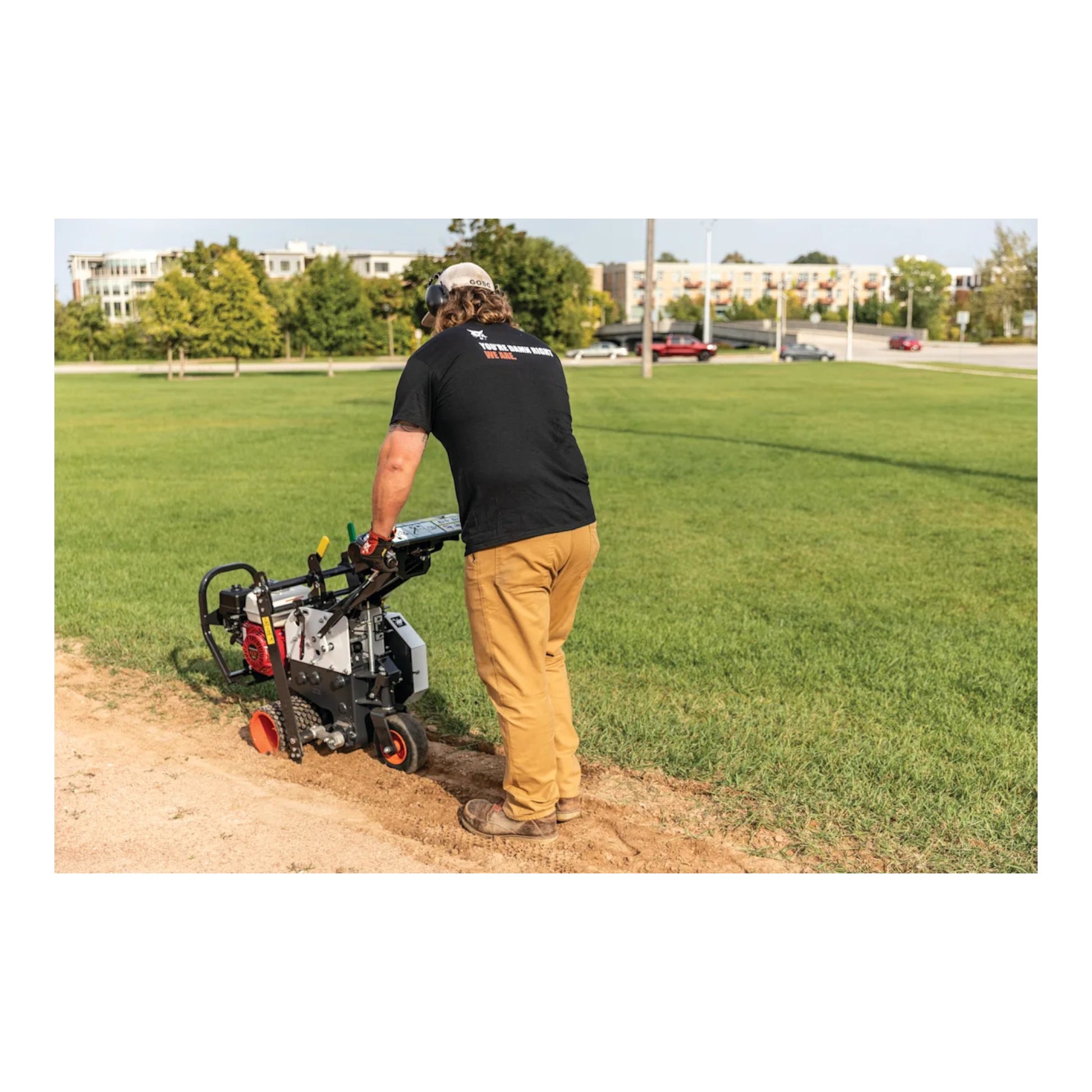

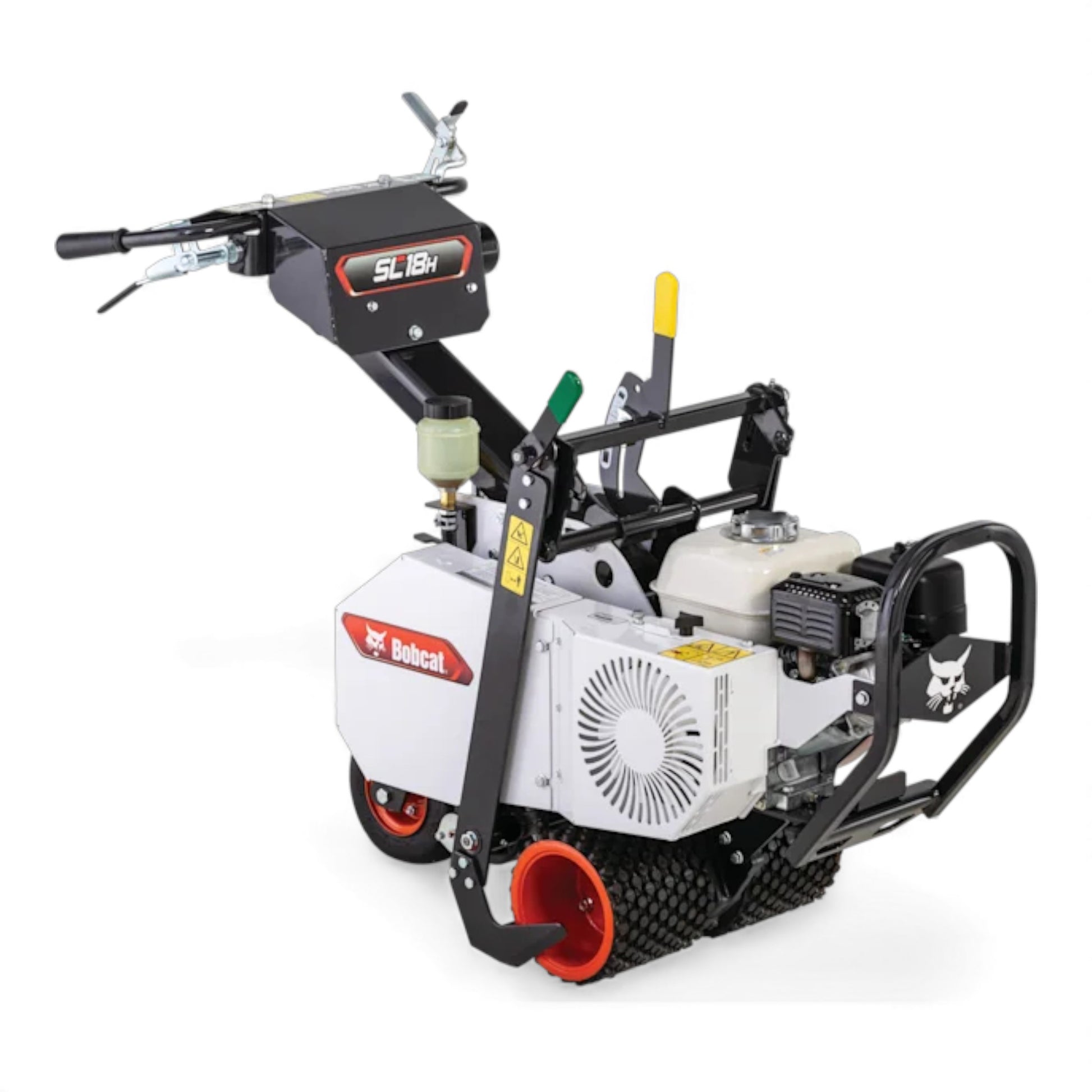

Bobcat SC18H 18 Inch Hydrostatic Drive Sod Cutter

The Bobcat SC18H is built for professional landscapers, turf managers, and rental fleets that require consistent cutting performance paired with exceptional operator comfort. Its hydrostatic, variable-speed transmission delivers smooth and powerful cutting, while the cast-iron gear case and hydraulic cooling system ensure unmatched durability for season-after-season use. Designed with ultra-low vibration technology and intuitive controls, the SC18H provides precision, maneuverability, and long-lasting productivity on any jobsite.

FEATURES

• Engine: Honda GX160 engine delivers reliable, fuel-efficient performance for demanding cutting tasks.
• Hydrostatic Variable-Speed Transmission: Provides smooth, powerful control that allows the operator to maintain consistent cutting speed through varying soil conditions.
• Ultra-Low Vibration Technology: Rubber isolation mounts significantly reduce vibration transfer, minimizing operator fatigue and improving comfort during extended use.
• Easy-Steer Technology: Unlock the pneumatic rear caster wheel for tight maneuverability around obstacles, or lock it for straight, precision cutting on long runs.
• User-Friendly Operation: Color-coded controls and intuitive design make operation simple for users of all experience levels.
• Simple Depth & Blade-Angle Adjustment: Quickly set cutting depth and angle to match soil conditions for clean, accurate, and consistent sod removal.

Specifications

• Engine: Honda GX160
• Power: 4.8 HP (3.5 kW)
• Displacement: 9.9 cu in. (163 cc)
• Fuel Capacity: 0.82 gal (3.1 L)
• Oil Capacity: 0.61 qt (0.58 L)
• Drive: A-section belt engine to hydrostat, Power transfered through enclosed oil lubricated gearcase, Chain reduction to the drive wheels and blade
• Transmission: Hydro-Gear BDU-l0S-127
• Gearbox: 0.25 in (6 mm) thick cast iron housing
• Forward Speed: Up to 4 mph (6.4 kph)
• Reverse Speed: Up to 2 mph (3.2 kph)
• Blade: Heat-treated steel
• Cutting Width: 18 in (457 mm)
• Cutting Depth: Adjustable up to 2.5 in (64 mm)
• Blade Speed: 1225 oscillations/min
• Depth Adjustment: Locking lever releases to desired depth
• Front Wheel(s): (2) 8 in (203 mm) vulcanized knob tread cast iron drive wheels
• Rear Wheel(s): (1) 9 in x 3.5 in - 4 in caster wheel
• Length: 52.5 in (1,331 mm)
• Width: 25 in (635 mm)
• Height: 40.25 in (1022 mm)
• Weight: 380 lb (172 kg)
