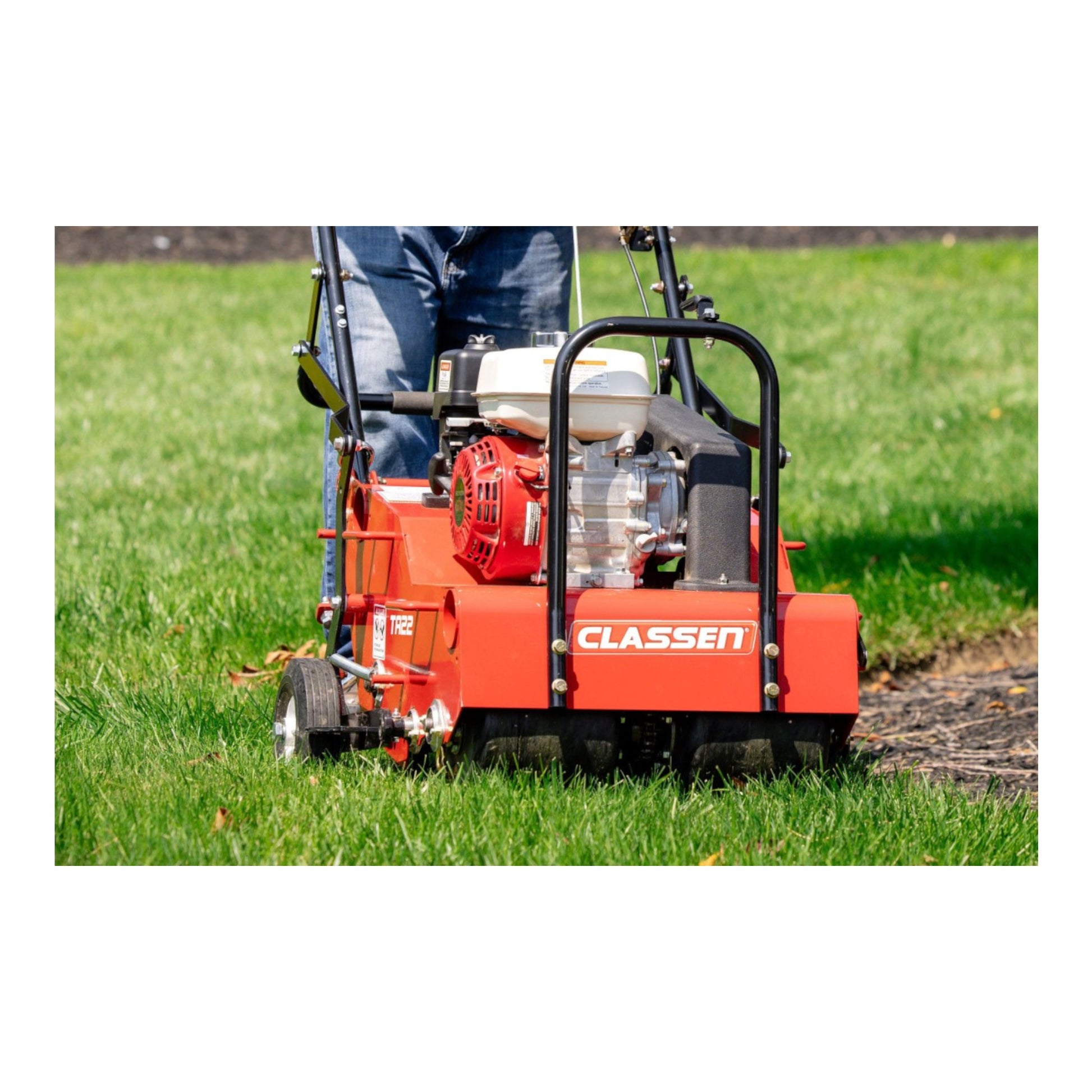

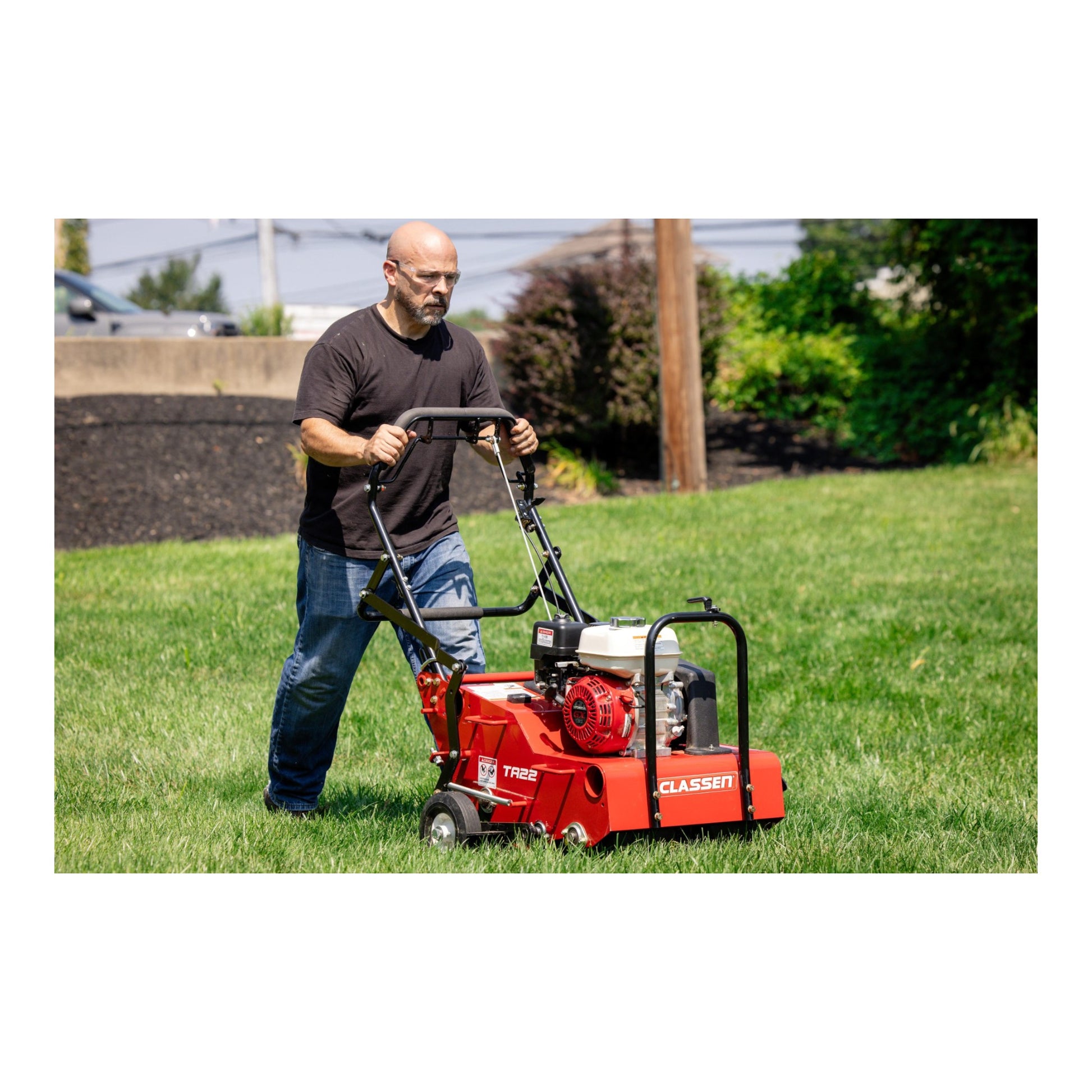

Classen TA22H 21 Inch PRO Honda GX120 Steerable Aerator

The Classen TA22H PRO Steerable Aerator combines superior core aeration performance with enhanced maneuverability, all powered by the dependable Honda GX120 engine. Featuring a wide aerating width and an innovative split-drum front-drive system, this unit delivers exceptional control with reduced operator fatigue. Designed to balance professional-grade productivity with compact accessibility, the TA22H easily passes through 36-inch gates while offering smooth steering, easy transport, and high-quality core extraction, making it an outstanding choice for landscapers, rental fleets, and grounds maintenance teams.

FEATURES

• Engine: Honda GX120 engine delivers top-class performance and achieves the fastest operating speed in its category.
• Dual Split-Drum Front Drive: Split drum design greatly improves maneuverability, especially during end-of-row turning, and reduces operator fatigue.
• Steerable Tine Bank: Enhances precision control when aerating and simplifies tight-turn maneuvers for improved productivity.
• 36” Gate Compatibility: Optimized frame width allows the aerator to easily pass through standard 36-inch residential or commercial gates.
• Fold-Down Handle: Handle assembly folds quickly for compact storage and easier transport in trucks, vans, or trailers.
• Tie-Down / Lift Handles: Integrated transport handles ensure secure tie-down and simplified lifting during loading and unloading.
• Ergonomic Foam Grip Handle: Soft, vibration-reducing foam grip enhances operator comfort during prolonged use.
• Easy Tine Engagement: Intuitive tine engagement handle is simple to lift and lower for effortless operation.
• Tine Engagement Lock: Prevents accidental tine drop during transport or repositioning for increased safety.
• Removable Weights: Easily detachable weights allow operators to reduce machine weight for transport or increase ground penetration when needed.
• High-Quality Core Extraction: Designed to produce clean, consistent cores for improved soil aeration and turf health.
• Productive & Easy to Maneuver: Optimized design delivers a strong balance of productivity, control, and user-friendly operation.

Specifications

• Engine: Honda GX120
• Transmission: Belt Drive
• Fuel Capacity, gal (l): 0.5 (2)
• Max Speed Fwd / Rev, mph (km/h): 4.2 (6.8) / N/A
• Aerating Width, in (cm): 21 (53.3)
• Max Aerating Depth, in (cm): 3 (7.6)
• Number of Tines: 36
• Core diameter, in (cm): 0.75 (1.9)
• Hole Pattern, in (cm): 3.4x7 (8.6x17.8)
• Holes, sq ft (sq m): 6.5 (0.6)
• Max Productivity/hour, sq ft (sq m): 32,300 (3,000)
• Removable Weight Bars Each, lbs (kg): 21.5 (9.8)
• Front Drum Diameter, in (cm): 9.5 (24.1) HDPE
• Front Wheels Style: Solid Rubber
• Rear Wheels, in (cm): 8 (20.3)
• Rear Wheels Style: Solid Rubber
• Dimensions LxWxH, in (cm): 46x30x48 (117x76x122)
• Folded Dimensions LxWxH, in (cm): 37x30x25 (95x76x64)
• Dry Weight, lbs (kg): 270 (122)
