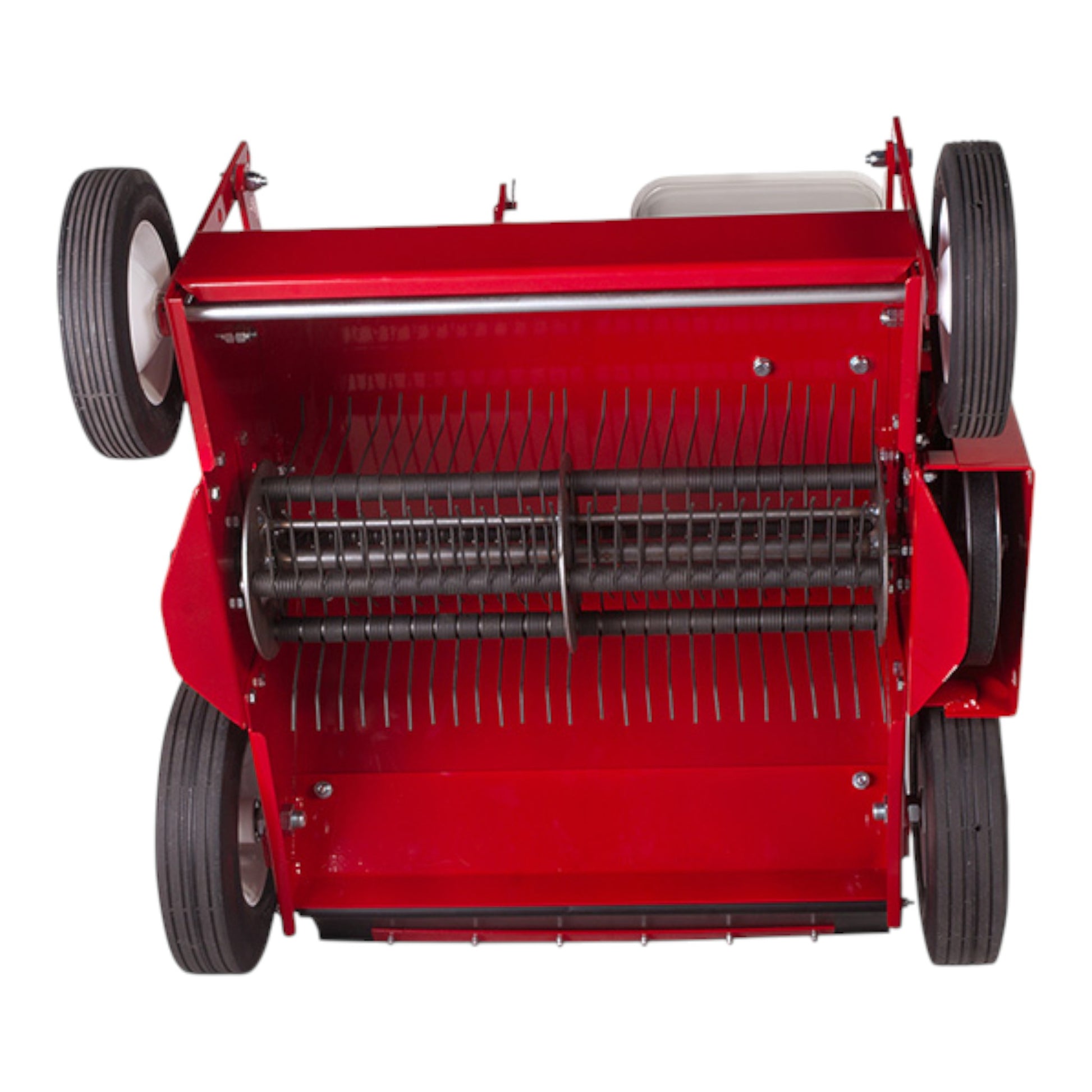

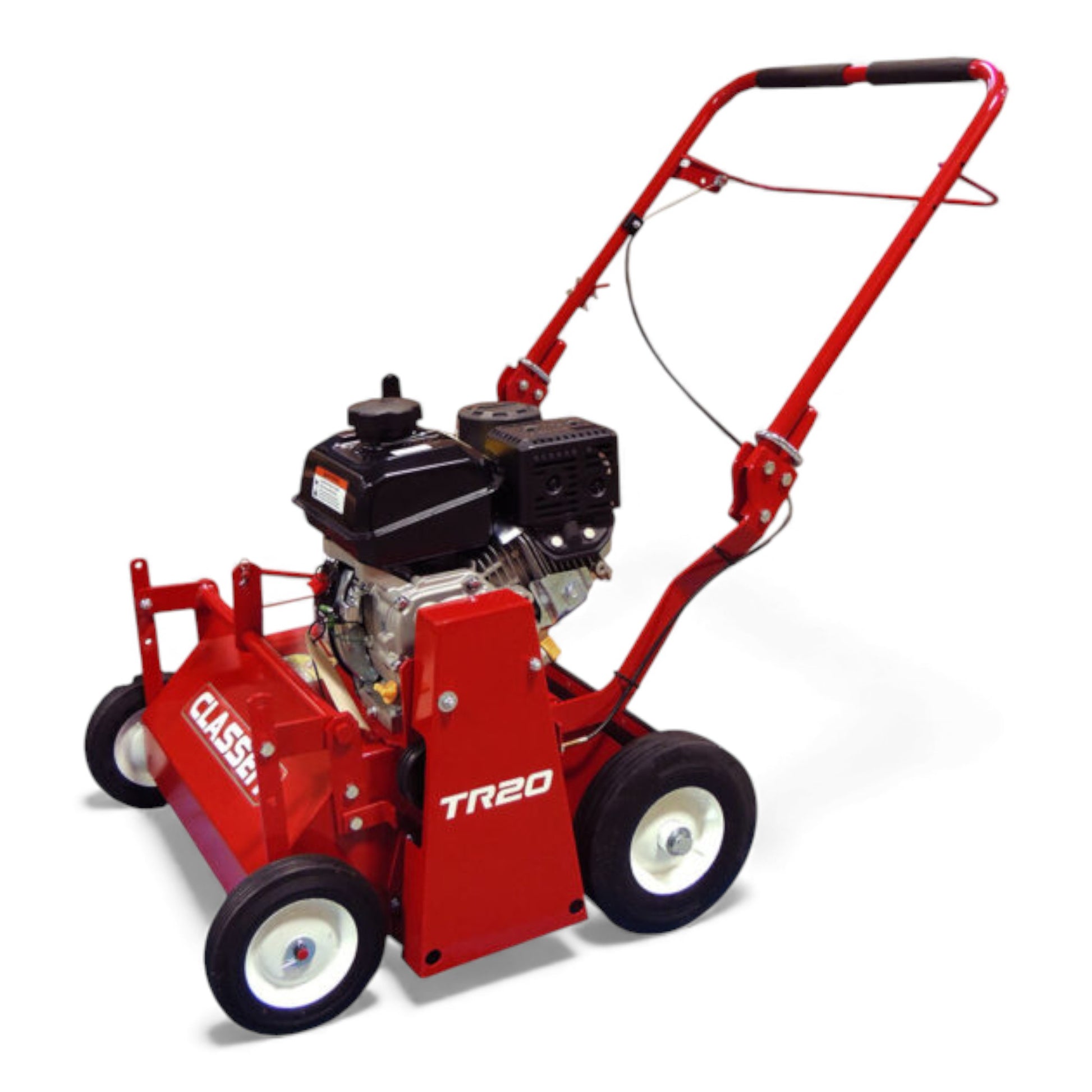

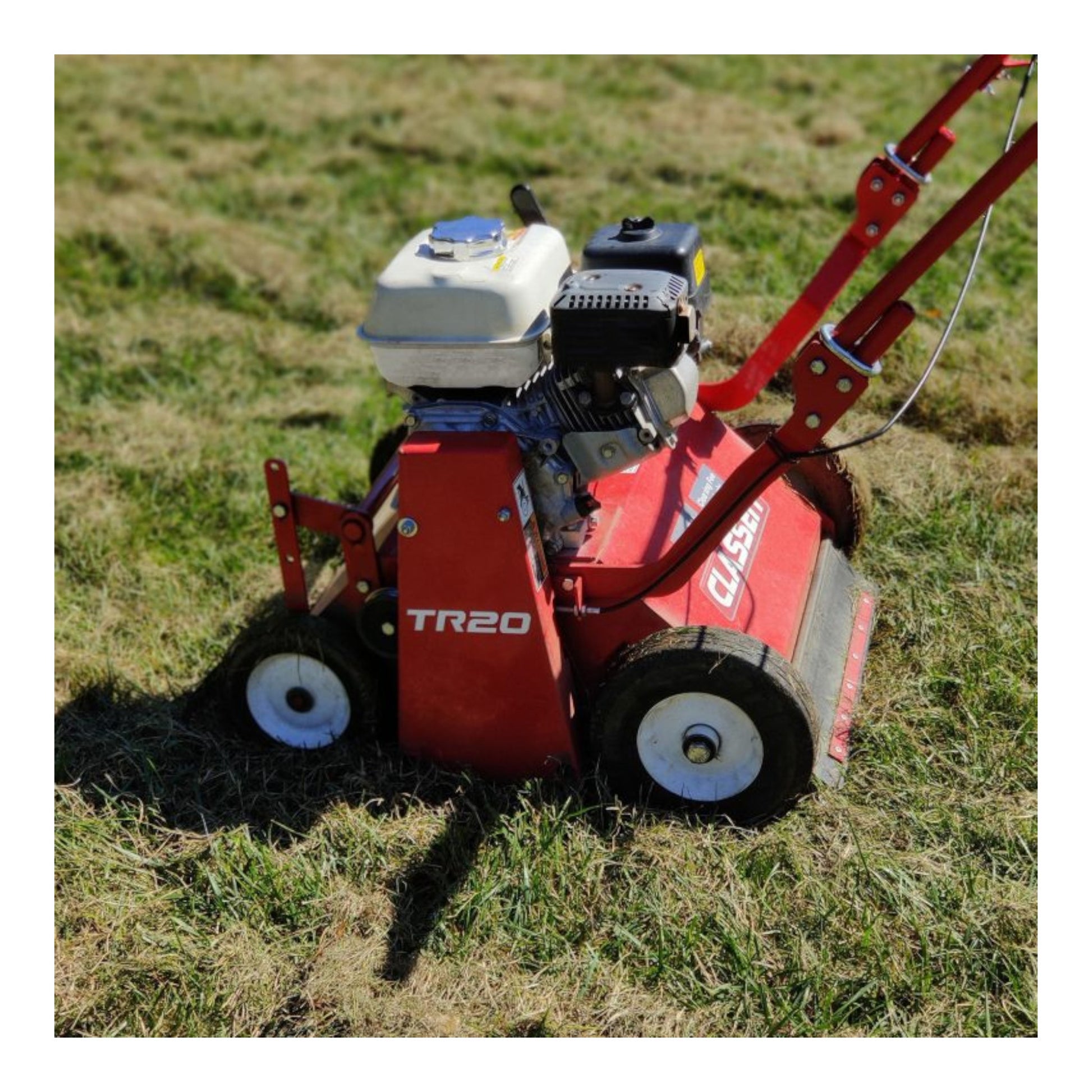

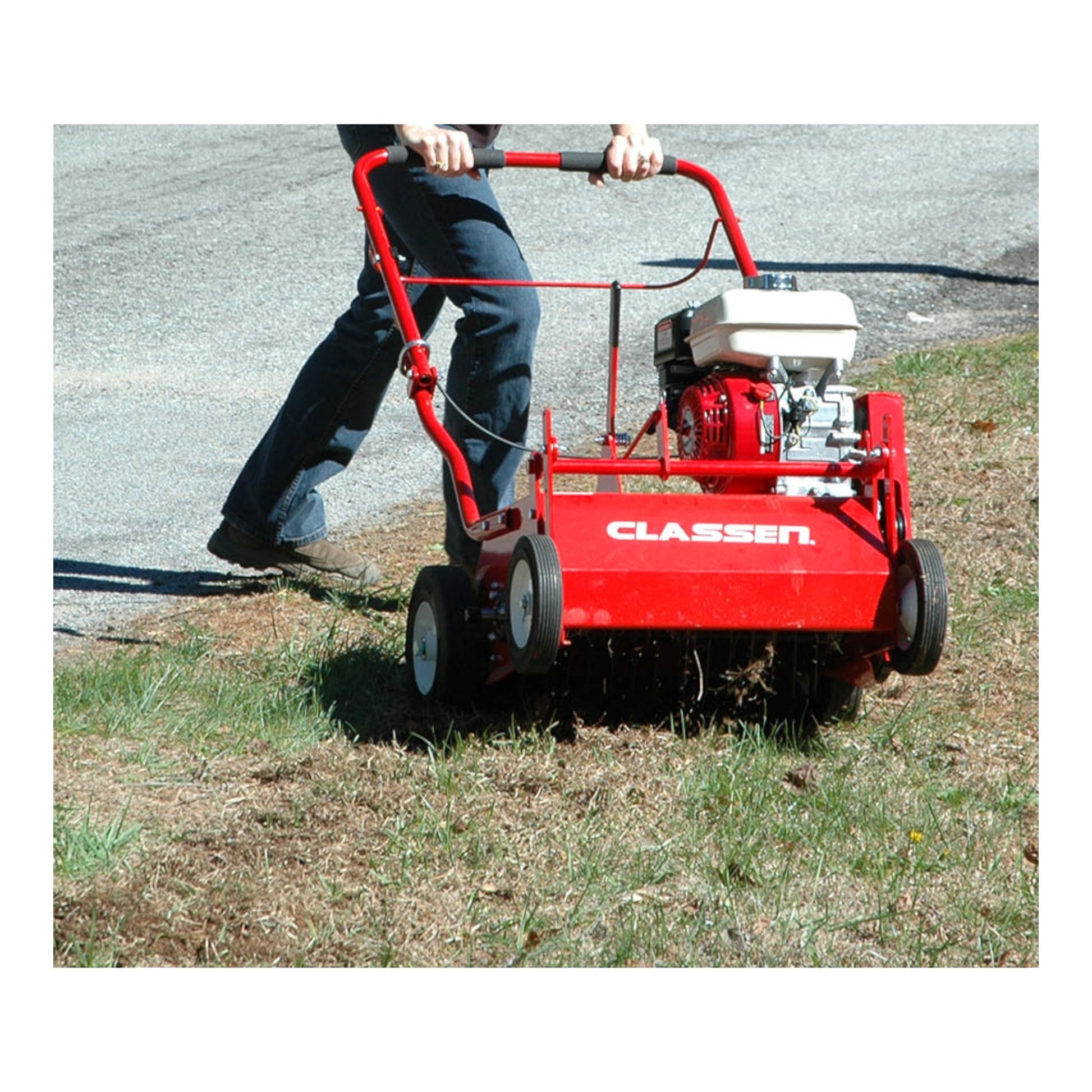

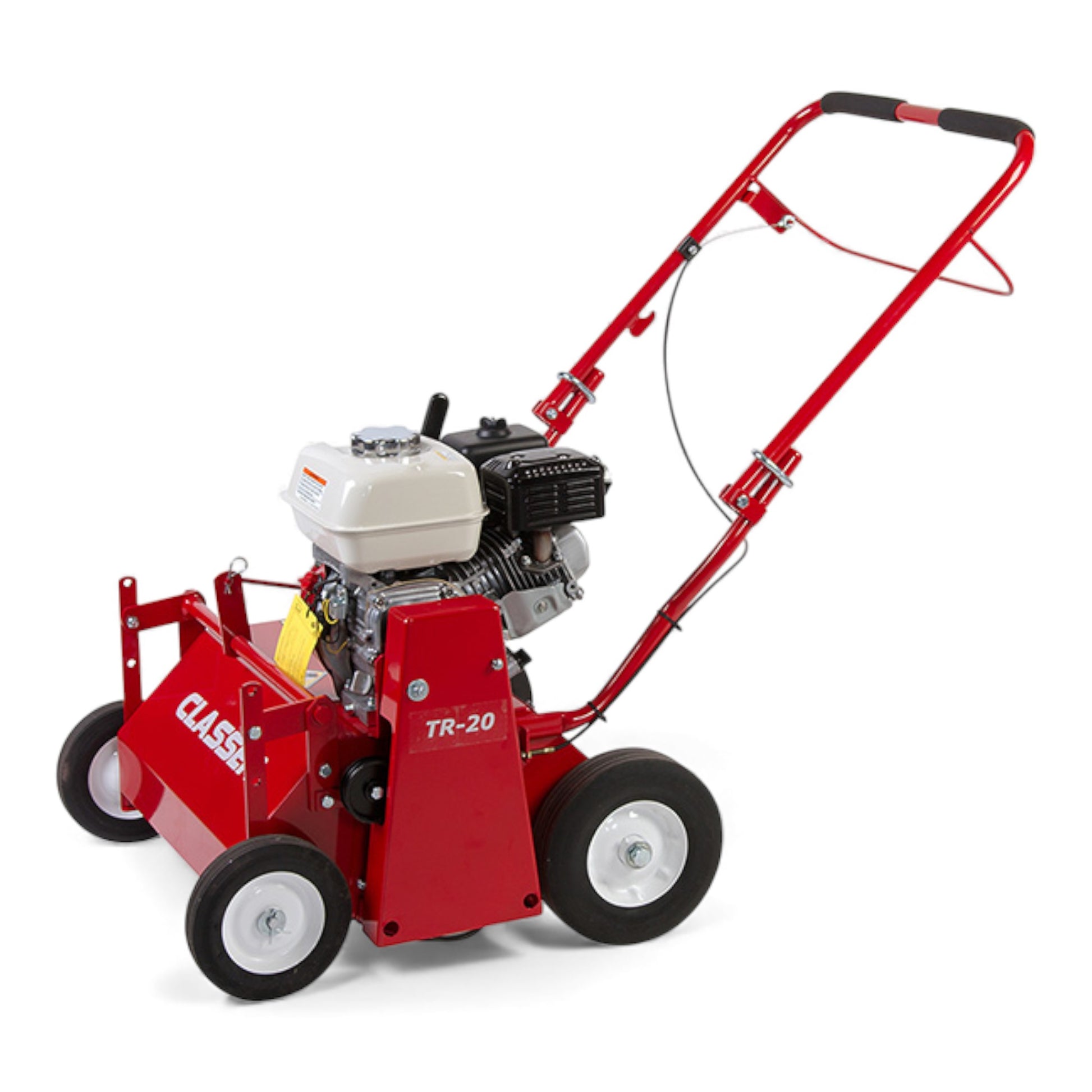

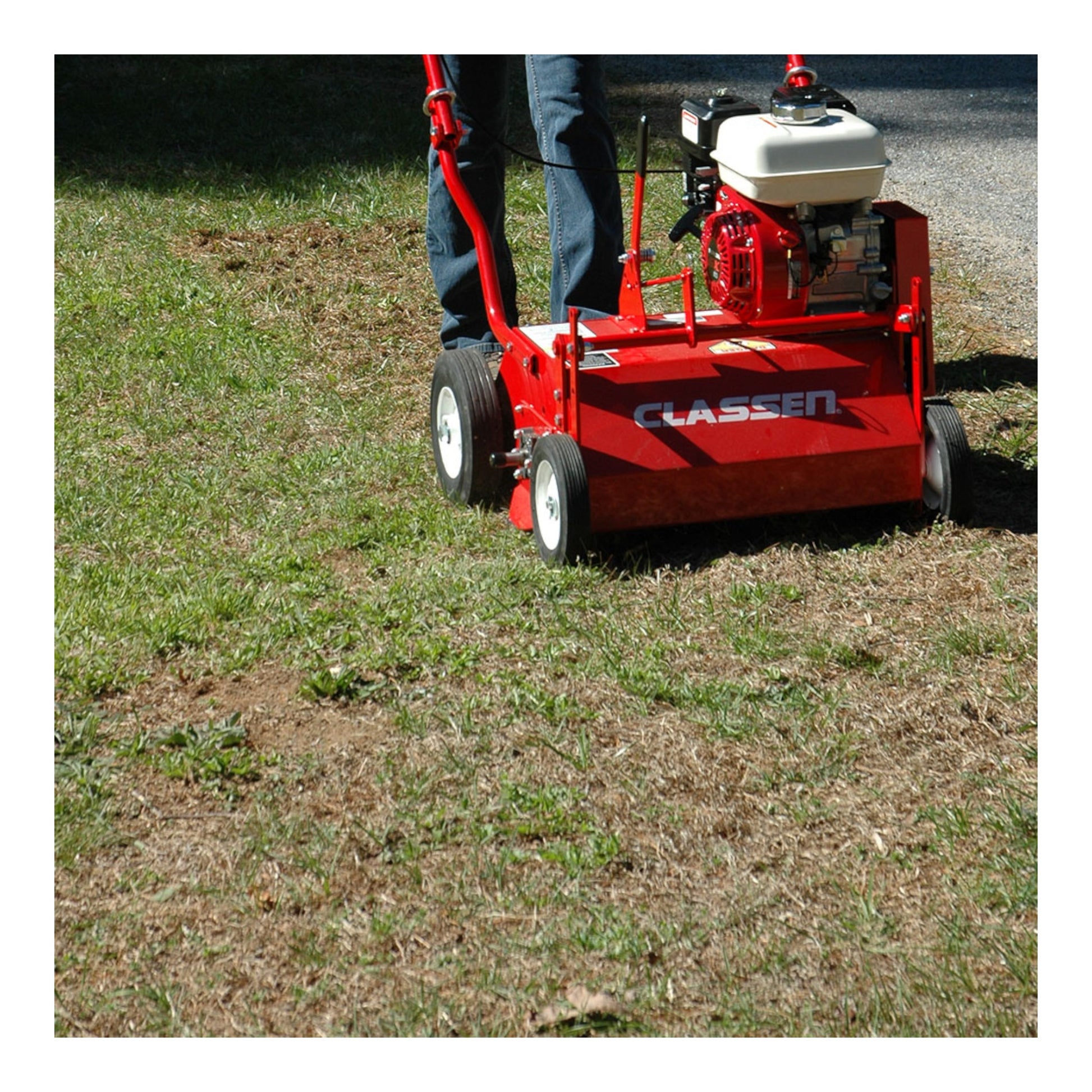

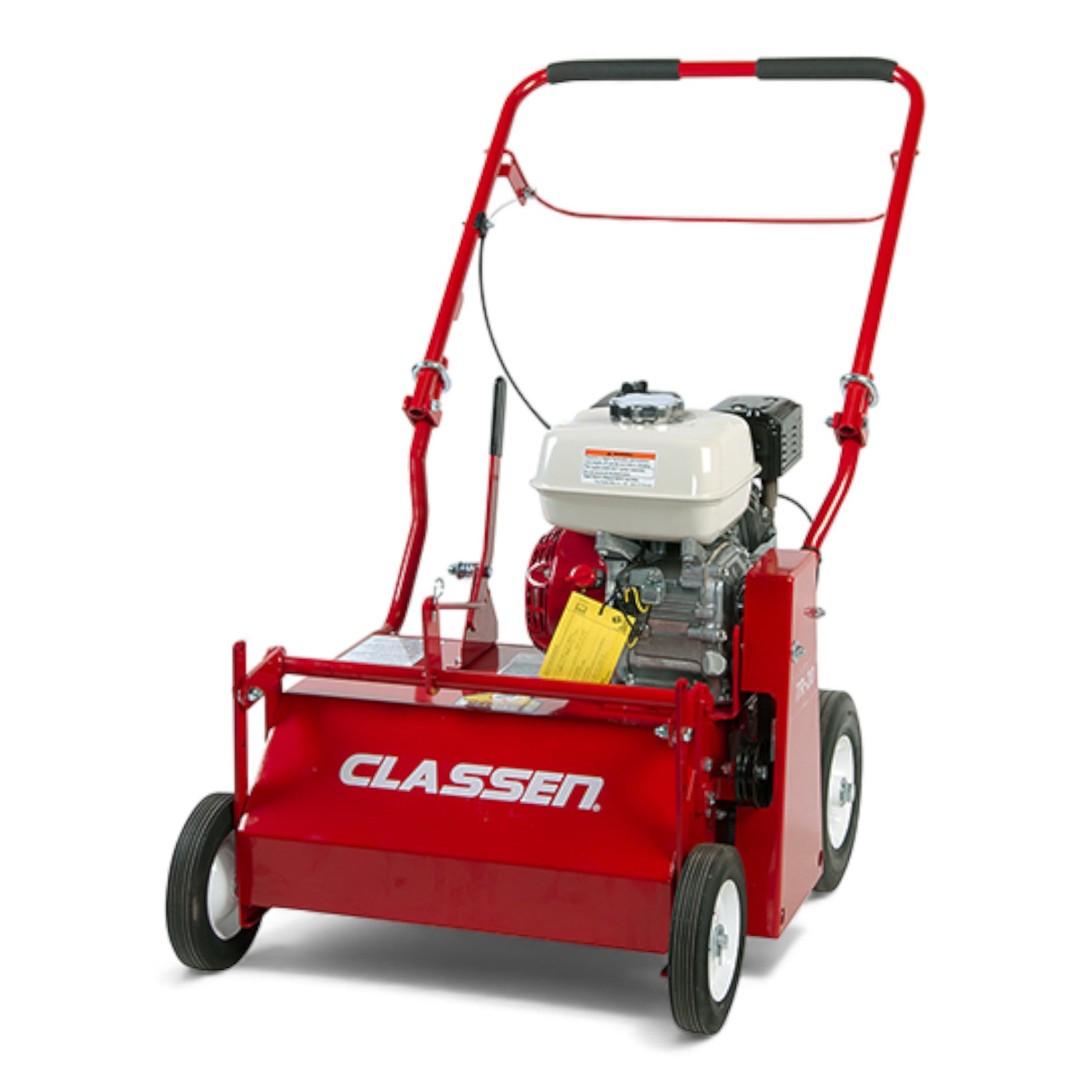

Classen TR-20 Walk Behind Turf Rake

The Classen TR-20 Walk Behind Turf Rake is a compact, versatile dethatcher designed for homeowners, landscapers, and turf professionals. Engineered for convenience and consistent performance, it features a durable frame, fold-down handles for easy transport, and multiple reel options for dethatching, overseeding, and vertical slice aeration. With powerful engine choices and adjustable dethatching depth, the TR-20 delivers professional-grade results in a user-friendly design.

FEATURES

• Engine Options: Choose from a Honda GX160 or Kohler CH245 engine for reliable, long-lasting power.
• Reel Options: Available with standard flail blade reel or spring tine reel (TR-20RH model) to meet specific turf conditions.
• Compact 20″ Working Width: Ideal for residential yards, tight spaces, and highly landscaped areas.
• Fold-Down Handle: Provides easy, space-saving transportation and storage.
• Heavy-Duty Blade System: TR-20 models feature 28 heat-treated flail blades with 11/16″ spacing (adjustable up to 1-3/8″).
• 5-Position Single-Action Height Adjustment: Quickly set dethatching depth for optimal turf results.
• Greasable Cast-Iron Bearings: Heavy-duty bearings ensure long service life and smooth operation.
• Durable Wheels: Sealed wheel bearings and semi-pneumatic tires deliver reliable traction and stability.
• Multi-Purpose Capability: Easily converts into a turf seeder or vertical cutter in minutes, expanding functionality.
• Reel Assemblies Available: Partial and complete reel assemblies offered for quick replacement or customization.

Optional Accessories

Note: (Reel accessories include the complete reel assembled, end plates, bearings, pulley, key and fasteners)

• Flail Blade Assembly
• Spring Tine Reel Assembly
• Multipurpose Blade Assembly
• Slicing Blade Assembly
• Metal Seed Box Assembly

Specifications

• Engine: Honda GX160 or Kohler CH245
• Transmission: Belt Drive
• Operating Width, in (cm): 20 (50.8)
• Blade/Reel (Standard): Flail
• Number of Blades: 28
• Height Adjustment Positions: 5
• Height Adjustment Increments, in (cm): 0.25 (0.6)
• Front Wheels, in (cm): 8x1.75 (20.3x4.5)
• Front Wheels Style: Solid Rubber
• Rear Wheels, in (cm): 10x2.6 (25.4x6.6)
• Rear Wheels Style: Solid Rubber
• Dimensions LxWxH, in (cm): 44x27x40 (112x69x102)
• Folded Dimensions LxWxH, in (cm): 31x27x26 (79x69x66)
• Dry Weight, lbs (kg): 135 (61)
