Cormidi C85 AC-ACW Hydrostatic Track Dumper, 800 kg (1764 lb) Load Capacity

The Cormidi C85 ACW Hydrostatic Track Dumper is a high-performance, self-loading tracked dumper engineered for efficiency across construction, landscaping, and agricultural applications. With a robust 800 kg (1764 lb) load capacity and a compact, maneuverable design, the C85 ACW simplifies heavy-duty material handling in confined or uneven terrain. Whether you're loading, transporting, or dumping, this machine delivers performance and precision with every task.

FEATURES

• KUBOTA Z 482 13 HP ENGINE OR KOHLER CH 440 14 HP: Choose between two powerful engine options that deliver reliable, fuel-efficient performance. Built to handle rugged job site demands with long service life and low maintenance.
• HYDROSTATIC TRANSMISSION: Provides smooth, continuous power without shifting. Enhances operator control and maneuverability in tight or complex work areas.
• LOADING CAPACITY - 800 KG (1764 LB): Handles heavy materials with ease, reducing the number of trips needed and boosting job site productivity.
• SELF-LOADING: The integrated self-loading system allows a single operator to load materials without additional equipment. Increases efficiency and minimizes labor requirements.
• MANEUVERABILITY: Engineered for tight quarters and challenging terrain. Its compact footprint and responsive controls enable precise navigation through obstacles and narrow access points.
• CONFIGURATIONS: Available with hydraulic dumping, front discharge self-loading bucket, or hi-tip hopper for direct truck loading. Choose the configuration that best matches your worksite needs.

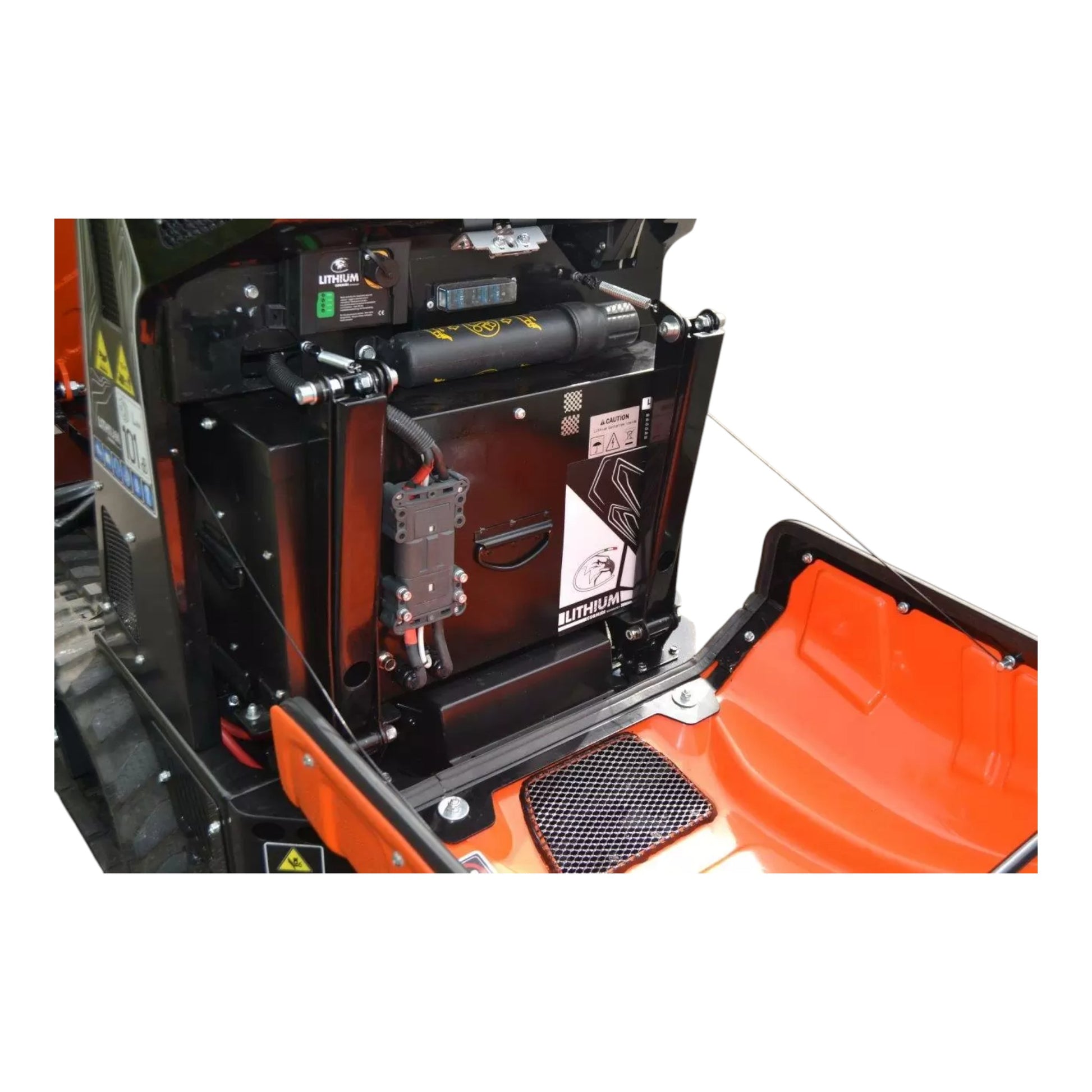

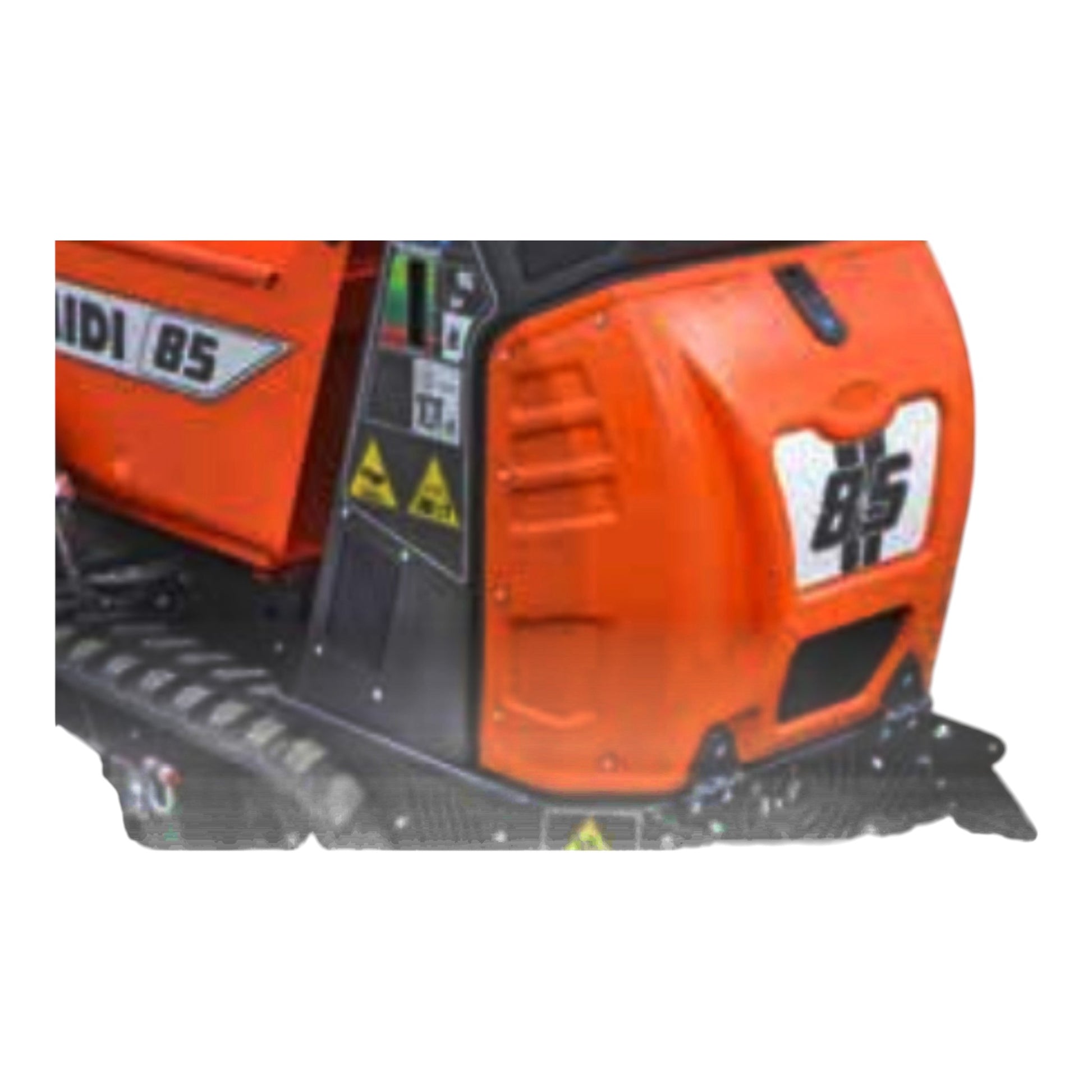

• EASY ACCESS ENGINE COMPARTMENT: Designed for quick inspections and maintenance. Keeps service time short and machine uptime high.
• EASILY ACCESSIBLE GREASE FITTINGS: Speeds up routine lubrication. Helps extend the life of moving components with minimal effort.

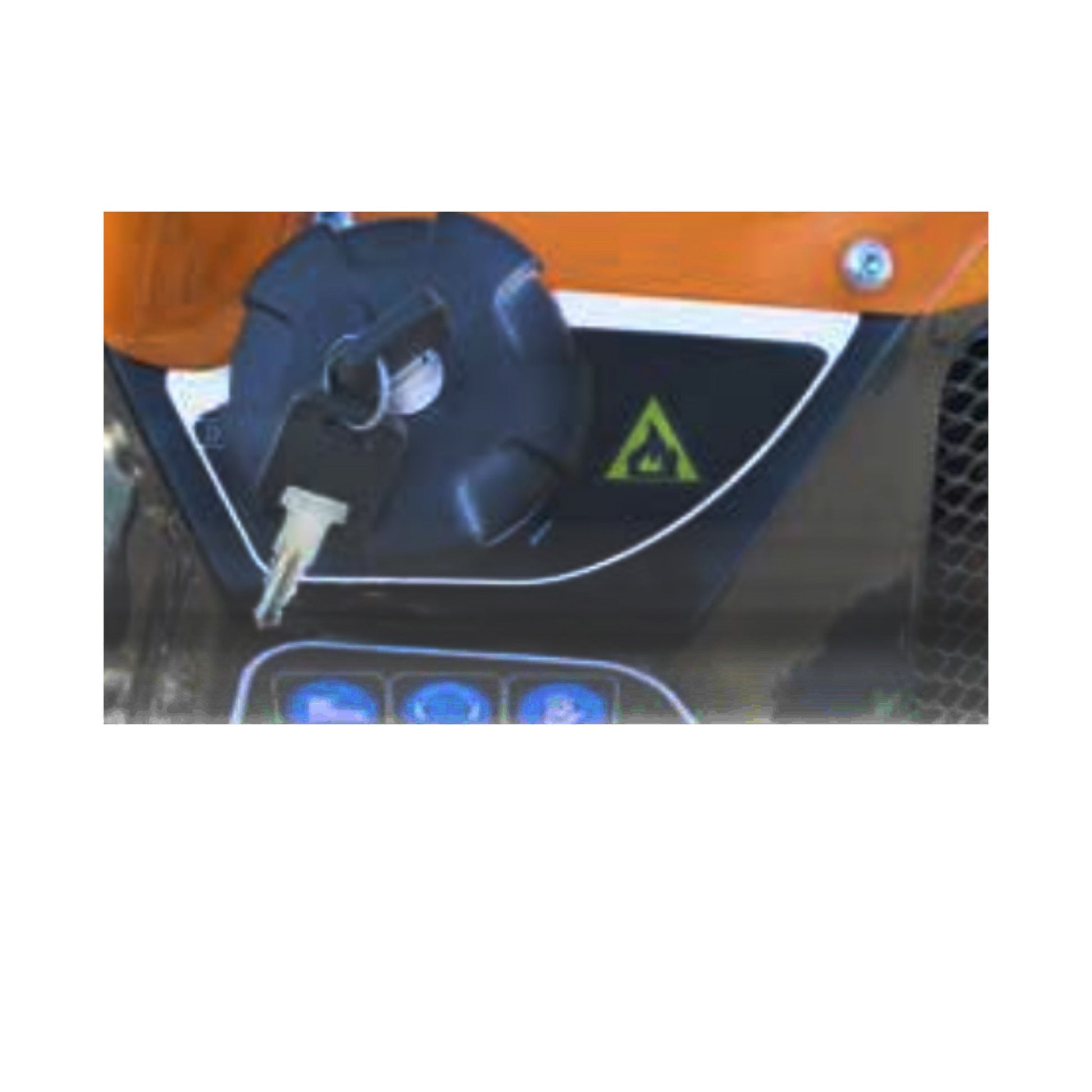

• FUEL CAP WITH KEY LOCK: Prevents unauthorized access and contamination. Protects fuel integrity and improves security on shared job sites.
• REMOTE CONTROL CAPABILITY: Safely operate the dumper in hazardous or restricted areas. Ideal for demolition zones, confined spaces, or steep inclines where direct access is limited.
• COOLING SYSTEM: Maintains optimal engine temperatures under heavy load. Supports longer operating periods without overheating, even in tough environments.

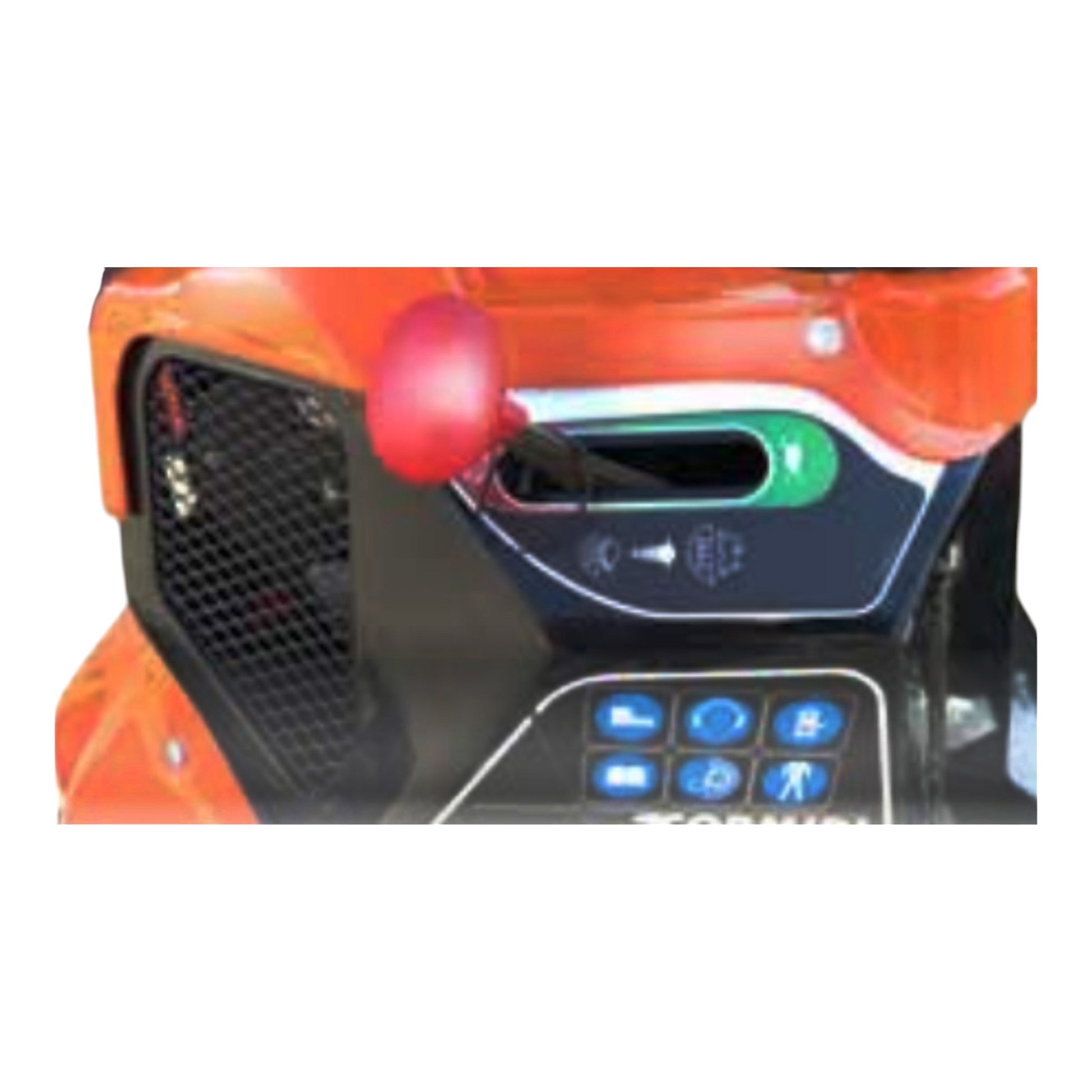

• MAINTENANCE-FREE THROTTLE: Reduces service frequency while delivering consistent throttle response. Built for reliability and long-term ease of use.

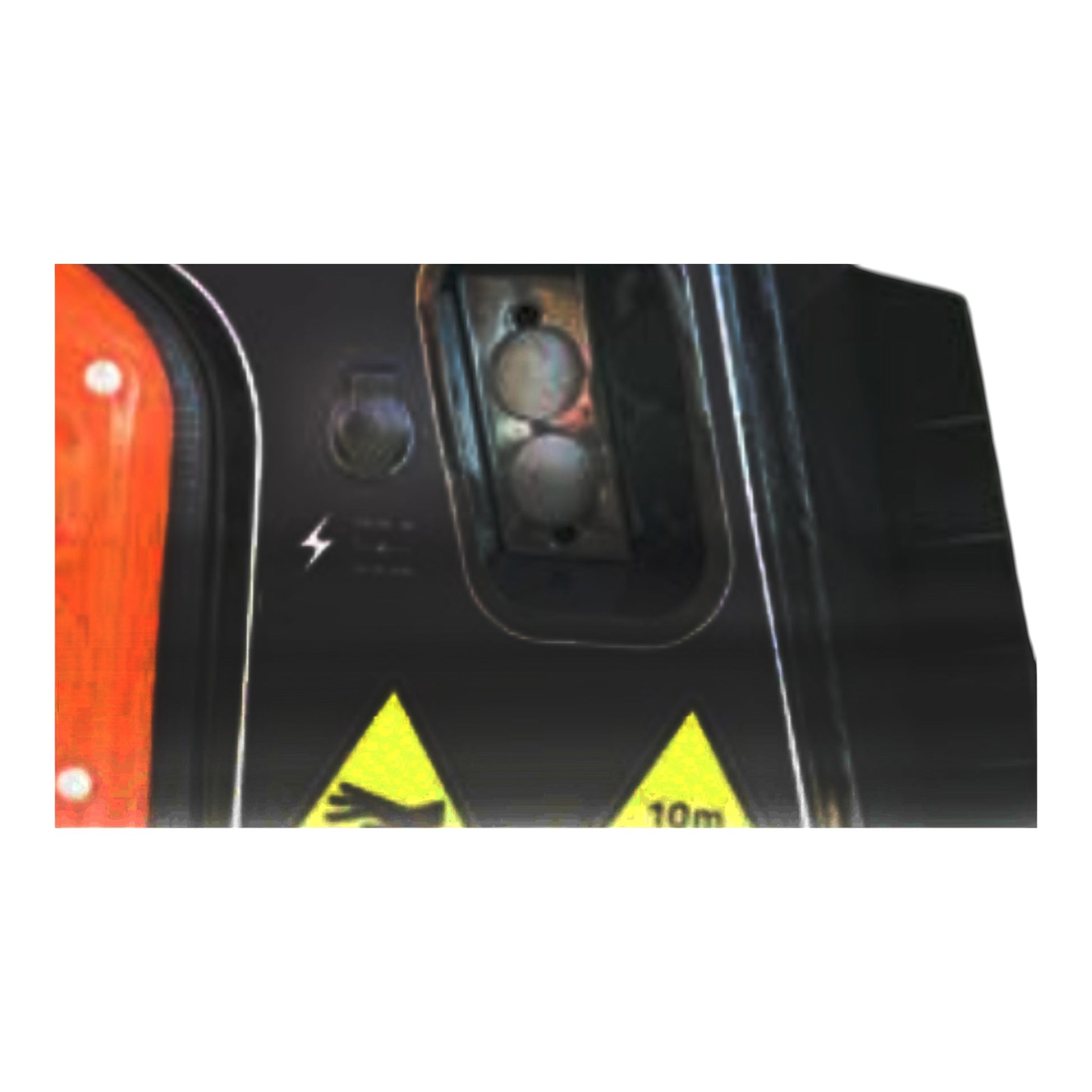

• AUXILIARY HYDRAULIC OUTPUT: Power additional tools or attachments as needed. Expands the machine’s utility across a variety of specialized tasks.

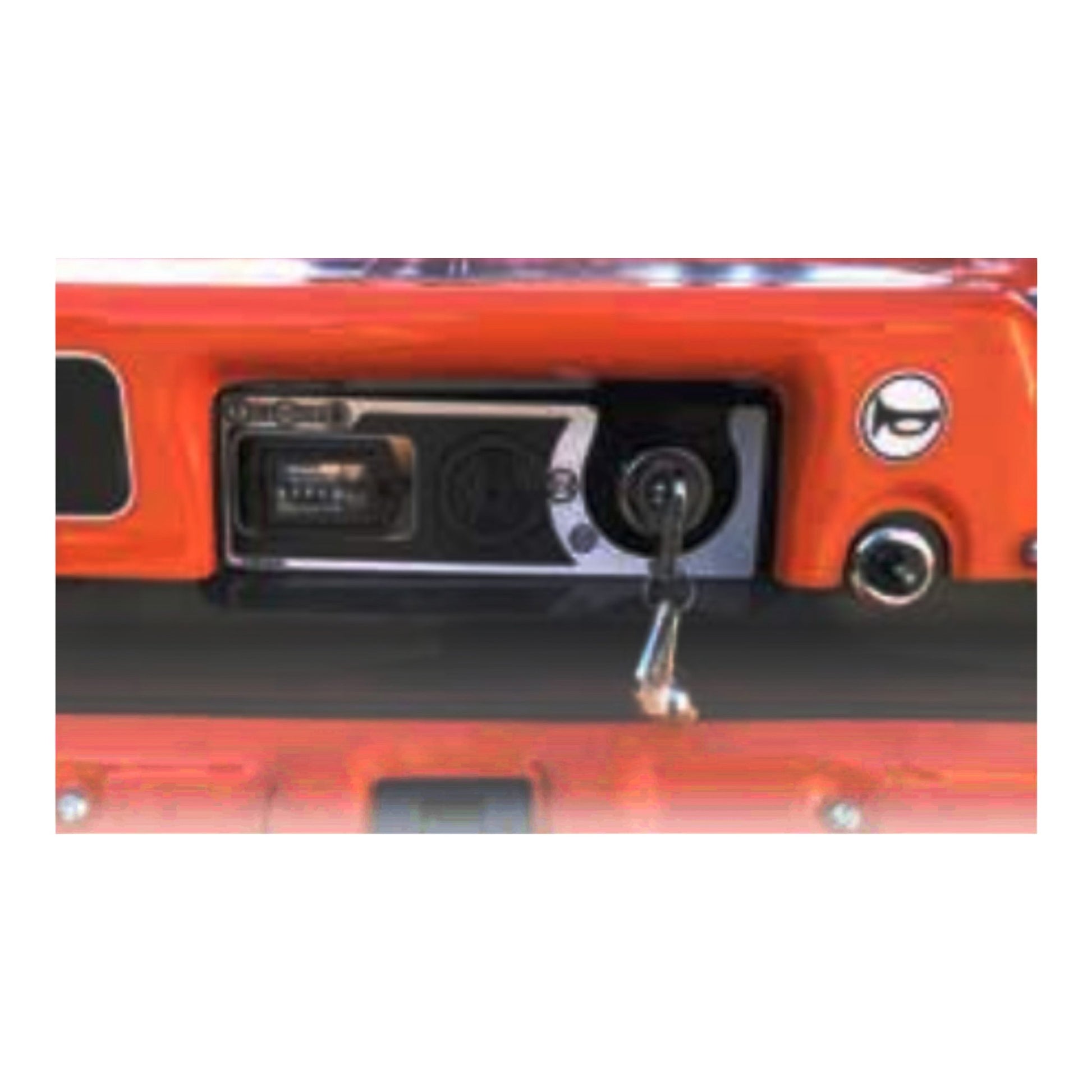

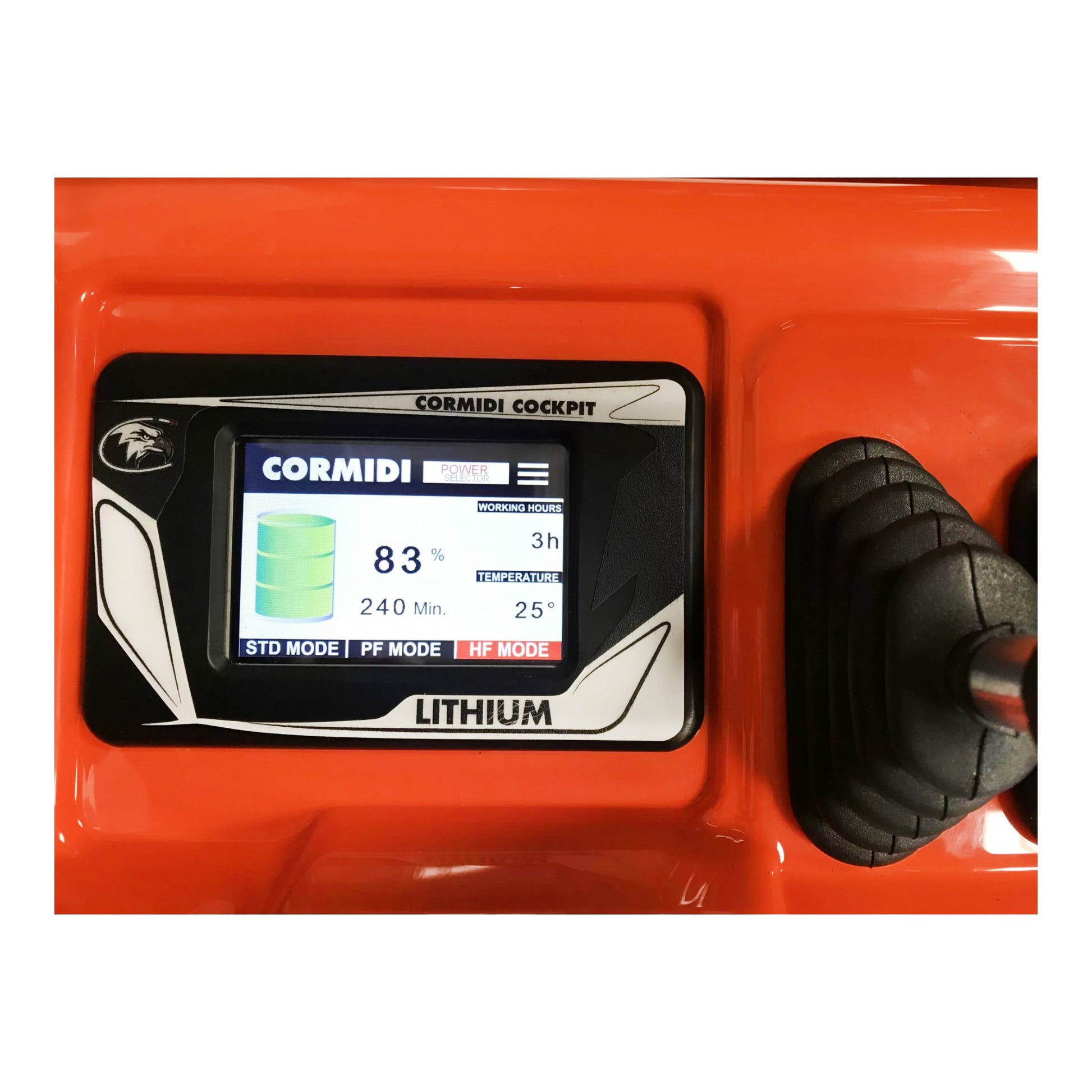

• SMART ALERT CONTROL PANEL: Displays total operating hours and alerts operators with buzzer notifications. Helps maintain proper service intervals and prevents mechanical issues before they arise.

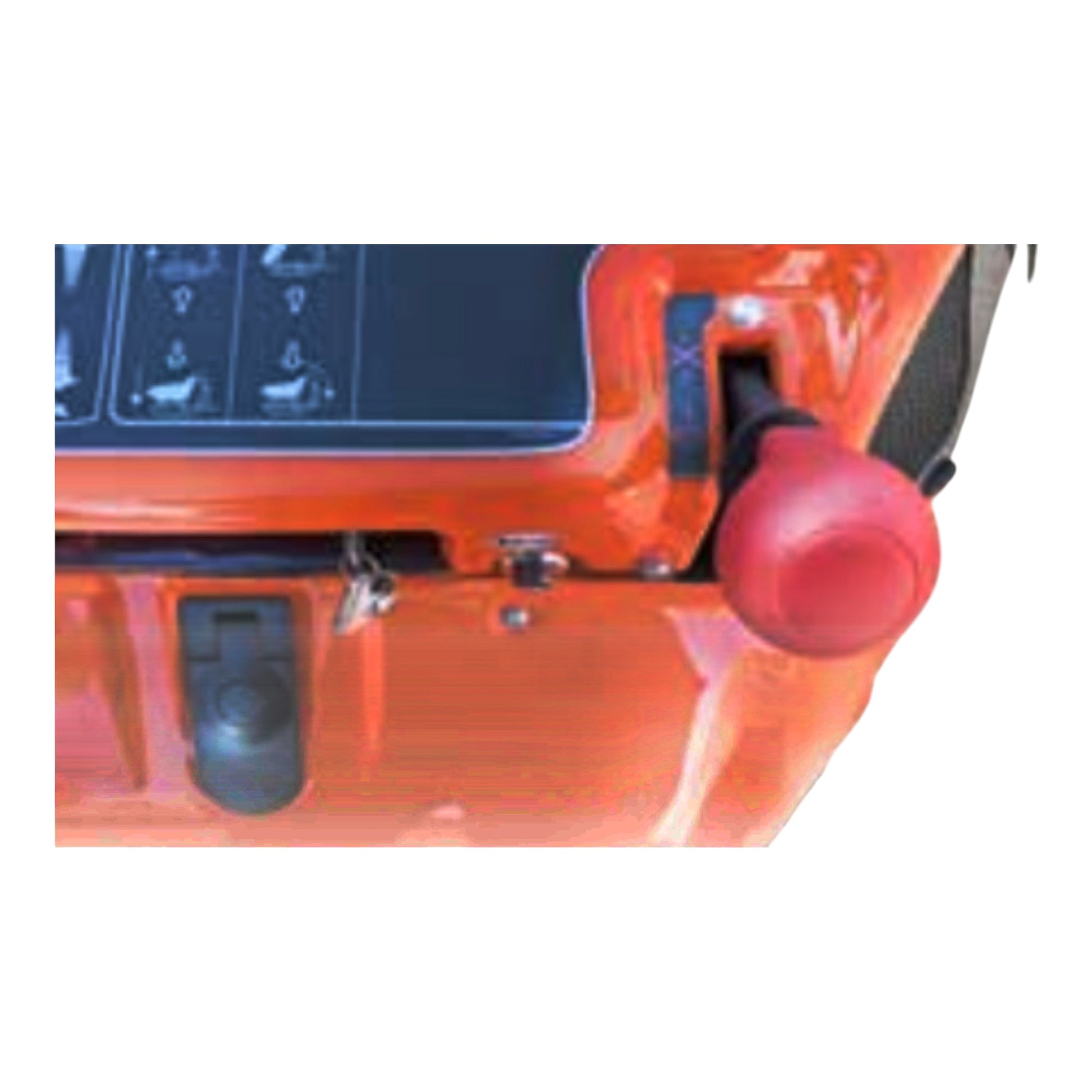

• MECHANICAL PARKING AND EMERGENCY BRAKE: Provides safe stopping and machine security on inclines or uneven terrain. Enhances operator safety and stability during transport or idle periods.

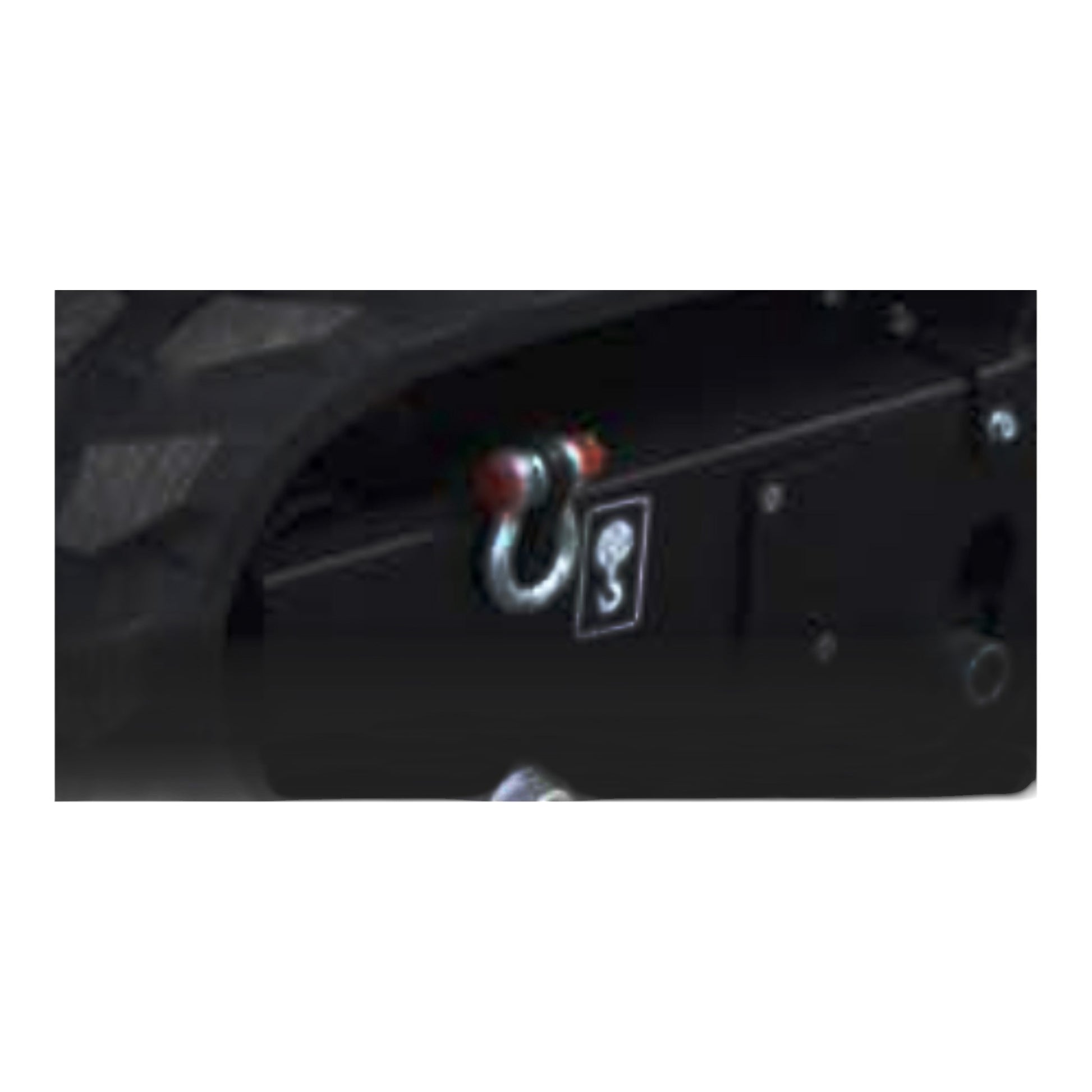

• LIFTING HOOKS: Allows for quick and secure lifting with cranes or hoists. Simplifies transportation between sites or levels.

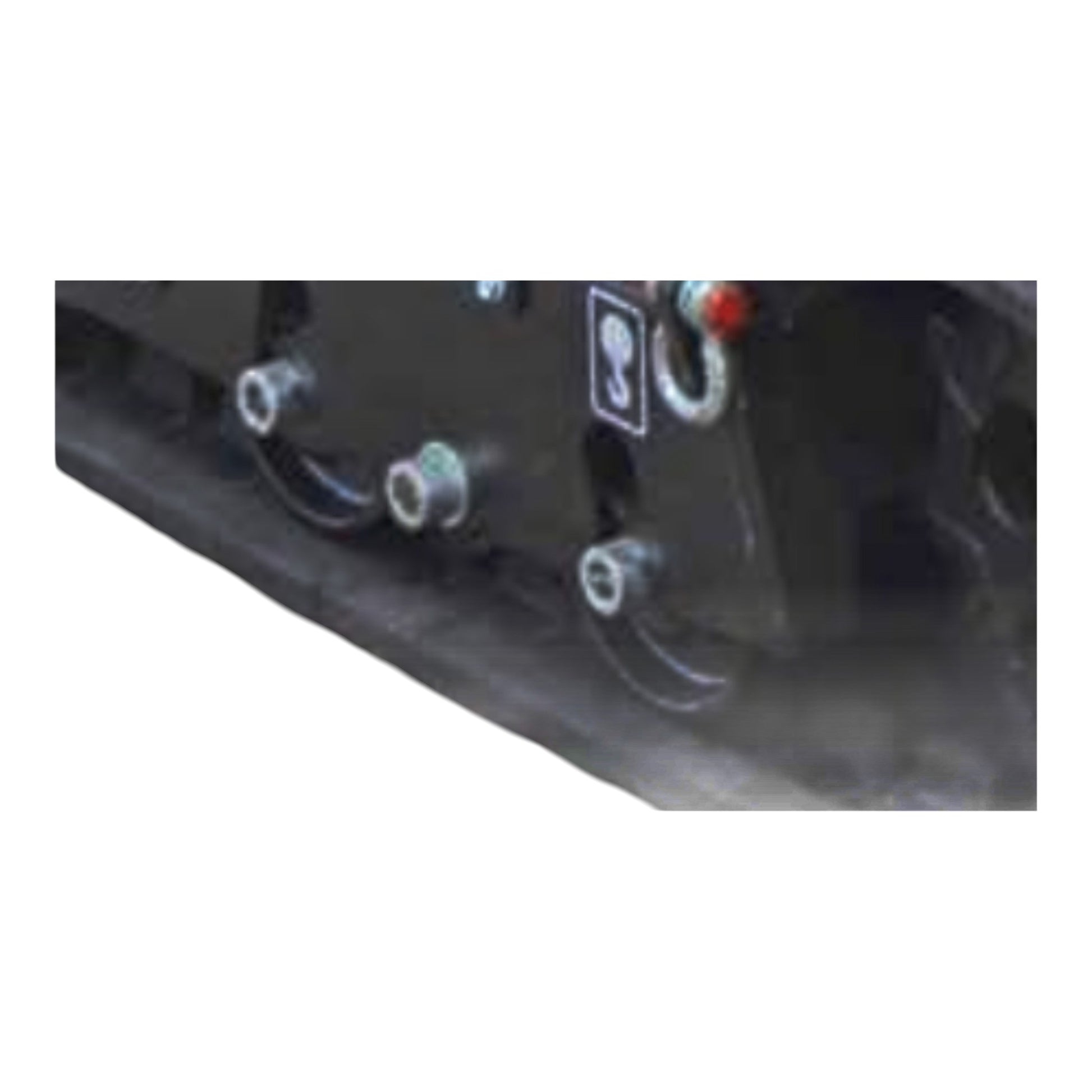

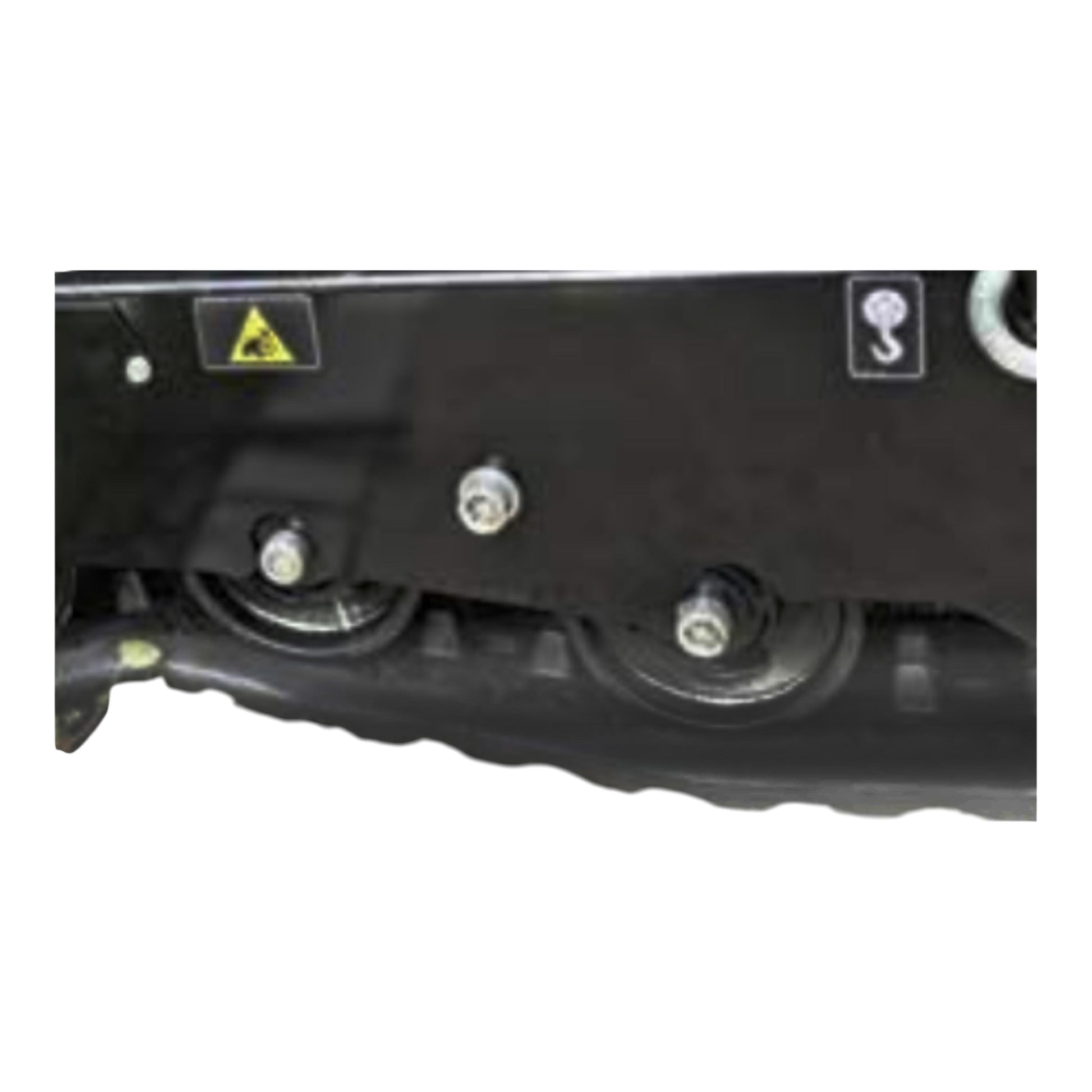

• ROCKING ROLLS: Increases ground contact on uneven surfaces, improving traction and ride comfort. Ideal for rough terrain operations.

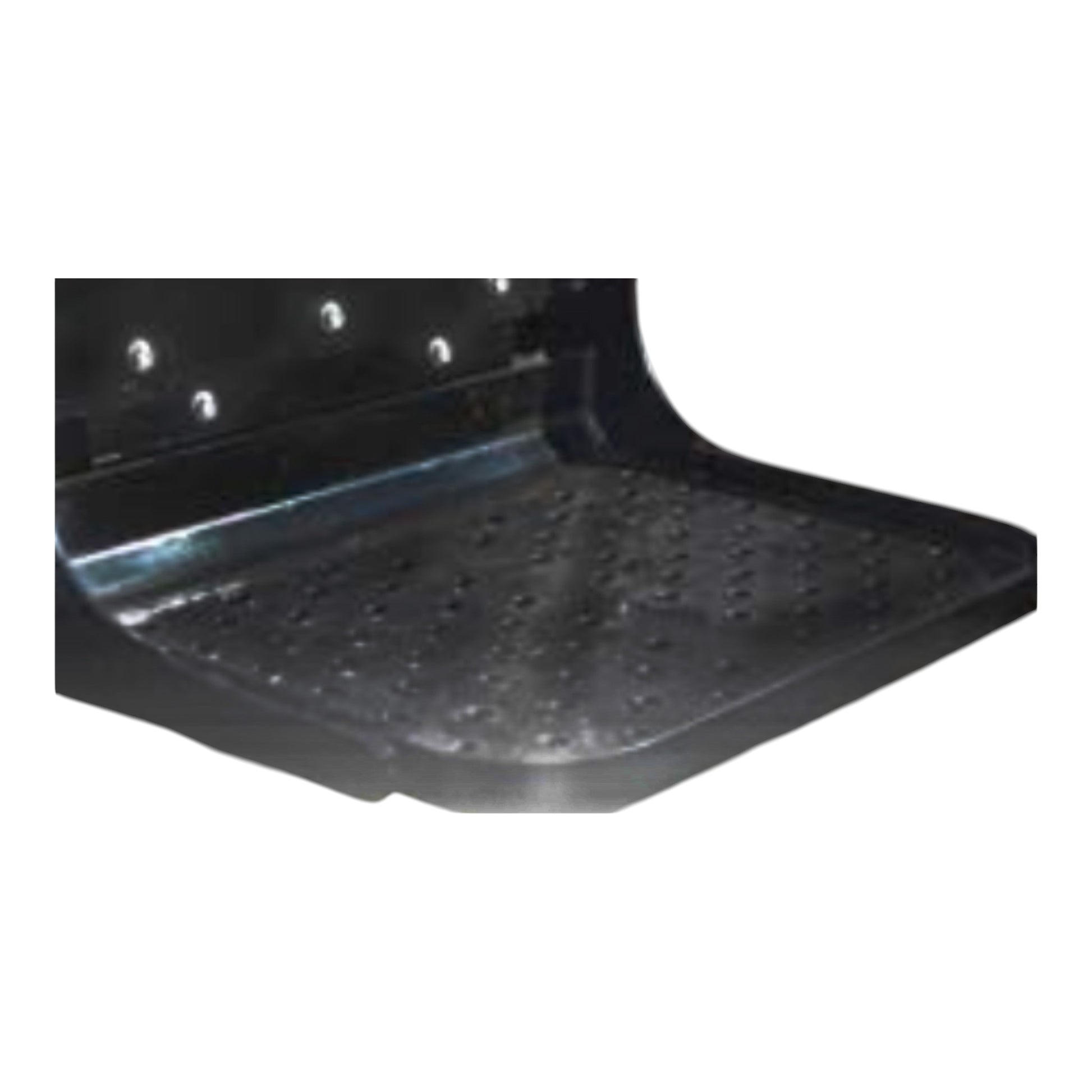

• ADJUSTABLE OPERATOR STAND: Improves comfort and visibility during operation. Easily adapts to different operator heights or preferences for increased control and reduced fatigue.

SPECIFICATIONS

• Engine: Kubota Z 482 or Kohler CH 440
• Loading Capacity: 800 kg (1764 lbs)
• Struck: 0.25m3 (0.33 yd3)
• Heaped SAE: 0.34m3 (0.44yd3)
• Transmission Type: Hydrostatic
• Hydraulic Pump: Two full closed jydrostatic transmission
• Track Width: 7.1 inch (180 mm)
• Rocking Rollers: Yes
• Hydraulic Pump: Gear Pump
• Flow STD: 1x14.1 l/min (1x3.7 gpm)
• Hi-Flow: 1x22.4 l/min (1x5.9 gpm)
• Max Pressure: 150 bar (2180 psi)
• Maximum Travel Speed: 6 kmh (3.7 mph)
• Vessel Contents: 0.28 m3 (0.37 yd3), 0.53m3 (0.69yd3)
• Parking Brake: Yes
• Length: 102.2 inch (2595 mm)
• Width: 32.9 inch (835 mm)
• Height: 52.6 inch (1336 mm)
• Weight: 637 kg (1404 lbs)
