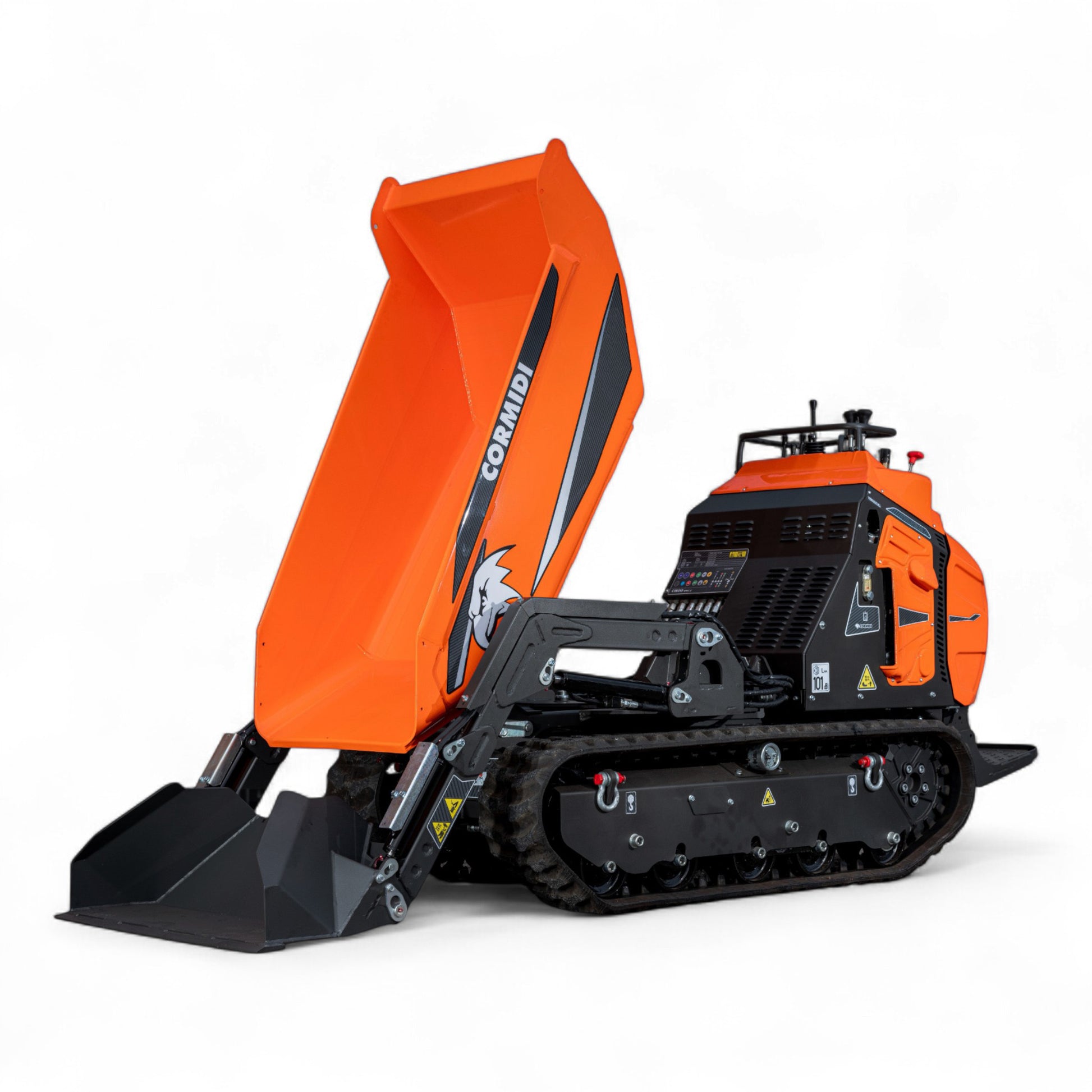

Cormidi CMF1200 - ACW Steel Hydrostatic Self Loading Track Dumper 1200kg (2646lb) Capacity

The Cormidi CMF1200 ACW delivers unmatched efficiency with its fully integrated self-loading capability. Compact, powerful, and highly maneuverable, this dumper is built to perform in demanding construction and landscaping tasks. Whether you're moving gravel, soil, or debris, its hydrostatic drive, advanced Kubota engine, and self-loading arm eliminate the need for additional machines—saving time, labor, and space.

FEATURES

• KUBOTA D1105 24.8 HP STAGE V - TIER 4 ENGINE: High-torque diesel engine that meets the latest emissions standards while delivering reliable, fuel-efficient performance in demanding environments.
• HYDROSTATIC TRANSMISSION: Smooth, gear-free power delivery enhances maneuverability and precision. Ideal for tight workspaces or varied terrain, while reducing mechanical wear.
• SELF-LOADING SYSTEM: The built-in loading arm allows the dumper to scoop and load material on its own, eliminating the need for a separate loader. This one-machine solution saves labor and significantly increases worksite efficiency.
• HI-FLOW SYSTEM: Twin variable piston pumps with automatic constant power allocation prevent engine stalling while maximizing flow for demanding tools and attachments.
• QUICK ATTACH: Switch attachments like a dumper, mini loader, or concrete mixer in under 5 minutes, all without additional tools. Streamlines operations and maximizes machine utility.

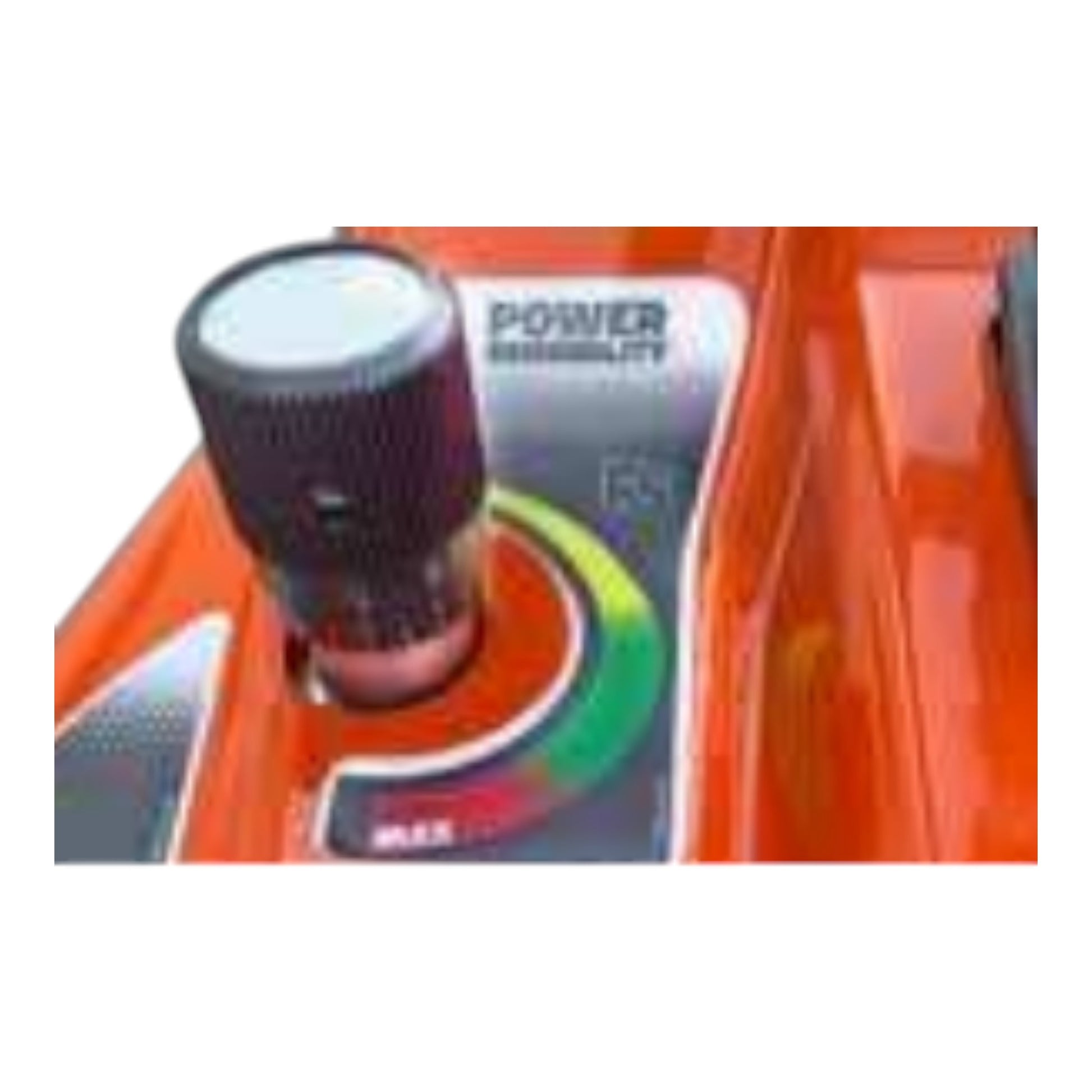

• ANTI-STALL POWER SYSTEM (ASPS): Automatically reallocates engine power to attachments and tools, preventing stalls and optimizing performance during heavy-duty tasks.

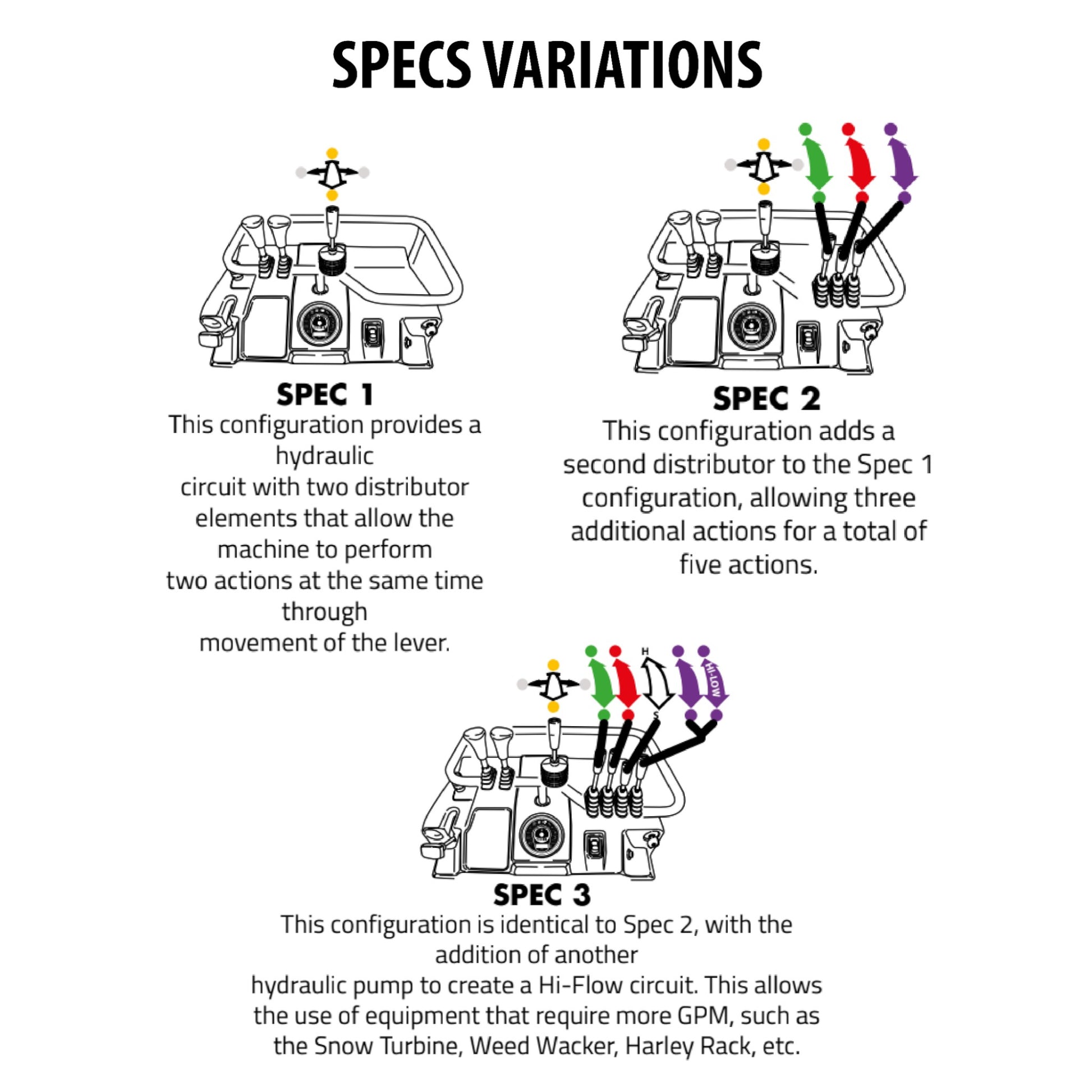

• SPEC 2 (VARIATION): Adds a second hydraulic distributor, enabling three more machine functions, totaling five independent hydraulic actions for greater control and versatility.
• SPEC 3 (VARIATION): Includes all Spec 2 features with an additional hydraulic pump to create a Hi-Flow circuit. Essential for high-demand attachments like snow turbines, weed cutters, or Harley rakes.

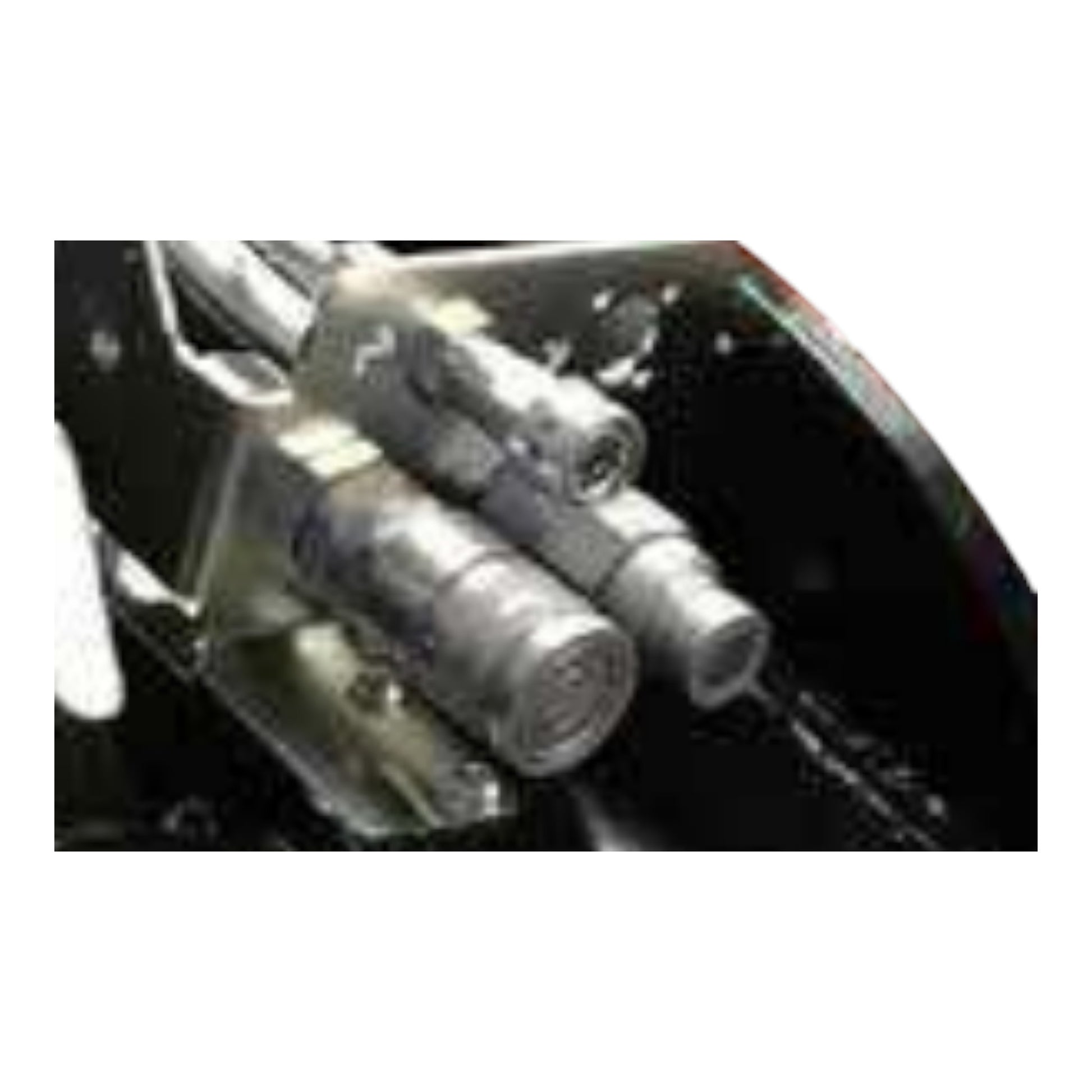

• HYD OUTPUT AUX: Three auxiliary hydraulic outputs allow simultaneous use of multiple attachments. Increases operational efficiency and expands task capability.

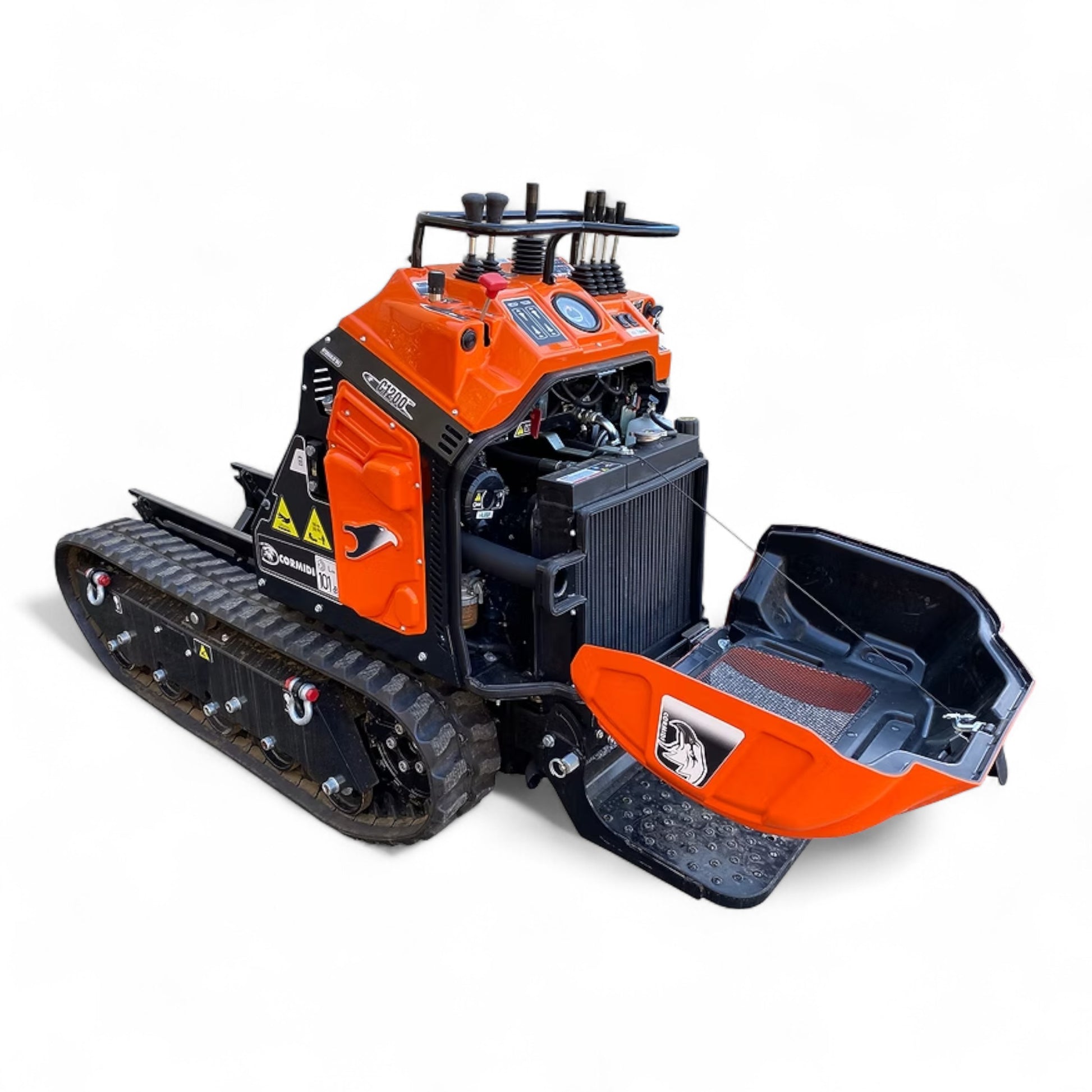

• ONE STOP MAINTENANCE: Access all major service points—fluids, filters, and fuses, from a single, easy-to-reach location. Save time on inspections and daily maintenance routines.

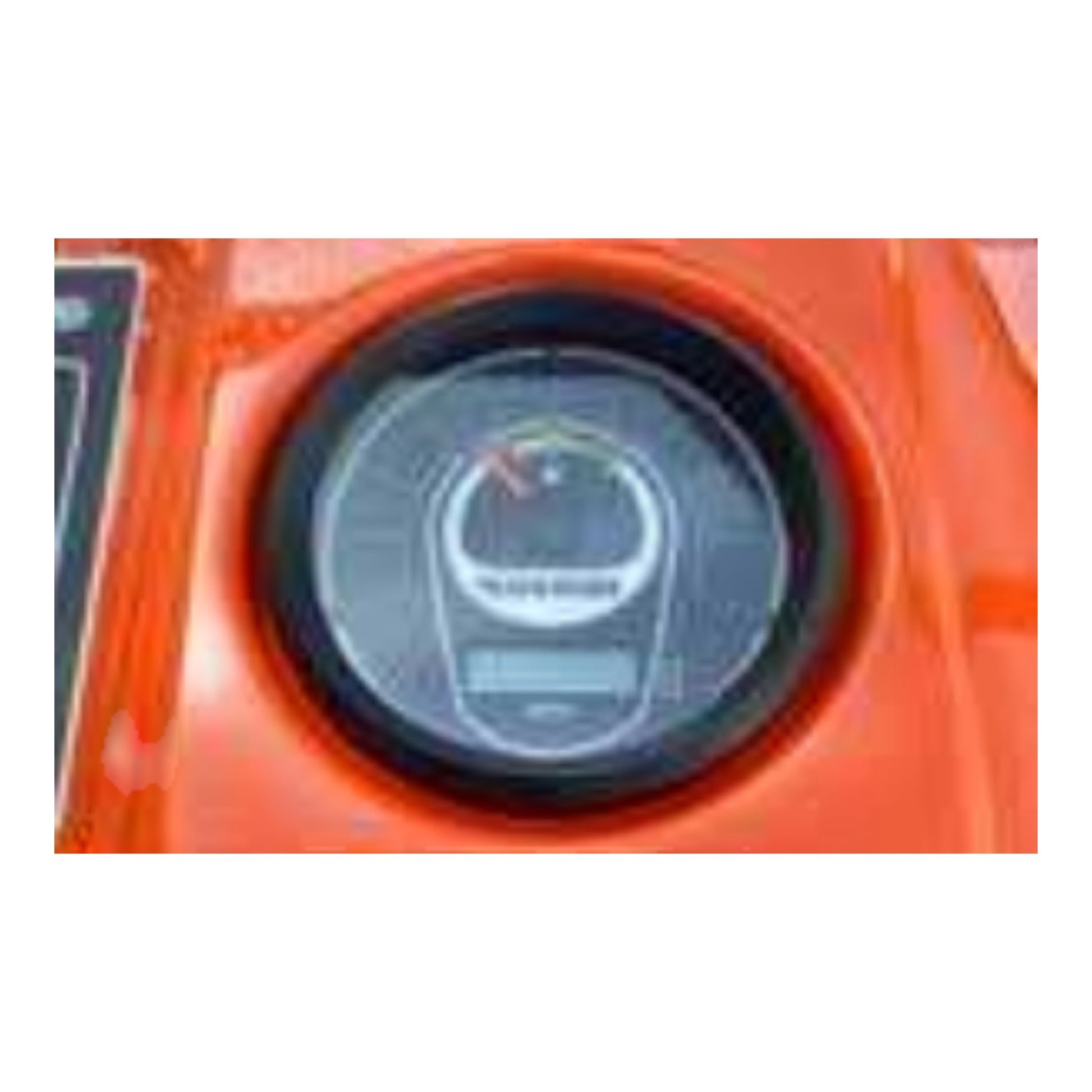

• DASHBOARD WITH TACHOMETER, HOUR METER, FUEL GAUGE, AND ALARM LIGHTS: Stay informed with real-time data and alerts for efficient operation and preventive maintenance.

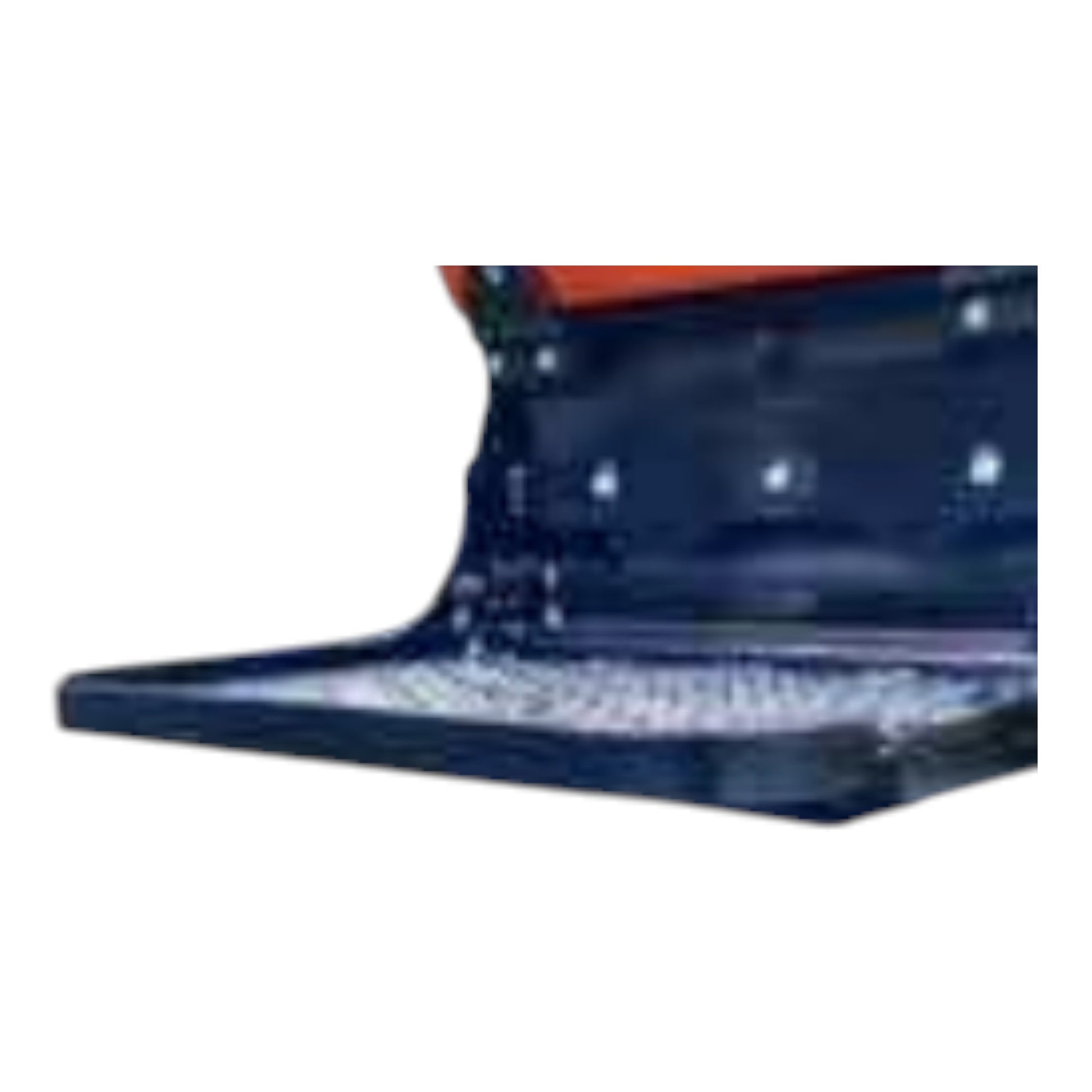

• FOLD-UP PLATFORM PLATE: Need to save space? Fold up the operator platform to reduce machine length by 16 inches, enhancing maneuverability and storage flexibility.

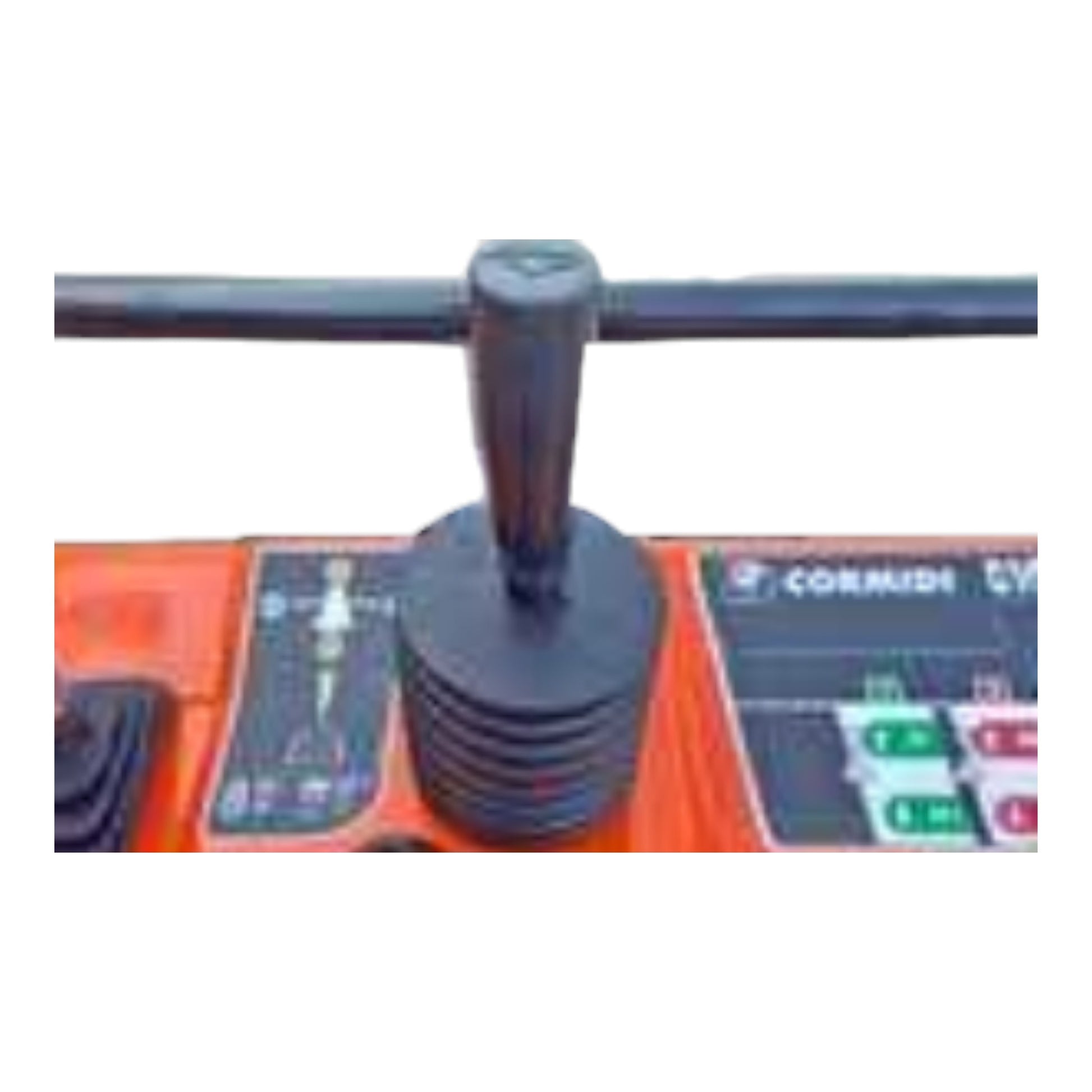

• SET HYD LEVERS: Customize lever functions based on operator preference or attachment setup. Improves ergonomic comfort and machine control.
• FLOAT OPTION ARM: Easily engage the float arm for automatic ground following. This function improves tool performance and surface adaptability during operation.
• AUTO LEVELLING (ON REQUEST): Optional automatic fork leveling system for effortless and accurate lifting operations.

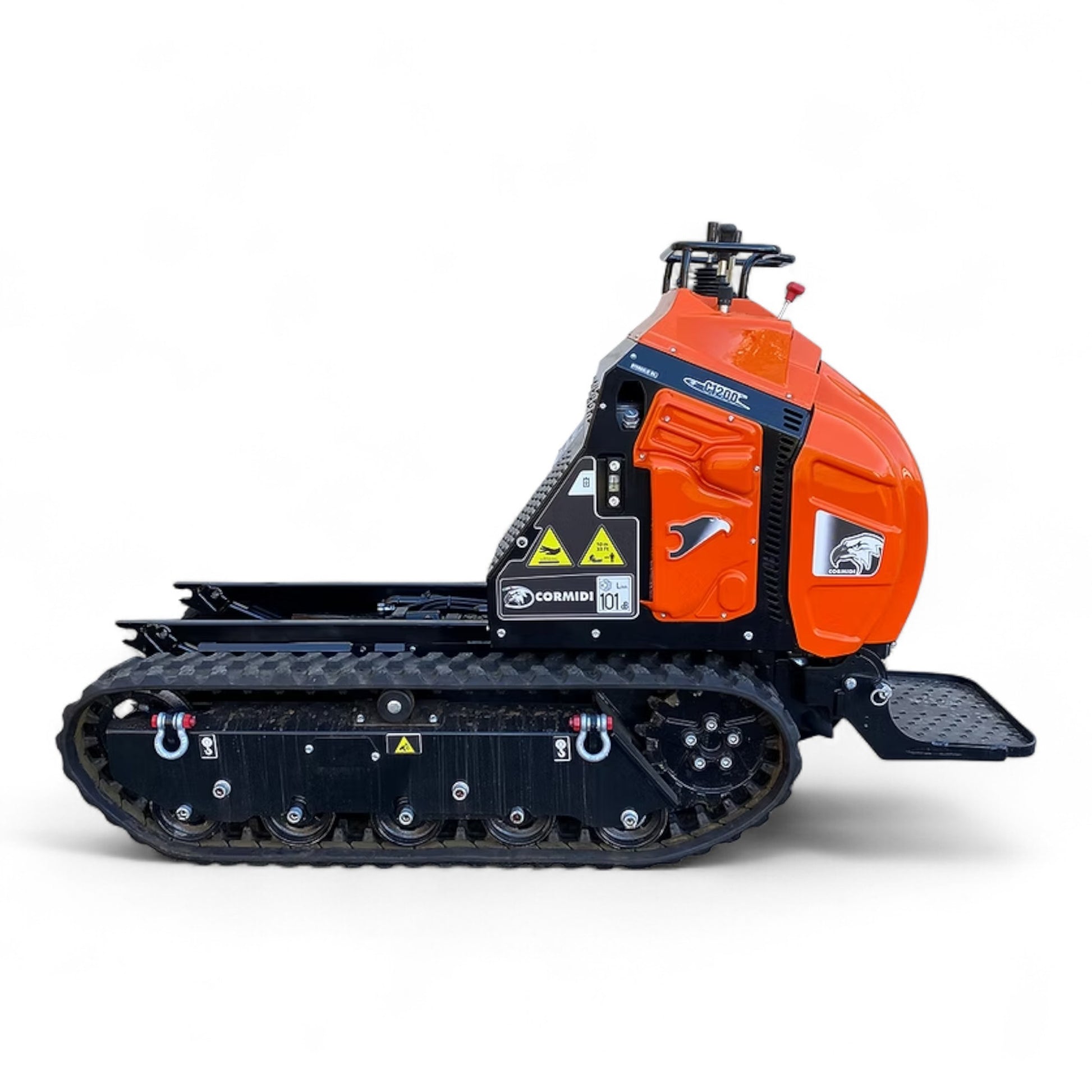

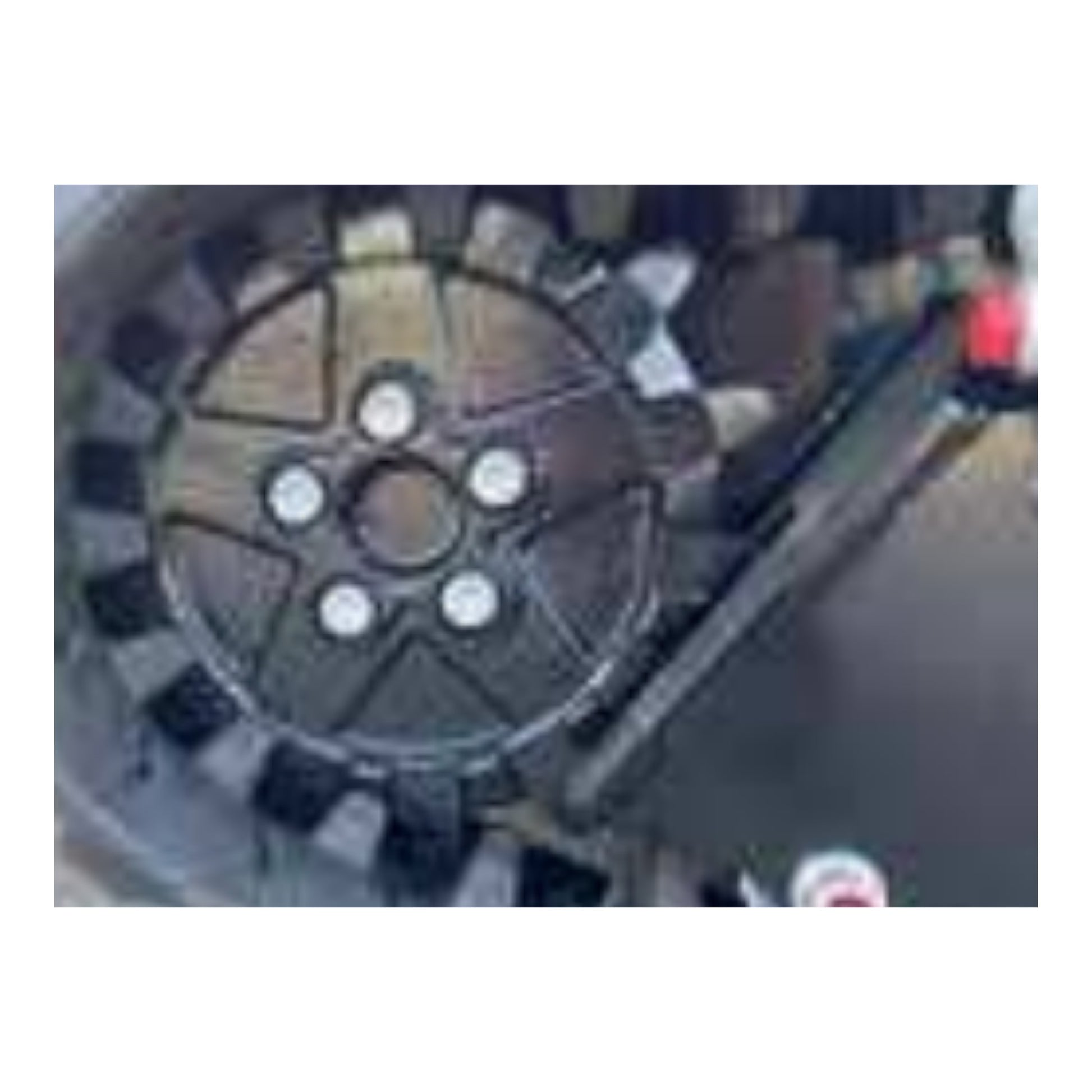

• UNDERCARRIAGE: Heavy-duty tracked undercarriage built for stability, traction, and durability on variable surfaces. Handles muddy, steep, or uneven conditions with confidence.

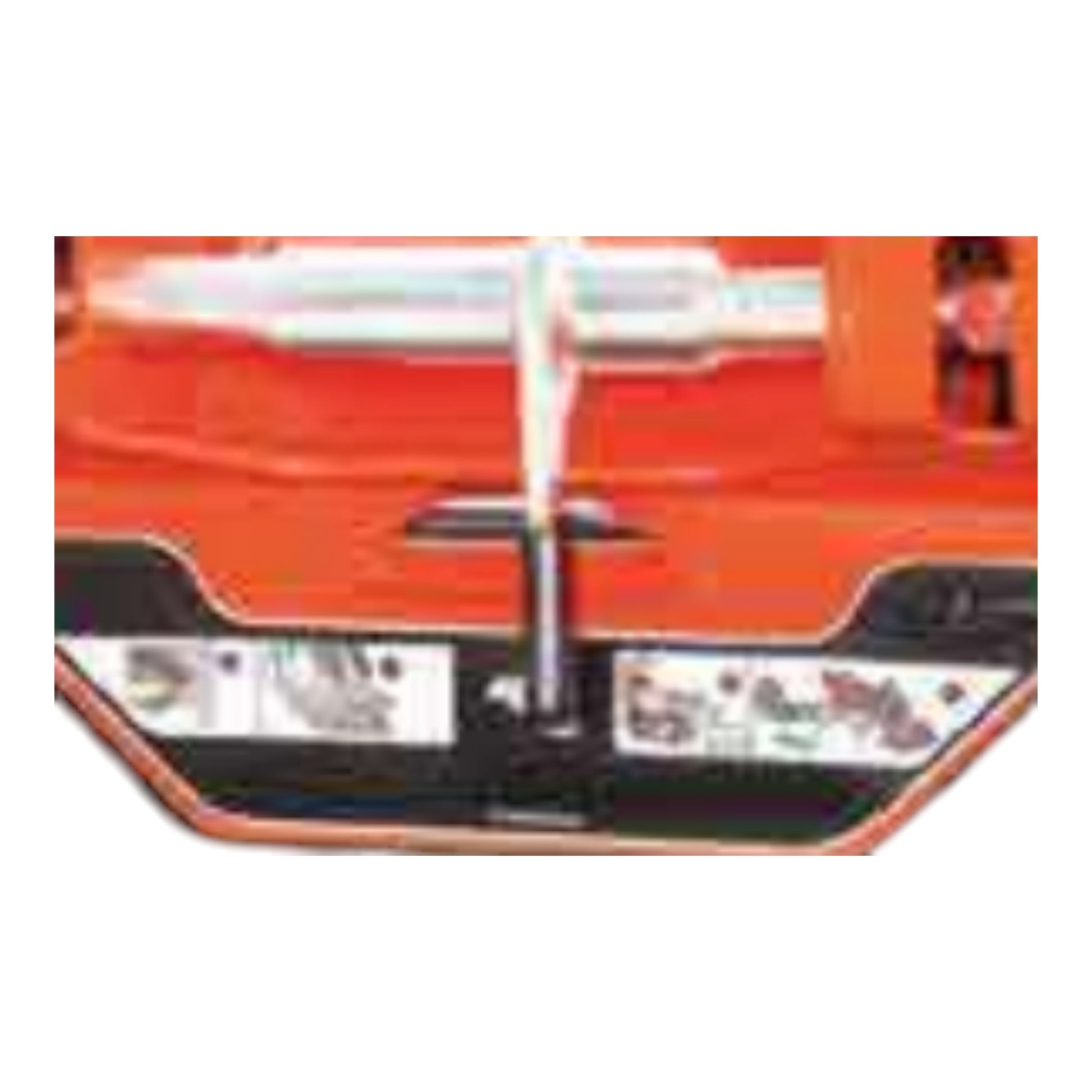

• LIFTING HOOK: Integrated for safe crane-assisted transport. Simplifies lifting to upper levels or secure relocation between job sites.
• ATTACHMENT SAFETY BARS: All attachments include integrated safety bars for added operator protection and workplace compliance.

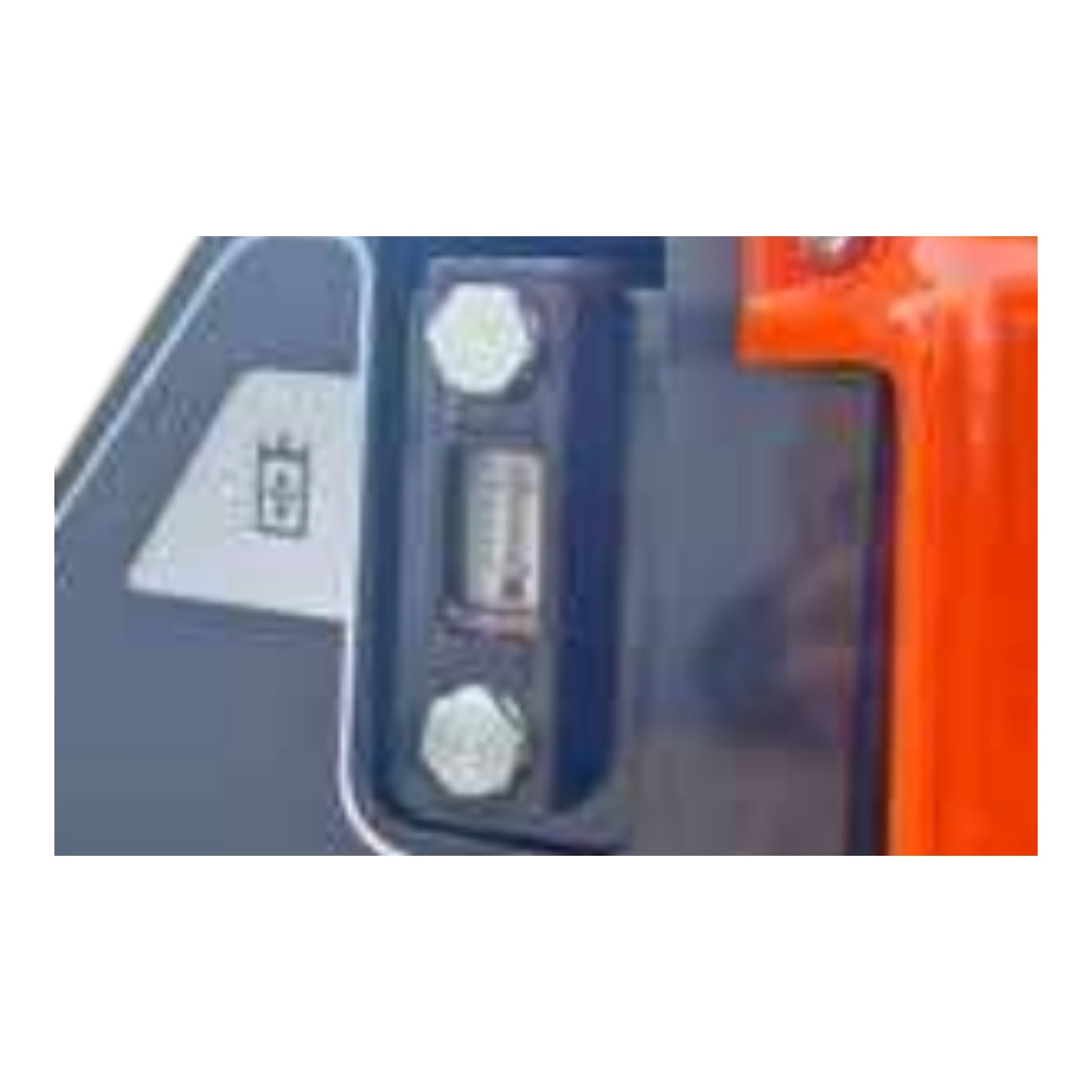

• HYDRAULIC OIL GAUGE: Monitor temperature, levels, and refill from one access point. Centralized hydraulic management simplifies upkeep and ensures system longevity.

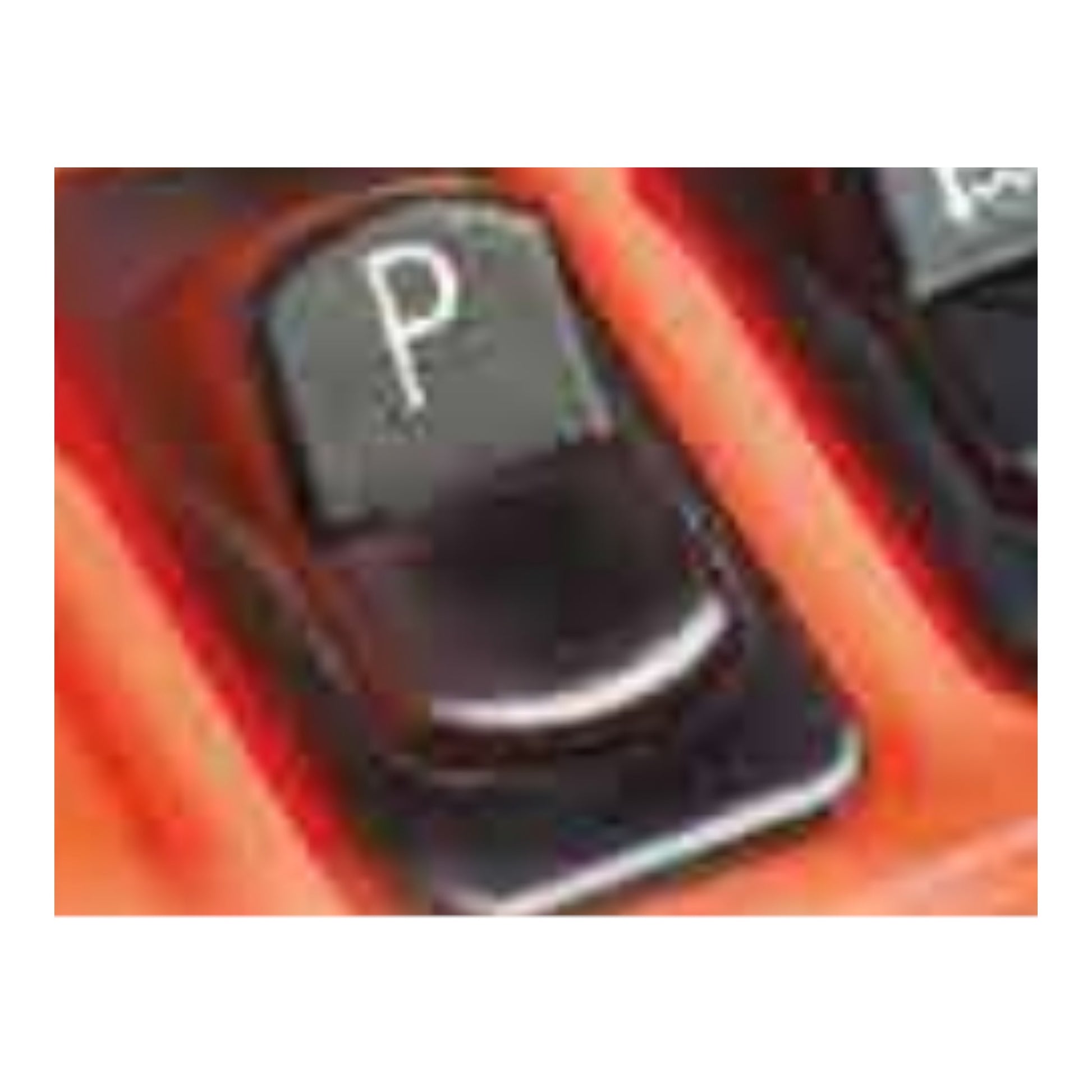

• PARKING BRAKE: Secure the machine in place when parked or during emergency stops. Enhances stability on inclines and rough terrain.

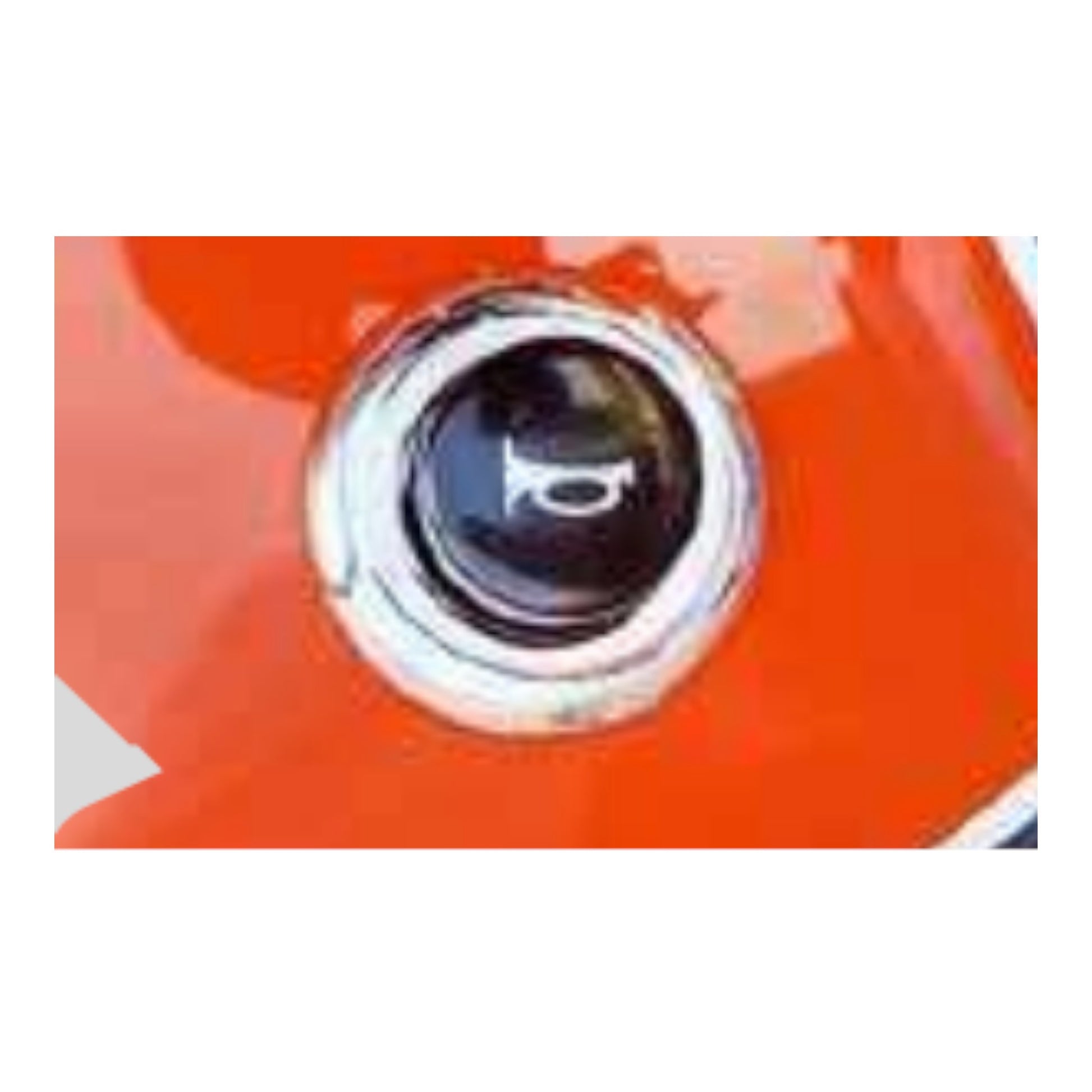

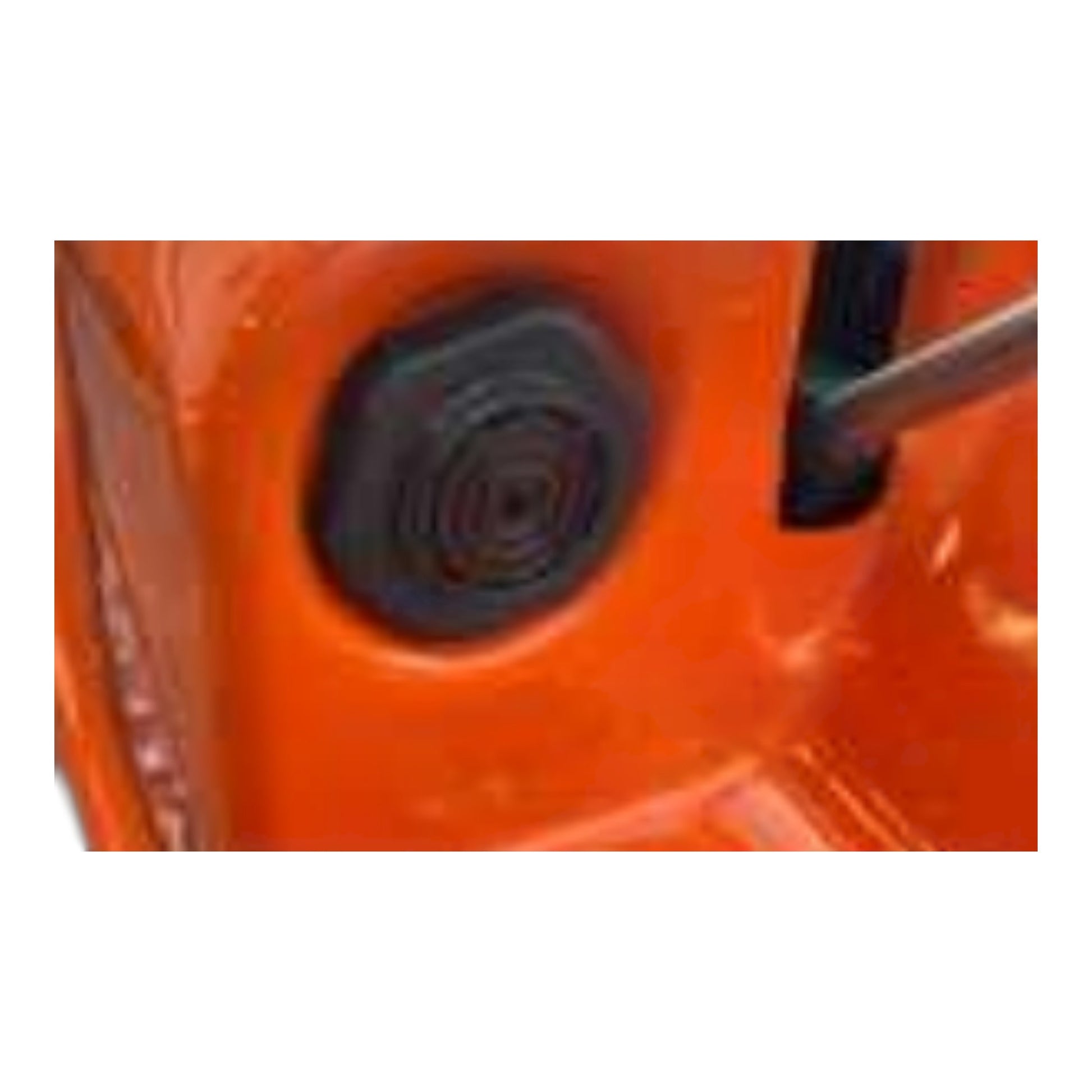

• HORN: Quickly alert nearby personnel to improve job site safety. Standard accessibility enhances usability in active work zones.
• BUZZER: Audible alerts provide critical warnings and notifications, keeping operators aware of system statuses in real time.

SPECIFICATIONS

• Engine: Kubota D1105 24.8 HP Stage V - Tier 4
• Operative Capacity: 1200 kg (2646 lbs)
• Struck: 0.29m3 (0.38yd3)
• Heaped SAE: 0.39m3 (0.51yd3)
• Transmission Type: Hydrostatic
• Hydraulic Pump: 2 variable piston pumps 83.2 lt/min 365bar (21.9gpm 5230psi)
• Crawler Width: 7.9 inch (200 mm)
• Track Roller with grease: 5
• Hydraulic Pump: For SPEC 2 - Gear Pump, For SPEC 3 - Variable Piston Pumps
• Flow STD for SPEC 2 ONLY: 1x26/min 200bar (1x6.86gpm 2901psi)
• HI-Flow for SPEC 3: 2x27=54 l/min 280bar / (2x 7.1=14.2 gpm 4061psi)
• Additional HYD Output: 5
• Maximum Travel Speed: 6.9 kmh (4.3 mph)
• Parking Brake: Yes
• Length: 113.8 inch (2890 mm)
• Width: 34.1 inch (865 mm)
• Height: 53.2 inch (1350 mm)
• CMF Machine Weight: 795 kg (1753 lbs)
• Dumper Attachment Weight: 315kg (695 lbs)
• Total Weight: 1110 kg (2447 lbs)
