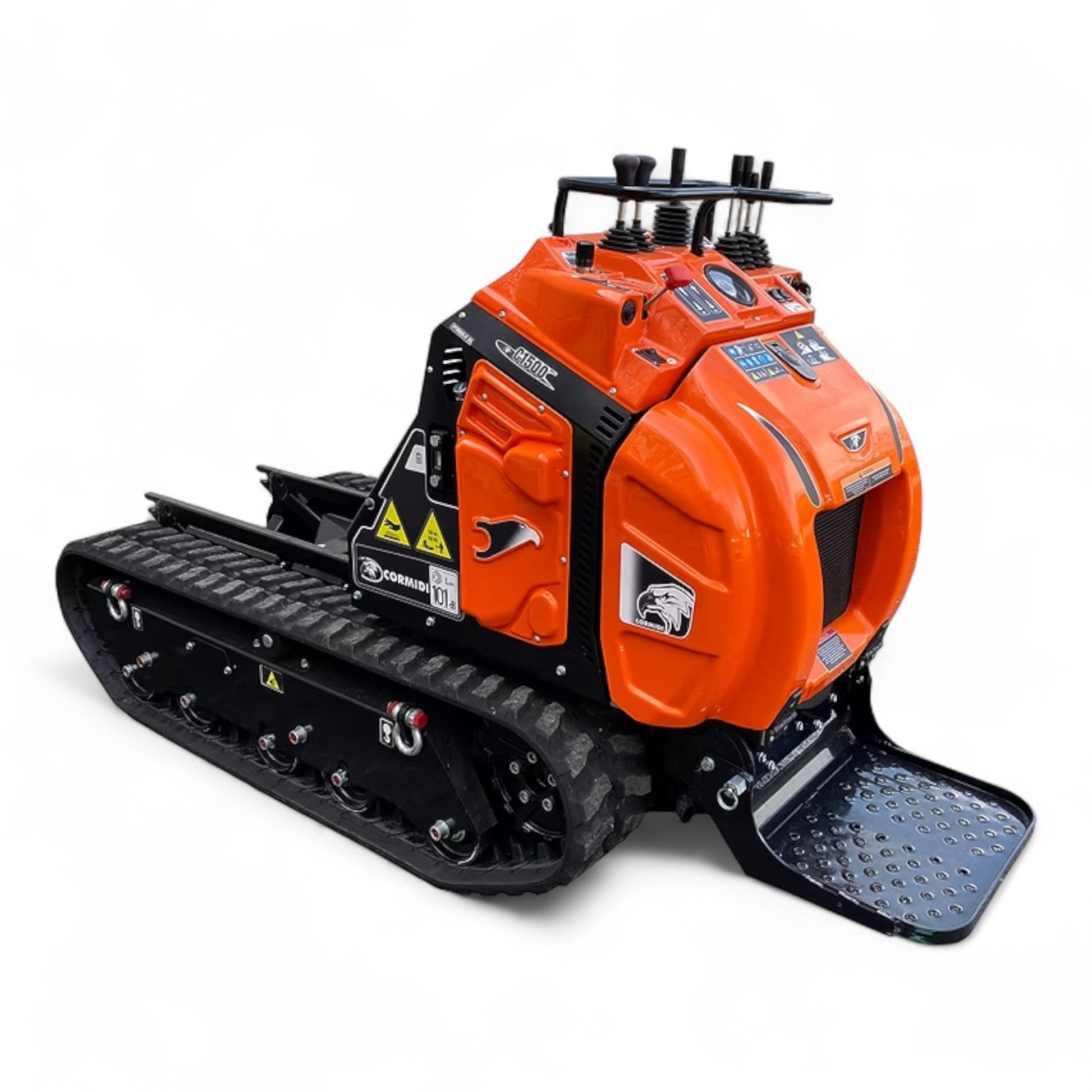

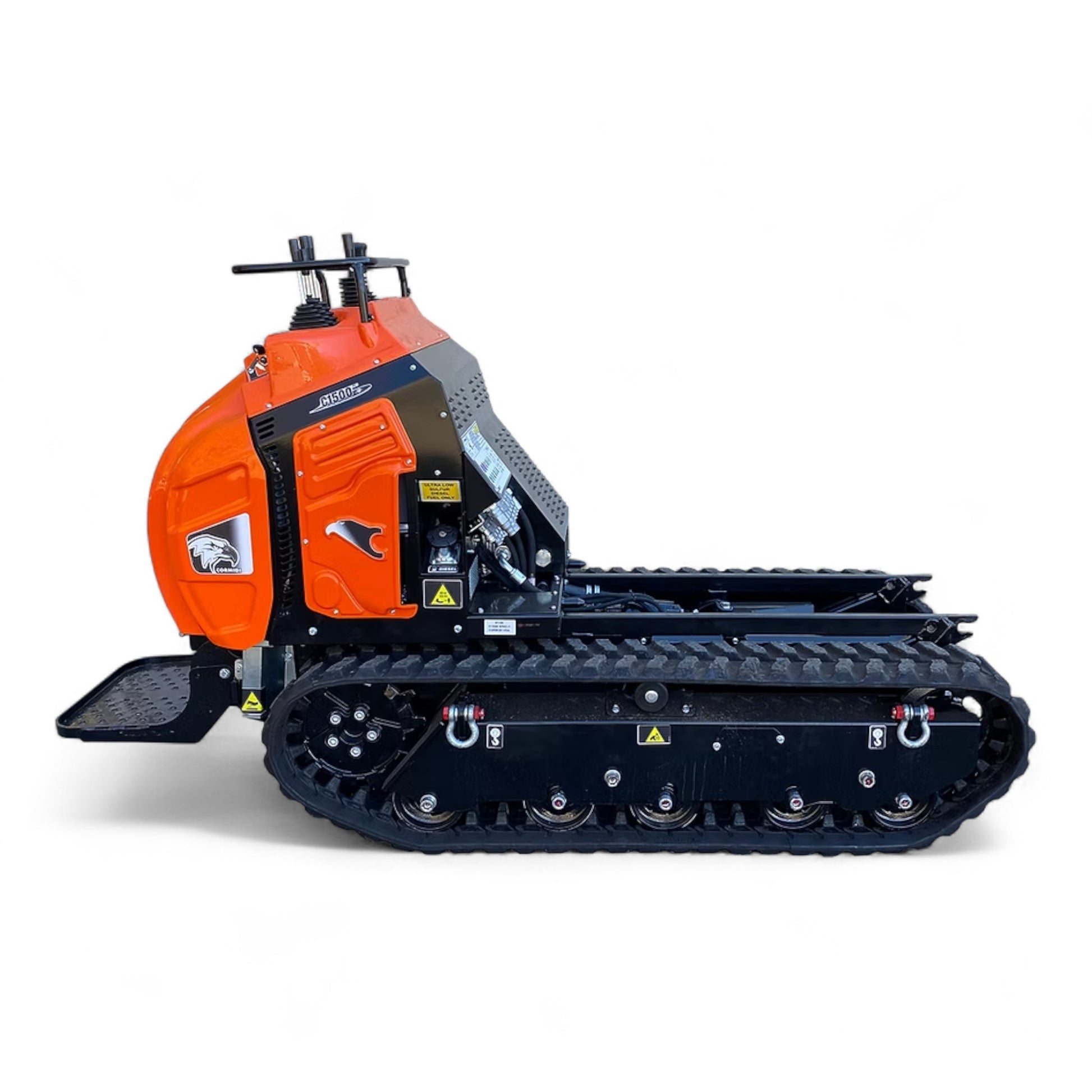

Cormidi CMF1500 - RIX Steel Hydrostatic Swivel Track Dumper 1500kg (3307lb) Capacity

The Cormidi CMF1500 RIX Steel Swivel Dumper is the ultimate blend of power, precision, and multi-functionality. Designed to tackle material handling, construction, and landscaping tasks with ease, it delivers the strength of an excavator, the maneuverability of a mini-dumper, and the versatility of a tool carrier. With a rugged hydrostatic track system and a 180-degree swivel dumper, it makes your job faster, cleaner, and easier, especially in tight spaces and complex work zones.

FEATURES

• KUBOTA D1305 24.8 HP STAGE V - TIER 4 ENGINE: High-torque diesel engine that meets the latest emissions standards while delivering reliable, fuel-efficient performance in demanding environments.
• HYDROSTATIC TRANSMISSION: Smooth, gear-free power delivery enhances maneuverability and precision. Ideal for tight workspaces or varied terrain, while reducing mechanical wear.

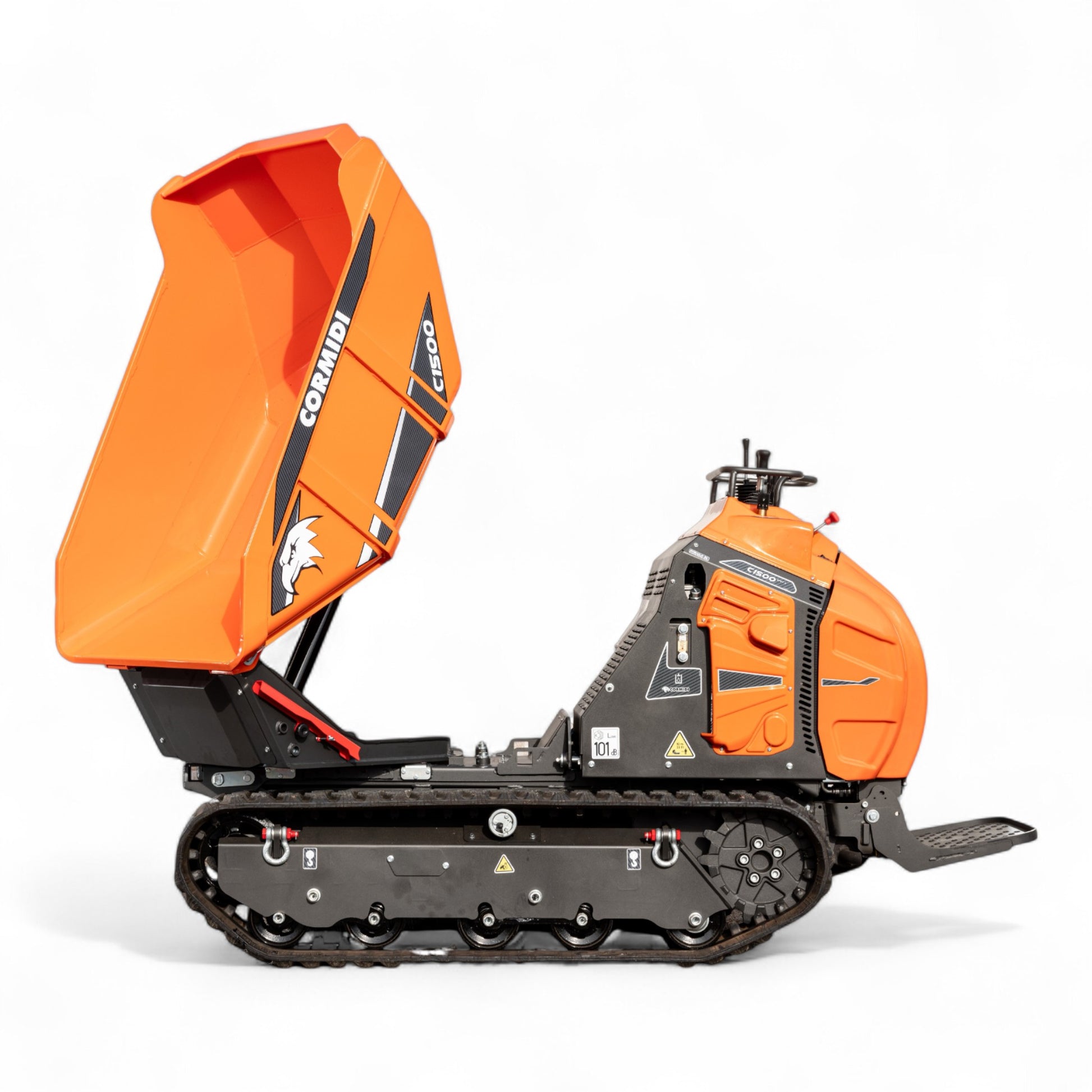

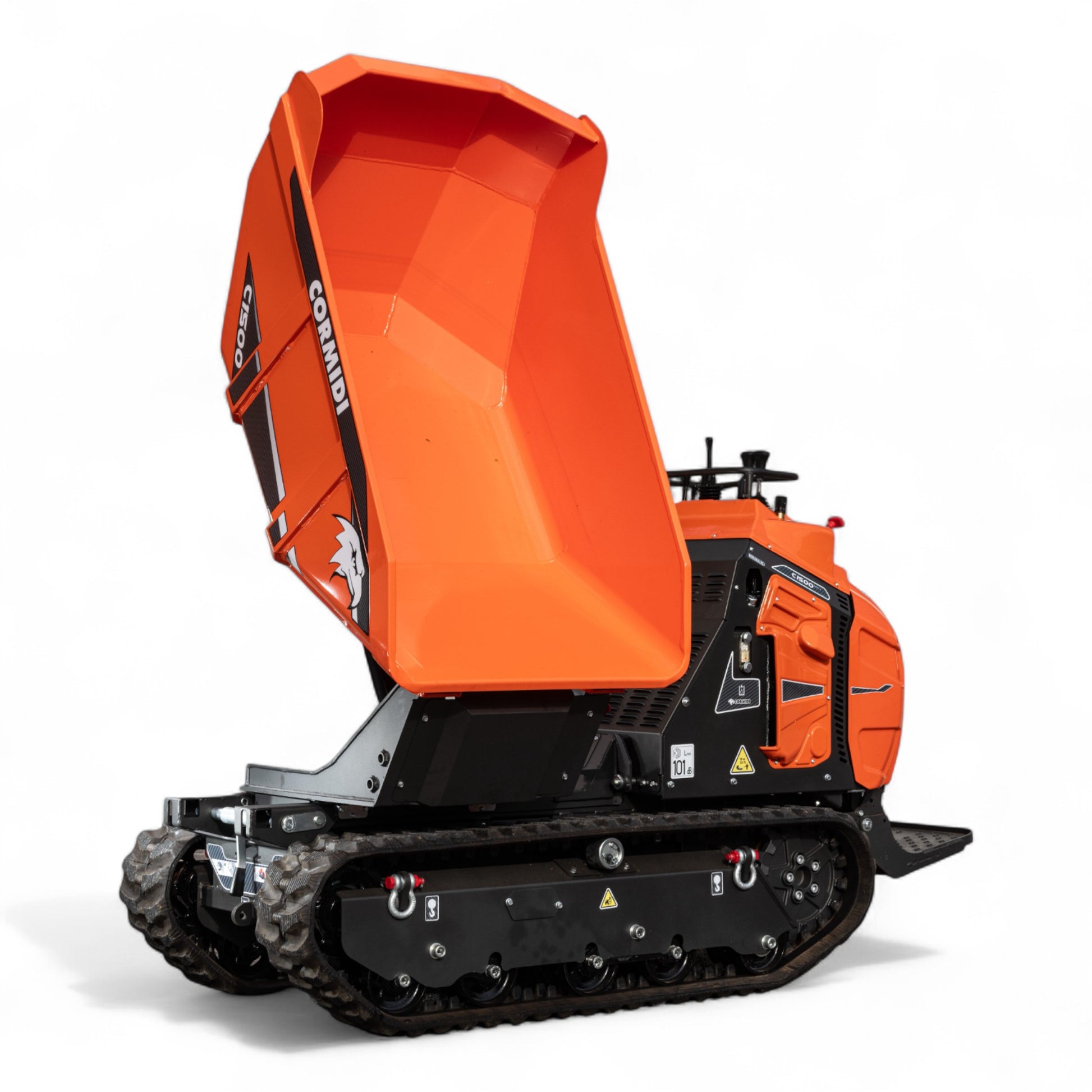

• 180 DEGREE SWIVEL DUMPER DESIGN: Allows side or rear discharge of material, dramatically improving unloading accuracy and speed—ideal for urban or confined environments where turning space is limited.
• HI-FLOW SYSTEM: Twin variable piston pumps with automatic constant power allocation prevent engine stalling while maximizing flow for demanding tools and attachments.

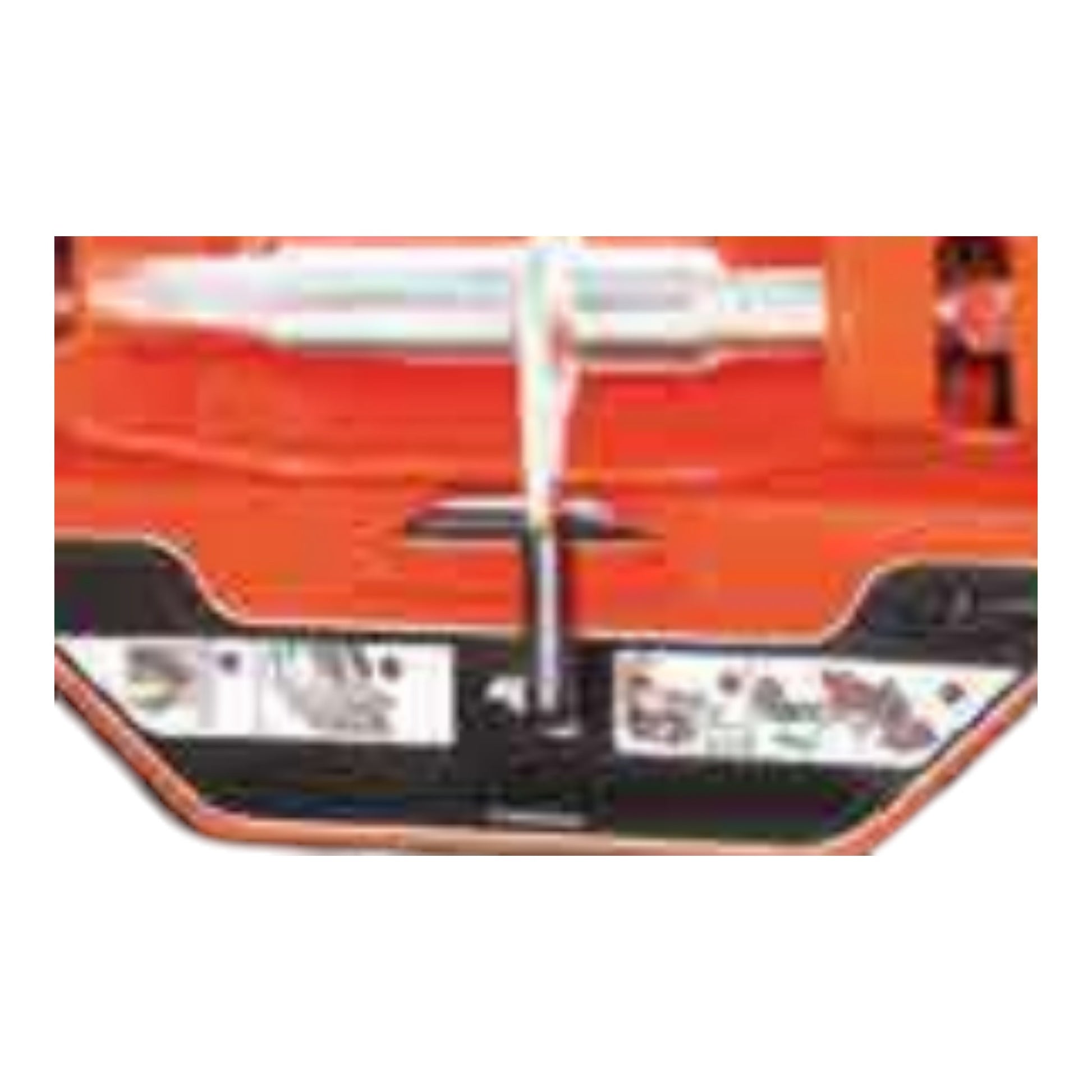

• QUICK ATTACH: Switch attachments like a dumper, mini loader, or concrete mixer in under 5 minutes, all without additional tools. Streamlines operations and maximizes machine utility.

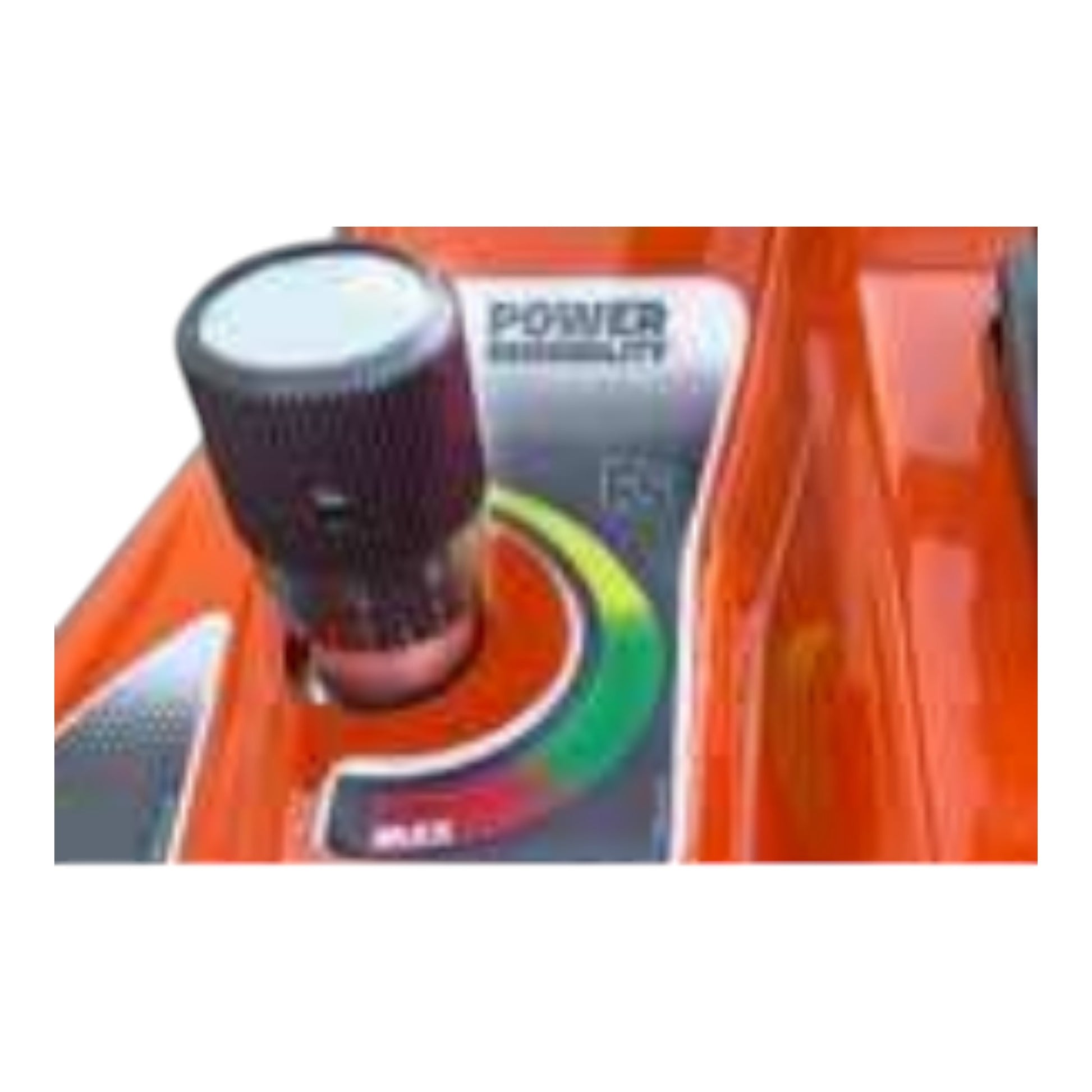

• ANTI-STALL POWER SYSTEM (ASPS): Automatically reallocates engine power to attachments and tools, preventing stalls and optimizing performance during heavy-duty tasks.

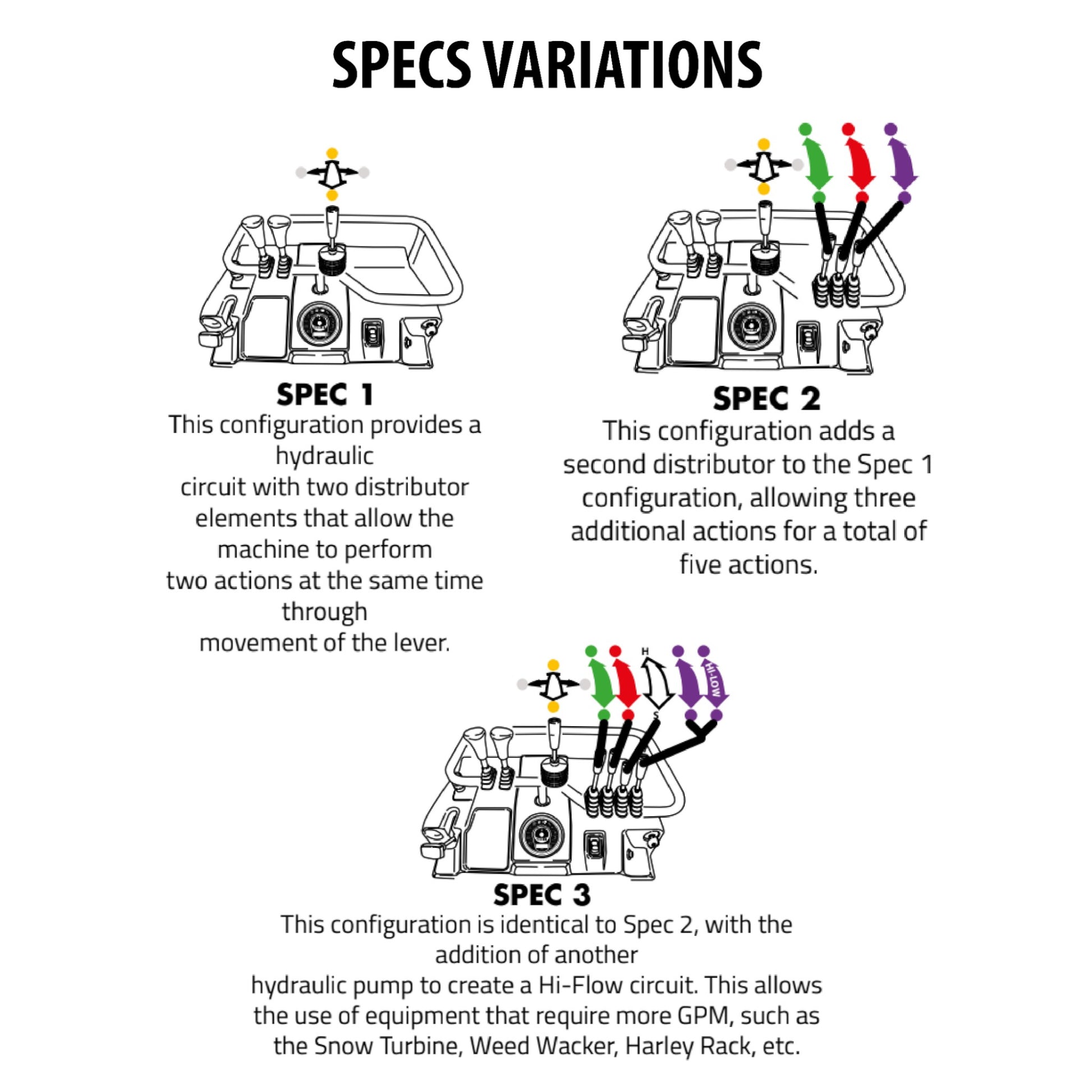

• SPEC 2 (VARIATION): Adds a second hydraulic distributor, enabling three more machine functions, totaling five independent hydraulic actions for greater control and versatility.
• SPEC 3 (VARIATION): Includes all Spec 2 features with an additional hydraulic pump to create a Hi-Flow circuit. Essential for high-demand attachments like snow turbines, weed cutters, or Harley rakes.

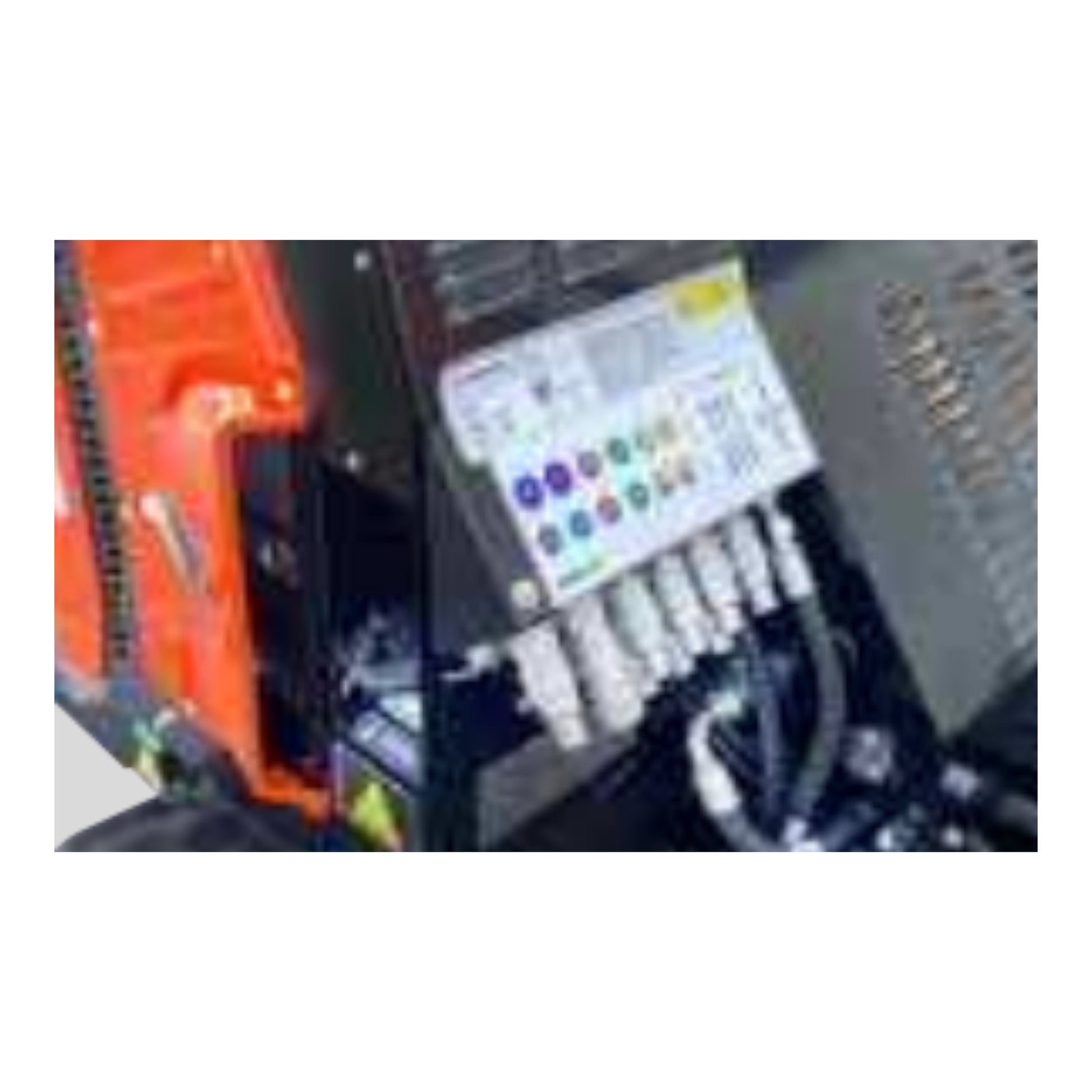

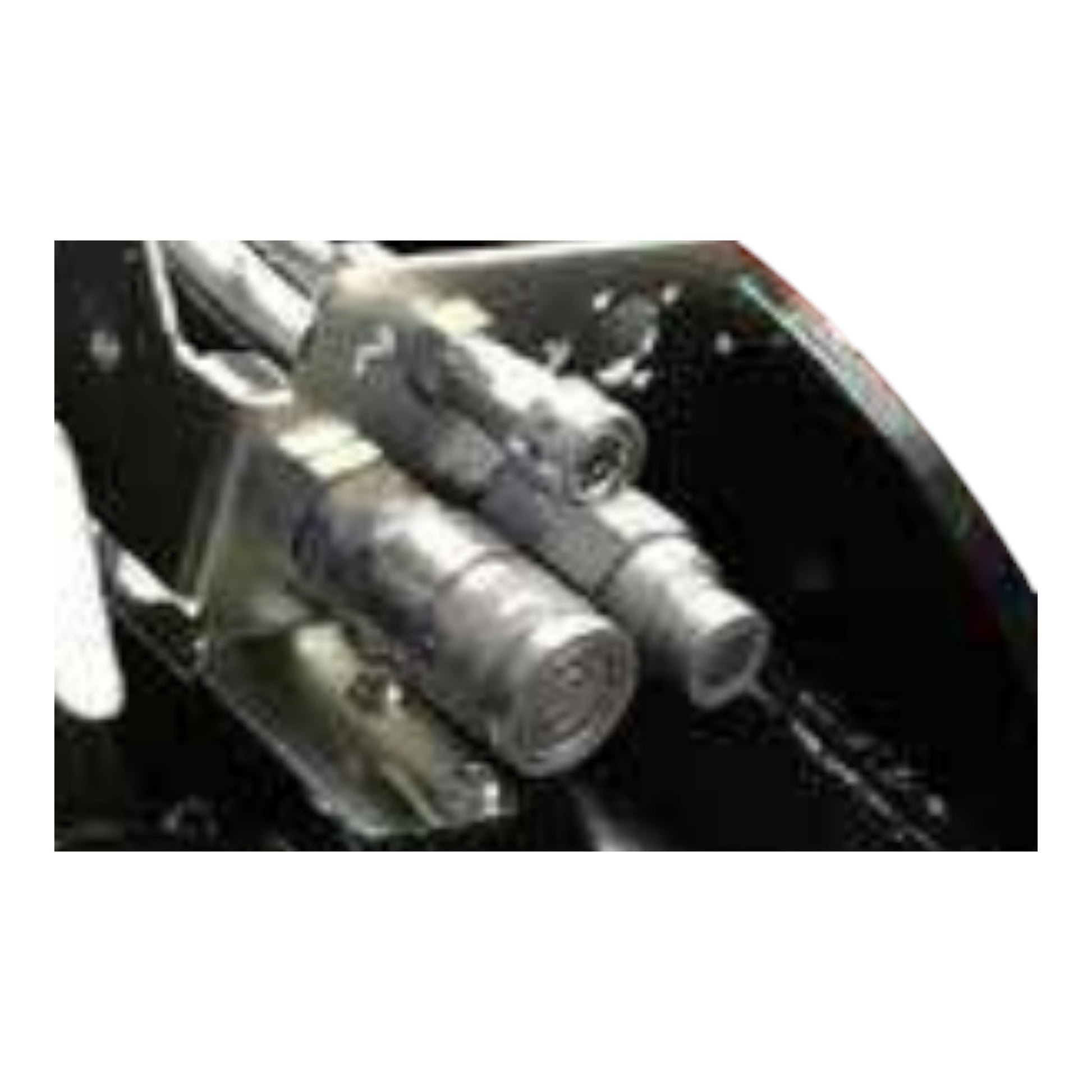

• HYD OUTPUT AUX: Three auxiliary hydraulic outputs allow simultaneous use of multiple attachments. Increases operational efficiency and expands task capability.

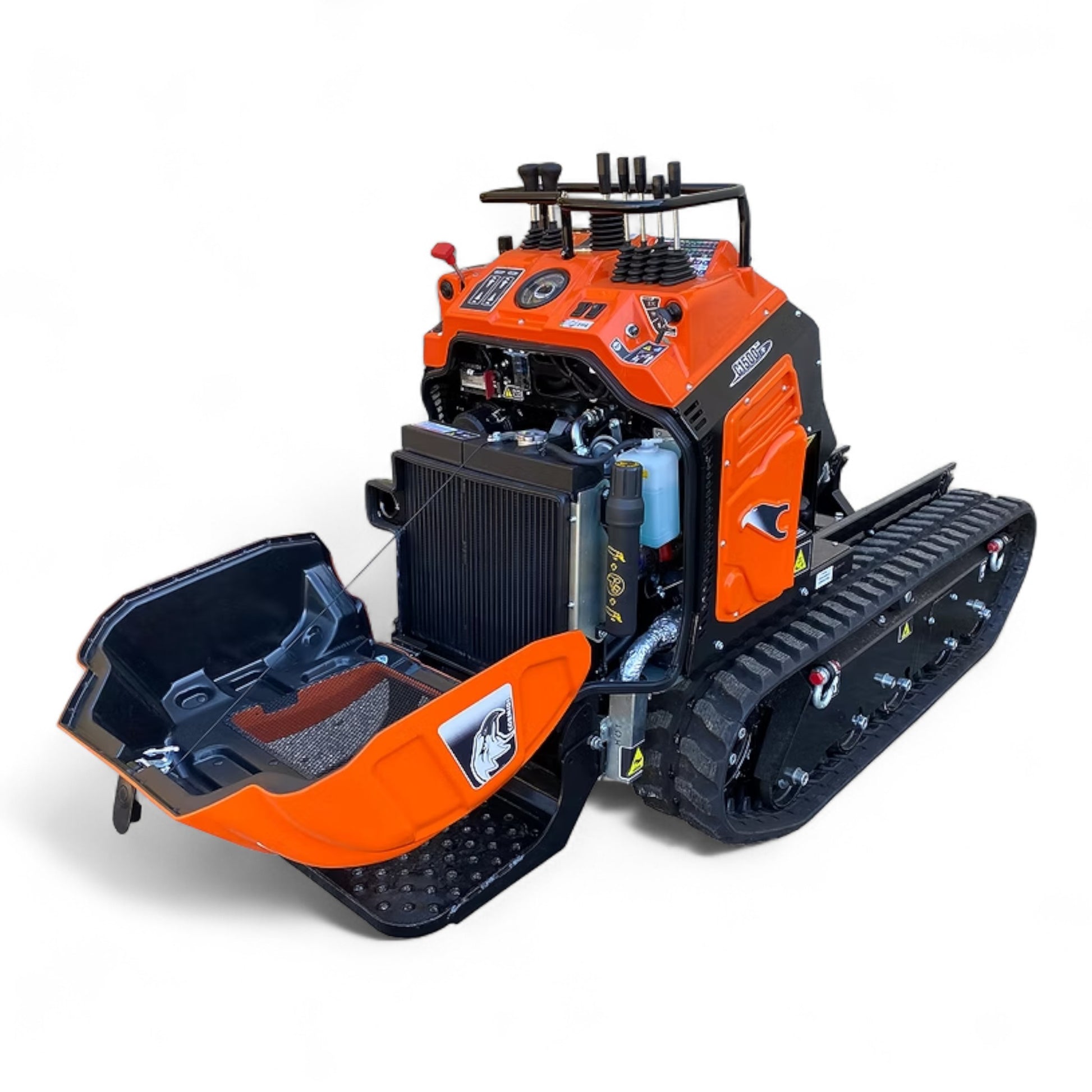

• ONE STOP MAINTENANCE: Access all major service points—fluids, filters, and fuses—from a single, easy-to-reach location. Save time on inspections and daily maintenance routines.

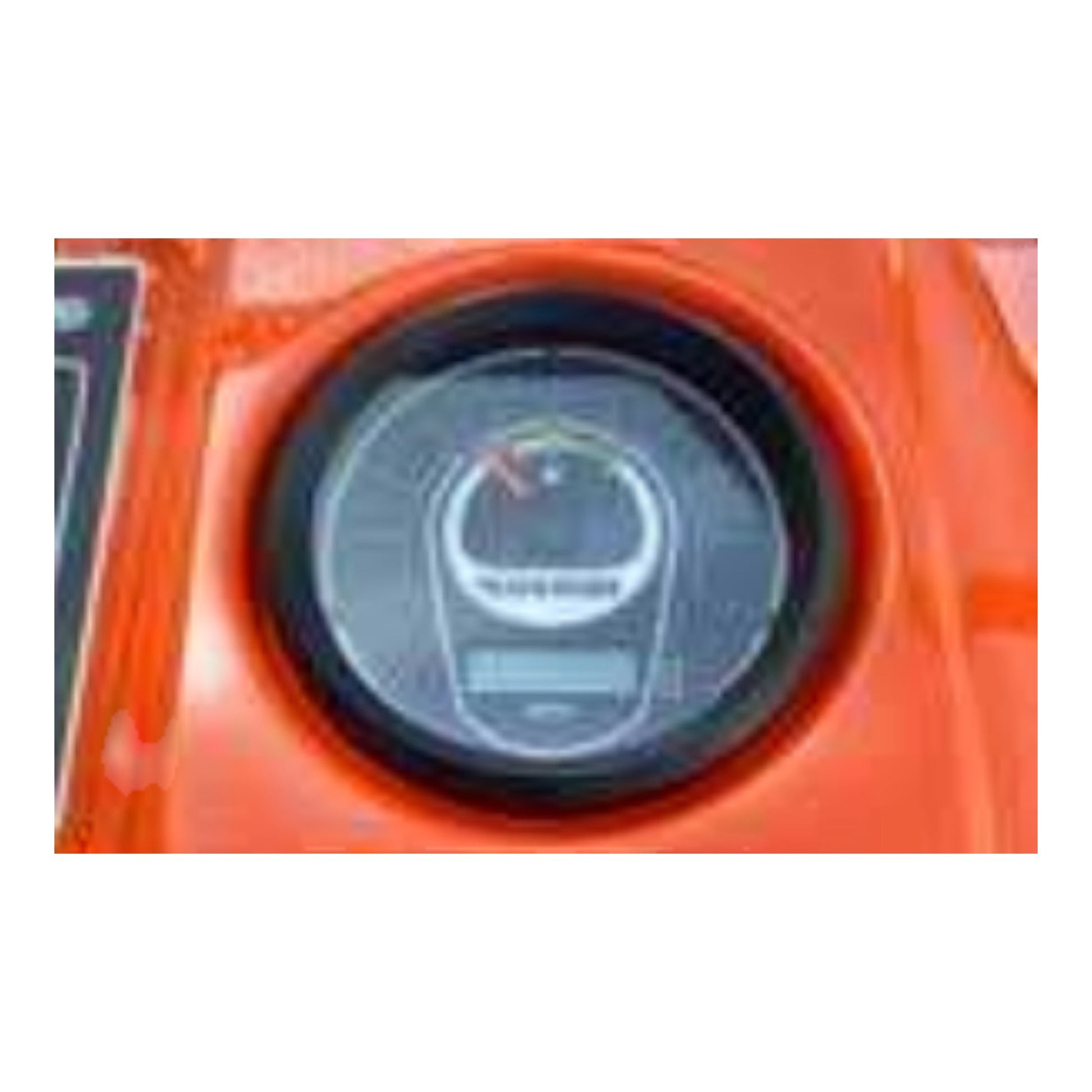

• DASHBOARD WITH TACHOMETER, HOUR METER, FUEL GAUGE, AND ALARM LIGHTS: Stay informed with real-time data and alerts for efficient operation and preventive maintenance.

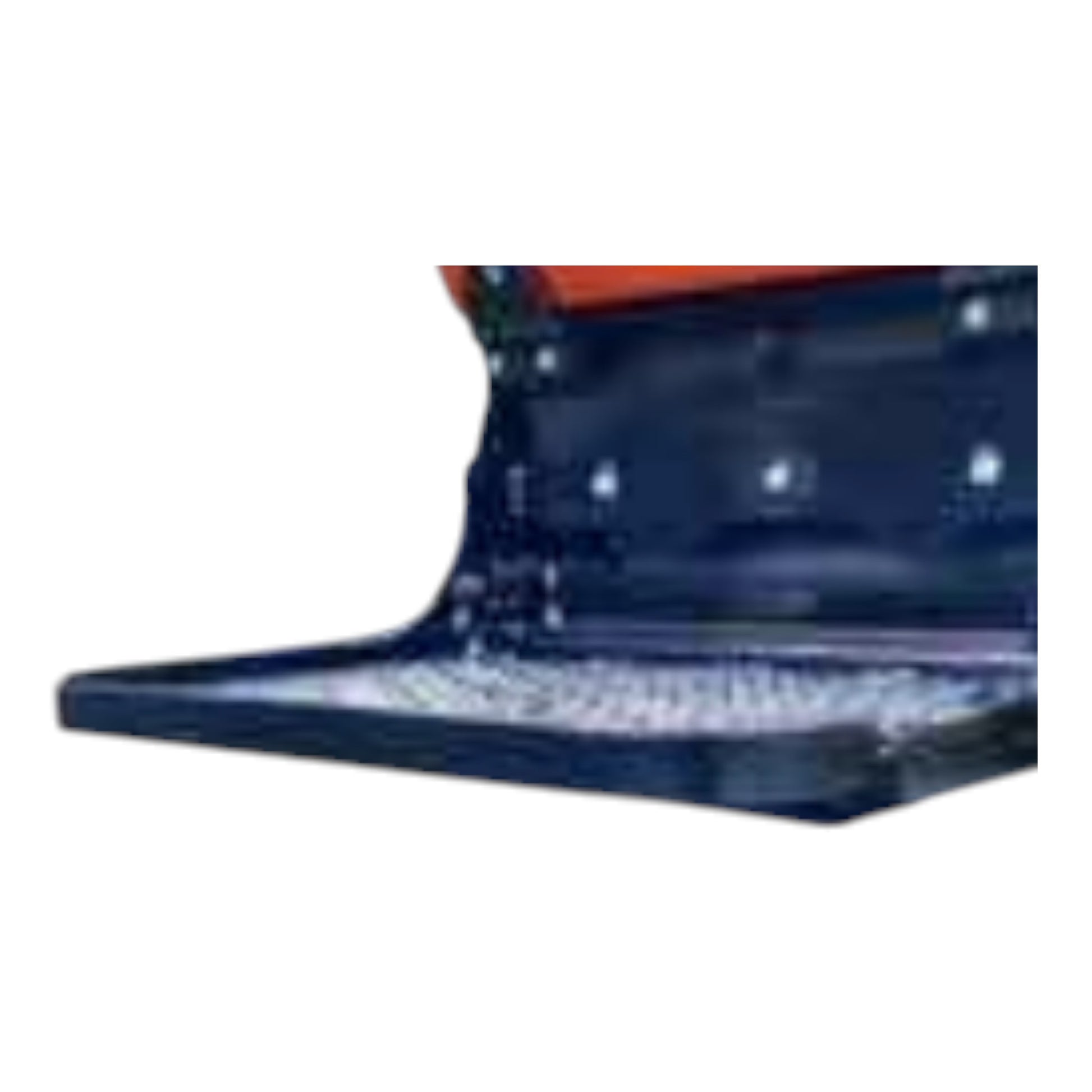

• FOLD-UP PLATFORM PLATE: Need to save space? Fold up the operator platform to reduce machine length by 16 inches, enhancing maneuverability and storage flexibility.

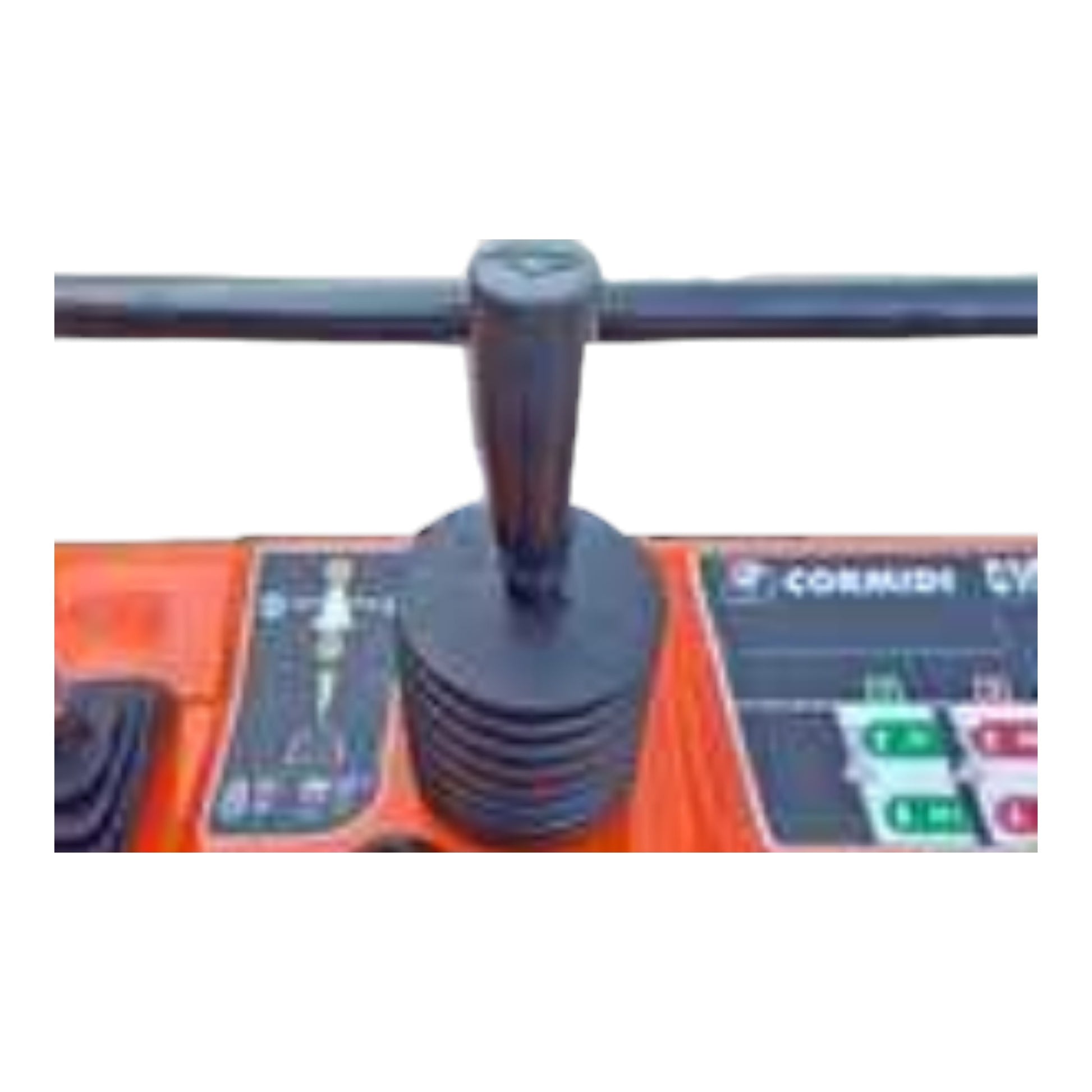

• SET HYD LEVERS: Customize lever functions based on operator preference or attachment setup. Improves ergonomic comfort and machine control.
• FLOAT OPTION ARM: Easily engage the float arm for automatic ground following. This function improves tool performance and surface adaptability during operation.
• AUTO LEVELLING (ON REQUEST): Optional automatic fork leveling system for effortless and accurate lifting operations.

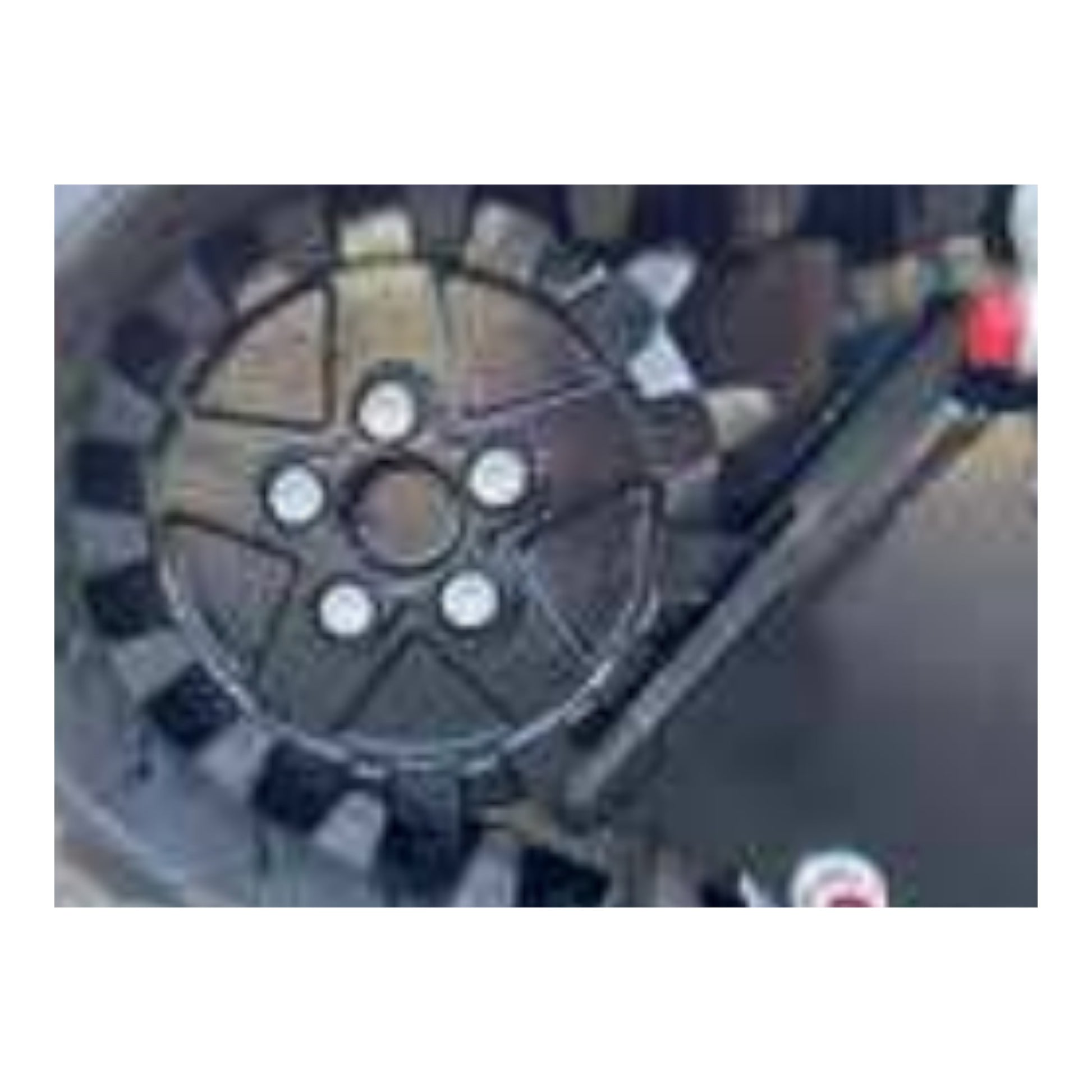

• UNDERCARRIAGE: Heavy-duty tracked undercarriage built for stability, traction, and durability on variable surfaces. Handles muddy, steep, or uneven conditions with confidence.
• LIFTING HOOK: Integrated for safe crane-assisted transport. Simplifies lifting to upper levels or secure relocation between job sites.
• ATTACHMENT SAFETY BARS: All attachments include integrated safety bars for added operator protection and workplace compliance.

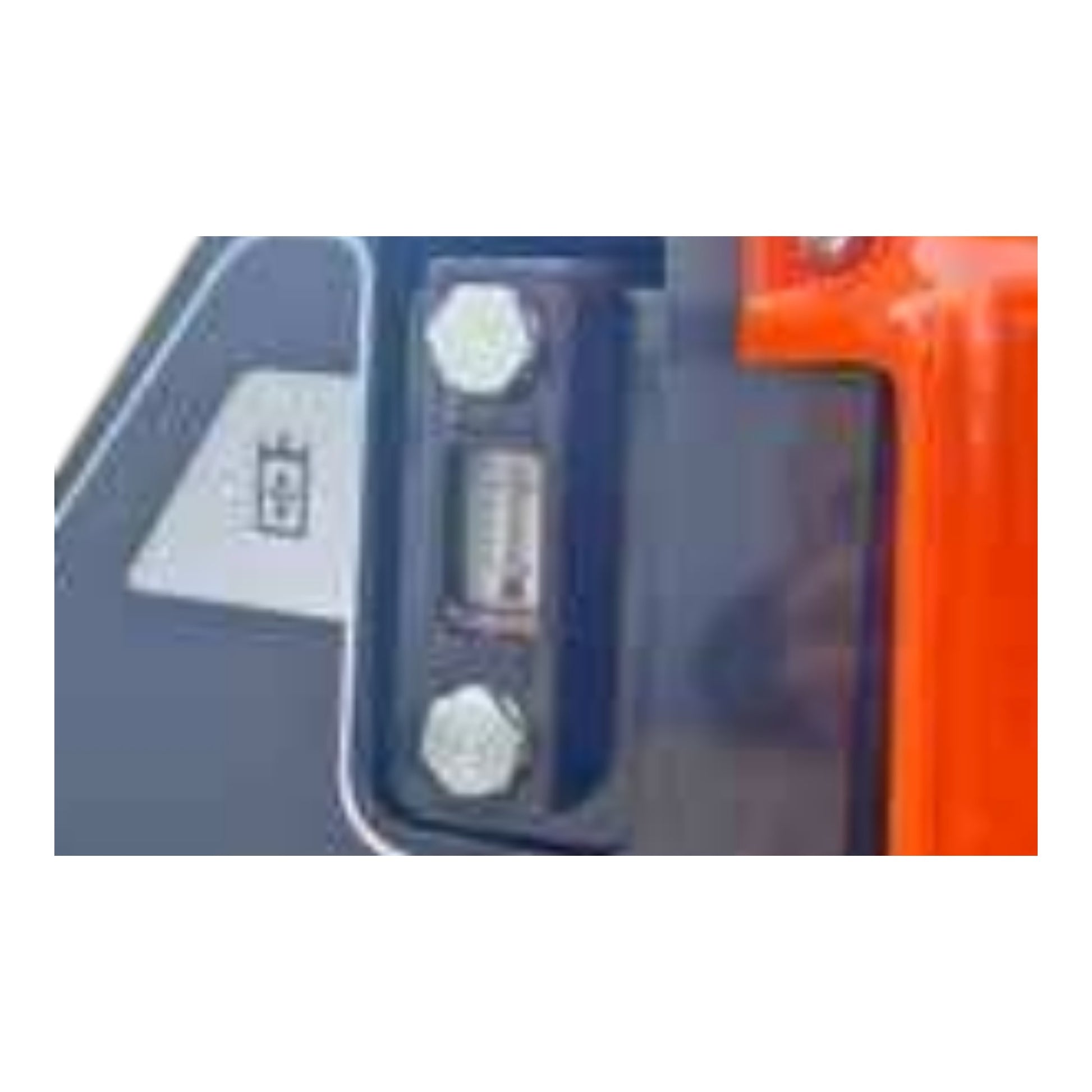

• HYDRAULIC OIL GAUGE: Monitor temperature, levels, and refill from one access point. Centralized hydraulic management simplifies upkeep and ensures system longevity.

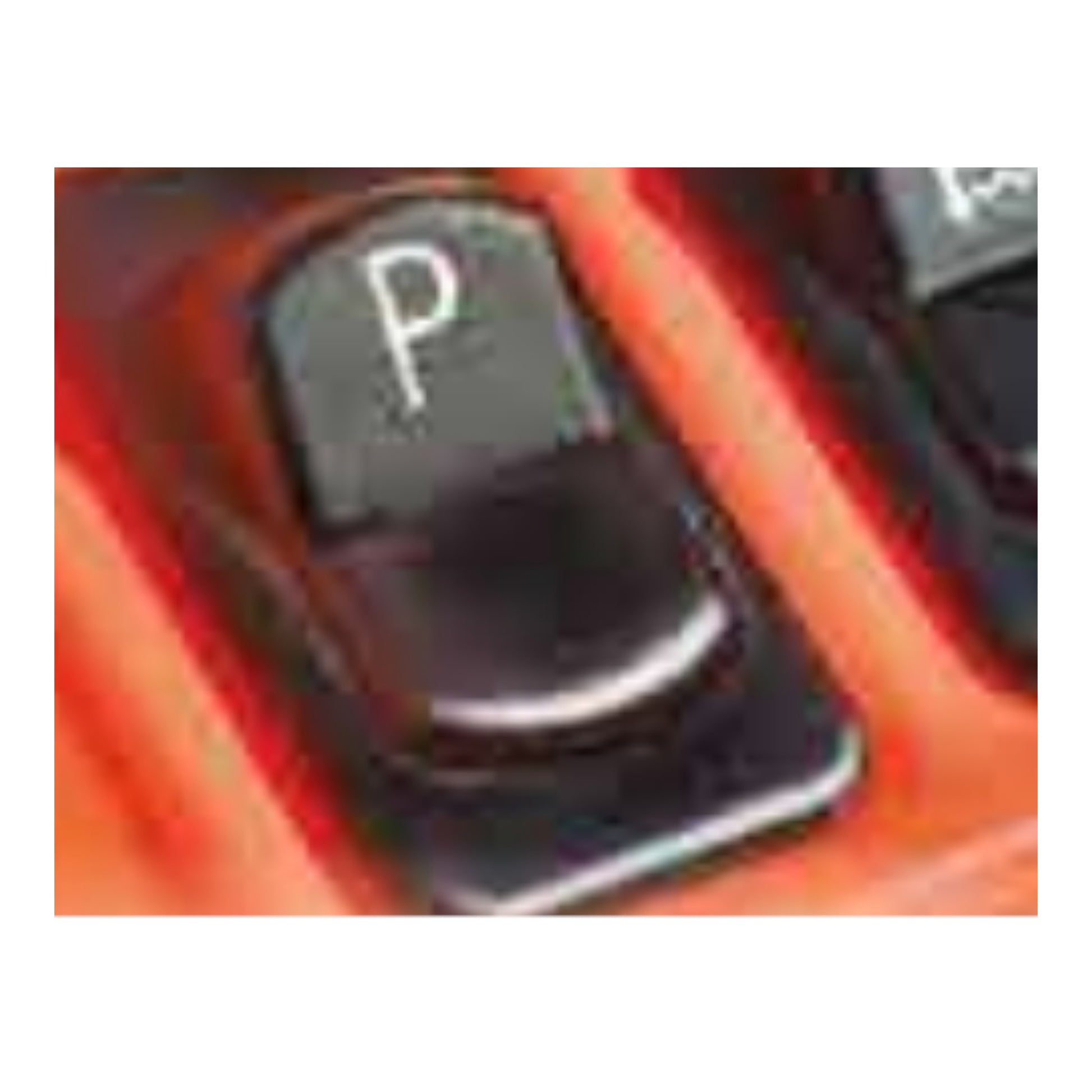

• PARKING BRAKE: Secure the machine in place when parked or during emergency stops. Enhances stability on inclines and rough terrain.

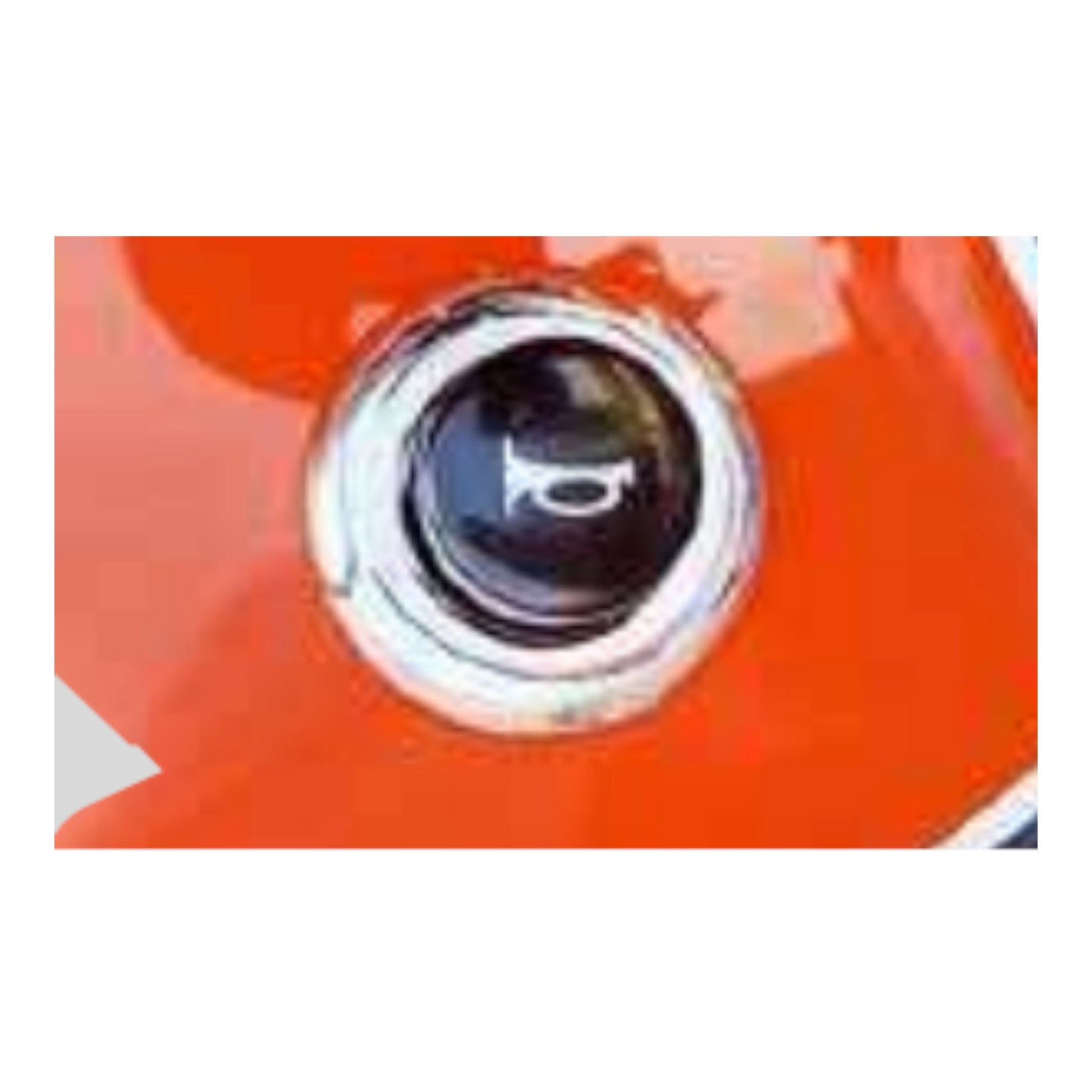

• HORN: Quickly alert nearby personnel to improve job site safety. Standard accessibility enhances usability in active work zones.
• BUZZER: Audible alerts provide critical warnings and notifications, keeping operators aware of system statuses in real time.

SPECIFICATIONS

• Engine: Kubota D1305 24.8 HP Stage V - Tier 4
• Operative Capacity: 1500 kg (3307 lbs)
• Struck: 0.42m3 (0.55yd3)
• Heaped SAE: 0.60m3 (0.79yd3)
• Transmission Type: Hydrostatic
• Hydraulic Pump: 2 variable piston pumps 93 lt/min 365bar (24.1gpm 5234psi)
• Crawler Width: 9.1 inch (230 mm)
• Track Roller with grease: 5
• Hydraulic Pump: For SPEC 2 - Gear Pump, For SPEC 3 - Variable Piston Pumps
• Flow STD for SPEC 2 ONLY: 1x27/min 200bar (1x7.1gpm 2901psi)
• HI-Flow for SPEC 3: 2x29=58 l/min 280bar / (1x 7.7=15.4 gpm 4061psi)
• Additional HYD Output: 5
• Maximum Travel Speed: 7.6 kmh (4.7 mph)
• Parking Brake: Yes
• Length: 95.7 inch (2430 mm)
• Width: 35.2 inch (895 mm)
• Height: 53.2 inch (1350 mm)
• CMF Machine Weight: 910 kg (2006 lbs)
• Dumper Attachment Weight: 220 kg (485 lbs)
• Total Weight: 1130 kg (2491 lbs)
