Crary Bear Cat CH5540HM 4.5 Inch PTO Hydraulic Wood Chipper - 25-45 HP PTO Input Power Range

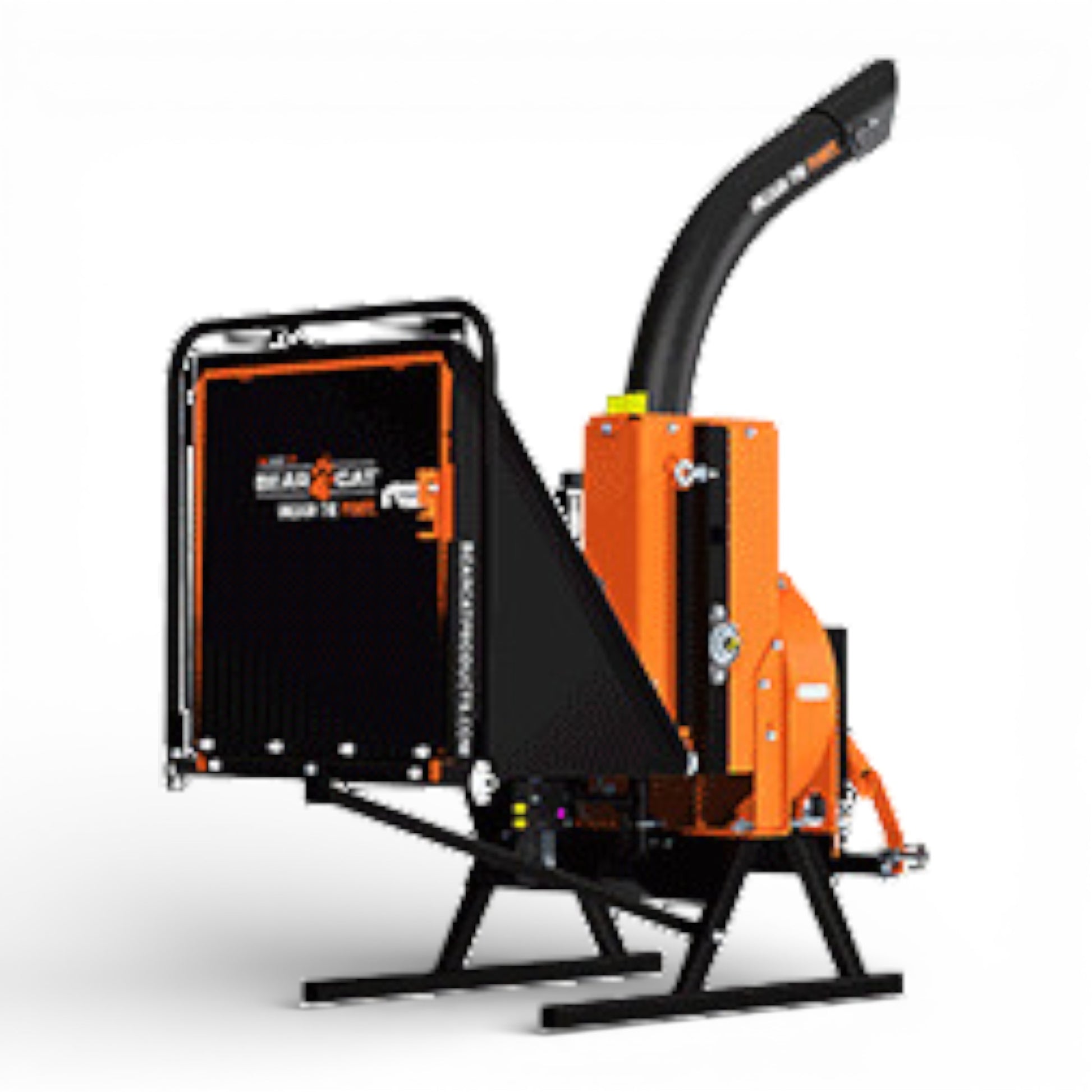

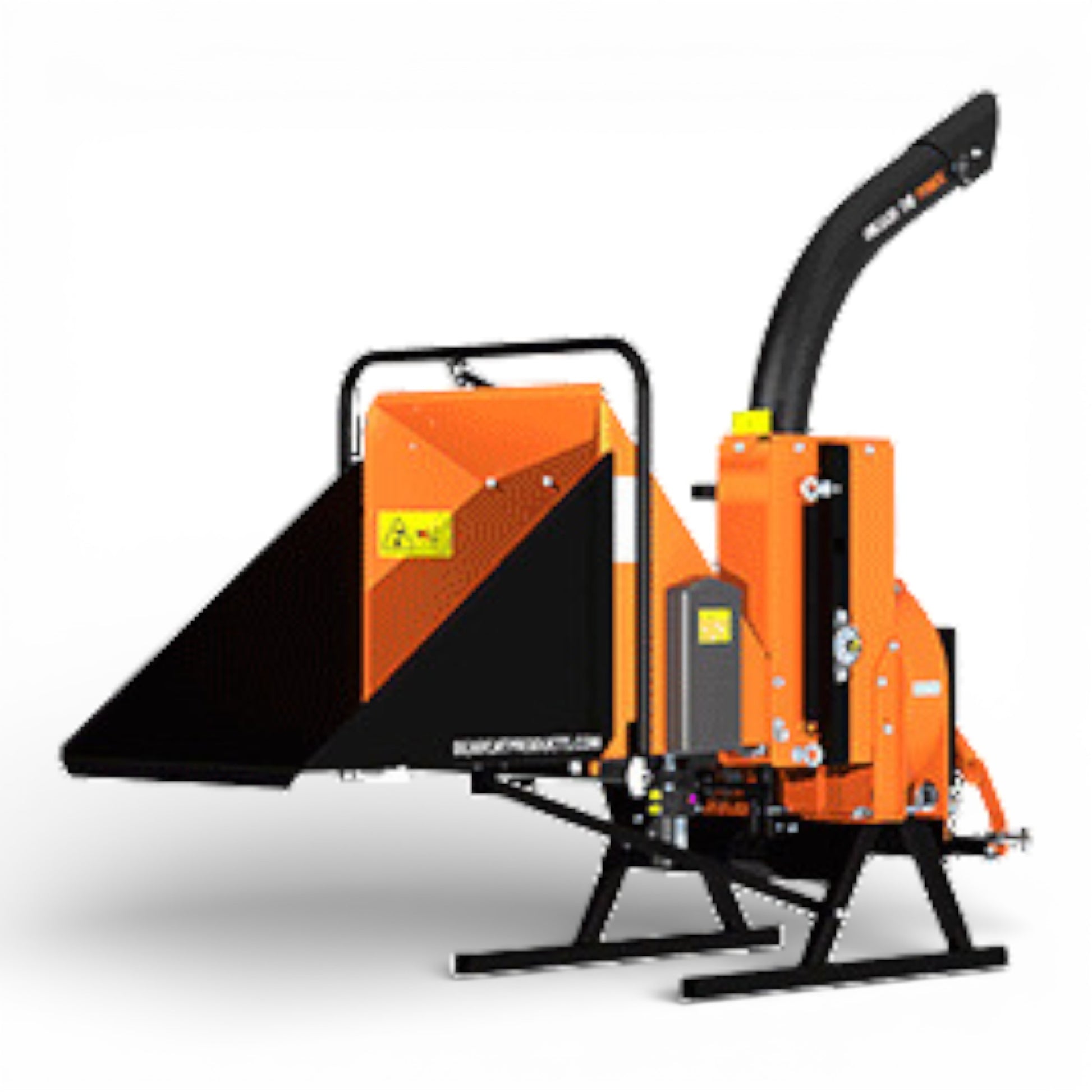

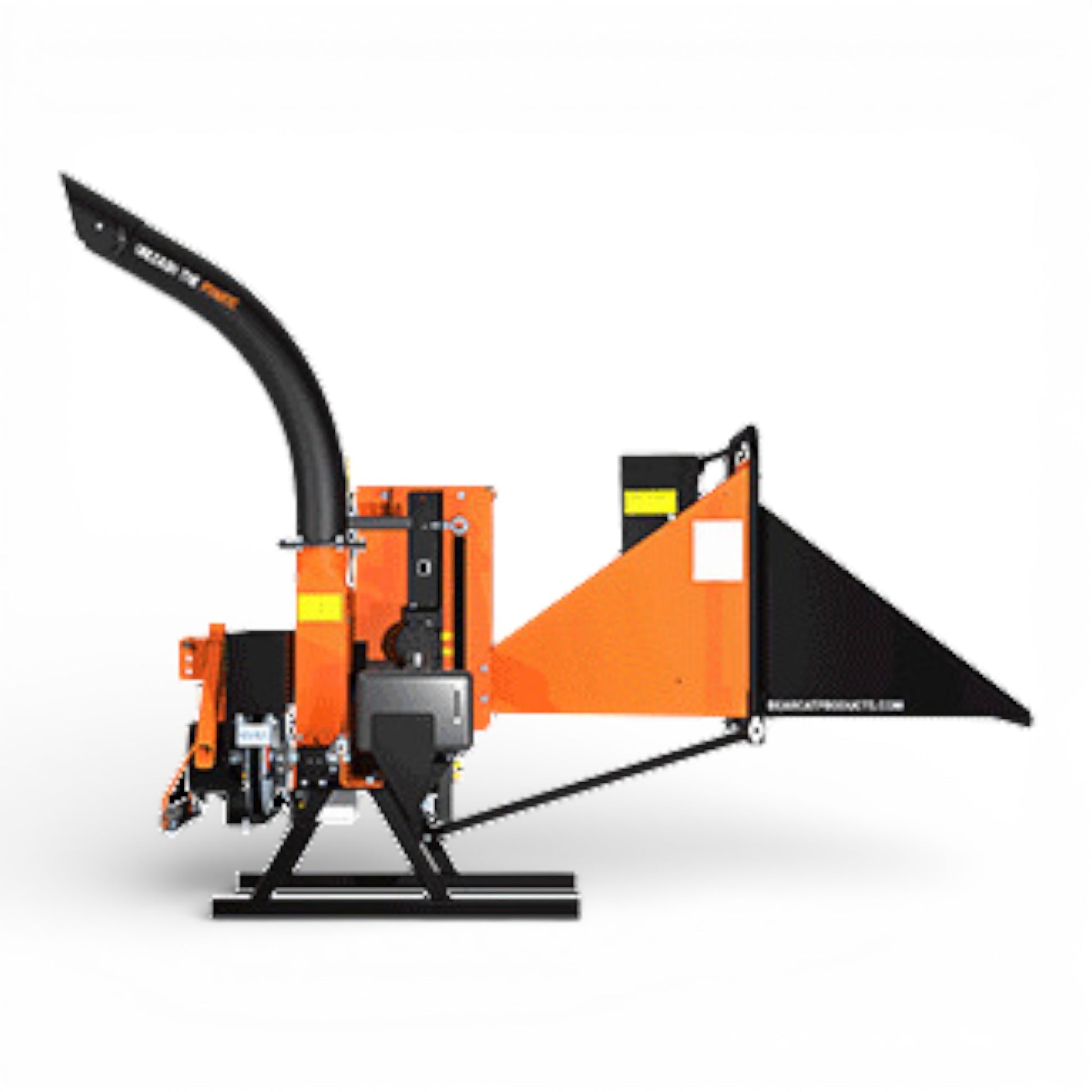

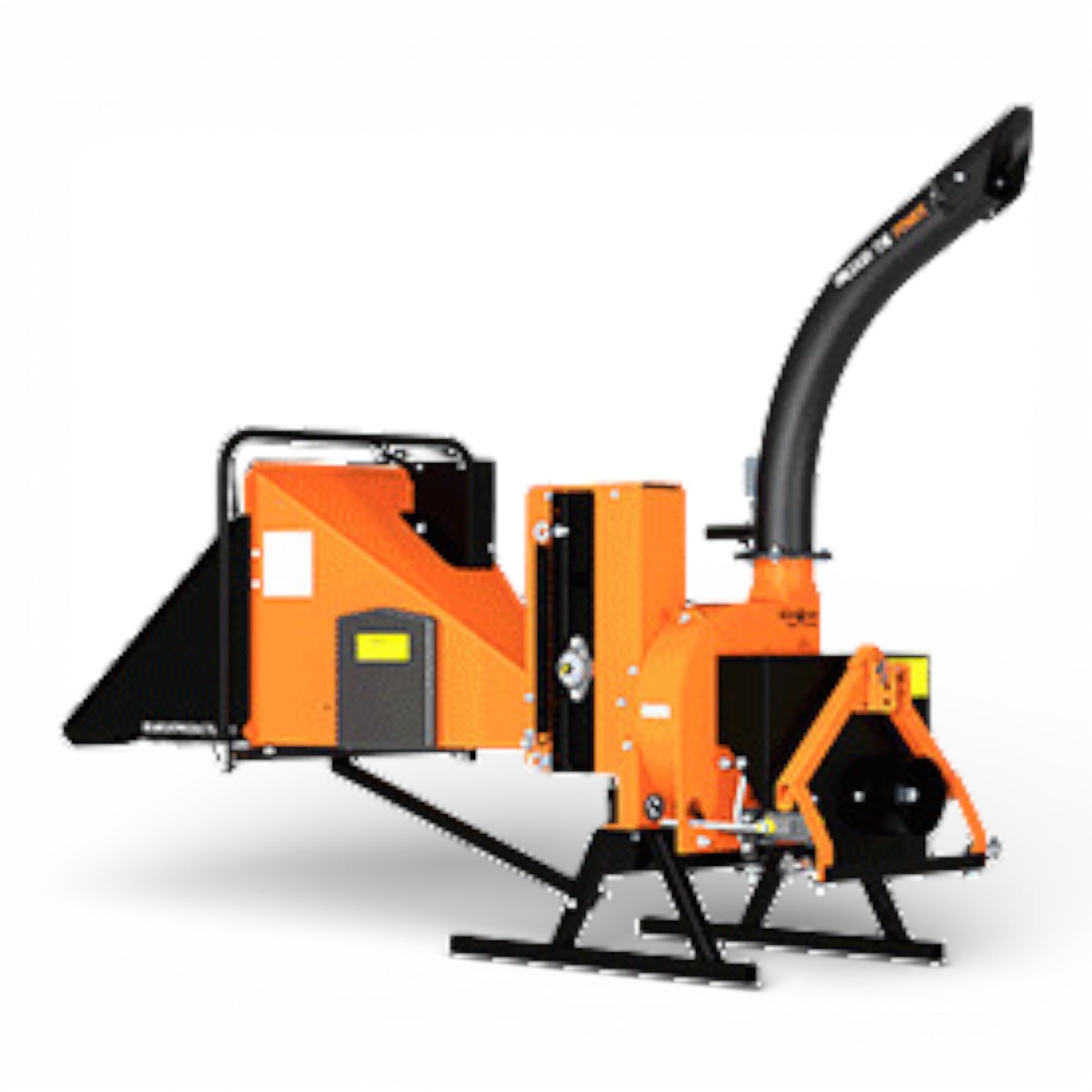

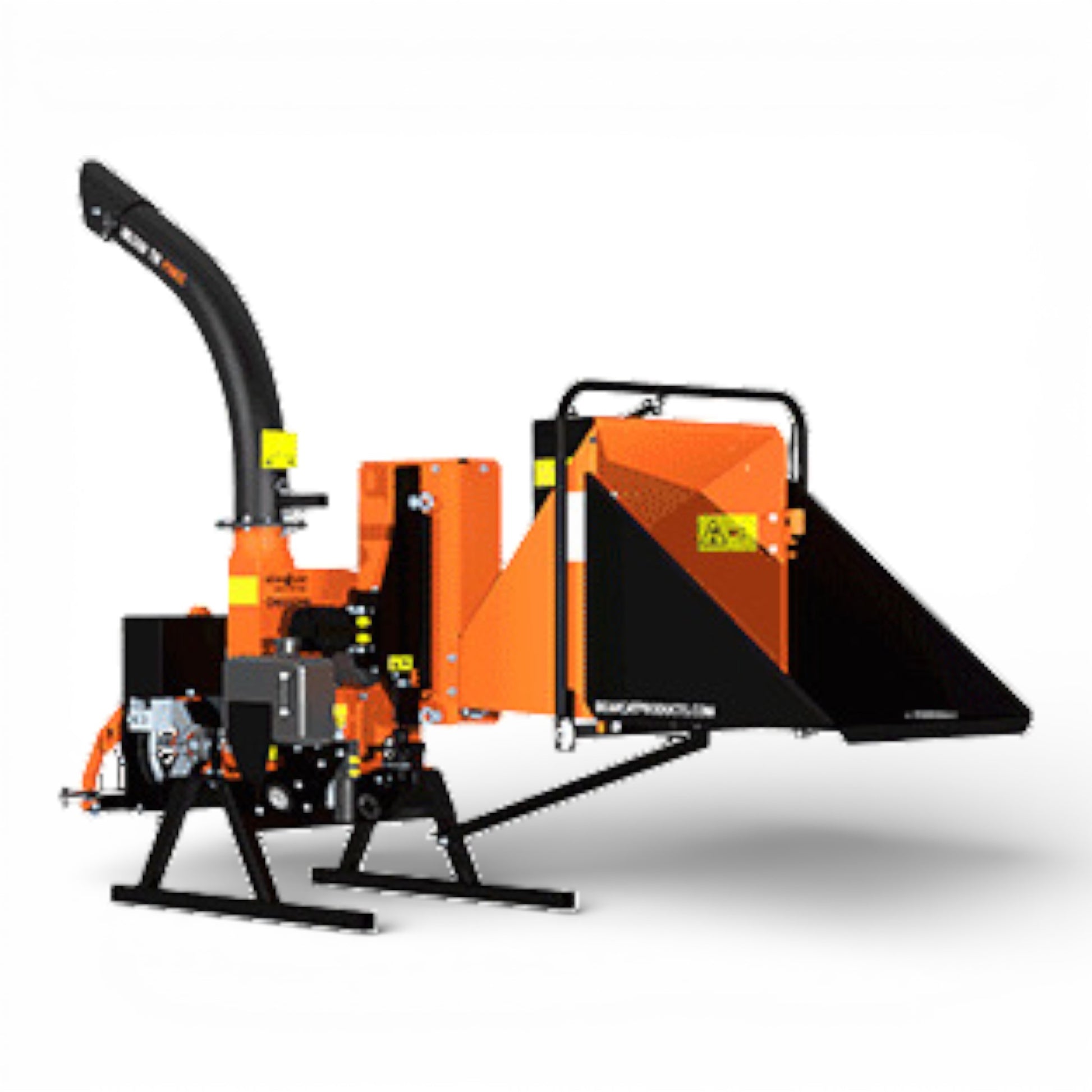

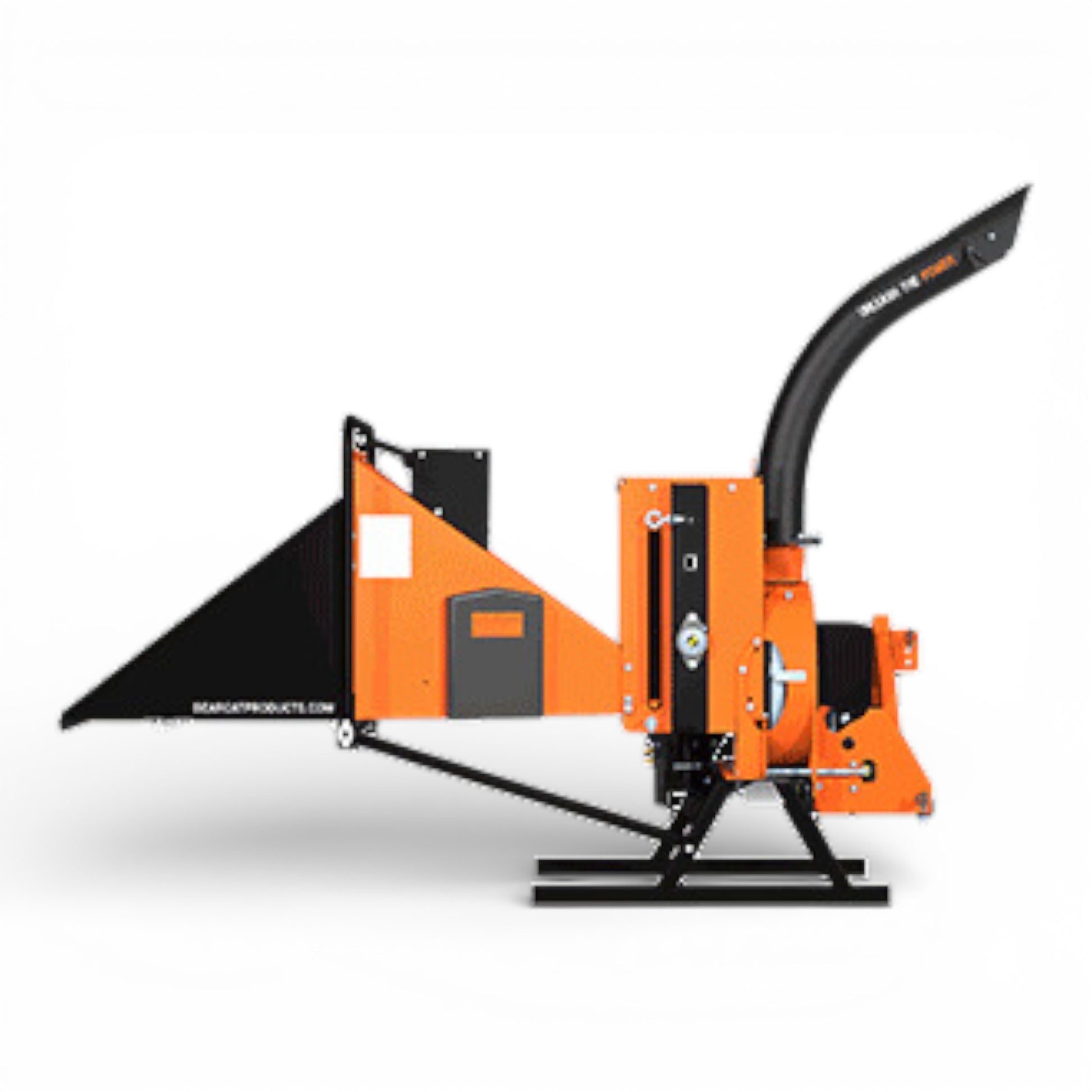

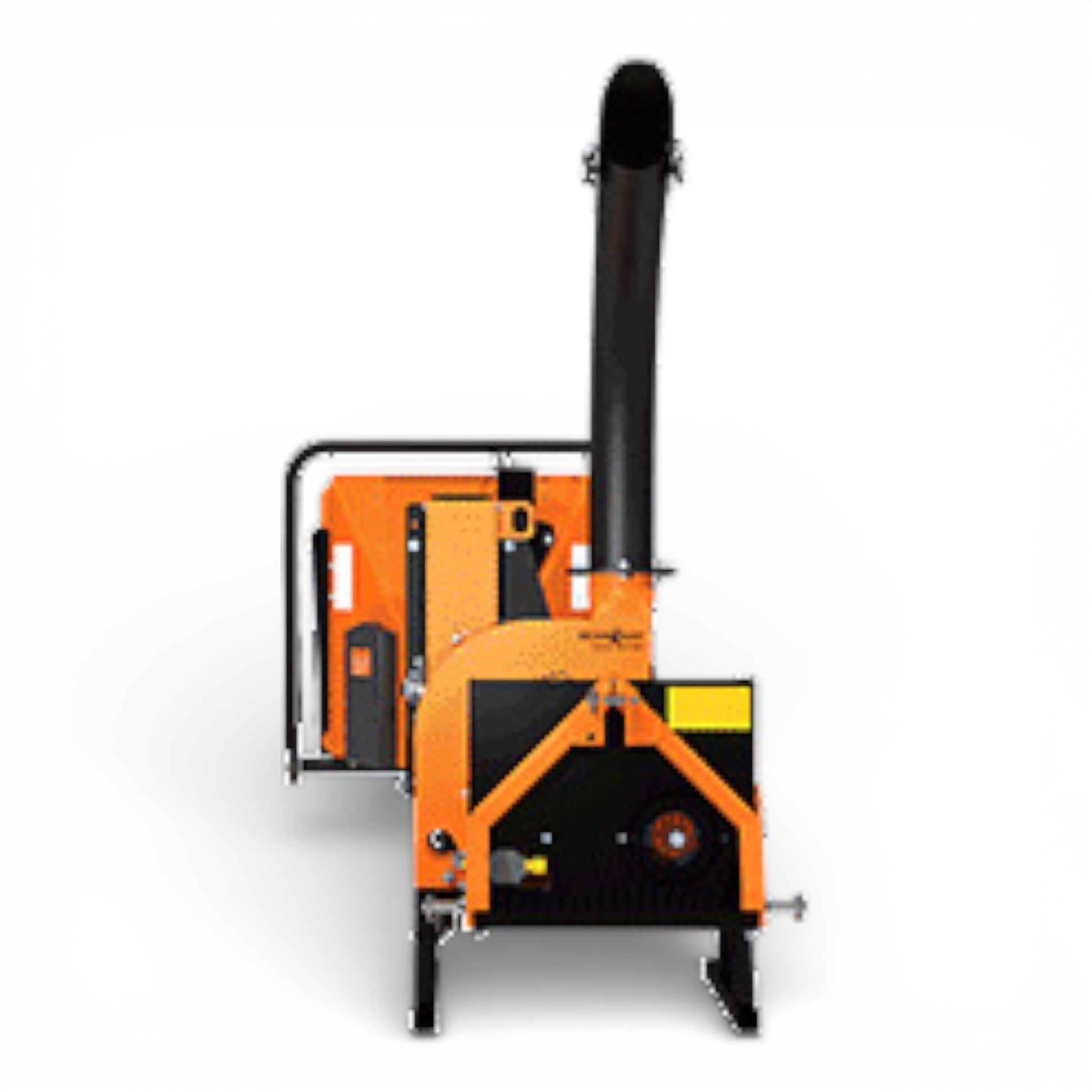

The Crary Bearcat CH5540HM is a powerful 4.5-inch PTO-driven hydraulic feed wood chipper engineered for tractor owners who need efficient, controlled, and consistent chipping performance. Designed for farms, landscaping crews, municipalities, and large property owners, this chipper features a heavy-duty steel rotor, hydraulic feed system, and wide-feed hopper for processing branches and limbs with ease. Built to mount on a Category 1 3-point hitch and operate from a standard 540 RPM PTO, the CH45540HM delivers professional-grade chipping power in a compact, reliable, and easy-to-operate package.

KEY FEATURES

• 4.5-Inch Chipping Capacity: Efficiently processes branches and limbs up to 4.5 inches in diameter.
• 140 lb Heavy-Duty Rotor: 20″ x 1.25″ dynamically balanced steel rotor generates superior cutting force and smooth operation.
• Four Reversible Blades: Heat-treated, double-sided blades provide extended lifespan and consistent cutting performance.
• Large Feed Hopper: Massive 28″ x 28″ hopper allows easy feeding of bulky or uneven materials.
• Hydraulic Feed System: Manually controlled hydraulic feed roller provides steady, adjustable material feeding to reduce operator fatigue.
• 5.7″ x 7″ Throat Opening: Accepts side branches and irregular debris with less trimming required.
• 360° Rotating Discharge Chute: Direct chips in any direction for efficient loading or spreading.
• Category 1 3-Point Hitch: Compatible with most compact and utility tractors for easy mounting.
• PTO-Driven: Designed for tractors with a standard 540 RPM PTO output.
• Durable Construction: Heavy-gauge steel and high-quality components provide long-term reliability.

APPLICATIONS / USE CASES

• Farm & Ranch Work: Clean up tree lines, fence rows, and storm debris.
• Municipal Maintenance: Ideal for road crews, parks departments, and public lands management.
• Landscaping Businesses: Convert brush and branches into valuable mulch.
• Acreage & Estate Management: Maintain wooded areas, orchards, and large private properties.
• Forestry & Trail Management: Clear overgrowth, prune trails, and manage woodland vegetation.

WHAT’S INCLUDED

• Crary Bearcat CH5540HM PTO Hydraulic Wood Chipper
• 140 lb dynamically balanced rotor
• Four reversible heat-treated chipper blades
• 28″ x 28″ feed hopper
• Hydraulic feed system with manual control
• 360° rotating discharge chute
• Category 1 3-point hitch connection
• Operator’s manual
• PTO Dolly Wheel Kit (Set of 4) (Optional)

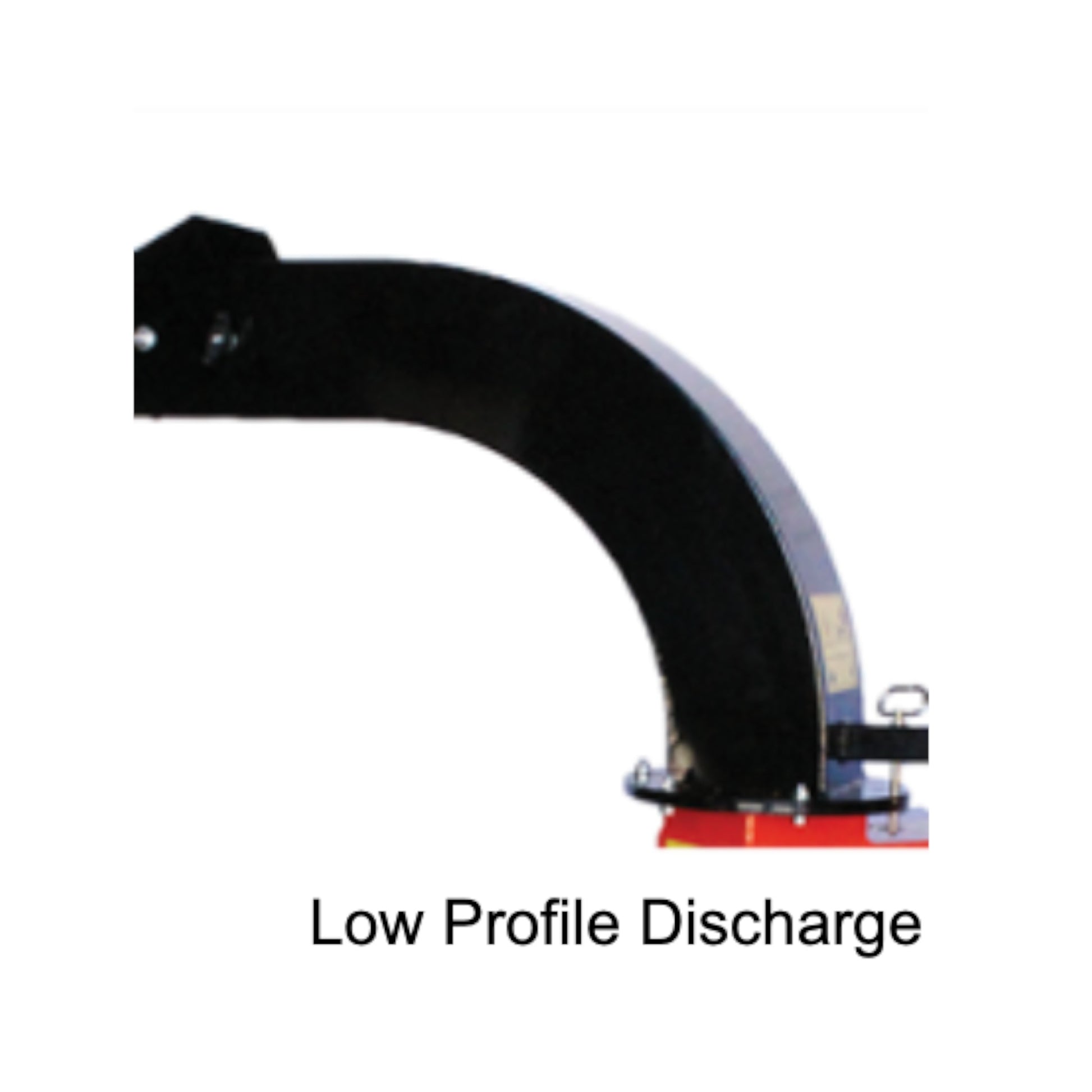

• Low Profile Discharge Chute Kit (Optional)

TECHNICAL SPECIFICATIONS

• PTO Input Power Range: 25 - 45 hp
• Max Chipping Capacity: 5"
• Chute Opening: 28" x 28"
• Chute Throat: 5.7" x 7"
• Rotor Size/Weight: 20" x 1.25"/140 lbs
• Chipping Blades: 4 Reversible Heat-treated
• Drive Type: Double-Banded Belt
• Feed System: Hydraulic
• Hydraulic Control: Manual
• Dimensions L x W x H: 68" x 48" x 83"
• Weight: 980 lbs

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What size tractor is required?
The CH5540HM requires a tractor with 25–45 PTO horsepower and a 540 RPM PTO.

2. Is the feed system automatic?
It features a hydraulic feed system that is manually controlled, allowing you to regulate feed speed as needed.

3. Can it handle wet or stringy wood?
Yes, its cantilever rotor design helps reduce twisting and wrapping of wet, sappy, or fibrous material.

4. How often do the blades need sharpening?
The unit includes four reversible blades. When one side dulls, flip the blade for extended service life before sharpening.

5. Does the discharge chute rotate?
Yes, the 6-inch discharge chute rotates 360 degree, allowing easy placement of chips into a trailer, pile, or truck bed.
