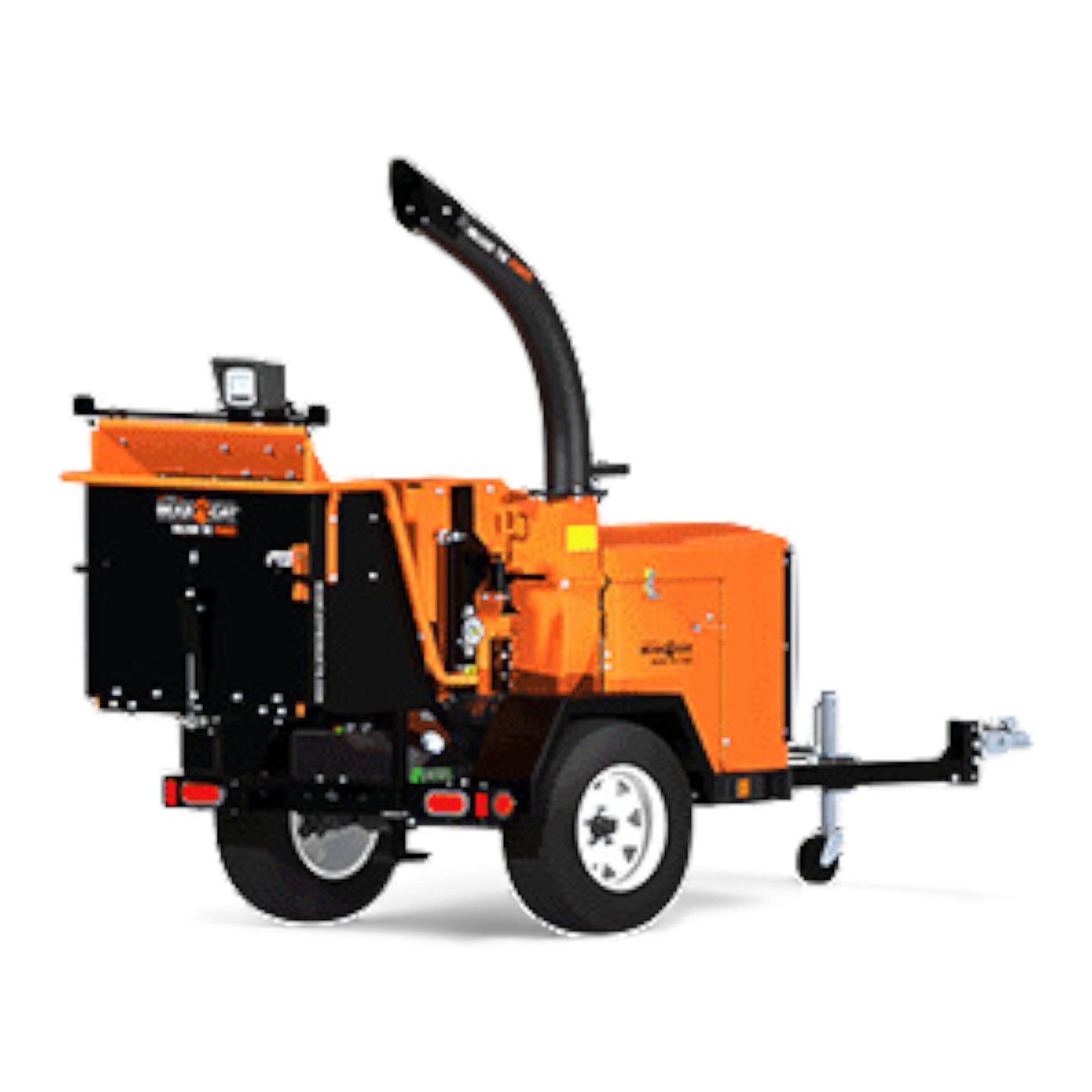

Crary Bear Cat CH611DH 6 Inch Hydraulic Towable Wood Chipper – Kubota Diesel 24.8 HP Engine

The Crary® Bear Cat® CH611DH is a professional-grade, 6-inch hydraulic towable wood chipper engineered for demanding commercial, municipal, and rental applications. Powered by a reliable 24.8 HP Kubota diesel engine, this chipper delivers exceptional torque and long-lasting performance while efficiently processing large limbs, brush, and tough hardwoods. With a powerful hydraulic feed system, Auto-Feed technology, a heavy-duty 165 lb cutting disc, and a fully adjustable discharge chute, the CH611DH is built to maximize productivity and withstand rigorous daily use on any jobsite.

KEY FEATURES

• Engine: Kubota 24.8 HP diesel engine delivers strong, fuel-efficient power for continuous commercial operation.
• 6-Inch Chipping Capacity: Easily handles branches and brush up to 6 inches in diameter.
• Heavy-Duty Cutting Disc: 26” x 1” thick, 165 lb dynamically balanced disc with cantilever design minimizes wrapping and ensures smooth, consistent chipping.
• Four Reversible Blades: Heat-treated and reversible for extended cutting life and reduced maintenance costs.
• Adjustable 4-Sided Anvil: Maintains chipping efficiency and reduces blade wear.
• Hydraulic Feed System: Live variable-speed feed roller with instant reverse for safe and efficient feeding.
• Auto-Feed System: Automatically retries feeding limbs when resistance is detected, maximizing throughput.
• Large Feed Roller: 15” diameter roller provides strong pulling force for dense materials.
• Wide Feed Opening: 6.5” x 13” throat with massive 36” x 35” feed chute mouth for easy loading of bulky debris.
• Rotating Discharge Chute: 360-degree rotation with a 6.7” rectangular discharge for precise chip placement.
• Triple-Banded Belt Drive: Ensures maximum power transfer from the engine to the cutting disc.
• Towable Design: Equipped with 2” coupler, torsion axle suspension, telescopic tongue, adjustable jack stand, and rear stabilizer.
• Battery Sold Separately: Requires user-supplied 12V battery for electric start.

APPLICATIONS / USE CASES

• Tree Service Professionals: Ideal for pruning, removals, lot clearing, and storm cleanup.
• Municipal Maintenance: Used for park cleanup, roadside vegetation control, and public works operations.
• Commercial Landscaping: Efficiently chips brush and limbs from landscape renovations and cleanups.
• Construction & Land Development: Clears wooded areas and processes onsite vegetation waste.
• Rental Fleets: Durable design suitable for high-frequency rental usage with minimal downtime.

WHAT’S INCLUDED

• Crary Bearcat CH611DH Towable Wood Chipper
• Kubota 24.8 HP Diesel Engine (installed)
• Hydraulic Variable-Speed Feed System
• Auto-Feed Control System (factory installed)
• 4 Reversible Chipper Blades (installed)
• Adjustable 4-Sided Anvil
• 360° Rotating Discharge Chute
• 2" Tow Hitch Coupler
• Torsion Axle Suspension, Jack Stand, and Rear Stabilizer
• Operator & Safety Manual
• Gas Tach/Hour Meter (Optional)

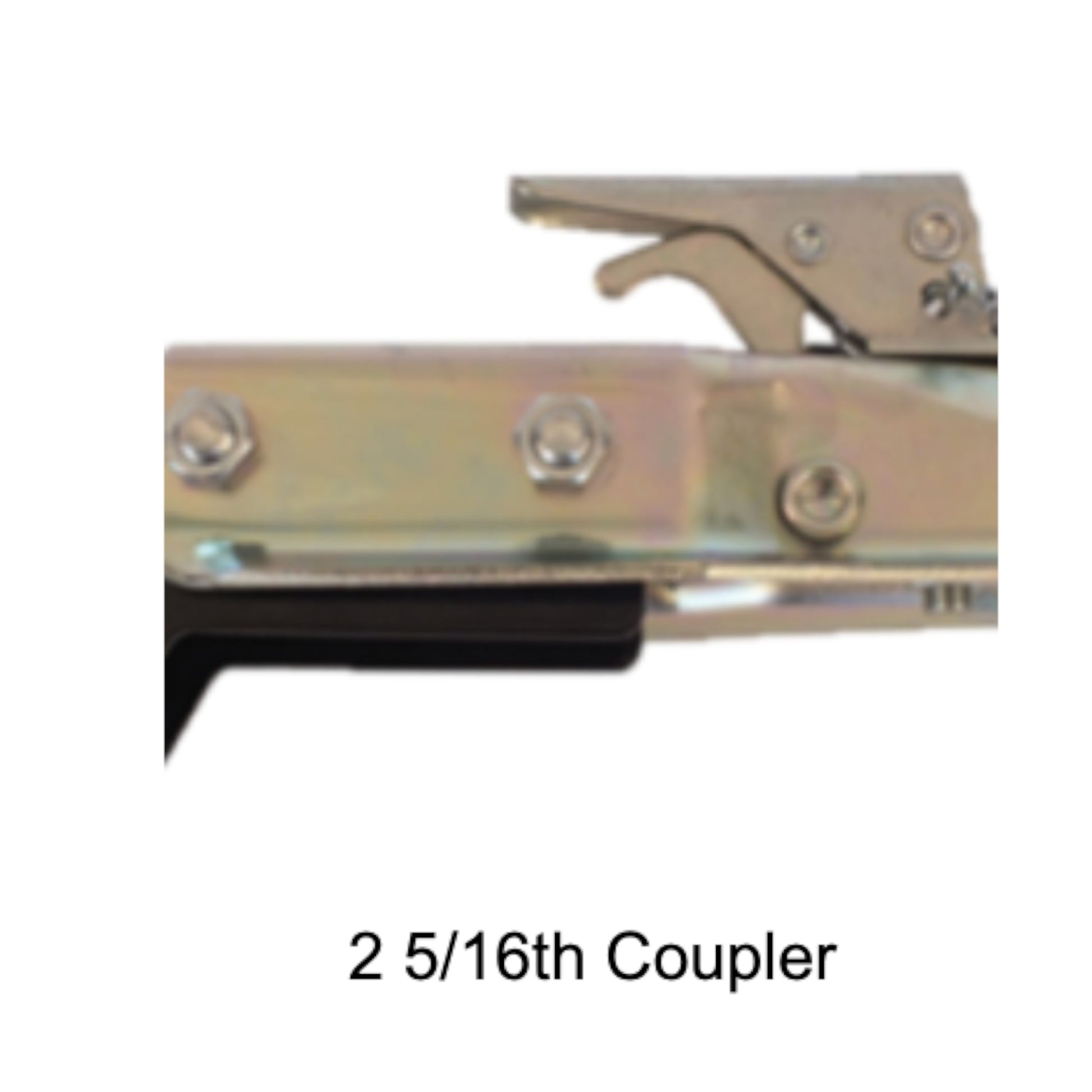

• 2-5/16" 20000 lb Coupler (Optional)

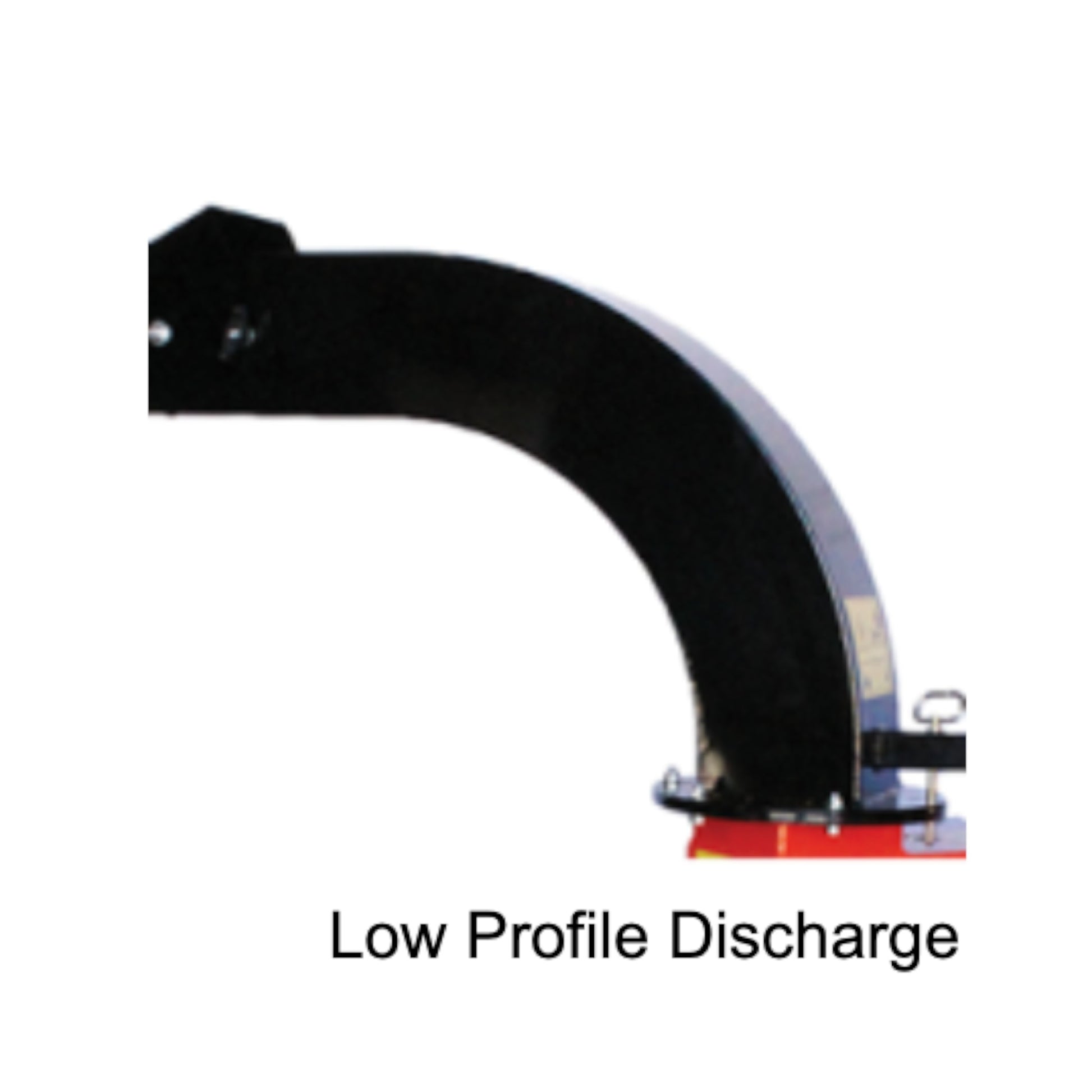

• Low Profile Discharge Kit (Optional)
• Battery (Not Included)

TECHNICAL SPECIFICATIONS

• Engine: Kubota Diesel
• Gross HP: 24.8
• Starter Type: Electric
• Displacement: 1.1 Liter
• Chute Opening: 33" x 36"
• Chute Throat: 6" x 13"
• Rotor Size/Weight: Cantilever 26" x 1"/165 lbs
• Chipping Blades: 4 Reversible Heat-treated
• Drive Type: Triple-Banded Belt
• Feed System: Hydraulic
• Feed Roller Diameter: 12"
• Max Chipping Capacity: 6"
• Hydraulic Controller: DDC System
• Dimensions L x W x H: 170" x 59" x 97"
• Transport Length: 144"
• Weight: 2,045 lbs
• Wheel Base: 50"
• Wheels/Tires: ST205/75R15

FREQUENTLY ASKED QUESTIONS (FAQ)

1. Does the CH611DH include a battery?
No. A 12V battery for the electric start system must be purchased separately.

2. What size material can this chipper handle?
The CH611DH is rated for branches and brush up to 6 inches in diameter.

3. What is the benefit of the cantilever disc design?
It reduces wrapping of stringy or wet materials, leading to smoother operation and less downtime.

4. How does the Auto-Feed system improve performance?
It automatically stops and retries feeding when needed, maintaining optimal disc speed and maximizing chipper productivity.

5. Is this machine suitable for professional or municipal use?
Yes. Its diesel power, hydraulic feed system, heavy-duty construction, and towable design make it ideal for municipalities, contractors, arborists, and rental operations.
