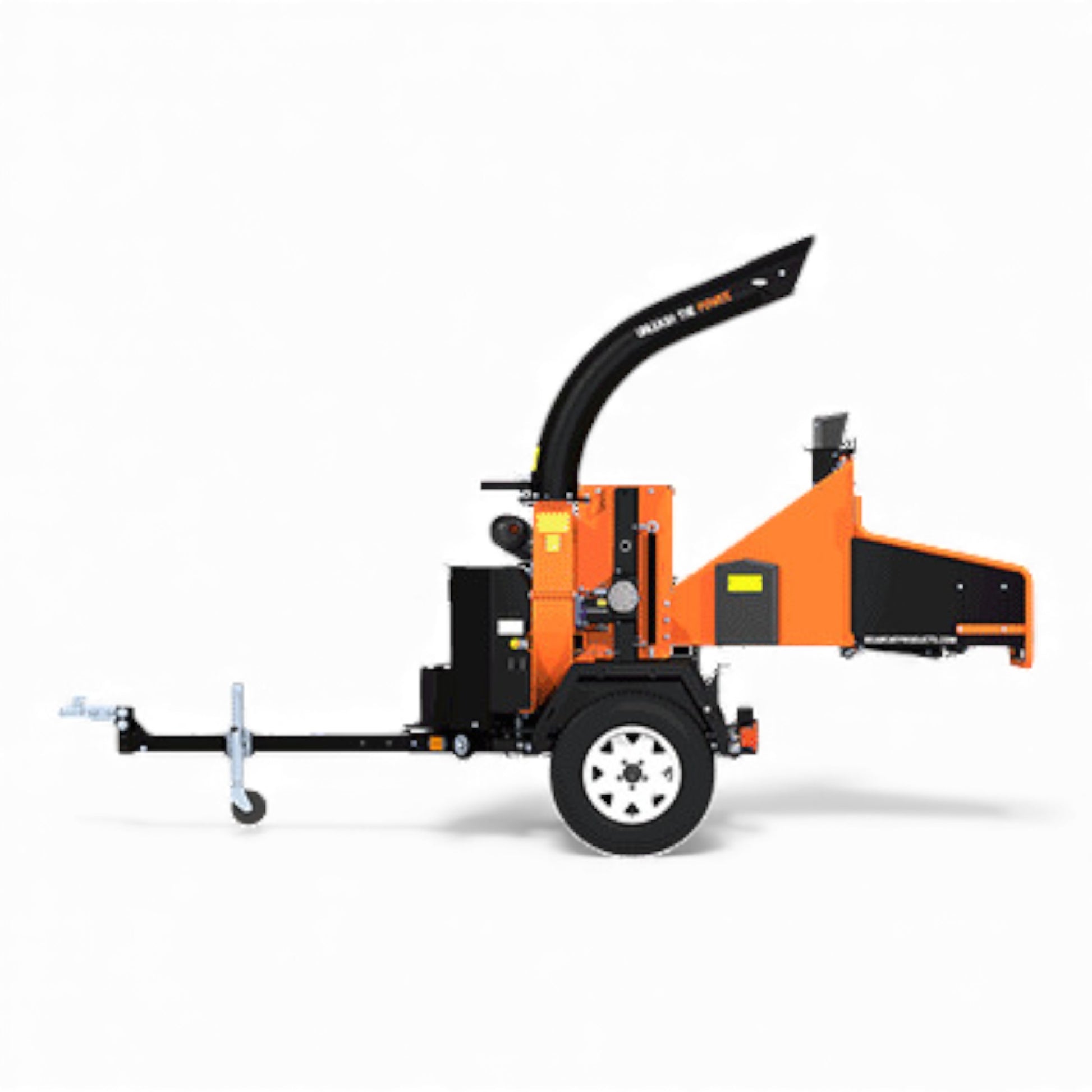

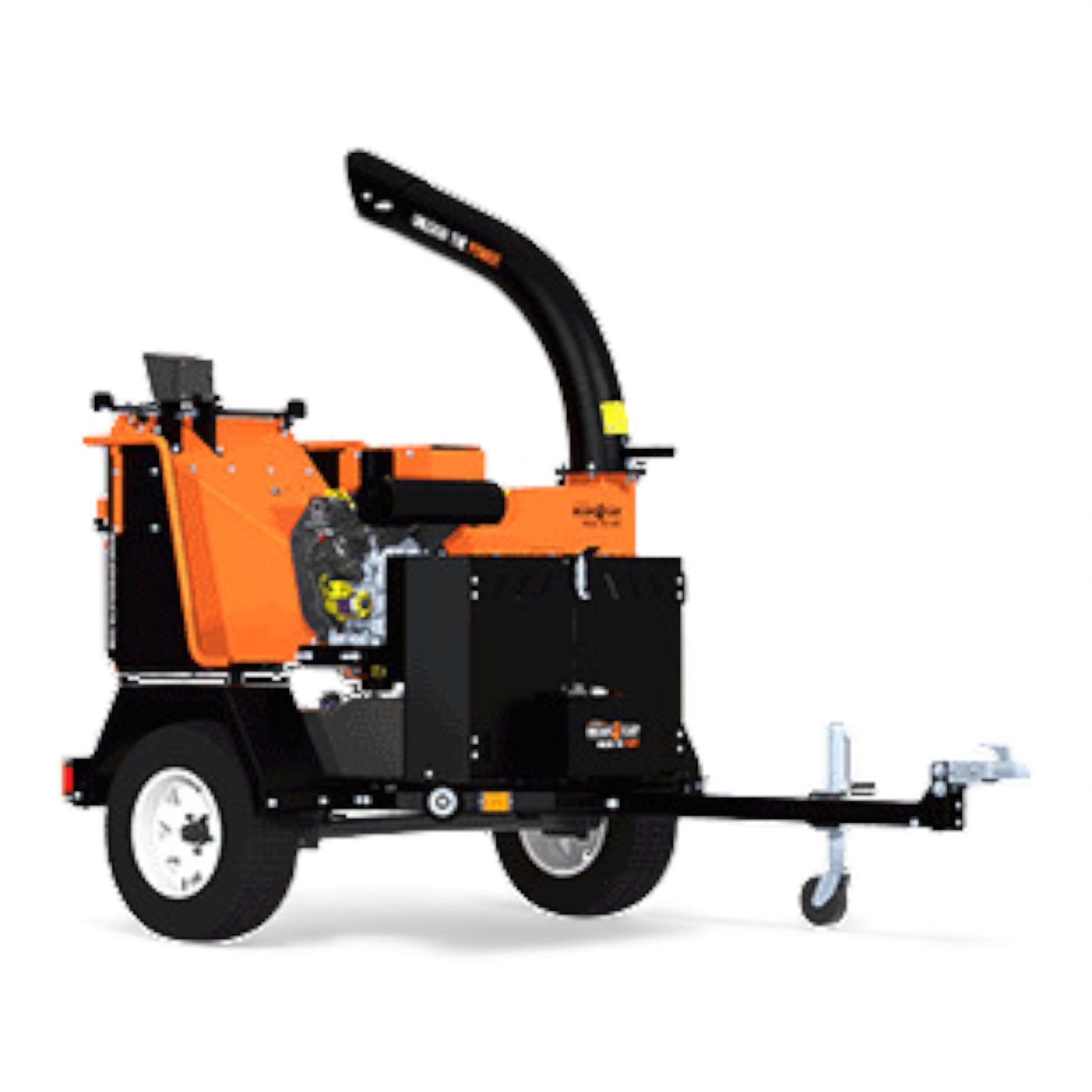

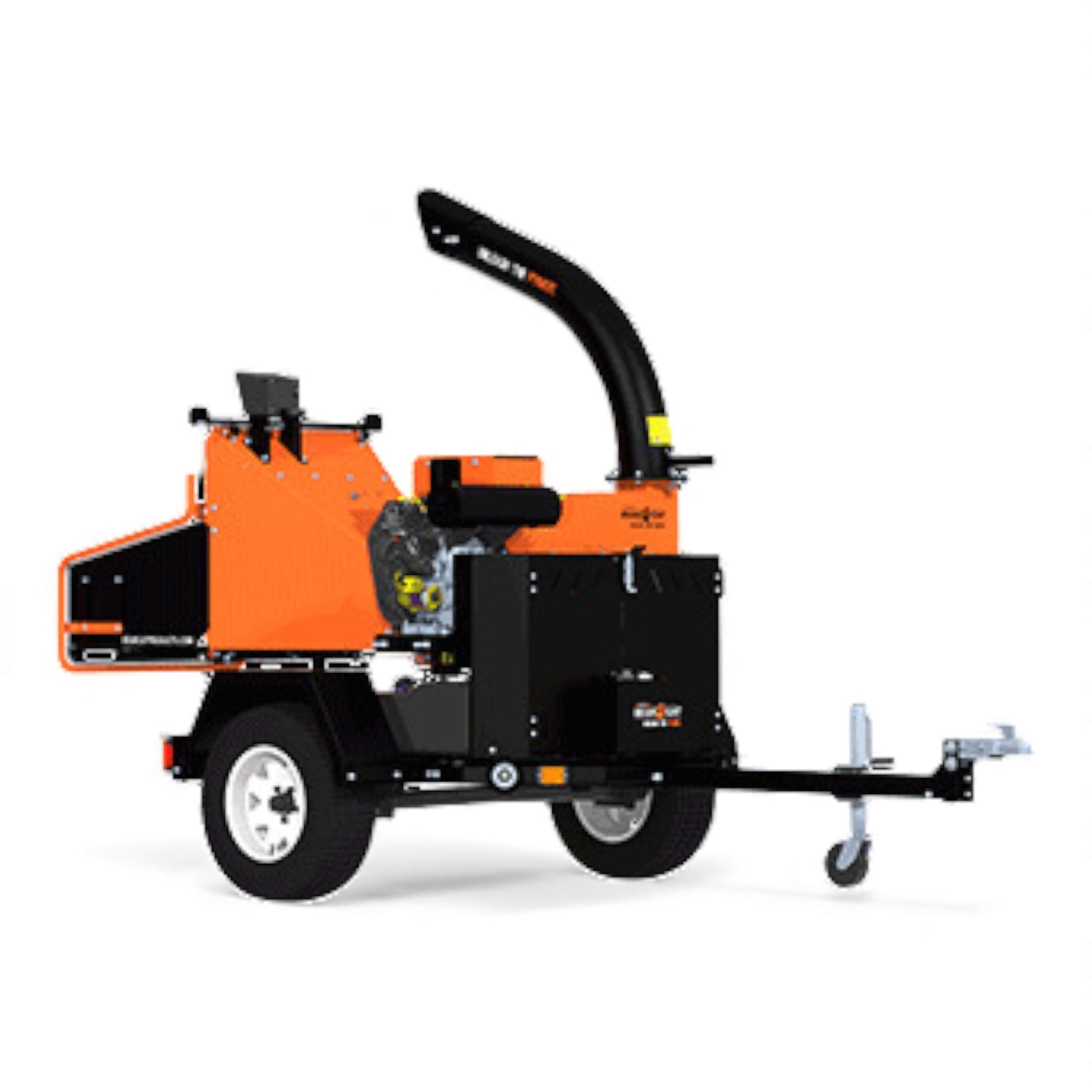

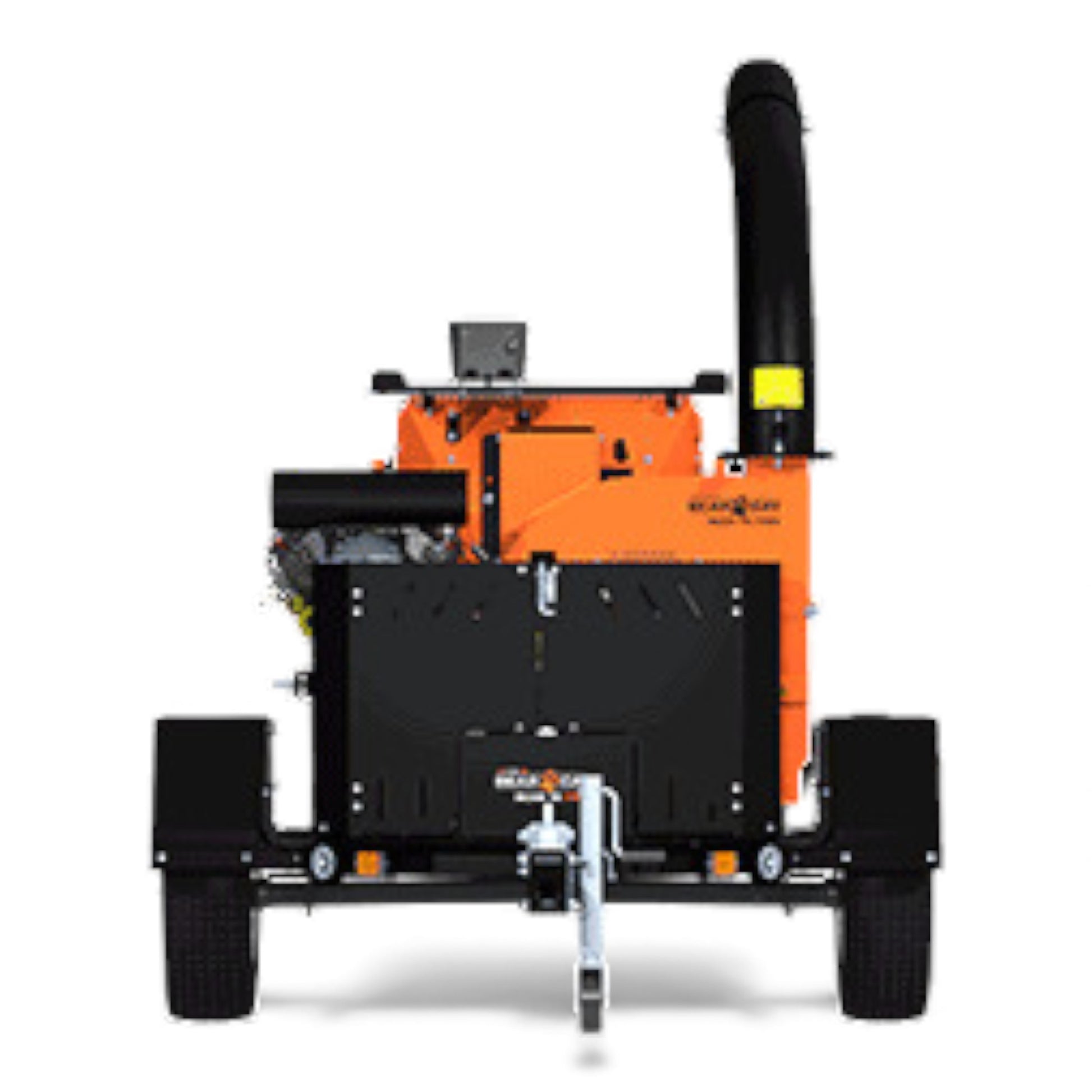

Crary Bear Cat CH8993H 9 Inch Hydraulic Towable Turntable Wood Chipper – Briggs & Stratton Vanguard 35 HP Engine

The Crary® Bear Cat® CH8993H is a powerful 9-inch hydraulic towable wood chipper engineered for high-volume commercial, municipal, and forestry operations. Featuring a 360-degree rotating turntable base, heavy-duty hydraulic feed system, and a robust 35 HP Briggs & Stratton Vanguard engine, this chipper is built to maximize efficiency, reduce operator fatigue, and streamline material handling. Designed for tree services, public works departments, and large-scale land clearing, the CH8993H provides exceptional performance, durability, and flexibility on demanding job sites.

KEY FEATURES

• Engine: Briggs & Stratton Vanguard 35 HP commercial-grade engine delivers strong, reliable power for continuous heavy-duty chipping.
• 9-Inch Chipping Capacity: Efficiently processes branches, limbs, and brush up to 9 inches in diameter.
• 360° Rotating Turntable Base: Easily rotate the infeed toward the work area, minimizing repositioning and improving workflow efficiency.
• Hydraulic Feed System: Provides controlled, consistent feeding of material for safer and more productive operation.
• Smart Feed Technology: Automatically adjusts feeding based on load and engine performance for maximum throughput.
• Swing-Away Service Door: Covers belts and hydraulic components during operation and opens quickly for simple maintenance.
• Heavy-Duty Construction: Built for rugged commercial use with reinforced components and long-lasting engineering.
• Towable Design: Includes a 2-inch coupler for easy towing behind trucks or work vehicles.
• Battery Sold Separately: Requires a user-supplied 12V battery for electric start.

APPLICATIONS / USE CASES

• Tree Service Operations: Perfect for routine trimming, removals, and storm cleanup.
• Municipal & Public Works: Ideal for roadside clearing, park maintenance, and vegetation management.
• Landscaping Contractors: Efficient for chipping brush from property cleanups and landscape overhauls.
• Forestry & Land Clearing: Useful in managing wooded lots, clearing dense material, and preparing land for development.
• Rental Companies: Durable design stands up to frequent rental use with minimal maintenance needs.

WHAT’S INCLUDED

• Crary Bearcat CH8993H Turntable Wood Chipper
• Briggs & Stratton Vanguard 35 HP Engine (installed)
• Hydraulic Feed System with Smart Feed Control
• 360° Rotating Turntable Infeed
• Swing-Away Service Door
• 2" Tow Hitch Coupler
• Operator & Safety Manual
• Gas Tach/Hour Meter (Optional)
• 2-5/16" 20000 lb Coupler (Optional)

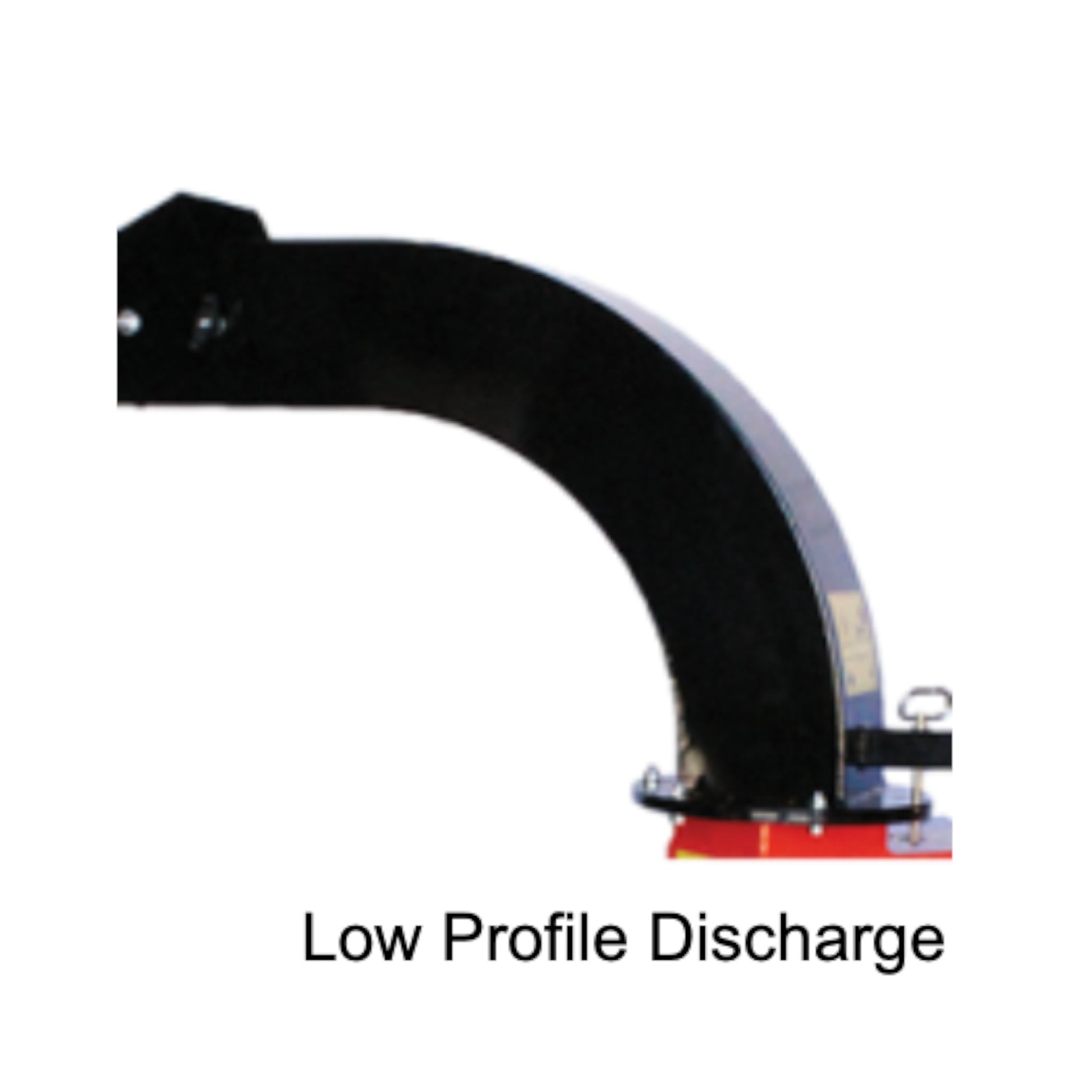

• Low Profile Discharge Kit (Optional)
• Battery (Not Included)

TECHNICAL SPECIFICATIONS

• Engine: Briggs & Stratton Vanguard
• Gross HP: 35
• Starter Type: Electric
• Displacement: 993cc
• Chute Opening: 31" x 31"
• Chute Throat: 9" x 9"
• Rotor Size/Weight: 30" x 1.25"/275 lbs
• Chipping Blades: 4 Reversible Heat-treated
• Drive Type: Triple-Banded Belt
• Feed System: Hydraulic
• Auto Feed: Yes
• Max Chipping Capacity: 9"
• Hydraulic Controller: DDC System
• Dimensions L x W x H: 140" x 79" x 102"
• Weight: 2,252 lbs
• Wheel Base: 69"
• Wheels/Tires: ST205/75R15

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What size material can the CH8993H chip?
It can process branches and brush up to 9 inches in diameter, making it suitable for heavy-duty commercial work.

2. Does the unit come with a battery?
No. A 12V battery must be purchased separately to operate the electric start system.

3. What is the benefit of the 360° rotating turntable?
It allows the operator to rotate the infeed chute toward the work site, reducing repositioning time and increasing efficiency.

4. How does the Smart Feed system help?
Smart Feed automatically adjusts or pauses the feed roller to maintain optimal engine RPM, preventing stalls and improving productivity.

5. Is this chipper suitable for municipal or commercial use?
Yes. The powerful 35 HP engine, hydraulic feed system, and heavy-duty construction make it ideal for municipalities, contractors, and land clearing professionals.
