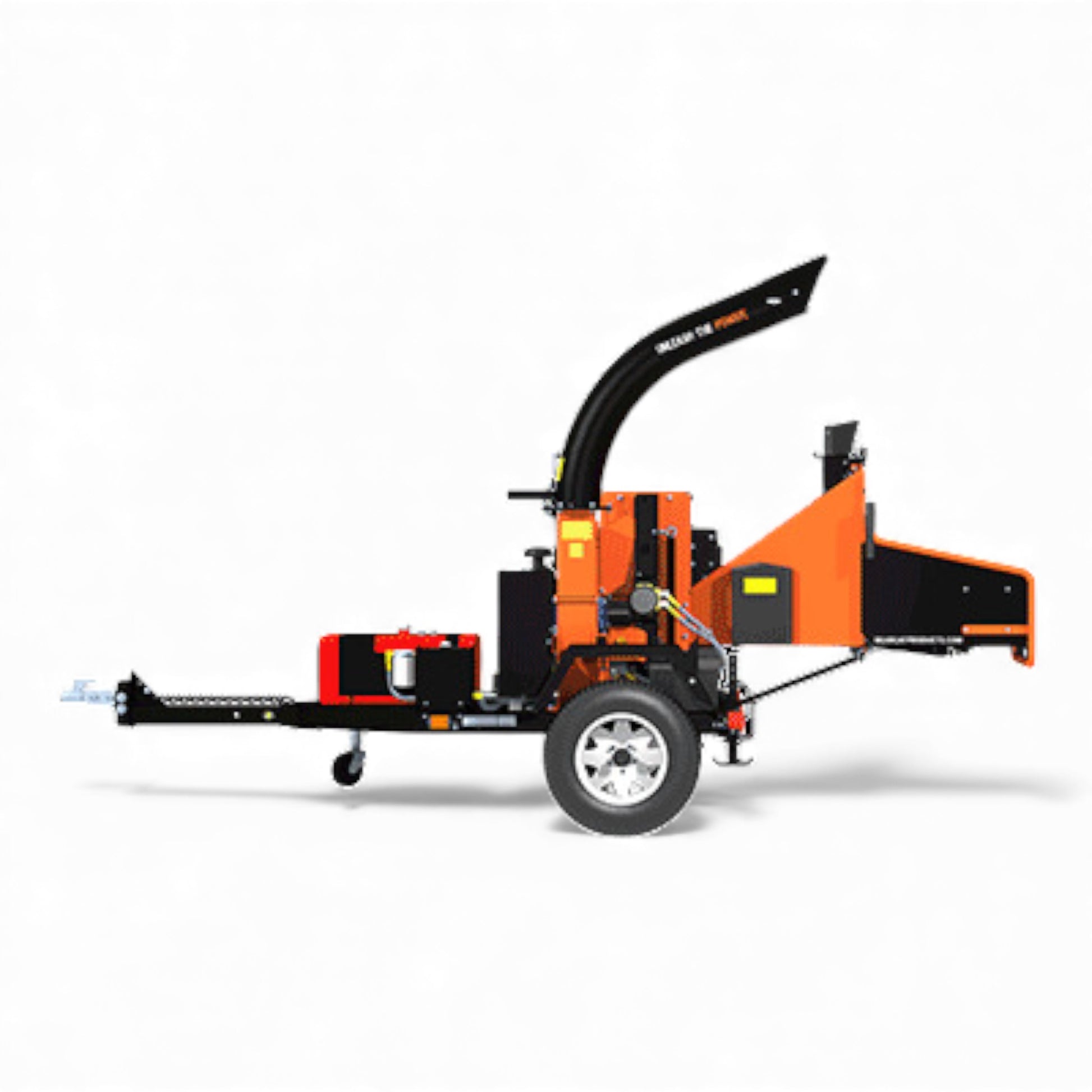

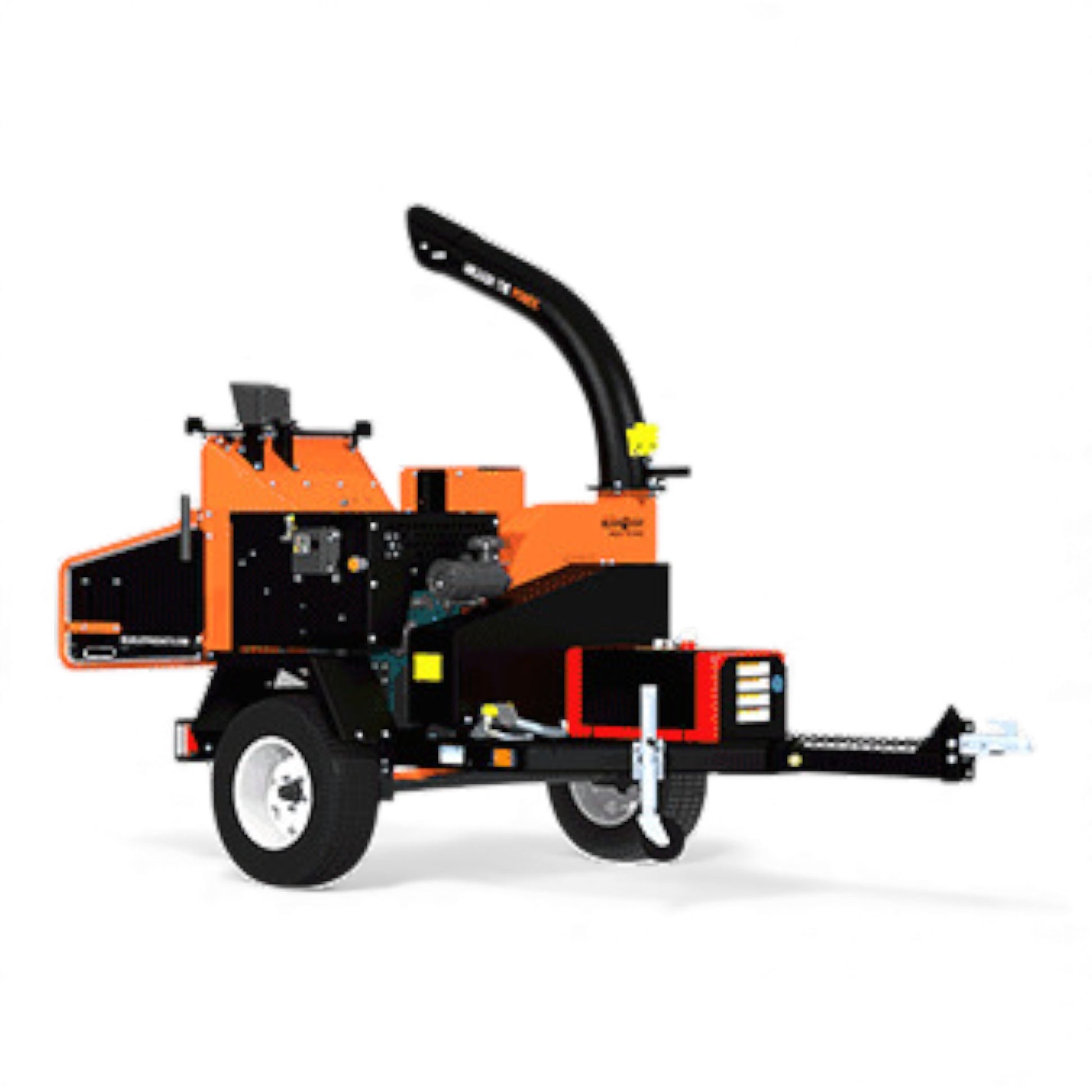

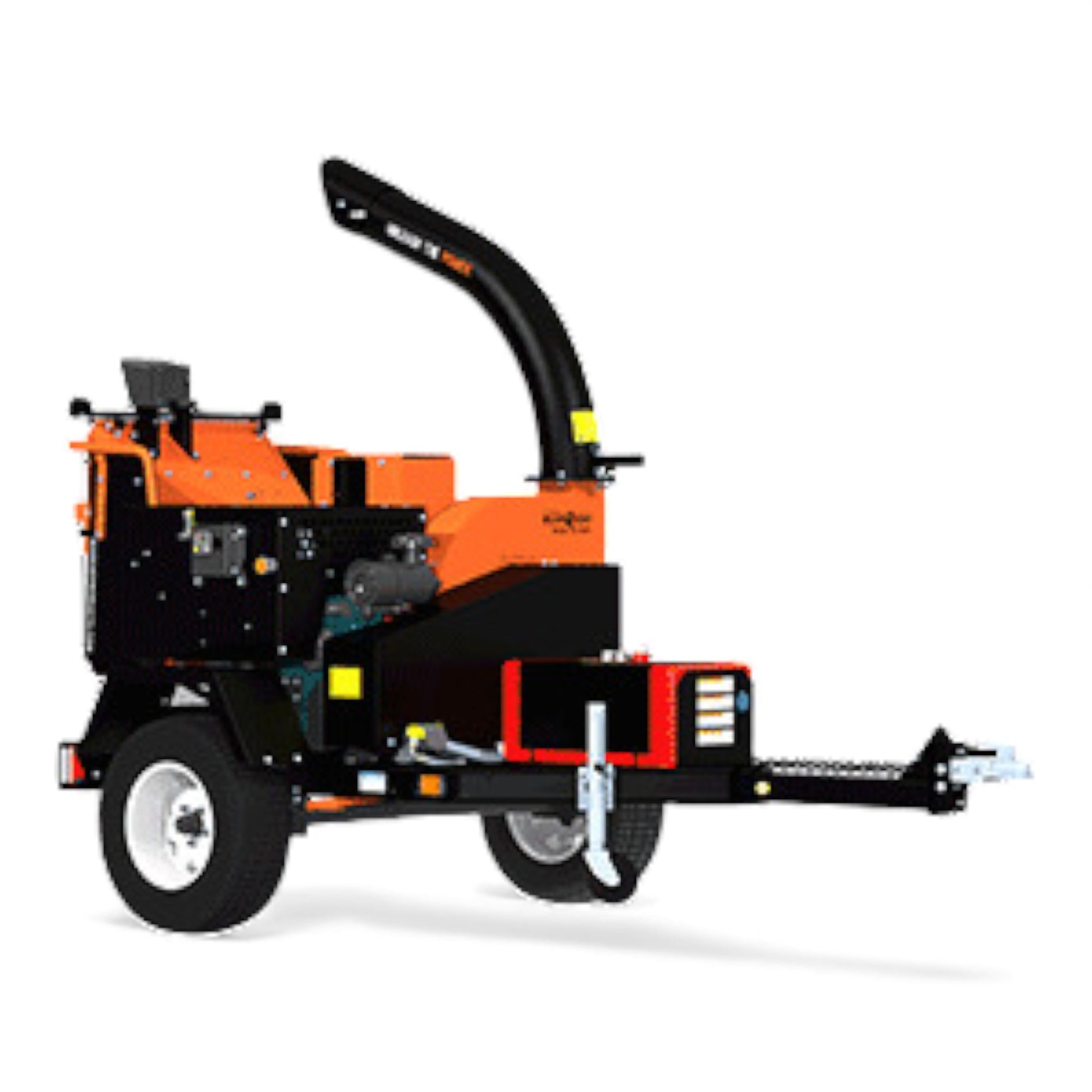

Crary Bear Cat CH911DH 9 Inch Hydraulic Towable Wood Chipper – Kubota Diesel 24.8 HP Engine

The Crary® Bear Cat® CH911DH is a heavy-duty 9-inch hydraulic towable wood chipper engineered for large-scale commercial, municipal, and forestry applications. Powered by a highly reliable Kubota 24.8 HP diesel engine, this machine delivers exceptional chipping force, long run time, and outstanding durability. Designed to process full trees, thick limbs, and oversized brush, the CH911DH excels in demanding environments where maximum productivity and low operating cost are essential. With hydraulic feed control, a massive 275 lb chipper disc, and a rugged towable frame, this chipper is built for professionals who need uncompromising performance.

KEY FEATURES

• Engine: Kubota 24.8 HP diesel engine provides reliable, fuel-efficient performance for long, continuous chipping sessions.
• 9-Inch Chipping Capacity: Easily chips branches, logs, and brush up to 9 inches in diameter.
• Massive 275 lb Chipper Disc: A 30-inch diameter, 1.25-inch thick dynamically balanced disc delivers tremendous chipping power.
• 15-Inch Feed Roller: Equipped with 10 knife blades for strong, consistent material feeding.
• Four Reversible Chipping Blades: Heat-treated blades ensure long life and reduced maintenance costs.
• Adjustable 4-Sided Anvil: Maintains cutting precision and prolongs blade life.
• Triple-Banded Belt Drive: Provides positive power transfer and long-lasting reliability.
• Hydrostatic Feed Control: Infinite feed rate adjustment for safe and efficient material processing.
• Tow-Ready Design: Built on a 4-inch “C” channel steel frame with torsion axle suspension for smooth transport.
• 8-Inch Round Discharge Chute: Directs chips efficiently and adjusts to different loading angles.
• Large 18-Gallon Fuel Tank: Maximizes working time between refills.
• Hinged Disc Cover: Allows quick access for servicing and maintenance.
• Battery Sold Separately: Requires a 12V battery for electric start.

APPLICATIONS / USE CASES

• Forestry and Land Clearing: Ideal for reducing large logs, storm debris, and heavy brush.
• Municipal Operations: Perfect for roadside clearing, parks maintenance, and storm cleanup.
• Tree Service Companies: Handles demanding trimming and removal operations with ease.
• Construction & Development: Clears vegetation and prepares lots efficiently.
• Rental Yards: Strong and durable design ideal for frequent use by contractors and homeowners.

WHAT’S INCLUDED

• Crary Bearcat CH911DH 9" Towable Hydraulic Wood Chipper
• Kubota 24.8 HP Diesel Engine (installed)
• Hydraulic Feed System with Control Lever
• 275 lb Chipper Disc with Reversible Blades
• Telescoping Tow Tongue with 2" Coupler
• Torsion Axle Suspension
• Operator & Safety Manual
• Gas Tach/Hour Meter (Optional)
• 2-5/16" 20000 lb Coupler (Optional)

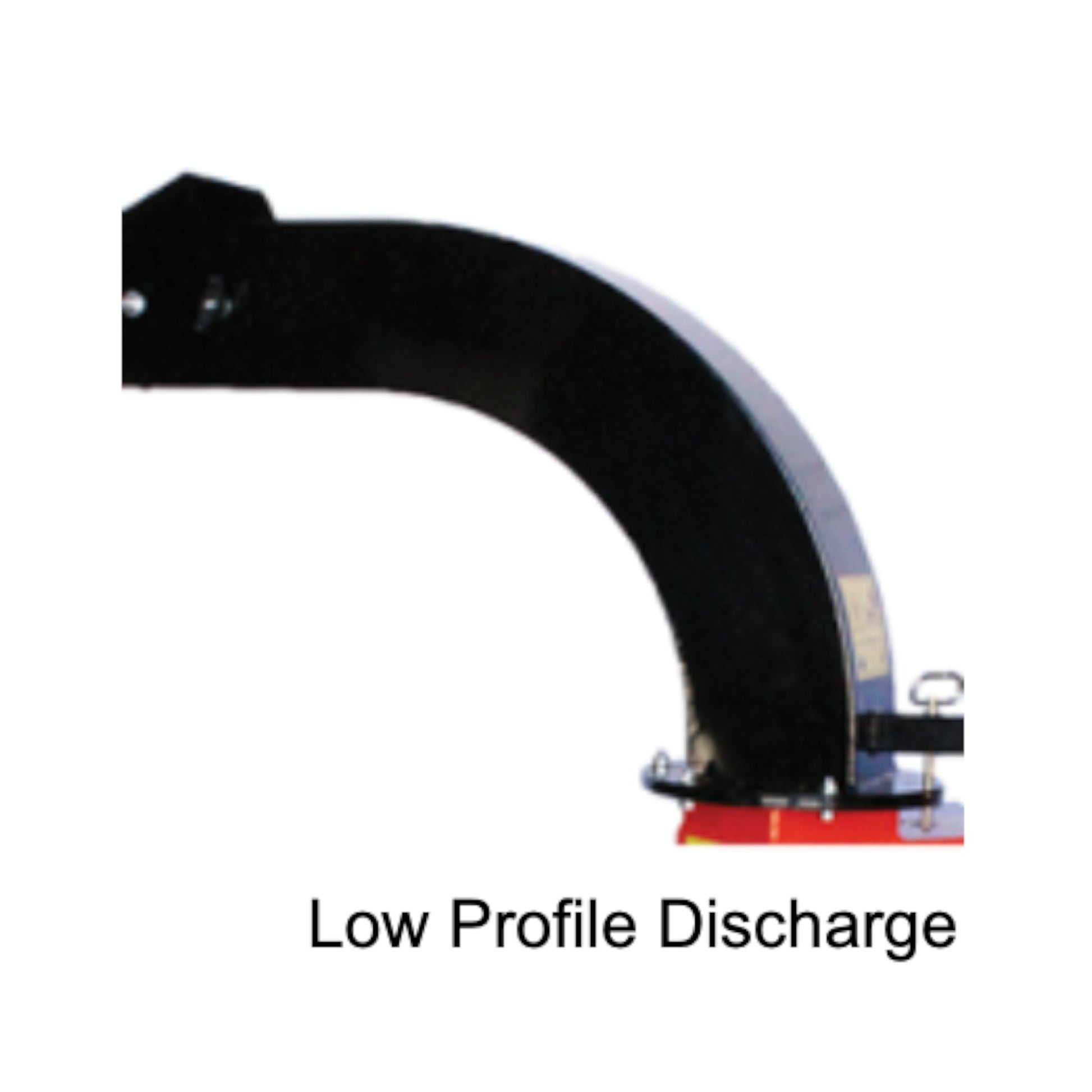

• Low Profile Discharge Kit (Optional)
• Electric Brake Kit (Optional)

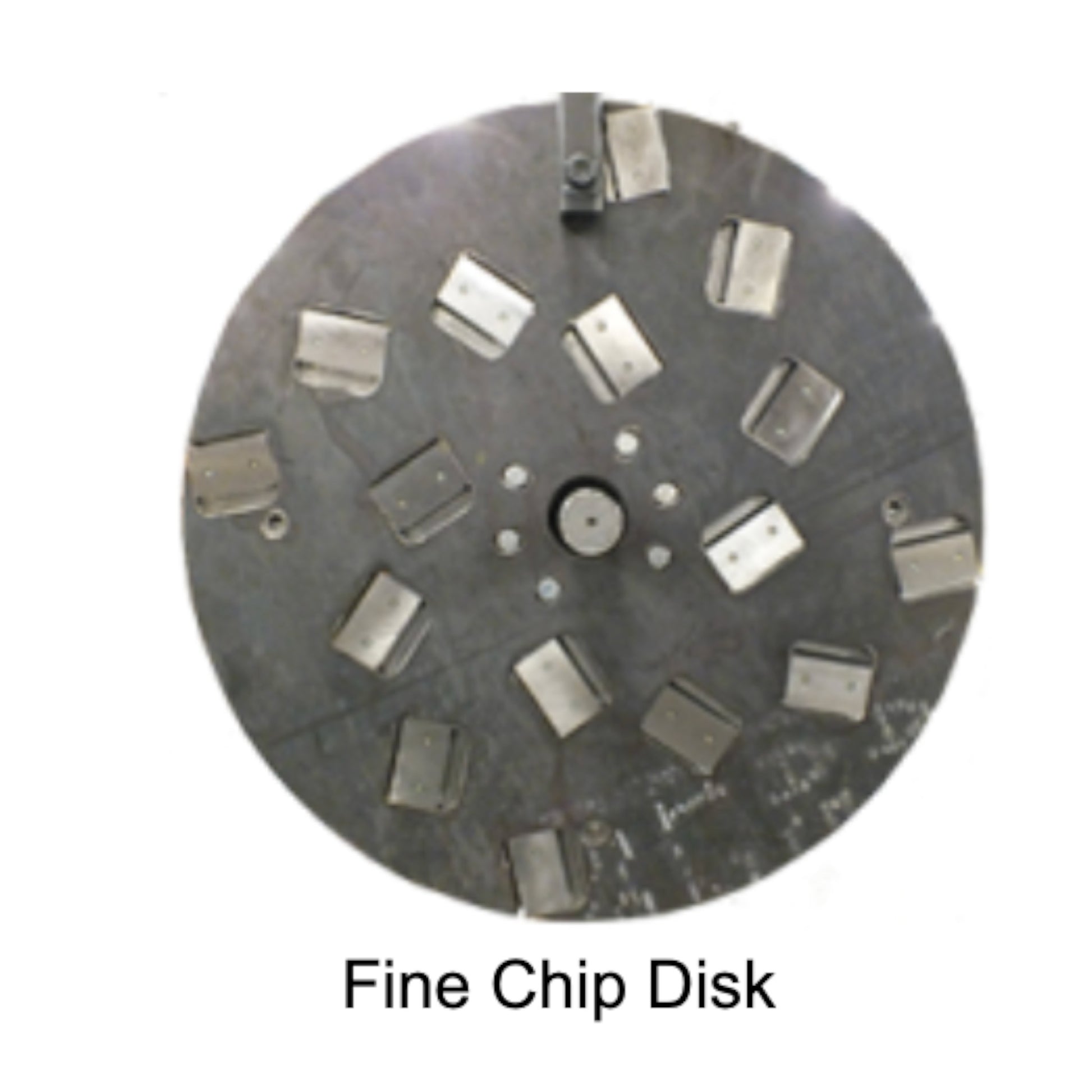

• Fine Chip Rotor Assembly Kit (Optional)
• Battery (Not Included)

TECHNICAL SPECIFICATIONS

• Engine: Kubota Diesel
• Gross HP: 24.8
• Starter Type: Electric
• Displacement: 1.1 Liter
• Chute Opening: 31" x 31"
• Chute Throat: 9" x 9"
• Rotor Size/Weight: 30" x 1.25"/275 lbs
• Chipping Blades: 4 Reversible Heat-treated
• Drive Type: Triple-Banded Belt
• Feed System: Hydraulic
• Auto Feed: Yes
• Max Chipping Capacity: 9"
• Hydraulic Controller: DDC System
• Dimensions L x W x H: 145" x 79" x 100"
• Weight: 2,509 lbs
• Wheel Base: 69"
• Wheels/Tires: ST205/75R15

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What size material can the CH911DH chip?
This model can process logs, limbs, and brush up to 9 inches in diameter, making it ideal for heavy commercial and municipal use.

2. Does it come with a battery for the electric start?
No. The unit requires a user-supplied 12V battery, which is not included.

3. How does the hydrostatic feed control help?
It allows the operator to infinitely adjust the feed speed for optimal performance, safety, and reduced wear on components.

4. What is the advantage of the 275 lb chipper disc?
The large, heavy disc produces superior inertia and cutting force, enabling faster and smoother chipping of tough or large material.

5. Is the CH911DH suitable for towing on public roads?
Yes. It includes a 2-inch coupler and torsion axle suspension for stable road towing, but local regulations should always be checked.
