Features:

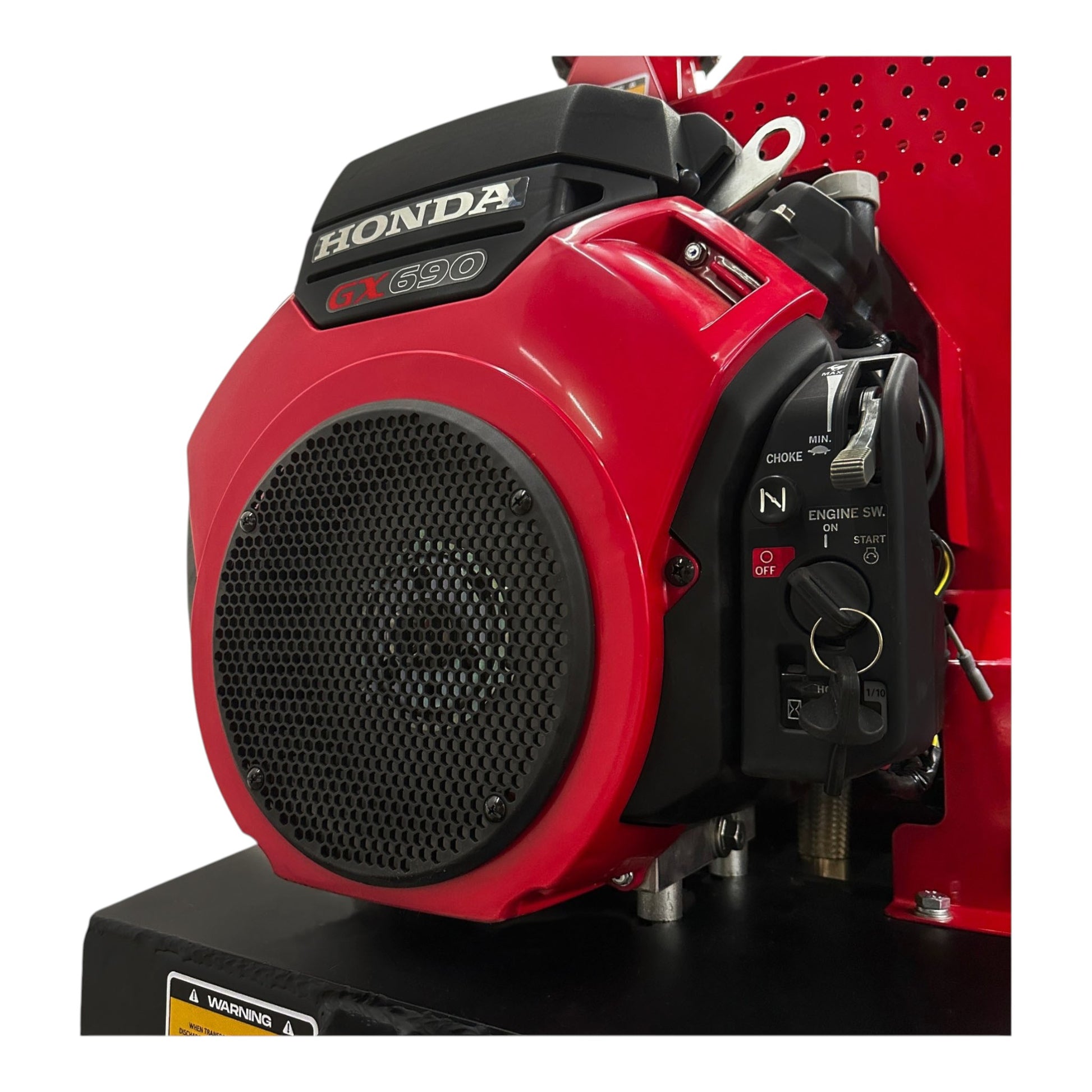

HONDA GX690 22 HP ENGINE WITH ELECTRIC START

Power through demanding jobs with the Honda GX690 22 HP engine, featuring convenient electric start for fast, reliable operation every time. Its 688 cc 90 degree V-Twin design delivers impressive torque of 48.3 N·m at 2,500 RPM and a rated output of 13.0 kW at 3,600 RPM, giving you the strength to tackle heavy workloads with confidence. With the included battery and proven Honda reliability, you spend less time starting up and more time powering through every project with maximum productivity.

7-INCH CHIPPING CAPACITY

Take on demanding clearing projects with an impressive 7-inch chipping capacity powered by the Honda GX690 22 HP engine. The large 32.75 x 26.75-inch hopper makes feeding branches, brush, and debris faster, easier, and more efficient. Handle larger material with fewer cuts and less preparation, saving valuable time on every job. Designed for professionals, this high-capacity system delivers powerful performance that helps you clear more, work faster, and maximize productivity.

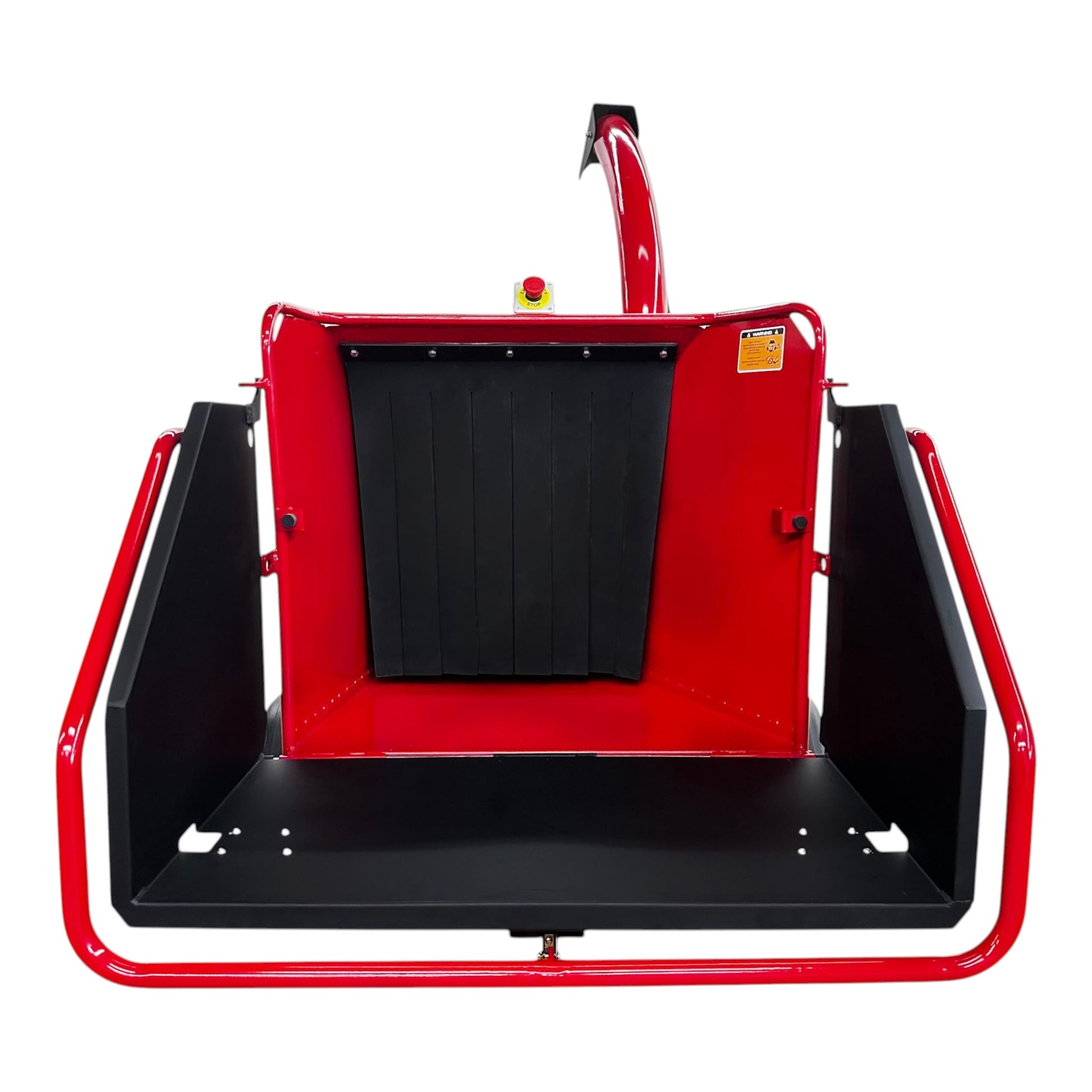

HOPPER SIZE: 32.75 INCHES X 26.75 INCHES (83.19 X 67.95 CM) WITH AUTO FEED STOP BAR

Maximize productivity with a spacious 32.75 x 26.75-inch (83.19 x 67.95 cm) hopper that makes loading branches, brush, and bulky debris faster and easier. The wide opening reduces the need for trimming material before feeding, helping you work more efficiently. An integrated Auto Feed Stop Bar provides immediate control over the feed system when needed, enhancing operator safety and giving you greater confidence while tackling demanding chipping jobs.

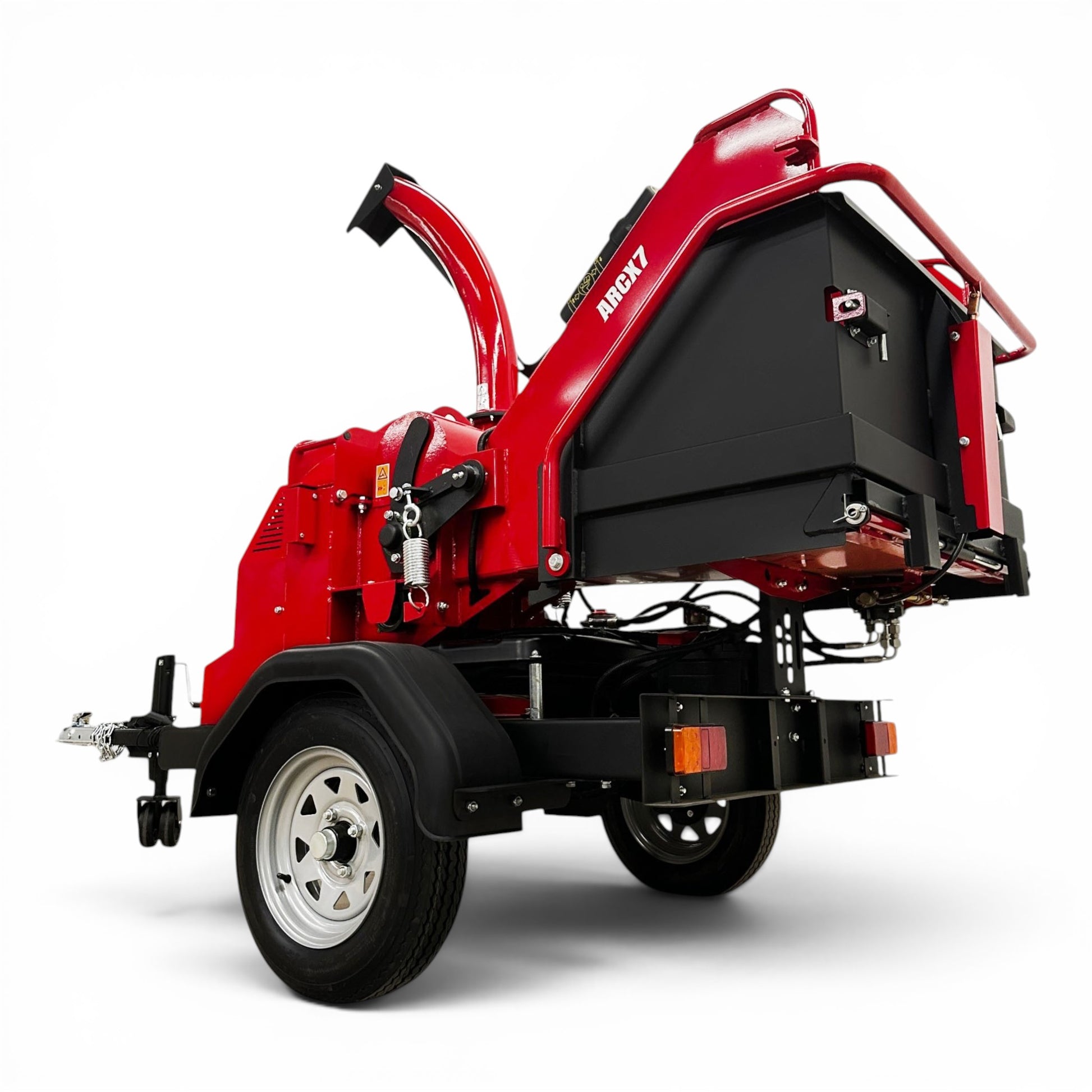

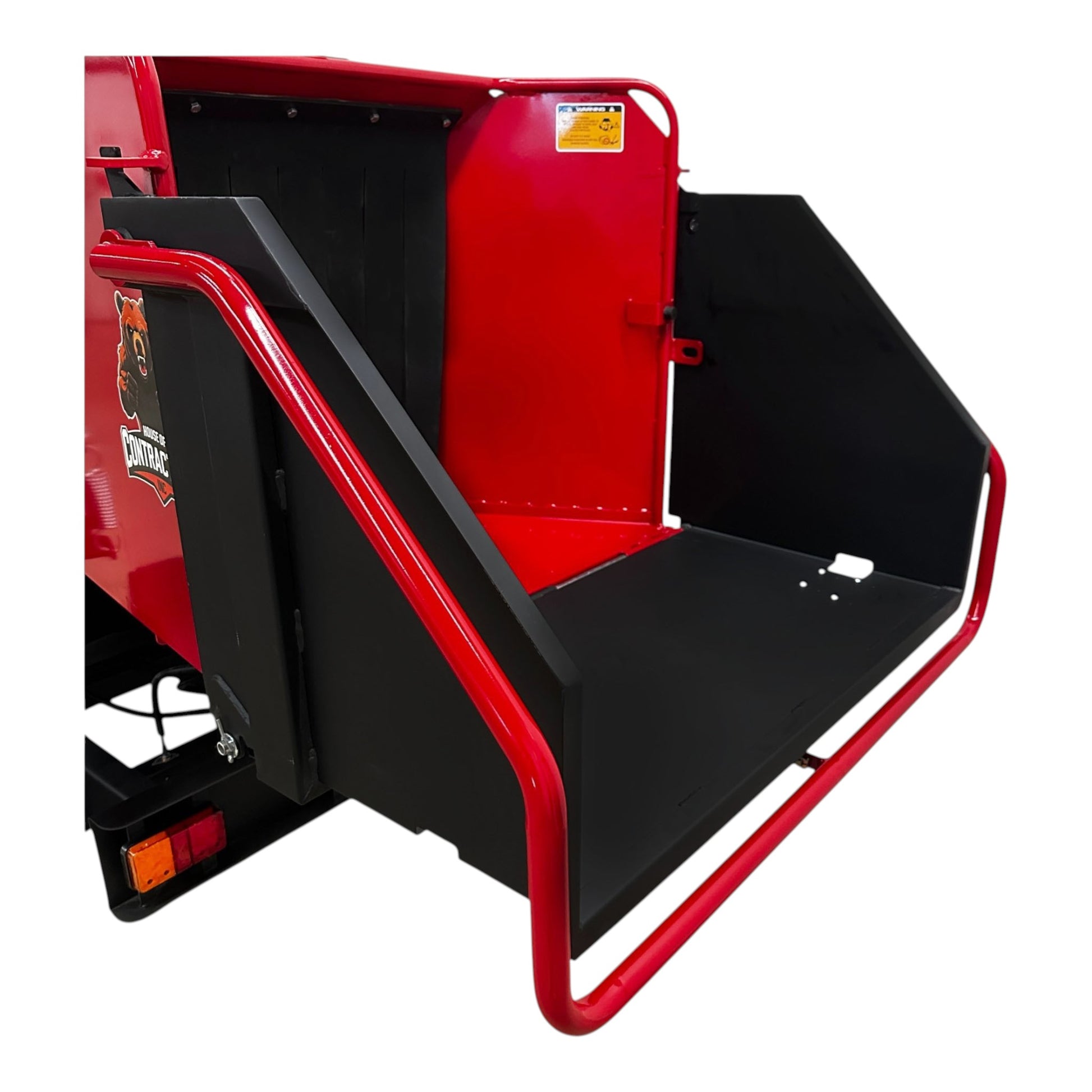

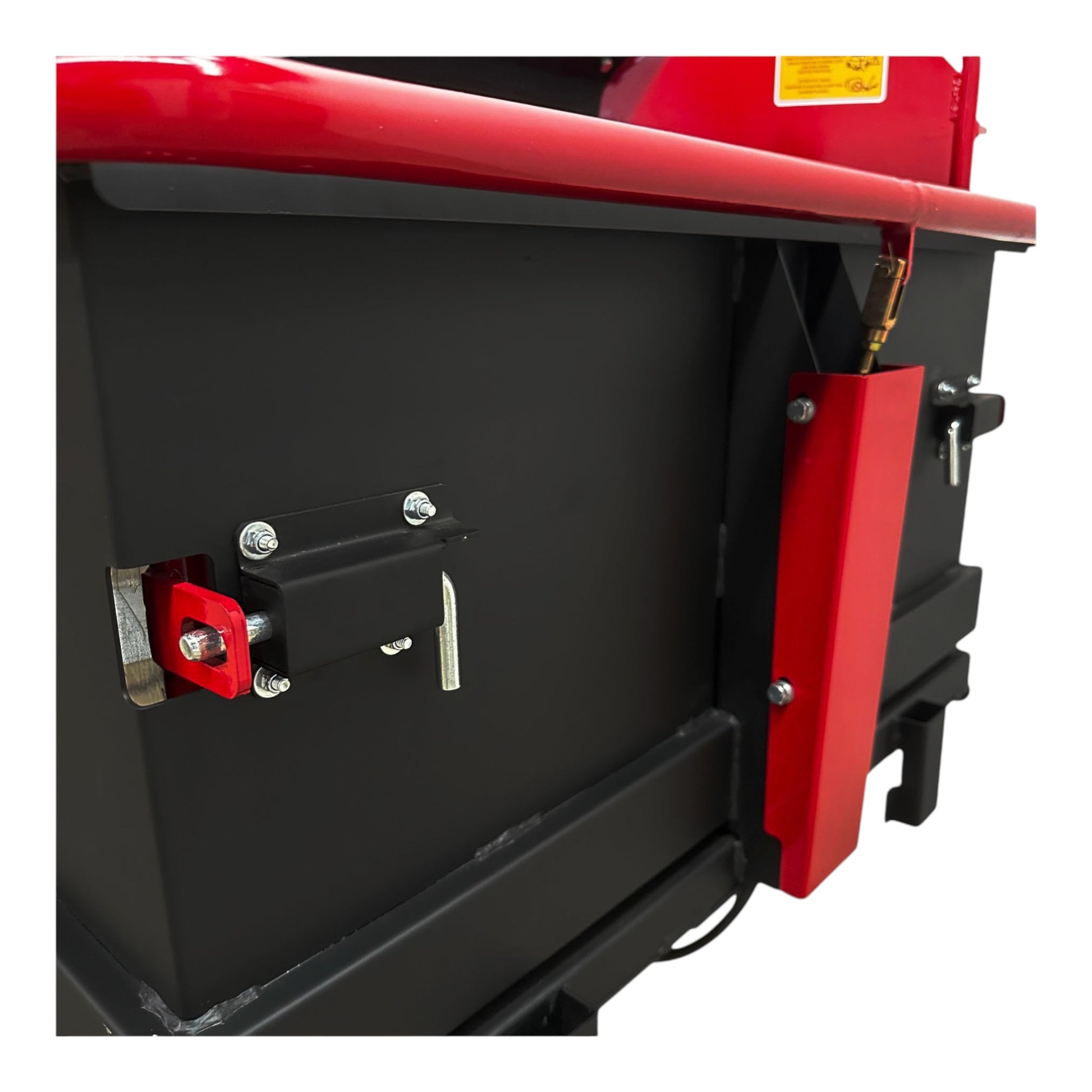

ADJUSTABLE HOPPER WITH EXTRA CAPACITY

Handle larger loads with ease thanks to an adjustable hopper that expands to provide extra feeding capacity for bulky branches and brush. When the extension is folded down, the integrated safety lock securely holds it in place, keeping the hopper closed during transport and storage. This practical design offers the flexibility to adapt to every job while improving convenience, efficiency, and safe operation.

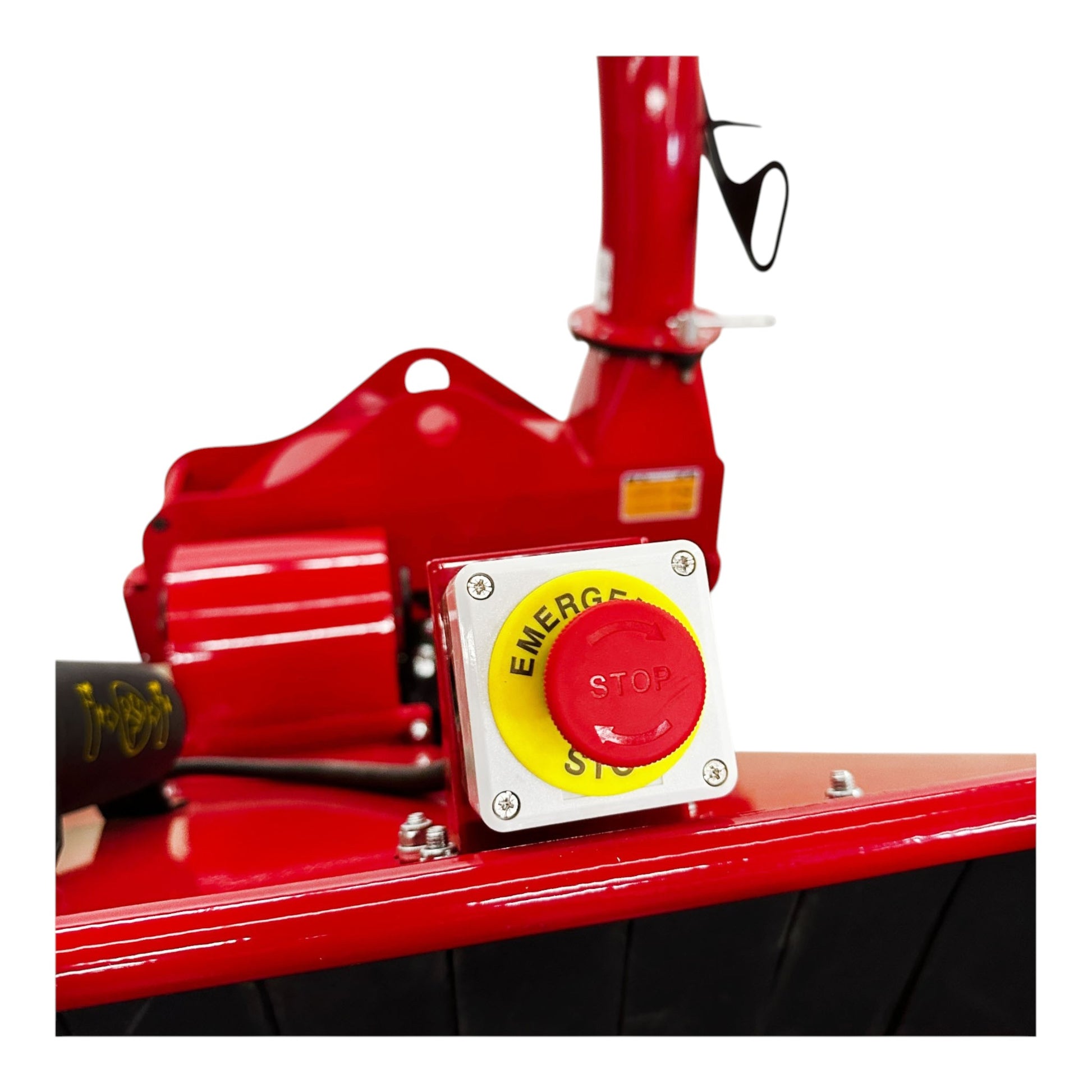

EMERGENCY STOP BUTTON

Operate with greater confidence thanks to a prominently positioned emergency stop button that allows you to shut down the machine immediately when needed. Designed for fast, easy access, this essential safety feature gives you greater control during unexpected situations and helps protect both the operator and equipment. It's a critical addition that enhances jobsite safety while keeping you in command throughout every task.

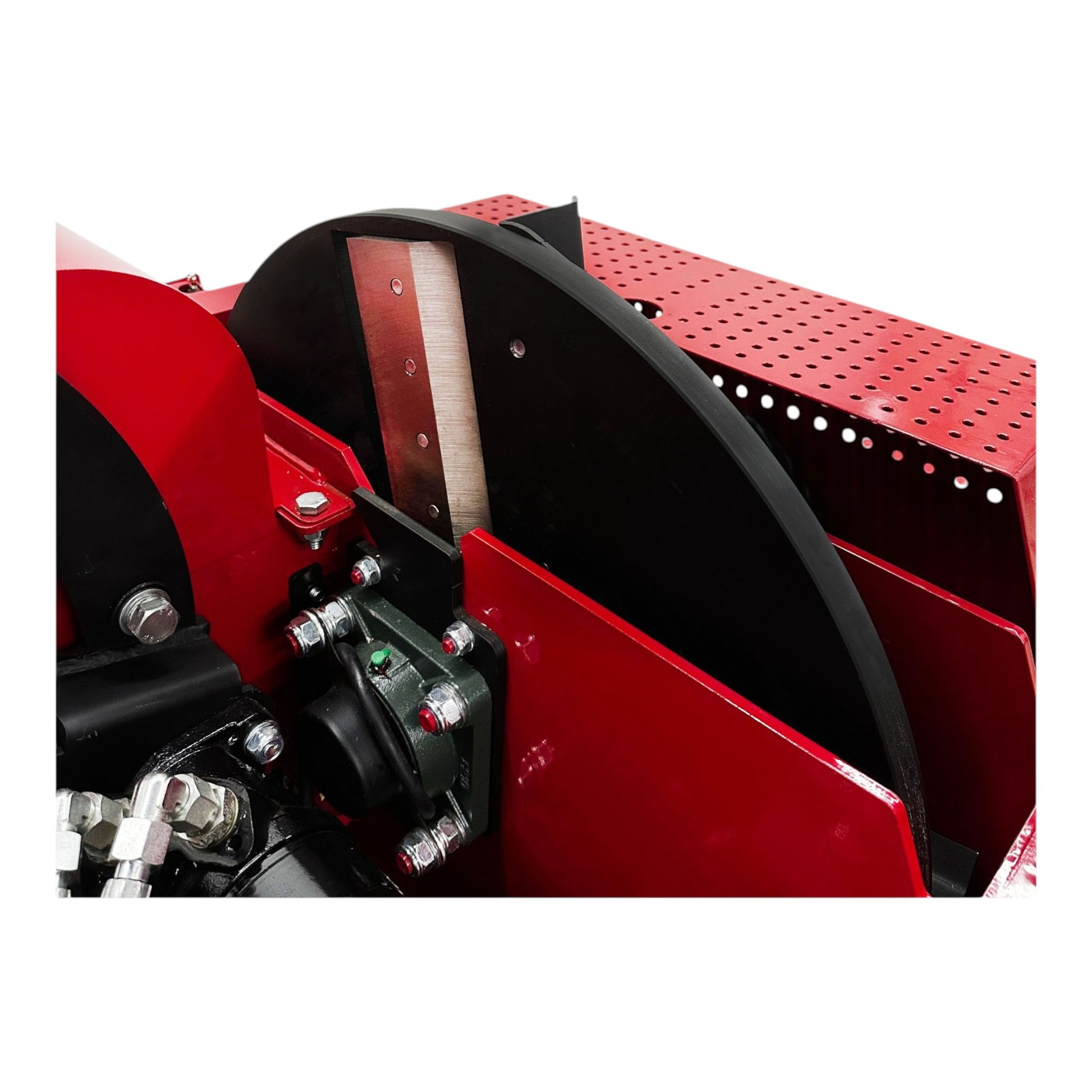

USA-MADE CARBON ALLOY BLADES - 2 PRECISION AND 1 ANVIL

Cut with confidence using two USA-made precision carbon alloy blades and one heavy-duty anvil blade, engineered to deliver fast, clean, and consistent chipping performance. Designed to maximize the machine's 7-inch chipping capacity, this premium blade system efficiently processes large branches with less effort and smoother feeding. Built for exceptional durability and long-lasting sharpness, it helps reduce downtime, improve productivity, and keep you working efficiently through the toughest clearing and landscaping jobs.

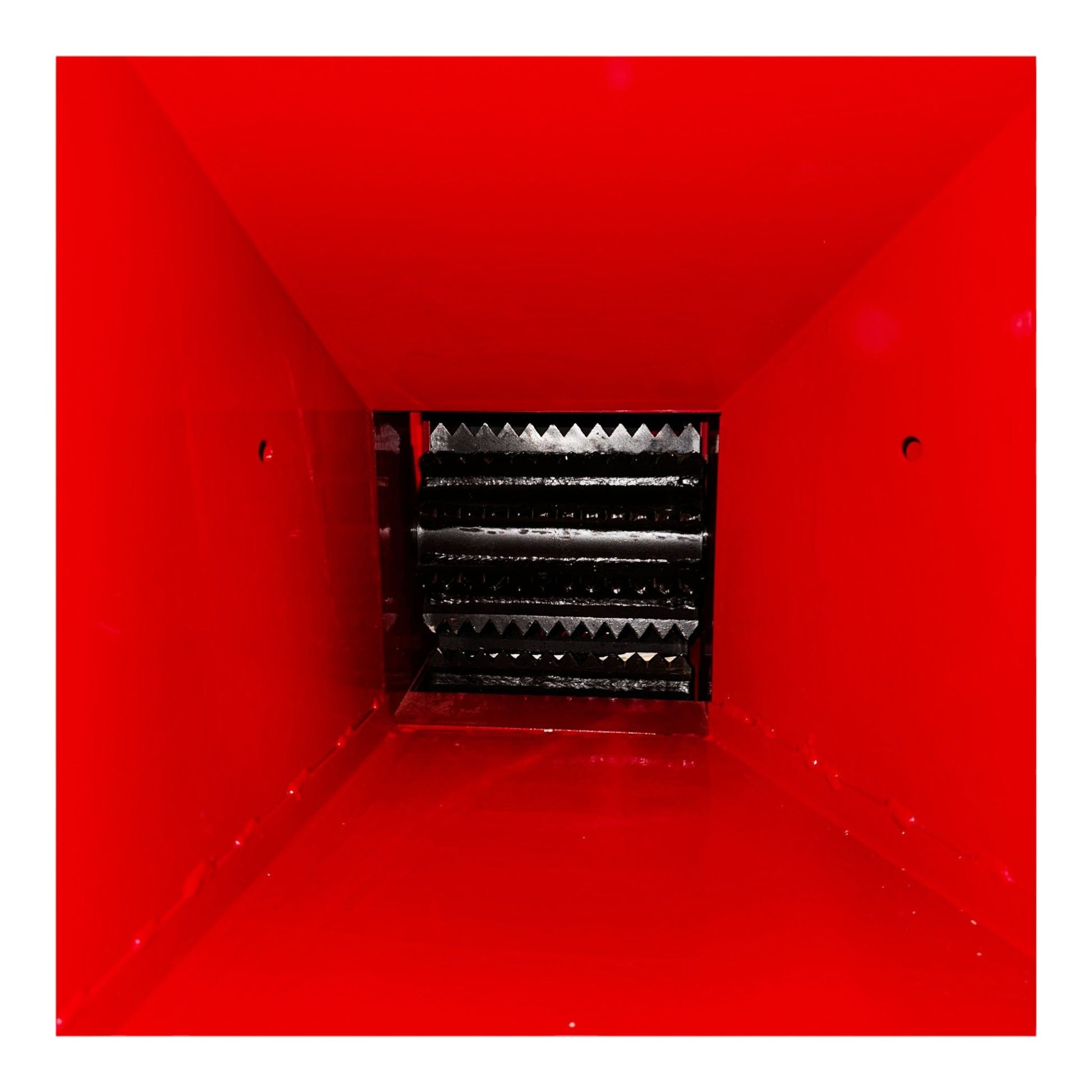

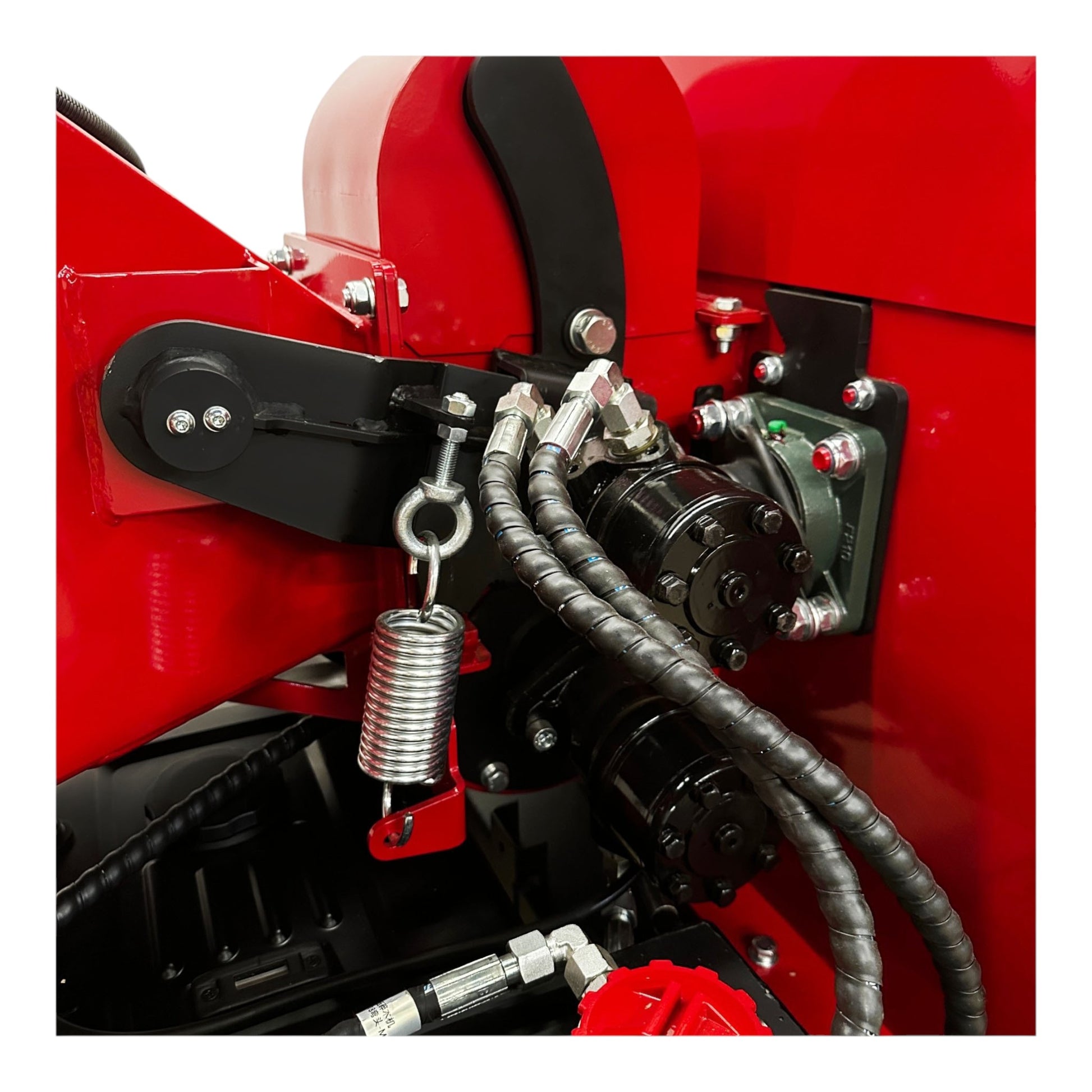

HYDRAULIC BI-DIRECTIONAL INFEED ROLLERS

Take the effort out of feeding material with powerful, hydraulically powered bi-directional infeed rollers that automatically pull branches into the chipper with smooth, consistent force. When a jam occurs or an emergency arises, simply use the ergonomic handlebar to instantly switch the rollers between forward, neutral, and reverse, giving you complete control in seconds. Spend less time pushing and more time getting work done as the rollers maintain a steady feed for faster, more efficient chipping. Built for demanding workloads, this intelligent hydraulic system reduces operator fatigue, boosts productivity, and keeps material flowing smoothly so you can tackle every job with confidence.

INTUITIVE IN-FEED CONTROL BAR (FEED, REVERSE AND STOP)

Take complete control with the Intuitive Infeed Control Bar, allowing you to instantly switch the hydraulic infeed rollers between Feed, Reverse, and Stop. Quickly adapt to changing conditions, clear jams with ease, or stop the rollers immediately when required, helping you maintain a smooth, consistent workflow with minimal interruptions. Designed for fast, effortless operation, this intuitive system enhances safety, reduces downtime, boosts productivity, and delivers smoother, more efficient chipping performance, giving you the confidence to power through demanding jobs with greater ease.

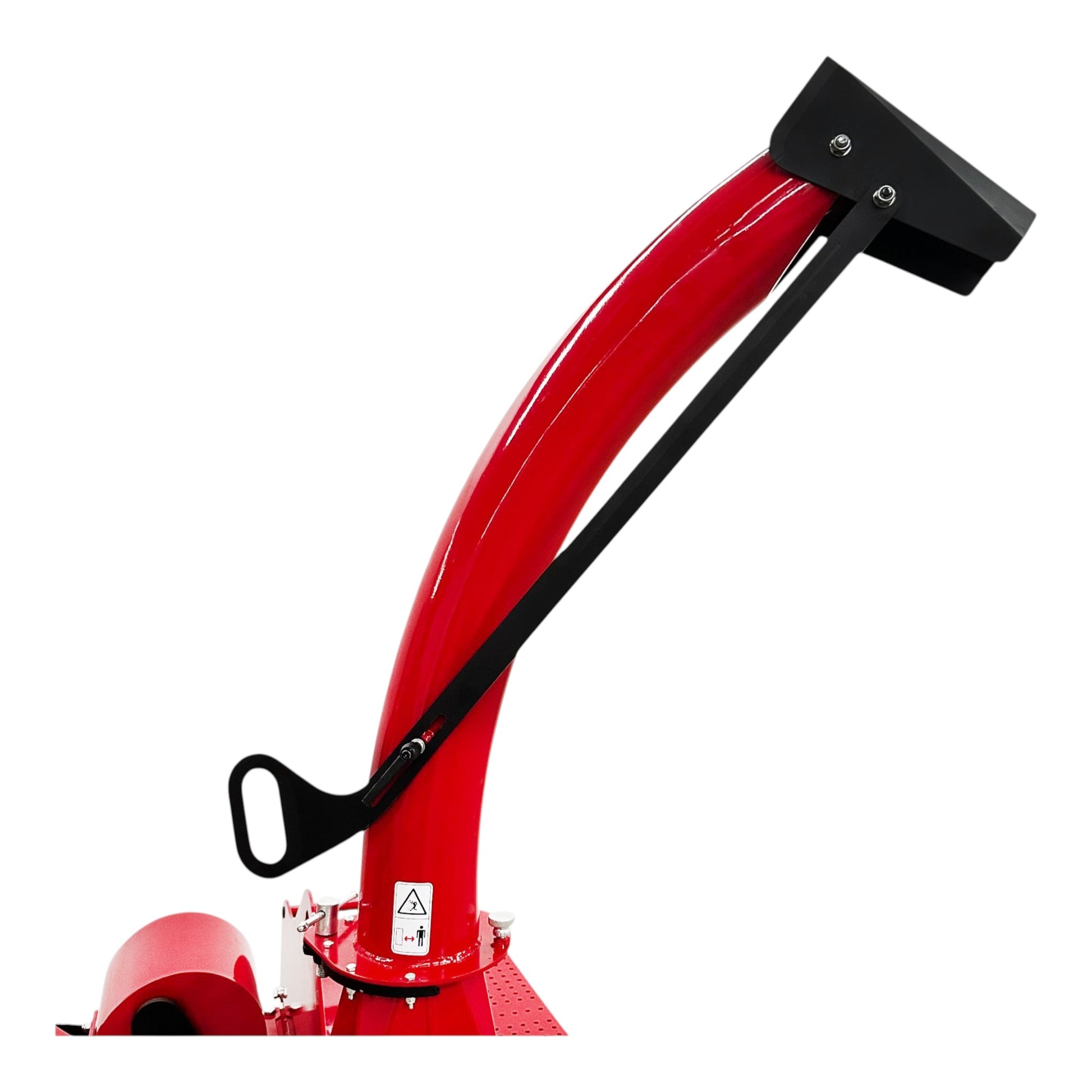

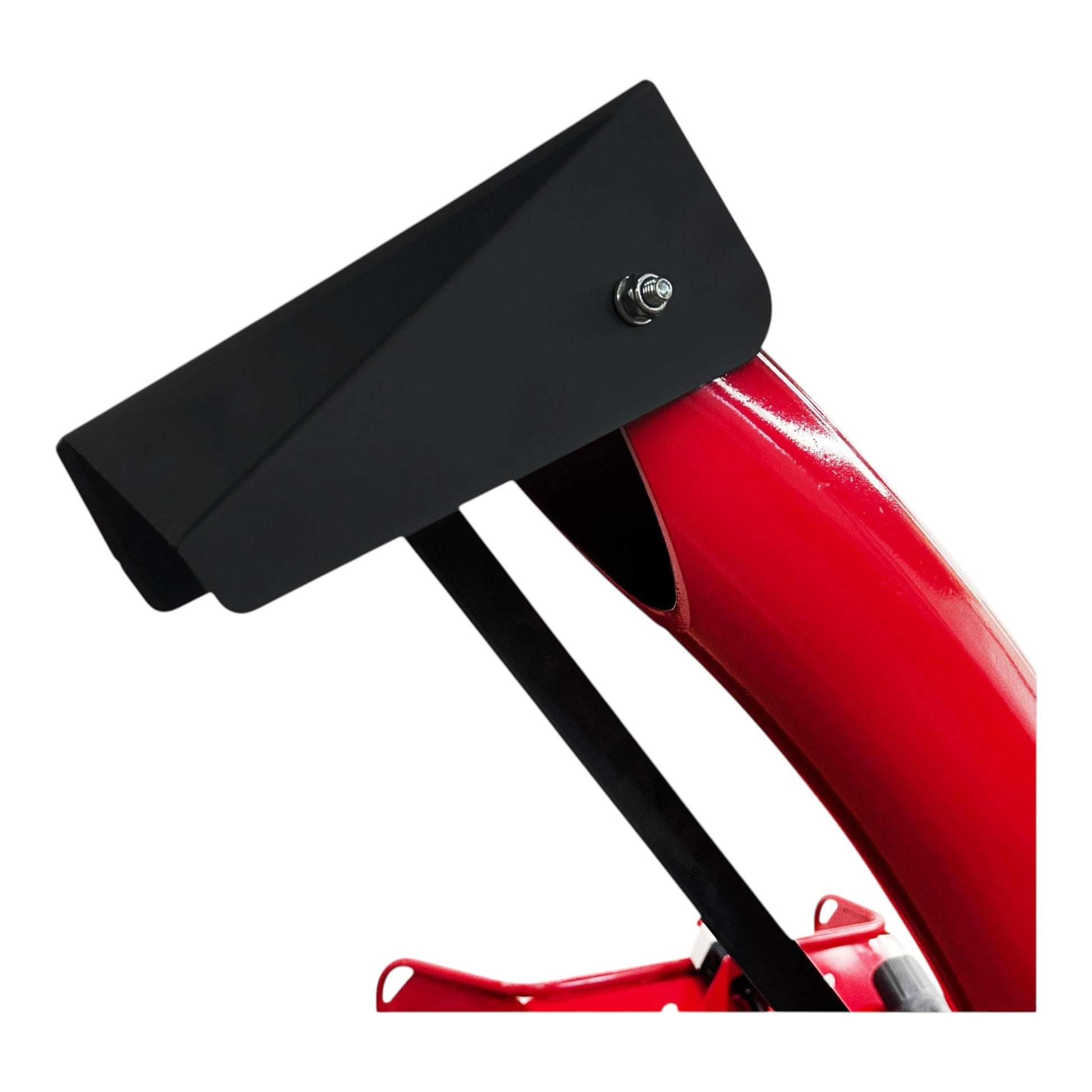

360 DEGREE ADJUSTABLE DISCHARGE CHUTE WITH ADJUSTABLE DEFLECTOR

Take complete control over where chipped material goes with a 360 degree adjustable discharge chute and adjustable deflector. Easily rotate the chute and fine-tune the discharge angle to direct wood chips exactly where you need them—whether into a trailer, truck bed, or neatly stacked pile. This versatile design minimizes cleanup, improves efficiency, and gives you the flexibility to adapt to any jobsite with speed and precision.

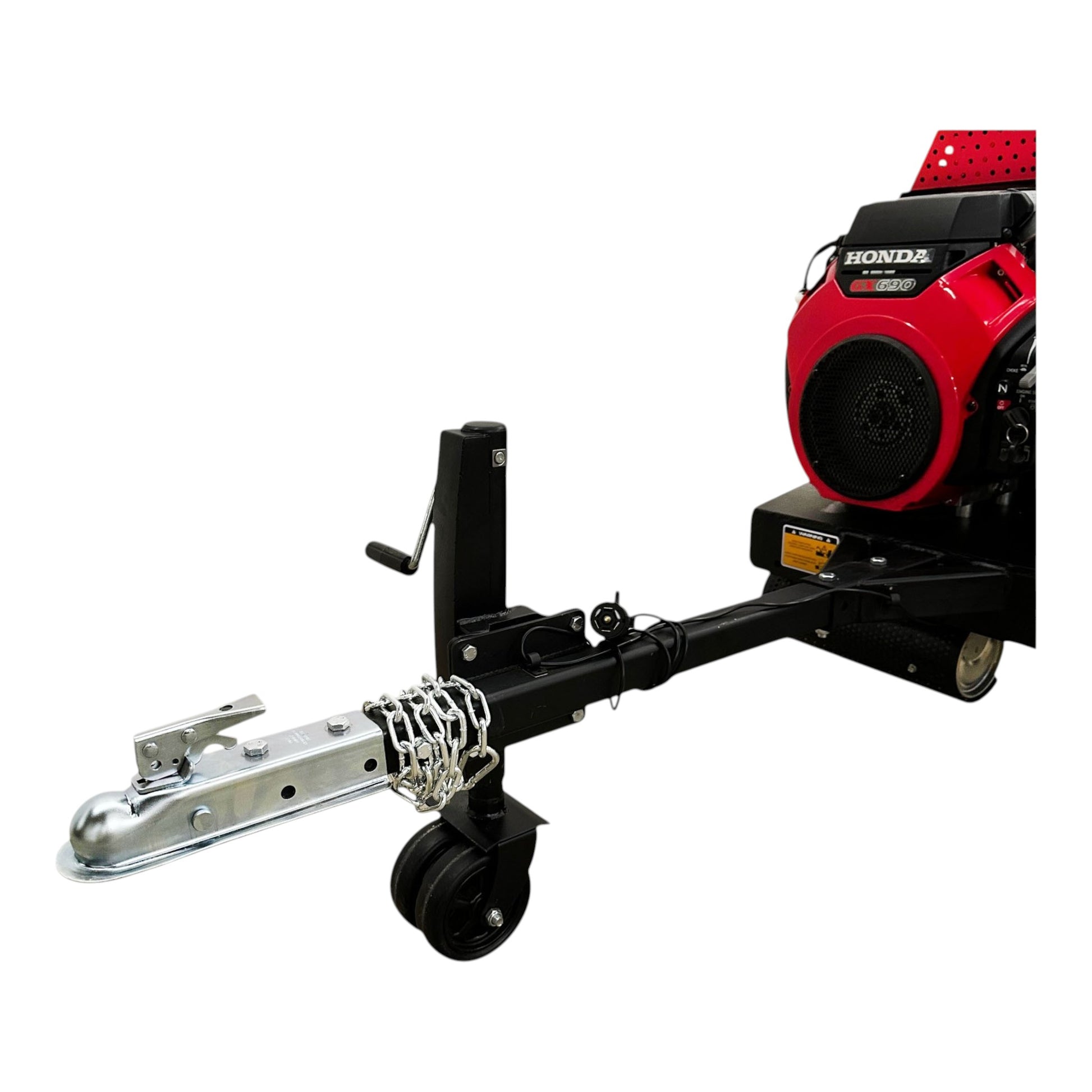

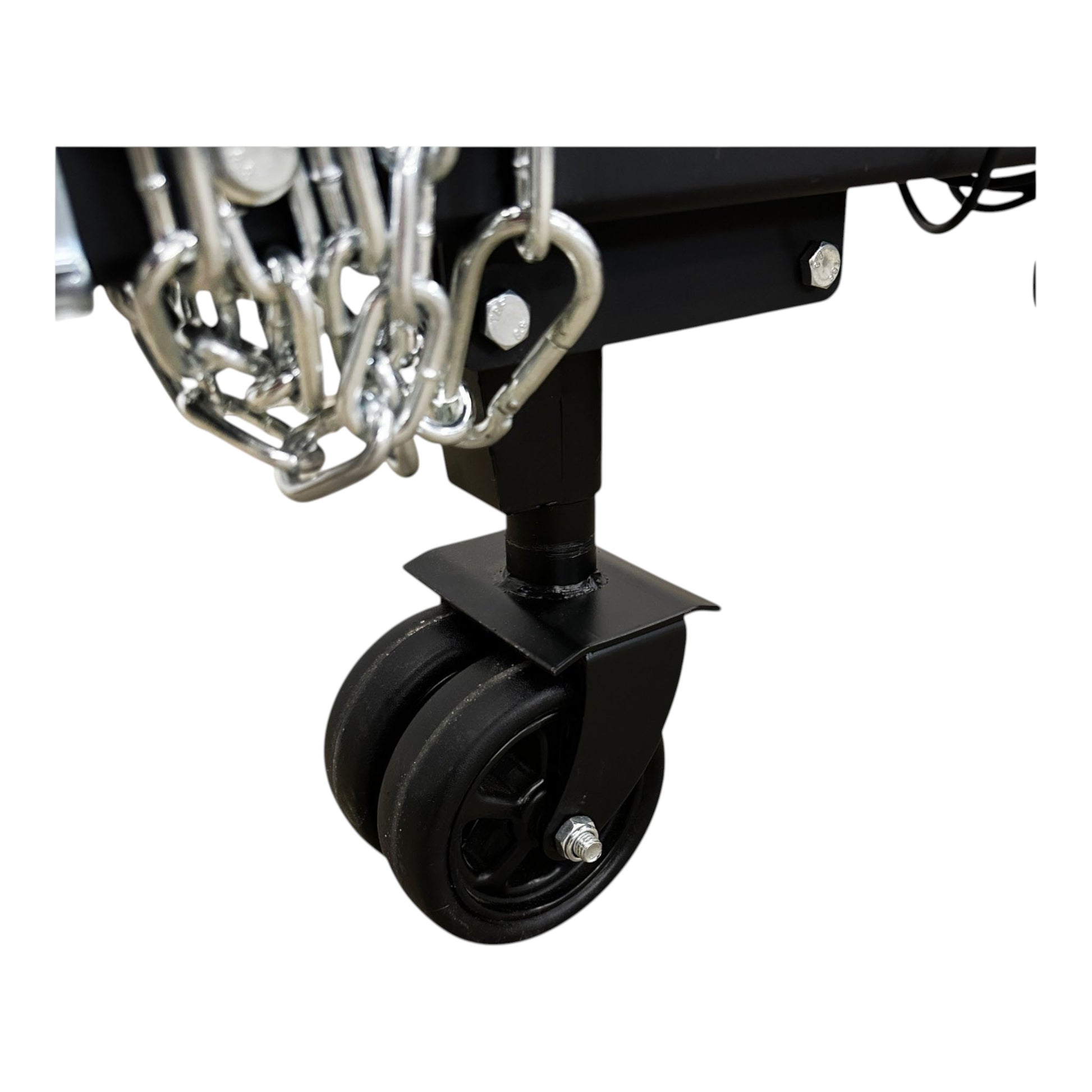

HEAVY DUTY 2 INCH TRAILER HITCH KIT WITH CHAIN, JOCKEY WHEEL, ADJUSTABLE PROP STAND AND 7-PIN PLUG

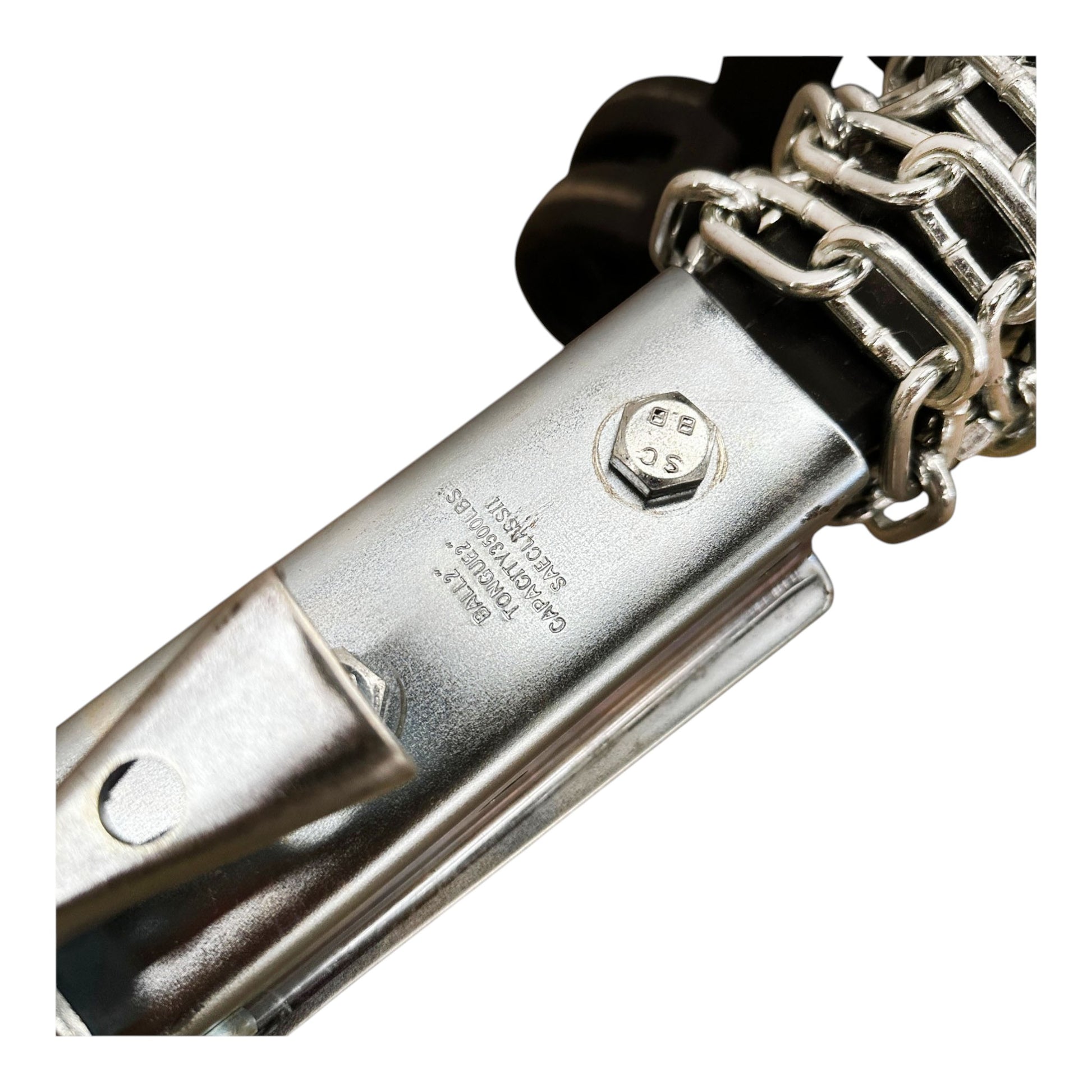

Transport your machine with confidence using a heavy-duty trailer hitch kit featuring a 2-inch ball, 2-inch tongue, SAE Class II rating, and a 3,500 lb towing capacity. Complete with safety chains, a jockey wheel, adjustable prop stand, and a 7-pin trailer plug, this rugged package is built for secure towing and quick setup. Move effortlessly between jobsites with enhanced mobility, dependable performance, and the durability professionals rely on to keep every project moving forward.

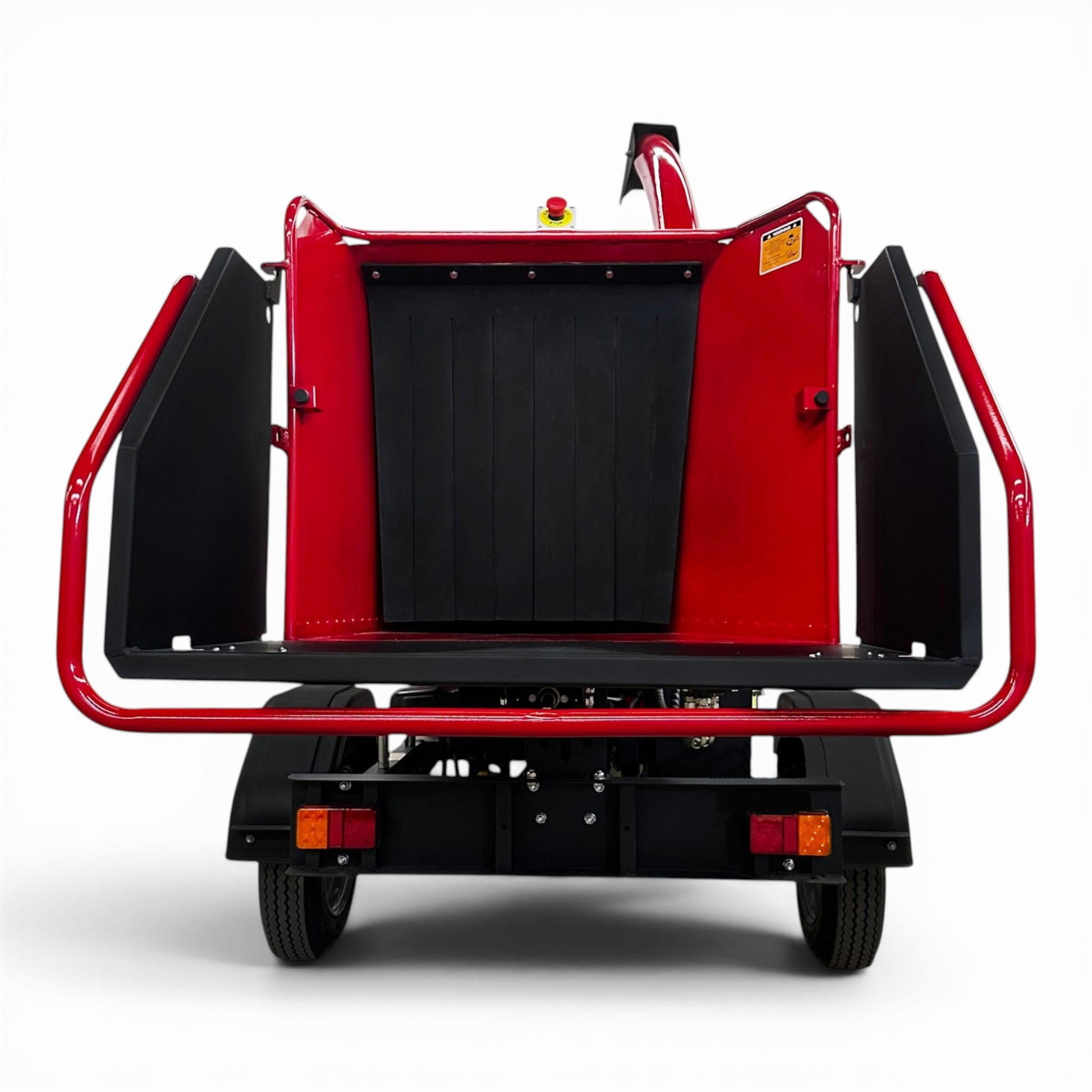

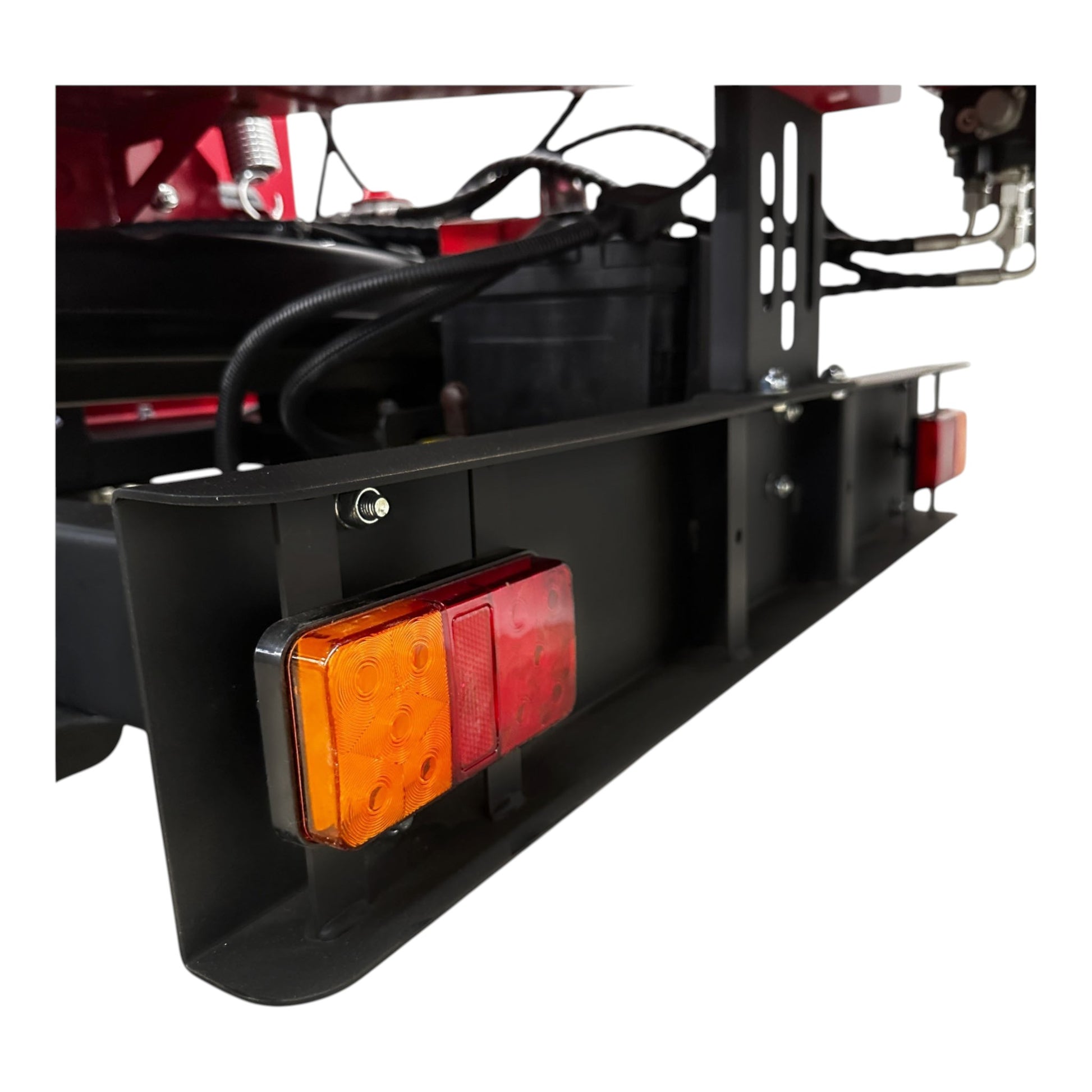

INTEGRATED TAIL LIGHTS

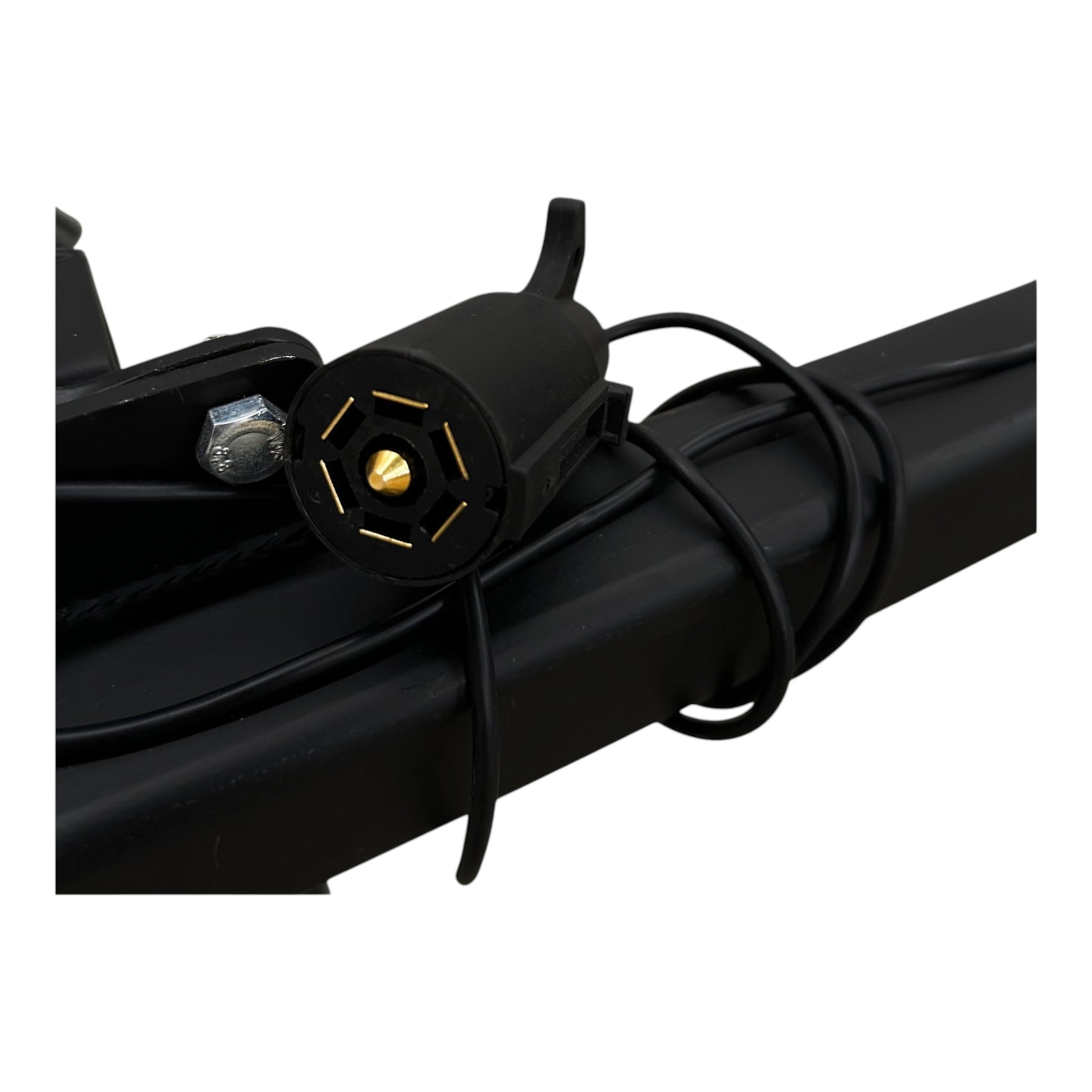

Tow with confidence using integrated tail lights, a standard 7-pin trailer plug, and an included 4-pin adapter for quick, reliable connection to a wide range of tow vehicles. Designed to provide dependable lighting for braking, signaling, and enhanced visibility, this system helps improve safety on every journey. With flexible towing compatibility straight out of the box, you’ll spend less time setting up and more time moving efficiently between jobsites with confidence.

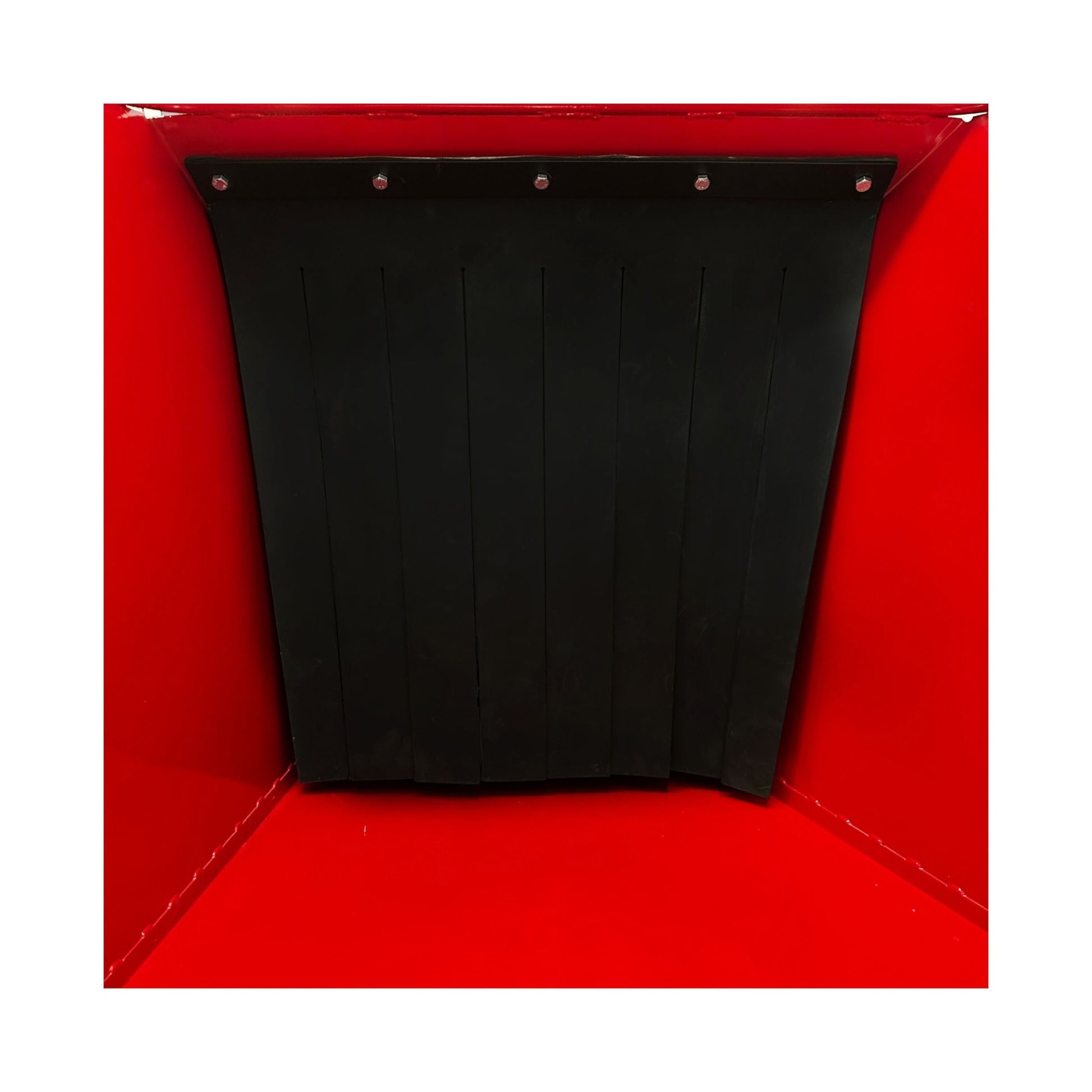

POLYCARBONATE VINYL BAFFLE

Protect critical components with a durable polycarbonate vinyl baffle designed to withstand demanding jobsite conditions. Engineered for strength and impact resistance, it helps contain flying debris while maintaining clear visibility during operation. This rugged protective barrier enhances durability, promotes cleaner operation, and gives you greater confidence when tackling heavy-duty chipping tasks. It's dependable protection that keeps your machine performing efficiently, job after job.

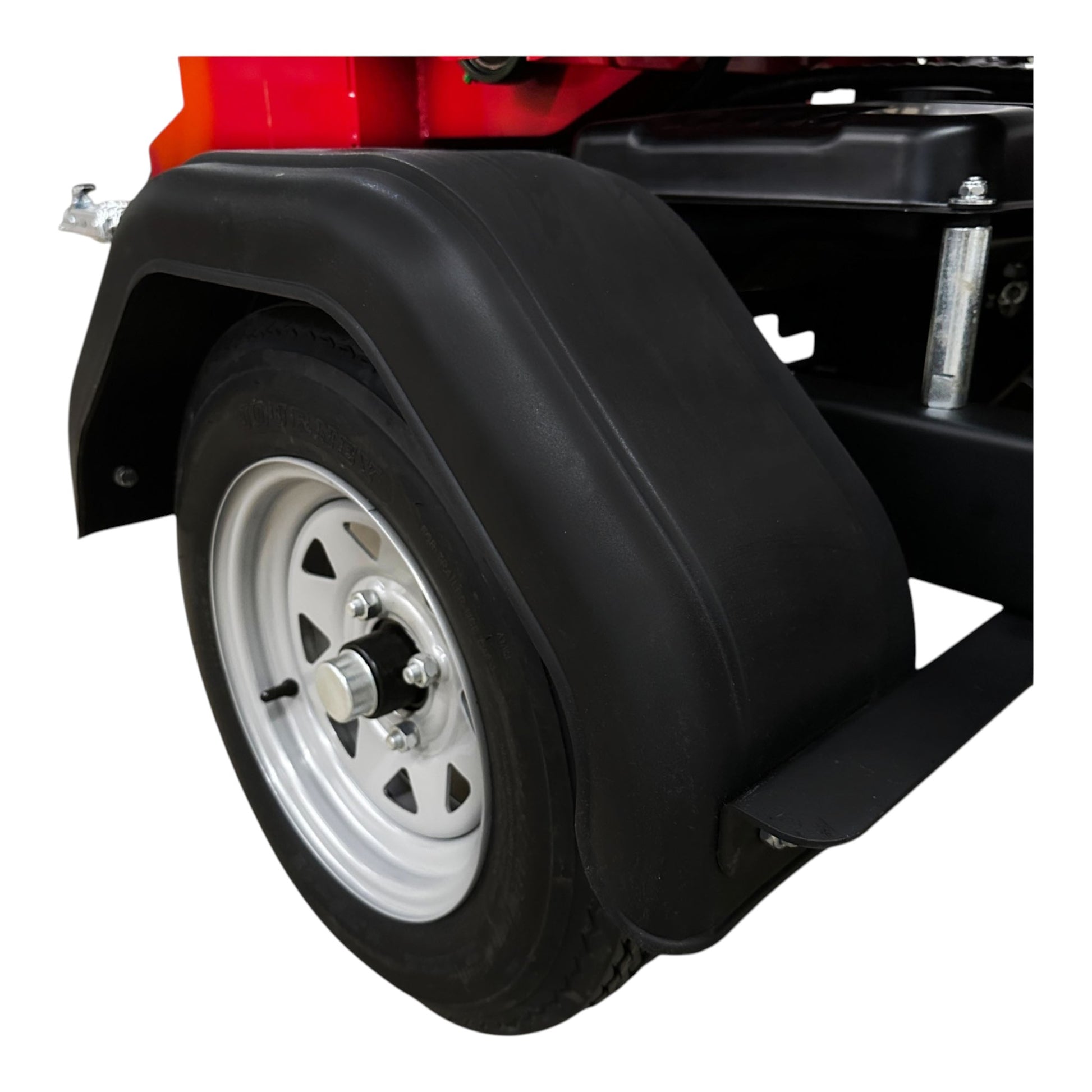

ALL-TERRAIN MOBILITY TIRES 5.3-12

Travel confidently with durable 5.3-12 highway mobility tires designed for smooth, reliable towing between jobsites. Engineered for stability and dependable road performance, these heavy-duty tires help ensure secure transport while minimizing vibration during travel. Built to withstand frequent towing and demanding use, they provide the durability and reliability professionals need to keep their equipment moving efficiently from one project to the next.

ASSEMBLED IN NORTH AMERICA

Experience the confidence of equipment proudly assembled in North America, where quality, durability, and performance are built into every detail. Engineered to meet demanding professional standards, this machine is designed to withstand tough jobsite conditions while delivering reliable, long-lasting performance. Invest in premium craftsmanship you can trust, giving you the strength, dependability, and productivity needed to tackle every project with confidence.

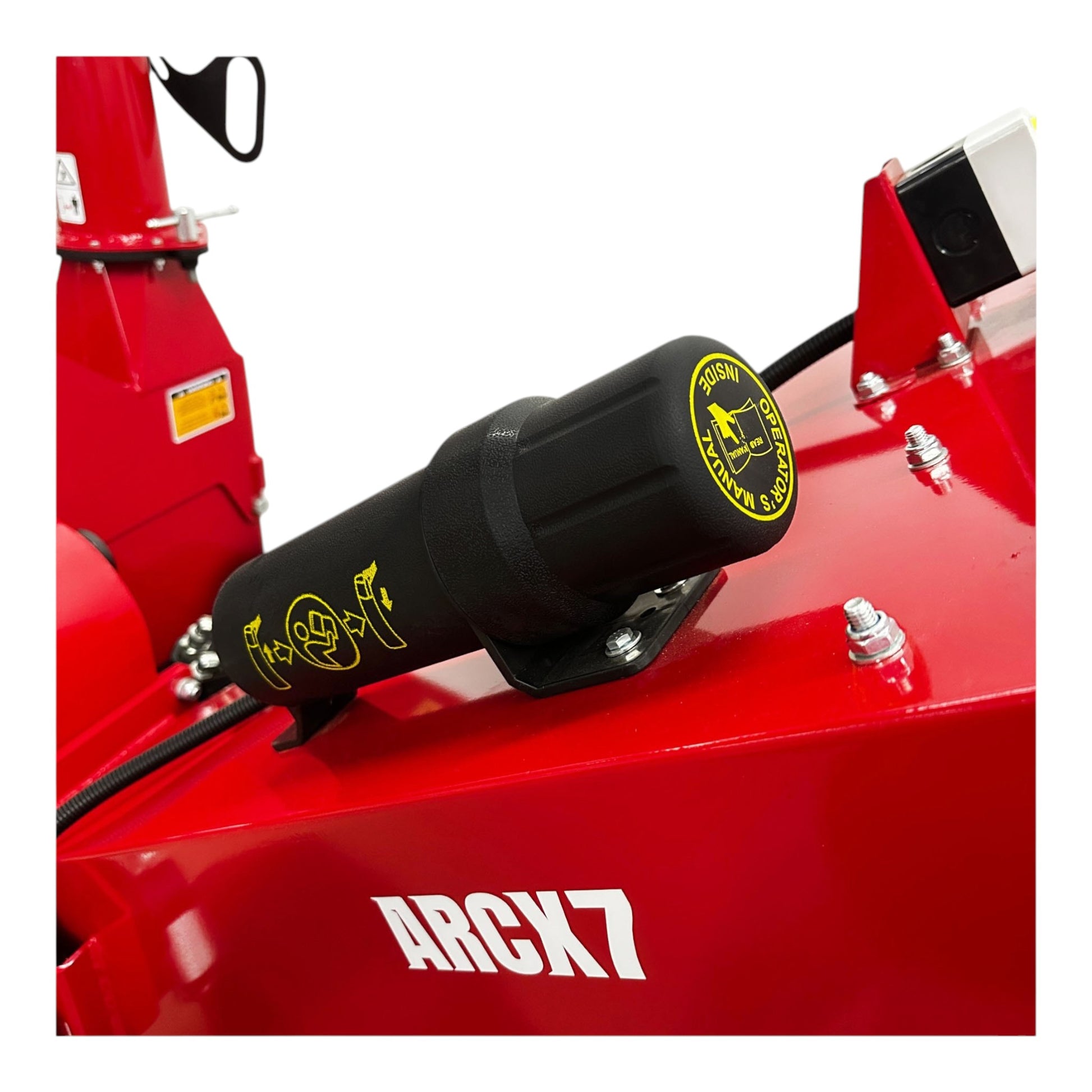

CONVENIENT OPERATOR'S MANUAL STORAGE

Keep important machine information protected and easily accessible with a built-in operator’s manual storage compartment. Designed specifically for the ARCX7 Wood Chipper, this convenient feature keeps your manual clean, secure, and ready whenever you need maintenance instructions, operating guidelines, or quick reference information. It's a practical addition that helps simplify ownership, improve organization, and keep essential documentation right where it belongs.

ASK ABOUT OUR PDI SERVICE

Want your ARCX7 Wood Chipper ready to get to work the moment it arrives? Ask us about our comprehensive HOC Pre-Delivery Inspection (PDI) service. Through detailed inspection and professional testing, we ensure every unit meets the highest standards of performance, reliability, and power, right out of the box. With our PDI service, your wood chipper will arrive fully prepped, fully tested, and ready for immediate use, so you can get straight to the job with complete confidence.

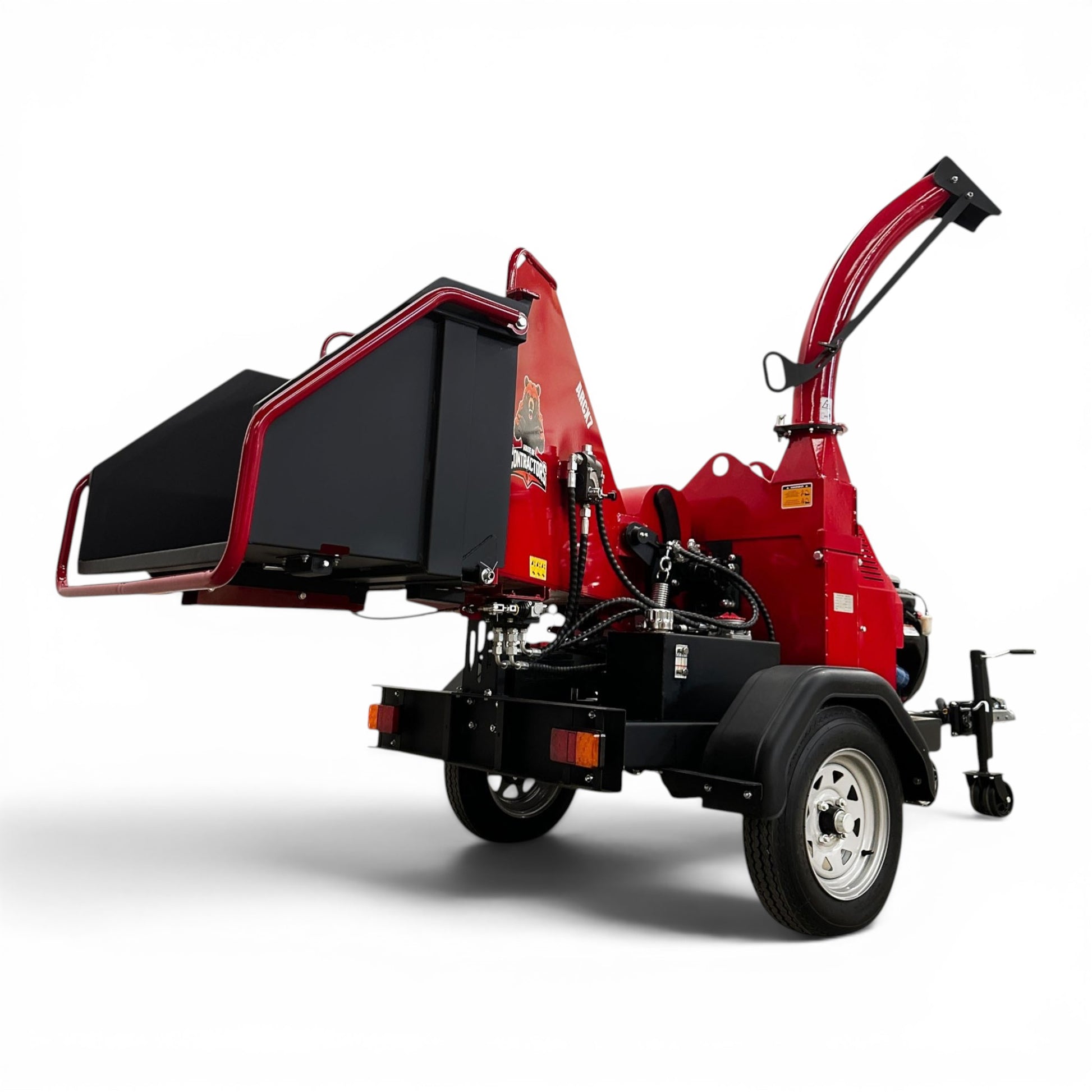

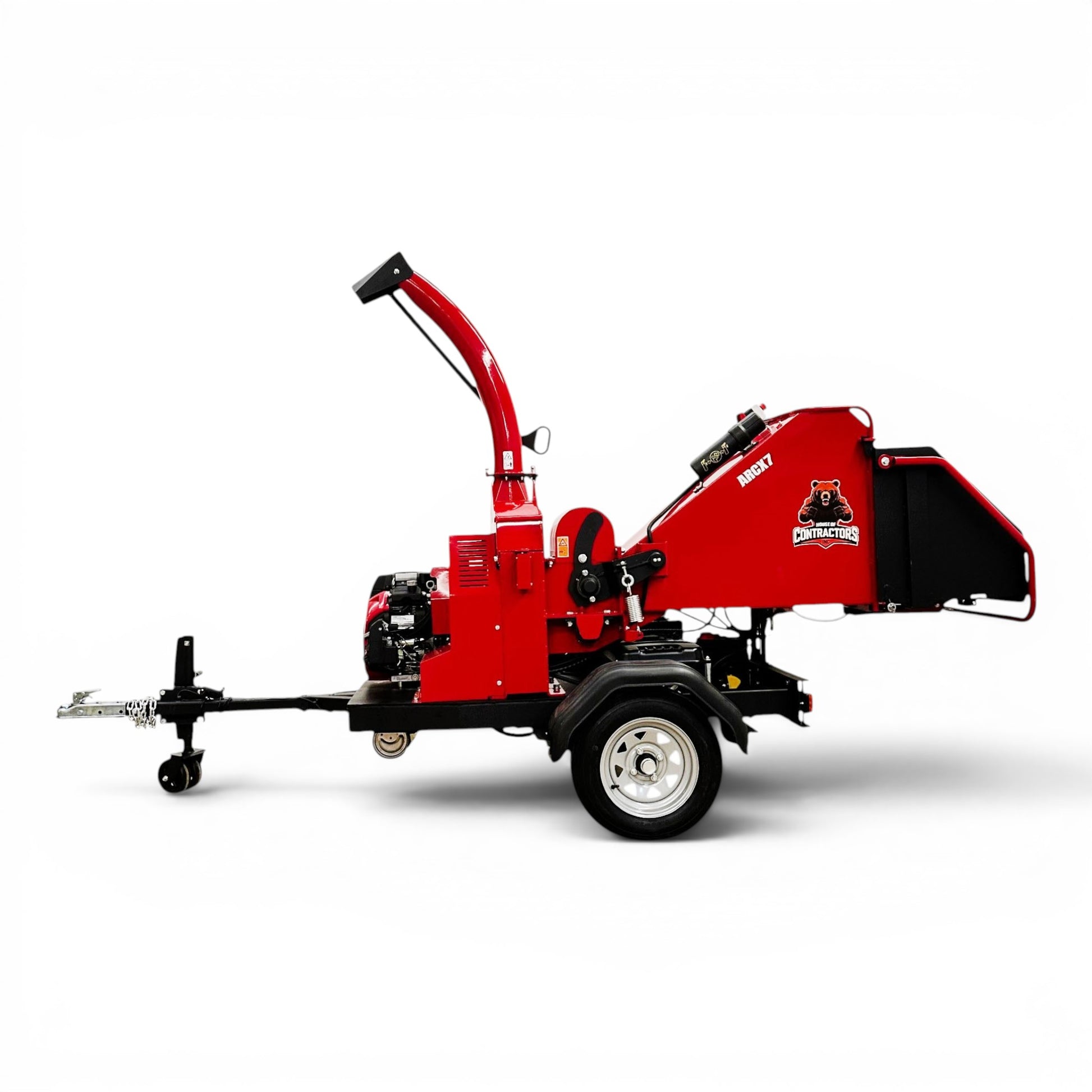

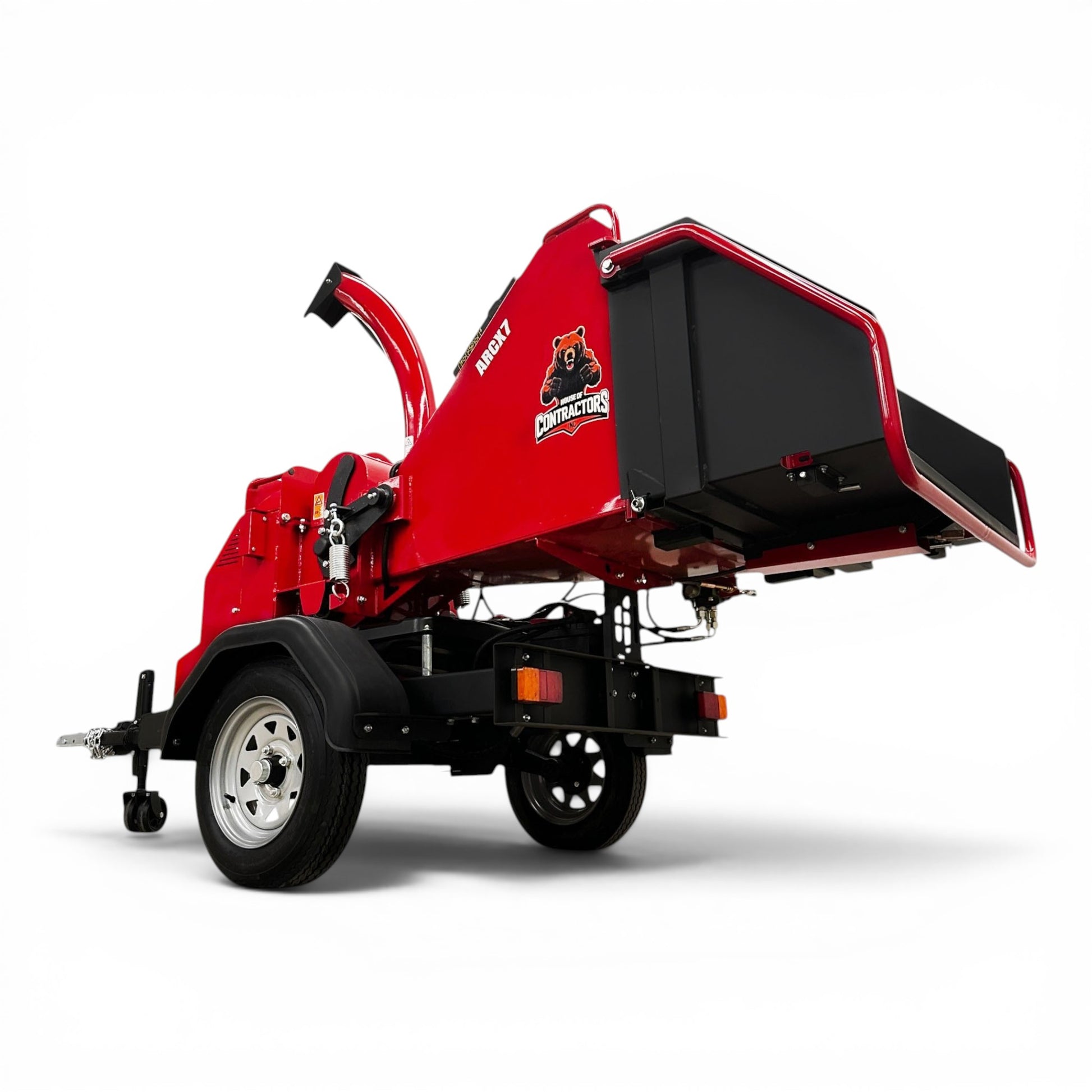

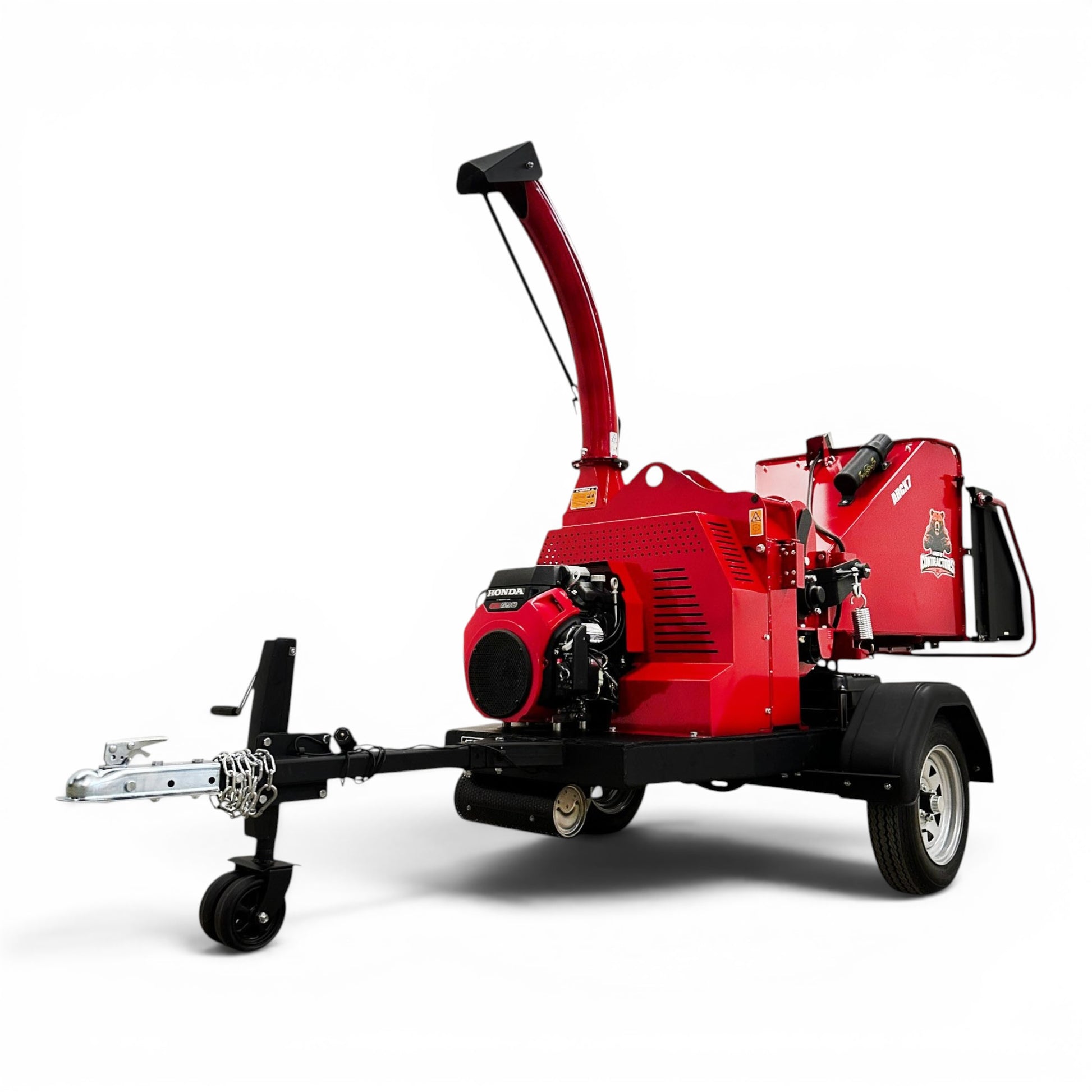

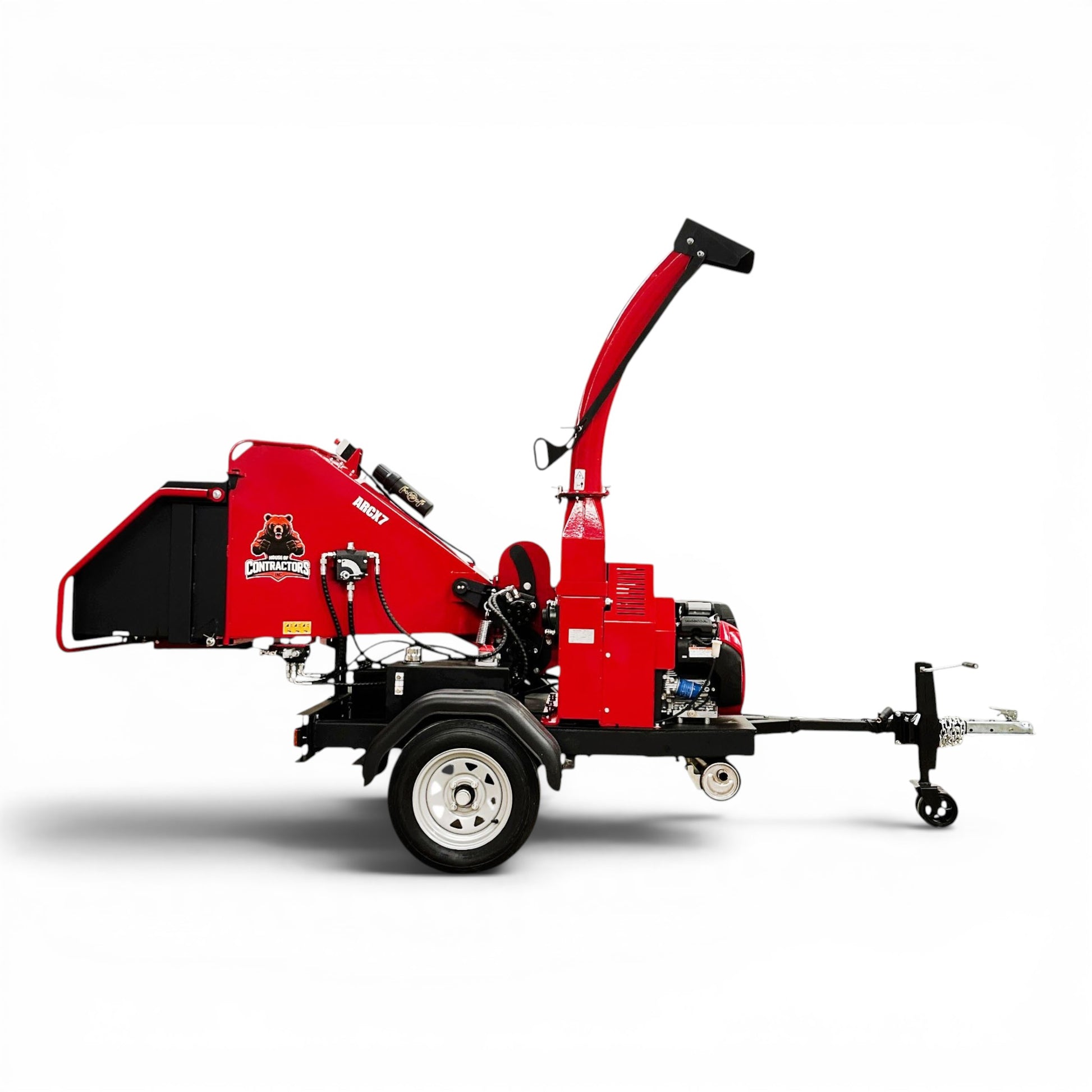

HOC ARCX7 HONDA GX690 22 HP 7 INCH TOWABLE WOOD CHIPPER | HYDRAULIC INFEED | ELECTRIC START | AISI 4140 STEEL FLYWHEEL | ASSEMBLED IN NORTH AMERICA

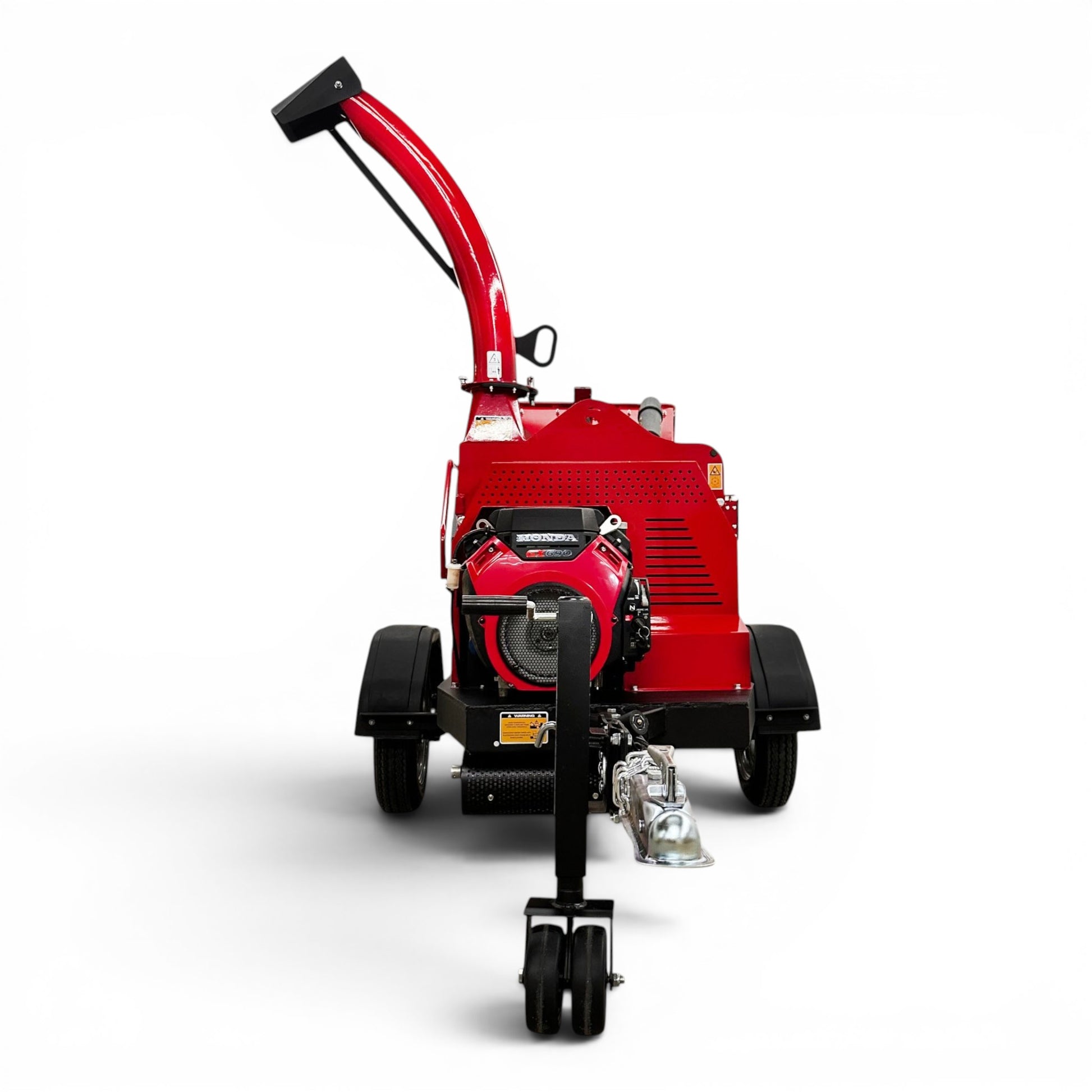

Dominate the toughest chipping jobs with the HOC ARCX7 Honda GX690 22 HP 7-Inch Towable Wood Chipper. Built for professional arborists, contractors, municipalities, farms, and landscaping crews, the ARCX7 delivers relentless commercial-grade performance, exceptional reliability, and maximum productivity. Powered by the legendary Honda GX690 V-Twin engine, it effortlessly processes branches up to 7 inches in diameter using a powerful hydraulic in-feed system with variable speed control, precision USA-made double-edge carbon alloy blades, and a massive AISI 4140 steel flywheel engineered for aggressive, consistent chipping. Designed and assembled in North America, the ARCX7 is built to withstand the toughest job sites while helping you work faster, reduce operator fatigue, and tackle more jobs with confidence.

KEY FEATURES

HONDA GX690 22 HP ENGINE: Powered by the dependable Honda GX690 688 cc 22 HP air-cooled four-stroke OHV V-Twin engine, delivering outstanding power, fuel efficiency, and reliability for demanding commercial chipping applications. The electric start system provides fast, convenient starting while minimizing operator effort.
7-INCH CHIPPING CAPACITY: Processes branches up to 7 in. (17.8 cm) in diameter, making it ideal for heavy brush, storm cleanup, tree maintenance, and commercial landscaping projects. The high-capacity design significantly increases productivity on demanding jobs.

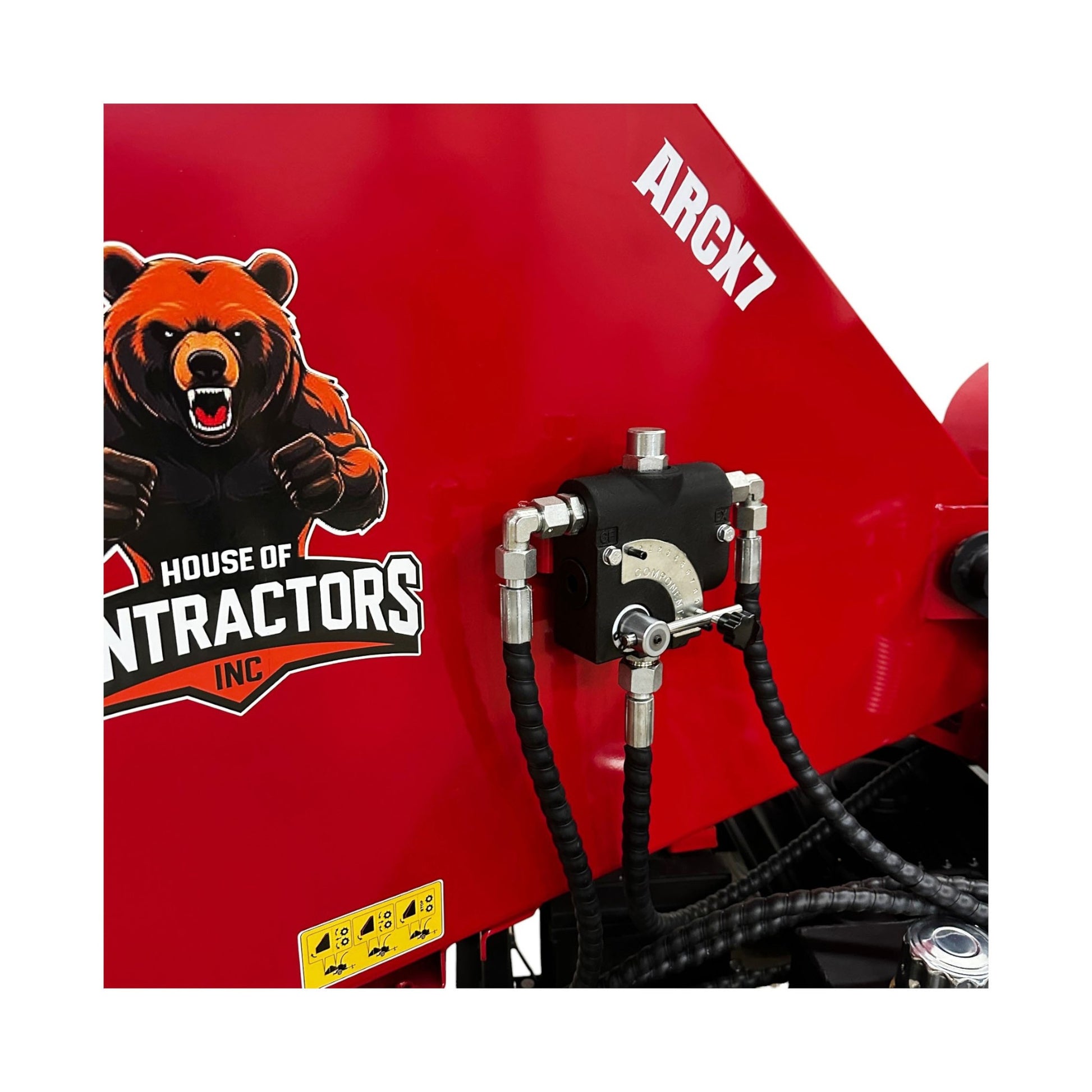

VARIABLE FEED SPEED CONTROL: Every job is different. That’s why Variable Feed Speed Control puts you in command of the hydraulic infeed roller speed, allowing you to match the feed rate to the material you’re processing. Slow the rollers for larger timber to maximise chipping performance and reduce strain on the machine, or increase the speed for smaller branches to maintain a fast, efficient workflow. The result is smoother feeding, greater productivity, improved machine performance, and the confidence to achieve exceptional results across every job.

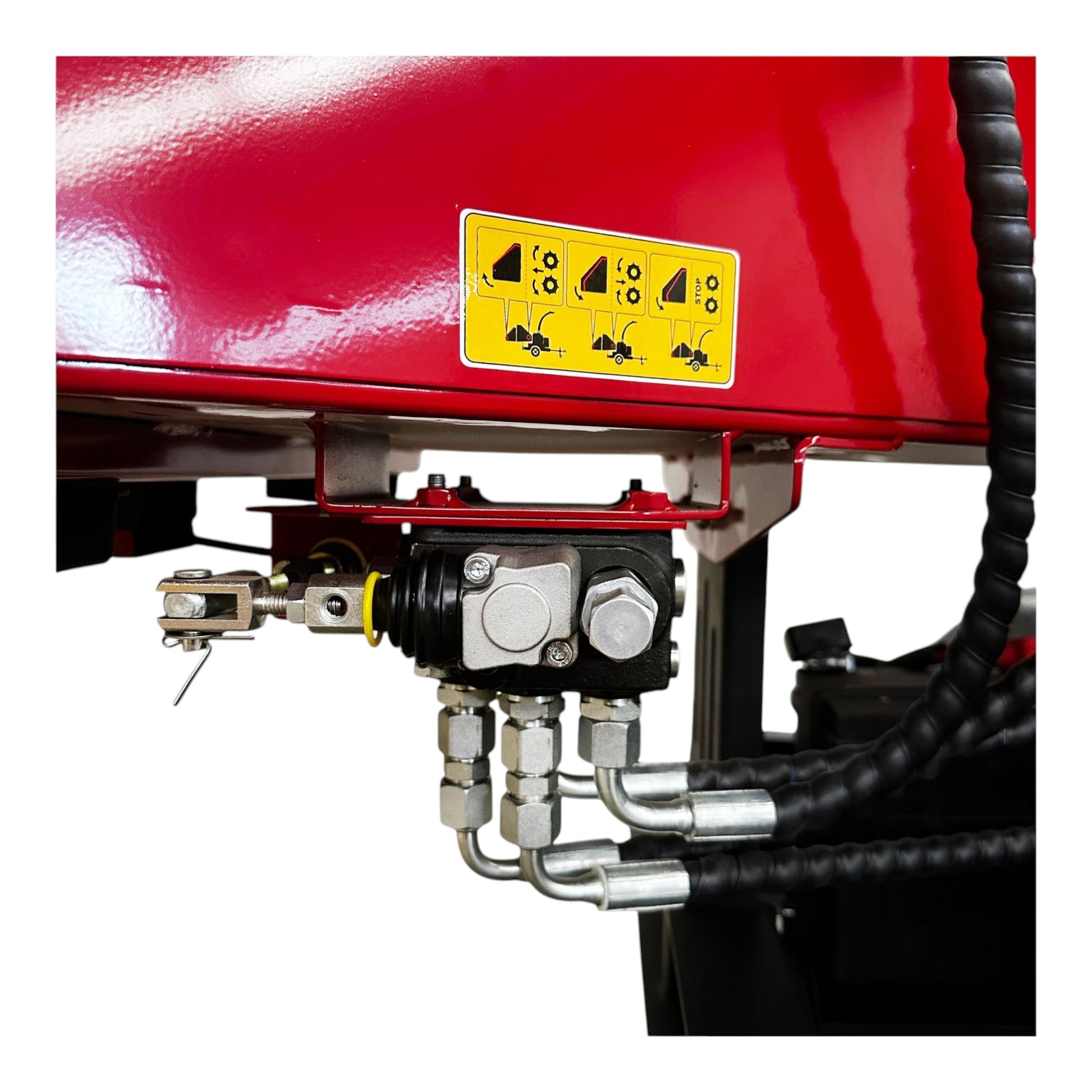

HYDRAULIC INFEED SYSTEM: Hydraulic feed rollers automatically pull material into the cutting system, reducing operator effort while maintaining consistent feeding speed. This improves productivity and helps process irregular branches more efficiently.
LARGE ADJUSTABLE HOPPER: The oversized hopper measures 32.75 × 26.75 in. (83.19 × 67.95 cm) and features an adjustable design for handling bulky brush and large branch material. Its ergonomic configuration allows for faster and safer loading.

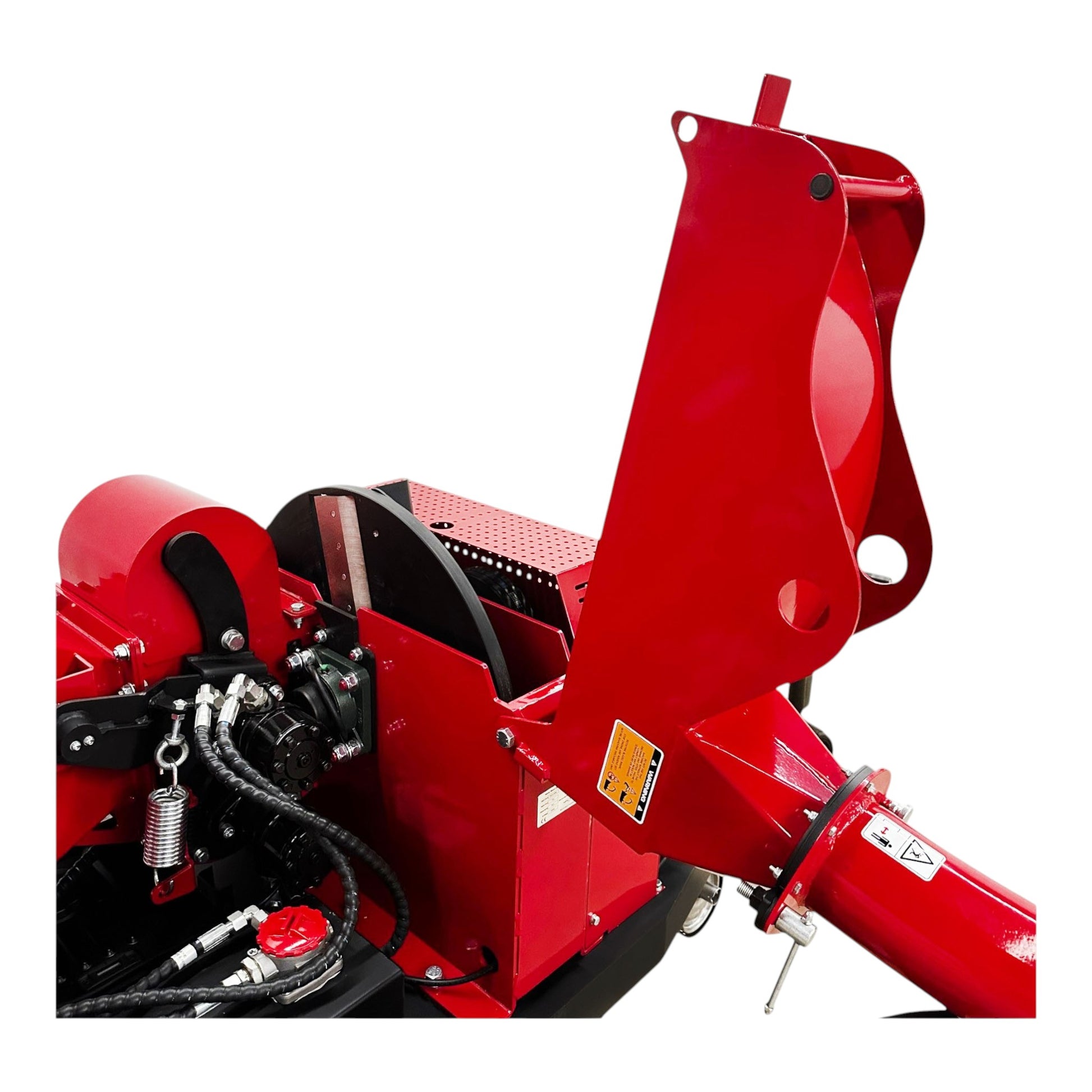

AISI 4140 STEEL FLYWHEEL & USA-MADE CARBON ALLOY BLADES: Heavy-duty AISI 4140 steel flywheel provides exceptional strength and long service life. Two reversible USA-made double-edge carbon alloy blades and a hardened anvil deliver aggressive cutting performance while extending blade life.
DISC CUTTING SYSTEM: Precision-engineered disc cutting system produces consistent wood chips while efficiently processing hardwoods, softwoods, and brush materials.
360 DEGREE ADJUSTABLE DISCHARGE CHUTE: Fully rotating discharge chute with adjustable deflector allows operators to accurately direct wood chips into trailers, trucks, or designated collection areas for improved jobsite efficiency.
HEAVY-DUTY TOW PACKAGE: Equipped with a 2 in. trailer hitch, safety chains, jockey wheel, prop stand, and a 7-pin electrical connector for secure, convenient towing between jobsites. An additional complimentary 4-pin adapter is included for added compatibility with a wide range of tow vehicles.
INTEGRATED TAIL LIGHTS: Built-in tail lights improve visibility and enhance transportation safety when towing the chipper on roadways.
POLYCARBONATE VINYL BAFFLE: Durable protective baffle helps contain flying debris while improving operator safety during operation.
HIGHWAY MOBILITY TIRES: Heavy-duty tubeless tires deliver smooth, reliable performance and enhanced stability on highways, paved roads, parking lots, and other hard surfaces.
EMERGENCY STOP SYSTEM: Integrated emergency stop bar and emergency stop button allow immediate shutdown when necessary, providing increased operator safety during operation.
CONVENIENT OPERATOR'S MANUAL STORAGE: Dedicated onboard storage keeps the operator's manual protected and easily accessible for reference and maintenance information.
ASSEMBLED IN NORTH AMERICA: Professionally assembled in North America using premium commercial-grade components for dependable performance and long-term durability.

APPLICATIONS / USE CASES

COMMERCIAL TREE SERVICES: Processes branches, limbs, and tree debris generated during pruning and removals.
LANDSCAPING CONTRACTORS: Efficiently chips brush and green waste for landscaping and property maintenance projects.
MUNICIPAL MAINTENANCE: Ideal for roadside cleanup, parks maintenance, storm recovery, and public works operations.
FARMS & ACREAGES: Clears shelterbelts, fence lines, orchards, and wooded areas while producing reusable mulch.
PROPERTY MANAGEMENT: Suitable for maintaining commercial, institutional, and large residential properties requiring routine tree and brush management.

WHAT'S INCLUDED

HOC ARCX7 Wood Chipper
Honda GX690 22 HP Engine
Hydraulic Infeed Roller System
AISI 4140 Steel Flywheel
Two USA-Made Double-Edge Carbon Alloy Blades
One Hardened Anvil Blade
360° Adjustable Discharge Chute
Heavy-Duty Tow Bar with 2 in. Trailer Coupler
Safety Chains
Jockey Wheel
Prop Stand
7-Pin Trailer Connector with Complimentary 4-Pin Adapter
Integrated Tail Lights
36 Ah 12V Battery
Operator's Manual

TECHNICAL SPECIFICATIONS

MODEL: ARCX7
ENGINE: Honda GX690 Air-Cooled Four-Stroke OHV Petrol Engine
ENGINE CONFIGURATION: 90° V-Twin, Horizontal Shaft
DISPLACEMENT: 688 cc
ENGINE POWER: 22 HP
RATED POWER: 13.0 kW @ 3,600 RPM
MAXIMUM TORQUE: 48.3 N·m @ 2,500 RPM
STARTING SYSTEM: Electric Start
IGNITION SYSTEM: CDI
GOVERNOR SYSTEM: Mechanical Centrifugal

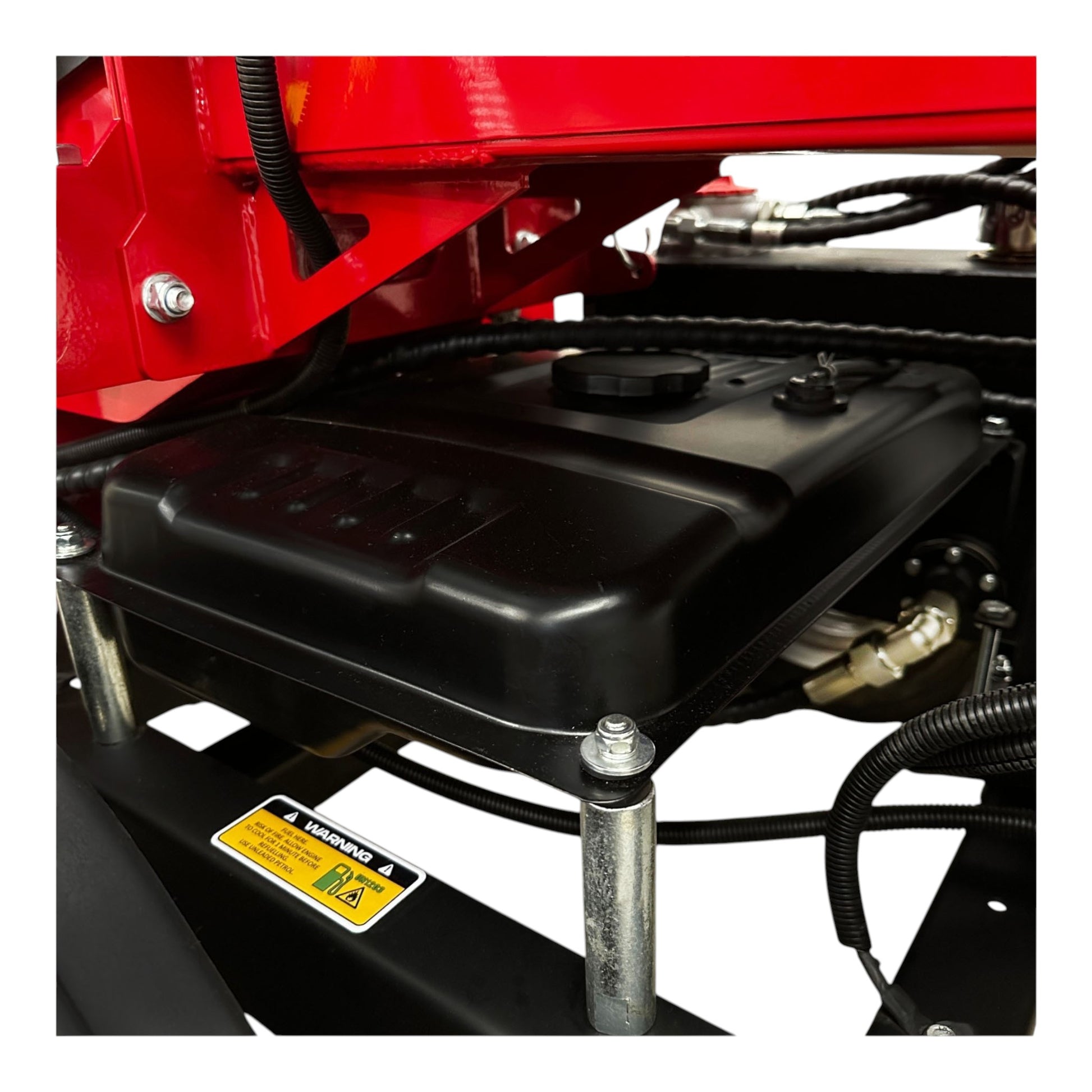

FUEL CAPACITY: 3.17 gal. (12 L)
RECOMMENDED OIL: SAE 10W-30 (SE Classification or Higher)

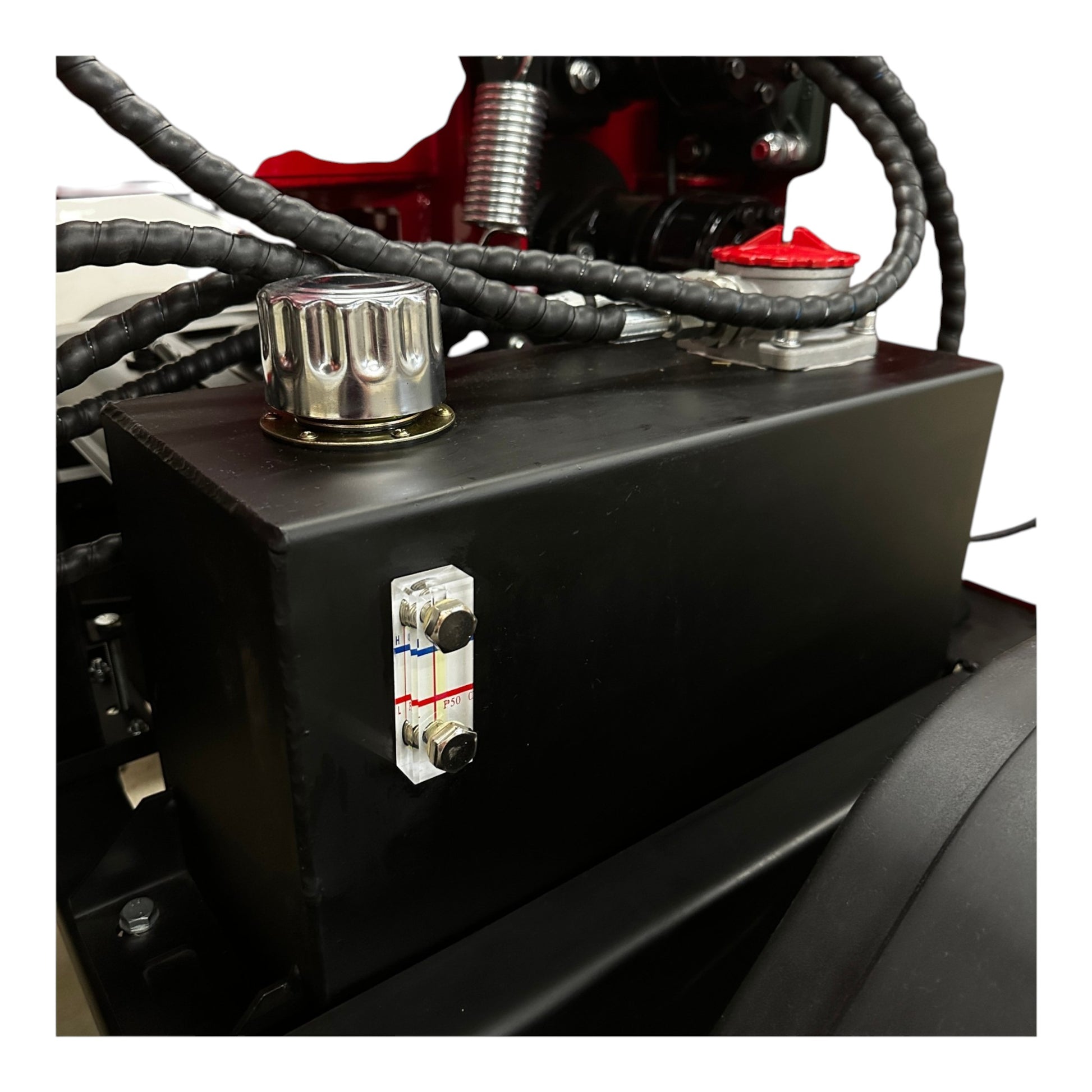

HYDRAULIC TANK CAPACITY: 6.87 gal. (26 L)
BATTERY: 36 Ah, 12V Lead-Acid
BELTS: Dual Kevlar V-Belts
CLUTCH: Centrifugal
CUTTING METHOD: Disc
MAXIMUM CHIPPING DIAMETER: 7 in. (17.8 cm)
FEED ROLLER SIZE: 7.5 × 6.5 in. (19.1 × 16.5 cm)
BLADE CONFIGURATION: 2 Double-Edge Blades, 1 Anvil
FLYWHEEL: Open Top Flywheel, 26 × 1 in. (66 × 2.5 cm) Twin
DISCHARGE CHUTE: 360° Rotating
EMERGENCY STOP: Stop Bar and Stop Button
TOWING SYSTEM: Tow Bar with 2 in. Trailer Coupler
TIRES: 5.3-12 Tubeless
AXLE: Damping Torsion Axle
WHEELBASE: 52.5 in. (133.4 cm)
MAXIMUM TOWING SPEED: 50 mph (80 km/h)
NET WEIGHT: 1,389 lb. (630 kg)
GROSS WEIGHT: 1,587 lb. (720 kg)
PRODUCT DIMENSIONS (L × W × H): 137 × 55 × 90 in. (348 × 140 × 229 cm)
PACKAGING DIMENSIONS (L × W × H): 87 × 46 × 51 in. (221 × 117 × 130 cm)
ASSEMBLY: Assembled in North America

FREQUENTLY ASKED QUESTIONS

What is the maximum branch size this chipper can process?
The ARCX7 is designed to efficiently chip branches up to 7 inches (17.8 cm) in diameter.
How does the hydraulic infeed system improve performance?
The hydraulic feed rollers automatically pull material into the cutting system, reducing operator effort while maintaining consistent feeding speed and improving productivity.
What are the advantages of the Honda GX690 engine?
The Honda GX690 delivers commercial-grade reliability, excellent fuel efficiency, smooth V-Twin performance, and dependable electric starting for demanding professional applications.
Can the discharge chute be adjusted?
Yes. The discharge chute rotates 360 degrees and features an adjustable deflector, allowing precise control of chip discharge direction.
Is the chipper suitable for road transport?
Yes. It includes a heavy-duty tow package with a 2-inch trailer coupler, safety chains, integrated tail lights, jockey wheel, prop stand, and 7-Pin Trailer Connector with Complimentary 4-Pin Adapter (for convenient towing between jobsites.
