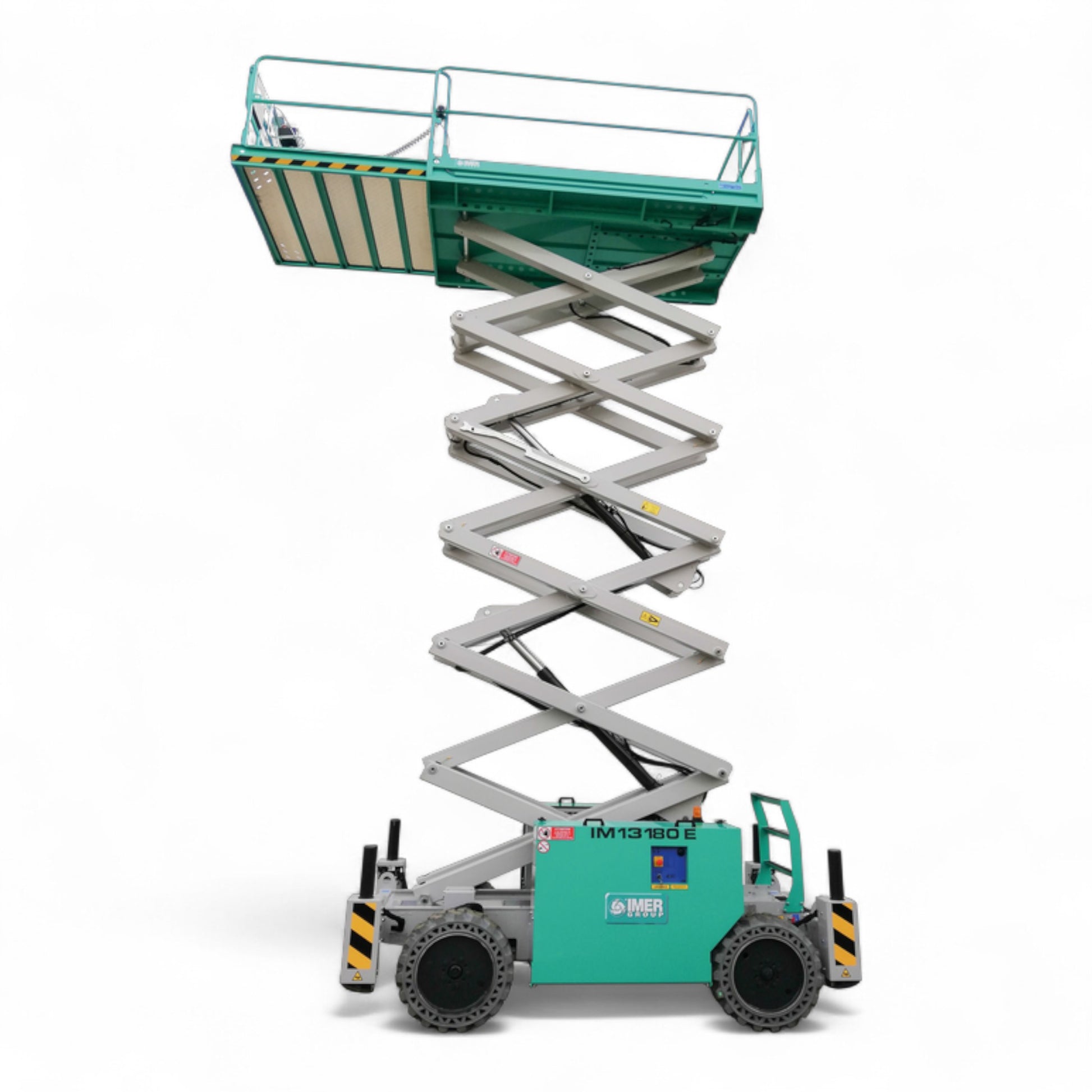

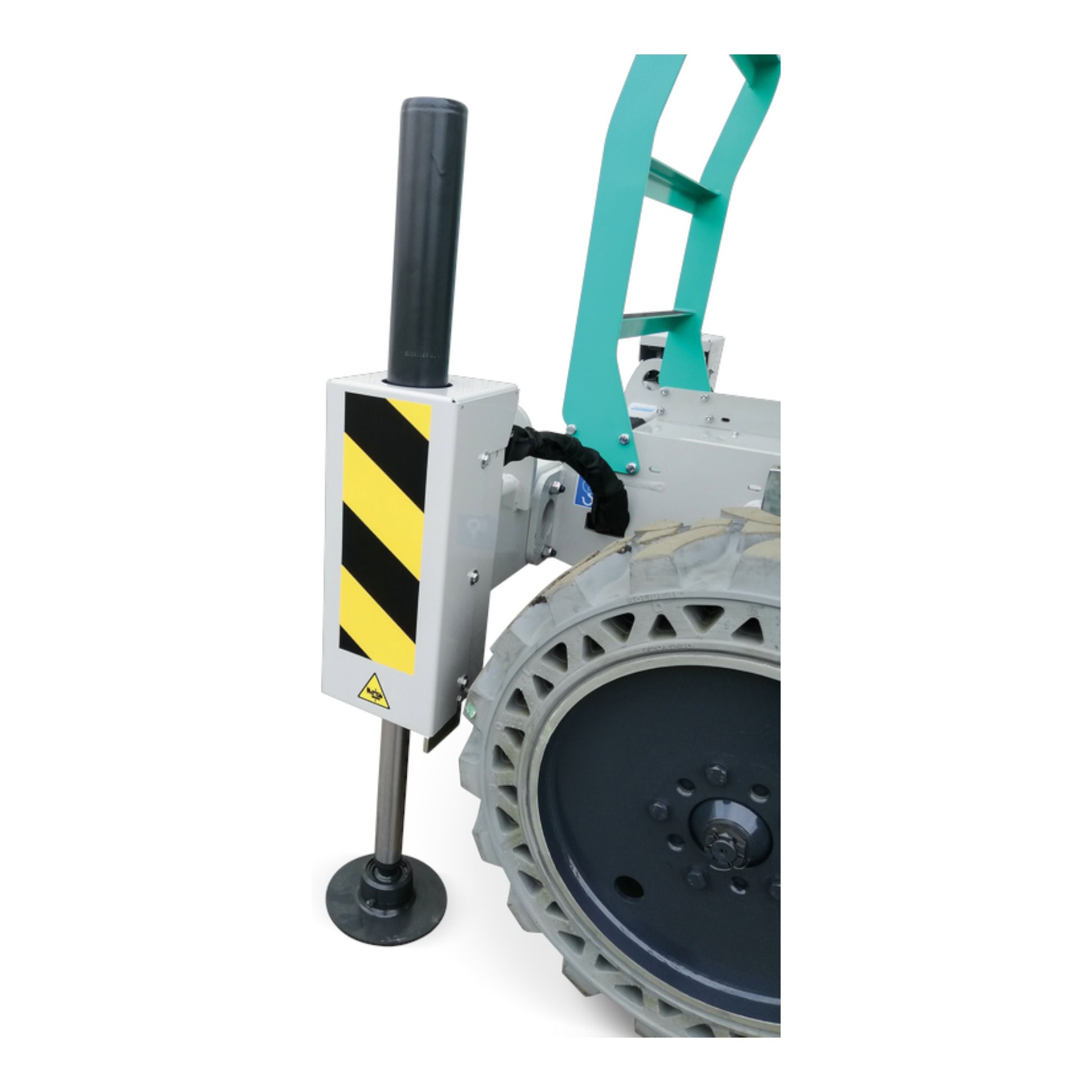

IMER IM 7043 Series Scissor Lift

The IMER IM 7043 Series Scissor Lift is designed for professionals who demand exceptional height access, stability, and flexibility. Engineered for both indoor and outdoor applications, the IM 7043 delivers powerful lifting performance, smooth maneuverability, and intelligent control, all in a compact, durable design. With the ability to drive in any position, including at full height, operators experience maximum productivity and efficiency in every environment. Available in two configurations, the all-electric IM 7043 E and the dual-power IM 7043 DE, this series redefines versatility and endurance on the job site.

FEATURES - IM 7043 E (Electric)

• Powerful AC Motor System: Equipped with a 48V – 7.2 kW AC motor that delivers consistent, quiet power for precise, smooth operation across all surfaces, ideal for both indoor and outdoor environments.
• High-Capacity Traction Battery: Fitted with a 48V 300Ah (C5) traction battery providing extended runtime and reliable performance throughout the workday.
• Automatic Battery Management: Integrated automatic cut-off charger and low-voltage cut-out protection system ensure optimal battery health, extended lifespan, and reduced maintenance costs.
• Battery Cut-Out Handle: Allows operators to safely disconnect power during transport or maintenance, enhancing overall safety and serviceability.
• Rough Terrain Non-Marking Tires: Heavy-duty 28" x 9 1/2" (720 x 245 mm) rough terrain tires provide superior grip and stability while protecting sensitive flooring surfaces, perfect for transitioning between job types.
• Plug Unit with Battery Level Indicator: Features plug-in access for both charging and power supply on the platform with an easy-to-read battery level indicator to monitor power levels at a glance.

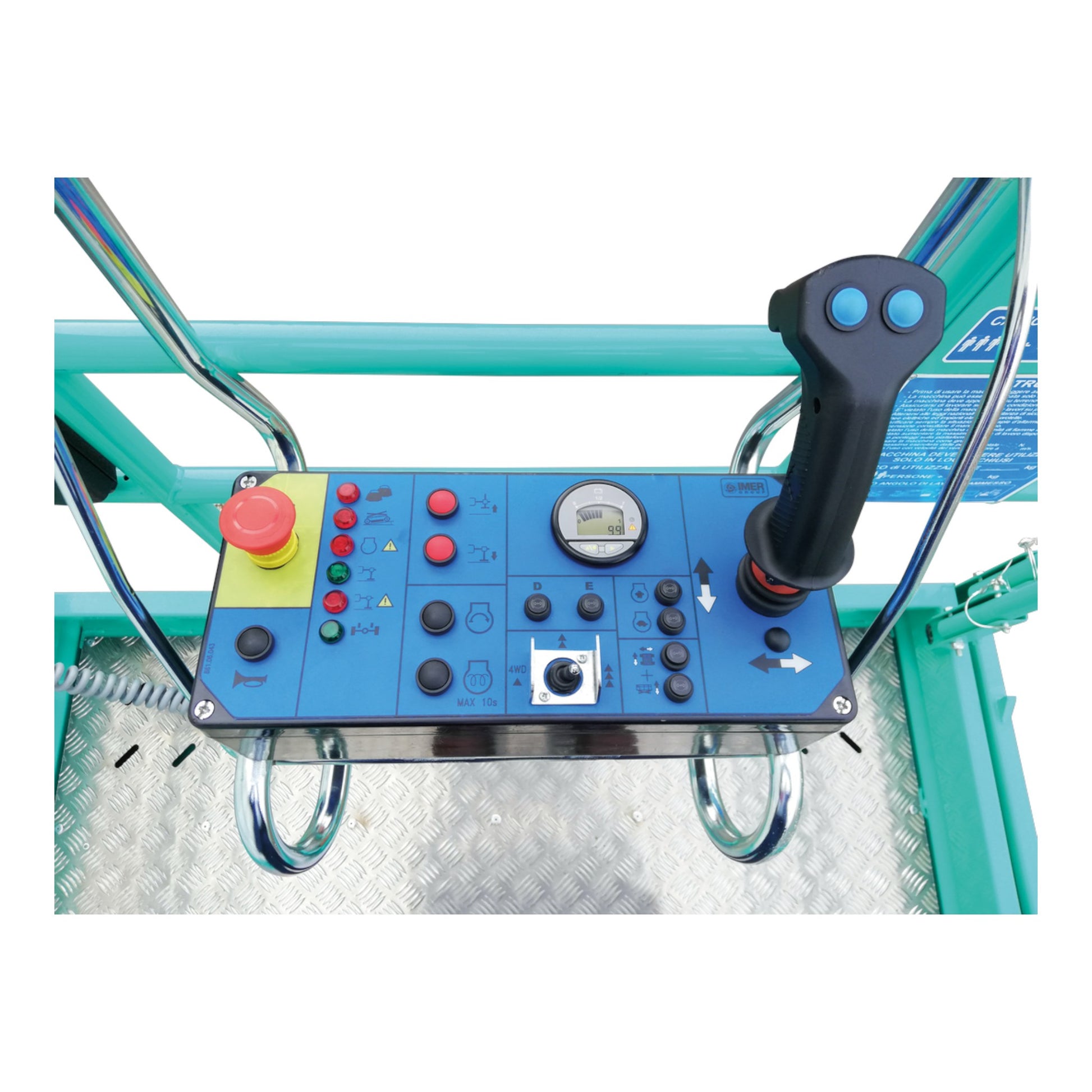

• Intuitive Control System: Simple and ergonomic control box can be removed from the basket for convenient loading, unloading, and transport operations.
• Best-in-Class Steering: Industry-leading 40 degree steering angle provides unmatched maneuverability in tight or congested work zones.

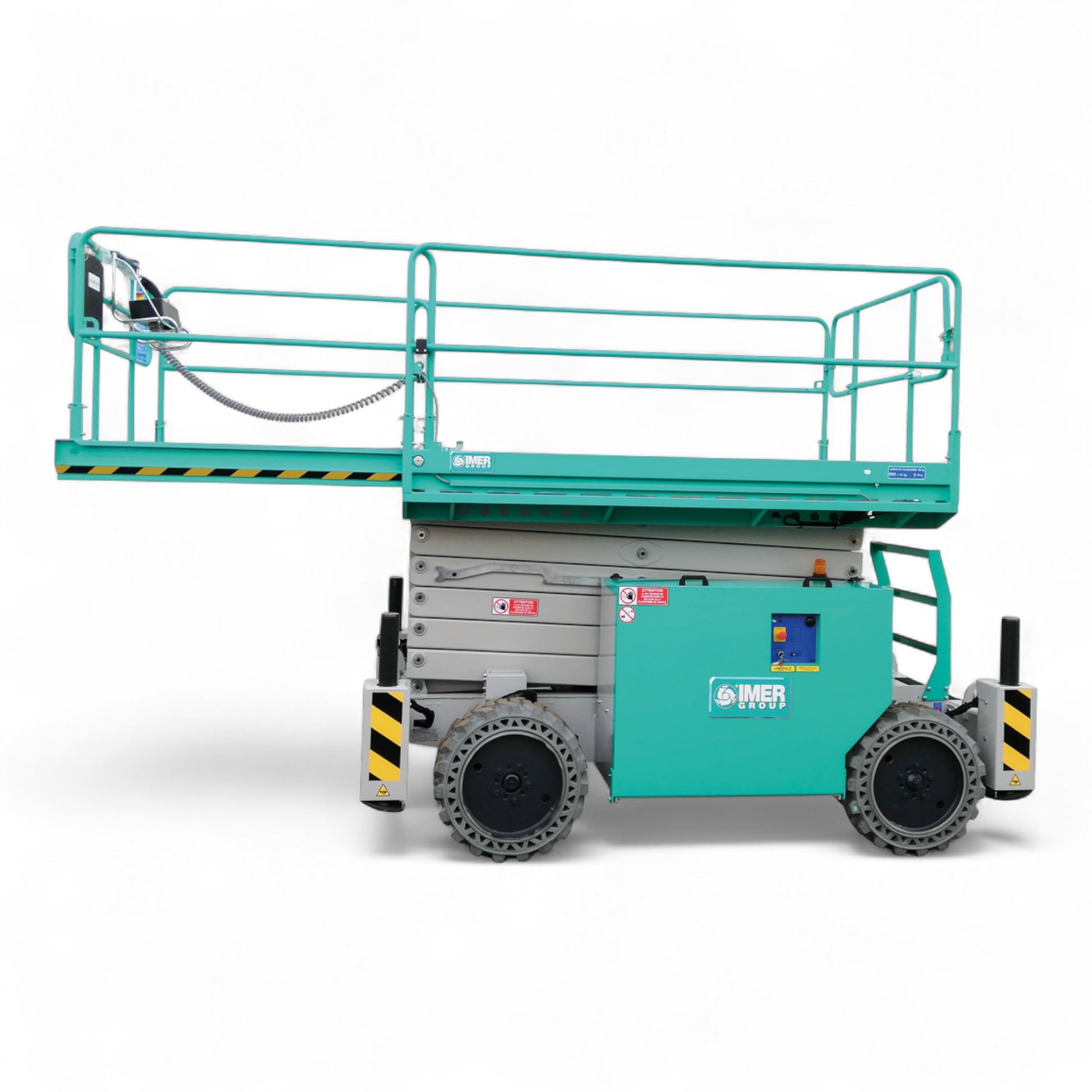

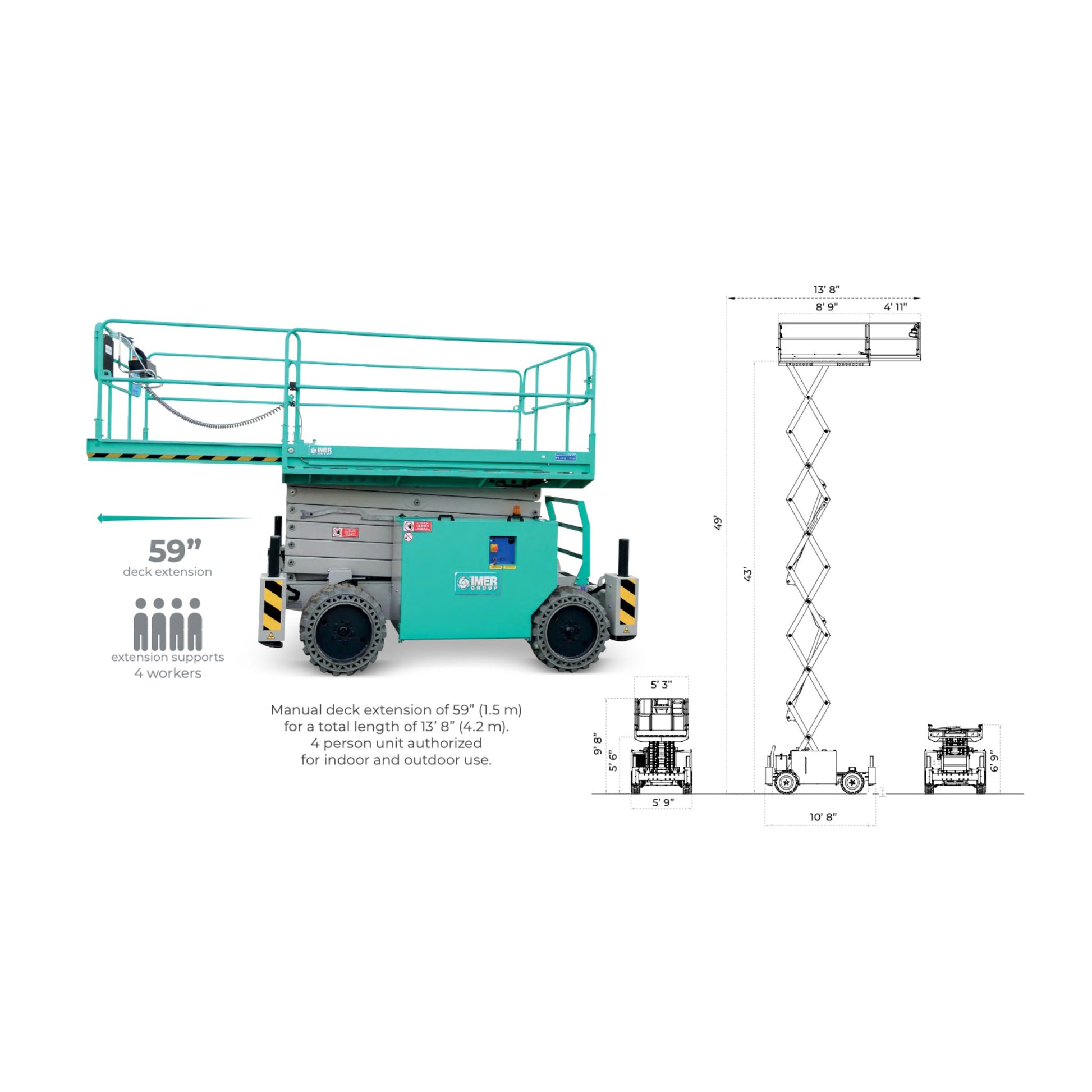

• Manual Deck Extension: Extendable deck adds 59 inches (1.5 m) of additional reach, creating a total platform length of 13 ft 8 in (4.2 m), offering greater coverage with fewer repositioning movements.
• Multi-Person Operation: Certified for up to 4 operators, approved for both indoor and outdoor use, providing the flexibility to handle demanding job site requirements safely and efficiently.

FEATURES - IM 7043 DE (Diesel/Electric Hybrid)

• Dual Power System: Combines a Yanmar water-cooled diesel engine for high-demand outdoor use with a 48V - 7.2 kW AC electric motor for zero-emission indoor operation, giving unmatched flexibility across environments.
• Integrated Start-Up Battery System: Includes a 12V 66Ah start-up battery with alternator for reliable diesel engine ignition and smooth power transition between modes.
• Extended Runtime and Efficiency: The 48V 300Ah (C5) traction battery powers electric operation, while the diesel engine recharges and sustains power for extended use on remote or high-demand sites.
• Automatic Battery Management and Safety: Built-in low-voltage protection and automatic charger shut-off preserve battery life and ensure consistent performance.
• Rough Terrain Non-Marking Tires: 28" x 9 1/2" (720 x 245 mm) high-grip tires provide enhanced traction and flotation over uneven terrain, maintaining smooth operation on any job site.
• Operator Convenience: Includes a removable control box for easy handling during transport and precise control during operation.
• Superior Steering Precision: 40 degree steering capability for effortless navigation and fine maneuvering in constrained areas.
• Manual Deck Extension: Provides an extra 59 inches (1.5 m) of platform space for a total working length of 13 ft 8 in (4.2 m), ideal for larger crews and extended work areas.
• Four-Person Rated Capacity: The IM 7043 DE is rated for four operators indoors and outdoors, offering powerful lifting performance with exceptional stability and reach.

Optional Accessories

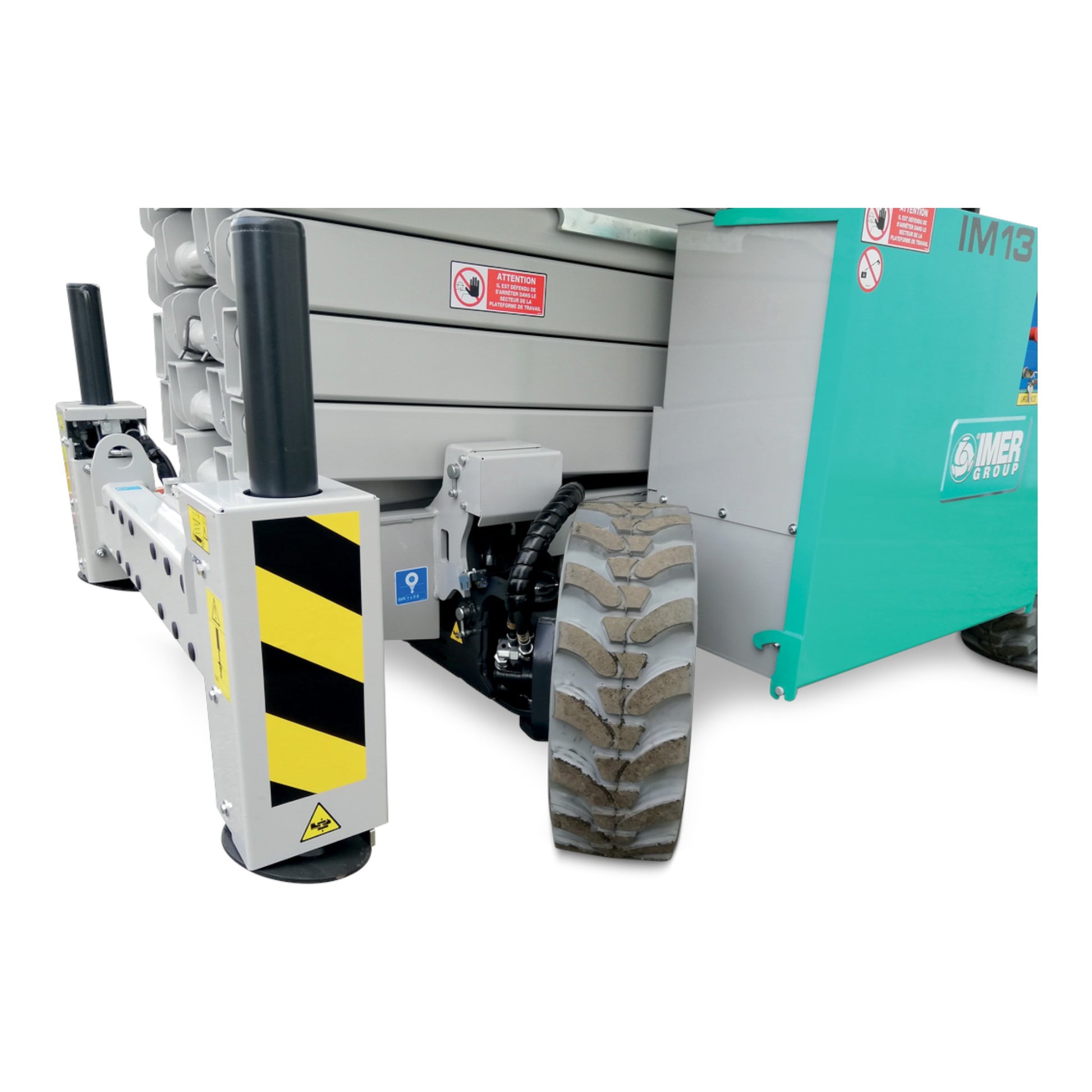

• Oscillating Axle
• 4WD Transmission
• Black Tires

BENEFITS

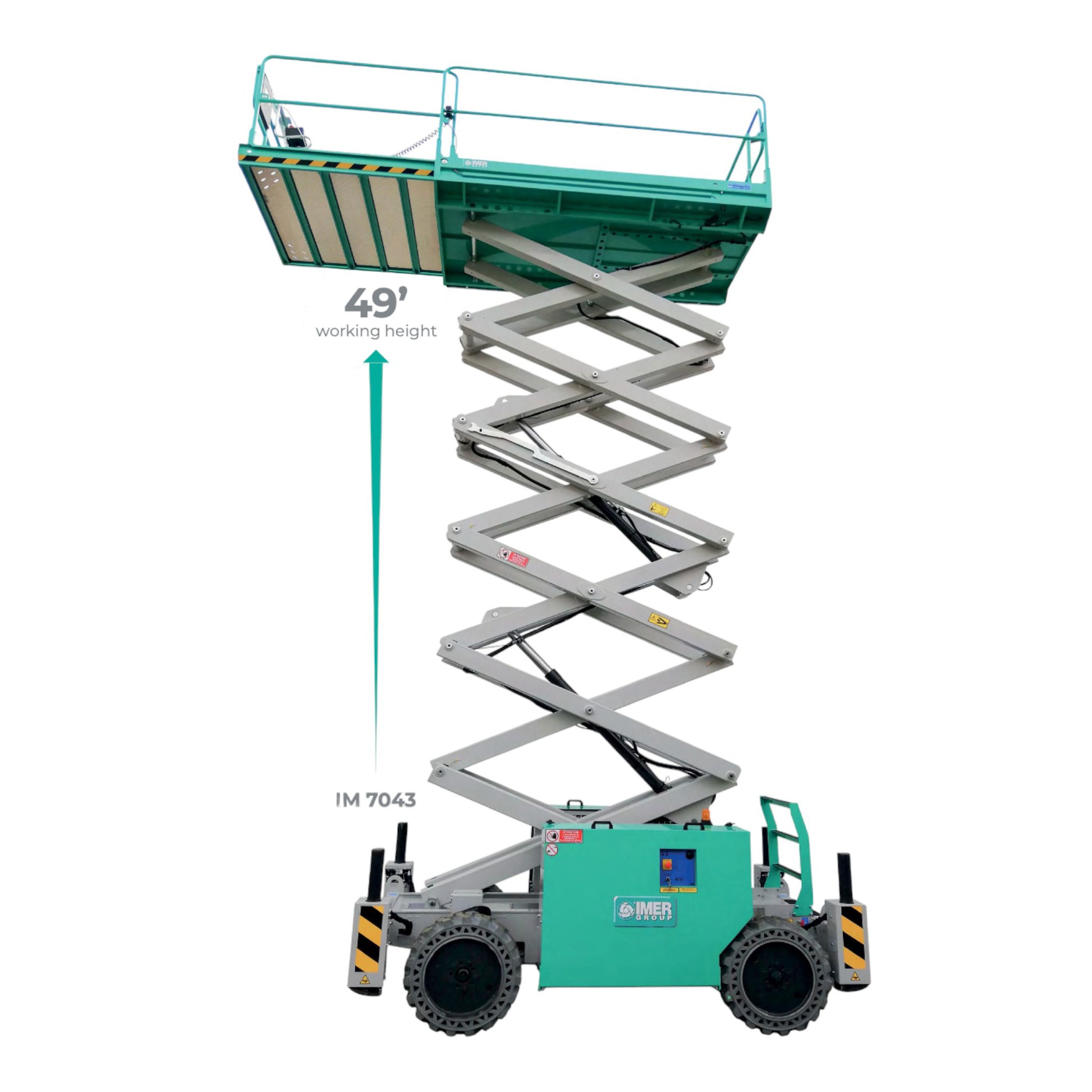

• Driveable at full height for uninterrupted workflow and superior productivity.
• Dual-power (DE model) allows seamless indoor/outdoor operation with zero downtime.
• Automatic charging and low-voltage protection extend battery performance and lifespan.
• Industry-leading steering radius ensures easy maneuverability in compact environments.
• Non-marking rough terrain tires provide stability, safety, and surface protection.
• Removable control box improves operator flexibility during transport and positioning.
• Large platform extension increases reach and workspace efficiency for multiple users.
