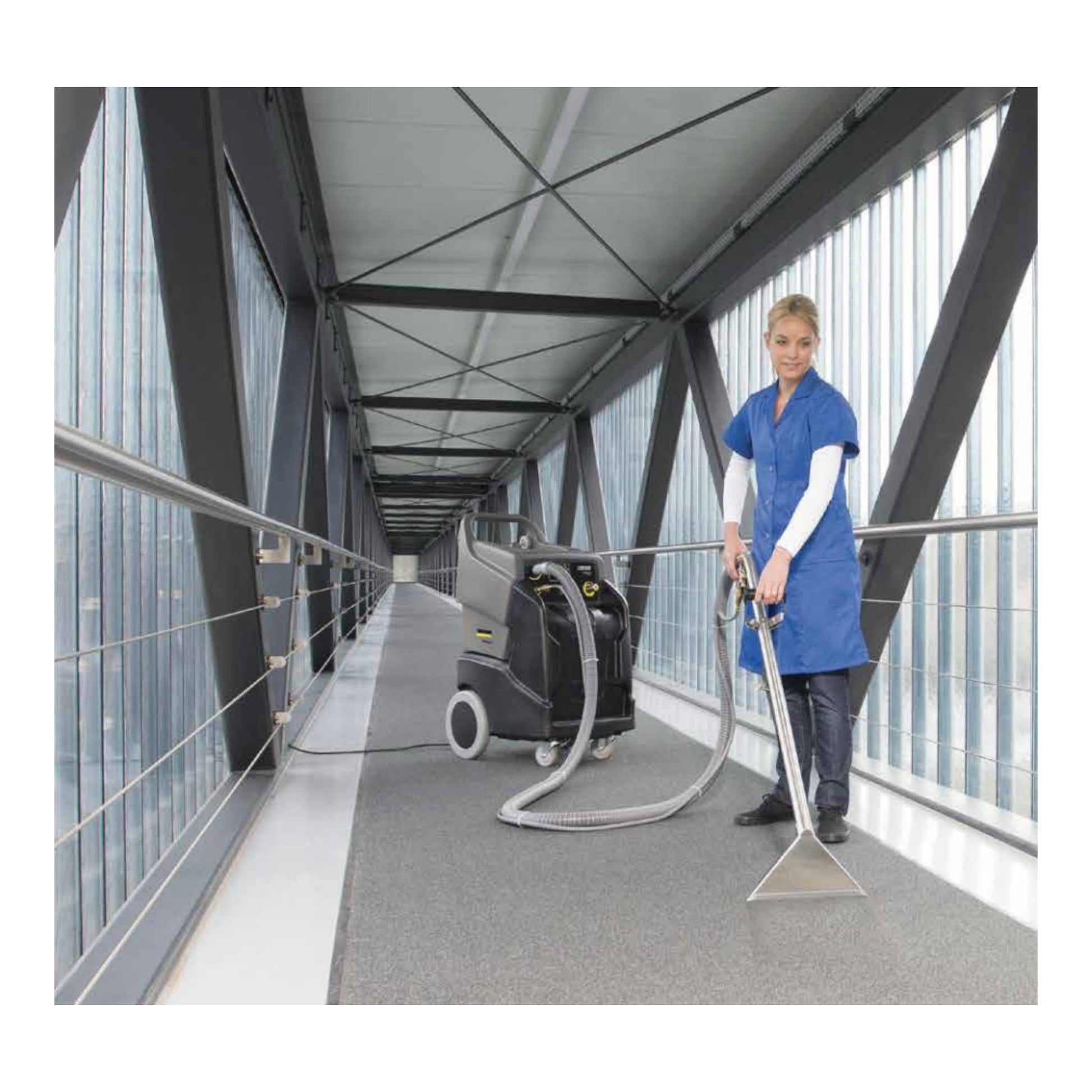

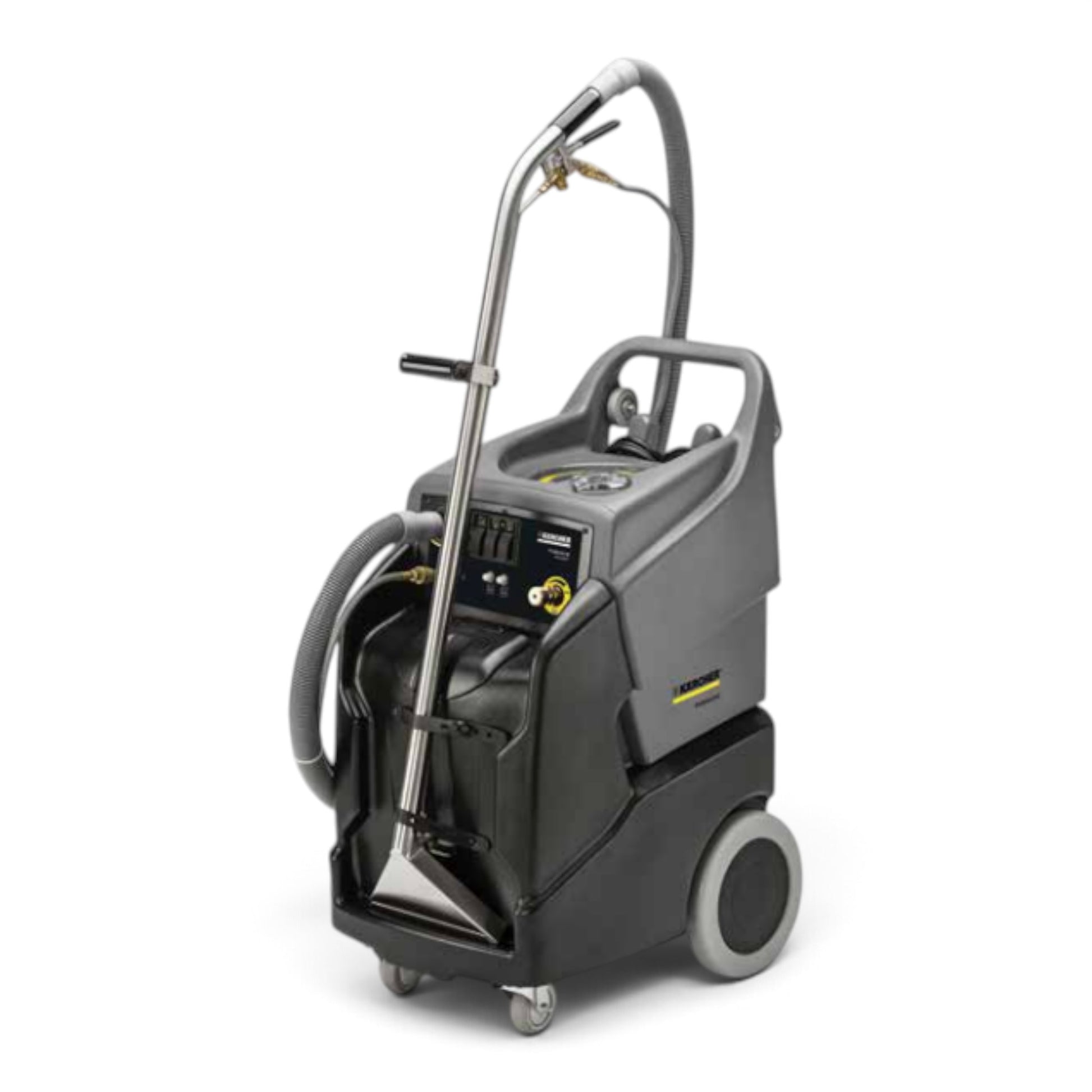

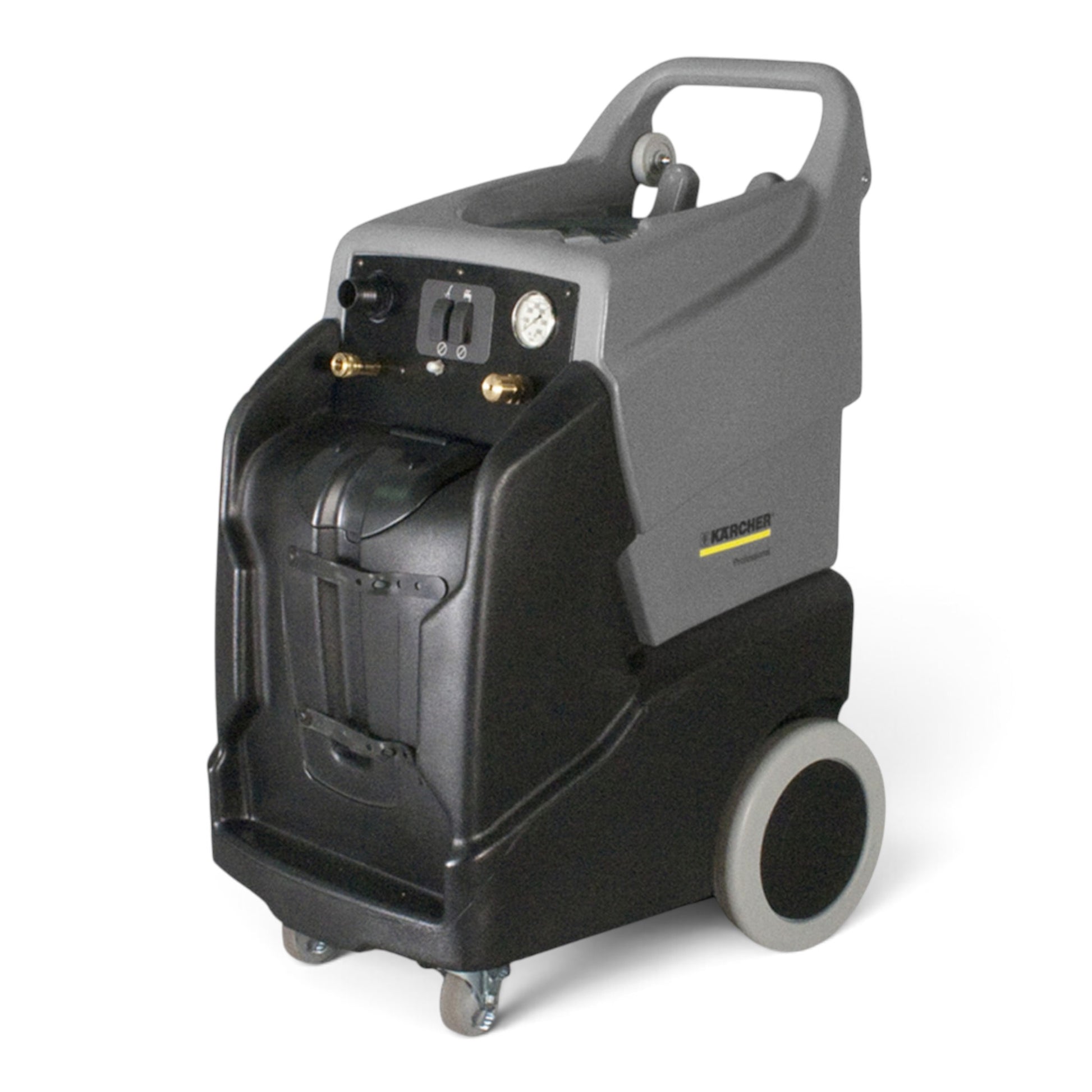

Kärcher Puzzi 64/35 E 17-Gallon Spray Carpet Extractor

The Kärcher Puzzi 64/35 E 17-Gallon Spray Carpet Extractor is a powerful heated box-and-wand portable extractor designed for professional carpet, upholstery, automotive detailing, and commercial cleaning applications. It combines an internal 1,850 W water heater with adjustable spray pressure from 0–500 psi (0–3,447 kPa), a large 17 gal (64.4 L) solution tank, and a 14 gal (53.0 L) recovery tank to provide the capacity and versatility required for demanding extraction work. Large 12 in (30.5 cm) transport wheels, top-mounted loading casters, onboard accessory storage, and conveniently positioned controls make the Puzzi 64/35 E ideal for professional cleaning contractors, facility maintenance teams, automotive detailers, and other operators who need powerful heated extraction with excellent portability.

KEY FEATURES

• 1,850 W INTERNAL WATER HEATER: The integrated 1,850 W water heater provides heated solution for additional cleaning power during demanding extraction applications. Heated extraction can help professional operators tackle challenging carpet and upholstery cleaning jobs while keeping the heating system conveniently contained within the machine.
• ADJUSTABLE 0–500 PSI (0–3,447 KPA) SPRAY PRESSURE: Adjustable solution pressure allows the operator to configure the extractor for a wide variety of surfaces and soil conditions. Lower pressure provides greater control for delicate upholstery and detail work, while pressure up to 500 psi (3,447 kPa) delivers the power needed for heavily soiled commercial carpeting.
• 17 GAL (64.4 L) SOLUTION CAPACITY: The large 17 gal (64.4 L) solution tank provides substantial capacity for demanding professional cleaning jobs. Fewer refill stops can improve productivity when extracting large carpeted areas or completing extended cleaning assignments.
• 14 GAL (53.0 L) RECOVERY CAPACITY: A large 14 gal (53.0 L) recovery tank provides ample capacity for collected cleaning solution during extraction. The generous tank size helps reduce interruptions for emptying and keeps professional crews working efficiently across larger areas.

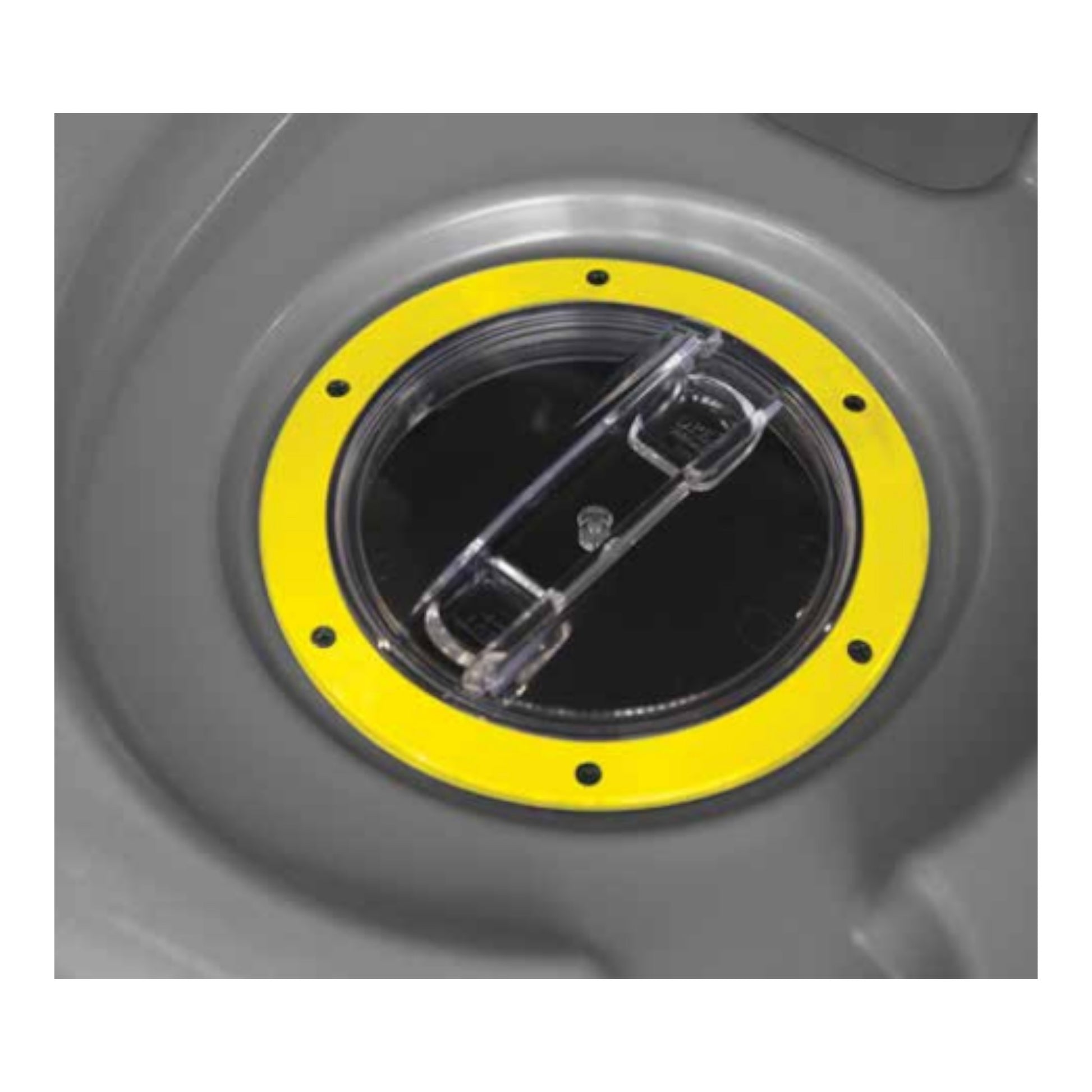

• EASY-FILL, NO-SPILL TANK DESIGN: The solution tank is designed for straightforward filling while helping minimize unnecessary spills during machine preparation. Easier tank management saves time and simplifies daily operation for busy commercial cleaning crews.
• HEATED BOX-AND-WAND EXTRACTION SYSTEM: The portable box-and-wand configuration gives operators the freedom to select the appropriate hose, wand, upholstery tool, or detailing accessory for each job. Combined with the internal heater and adjustable pressure, this makes the Puzzi 64/35 E suitable for everything from commercial carpets to detailed upholstery cleaning.
• LARGE 12 IN (30.5 CM) TRANSPORT WHEELS: Large wheels make it easier to move the extractor through commercial facilities and between job locations. Their size helps improve mobility while the machine's compact configuration remains practical for professional transportation and storage.
• TOP-MOUNTED 3 IN (7.6 CM) CASTERS: Top-mounted casters help simplify loading and unloading when transporting the extractor between job sites. This practical feature is especially valuable for mobile cleaning contractors who regularly move the machine in and out of service vehicles.
• COMPACT AND TRANSPORTABLE DESIGN: Despite its 17 gal (64.4 L) solution capacity and integrated heater, the machine is designed for convenient movement between work areas. Its combination of compact dimensions and large transport wheels makes it practical for both facility-based and mobile cleaning operations.
• ONBOARD CARRYING AND STORAGE SYSTEM: Integrated storage provides convenient organization for cords, hoses, wands, cleaning chemicals, and an accessory bucket. Keeping essential supplies with the extractor reduces unnecessary trips to retrieve equipment and helps professional operators work more efficiently.
• EASY SERVICE ACCESS: Wide-open accessibility to service components simplifies routine inspection, cleaning, and maintenance. Easier component access can reduce maintenance time and helps crews keep the extractor ready for regular professional use.

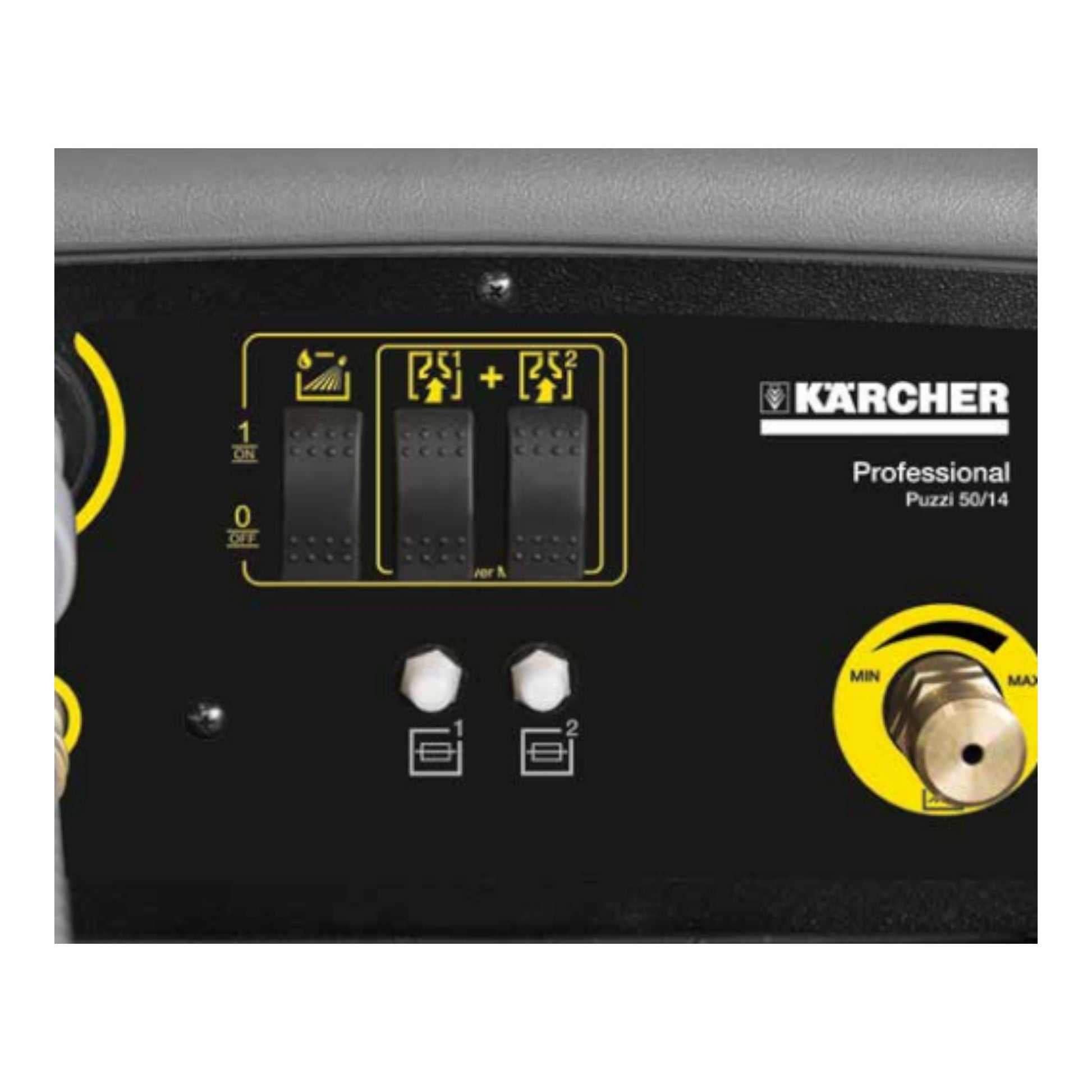

• CENTRALIZED OPERATOR CONTROLS: All primary machine controls are positioned together in an easy-to-reach location. This straightforward layout simplifies operation and allows users to control the extractor without unnecessary movement around the machine.
• VERSATILE PROFESSIONAL CLEANING: Adjustable pressure, heated solution, and an extensive selection of compatible accessories allow the Puzzi 64/35 E to handle multiple cleaning applications. One machine can be configured for carpets, upholstery, automotive interiors, stairs, edges, and detailed extraction work.

APPLICATIONS / USE CASES

• COMMERCIAL CARPET EXTRACTION: The internal heater and adjustable-pressure system provide the versatility required for demanding commercial carpet extraction. When paired with the appropriate hose and wand, the Puzzi 64/35 E can tackle large carpeted areas and challenging soil conditions efficiently.
• UPHOLSTERY CLEANING: Adjustable spray pressure allows operators to reduce pressure when working with appropriate upholstery and fabric surfaces. A compatible upholstery or detail tool provides greater control than a full-size carpet wand for furniture and other detailed applications.
• AUTOMOTIVE DETAILING: Optional auto-detail tools, crevice tools, and extended vacuum/solution hoses allow the extractor to be configured for professional vehicle interior cleaning. Operators can reach seats, carpeting, fabric surfaces, edges, and confined spaces while keeping the main extractor positioned conveniently nearby.
• LARGE FACILITY CLEANING: The 17 gal (64.4 L) solution and 14 gal (53.0 L) recovery capacities make the machine particularly useful for facilities with substantial carpeted areas. Larger tanks help reduce the frequency of filling and emptying during extended cleaning operations.
• STAIRS AND DIFFICULT-TO-REACH AREAS: Extended hose options allow the main extractor to remain in a convenient location while the operator cleans stairs, corners, edges, and other remote areas. This can reduce the need to repeatedly reposition the machine during detailed cleaning jobs.
• PROFESSIONAL CLEANING CONTRACTORS: Large transport wheels, loading casters, onboard storage, and a compact portable design make the Puzzi 64/35 E particularly practical for contractors moving between customer locations. Its broad pressure range and heated extraction capability allow one machine to handle diverse cleaning requirements.
• HEAVILY SOILED CARPETS: Adjustable pressure up to 500 psi (3,447 kPa) and the integrated 1,850 W heater provide substantial cleaning capability for challenging carpet conditions. Operators can adjust the extraction setup according to carpet type, soil level, cleaning chemistry, and accessory selection.

WHAT’S INCLUDED

• Kärcher Puzzi 64/35 E 17-Gallon Spray Carpet Extractor
• Integrated 1,850 W water heater
• 17 gal (64.4 L) solution tank
• 14 gal (53.0 L) recovery tank
• Adjustable-pressure extraction system
• Large 12 in (30.5 cm) transport wheels
• Top-mounted 3 in (7.6 cm) loading and unloading casters
• Onboard carrying and accessory storage system
• Integrated accessory bucket storage
• Centralized operator controls

NOTE: Hose and wand are not included and must be ordered separately.

OPTIONAL ACCESSORIES

• DETAILING CREVICE TOOL: Designed for extraction cleaning in narrow, confined, and difficult-to-reach areas. This accessory is particularly useful for automotive interiors, edges, corners, and other detailed cleaning applications.
• 16.5 FT (5.0 M) 500 PSI (3,447 KPA) VACUUM HOSE SET: Provides a practical working range for professional extraction while supporting operating pressures up to 500 psi (3,447 kPa). The hose set allows compatible wands and detail tools to be operated away from the extractor.
• 500 PSI (3,447 KPA) AUTO DETAIL TOOL: Designed for professional vehicle interior and upholstery extraction. Its compact design allows operators to clean seats, fabric surfaces, carpets, and other detailed areas where a full-size extraction wand would be impractical.
• 25 FT (7.6 M) 500 PSI (3,447 KPA) VACUUM HOSE SET: The extended 25 ft (7.6 m) hose provides greater working reach for large rooms, stairs, vehicles, and other areas where the extractor cannot be positioned immediately beside the cleaning surface. The hose set supports professional extraction pressures up to 500 psi (3,447 kPa).
• DELUXE PROFESSIONAL WAND WITH HIGH-TEMPERATURE HOSE: A professional carpet extraction wand designed for operation up to 500 psi (3,447 kPa). Its high-temperature hose configuration makes it particularly suitable for use with the heated extraction capability of the Puzzi 64/35 E.
• AQUAFOIL™ WAND: The AquaFoil™ Wand provides a professional wand configuration for carpet extraction applications. It gives cleaning professionals another option for configuring the Puzzi system according to their preferred extraction process and job requirements.
• AUTO DETAIL KIT: This comprehensive detailing package includes 25 ft (7.6 m) vacuum/solution hoses, a 500 psi (3,447 kPa) carpet/upholstery tool kit, and a 500 psi (3,447 kPa) crevice tool. It provides a versatile setup for professional automotive interiors, upholstery, carpeting, and detailed extraction work.
• COMPLETE HOSE AND WAND KIT: Includes a 500 psi (3,447 kPa) Pro Wand, 25 ft (7.6 m) hose set, and carrying bag. This package provides the primary hose-and-wand components needed to configure the extractor for professional carpet-cleaning applications.
• DELUXE HOSE AND WAND KIT: Includes a 500 psi (3,447 kPa) AquaFoil™ Wand, 25 ft (7.6 m) hose set, and carrying bag. This complete package combines professional extraction components with convenient organization, storage, and transportation between jobs.

TECHNICAL SPECIFICATIONS

• MANUFACTURER: Kärcher
• MODEL: Puzzi 64/35 E
• PRODUCT TYPE: Heated portable box-and-wand spray carpet extractor
• SOLUTION CAPACITY: 17 gal (64.4 L)
• RECOVERY CAPACITY: 14 gal (53.0 L)
• ADJUSTABLE SPRAY PRESSURE: 0–500 psi (0–3,447 kPa)
• PUMP PRESSURE: 500 / 150 psi (3,447 / 1,034 kPa)
• INTERNAL WATER HEATER: 1,850 W
• WATER LIFT – STANDARD / HEAT: 107 / 74 in H₂O (271.8 / 188.0 cm H₂O)
• AIRFLOW – STANDARD / HEAT: 73 / 111 CFM (2.07 / 3.14 m³/min)
• WEIGHT RANGE: 120–139 lb (54.4–63.0 kg)
• DIMENSIONS (L × W × H): 33 × 23 × 43 in (83.8 × 58.4 × 109.2 cm)
• TRANSPORT WHEEL SIZE: 12 in (30.5 cm)
• TOP-MOUNTED CASTER SIZE: 3 in (7.6 cm)
• STORAGE SYSTEM: Onboard storage for cords, hose, wand, cleaning chemicals, and accessory bucket
• CONTROLS: Centralized easy-to-reach operator controls
• PRIMARY APPLICATIONS: Carpet extraction, upholstery cleaning, automotive detailing, stair cleaning, and detail extraction
• HOSE AND WAND: Sold separately

FREQUENTLY ASKED QUESTIONS (FAQ)

1. Does the Kärcher Puzzi 64/35 E have a built-in water heater?

Yes. The Puzzi 64/35 E is equipped with an internal 1,850 W water heater for additional cleaning capability. This makes it particularly useful for professional applications where heated extraction is desired.

2. Does the Puzzi 64/35 E include a hose and wand?

No. The hose and wand are sold separately and must be selected according to the intended cleaning application. Multiple hose lengths, professional wands, detail tools, and complete accessory kits are available.

3. What are the solution and recovery tank capacities?

The machine has a 17 gal (64.4 L) solution tank and a 14 gal (53.0 L) recovery tank. These large capacities are designed to support extended professional cleaning with fewer interruptions for filling and emptying.

4. Can the Puzzi 64/35 E clean upholstery and vehicle interiors?

Yes. The adjustable spray pressure and available detail accessories allow the extractor to be configured for appropriate upholstery and automotive interior cleaning applications. Compatible auto-detail and crevice tools are available separately for detailed extraction work.

5. What is the maximum adjustable spray pressure?

The spray pressure can be adjusted up to 500 psi (3,447 kPa). This broad adjustment range gives operators the flexibility to use lower pressure for more delicate cleaning applications or higher pressure for challenging carpet extraction.
