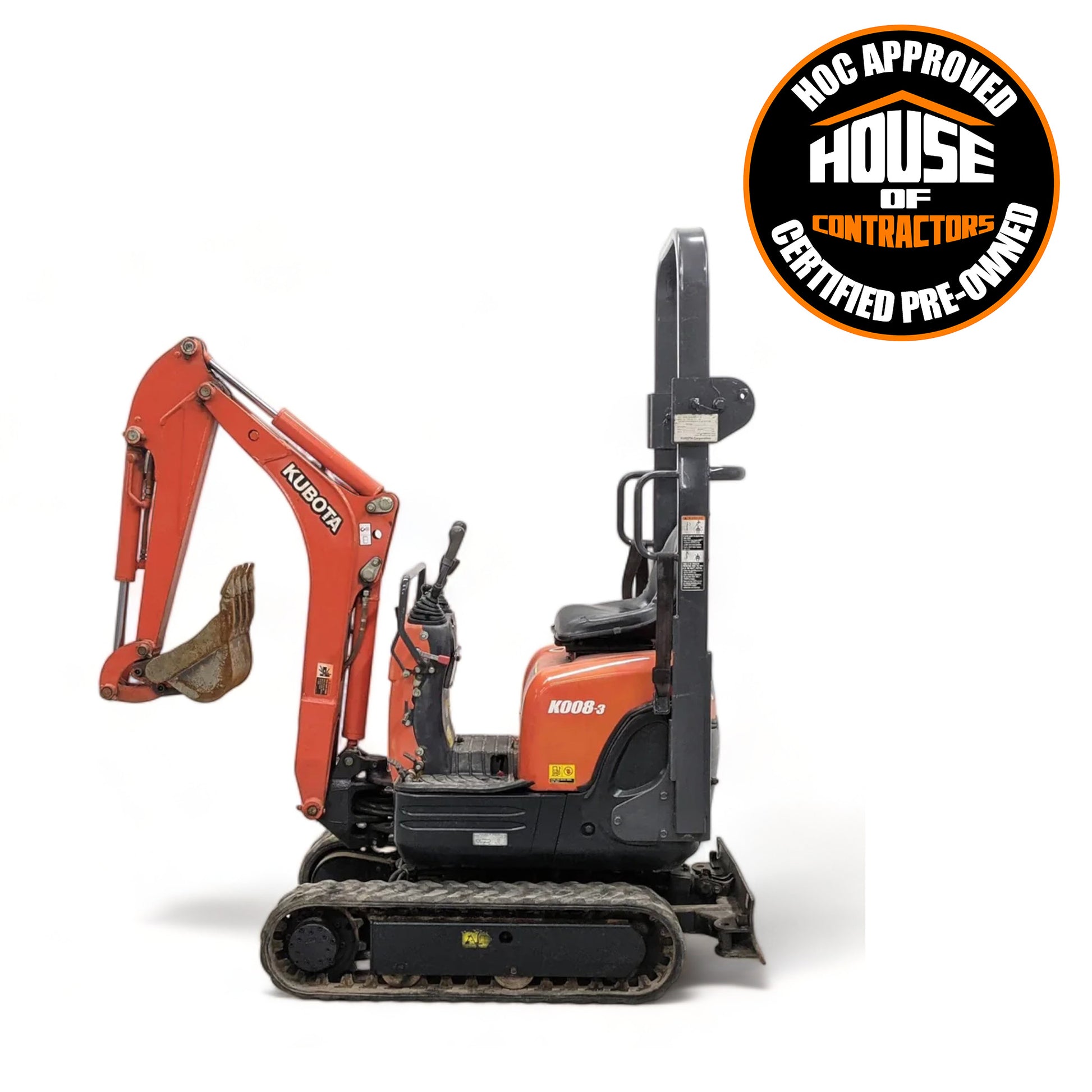

Kubota K008-3 Mini Excavator

Name: Kubota K008-3 Mini Excavator
Brand: HOC
SKU: HOCK0083
Price: 16154.99 USD
Availability: OutOfStock

FREE SHIPPING IN NORTH AMERICA

Delivered in 3-5 Business Days

Currently In stock

$16,154.99 USD

Save {price} SOLD OUT

$16,154.99 USD

LEASE FROM $336.36

LOWEST-PRICE GUARANTEE

Get $403.87 OFF
Your Next Purchase with HOC Rewards

In-Store Pickup Price

CALL: 1(844)440-4014

office@houseofcontractors.com

CALL: 1(844)440-4014

office@houseofcontractors.com

K008-3 SERIES

Spacious, comfortable, and more productive, yet it fits in the tightest spaces. The K008-3 sets the standard for all ultra-compact excavators. This model has passed our 15 point inspection and is ready to get to work!

When the cold weather hits, you need machines that don’t just want to hide under a warm blanket. Kubota’s equipment and attachments are cold-weather tested for Canadian winters, so you can count on them when the days are short and the temperature is down. Whether you need a snow blower or a hard-working tractor, count on Kubota to get up, get out, and do the job.

KUBOTA TIER 4 DIESEL ENGINE

Powerful and dependable, the K008-3’s diesel engine delivers superior horsepower and performance. It offers low noise and vibration levels, exceptional fuel efficiency, and complies with the EPA’s 2008 Tier IV emissions regulations.

TWO PATTERN SELECTOR SYSTEM (TPSS)

TPSS is standard equipment, allowing the operator to select the most familiar operating control pattern, either ISO or SAE.

ADJUSTABLE WIDTH TRACK FRAME

To enable passage through narrow spaces such as doorways and gates, the adjustable width track frame can reduce the K008-3’s track width down to 2’4”(700 mm) by simply operating a single lever. Plus, changing the blade width is as easy as removing one pin by hand.

FOLDABLE ROPS

Rollover Protective Structure provides you with an extra measure of safety. It folds down to make easier transporting and storage of the excavator.

Product Video: https://www.youtube.com/watch?v=nR68XdHFaSc

Specs

MODEL

Model Name K008-3

ENGINE

Make Kubota
Model D722-E4-BH-1
Type Diesel
EPA Rating Tier 4
Cooling Liquid
Cylinders Three
Displacement 44 cu. in. (719 cc)
Horsepower
Engine gross @ rpm 10.3 HP (7.7 kW) @ 2050 RPM
Engine net @ rpm 10.1 HP (7.5 kW) @ 2050 RPM
Injection type Indirect
Self bleed fuel system Yes
Cold weather start aid Yes
Air filter Dual element, cyclonic
Oil filter Spin on type

FUEL SYSTEM

Fuel type Diesel
Fuel / water separator Yes
Fuel filter In-line, spin on type

FLUID CAPACITIES

Fuel tank capacity 3.17 gal. (12.0 L)
Cooling system capacity 0.7 gal. (2.65 L)

CHASSIS, AXLE AND BRAKES

Bucket breakout force 2200 lbf. (1000 kgf)
Arm breakout force 1010 lbf. (460 kgf)

DRIVE TRAIN/TRANSMISSION

Drive motor type Orbit, 19.0 cu. in./rev
Maximum traction force 1695 lbf. (770 kgf)
Ground contact pressure 3.55 psi. (0.25 kgf/cm²)

TRAVEL SPEED

Low range
None 1.2 mph (2.0 km/h)
High range
None 2.5 mph (4.0 km/h)

HYDRAULIC SYSTEM

Type Open centre, 2 gear pumps
Main pump 5.55 gpm. (21.0 lpm)
Auxiliary hydraulic flow 5.55 gpm. (21.0 lpm)
Oil cooler None
Suction filter Yes
Return filter Yes

ELECTRICAL

Alternator 14 VDC, 14 amp
Battery voltage x capacity 12 VDC 30 AH, 150 CCA
Block heater None
Engine shut-off Key
Indicator lights Engine oil, battery, low fuel, coolant
Lights Front working
Horn Yes

DIMENSIONS

Overall height
Top of ROPS 88 in. (2230 mm)
Overall length 108 in. (2750 mm)
Overall width 28 - 34 in. (700 - 860 mm)
Length of track on ground 35.4 in. (899 mm)
Ground clearance 5.9 in. (150 mm)
Tail swing radius 30 in. (750 mm)
Under carriage shoe width 7.1 in. (180 mm)
Operating weight
Rubber 2200 lbs. (1000 kg)
Maximum digging depth 68 in. (1715 mm)
Digging radius @ ground 119 in. (3025 mm)
Dumping Height 80 in. (2035 mm)
Boom swing angle 55º left / 60º right
Unit swing speed 8.3 rpm

TRACKS

Rubber Standard
Length 48 in. (1230 mm)

SAFETY EQUIPMENT

ROPS Foldable bar
Seat belts Yes
Grab handles for entry / exit Yes
Safety starting system Yes

OPTIONS

Hydraulic breaker Yes

BLADE

Width 28 - 34 in. (700 - 860 mm)
Maximum lift above ground 7.9 in. (200 mm)
Overall height 7.9 in. (200 mm)
Maximum drop below ground 7.1 in. (180 mm)
