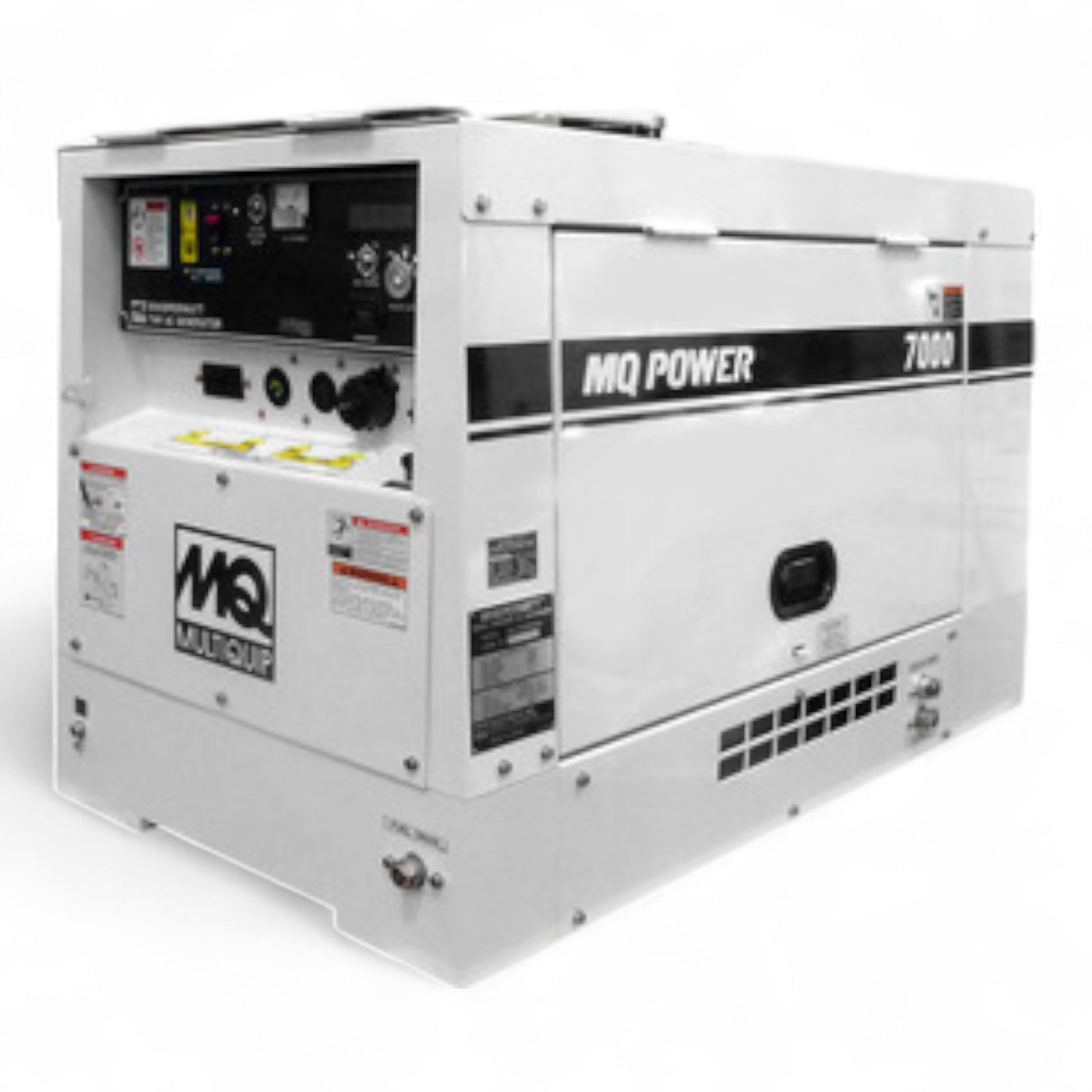

Multiquip DAC7000SSA3 Portable Generator

The Multiquip DAC7000SSA3 portable generator is engineered to handle the toughest applications in the most extreme environments, delivering reliable power with remarkable performance. This 7kW single-phase generator offers a versatile and efficient solution for job sites requiring clean, consistent power in a compact, quiet package.

FEATURES

• 7KW PRIME RATING: Single-phase generator with a 1.0 power factor and 120/240V output, ensuring consistent power delivery for demanding tools and equipment on the job site.
• KUBOTA TIER 4 FINAL DIESEL ENGINE: Offers dependable, fuel-efficient operation while meeting the latest emission standards for environmentally conscious job site requirements.
• STEADY STATE FREQUENCY: Mechanical governor maintains a stable 60 Hz frequency within 3-5% from no load to full load, ensuring consistent power quality for sensitive equipment.
• COMPREHENSIVE ANALOG CONTROL PANEL: Includes essential instruments such as indicator lamps, volt meter, hour meter, and a main circuit breaker for easy monitoring and protection during operation.
• 2-POLE FIELD DESIGN: Provides efficient power generation and consistent performance while maintaining a compact footprint for transport and storage.
• SINGLE-SIDE MAINTENANCE ACCESS: Simplifies servicing by providing direct access to all filters, reducing downtime and making routine maintenance faster and easier.
• LIGHTWEIGHT DESIGN: At just 534 lbs (242 kg), the DAC7000SSA3 is the lightest model in the WhisperWatt Super-Silent Generator series, making it easy to transport and position on any job site.
• SUPER-SILENT OPERATION: Part of the WhisperWatt series, this generator provides quiet operation without sacrificing power, making it suitable for noise-sensitive environments.
• TRAILER OPTIONS:
  • Heavy Duty Trailer
  • Heavy Duty Trailer with 28-Gallon Fuel Cell for extended run times and enhanced job site mobility
• OPTIONAL ACCESSORIES: Enhance performance and convenience with:
  • Electronic Control Unit
  • Battery Tender
  • Block Heater
  • Fuel Heater
  • Emergency Stop
  • Filter Kit (Air, Fuel & Oil)

SPECIFICATIONS

• Engine:Kubota Tier 4 Final
• Prime Rating: 6 kW
• Standby Rating: 7 kW
• Generator RPM: 3600
• Voltage - Single Phase: 120/240 V
• Generator Design: Revolving field, Self-ventilated, Drip-proof, Single Bearing
• Voltage Regulation (No Load to Full Load): 2.5%
• Power Factor: 1.0
• Armature Connection: Series
• Excitation: Solid State, Statically excited system
• No. Poles: 2-pole
• Frequency: 60 Hz
• Frequency Regulation (steady state load): 3-5%
• Sound Level (Full Load at 23 ft.): 65 dB(A)
• Length: 44.9 in (1140 mm)
• Width: 25.6 in (650 mm)
• Height: 31.3 in (795 mm)
• Trailer-Mounted Dimensions (optional TRLRMPXF): 99.,97 x 55.50 x 52.63 in (2539.2 x 1409.7 x 1336.8 mm)
• Weight: 599 lb (272 kg)

SPECIFICATIONS FOR TRLRMPXF Trailer

• Gross Vehicle Weight Rating (GVWR):2000 lb (907.18 kg)
• Gross Axle Weight Rating (GAWR) (ea.): 2000 lb (907.18 kg)
• Tire Size: ST175/80D13 LR-C
• Tire Load Rating (ea.): 1360 lb (616.89 kg)
• Wheel Bolt Pattern: 5 lug on 4.5 in
• Fuel Tank Capacity: 28 gal (106 L)
• Length: 100.00 in (2540 mm)
• Width: 56.5 in (1435 mm)
• Height: 21.5 in (546 mm)
• Operating Weight (with fuel): 598 lb (271 kg)
• Operating Weight (without fuel): 534 lb (242 kg)
