Multiquip MQ62T Series Kohler Tier 4 Final 6 Inch Trash Pump

The Multiquip MQ62TK Series is an industrial-grade 6" wet priming de-watering trash pump engineered for high-performance water removal in the toughest site conditions. Powered by a reliable KOHLER KDW 1404 Tier IV Final diesel engine, this pump is designed to handle large de-watering projects with ease while maintaining compliance with the latest emissions standards.

FEATURES

• HIGH FLOW CAPACITY: Pumps up to 1,190 gallons per minute, providing rapid water removal for construction, municipal, and industrial de-watering tasks.
• MAXIMUM HEAD OF 111 FT: Delivers dependable high-head performance for moving water across challenging site elevations.
• KOHLER TIER 4 FINAL ENGINE: Equipped with a fuel-efficient, 4-cylinder KOHLER KDW 1404 diesel engine that meets Tier IV Final emissions standards while delivering reliable operation.
• FUEL/WATER SEPARATION FILTRATION: The engine includes a water/fuel separation filtration system to protect the engine and enhance performance in harsh environments.
• LOFA EL240 CONTROL PANEL: Full-featured, shock-mounted control panel for easy monitoring and operation on the job site.
• LARGE CLEANOUT COVER: Provides quick and easy maintenance, reducing downtime between pumping operations.
• HEAVY-DUTY PORTS: 6” Male NPT threaded suction and discharge ports for secure hose attachment and operational flexibility.
• DURABLE CONSTRUCTION: Features a wear-resistant ductile cast iron volute and impeller assembly for extended service life in abrasive conditions.
• STAINLESS STEEL WEAR PLATE: Enhances durability and reduces maintenance in heavy-use environments.
• INTEGRATED LIFTING BALE: Allows for easy and secure lifting during transport and setup.
• ABRASION-RESISTANT SEAL SYSTEM: Oil-lubricated tungsten/carbide seal system designed for abrasion resistance in debris-laden water.
• HIGH SOLID HANDLING: Capable of pumping solids up to 3 inches (75 mm) in diameter, making it ideal for debris-laden water transfer.
• RUNTIME: Provides an approximate run time of (8.6 hours for MQ62TKS) and (15 hours for MQ62TKT), reducing refueling interruptions during extended operation.
• AVAILABLE OPTIONS:

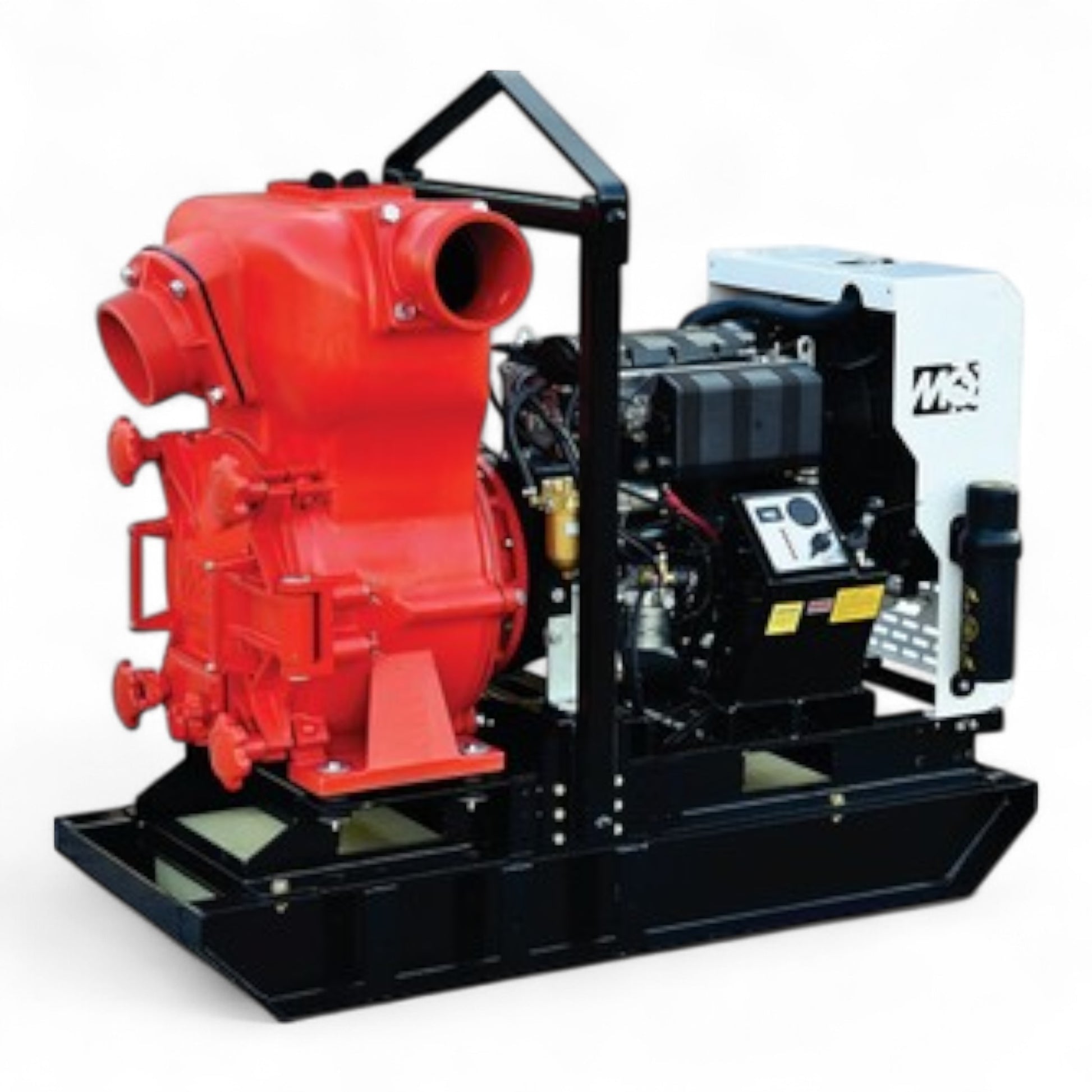

  • MQ62TKS: Skid mount with integral 16-gallon (60.5 liters) fuel cell

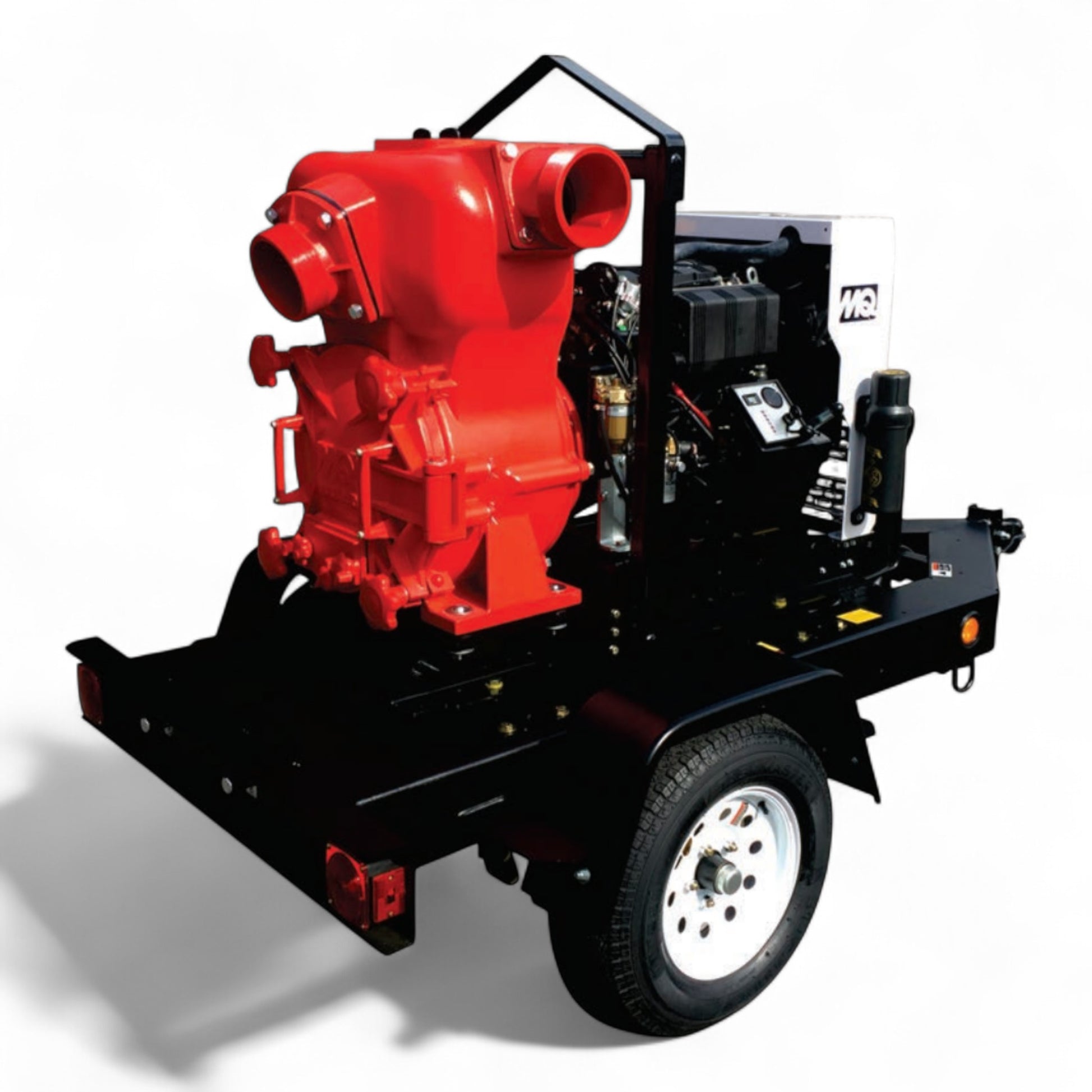

  • MQ62TKT: Industrial DOT/NHTSA approved single-axle trailer for flexible transport and site deployment with 28-gallon (105.9 liters) fuel cell

Note: Not designed to pump salt water and selected chemicals.

Specifications

• Engine: KOHLER Tier 4 Final 4-cylinder, Diesel Engine
• Suction x Discharge: 6 x 6 in (152 x 152 mm)

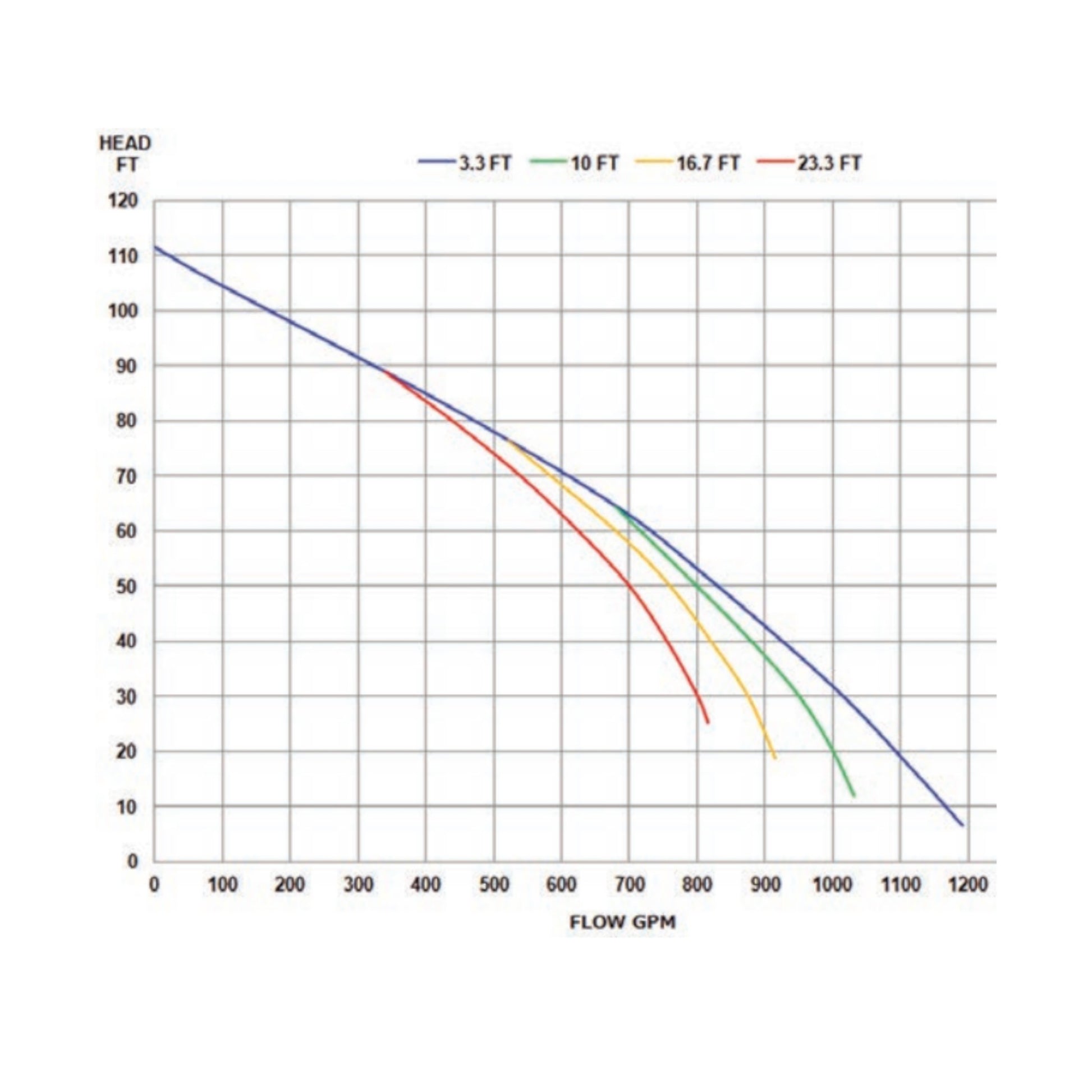

• Max. Water Capacity: 1190 gpm (4522 lpm)
• Max. Lift: 25 ft (7.6 m)
• Max. Head: 111 ft (34 m)
• Max. Pressure: 48.9 psi (331 kPA)
• Max. Solid Intake: 3 in (76 mm)
• Runtime: 8.6 hours for MQ62TKS and 15 hours for MQ62TKT
• Fuel Tank Capacity: 16 Gal (60.5 L) for MQ62TKS and 28 Gal (105.9 L) for MQ62TKT

DIMENSIONS

For MQ62TKS

• Length: 80 in (2032 mm)
• Width: 39 in (991 mm)
• Height: 54 in (1372 mm)
• Operating Weight: 975 lb (439 kg)

For MQ62TKT

• Length: 101 in (2565 mm)
• Width: 56 in (1422 mm)
• Height: 68 in (1727.2 mm)
• Operating Weight: 1700 lb (77 kg)
