Multiquip UM-Series Hand-Held Vibrators

The Multiquip UM-Series Hand-Held Vibrators are the perfect solution for short pours, footings, and vertical wall applications. Designed for high productivity and operator comfort, these units deliver powerful vibration in a lightweight and easy-to-use form. Built to handle concrete slump conditions of 3 inches or more, the UM-Series makes small to mid-sized concrete jobs faster, smoother, and more efficient. Available in multiple combinations of shaft lengths and head sizes, these vibrators adapt to your pour requirements effortlessly.

FEATURES

• LIGHTWEIGHT ALUMINUM MOTOR CASE: Offers excellent portability and maneuverability around the jobsite, reducing operator fatigue during extended use.
• DURABLE 120V UNIVERSAL MOTOR: Provides reliable, consistent power on standard household current, making it ideal for residential and commercial applications.
• VIBRATION DAMPENING HANDLE: Engineered to reduce vibration transfer to the operator's hands, allowing for longer use with less strain.
• SEALED FAN SYSTEM: Protects internal components by minimizing airborne contamination from concrete dust and debris, extending tool life.
• DOUBLE INSULATED MOTOR: Enhances operator safety by eliminating the need for a ground wire connection.

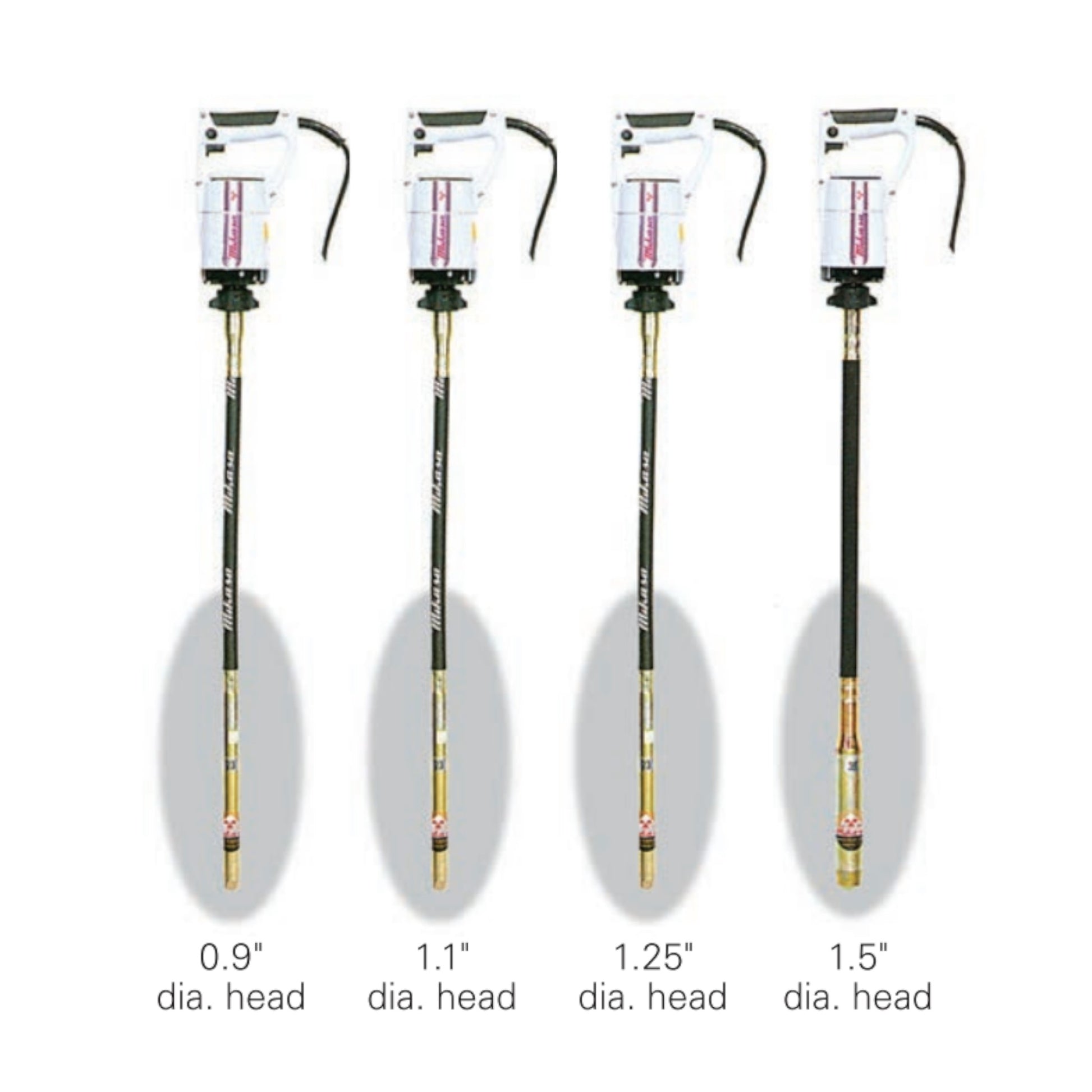

• MULTIPLE HEAD & SHAFT COMBINATIONS: Choose from head diameters of 0.9 in (23mm) to 1.5 in (38mm) and shaft lengths of 3.2 ft (1 m), 4.9 ft (1.5 m), or 8.2 ft (2.5 m) to match any pour depth or application need.

AVAILABLE OPTIONS

• UM12325: Head 0.9 in (23 mm), Shaft Dia 0.9 in (23 mm), Amplitude 0.015 in (0.317 mm)
• UM12810: Head 1.1 in (28 mm), Shaft Dia 1.1 in (28 mm), Amplitude 0.022 in (0.563 mm)
• UM12815: Head 1.1 in (28 mm), Shaft Dia 1.1 in (28 mm), Amplitude 0.022 in (0.563 mm)
• UM12825: Head 1.1 in (28 mm), Shaft Dia 1.1 in (28 mm), Amplitude 0.022 in (0.563 mm)
• UM13225: Head 1.25 in (32 mm), Shaft Dia 1.25 in (32 mm), Amplitude 0.027 in (0.688 mm)
• UM13810: Head 1.5 in (38 mm), Shaft Dia 1.5 in (38 mm), Amplitude 0.030 in (0.770 mm)
• UM13815: Head 1.5 in (38 mm), Shaft Dia 1.5 in (38 mm), Amplitude 0.030 in (0.770 mm)
• UM13825: Head 1.5 in (38 mm), Shaft Dia 1.5 in (38 mm), Amplitude 0.030 in (0.770 mm)

SPECIFICATIONS

• Amps: 3.8
• Watts: 280
• Frequency Vpm (Hz): 12000 to 15500 (200 to 258)

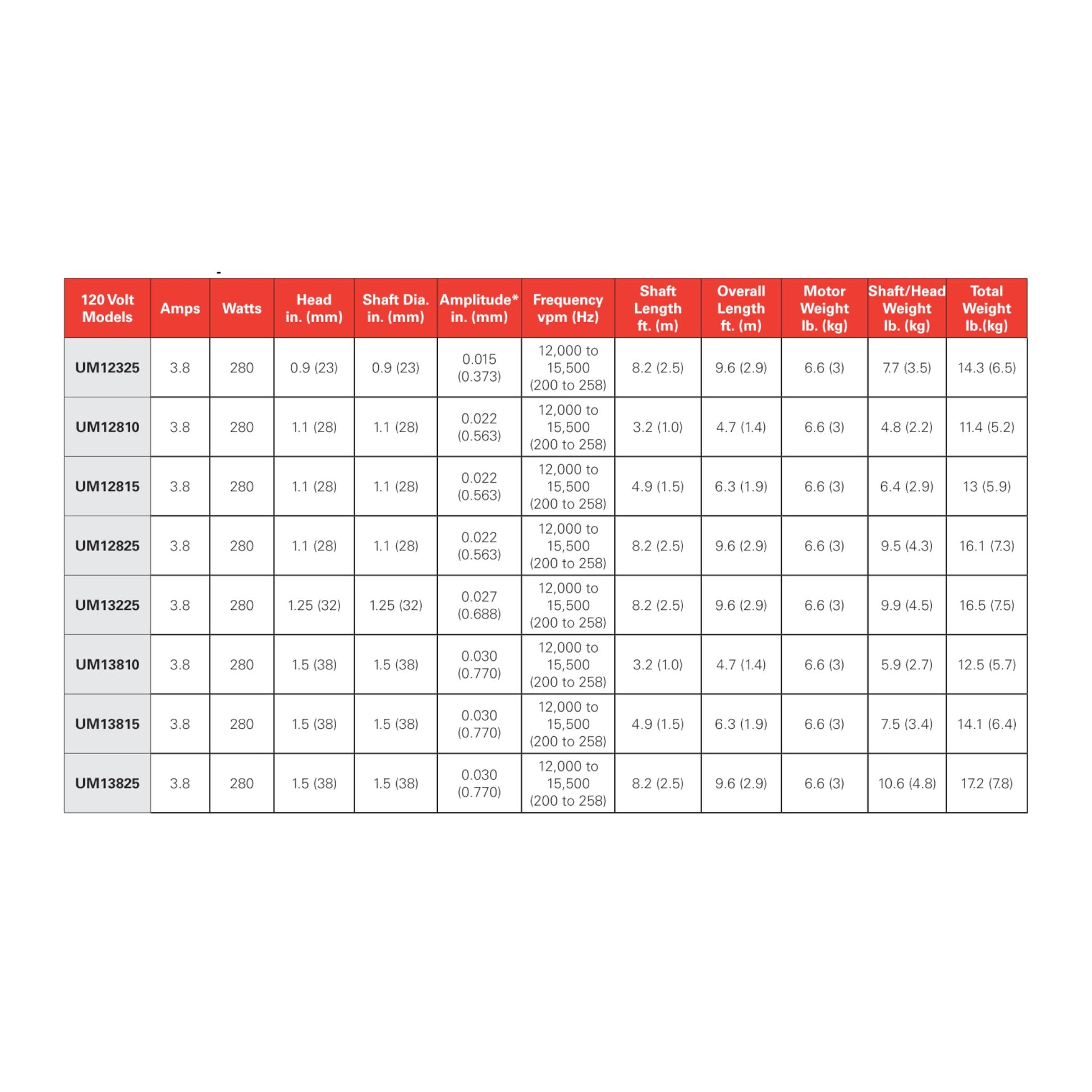

For Specifications for all the UM-Series Concrete Vibrators check image 3
