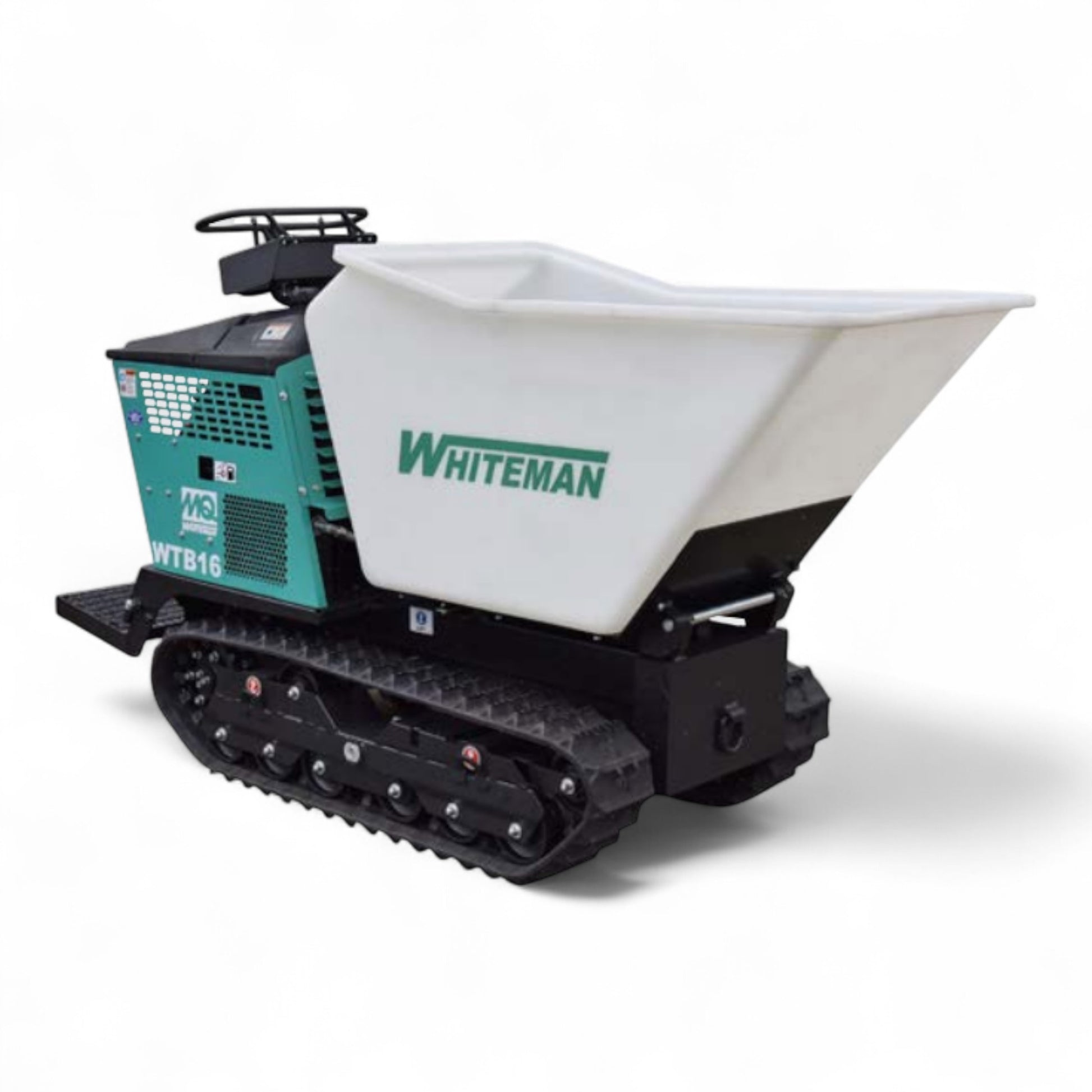

Whiteman WTB-16 Honda 22 HP Hydraulic Tip Track Dumper

The Whiteman WTB-16 track-drive hydraulic tip dumper is engineered for optimal site efficiency, superior traction, and dependable performance in challenging conditions. With a robust 1133.98 Kg (2500 Lb) load capacity and a narrow 35.5-inch width, the WTB-16 is designed to navigate confined spaces while delivering reliable hauling on soft soils, mud, and uneven terrain.

FEATURES

• ENGINE: HONDA GX690 22 HP: Powerful, reliable engine delivers consistent performance for demanding site conditions while ensuring fuel efficiency and low maintenance.
• 1133.98 KG (2500 LB) LOAD CAPACITY: Versatile 16 cubic foot (0.45 m3) polyethylene tub offers easy cleaning and a large capacity for transporting concrete, debris, or materials on site.

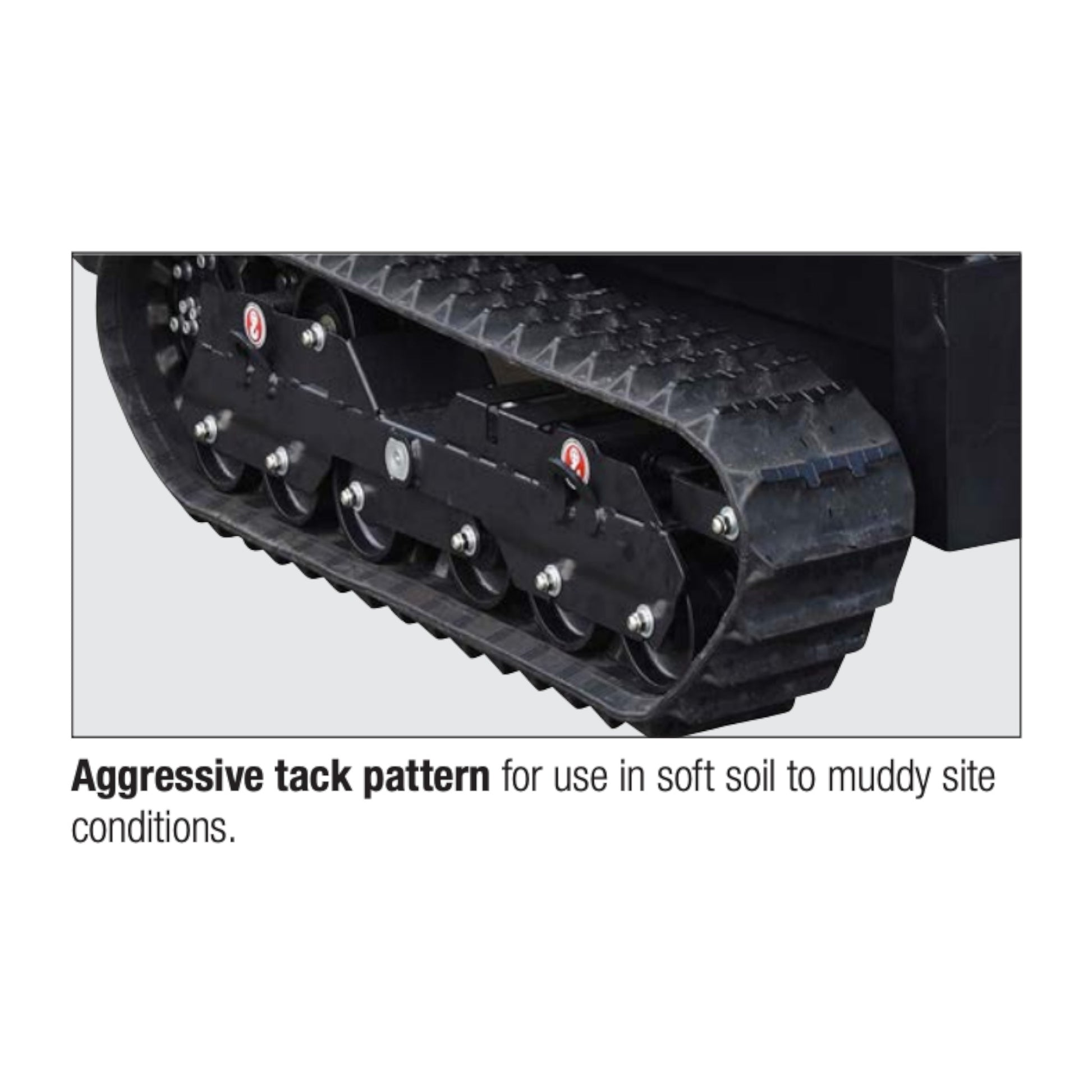

• TRACK-DRIVE SYSTEM: Aggressive, steel-embedded ladder track design ensures optimal traction and durability, allowing the unit to travel effortlessly through soft soils and muddy job sites.
• RUGGED UNDERCARRIAGE: Guide wheels made of ductile cast iron provide strength and longevity for demanding daily use.

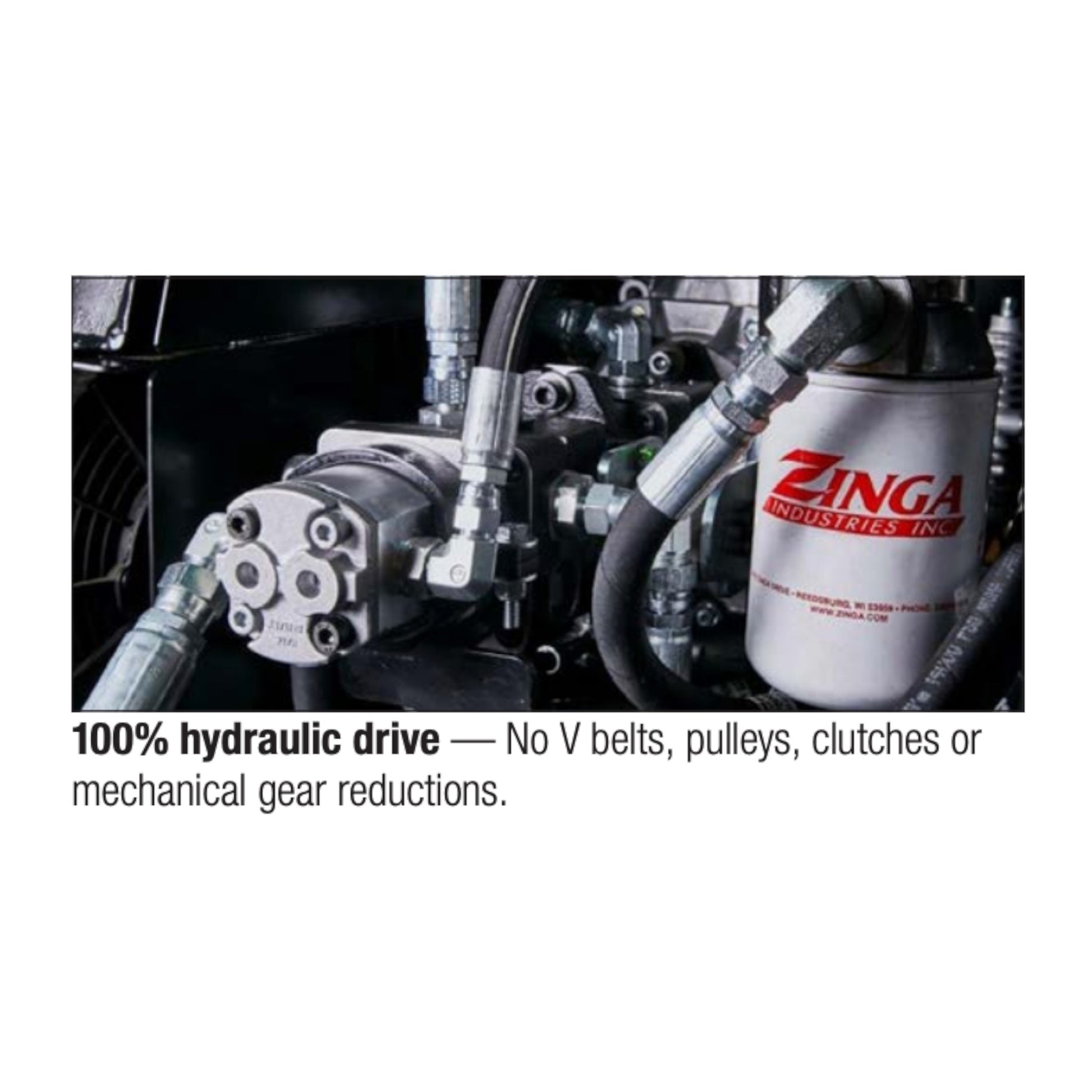

• HYDRAULIC DRIVE SYSTEM: Low-maintenance design eliminates wear parts such as belt drives and couplers, reducing service time and enhancing reliability.

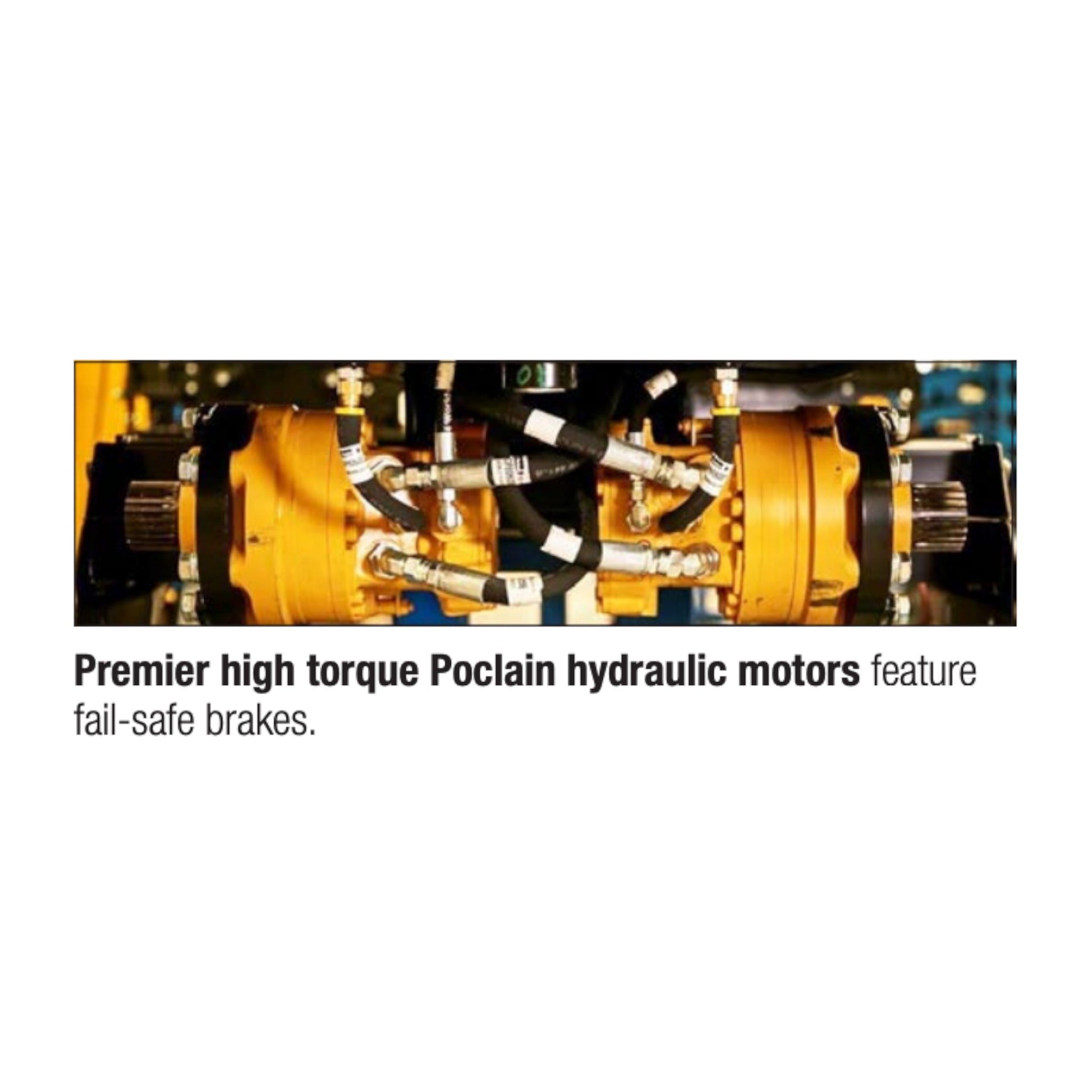

• HIGH TORQUE DRIVE MOTORS: Propel the buggy efficiently through tough site conditions while providing fail-safe braking for enhanced operator safety.
• COMPACT WIDTH: At only 35.5 inches wide, the WTB-16 easily passes through doorways and confined site areas without sacrificing capacity.
• EFFICIENT TRAVEL SPEEDS: Capable of 5.7 MPH unloaded and 4.7 MPH loaded, allowing efficient transport of materials across the job site while maintaining control.

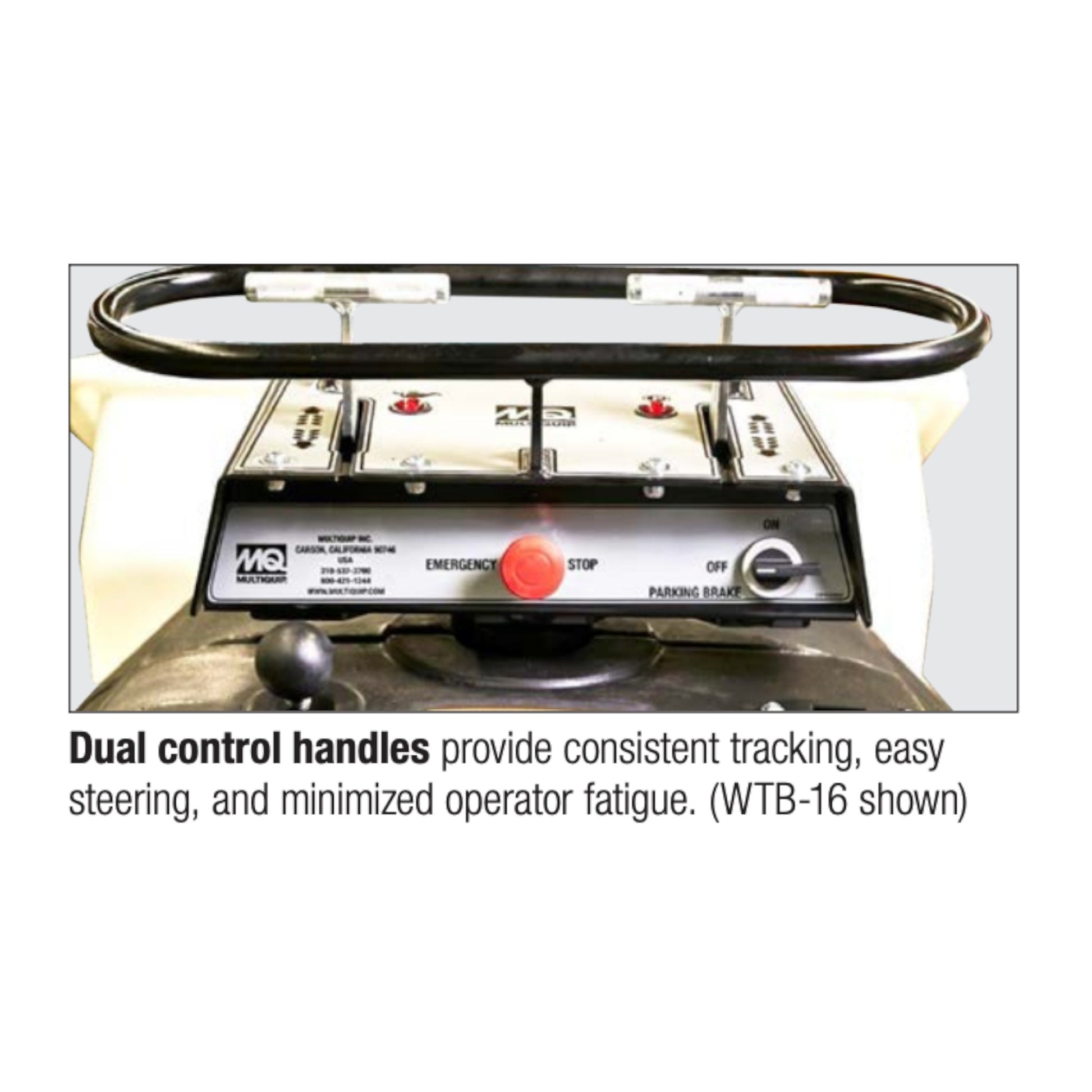

• EASY STEERING CONTROL: Dual control levers allow precise maneuvering with minimal operator fatigue, even during extended use.
• POWERFUL HONDA ENGINE: Equipped with a reliable 22 HP Honda GX690 engine for consistent performance in demanding conditions.
• LONG RUN TIMES: Features a 5-gallon fuel tank for extended operational periods, reducing the need for frequent refueling during the workday.

SPECIFICATIONS

• Engine: Honda GX690 22 HP
• Starting System: Electric
• Drive System: Hydraulic Powered Track-Drive
• Tub Material: Polyethylene
• Tub Capacity: 16 cu. f
• Travel Speed (loaded): 4.7 mph (7.56 KPH)
• Fuel Tank Capacity: 5 gal (18.9 l)
• Width - Standard Dual Wheels in. (cm) (Track): 35.5 in (90.2 cm)
• Gradability: Uphill Max. 20% (10 degree) Side Max. 10% (6 degree)

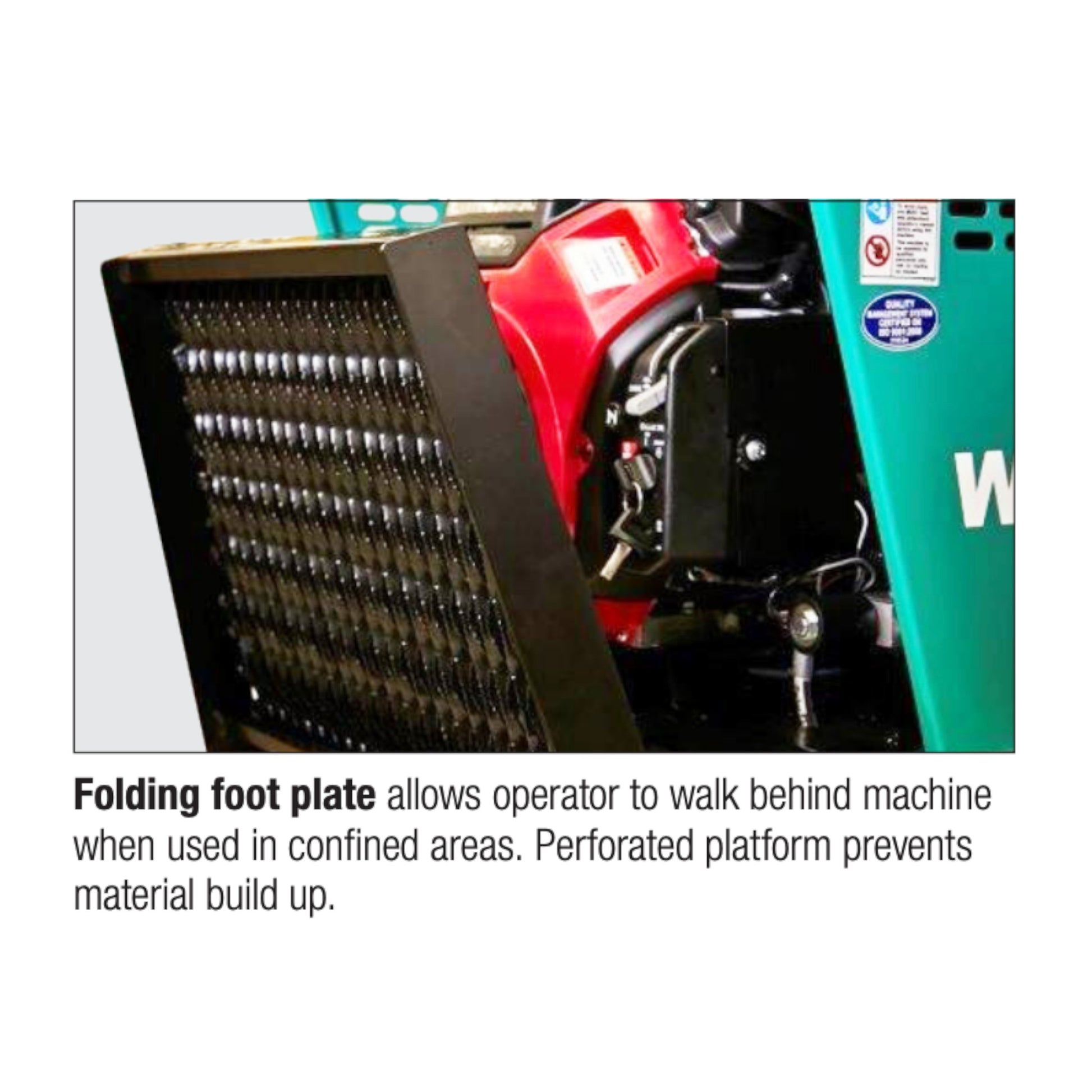

• Length with foot plate extended - in. (cm): 90.5 in (229.9 cm)
• Length: 90.5 in (230 cm)
• Width: 35.5 in (90.1 cm)
• Height: 56.5 in (143.5 mm)
• Operating Weight: 1896 lb (860 kg)
