MQ Power WhisperWatt DCA125SSIU4F Super-Silent Generator

The MQ Power WhisperWatt DCA125SSIU4F is a high-performance generator engineered for continuous, reliable power across construction sites, events, disaster recovery, and other demanding applications. Its advanced features ensure dependable operation, easy serviceability, and minimal noise, even in sensitive environments.

FEATURES

• 125 KVA PRIME OUTPUT (100 KW), SINGLE/THREE-PHASE POWER: Provides versatile and dependable power to meet diverse application needs, from powering equipment to sensitive electronics.
• ISUZU TIER 4 FINAL DIESEL ENGINE: Offers fuel efficiency and low emissions, meeting the strictest environmental standards while providing reliable performance.
• SUPER-SILENT OPERATION - 66 DBA: Enclosed in a rugged powder-coated, e-coated steel housing that ensures weather resistance and low sound output, making it ideal for residential and event locations.
• PATENTED OPEN DELTA WINDING: Ensures precise voltage control and outstanding motor starting capacity, supporting heavy machinery and sensitive equipment alike.
• ELECTRONIC GOVERNOR CONTROL: Maintains precise 60 Hz frequency within 0.25%, delivering stable power output regardless of load changes.
• 24-HOUR INTEGRATED FUEL TANK WITH SPILL CONTAINMENT: Supports continuous operation while minimizing environmental risks with a built-in containment system.
• AUTO START/STOP FUNCTION: Enables remote operation and easy integration with automatic power management systems.
• ANALOG CONTROL PANEL: Comprehensive interface displays key operating metrics including AC ammeter, AC voltmeter, frequency meter, engine gauges, and main circuit breaker for clear operational monitoring.
• RUGGED WEATHERPROOF ENCLOSURE: Built to withstand harsh jobsite environments while providing long-term durability and corrosion resistance.
• OPTIONAL TRAILER: TRLR125US (Sold Separately): Heavy-duty DOT-compliant trailer ensures easy mobility and transport for dependable power wherever it's needed.

SPECIFICATIONS

• Engine: Isuzu BR-4HK1X EPA Tier 4 Final Certified
• Starting System: Electric
• Design: 4-cycle, water cooled, direct injection turbocharged, charged air cooled EGR, DOC, SCR
• Gross Engine Power Output: 166 bhp (124 kW)
• Fuel Tank Capacity: 169 gal (640 L)
• Prime Rating: 100 kW (125 kVA)
• Standby Rating: 110 kW (137.5 kVA)
• Generator RPM: 1800
• Voltage - Three Phase: 208, 220, 240, 416, 440, 460, 480V Switchable
• Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Switchable

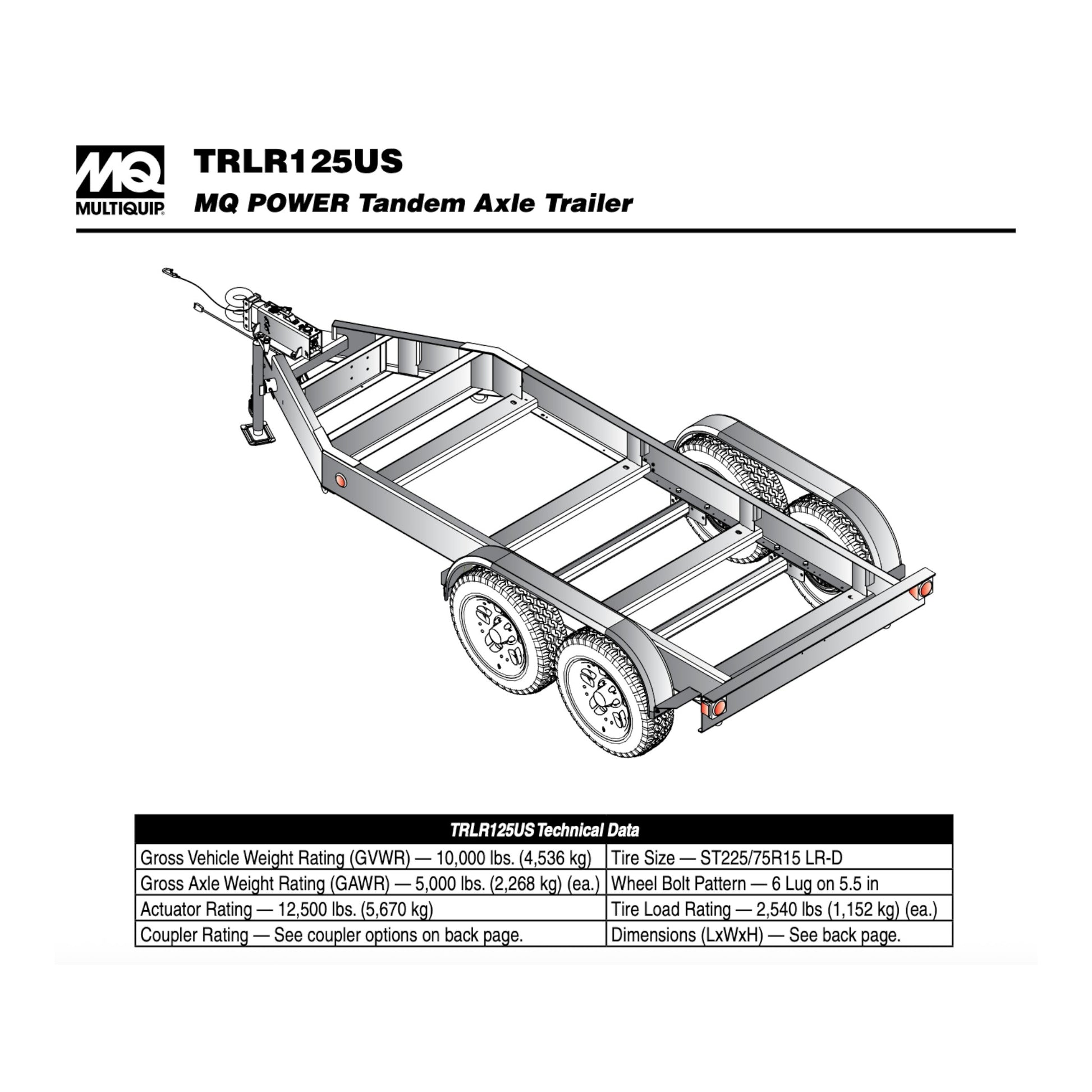

SPECIFICATIONS FOR TRLR125US Trailer

• Gross Vehicle Weight Rating (GVWR):10000 lb (4536 kg)
• Gross Axle Weight Rating (GAWR) (ea.): 5000 lb (2268 kg)
• Coupler Rating: 3" Pintle Eye (25,000 lb), 2-5/16" Ball Coupler (14,000 lb)
• Tire Size: ST225/75R15 LR-D
• Tire Load Rating (ea.): 2540 lb (1152 kg)
• Wheel Bolt Pattern: 6 Lug on 5.5 in
• Fits MQ Power Generator Models: DCA125SSIU4F
• Length: 181 in (4597 mm)
• Width: 79.5 in (2019 mm)
• Height: 24.7 in (627 mm)
• Operating Weight (without fuel): 1722 lb (781 kg)

The DCA125SSIU4F WhisperWatt Generator is engineered for professionals who demand maximum power output, superior reliability, and quiet operation for their mission-critical projects.
