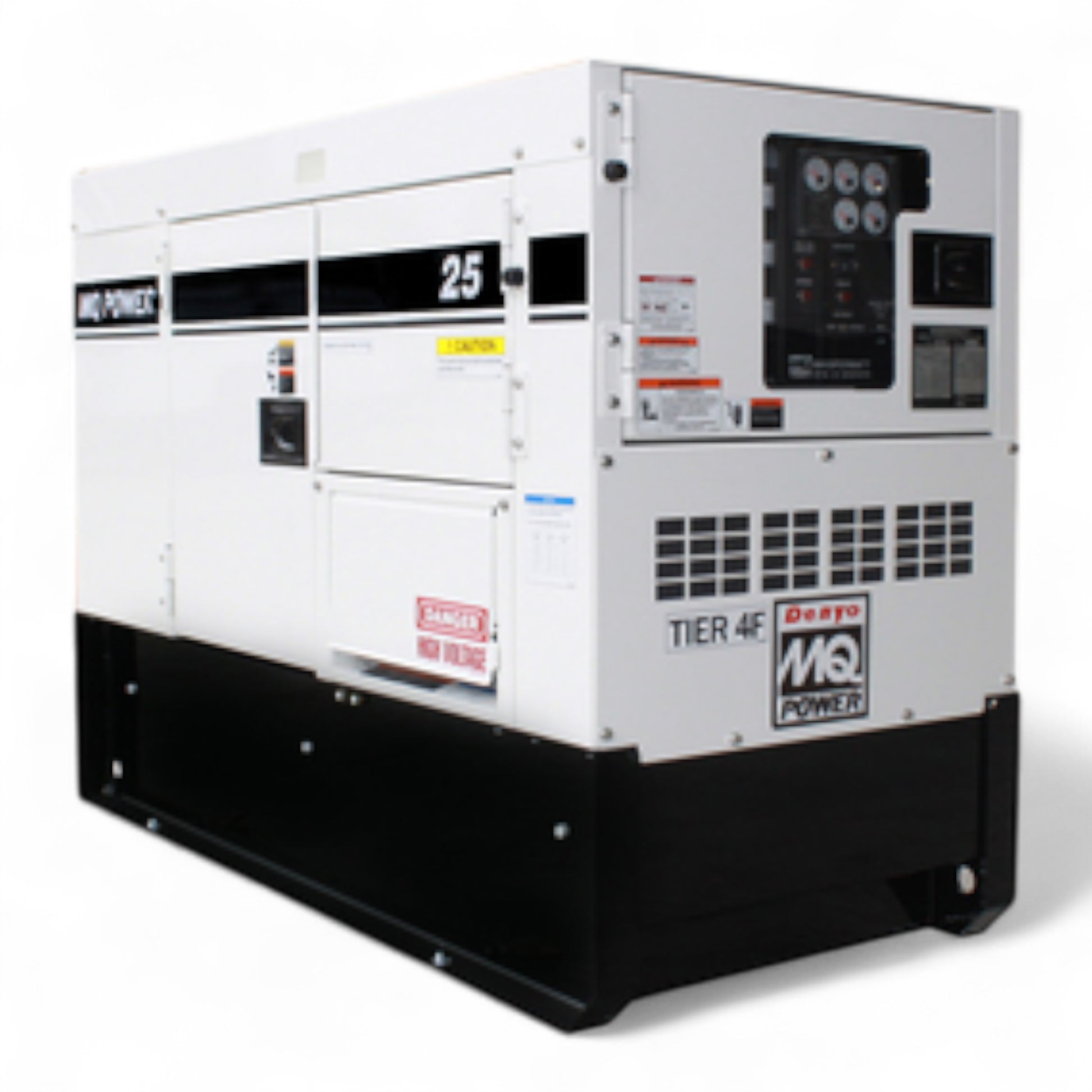

MQ Power WhisperWatt DCA25SSIU4F Super-Silent Generator

The MQ Power WhisperWatt DCA25SSIU4F Super-Silent Generator delivers powerful, dependable performance in an ultra-quiet package. Designed to meet the toughest temporary power needs on construction sites, entertainment venues, and disaster recovery zones, this versatile unit can provide both single-phase and three-phase power with excellent motor starting capability.

FEATURES

• 25 KVA PRIME OUTPUT (20 KW), SINGLE/THREE-PHASE POWER: Offers flexible voltage configuration to handle varied power requirements, supporting both single-phase and three-phase loads across diverse applications.
• ISUZU TIER 4 FINAL DIESEL ENGINE: Efficient, environmentally compliant engine delivers dependable power with reduced emissions and fuel consumption to meet strict regulations.
• SUPER-SILENT ENCLOSURE WITH 65 DBA OPERATION: Quiet running sound-attenuated housing makes this generator ideal for residential areas, event sites, and noise-sensitive locations.
• INTEGRATED 24-HOUR FUEL TANK WITH SPILL CONTAINMENT: Safeguards the environment with built-in fluid containment, providing extended run times without refueling while reducing the risk of environmental contamination.
• ELECTRONIC GOVERNOR CONTROL: Maintains a precise 60 Hz frequency within 0.25% from no load to full load, ensuring consistent, reliable power delivery to sensitive equipment.
• AUTO START/STOP FUNCTION: Enables remote start capability for operational flexibility across various sites and backup power systems.
• ANALOG CONTROL PANEL: Comprehensive panel includes AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, and engine gauges for clear, accurate system monitoring and control.
• RUGGED WEATHERPROOF STEEL HOUSING: E-coat and powder-coated steel enclosure resists corrosion and withstands harsh environmental conditions, extending the service life of the unit.
• PATENTED OPEN DELTA WINDING: Provides precise voltage control and superior motor starting capability, ideal for powering demanding tools and equipment on site.
• OPTIONAL TRAILER: TRLR25US2 (Sold Separately): Heavy-duty DOT-approved trailer ensures easy transport and mobility for site-to-site applications.

SPECIFICATIONS

• Engine: Isuzu 4LE2T EPA Tier 4 Final Certified
• Starting System: Electric
• Design: 4-cycle, water cooled, direct injection, turbocharged, EGR
• Gross Engine Power Output: 40.2 bhp (30 kW)
• Fuel Tank Capacity: 41.7 gal (158 L)
• Prime Rating: 20 kW (25 kVA)
• Standby Rating: 22 kW (27.5 kVA)
• Generator RPM: 1800
• Voltage - Three Phase: 208, 220, 240, 416, 440, 480V Switchable
• Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Switchable

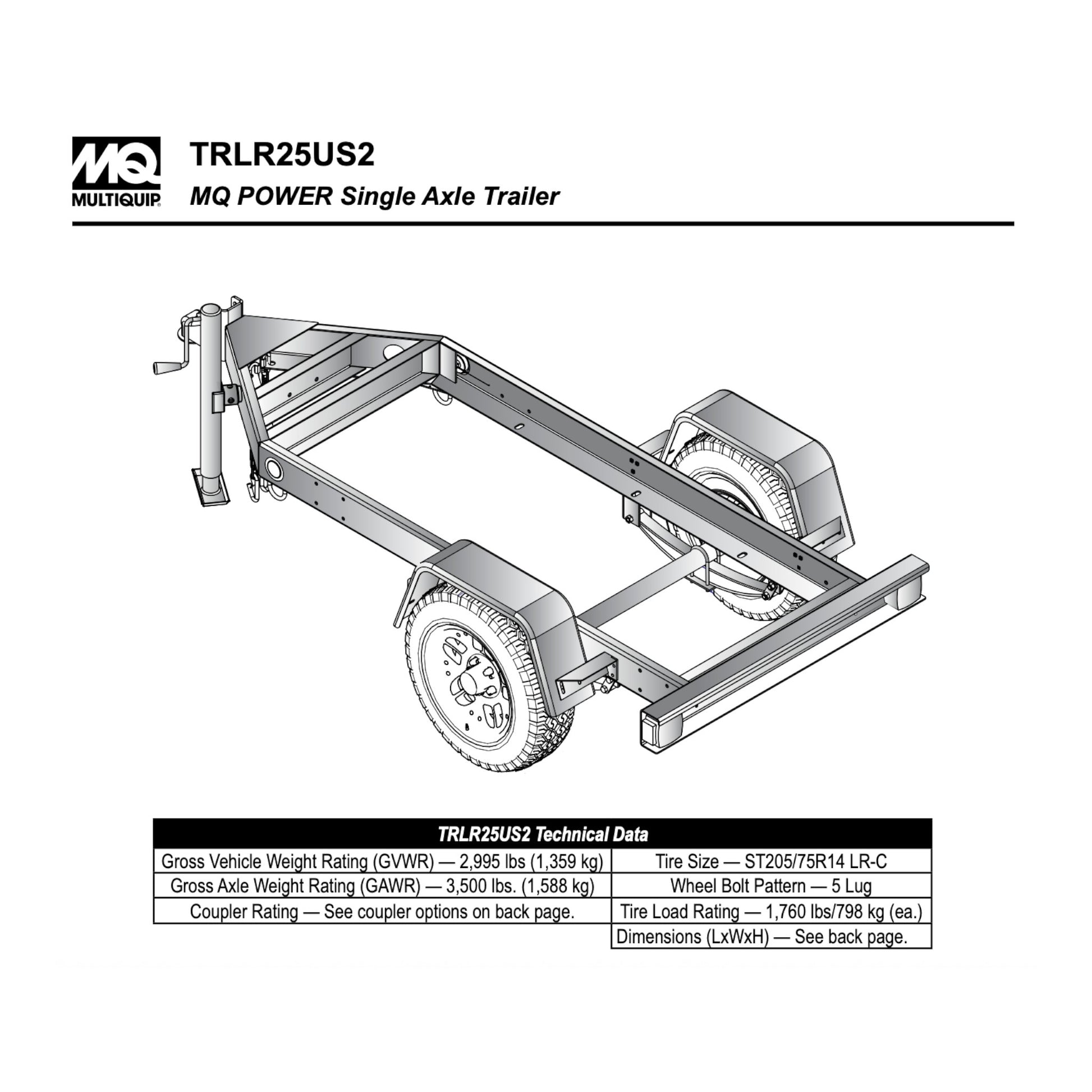

SPECIFICATIONS FOR TRLR25US2 Trailer

• Gross Vehicle Weight Rating (GVWR):3500 lb (1588 kg)
• Gross Axle Weight Rating (GAWR) (ea.): 3500 lb (1588 kg)
• Coupler Rating: 3" Pintle Eye (25,000 lb), 2" Ball Coupler (10,000 lb), 2-5/16" Ball Coupler (14,000 lb)
• Tire Size: ST205/75D14 LR-C
• Tire Load Rating (ea.): 1760 lb (789 kg)
• Wheel Bolt Pattern: 5 Lug
• Fits MQ Power Generator Models: DCA20SPXU4F, DCA25USI4CAN, DCA25SSIU4F
• Length: 105.79 in (2687 mm)
• Width: 56.18 in (1427 mm)
• Height: 20.85 in (529.6 mm)
• Operating Weight (without fuel): 444 lb (201 kg)

Offering quiet operation, advanced fuel containment, and flexible power output, the DCA25SSIU4F WhisperWatt Generator is the ideal solution for contractors, event operators, and emergency responders who demand reliable power in challenging environments.
