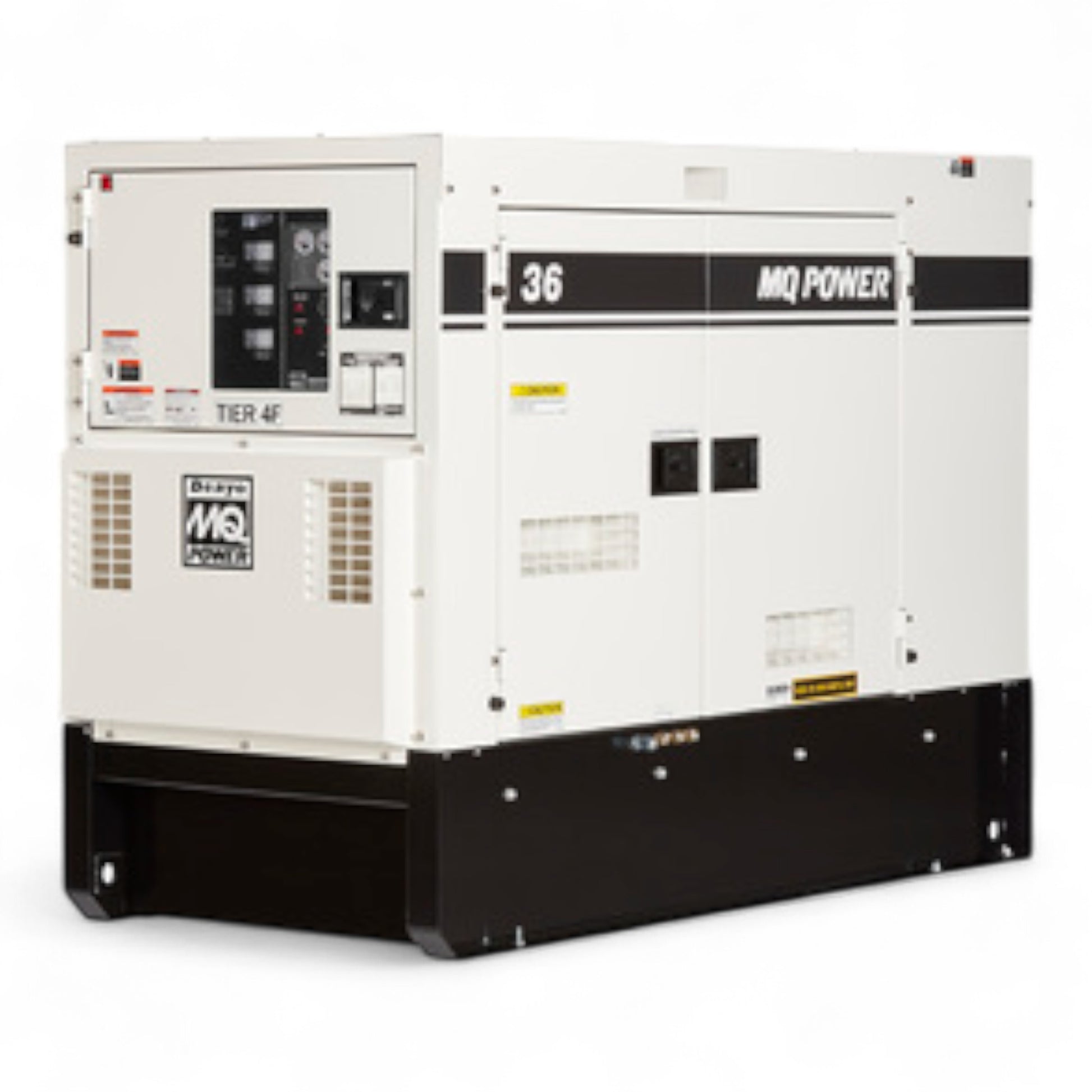

MQ Power WhisperWatt DCA36SPXU4F Super-Silent Generator

The MQ Power WhisperWatt DCA36SPXU4F Super-Silent Generator offers heavy-duty performance in a compact, sound-attenuated design. Built to meet demanding site conditions while keeping noise to a minimum, this generator is powered by a fuel-efficient Isuzu Tier 4 Final diesel engine. Ideal for construction, industrial, and residential backup power, it ensures reliable energy wherever it's needed.

FEATURES

• 36 KW PRIME OUTPUT, 120/240V SINGLE-PHASE POWER: Delivers continuous, reliable power for job sites, commercial operations, or residential backup, ensuring consistent operation under load.
• ISUZU TIER 4 FINAL DIESEL ENGINE: Meets the latest environmental regulations while providing long-lasting, fuel-efficient power performance with low emissions.
• SUPER-SILENT, SOUND-ATTENUATED ENCLOSURE: Designed for noise-sensitive applications, the weatherproof steel enclosure significantly reduces operating noise, supporting use in residential and urban environments.
• ELECTRONIC GOVERNOR CONTROL: Maintains precise 60 Hz power output within 0.25% fluctuation from no load to full load, perfect for sensitive equipment and consistent operation.
• AUTO START/STOP FUNCTION: Allows remote activation and shutdown of the generator, giving operators flexible control for jobsite or backup power use.
• EASY MAINTENANCE ACCESS: Weather-resistant housing provides direct access to filters, drains, and essential service points, helping minimize downtime and service effort.
• ANALOG CONTROL PANEL: Simple, clear panel includes an ammeter, frequency meter, AC circuit breaker, and standard analog gauges for efficient monitoring and power management.
• RUGGED WEATHERPROOF STEEL ENCLOSURE: Engineered to withstand harsh outdoor conditions, protecting key engine and electrical components for long-term use.
• OPTIONAL TRAILER: TRLR45 (Sold Separately): Heavy-duty DOT-approved trailer allows for easy transport and relocation between job sites.

SPECIFICATIONS

• Engine: Isuzu 4LE2X Tier 4 Final
• Starting System: Electric
• Design: 4-cycle, Water cooled, Direct injection, Turbocharged, Charge Air Cooled, EGR, DOC
• Gross Engine Power Output: 65.7 bhp (49 kW)
• Fuel Tank Capacity: 79.2 gal (300 L)
• Prime Rating: 36 kW
• Standby Rating: 40 kW
• Generator RPM: 1800
• Voltage - Single Phase: 120/240 V
• Generator Design: Revolving field, Self-ventilated, Drip-proof, Single bearing
• Voltage Regulation (No Load to Full Load): 0.5%
• Power Factor: 1
• Armature Connection: Series
• Excitation: Brushless with AVR
• No. Poles: 4-pole
• Frequency: 60 Hz
• Frequency Regulation (steady state load): .25%
• Sound Level (Full Load at 23 ft.): 65 dB(A)

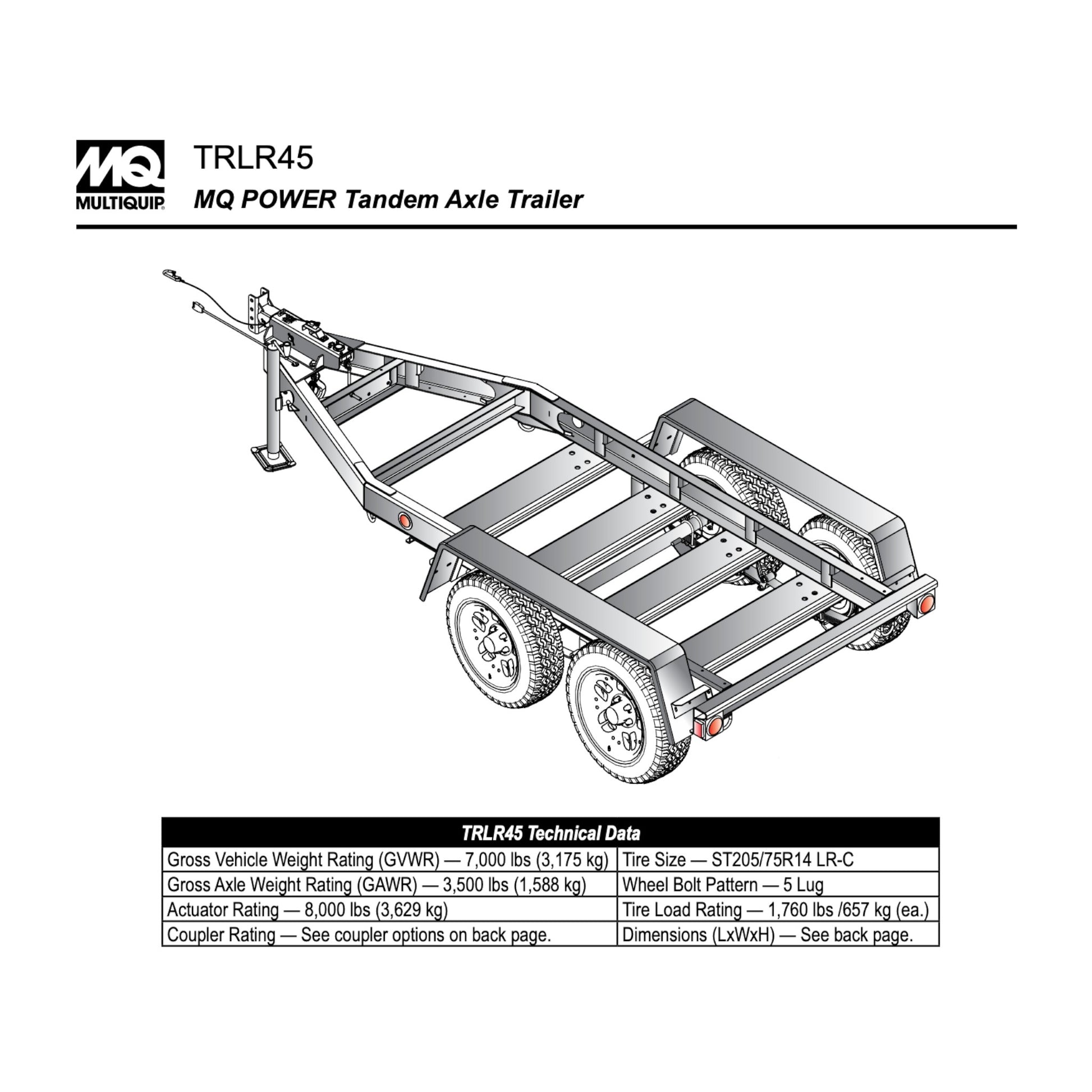

SPECIFICATIONS FOR TRLR45 Trailer

• Gross Vehicle Weight Rating (GVWR):7000 lb (3175 kg)
• Gross Axle Weight Rating (GAWR) (ea.): 3500 lb (1588 kg)
• Coupler Rating: 3" Pintle Eye (25,000 lb), 2" Ball Coupler (10,000 lb), 2-5/16" Ball Coupler (14,000 lb)
• Tire Size: ST205 / 75D15 LR-C
• Tire Load Rating (ea.): 1760 lb (657 kg)
• Wheel Bolt Pattern: 5 Lug
• Fits MQ Power Generator Models: DCA36SPXU4F, DCA40SSKU4F2, DCA45SSU4F
• Length: 147.33 in (3742 mm)
• Width: 66.25 in (1657 mm)
• Height: 23.2 in (590 mm)
• Operating Weight (without fuel): 1056 lb (479 kg)

Designed for contractors and operators who demand quiet, dependable power, the DCA36SPXU4F generator offers best-in-class noise reduction, fuel efficiency, and low-emission operation—delivering versatile power performance wherever you work.
