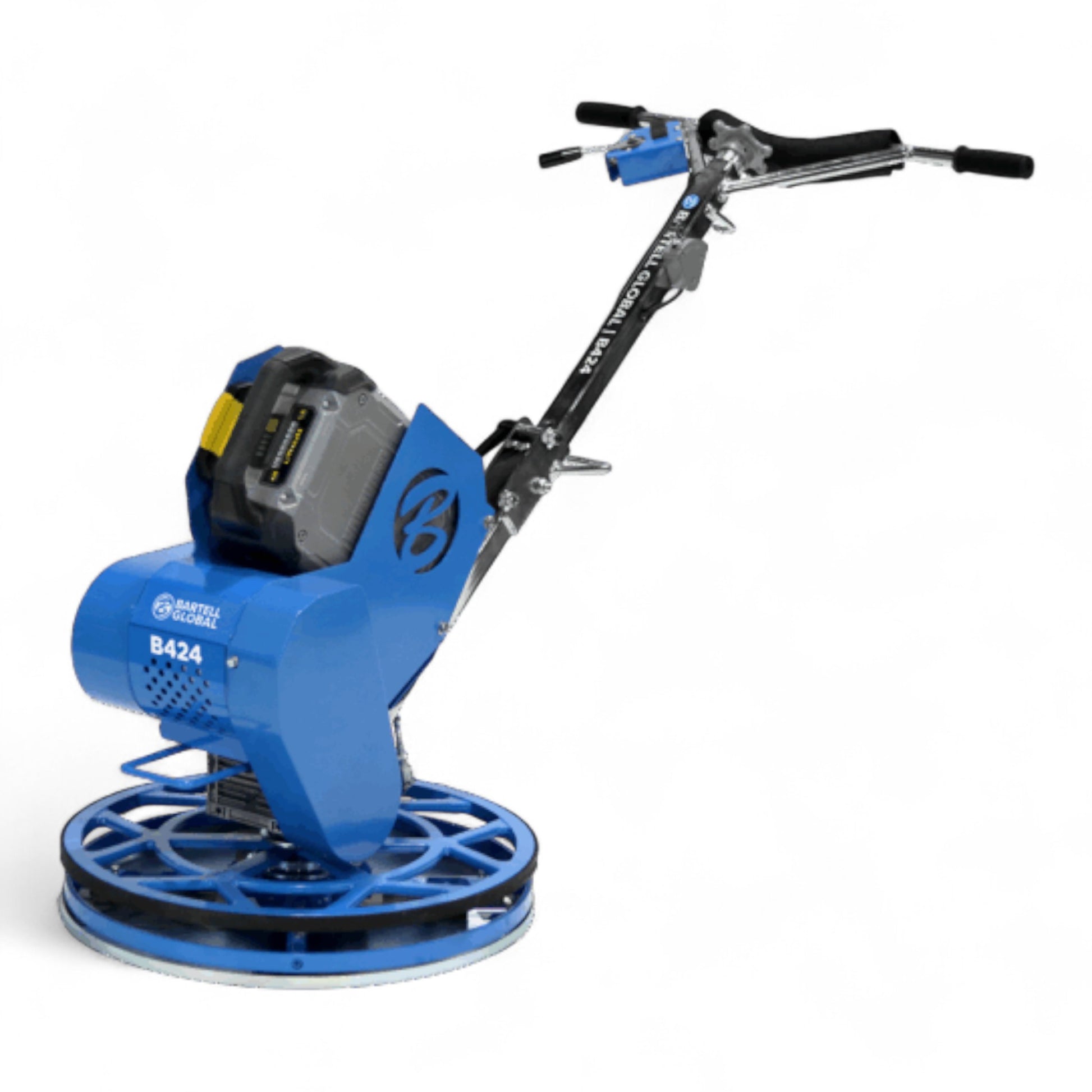

Bartell B424 24 Inch Battery-Powered Power Trowel Edger

The Bartell B424 is a 24-inch battery-powered edging trowel engineered for concrete professionals who need precise, high-quality finishing along walls, columns, edges, and tight spaces. Designed for contractors, finishers, and rental fleets, the B424 provides zero-emission operation, quiet performance, and exceptional maneuverability, making it ideal for both indoor and outdoor concrete finishing tasks. Compact, smooth-handling, and built with Bartell’s proven engineering, this edger trowel delivers outstanding results where larger machines cannot reach.

KEY FEATURES

• Power Source: 1.5 kWh rechargeable battery for efficient, emission-free power and extended runtime.
• Indoor Operation: Work indoors without dangerous engine exhaust—ideal for enclosed or low-ventilation job sites.
• Quiet Motor: Operates quietly, making it suitable for sound-sensitive environments such as indoor or residential projects.
• Low Operating Cost: Reduced running cost and a maintenance-free motor save both time and money over the life of the machine.
• Swappable Quick-Charge Batteries: Easily swap batteries or purchase a second quick-charge unit to eliminate on-site downtime and keep productivity high.
• Variable-Speed Throttle: Smooth, precise throttle control provides exceptional blade speed accuracy for optimal finishing results.
• Compact and Portable: Foldable handle with integrated hoist hook for easy transport, storage, and space efficiency.
• Safety: Centrifugal safety switch automatically shuts down the motor if the operator loses control, ensuring maximum job site safety.

APPLICATIONS / USE CASES

• Edge Finishing: Perfect for finishing along walls, doorways, pillars, columns, and tight boundaries.
• Indoor Concrete Work: Ideal for enclosed projects where emissions and noise are restricted.
• Commercial & Residential Flatwork: Excellent for garages, basements, walkways, patios, and decorative concrete projects.
• High-Precision Projects: Use where smooth, consistent finish quality is required in small or narrow areas.
• Rental Applications: Low-maintenance battery system makes it perfect for rental fleets and high-use scenarios.

WHAT'S INCLUDED:

• Bartell B424 Battery-Powered Power Trowel Edger
• Fine Pitch Folding Handle
• Hoist Hook
• Set of Combo Blades (installed)
• 24 Inch Float Pan
• User and Maintenance Manual
• Battery and Charger Not Included (Sold Separately). Recommended to purchase 2 Batteries and 1 Charger

BATTERY AND CHARGER OPTIONS:

• 1 pc Vanguard Si 48V 1.5kWh Battery and 1 pc Vanguard 1425W 110V Battery Charger
• 2 pcs Vanguard Si 48V 1.5kWh Battery and 1 pc Vanguard 1425W 110V Battery Charger

TECHNICAL SPECIFICATIONS

• Power Source: 1.5kWh Rechargeable Battery
• Motor Power Output: 4hp (3kW)
• Run Time: 90 minutes
• Battery Charger: 1425W
• 80% Charge Time: 50 Minutes
• 100% Charge Time: 75 Minutes
• Max Blade Speed: 163 RPM
• Length: 55" (140cm)
• Width: 24" (61cm)
• Height: 36" (91cm)
• Weight (including battery): 156 lbs (71 kg)
• Weight (without battery): 129 lbs (58.5 kg)

FREQUENTLY ASKED QUESTIONS (FAQ)

1. How long will the battery last on the B424?
Most operators experience between 1–2 hours of active finishing time depending on concrete conditions, blade type, and speed settings.

2. Can the B424 be used outdoors as well?
Yes, the B424 is designed for both indoor and outdoor applications. Its zero-emission operation simply makes it uniquely suitable for enclosed spaces.

3. What blades are compatible with the B424?
The B424 uses standard 24-inch Bartell edging trowel blades, including combo, float, and finish blades, allowing versatility for all stages of finishing.

4. Is the machine difficult to transport?
No. The unit features a foldable handle and a built-in hoist hook, making it easy to move around job sites or load onto trucks and trailers.

5. Does the machine require much maintenance?
Very little. The electric motor eliminates oil changes, carburetor issues, spark plugs, and fuel system maintenance. Routine blade checks and basic cleaning are typically all that’s required.
