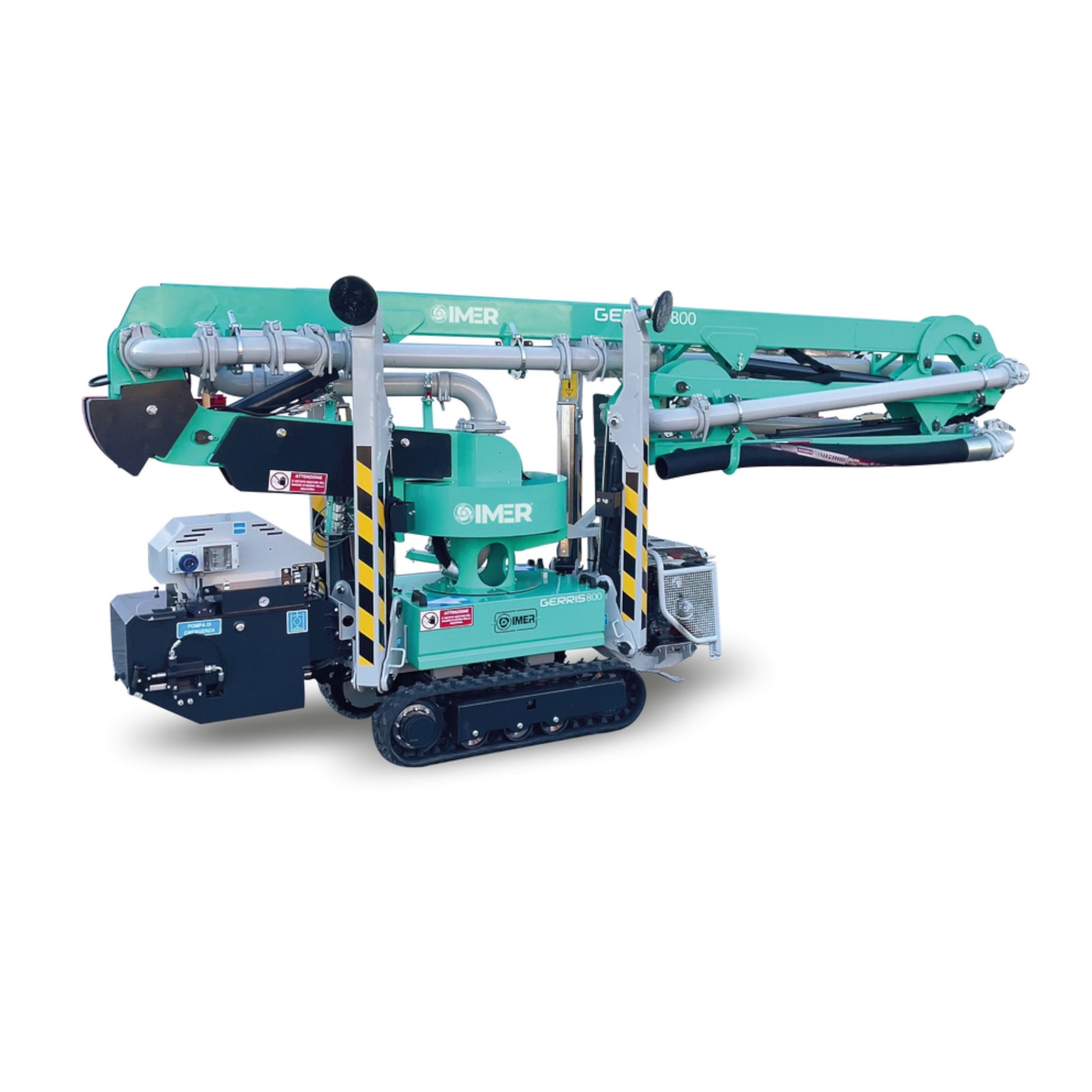

IMER GERRIS 800 Self-Propelled Crawler Concrete Placing Boom

The IMER GERRIS 800 is a compact, self-propelled crawler concrete placing boom designed to bring concrete precisely where it’s needed, even in confined or low-clearance environments. With a small footprint of only 2'7" x 16'2" and a lightweight build, this versatile machine offers a 26'3" horizontal reach and a 36'9" vertical reach, making it ideal for tight or challenging job sites. Its ability to fold and fit through standard doorways, combined with radio-control maneuverability, gives operators unmatched control and flexibility on the job.

FEATURES & BENEFITS

• Bi-Energy Power Options: Powered by a Honda GX390 13 HP 8.2 kW petrol hydraulic pump engine and an auxiliary 2.2 kW 1.5 HP electric motor (230V/50Hz), allowing operation both outdoors and indoors. Optional 48V 5.4 HP lithium battery system provides extended runtime for emission-free indoor use.
• Wireless Radio Control with Backlit Display: Simplifies operation with precise remote maneuverability and integrated self-diagnosis, reporting anomalies and providing electronic hour counts in real time.
• Compact & Portable Design: Folds down to pass through standard doorways. Its small footprint and lightweight construction make it perfect for jobs with tight access while minimizing ground pressure.
• Flexible Concrete Placement: Equipped with a 4" heavy-duty pipe system with Victaulic fittings, plus a 4" rubber terminal hose (10 ft.) for accurate placement in hard-to-reach areas.
• Expandable Rubber Tracks: Hydraulically adjustable tracks (31" to 41") provide enhanced stability and adaptability for varying ground conditions.

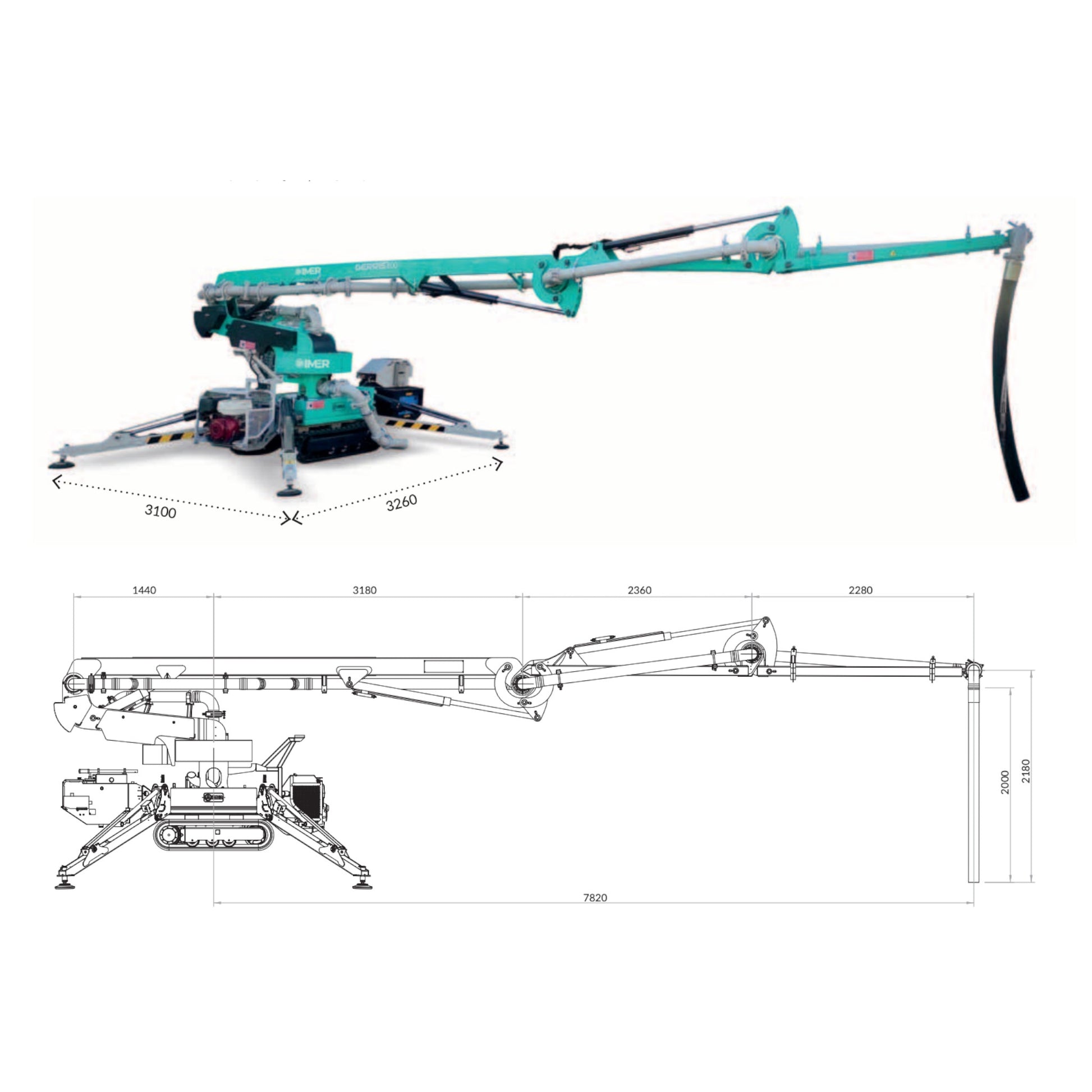

• Automatic Outriggers with Inclinometer: Four hydraulically self-leveling outriggers (Diameter 200 mm pads) ensure quick, safe, and stable setup on uneven terrain.
• Built-In Safety Systems: Includes acoustic signaling for movement and abnormal conditions, ensuring jobsite safety during operation.
• Versatile Pump Pairing: Designed to connect directly with concrete pumps using 4" HD fittings, compatible with Booster 15 pipes via included 4 1/2"to 4" adapter.
• Integrated Charging Systems: Lithium version includes onboard 48V/50A charger, while the petrol version comes with a 12V maintenance charger for dependable power supply.
• Emergency Backup: Manual hydraulic pump allows operation in case of power loss, ensuring work continuity.

Specifications

• Engine/Power Options: Honda GX390 13HP 8.2 kW / Auxiliary 2.2 kW 1.5 HP Electric Motor (230V/50Hz) or 48V 5.4 HP Lithium Battery System

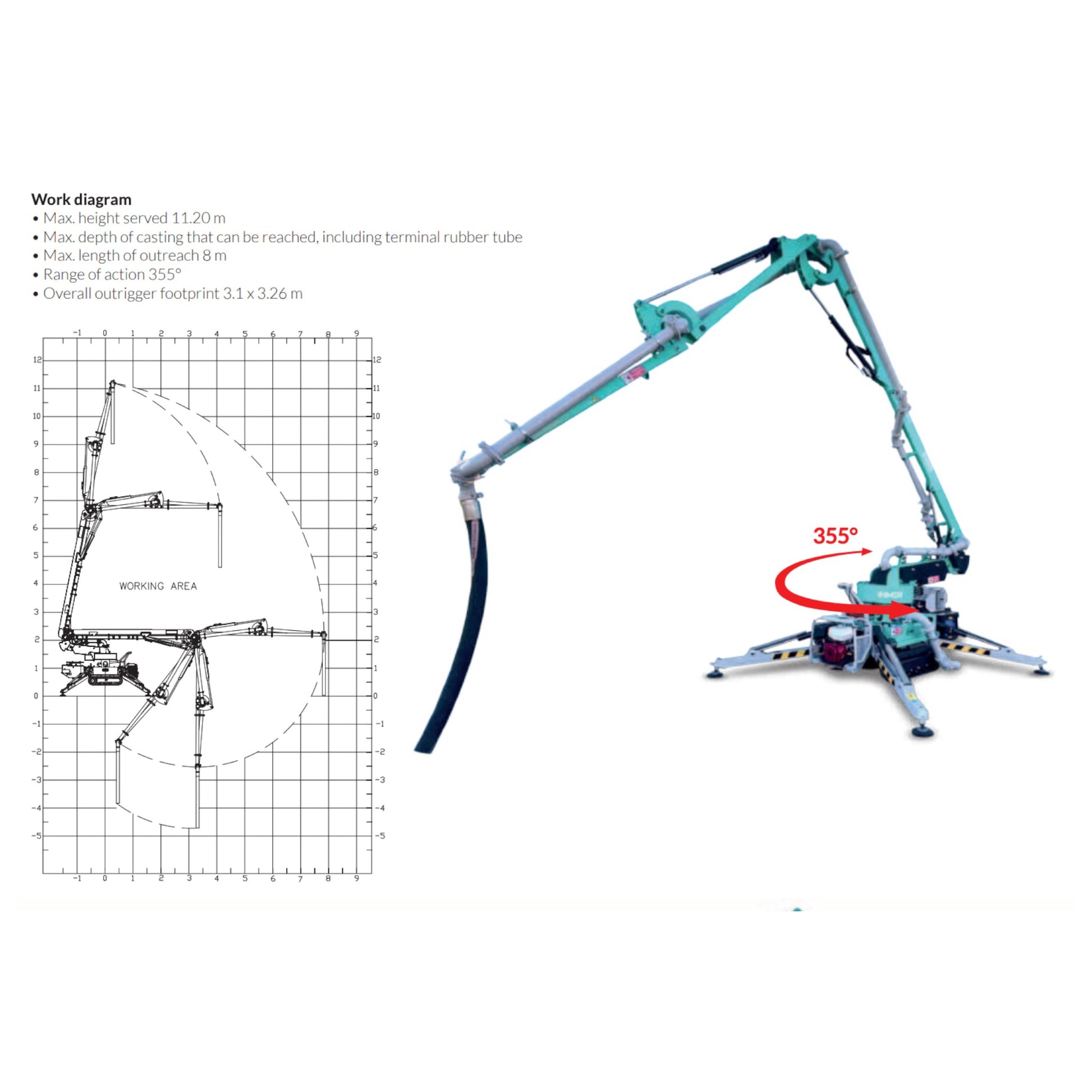

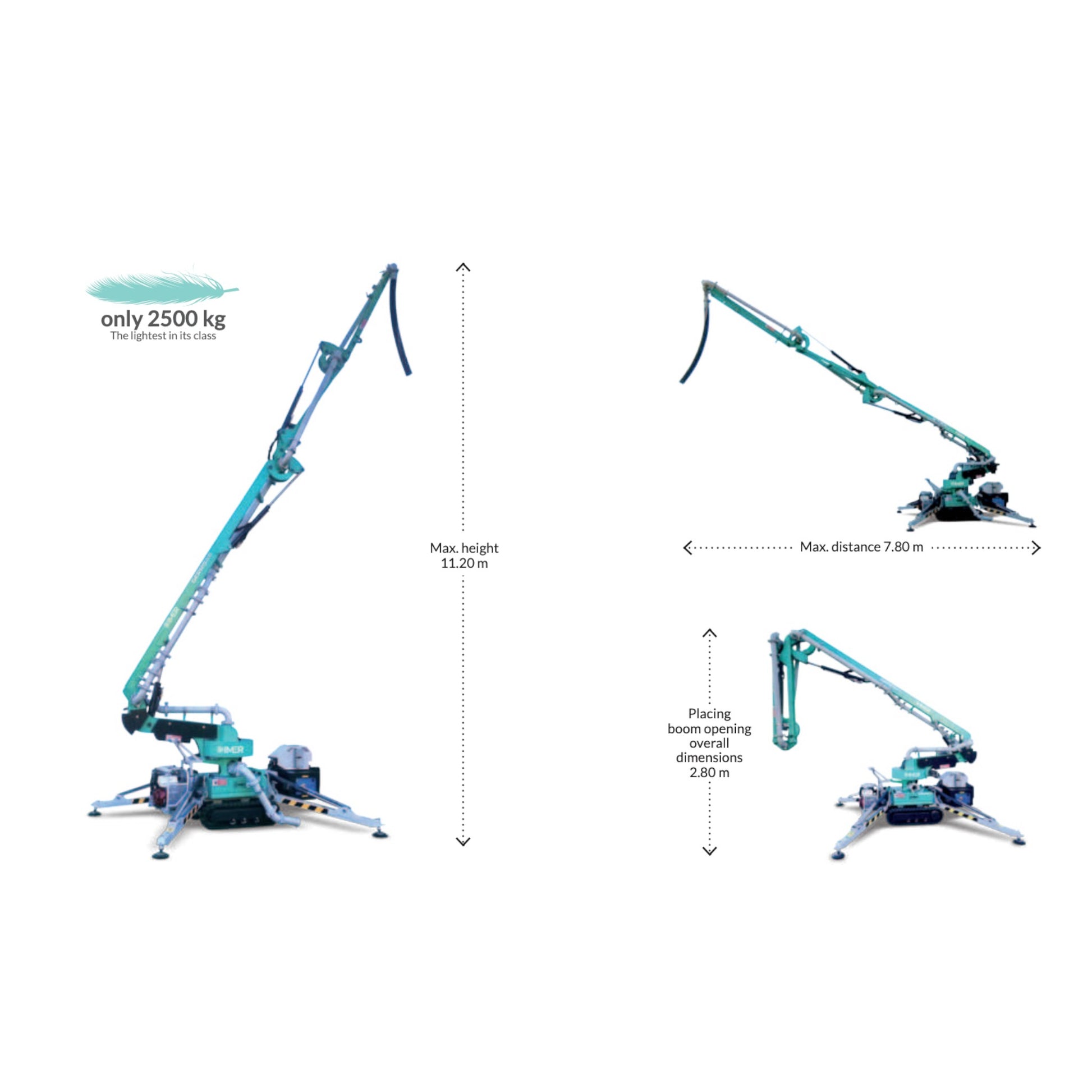

• Max Height: 37 ft
• Maximum Reach: 26 ft
• Depth of Casting: 16.5 ft
• Maximum Aggregate Size: 1 in
• Overall Dimensions Stabilized: 9' 7" - 10' 1"
• Maximum Speed: 0 - 1.6 mph
• Greadability: 25%
• Turret Rotation: 355 degrees
• Greadability: 25%
• Greadability: 25%
• Greadability: 25%

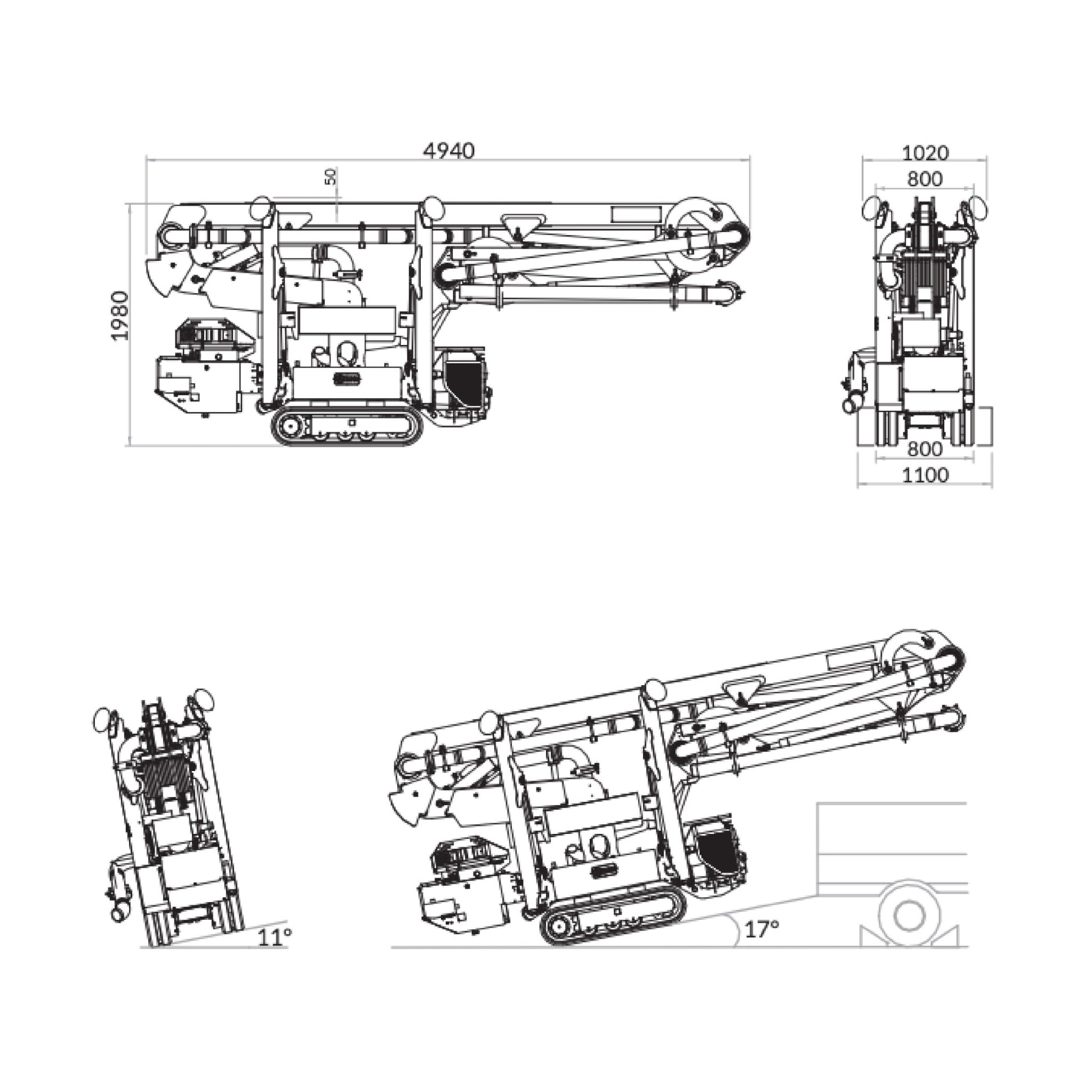

• Transport Dimensions WxLxH : 2'7" x 16' 1" x 6' 6"
• Weight: 5512 lbs
• Sound pressure level: 104 dB(A)

The IMER GERRIS 800 combines compact portability, robust reach, and bi-energy versatility, making it the ultimate tool for concrete placement in confined, high-demand environments. With its user-friendly controls, expandable tracks, and built-in safety features, this crawler boom is engineered to maximize efficiency while reducing operator effort and jobsite constraints.
