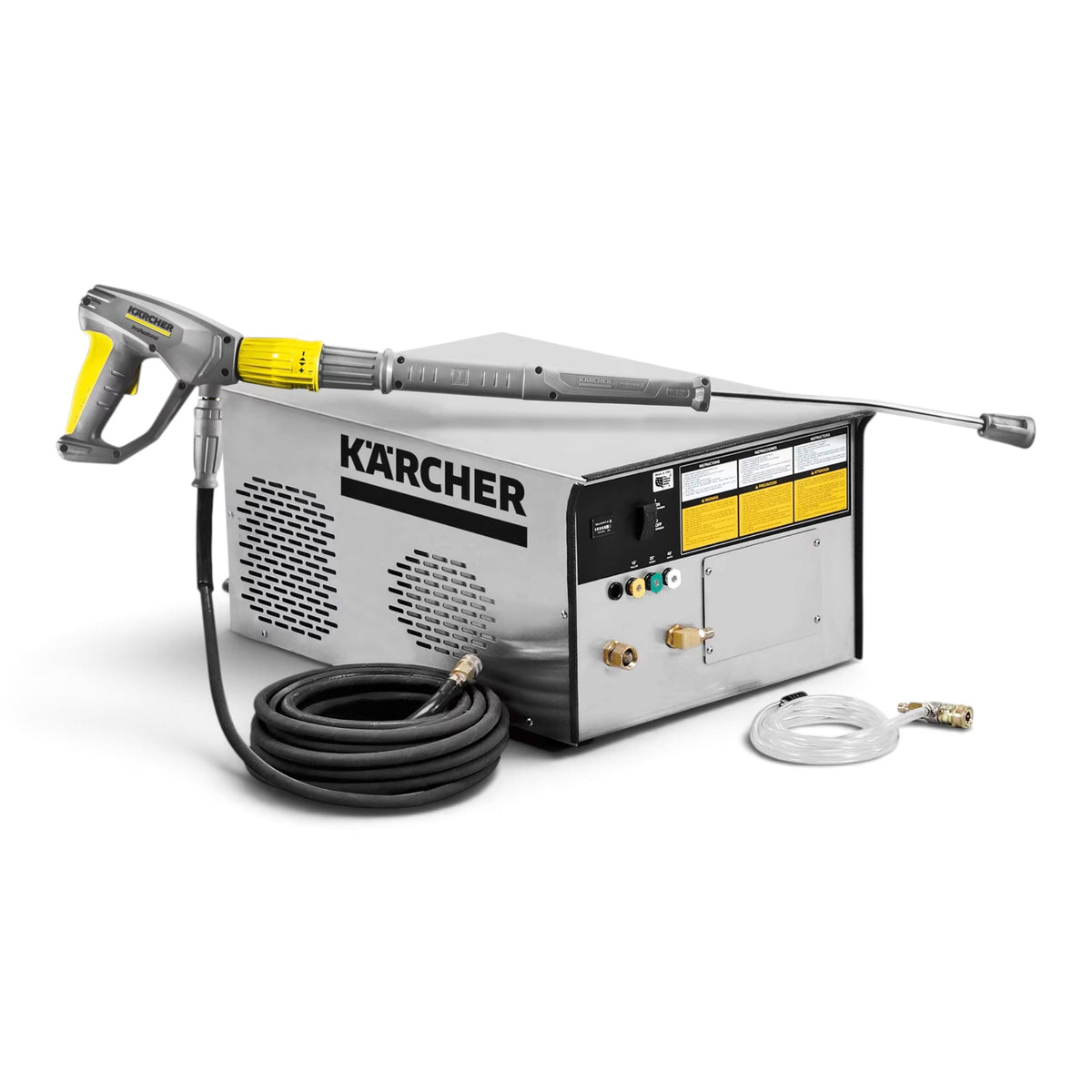

Kärcher HD Cabinet Series Electric Cold Water Pressure Washer

The Kärcher HD Cabinet Series Electric Cold Water Pressure Washer is a professional stationary pressure washing system designed for demanding commercial and industrial cleaning applications. Built for automotive service facilities, equipment maintenance shops, manufacturing operations, fleet maintenance centers, and industrial wash areas, this electric pressure washer combines a heavy-duty belt-drive Kärcher crankcase pump, industrial motor, and magnetic starter for dependable cleaning performance. The listed configuration delivers 1,000 psi (6,895 kPa) at 2.8 US GPM (10.6 L/min) and accepts incoming preheated water up to 145°F (62.8°C). With seven available machine configurations, multiple mounting and stand options, and ETL certification to CSA safety standards, the HD Cabinet Series provides a flexible solution for professional facilities requiring a dedicated pressure washing system.

KEY FEATURES

• INDUSTRIAL-GRADE CLEANING PERFORMANCE: The HD Cabinet Series is designed to provide reliable high-pressure cleaning for demanding commercial and industrial environments. Its heavy-duty construction supports routine cleaning of suitable equipment, machinery, vehicles, and hard surfaces.
• 1,000 PSI (6,895 KPA) WORKING PRESSURE: The listed configuration delivers 1,000 psi (6,895 kPa) of cleaning pressure. This provides effective cleaning force for removing dirt, grime, and other common industrial residues from compatible surfaces.
• 2.8 US GPM (10.6 L/MIN) WATER FLOW: The specified configuration delivers a water flow rate of 2.8 US GPM (10.6 L/min). This combination of pressure and water volume helps operators rinse away loosened debris efficiently during routine cleaning tasks.
• PREHEATED WATER COMPATIBILITY: The HD Cabinet Series accepts incoming water temperatures up to 145°F (62.8°C). This allows facilities with a suitable external hot water supply to use warmer water for cleaning tasks where improved removal of oily or greasy residues is beneficial.
• BELT-DRIVE KÄRCHER CRANKCASE PUMP: The machine features a belt-driven Kärcher crankcase pump designed for demanding professional operation. The belt-drive configuration supports the industrial construction of the system and helps deliver dependable pressure washing performance.
• 7-YEAR PUMP WARRANTY: The Kärcher crankcase pump is backed by a stated seven-year warranty. This provides additional assurance for facilities investing in a long-term professional cleaning system, subject to the manufacturer's warranty terms and conditions.
• INDUSTRIAL ELECTRIC MOTOR: The HD Cabinet Series incorporates an industrial motor for electrically powered pressure washing. This supports consistent operation in facilities where a suitable electrical supply is available.
• MAGNETIC STARTER FOR OPERATOR SAFETY: The integrated magnetic starter provides an electrical control feature intended to support safer machine operation. This contributes to the pressure washer's industrial electrical system and professional equipment design.
• ETL CERTIFICATION TO CSA STANDARDS: All listed HD Cabinet Series models are described as ETL certified to applicable CSA safety standards. This provides facilities with a documented safety certification characteristic when evaluating equipment for professional installation.
• SEVEN AVAILABLE MACHINE CONFIGURATIONS: The series includes seven model options to accommodate different professional cleaning requirements. Operators can select a configuration based on the pressure, flow, and electrical requirements of their facility, with exact specifications confirmed for each model.
• STATIONARY CABINET DESIGN: The cabinet-style construction is suited to dedicated cleaning locations where equipment can be installed for regular use. This helps facilities establish an organized washing area without relying on a conventional portable pressure washer.
• OPTIONAL WALL-MOUNTING SOLUTIONS: Available wall mounts include standard and stainless steel configurations. These field-installed options help facilities position the machine above the floor and organize equipment around a designated wash area.
• OPTIONAL FLOOR STANDS: Floor stand options include 24 in (60.96 cm) and 36 in (91.44 cm) configurations, along with stainless steel alternatives. These provide different installation arrangements to suit available space and facility preferences.
• OPTIONAL HOSE REEL SYSTEMS: Compatible hose reel options include fixed-base and stand-mounted configurations with a listed capacity of 100 ft (30.48 m). These accessories help organize high-pressure hoses and reduce clutter around the washing area; hoses are not included with the specified reel options.
• OPTIONAL MOBILE STAND COMPONENTS: Caster wheel kits and wheel kits with detergent racks provide additional equipment positioning options for compatible floor stands. These field-installed accessories help facilities configure their cleaning station according to operational requirements.
• OPTIONAL STAINLESS STEEL SUPPORT EQUIPMENT: Stainless steel wall mounts, floor stands, and wheel kit options are available for compatible installations. These provide alternative mounting components for facilities that prefer stainless steel support equipment.
• ERGONOMIC EASY!FORCE TRIGGER GUN: The North American EASY!Force trigger gun is identified as a standard accessory and is designed to minimize sustained hand force during operation. Its 1/4 in (6.35 mm) wand connection and 3/8 in (9.53 mm) hose connection support the specified North American connection arrangement.
• FLEXIBLE FIELD INSTALLATION: Mounting kits, stands, hose reels, and mobility accessories are available for field installation. This allows facilities to configure the pressure washer around existing cleaning areas, available floor space, and preferred equipment organization.
• COMPACT CABINET DIMENSIONS: The listed configuration measures 31 × 21 × 16 in (78.74 × 53.34 × 40.64 cm). Its cabinet-style dimensions provide flexibility when planning installation in commercial and industrial wash areas.

APPLICATIONS / USE CASES

• INDUSTRIAL EQUIPMENT CLEANING: The HD Cabinet Series supports cleaning of suitable machinery exteriors, equipment components, and industrial hard surfaces. Its stationary design makes it practical for facilities performing repeated cleaning tasks in a designated location.
• AUTOMOTIVE SERVICE FACILITIES: The pressure washer can support cleaning of suitable automotive equipment, workshop areas, and vehicle components. Operators should use appropriate cleaning techniques to protect sensitive finishes, seals, and electrical parts.
• FLEET MAINTENANCE OPERATIONS: The machine provides a dedicated pressure washing solution for facilities maintaining commercial vehicles and fleet equipment. Compatible hose reels and mounting accessories help keep the washing area organized.
• MANUFACTURING FACILITY MAINTENANCE: Industrial cleaning teams can use the system for suitable production equipment exteriors and hard-surface maintenance. The belt-drive crankcase pump and industrial motor are designed for professional cleaning applications.
• COMMERCIAL WORKSHOP CLEANING: The pressure washer supports routine removal of dirt and grime from suitable workshop surfaces and equipment. Its stationary installation options allow cleaning teams to establish a consistent equipment maintenance area.
• PREHEATED WATER CLEANING: Facilities with a compatible external hot water supply can provide inlet water up to 145°F (62.8°C). Warmer water can help loosen suitable oily residues, depending on the cleaning procedure and surface requirements.
• DEDICATED WASH BAYS: The cabinet design and optional wall or floor mounting systems support installation in permanent commercial washing locations. Hose reel accessories help organize the cleaning hose between uses.
• VEHICLE AND EQUIPMENT DETAILING: The listed pressure and flow configuration can support suitable washing and rinsing tasks. Operators should select appropriate accessories and maintain safe working distances from delicate surfaces.
• COMMERCIAL PROPERTY MAINTENANCE: The HD Cabinet Series provides an industrial pressure washing option for appropriate hard-surface maintenance in commercial facilities. Its fixed installation arrangement is useful where cleaning equipment is regularly needed in the same area.
• SPACE-CONSTRAINED CLEANING AREAS: Optional wall mounts help facilities position the machine where floor space is limited. Different floor stand configurations provide alternatives when wall mounting is not preferred.
• ORGANIZED HOSE MANAGEMENT: Optional 100 ft (30.48 m) hose reel configurations provide storage for compatible high-pressure hoses. This helps reduce loose hose clutter and supports an orderly professional washing station.
• FACILITY MAINTENANCE DEPARTMENTS: Maintenance teams can choose among seven machine configurations and multiple installation accessories. This flexibility helps facilities match equipment selection to their available utilities and cleaning requirements.

WHAT'S INCLUDED

• One selected Kärcher HD Cabinet Series Electric Cold Water Pressure Washer
• Industrial electric motor
• Belt-drive Kärcher crankcase pump
• Magnetic starter
• Cabinet-style machine housing
• EASY!Force trigger gun, identified as standard equipment for the North American configuration
• Seven-year crankcase pump warranty coverage, subject to manufacturer terms

Seven machine configurations are available, and only one selected configuration is supplied per machine purchase. The supplied information does not confirm the complete standard hose, spray lance, nozzle, mounting hardware, or installation package. Wall mounts, floor stands, hose reels, wheel kits, and other listed installation accessories are optional and field installed unless otherwise specified.

MACHINE OPTIONS

• HD 2.8/10 ST ED B: A listed HD Cabinet Series configuration for professional stationary pressure washing applications. The supplied technical specifications identify a 2.8 US GPM (10.6 L/min), 1,000 psi (6,895 kPa), 120 V single-phase configuration; confirm the exact model specifications before ordering.
• HD 3.9/20 ST EA B: An available HD Cabinet Series model for professional cleaning installations. Confirm its exact pressure, flow rate, voltage, electrical phase, and installation requirements with the manufacturer before selection.
• HD 3.9/20 ST EC B: An additional cabinet pressure washer configuration within the product range. This option allows facilities to evaluate a different model arrangement, with model-specific electrical and performance specifications requiring confirmation.
• HD 3.9/20 ST EH B: A listed model option for industrial and commercial cleaning applications. Facilities should verify the electrical supply and operating requirements associated with this configuration before installation.
• HD 3.5/30 ST EC B: An available HD Cabinet Series configuration for facilities requiring a different machine option. Its specific performance ratings and electrical requirements should be confirmed independently of the supplied 2.8 US GPM (10.6 L/min) configuration.
• HD 3.5/30 ST EA B: A further model selection within the stationary cabinet pressure washer range. Operators should confirm the applicable pressure, water flow, and electrical specifications when comparing this configuration with other available models.
• HD 5.6/25 ST EC B: An additional HD Cabinet Series machine option for professional cleaning installations. Confirm the exact operating specifications, required utilities, and accessory compatibility before purchase.

Model Selection Note: The supplied technical specifications list one 1,000 psi (6,895 kPa), 2.8 US GPM (10.6 L/min), 120 V single-phase configuration. They should not be applied automatically to every model in the series. Individual models may have different pressure, flow, electrical, weight, and dimensional specifications.

OPTIONAL ACCESSORIES

• WALL MOUNT – HOSE NOT INCLUDED: Provides a wall-mounting option for compatible HD Cabinet Series installations. This field-installed accessory helps position the machine above the floor and organize the washing area; a hose is not included.
• EASY!FORCE TRIGGER GUN – NORTH AMERICAN MODEL: This ergonomic trigger gun is designed to minimize sustained hand force during pressure washing. Identified as standard equipment, it features a 1/4 in (6.35 mm) wand connection and a 3/8 in (9.53 mm) hose connection.
• WALL MOUNT KIT: Provides a field-installed mounting kit for compatible wall-mounted configurations. It helps facilities establish a dedicated pressure washing station while preserving floor space.
• STAINLESS STEEL WALL MOUNT KIT: Provides a stainless steel mounting alternative for compatible installations. This field-installed option supports facilities that prefer stainless steel equipment mounting components.
• 100 FT (30.48 M) FIXED-BASE HOSE REEL: Provides a fixed-base hose reel with a listed hose capacity of 100 ft (30.48 m) and a 3/8 in (9.53 mm) hose designation. This field-installed accessory supports organized hose storage, but the hose is not included.
• 24 IN (60.96 CM) SHORT FLOOR STAND: Provides a compact floor stand option for compatible cabinet pressure washer installations. Its 24 in (60.96 cm) listed height helps facilities configure equipment where a shorter support stand is preferred.
• HOSE REEL KIT WITH BRACKET FOR STAND AND WALL MOUNT KITS: Provides a hose reel and bracket arrangement for compatible floor stand and wall mount configurations. This field-installed option helps organize the pressure washing hose; the hose is not included.
• 100 FT (30.48 M) HOSE REEL KIT – FLOOR STAND ONLY: Provides a hose reel option intended for compatible floor stand installations. It supports storage of up to 100 ft (30.48 m) of suitable hose, which must be supplied separately.
• CASTER WHEELS FOR FLOOR STAND: Provides a field-installed caster wheel option for compatible floor stands. These wheels can help operators reposition the supported cleaning equipment when the installation permits movement.
• 36 IN (91.44 CM) TALL FLOOR STAND: Provides an elevated floor stand configuration for compatible HD Cabinet Series equipment. Its 36 in (91.44 cm) listed height offers an alternative installation arrangement for facilities that prefer a taller support stand.
• WHEEL KIT WITH DETERGENT RACK: Combines a compatible wheel kit with a detergent storage rack for supported installations. This field-installed accessory helps organize cleaning supplies and provides an equipment mobility option where appropriate.
• 36 IN (91.44 CM) STAINLESS STEEL FLOOR STAND: Provides a stainless steel floor stand option with a listed height of 36 in (91.44 cm). This field-installed accessory offers an alternative support configuration for compatible cabinet pressure washers.
• STAINLESS STEEL FLOOR STAND WITHOUT HOSE HANGER: Provides a stainless steel support stand configuration without an integrated hose hanger. This allows facilities to select a stand arrangement that accommodates separate hose storage equipment.
• STAINLESS STEEL WHEEL KIT WITH DETERGENT RACK: Provides a stainless steel wheel kit option combined with a detergent storage rack. This field-installed accessory supports equipment organization and suitable mobility arrangements for compatible installations.

TECHNICAL SPECIFICATIONS

• MANUFACTURER: Kärcher
• PRODUCT SERIES: HD Cabinet Series
• PRODUCT TYPE: Electric cold water pressure washer
• DESIGN: Stationary cabinet-style pressure washer
• LISTED CONFIGURATION: HD 2.8/10 ST Ed B
• FLOW RATE: 2.8 US GPM (10.6 L/min)
• WORKING PRESSURE: 1,000 psi (6,895 kPa)
• MAXIMUM INLET WATER TEMPERATURE: 145°F (62.8°C)
• NUMBER OF ELECTRICAL PHASES: 1
• OPERATING VOLTAGE: 120 V
• ELECTRICAL FREQUENCY: 60 Hz
• PUMP TYPE: Kärcher crankcase pump
• PUMP DRIVE: Belt drive
• PUMP WARRANTY: 7 years, subject to manufacturer warranty terms
• MOTOR TYPE: Industrial electric motor
• ELECTRICAL STARTING COMPONENT: Magnetic starter
• SAFETY CERTIFICATION: ETL certified to CSA safety standards
• STANDARD TRIGGER GUN: EASY!Force, North American configuration
• TRIGGER GUN WAND CONNECTION: 1/4 in (6.35 mm) nominal
• TRIGGER GUN HOSE CONNECTION: 3/8 in (9.53 mm) nominal
• WEIGHT WITH ACCESSORIES: 210 lb (95.25 kg)
• WEIGHT INCLUDING PACKAGING: 210 lb (95.25 kg)
• LENGTH: 31 in (78.74 cm)
• WIDTH: 21 in (53.34 cm)
• HEIGHT: 16 in (40.64 cm)
• DIMENSIONS (L × W × H): 31 × 21 × 16 in (78.74 × 53.34 × 40.64 cm)
• AVAILABLE MACHINE CONFIGURATIONS: 7
• MACHINE OPTIONS: HD 2.8/10 ST Ed B, HD 3.9/20 ST Ea B, HD 3.9/20 ST Ec B, HD 3.9/20 ST Eh B, HD 3.5/30 ST Ec B, HD 3.5/30 ST Ea B, and HD 5.6/25 ST Ec B
• OPTIONAL FLOOR STAND HEIGHTS: 24 in (60.96 cm) and 36 in (91.44 cm)
• OPTIONAL FIXED-BASE HOSE REEL CAPACITY: 100 ft (30.48 m)
• OPTIONAL FIXED-BASE HOSE REEL HOSE SIZE: 3/8 in (9.53 mm) nominal
• OPTIONAL HOSE REEL MOUNTING: Fixed base, compatible wall mount, or compatible floor stand, depending on selected kit
• OPTIONAL MOUNTING MATERIAL: Standard and stainless steel options
• OPTIONAL MOBILITY COMPONENTS: Caster wheels and wheel kits with detergent racks
• ACCESSORY INSTALLATION: Field installed where specified
• HOSE INCLUSION WITH OPTIONAL REELS: Not included with the listed hose reel configurations

Specification Note: The listed 1,000 psi (6,895 kPa), 2.8 US GPM (10.6 L/min), 120 V, single-phase specifications apply to the supplied reference configuration and are not confirmed for every machine option. The HD Cabinet Series is classified as a cold water pressure washer because it does not have a specified integrated water heating system; it can accept externally preheated inlet water up to 145°F (62.8°C). All mounting, electrical, water supply, and hose configurations should be verified before installation.

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What is the Kärcher HD Cabinet Series Electric Cold Water Pressure Washer designed for?

It is a professional stationary pressure washing system designed for commercial and industrial cleaning applications. It is suitable for dedicated wash areas, automotive service facilities, equipment maintenance shops, and other locations requiring a dependable electric pressure washer.

2. What pressure and water flow does the HD Cabinet Series provide?

The supplied reference configuration delivers 1,000 psi (6,895 kPa) at 2.8 US GPM (10.6 L/min). The series includes seven machine options, and pressure, flow, and electrical specifications should be verified individually for models other than the listed reference configuration.

3. Can this cold water pressure washer use hot water?

Yes. The machine can accept externally preheated inlet water up to 145°F (62.8°C). It does not have a specified built-in water heater, so hot water must come from a suitable external supply. Operators should ensure the inlet temperature remains within the manufacturer's limit.

4. What makes the HD Cabinet Series suitable for industrial use?

The series features a belt-drive kärcher crankcase pump, an industrial electric motor, and a magnetic starter. The pump carries a stated seven-year warranty, and the models are described as etl certified to csa safety standards. These features support professional installation and long-term equipment use, subject to proper operation and maintenance.

5. What mounting and installation accessories are available?

Available accessories include standard and stainless steel wall mounts, 24 in (60.96 cm) and 36 in (91.44 cm) floor stands, hose reel kits, caster wheels, and wheel kits with detergent racks. These accessories are field installed where specified, and hoses are not included with the listed optional hose reel configurations. Compatibility should be confirmed for the selected machine and mounting arrangement.
