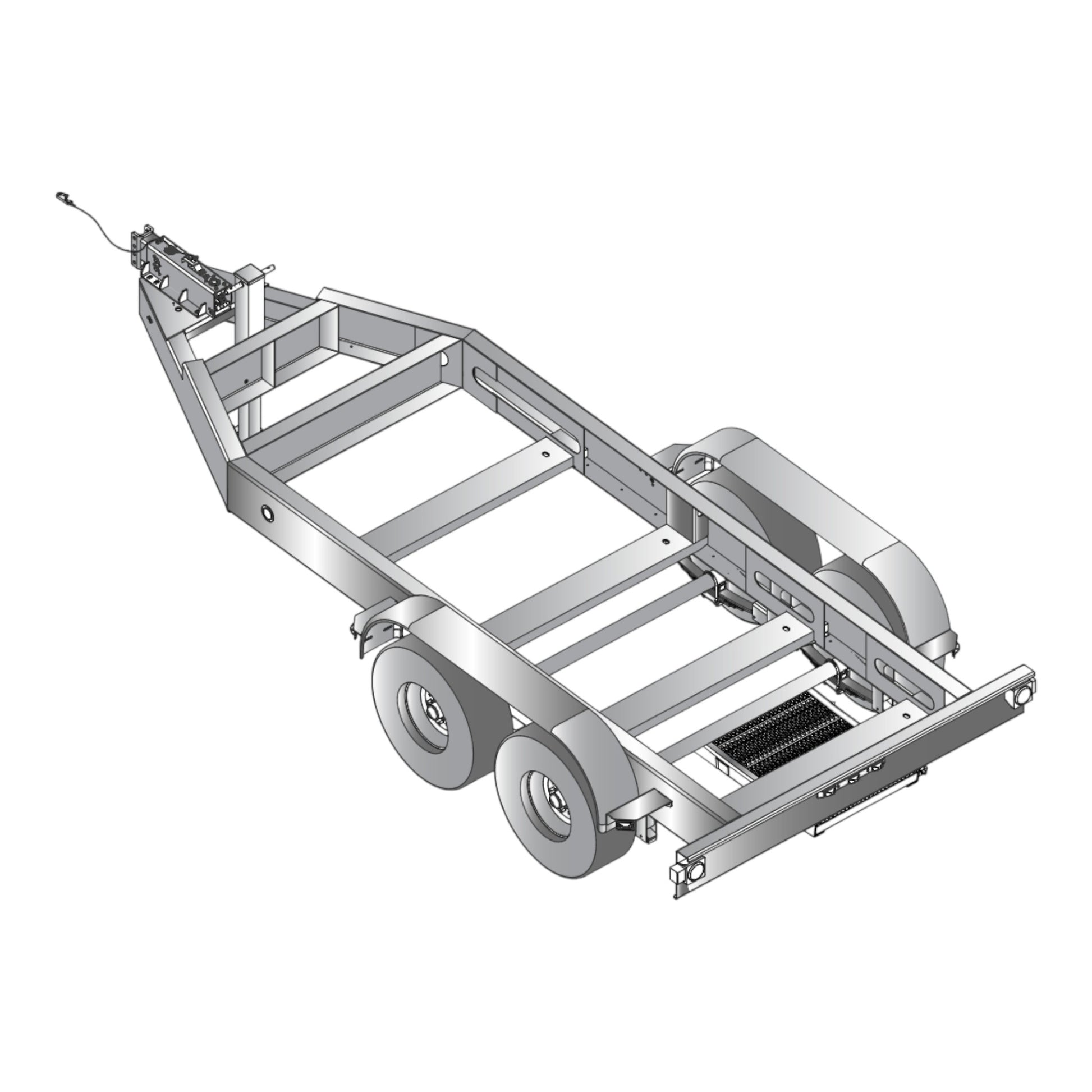

MQ Power TRLR220EV Tandem Axle Trailer

The MQ Power TRLR220EV Tandem Axle Trailer is engineered to deliver maximum strength, safety, and performance when transporting large generator units. Its robust welded steel frame, hydraulic braking system, and adjustable coupler height ensure stability and control under heavy loads. Designed for reliability in the most demanding conditions, this trailer provides a smooth and secure towing experience while meeting all Department of Transportation (D.O.T.) requirements for professional transport applications.

FEATURES

• Model Options: TRLR220EVE with Electric Brake System or TRLR220EVH with Hydraulic Brake System
• Generator Compatibility: Specifically designed to fit MQ Power generator model DCA220SSJU4F2, ensuring a stable and secure mounting configuration.
• Straight Tandem-Axle Design with Leaf Spring Suspension: Provides even load distribution and smooth towing performance over rough terrain, enhancing safety and control.
• Heavy-Duty Welded Steel Frame Construction: Built from high-strength welded steel for superior rigidity and long-lasting durability under demanding job site conditions.
• Structural Channel for Generator Mounting: Heavy structural channels provide a firm and balanced platform for generator installation, minimizing vibration during transport.
• Replaceable Bolt-On Hydraulic Brake Actuator: Simplifies maintenance and ensures consistent brake performance, extending trailer service life.
• Adjustable Coupler Height: The 4-hole channel allows 3-position coupler height adjustment (4 inches overall), accommodating various towing vehicle configurations.
• Heavy-Duty Drop-Leg Jack: Tongue-mounted drop-leg jack rated for 10,000 lbs (4,536 kg) lift capacity provides reliable support and easy leveling during connection or detachment.
• Replaceable Steel Fenders and Brackets: Bolt-on components allow for quick replacement and enhanced protection from road debris and wear.
• Durable Powder-Coated Finish: Rugged textured black powder-coated frame, channel, actuator, and fenders protect against corrosion and maintain a professional appearance over years of use.
• D.O.T. Approved Lighting System: Includes tail lamps, stop lamps, turn signal lamps, and side marker lamps compliant with D.O.T. standards for safe highway operation.
• Weatherproof Wiring Harness: Three-piece rubber-armored wiring harness provides excellent resistance to moisture, dust, and vibration for dependable electrical connections.
• Surge Hydraulic-Actuated Drum Brakes: Installed on all axles, delivering smooth, automatic braking performance based on towing conditions.
• Hydraulic Dual-Servo Drum Brakes: Features a 12-inch cluster with a backup solenoid for enhanced braking response and additional safety during reverse movement.
• D.O.T. Steel Brake Lines: Equipped with steel brake lines, brass tees, and rubber hydraulic hoses for dependable performance and corrosion resistance.
• Heavy-Duty Rear Sliding Step: Rear sliding step with a spring-loaded locking pin provides easy, secure access to the generator during service or setup.

Included Coupler

• 3" Pintle Eye - 25,000 lbs. (11,339 kg)

Optional Accessories

• Storage Box 17 Inch High

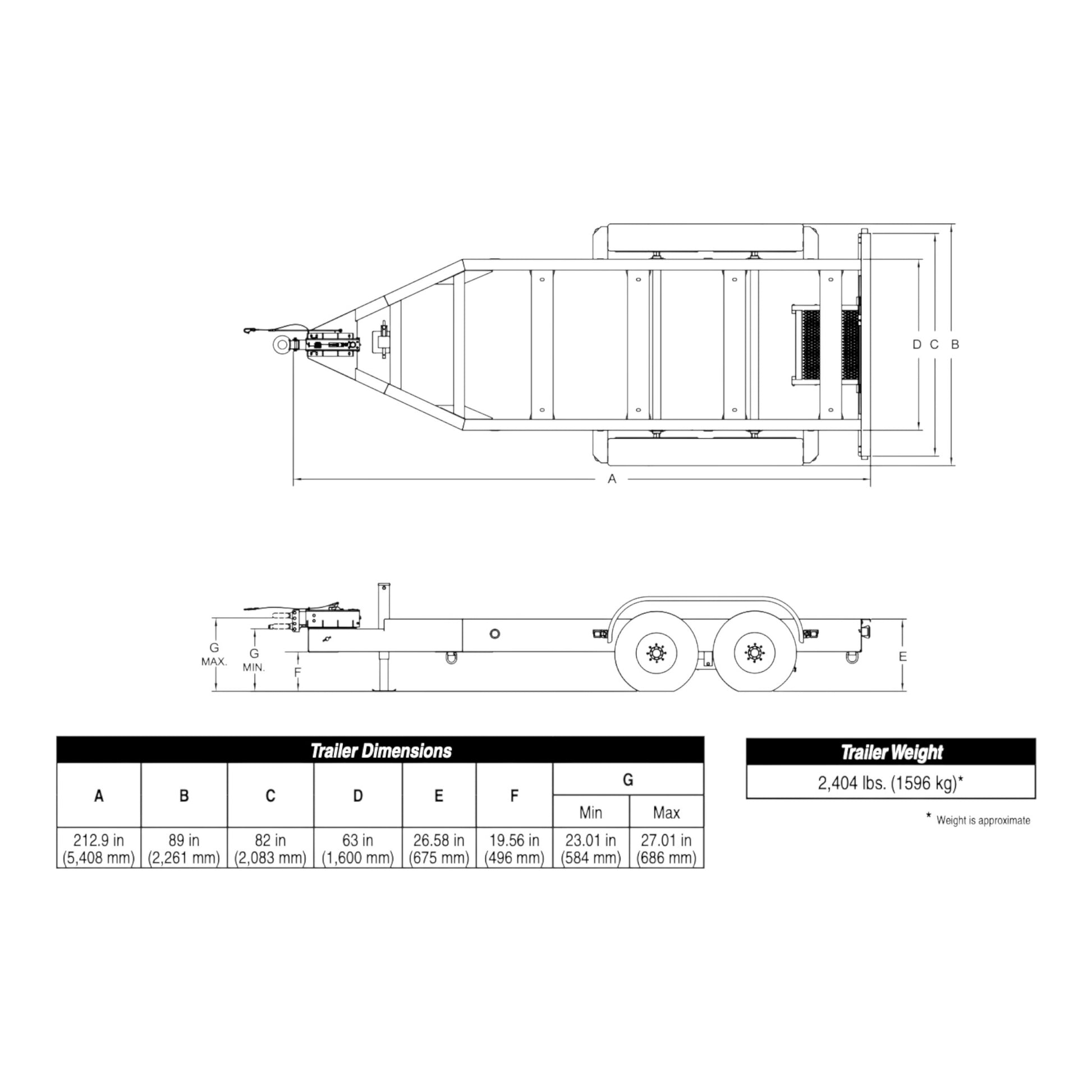

Specifications

• Gross Vehicle Weight Rating (GVWR): 16,000 lbs (7,257.4 kg)
• Gross Axle Weight Rating (GAWR): 8,000 lbs (3,628 kg) (ea.)
• Actuator Rating: 20,000 lbs. (9.072 kg)
• Tire Size: ST235/85R16 LR-G
• Wheel Bolt Pattern: 8 Lug on 6.5 in
• Tire Load Rating: 4,400 lbs/1,996 kg (ea.)
• Trailer Weight: 2,404 lbs (1596 kg)
