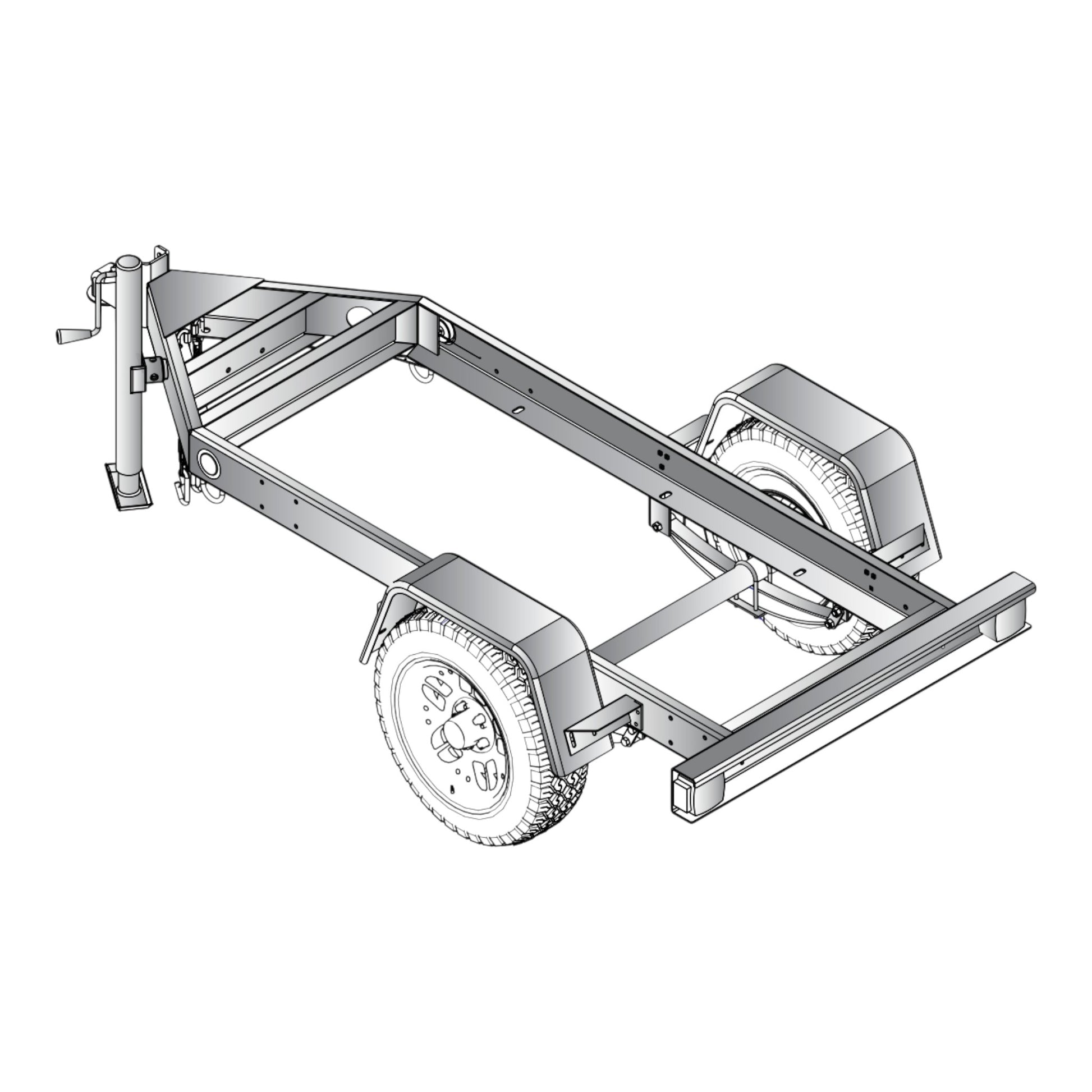

MQ Power TRLR25US2 Single Axle Trailer

The MQ Power TRLR25US2 Single Axle Trailer is purpose-built for transporting compact MQ Power generator models safely and efficiently. Constructed from heavy-duty steel and designed for durability, it delivers outstanding performance on both job sites and roadways. With its precision mounting system, weatherproof lighting, and superior powder-coated protection, this trailer provides the strength, reliability, and ease of use that professionals demand when mobilizing their power solutions.

FEATURES

• Model Options: Choose between the TRLR25US2 standard configuration or the TRLR25US2E model, which includes electric brakes for enhanced safety and braking performance during transport.
• Generator Compatibility: Specifically designed to fitMQ Power generator models DCA20SPXU4F, DCA25USI4CAN, and DCA25SSIU4F, ensuring a secure and stable platform for transport.
• Straight Single-Axle Design with Leaf Spring Suspension: The leaf spring suspension system absorbs shock and vibration, providing smooth towing and enhanced stability on all terrains.
• Heavy-Duty Welded Steel Frame: The fully welded, industrial-grade steel frame guarantees long-term durability and structural integrity for demanding environments and heavy loads.
• Formed Channel Generator Mounting: Precision formed channel supports provide secure and level mounting for generators, minimizing vibration and maintaining balance during transport.
• Adjustable Coupler Height: A 4-hole channel allows for 3-position adjustment (4 inches overall), ensuring proper hitch alignment for different towing vehicle configurations.
• High-Capacity Swivel Jack: The tongue-mounted swivel jack is rated for 3,000 lbs. (1,361 kg) lift capacity, allowing for smooth, controlled hitching, unhitching, and leveling of the trailer.
• Replaceable Bolt-On Components: Steel bumpers, fender brackets, and fenders are bolt-on for easy replacement, ensuring simple maintenance and cost-effective repairs.
• Rugged Powder-Coated Finish: The textured black powder coat protects the frame, actuator, and fenders from corrosion, scratches, and weather damage, ensuring long-lasting professional appearance and performance.
• D.O.T. Approved Lighting System: Equipped with tail lamps, stop lamps, turn signals, and side marker lamps that meet Department of Transportation (D.O.T.) standards for safe and compliant highway use.
• Weatherproof Trailer Wiring Harness: The rubber-armored, 2-piece light wiring harness is designed to resist moisture, abrasion, and wear, ensuring dependable electrical performance in all conditions.

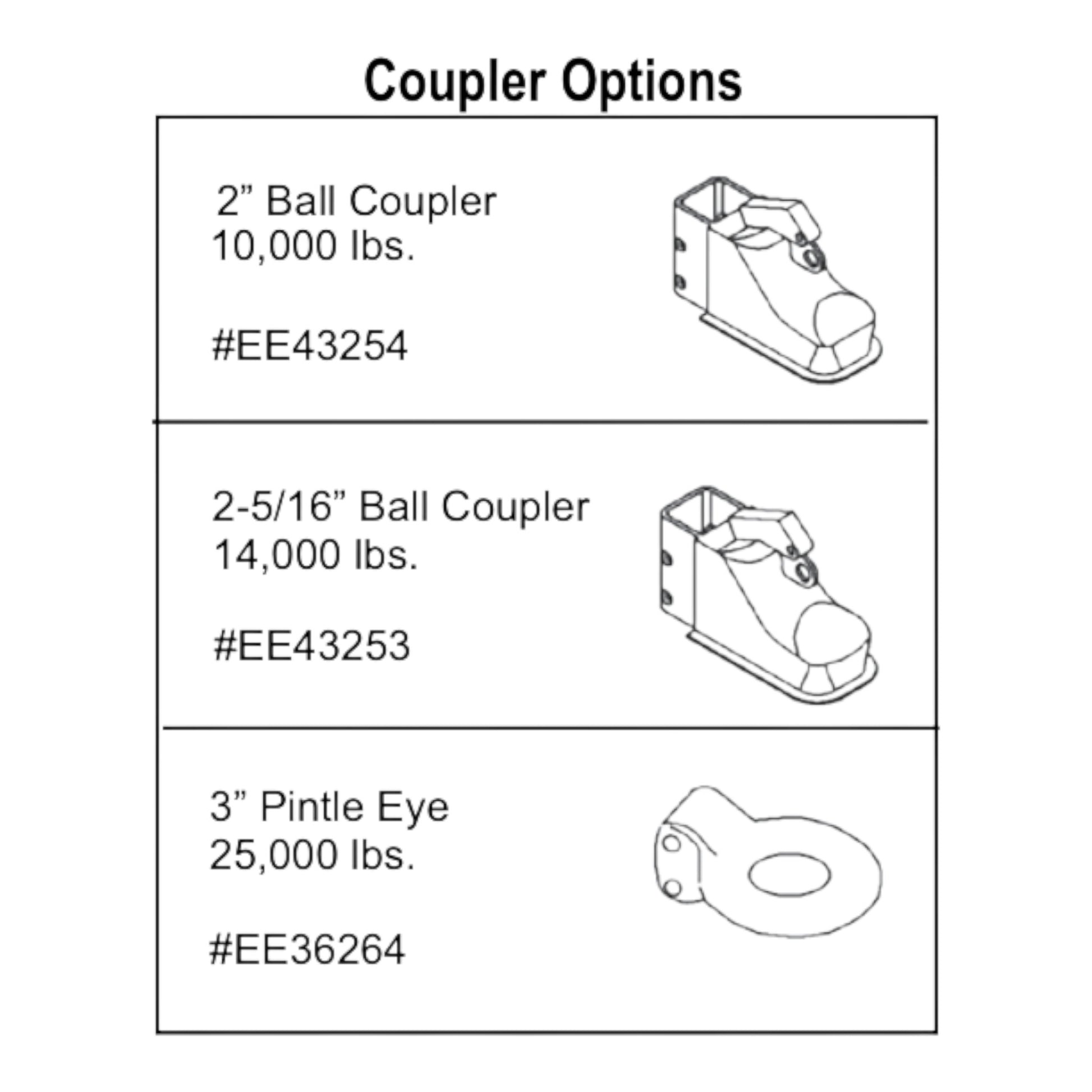

Coupler Options

• 3" Pintle Eye - 25,000 lbs. (11,339 kg)
• 2" Ball Coupler - 10,000 lbs. (4536 kg)
• 2-5/16" Ball Coupler - 14,000 lbs. (6350 kg)

Optional Accessories

• Storage Box 24 Inch High

Specifications

• Gross Vehicle Weight Rating (GVWR): 2,995 lbs (1,359 kg)
• Gross Axle Weight Rating (GAWR): 3,500 lbs (1,588 kg) (ea.)
• Tire Size: ST205/75R14 LR-C
• Wheel Bolt Pattern: 5 Lug
• Tire Load Rating: 1,760 lbs/798 kg (ea.)
• Trailer Weight: 444 lbs. (201 kg)
