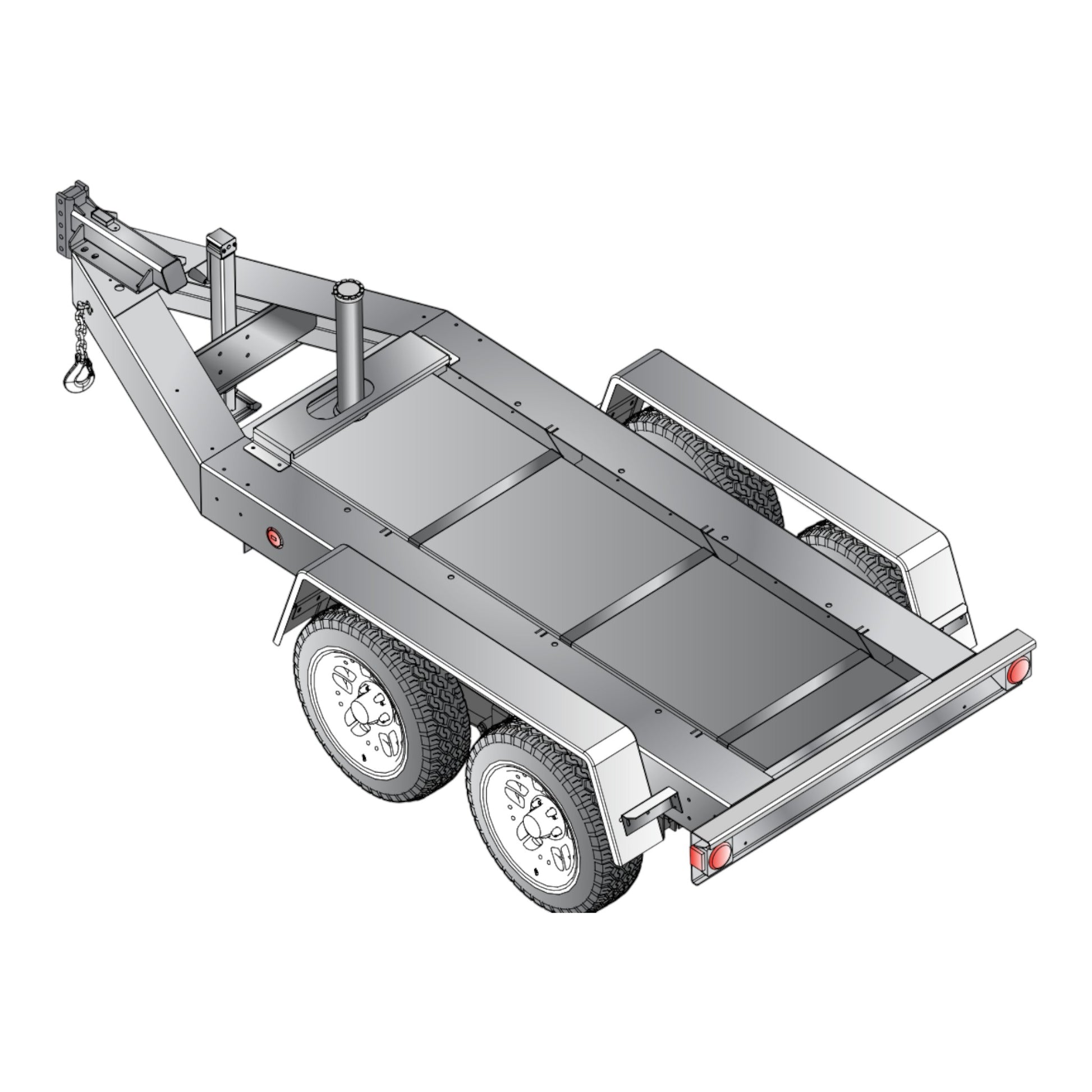

MQ Power TRLR502XF Tandem Axle Trailer

The MQ Power TRLR502XF Tandem Axle Trailer is engineered for reliable transport of the Multiquip DLW500ESA4 Welder/Generator. Built with a durable steel frame, integrated fuel cell, and DOT-compliant components, this trailer ensures safe, stable, and efficient performance in demanding construction and industrial environments.

FEATURES

• Model Options: TRLR502XFE with Electric Brake System or TRLR502XFH with Hydraulic Brake System
• Equipment Compatibility: Specifically designed to fit MQ Power Welder Model DLW500ESA4 for secure, balanced transport.
• Straight Tandem-Axle Design with Leaf Spring Suspension: Provides stable load distribution and smooth towing over uneven terrain.
• Heavy-Duty Welded Steel Frame Construction: Built for maximum durability and long service life under rigorous jobsite conditions.
• Formed Channel for Welder Mounting and Support: Ensures secure mounting and minimizes vibration during transport.
• Integral Fuel Cell: Single-wall steel design with 80-gallon capacity for extended operation and reduced refueling downtime.
• Replaceable Bolt-On Hydraulic Brake Actuator: Allows easy maintenance and ensures reliable braking performance.
• Adjustable Coupler Height: 4-hole channel provides 3-position adjustability (4 inches overall) for compatibility with multiple tow vehicles.
• Heavy-Duty Center-Mounted Jack: Drop-leg jack rated for 8,000 lbs (3,629 kg) lift capacity ensures solid trailer support and leveling.
• Replaceable Steel Fender Brackets and Fenders: Bolt-on components simplify maintenance and replacement while protecting against debris damage.
• Durable Powder-Coated Finish: Rugged textured black coating on frame, channel, actuator, and fenders provides corrosion resistance and a professional finish.
• D.O.T. Approved Lighting System: Includes tail lamps, stop lamps, turn signal lamps, and side marker lamps for complete road compliance and safety.
• Weatherproof Wiring Harness: Two-piece rubber-armored design ensures protection from moisture, vibration, and wear.
• Surge Hydraulic-Actuated Drum Brakes: Installed on all axles for smooth, reliable stopping power.
• Hydraulic Uni-Servo Drum Brakes: Equipped with 10-inch cluster and free-backing plates for consistent braking performance and control.
• D.O.T. Steel Brake Lines: Fitted with brass tees and rubber hydraulic hoses for dependable and corrosion-resistant operation.

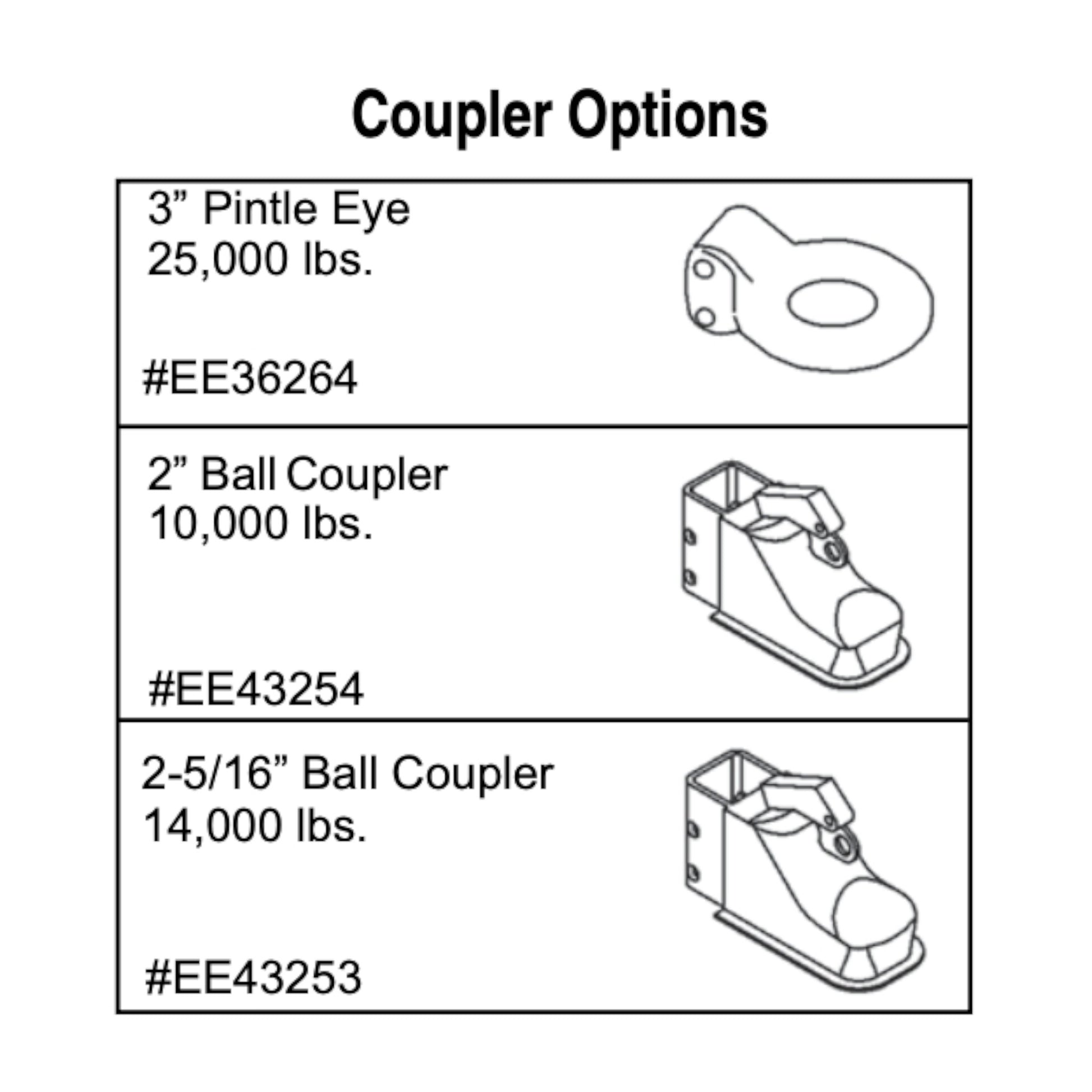

Coupler Options

• 3" Pintle Eye - 25,000 lbs
• 2" Ball Coupler - 10,000 lbs. (4536 kg)
• 2-5/16" Ball Coupler - 14,000 lbs. (6350 kg)

Specifications

• Gross Vehicle Weight Rating (GVWR): 6,000 lbs (2,722 kg)
• Gross Axle Weight Rating (GAWR): 3,500 lbs (1,588 kg) (ea.)
• Actuator Rating: 8,000 lbs. (3,629 kg)
• Tire Size: ST205/75D14 LR-C
• Wheel Bolt Pattern: 5 Lug
• Tire Load Rating: 1,760 lbs/657 kg (ea.)
• Trailer Weight: 1,593 lbs (723 kg)
