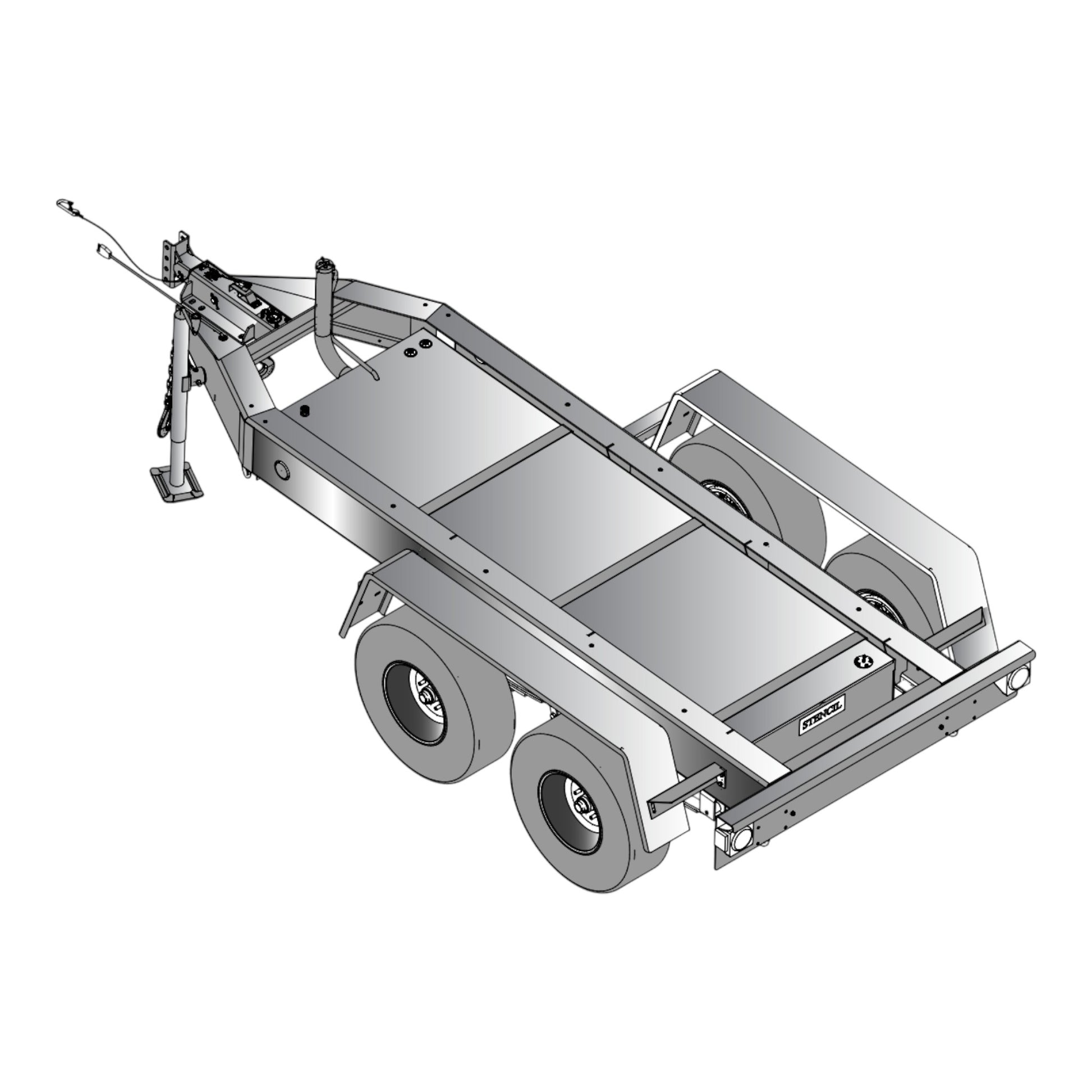

MQ Power TRLR75XF2 Tandem Axle Trailer

The MQ Power TRLR75XF2 Tandem Axle Trailer is engineered to provide unmatched stability and durability for transporting larger MQ Power generators. Designed for demanding job site conditions, it combines a heavy-duty steel frame, integrated fuel cell, and hydraulic braking system to ensure long-lasting performance and safety. Built for maximum reliability, the TRLR75XF2 meets all Department of Transportation (D.O.T.) regulations for road use while maintaining exceptional ease of operation and maintenance.

FEATURES

• Model Options: TRLR75XF2E with Electric Brake System or TRLR75XF2H with Hydraulic Brake System
• Generator Compatibility: Designed to fit MQ Power generator models DCA70SSIU4F and DCA70SSJU4F, ensuring secure mounting and transport stability.
• Straight Tandem-Axle Design with Spring Type Suspension: The spring suspension system provides even load distribution and smooth towing performance across varied terrain.
• Heavy-Duty Welded Steel Frame Construction: The fully welded steel frame is built to withstand rigorous use, offering superior strength and reliability for heavy equipment transport.
• Formed Channel Generator Mounting: Precision-formed channels support the generator and maintain proper balance, minimizing vibration during towing.
• Integral Fuel Cell: Single-wall steel fuel cell with a 100-gallon capacity provides extended runtime and durability, ideal for long job site operations.
• Replaceable Bolt-On Hydraulic Brake Actuator: Designed for easy servicing, the bolt-on actuator ensures consistent hydraulic performance and simplified maintenance.
• Adjustable Coupler Height: The 4-hole channel allows 3-position coupler height adjustment (4 inches overall), accommodating different towing vehicle setups.
• High-Capacity Swivel Jack: Tongue-mounted swivel jack with flat disc-foot rated for 3,000 lbs lift capacity provides easy hitching, leveling, and mobility on-site.
• Replaceable Steel Fenders, Brackets, and Bumper: Bolt-on components protect the trailer from debris and are easily replaceable for maintenance or repair.
• Durable Powder-Coated Finish: Rugged textured black powder coat applied to the frame, channel, actuator, and fenders resists corrosion, abrasion, and environmental wear.
• D.O.T. Approved Lighting System: Equipped with tail lamps, stop lamps, turn signal lamps, and side marker lamps that meet Department of Transportation (D.O.T.) safety standards.
• Weatherproof Wiring Harness: Three-piece, rubber-armored trailer light wiring harness ensures long-term electrical reliability even in harsh environments.
• Surge Hydraulic-Actuated Drum Brakes: Fitted with hydraulic uni-servo drum brakes featuring free-backing plates and a 10-inch cluster for smooth and dependable braking on all axles.
• D.O.T. Steel Brake Lines: Steel brake lines with brass tees and rubber hydraulic hoses provide maximum strength, corrosion resistance, and consistent braking pressure.

The MQ Power TRLR75XF2 Tandem Axle Trailer offers a perfect combination of strength, safety, and convenience. With its integrated 100-gallon fuel cell, hydraulic braking system, and heavy-duty frame, it is purpose-built for professional generator transport and reliable on-road performance.

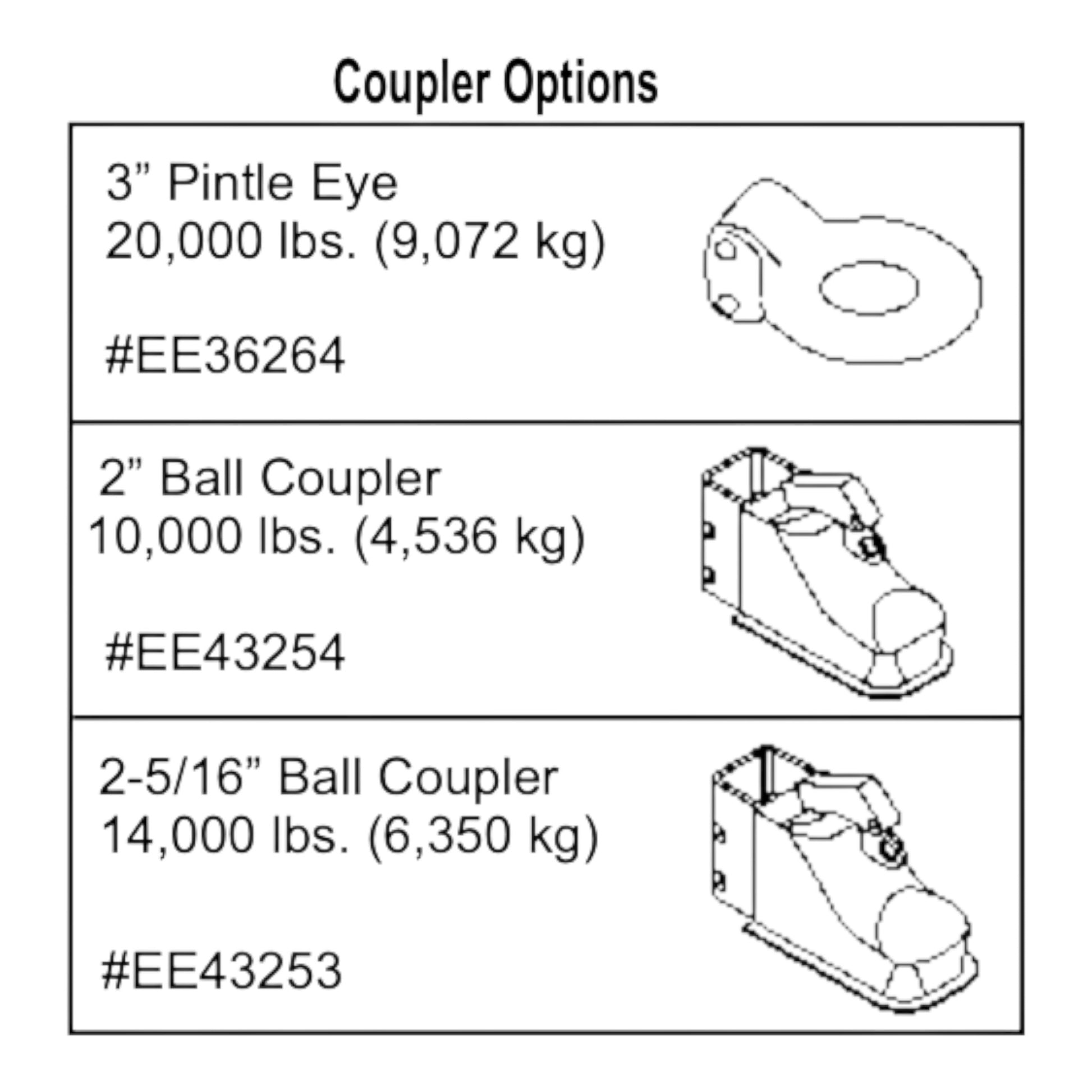

Coupler Options

• 3" Pintle Eye - 20,000 lbs. (9072 kg)
• 2" Ball Coupler - 10,000 lbs. (4536 kg)
• 2-5/16" Ball Coupler - 14,000 lbs. (6350 kg)

Optional Accessories

• Storage Box 12 Inch High - Side Mount

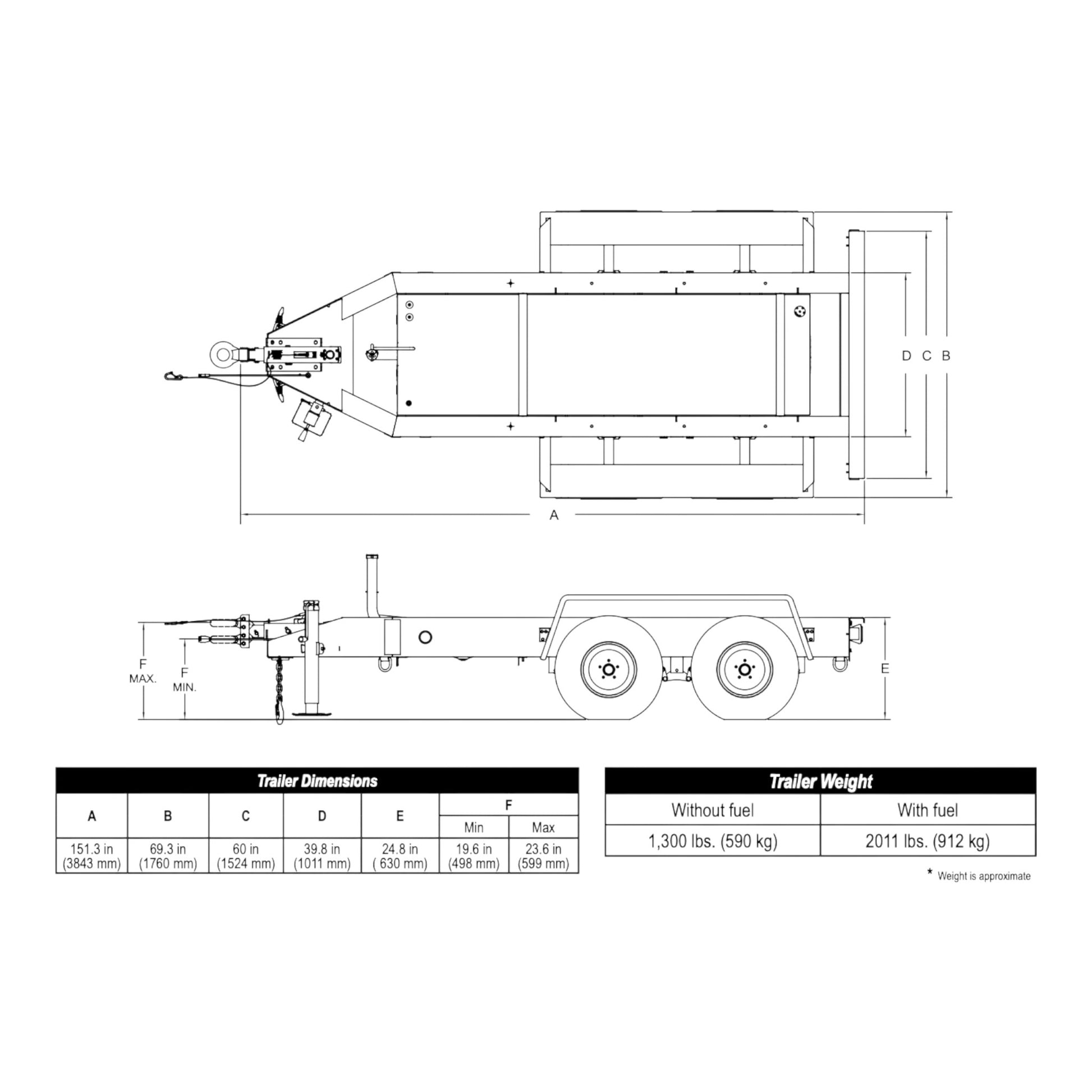

Specifications

• Gross Vehicle Weight Rating (GVWR): 7,000 lbs (3,175 kg)
• Gross Axle Weight Rating (GAWR): 3,500 lbs (1,588 kg) (ea.)
• Actuator Rating: 8,000 lbs. (3,629 kg)
• Tire Size: ST205/75R15 LR-C
• Wheel Bolt Pattern: 5 Lug on 4.5 in
• Tire Load Rating: 1,820 lbs/826 kg (ea.)
• Trailer Weight (without fuel): 1,300 lbs (590 kg
• Trailer Weight (with fuel): 2,011 lbs (912 kg
