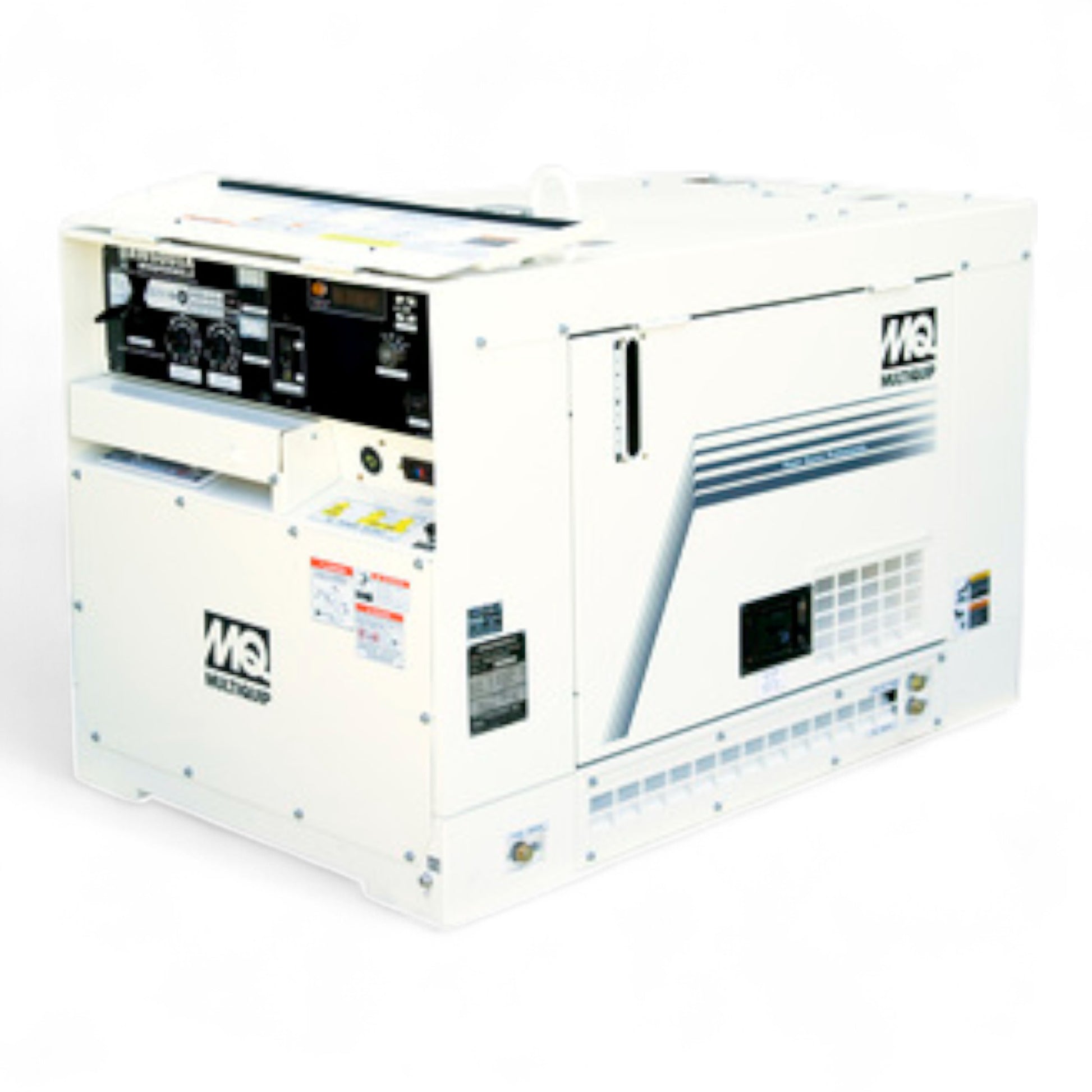

The Multiquip DAW500SA4 is a heavy-duty CC/CV welder and generator built for the most demanding industrial and construction applications. Delivering up to 500 amps of welding power and 3 kW of clean AC generator output, this model is designed for large-scale projects requiring deep penetration welding or carbon arc gouging. Powered by the reliable Kubota D1803 Tier 4 Final diesel engine, the DAW500SA4 ensures long service life, exceptional fuel efficiency, and low emissions. With rugged construction, quiet operation, and full compliance with OSHA and NEC standards, this unit is the ideal solution for professionals who demand power, precision, and durability in one compact package.

FEATURES:

Delivers up to 500 amps of DC welding output and 3 kW of clean 120/240V AC generator power
Supports both CC (constant current) and CV (constant voltage) welding modes for maximum flexibility
Maintains precise voltage regulation within ±10% for consistent, stable welding performance
Powered by a clean-burning, EPA Tier 4 Final Kubota D1803 diesel engine for durability and reliability
Electric start, lifting bail, and external oil/fuel drains included as standard features for operator convenience
Supports SMAW, FCAW, GMAW, GTAW, and ACAC welding processes
Sound-attenuated cabinet reduces operating noise to 74 dBA @ 23 feet for quieter jobsite operation
Full panel GFCI protection, OSHA and NEC compliant for jobsite safety

Optional Accessories and Attachments

TRLRMP - Single axle trailer (Heavy duty)
TRLRMPXF - Single axle trailer (Heavy duty) with 28 gallon fuel
MQPSBTRLRMP - Trailer Tool box 3.5 cu.ft.
MQPCCTRLRMP - Cable Carrier (Supports 400' welding cable)

Specifications

DC Voltage: CC: 38 V and CV: 16-40 V
DC Current: CC: 500 A and CV: 500 A
Current Range: 40-500 A
Max Duty Cycle w/ Full Amps Availible: 100% @350 A
Welding Processes: SMAW, FCAW, GMAW, GTAW, ACAC
Fuel Tank Capacity: 12 gal
Fuel Consumption at Rated Load: 1.3 gph
Length: 52 in (1330 mm)
Width: 31.49 in (800 mm)
Height: 44.48 in (1130 mm)
Shipping Dimensions: 52 x 31.49 x 44.48 in (1330 x 800 x 1130 mm)
Operating Weight: 1302 lb (591 kg)
Shipping Weight: 1175 lb (533 kg)

Generator Specifications

AC Power Output (Single Phase): 3 kW
Cycle: 50/60 Hz
Voltage: 120 V
Amperage: 25 A
Voltage Regulation: 7 %
Receptacles: NEMA 5-20R 125V GFCI 20A, NEMA L5-30R 125V Twist-Lock 30A
