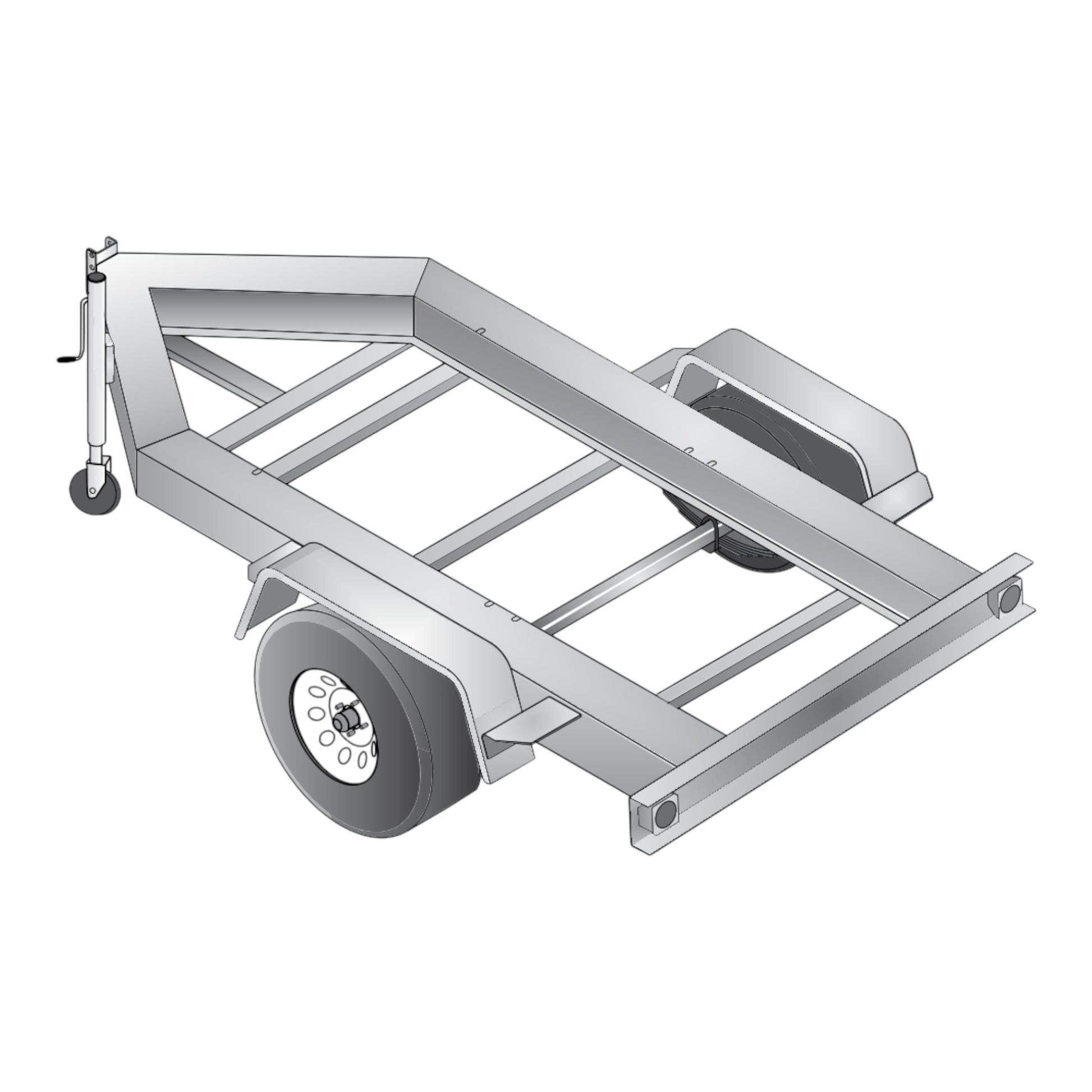

MQ Power TRLRMP Single Axle Trailer

The MQ Power TRLRMP Single Axle Trailer is engineered to provide rugged, dependable transport for compact MQ Power generator models, including the DA7000, DCA10SPX, TLG12SPX, and DCA15SPX. Built with a heavy-duty welded steel frame and a leaf spring suspension system, this trailer ensures stable towing performance and long-lasting durability. Whether you choose the standard TRLRMP or the TRLRMPE model with electric brakes, both options deliver unmatched reliability and mobility for field and jobsite power applications.

FEATURES

• Model Options: Choose between the TRLRMP standard configuration or the TRLRMPE model, which includes electric brakes for enhanced safety and braking performance during transport.
• Generator Compatibility: Specifically designed to fit MQ Power generator models DA7000, DCA10SPX, TLG12SPX, and DCA15SPX, ensuring a precise and secure mounting configuration for dependable transport.
• Single-Axle Design with Leaf Spring Suspension: The single-axle setup provides smooth, stable towing while the leaf spring suspension system absorbs road shock, protecting your generator from vibration and impact during transit.
• Heavy-Duty Welded Steel Frame: Constructed from industrial-grade steel, the fully welded frame offers exceptional strength and rigidity for long-term durability in rugged jobsite conditions.
• Formed Channel Generator Mounting System: Precision-engineered formed steel channel securely supports the generator while maintaining proper alignment and balance for safe towing.
• Adjustable Coupler Height: A 4-hole channel allows 3-position adjustment (4 inches overall), ensuring optimal trailer-to-vehicle alignment for safe and efficient towing on varying terrains.
• Swivel Jack with Caster Wheel: The tongue-mounted 1,000 lb. capacity swivel jack includes a caster wheel for easy maneuvering, quick hitching, and stability during stationary use.
• Replaceable Bolt-On Steel Fenders: Durable bolt-on fenders are easy to replace and provide superior protection from debris, maintaining trailer performance and safety over time.
• Powder-Coated Finish: The powder coat paint process protects the frame, channel, actuator, and fenders from rust, corrosion, and weather damage — extending trailer life and maintaining a professional appearance.
• D.O.T. Approved Lighting System: Equipped with tail lamps, stop lamps, turn signals, and side marker lamps that meet Department of Transportation (D.O.T.) standards for safe and compliant highway use.

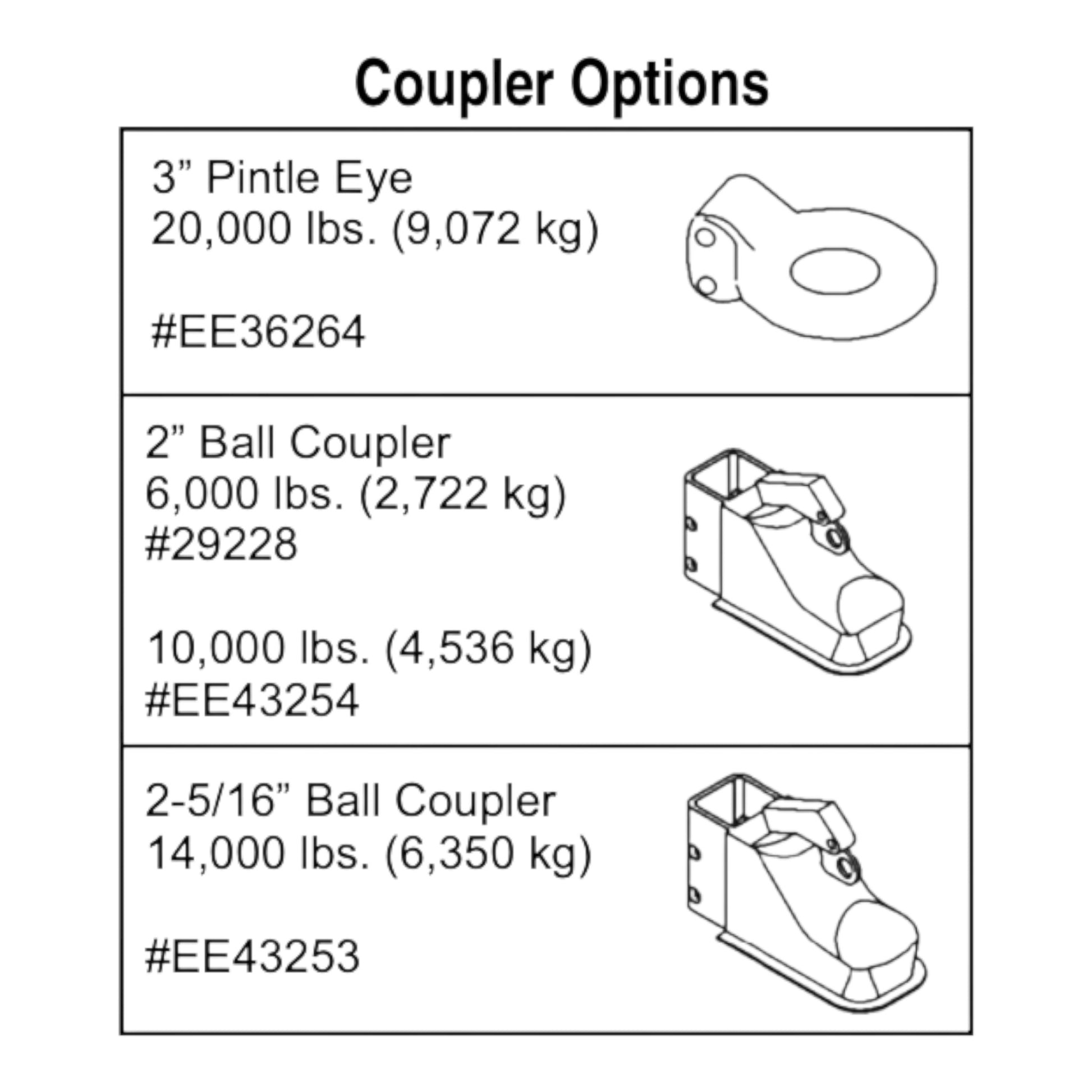

Coupler Options

• 3" Pintle Eye - 20,000 lbs. (9072 kg)
• 2" Ball Coupler - 6,000 lbs. (2722 kg)
• 2" Ball Coupler - 10,000 lbs. (4536 kg)
• 2-5/16" Ball Coupler - 14,000 lbs. (6350 kg)

Optional Accessories

• Storage Box 16 Inch High

Specifications

• Gross Vehicle Weight Rating (GVWR): 2,000 lbs (907 kg)
• Gross Axle Weight Rating (GAWR): 3,500 lbs (1,587 kg) (ea.)
• Tire Size: ST175/80D13 LR-C
• Wheel Bolt Pattern: 5 Lug on 4.5 in
• Tire Load Rating: 1,360 lbs/617 kg (ea.)
• Trailer Weight: 383 lbs. (174 kg)
