Billy Goat DL1402VE Debris Loader, Vanguard 14 Hp, Electric Start, Dual Shredding System

The Billy Goat DL1402VE Debris Loader is a rugged commercial-duty truck loader designed for landscaping contractors, municipalities, grounds crews, and property maintenance professionals handling high-volume leaf and debris collection. Powered by a 14 gross HP Vanguard engine with electric start and delivering 3,700 CFM (104.8 m³/min) of airflow, the DL1402VE combines strong commercial suction with a dual shredding system that reduces debris by up to 12:1. Multiple mounting options, a 10 in × 10 ft (25 cm × 3 m) intake hose, and heavy-duty construction make it a versatile solution for truck and trailer-based cleanup operations.

KEY FEATURES

• 3,700 CFM (104.8 M³/MIN) COMMERCIAL SUCTION: The DL1402VE produces 3,700 CFM (104.8 m³/min) of airflow for high-volume collection of leaves and loose landscape debris. This powerful suction capability helps commercial crews load trucks and trailers efficiently during demanding seasonal cleanup operations.
• DUAL SHREDDING SYSTEM WITH PIRANHA™ BLADE: The dual shredding system uses serrated Piranha™ blade cutting points to provide additional debris reduction before material enters the truck or trailer. Debris can be reduced by up to 12:1, helping maximize available cargo capacity and reduce the frequency of unloading trips.

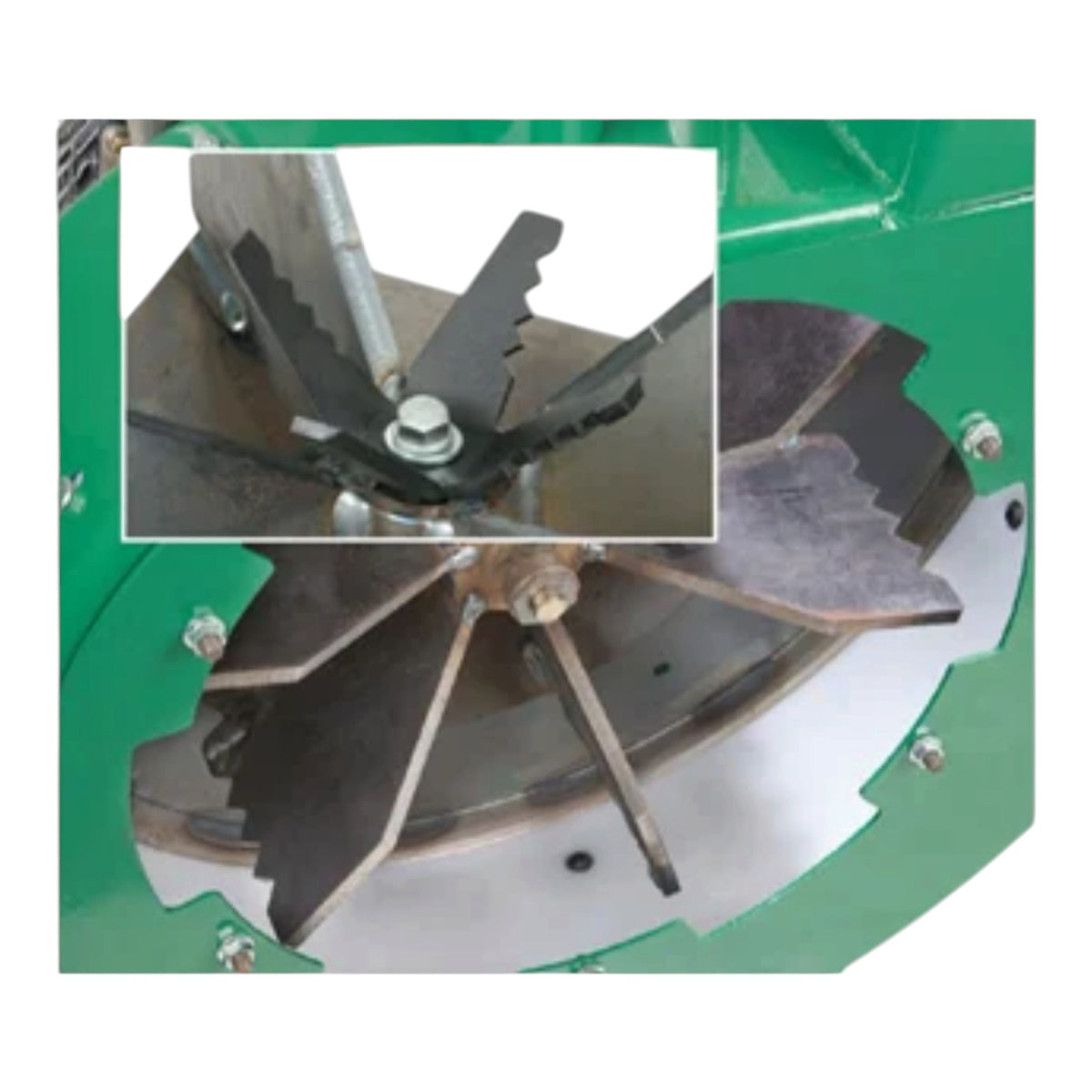

• 16 IN (40.6 CM) ARMOR PLATE STEEL IMPELLER: A heavy-duty 16 in (40.6 cm) diameter armor plate steel impeller provides the durability and shredding performance required for commercial debris loading. The four-blade impeller incorporates eight cutting points to process incoming leaves and debris efficiently.
• SQUARE DISCHARGE ELBOW: The square discharge elbow is designed to provide increased durability, longer service life, and easier servicing. Its heavy-duty configuration supports recurring commercial use where equipment reliability and productivity are important.
• UP TO 12:1 DEBRIS REDUCTION: The dual shredding system reduces collected material by as much as 12:1 before it is discharged into the truck or trailer. Greater debris reduction helps crews carry more material per load, increasing productivity and potentially reducing disposal trips and associated costs.
• 14 GROSS HP VANGUARD ENGINE: The DL1402VE is powered by a Vanguard engine with 24.9 cu in (408 cc) displacement and a listed output of 14 gross HP. Electric starting provides convenient engine startup for commercial crews that may start and stop the loader repeatedly throughout the workday.
• HEAVY-DUTY 12-GAUGE STEEL HOUSING: The rugged 12-gauge steel housing is designed to withstand demanding commercial debris-loading applications while supporting maximum suction performance. Heavy-duty construction makes the loader suitable for repeated seasonal and professional use.
• REPLACEABLE POLY LINER: A replaceable poly liner helps protect areas of the housing exposed to repeated contact with leaves and debris. The replaceable design provides a serviceable wear component for equipment subjected to demanding commercial cleanup conditions.
• 10 IN × 10 FT (25 CM × 3 M) INTAKE HOSE: The clear poly helical coil intake hose measures 10 in (25 cm) in diameter and 10 ft (3 m) in length. Its large diameter and practical reach allow operators to move substantial quantities of leaves and debris from collection piles into the loader.
• MULTIPLE MOUNTING OPTIONS: The DL1402VE can be mounted using an optional hanger kit, skid mounted to a compatible truck or trailer bed, or mounted to a Class III truck hitch. These options give commercial operators flexibility when configuring the loader for different vehicles and work requirements.

APPLICATIONS / USE CASES

• COMMERCIAL LEAF REMOVAL: The DL1402VE is designed for professional crews handling high-volume seasonal leaf collection. Its 3,700 CFM (104.8 m³/min) airflow and large 10 in (25 cm) intake hose help move substantial quantities of material efficiently.
• LANDSCAPING CONTRACTORS: Professional landscaping crews can use the DL1402VE for residential, commercial, institutional, and multi-property cleanup routes. The dual shredding system helps maximize truck or trailer capacity so crews can spend more time collecting material and less time unloading.
• MUNICIPAL LEAF COLLECTION: Municipal and public works crews can use the DL1402VE for seasonal leaf and debris collection throughout neighborhoods, parks, streets, and other maintained areas. Multiple mounting options allow the loader to be integrated with compatible municipal trucks and trailers.
• TRUCK AND TRAILER LOADING: The loader is designed to transfer collected leaves and loose debris directly into compatible trucks or trailers. Debris reduction of up to 12:1 helps maximize available cargo space before crews need to unload.
• MULTI-PROPERTY CLEANUP: High airflow and substantial debris reduction make the DL1402VE useful for crews servicing multiple properties in a single route. Processing debris before loading can increase the amount of material carried between disposal trips.
• COMMERCIAL PROPERTY MAINTENANCE: Grounds and facility maintenance crews can use the loader to handle seasonal leaves and loose landscape debris across campuses, commercial properties, parks, and other larger grounds. Electric starting provides additional convenience during recurring daily operations.
• HIGH-VOLUME SEASONAL CLEANUP: The 16 in (40.6 cm) armor plate steel impeller, eight cutting points, and 3,700 CFM (104.8 m³/min) airflow make the DL1402VE suitable for demanding fall cleanup operations. Its heavy-duty housing is designed for professional use where large quantities of debris must be processed.
• CUSTOM TRUCK AND TRAILER INSTALLATIONS: Hanger, skid, receiver hitch, and swing-away mounting options allow operators to configure the loader around different work vehicles. Optional discharge extensions and related components provide additional installation flexibility.

WHAT'S INCLUDED

• One Billy Goat DL1402VE Debris Loader
• 14 gross HP Vanguard gasoline engine
• Electric-start system
• Dual shredding system with Piranha™ blade
• 16 in (40.6 cm) diameter armor plate steel impeller
• Four-blade impeller with eight cutting points
• Replaceable poly liner
• 12-gauge steel housing
• 10 in × 10 ft (25 cm × 3 m) clear poly helical coil intake hose
• 6 in (15 cm) square discharge
• Square discharge elbow

Optional mounting kits, carriers, hoses, exhaust components, discharge extensions, liners, and other listed accessories are sold separately unless otherwise specified.

OPTIONAL ACCESSORIES

• EXHAUST DEFLECTOR KIT: The Exhaust Deflector Kit provides an additional exhaust-management option for compatible debris-loader installations. It can help operators configure exhaust direction according to the loader's mounting position and vehicle setup.
• WHIPTRAILER DL: The Whiptrailer DL provides an accessory option for compatible debris-loader applications. Confirm mounting requirements, included components, and compatibility with the intended DL1402VE configuration before ordering.
• OIL DRAIN HOSE KIT: The Oil Drain Hose Kit is designed to simplify routine engine oil service on compatible equipment. Easier oil drainage can help make scheduled maintenance more convenient for commercial operators and fleet maintenance personnel.
• CUSTOMFIT VERTICAL EXTENSION KIT – 15 5/8 IN (39.7 CM): The CustomFit™ Vertical Extension Kit adds 15 5/8 in (39.7 cm) of height to compatible discharge configurations. This provides additional flexibility when adapting the loader to different truck or trailer body heights.
• STEEL LINER KIT: The Steel Liner Kit provides an alternate heavy-duty liner option for compatible loader configurations. It can provide additional protection in areas exposed to repeated contact with abrasive leaves, sticks, and other landscape debris.
• 15 5/8 IN (39.7 CM) VERTICAL EXHAUST EXTENSION: This vertical extension adds 15 5/8 in (39.7 cm) to compatible configurations. The additional height allows operators to adapt the discharge arrangement to different vehicle and collection-body requirements.
• 5 FT (1.52 M) URETHANE DISCHARGE EXTENSION: The urethane discharge extension provides an additional 5 ft (1.52 m) of flexible discharge reach. It can help route processed material into a compatible truck or trailer based on the loader's mounting position.
• HANGER KIT – TAILGATE STYLE: The tailgate-style Hanger Kit provides one of the listed mounting methods for the DL1402VE. It allows the loader to be configured for compatible tailgate installations without requiring permanent skid mounting to the truck or trailer bed.
• HOSE 10 IN × 10 FT (25 CM × 3 M), CLEAR URETHANE: This clear urethane hose provides a 10 in (25 cm) diameter and 10 ft (3 m) length for compatible debris-loading applications. It provides the large-diameter pickup capacity needed for high-volume leaf and debris collection.
• ROTATIONAL KIT FOR SQUARE ELBOW: The Rotational Kit provides additional positioning capability for the compatible square discharge elbow. This can make it easier to configure discharge direction according to the truck, trailer, or mounting arrangement.
• HOSE 8 IN × 16.5 FT (20 CM × 5.03 M): This hose provides an 8 in (20 cm) diameter and extended 16.5 ft (5.03 m) length. The additional reach can help crews collect debris across a larger work area without repositioning the loader or vehicle as frequently.
• HOSE 12 IN × 10 FT (30.5 CM × 3.05 M), CLEAR URETHANE: This clear urethane hose provides a larger 12 in (30.5 cm) diameter and 10 ft (3.05 m) length for compatible applications. Compatibility with the specific DL1402VE configuration should be confirmed before ordering or installation.
• RECEIVER HITCH CARRIER: The Receiver Hitch Carrier provides a mounting option for compatible vehicles equipped with an appropriate hitch configuration. The DL1402VE can be mounted to a Class III truck hitch, giving crews an alternative to tailgate or skid mounting.
• SWING AWAY HITCH: The Swing Away Hitch provides a mounting solution that allows compatible debris-loader installations to move away from the vehicle access area when required. This can improve access to the truck or trailer while retaining a hitch-mounted loader configuration.

TECHNICAL SPECIFICATIONS – DL1402VE

• MANUFACTURER: Billy Goat
• MODEL: DL1402VE
• PRODUCT TYPE: Commercial debris loader / truck loader
• ENGINE BRAND: Vanguard
• ENGINE DISPLACEMENT: 24.9 cu in (408 cc)
• ENGINE POWER: 14 gross HP
• STARTER TYPE: Electric
• DRIVE: Direct
• AIRFLOW: 3,700 CFM (104.8 m³/min)
• SHREDDING SYSTEM: Dual shredding system with Piranha™ blade
• MAXIMUM DEBRIS REDUCTION: Up to 12:1
• IMPELLER DIAMETER: 16 in (40.6 cm)
• IMPELLER: 4 blades with 8 cutting points
• IMPELLER MATERIAL: Armor plate steel
• HOUSING: 12-gauge steel
• LINER: Replaceable poly liner
• HOSE DIMENSIONS: 10 in × 10 ft (25 cm × 3 m)
• HOSE TYPE: Clear poly helical coil
• DISCHARGE SIZE: 6 in (15 cm) square
• MOUNTING OPTIONS: Optional hanger kit, skid mount to truck or trailer bed, or Class III truck hitch
• WEIGHT: 279 lb (127 kg)
• LENGTH: 31 in (79 cm)
• WIDTH: 27 in (69 cm)
• HEIGHT: 48 in (122 cm)

FREQUENTLY ASKED QUESTIONS (FAQ)

1. How much airflow does the Billy Goat DL1402VE produce?

The DL1402VE produces 3,700 CFM (104.8 m³/min) of airflow. This high-volume suction is designed for commercial leaf and debris collection and efficient loading into compatible trucks or trailers.

2. How much can the DL1402VE reduce leaf and debris volume?

The dual shredding system can reduce collected debris by up to 12:1. This allows crews to fit more processed material into a truck or trailer before unloading, helping increase productivity during high-volume cleanup work.

3. What type of intake hose does the DL1402VE use?

The listed intake hose measures 10 in × 10 ft (25 cm × 3 m) and uses a clear poly helical coil construction. Additional hose options are available separately for compatible applications.

4. How can the DL1402VE be mounted?

The loader can be mounted using an optional hanger kit, skid mounted to a compatible truck or trailer bed, or mounted to a Class III truck hitch. The appropriate mounting method depends on the work vehicle, collection body, and operating requirements.

5. What is the advantage of the Piranha™ blade and dual shredding system?

The Piranha™ blade uses serrated cutting points to provide additional shredding as material passes through the loader. Combined with the 16 in (40.6 cm) armor plate steel impeller and its eight cutting points, the system reduces debris volume by up to 12:1 to maximize truck or trailer loading capacity.
